AEG BPE748380M User Manual

BPE748380M

USER MANUAL

EN User Manual

Oven

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips Environmental information

Subject to change without notice.

2/56

CONTENTS
1. SAFETY INFORMATION...............................................................................		5
1.1	Children and vulnerable people safety.............................................................	5
1.2	General Safety..................................................................................................	5
2. SAFETY INSTRUCTIONS..............................................................................		7
2.1	Installation.........................................................................................................	7
2.2	Electrical connection.........................................................................................	8
2.3	Use...................................................................................................................	8
2.4	Care and cleaning.............................................................................................	9
2.5	Pyrolytic cleaning..............................................................................................	9
2.6	Internal lighting...............................................................................................	10
2.7	Service............................................................................................................	10
2.8	Disposal..........................................................................................................	10
3. PRODUCT DESCRIPTION...........................................................................		11
3.1	General overview............................................................................................	11
3.2	Accessories....................................................................................................	11
4. HOW TO TURN OVEN ON AND OFF..........................................................		13
4.1	Control panel..................................................................................................	13
4.2	Display............................................................................................................	13
5. BEFORE FIRST USE...................................................................................		16
5.1	Initial Cleaning ...............................................................................................	16
5.2	First connection..............................................................................................	16
5.3	Wireless connection........................................................................................	16
5.4	Software licences............................................................................................	17
5.5	Initial preheating.............................................................................................	17
6. DAILY USE...................................................................................................		19
6.1	How to set: Heating functions.........................................................................	19
6.2	How to set: Assisted cooking..........................................................................	19
6.3	Heating functions............................................................................................	20
6.4	Notes on: Moist Fan Baking............................................................................	22
7. CLOCK FUNCTIONS...................................................................................		23
7.1	Clock functions description.............................................................................	23
7.2	How to set: Clock functions............................................................................	23
8. HOW TO USE: ACCESSORIES..................................................................		26
8.1	Inserting accessories......................................................................................	26
8.2	Using telescopic runners................................................................................	26
8.3	Food Sensor...................................................................................................	27
9. ADDITIONAL FUNCTIONS..........................................................................		31
9.1	How to save: Favourites.................................................................................	31
9.2	Function lock...................................................................................................	31
9.3	Automatic switch-off........................................................................................	31
9.4	Cooling fan......................................................................................................	32
10. HINTS AND TIPS.......................................................................................		33
10.1 Cooking recommendations...........................................................................		33
10.2 Moist Fan Baking..........................................................................................		33

3/56

CONTENTS
10.3	Moist Fan Baking - recommended accessories............................................	34
10.4	Cooking tables for test institutes...................................................................	34
11. CARE AND CLEANING.............................................................................		37
11.1	Notes on cleaning.........................................................................................	37
11.2	How to remove: Shelf supports ....................................................................	37
11.3	How to use: Pyrolytic cleaning......................................................................	38
11.4	Cleaning Reminder.......................................................................................	39
11.5	How to remove and install: Door...................................................................	39
11.6	How to replace: Lamp...................................................................................	40
12. TROUBLESHOOTING...............................................................................		42
12.1	What to do if..................................................................................................	42
12.2	How to manage: Error codes........................................................................	43
12.3	Service data..................................................................................................	44
13. ENERGY EFFICIENCY..............................................................................		45
13.1	Product Information and Product Information Sheet*...................................	45
13.2	Energy saving...............................................................................................	45
14. MENU STRUCTURE..................................................................................		47
14.1	Menu.............................................................................................................	47
14.2	Submenu for: Cleaning.................................................................................	47
14.3	Submenu for: Options...................................................................................	47
14.4	Submenu for: Connections...........................................................................	48
14.5	Submenu for: Setup......................................................................................	48
14.6	Submenu for: Service...................................................................................	49
15. IT'S EASY!..................................................................................................		50
16. TAKE A SHORTCUT!................................................................................		52

4/56

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

•Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.

•Do not let children play with the appliance and mobile devices with My AEG Kitchen.

•Keep all packaging away from children and dispose of it appropriately.

•Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts may become hot during use.

•If the appliance has a child safety device, it should be activated.

•Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

•Only a qualified person must install this appliance and replace the cable.

5/56

SAFETY INFORMATION

•WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

•Always use oven gloves to remove or put in accessories or ovenware.

•Before carrying out any maintenance, disconnect the appliance from the power supply.

•WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

•Do not use the appliance before installing it in the built-in structure.

•Do not use a steam cleaner to clean the appliance.

•Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

•If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

•Excessive spillage must be removed before the pyrolytic cleaning. Remove all parts from the oven.

•To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.

•The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

•Use only the food sensor (core temperature sensor) recommended for this appliance.

6/56

2.SAFETY INSTRUCTIONS

2.1Installation

WARNING!

Only a qualified person must install this appliance.

•Remove all the packaging.

•Do not install or use a damaged appliance.

•Follow the installation instructions supplied with the appliance.

•Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

•Do not pull the appliance by the handle.

•Install the appliance in a safe and suitable place that meets installation requirements.

•Keep the minimum distance from other appliances and units.

•Before mounting the appliance, check if the oven door opens without restraint.

•The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.

•The built-in unit must meet the stability requirements of DIN 68930.

Cabinet minimum height (Cabinet under the work	600 (600) mm
top minimum height)
Cabinet width	550 mm
Cabinet depth	605 (580) mm
Height of the front of the appliance	594 mm
Height of the back of the appliance	576 mm
Width of the front of the appliance	549 mm
Width of the back of the appliance	548 mm
Depth of the appliance	567 mm
Built in depth of the appliance	546 mm
Depth with open door	1017 mm
Ventilation opening minimum size. Opening placed	550 x 20 mm
on the bottom rear side
Mounting screws	4 x 12 mm

7/56

SAFETY INSTRUCTIONS

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

•All electrical connections should be made by a qualified electrician.

•The appliance must be earthed.

•Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

•Always use a correctly installed shockproof socket.

•Do not use multi-plug adapters and extension cables.

•Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

•Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.

•The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

•Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

•If the mains socket is loose, do not connect the mains plug.

•Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

•Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

•The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

•Fully close the appliance door before you connect the mains plug to the mains socket.

•This appliance is supplied without a main plug and a main cable.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

•This appliance is for household use only.

•Do not change the specification of this appliance.

•Make sure that the ventilation openings are not blocked.

•Do not let the appliance stay unattended during operation.

•Deactivate the appliance after each use.

•Be careful when you open the appliance door while the appliance is in operation. Hot air can release.

•Do not operate the appliance with wet hands or when it has contact with water.

•Do not apply pressure on the open door.

•Do not use the appliance as a work surface or as a storage surface.

•Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.

•Do not let sparks or open flames to come in contact with the appliance when you open the door.

8/56

SAFETY INSTRUCTIONS

•Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

•Do not share your Wi-Fi password.

WARNING!

Risk of damage to the appliance.

•To prevent damage or discoloration to the enamel:

–do not put ovenware or other objects in the appliance directly on the bottom.

–do not put aluminium foil directly on the bottom of cavity of the appliance.

–do not put water directly into the hot appliance.

–do not keep moist dishes and food in the appliance after you finish the cooking.

–be careful when you remove or install the accessories.

•Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.

•Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.

•This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

•Always cook with the oven door closed.

•If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

•Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

•Make sure the appliance is cold. There is the risk that the glass panels can break.

•Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.

•Be careful when you remove the door from the appliance. The door is heavy!

•Clean regularly the appliance to prevent the deterioration of the surface material.

•Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

•If you use an oven spray, follow the safety instructions on its packaging.

2.5 Pyrolytic cleaning

WARNING!

Risk of Injury / Fires / Chemical Emissions (Fumes) in Pyrolytic Mode.

•Before carrying out a Pyrolitic self-cleaning function or the First Use please remove from the oven cavity:

–any excess food residues, oil or grease spills / deposits.

–any removable objects (including shelves, side rails etc., provided with the product) particularly any non-stick pots, pans, trays, utensils etc.

•Read carefully all the instructions for Pyrolytic cleaning.

9/56

SAFETY INSTRUCTIONS

•Keep children away from the appliance while the Pyrolytic cleaning operates.

The appliance becomes very hot and hot air is released from the front cooling vents.

•Pyrolytic cleaning is a high temperature operation that can release fumes from cooking residues and construction materials, as such consumers are strongly advised to:

–provide good ventilation during and after each Pyrolytic cleaning.

–provide good ventilation during and after the first use at maximum temperature operation.

•Unlike all humans, some birds and reptiles can be extremely sensitive to potential fumes emitted during the cleaning process of all Pyrolytic Ovens.

–Remove any pets (especially birds) from the vicinity of the appliance location during and after the Pyrolytic cleaning and first use maximum temperature operation to a well ventilated area.

•Small pets can also be highly sensitive to the localized temperature changes in the vicinity of all Pyrolytic Ovens when the Pyrolytic self cleaning program is in operation.

•Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high temperature Pyrolytic cleaning operation of all Pyrolytic Ovens and can be also a source for low level harmful fumes.

•Fumes released from all Pyrolytic Ovens / Cooking Residues as described are not harmful to humans, including children, or persons with medical conditions.

2.6 Internal lighting

WARNING!

Risk of electric shock.

•The type of light bulb or halogen lamp used for this appliance is for household appliances only. Do not use it for house lighting.

•Before replacing the lamp, disconnect the appliance from the power supply.

•Use only lamps with the same specifications.

2.7 Service

•To repair the appliance contact the Authorised Service Centre.

•Use original spare parts only.

2.8 Disposal

WARNING!

Risk of injury or suffocation.

•Disconnect the appliance from the mains supply.

•Cut off the mains electrical cable close to the appliance and dispose of it.

•Remove the door catch to prevent children or pets from becoming trapped in the appliance.

10/56

3. PRODUCT DESCRIPTION

3.1 General overview

	1	2	1	Control panel
			2	Display
		3	3	Socket for the food sensor
		4	4	Heating element
	5	5	5	Lamp
	4		6	Fan

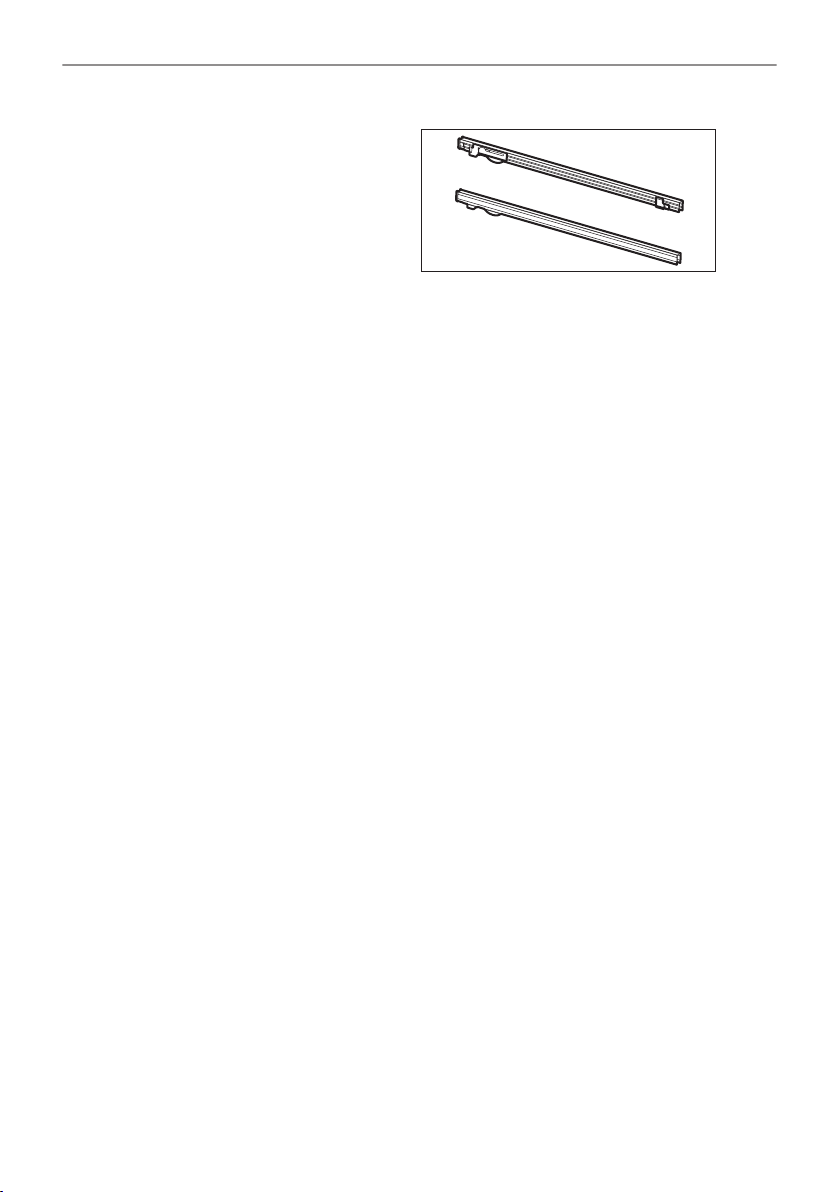

8	3	6	7	Shelf support, removable
	2
			8	Shelf positions
	1

7

3.2 Accessories

Wire shelf

For cookware, cake tins, roasts.

Baking tray

For cakes and biscuits.

Grill- / Roasting pan

To bake and roast or as a pan to collect fat.

Food sensor

To measure the temperature inside food.

11/56

PRODUCT DESCRIPTION

Telescopic runners

For inserting and removing trays and wireshelf more easily.

12/56

4. HOW TO TURN OVEN ON AND OFF

4.1 Control panel

								1			2		3			4					5		6
			On / Off												Press and hold to turn the oven on and off.
	1
			Menu												Lists the oven functions.
	2
			Favourites												Lists the favourite settings.
	3
			Display												Shows the current settings of the oven.
	4
			Lamp switch												To turn the lamp on and off.
	5
			Fast heat up												To turn on and off the function: Fast heat up.
	6

Press	Move	Press and hold
Touch the surface with finger	Slide fingertip over the sur	Touch the surface for 3 sec
tip.	face.	onds.

4.2 Display

	After turning on, the display shows the main
12:30
	screen with the heating function and the default
150°C	temperature.

START

13/56

HOW TO TURN OVEN ON AND OFF

If you do not use the oven for 2 minutes, the

display goes to standby.

12:34

When you cook, the display shows the set

12:30

functions and other available options.

150°C

11MIN

STOP

A

B

The display with the maximum number of func

tions set.

12:30

A.

Wi-Fi

150°C

B.

Time of day

85°C

C. START / STOP

D.

Temperature

15min

START

E.

Heating functions

F.

Timer

G

F

E

D

C

G.

Food sensor (selected models only)

Display indicators

Basic indicators - to navigate on the display.

	To set the	To confirm	To go one	To undo the	To turn the options on and
		the selection /	level back in
	temperature.			last action.	off.
		setting.	the menu.

Sound alarm function indicators - when the set time of cooking ends, the signal sounds.

The function is on.	The function is on.			Sound alarm is off.
	Cooking stops automatically.
Timer indicators
To set the function: Delayed start.			To cancel the setting.
Door function indicators

14/56

HOW TO TURN OVEN ON AND OFF

Display indicators

The oven door is locked.

Wi-Fi indicator - the oven can be connected to Wi-Fi.

Wi-Fi connection is turned on.

15/56

Step 1

Step 2

Step 3

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

5.1 Initial Cleaning

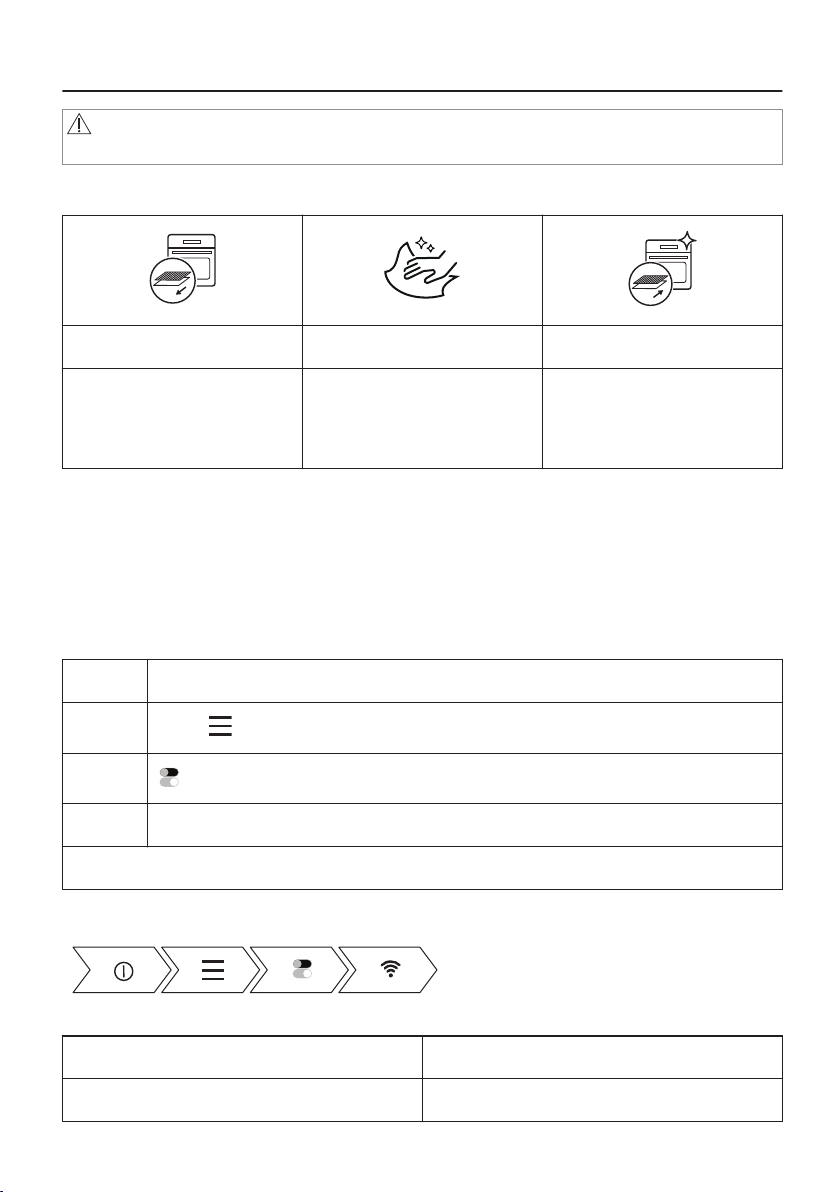

	Step 1					Step 2	Step 3
	Remove all accessories and					Clean the oven and the ac	Place the accessories and the
						cessories with a soft cloth,
	removable shelf supports from						removable shelf supports in
						warm water and a mild deter
	the oven.						the oven.
						gent.

5.2 First connection

The display shows welcome message after the first connection.

You have to set: Language, Display brightness, Key tones, Buzzer volume, Time of day.

5.3 Wireless connection

To connect the oven you need:

•Wireless network with the Internet connection.

Turn on the oven.

Press: . Select: Settings / Connections.

- slide or press to turn on: Wi-Fi.

Step 4 The oven wireless module starts within 90 sec.

Follow the instructions in "Mobile App" leaflet for the next steps.

Take a shortcut!

Frequency 2.4 GHz WLAN	2412 - 2484 MHz
Protocol	IEEE 802.11b DSSS/802.11g/n OFDM

16/56

	BEFORE FIRST USE
Max Power	EIRP < 20 dBm (100 mW)
Frequency 5 GHz WLAN	5150 - 5350, 5470 - 5725 MHz
Protocol	IEEE 802.11a/n OFDM
Max Power	EIRP < 23 dBm (100 mW)
Frequency Bluetooth	2400 - 2485
Protocol	LE: DSSS (QPSK)
Max Power	-

5.4 Software licences

The oven software contains copyrighted software that is licensed under the BSD, fontconfig, FTL, GPL-2.0, LGPL-2.0, LGPL-2.1, libJpeg, zLib/ libpng, MIT, OpenSSL / SSLEAY ISC, Apache 2.0 and others.

Check the full copy of the licence in: Settings / Service / Licence.

You can download the source code of the open source software by following the hyperlink present on the product web page.

Look for the oven model and Wi-Fi Module Software version on http://aeg.opensoftwarereposito ry.com inside "NIUX" folder.

5.5 Initial preheating

Preheat the empty oven before the first use.

Step 1	Remove all accessories and removable shelf supports from the oven.
Step 2	Set the maximum temperature for the function:		.
	Let the oven operate for 1 h.
Step 3	Set the maximum temperature for the function: .
	Let the oven operate for 15 min.

17/56
