The following symbols are used in this
user manual:
Important information concerning
your personal safety and information
on how to avoid damaging the
appliance.
General information and tips
Environmental information
Subject to change without notice
Safety information
4
SAFETY INFORMATION
Before the installation and use, read this manual carefully:
• For your safety and the safety of your property.
• To help the environment.
• For the correct operation of the appliance.
Always keep these instructions with the appliance also if you move or give it to a different person.
The manufacturer is not responsible if an incorrect installation and use causes damage.
Children and vulnerable persons safety
• Do not let persons, children included, with reduced physical sensory, reduced mental
functions or lack of experience and knowledge to use the appliance. They must have
supervision or instruction for the operation of the appliance by a person who is responsible for their safety.
• Keep all packaging away from children. There is the risk of suffocation or injury.
• Keep all detergents in a safe area. Do not let the children touch the detergents.
• Keep children and pets away from the appliance when the door is open.
General safety
• Do not change the specifications of this appliance. There is the risk of injury and damage to the appliance.
• Obey the safety instructions from the detergent manufacturer to prevent burns to
eyes, mouth and throat.
• Do not drink the water from the appliance. Particles of detergent can stay in your appliance.
• Do not keep the appliance door open without supervision. This to prevent injury and
to fall on an open door.
• Do not sit or stand on the open door.
Use
• The appliance is only for domestic use. Do not use the appliance for other uses to prevent injury to persons and damage to property.
• Only use the appliance to clean accessories that are applicable for dishwashers.
• Do not put flammable products or items that are wet with flammable products in,
near or on the appliance. Risk of explosion or fire.
• Put the knives and all items with sharp points in the cutlery basket with their points
down. If not, put in a horizontal position in the upper basket or in the knife basket.
(Not all models have the knife basket).
• Use only specified products for dishwashers (detergent, salt, rinse aid).
• Types of salt that are not specified for dishwashers can cause damage to the water
softener.
• Fill the appliance with salt before you start a washing programme. Remaining salt in
the appliance can cause corrosion or make a hole in the bottom of the appliance.
Safety information
• Do not fill the rinse aid dispenser with other products than the rinse aid, (dishwasher
cleaning agent, liquid detergent). This can cause damage to the appliance.
• Make sure that the spray arms can move freely before you start a washing programme.
• The appliance can release hot steam if you open the door while a washing programme
operates. There is a risk of skin burns.
• Do not remove the dishes from the appliance until the washing programme is completed.
Care and cleaning
• Before you clean the appliance, deactivate it and disconnect the mains plug from the
mains socket.
• Do not use flammable products or products that can cause corrosion.
• Do not use the appliance without the filters. Make sure that the installation of the
filters is correct. An incorrect installation causes unsatisfactory washing results and
damage to the appliance.
• Do not use spray water or steam to clean the appliance. Risk of electrical shock and
damage to the appliance.
Installation
• Make sure that the appliance is not damaged. Do not install or connect a damaged
appliance, contact the supplier.
• Remove all packaging before you install and use the appliance.
• Only a qualified person must do the electrical connection, the plumbing and the installation of the appliance. This to prevent the risks of structural damage or injury.
• Make sure that the mains plug is disconnected from the mains socket during installation.
• Do not drill into the sides of the appliance to prevent damage to hydraulic components and electrical components.
5
Frost precautions
• Do not install the appliance where the temperature is less than 0 °C.
• The manufacturer is not responsible for frost damage.
Water connection
• Use new hoses to connect the appliance to the water supply. Do not use used hoses.
• Do not connect the appliance to new pipes or pipes not used for a long time. Let the
water flow for some minutes, then connect the inlet hose.
• Make sure not to squash or cause damage to the water hoses when you install the
appliance.
• Make sure that the water couplings are tight to prevent a water leakage.
• The first time you use the appliance, make sure that the hoses do not have water leaks.
• The water inlet hose has a safety valve and a double sheath with an inner mains cable.
There is pressure in the water inlet hose only when the water flows. If there is a leak in
the water inlet hose, the safety valve interrupts the flow of water.
– Be careful when you connect the water inlet hose:
– Do not put the water inlet hose or the safety valve in water.
Safety information
6
– If the water inlet hose or the safety valve are damaged, immediately disconnect
the mains plug from the mains socket.
– Contact the service centre to replace the water inlet hose with safety valve.

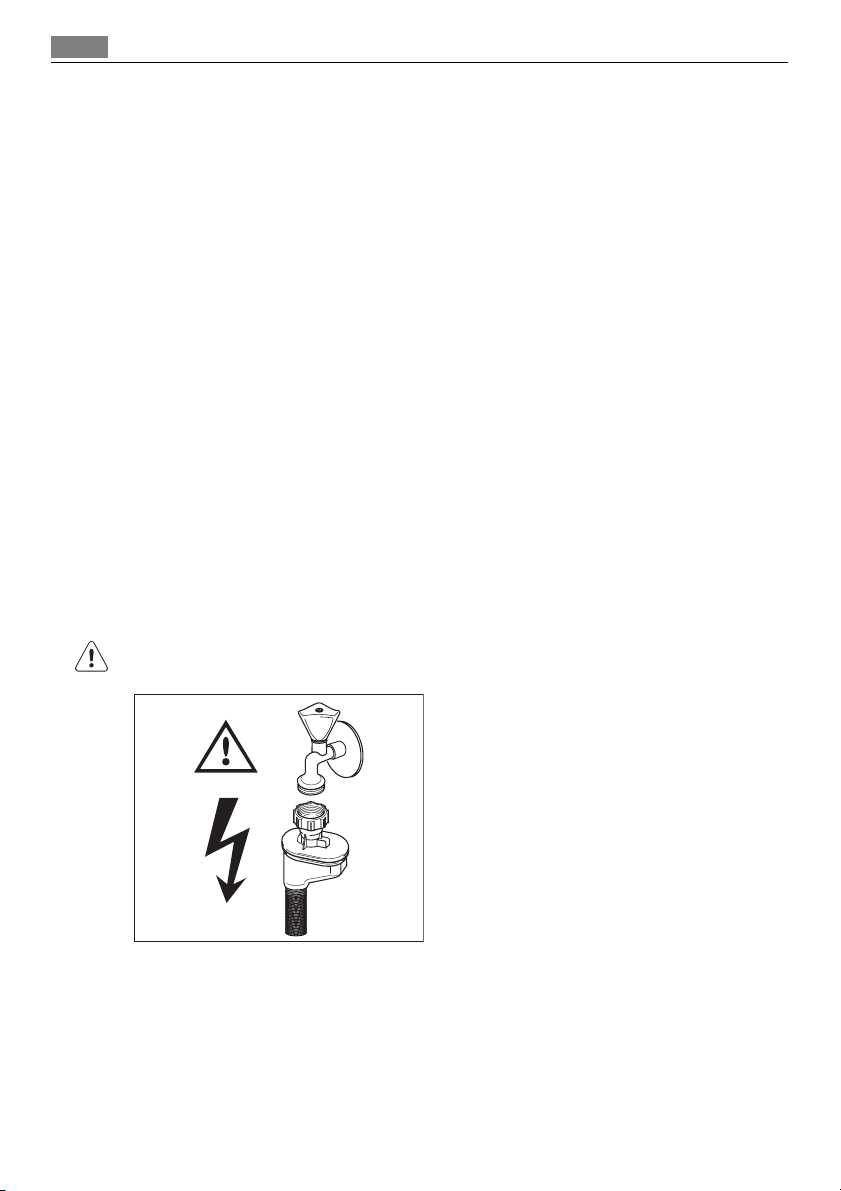

WARNING!
Dangerous voltage.
Electrical connection
• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power
supply.
• Always use a correctly installed shockproof socket.
• Do not use multiple plugs and extension cables. There is a risk of fire.
• Do not replace or change the mains cable. Contact the service centre.
• Make sure not to squash or cause damage to the mains plug and cable behind the
appliance.
• Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
Service centre
• Only a qualified person can repair or work on the appliance. Contact the service centre.
• Use only original spare parts.
To discard the appliance
• To prevent the risk of injury or damage:
– Disconnect the mains plug from the mains socket.
– Cut off the mains cable and discard it.
– Remove the door catch. This prevents children or pets to be closed in the appliance.
There is a risk of suffocation.
– Discard the appliance at the local waste disposal centre.
Product description
WARNING!
The dishwasher detergents are dangerous and can cause corrosion !
• If an accident occurs with these detergents, contact immediately a physician.
• If the detergent gets into the mouth, contact immediately a physician.
• If the detergent gets into the eyes, contact immediately a physician and clean the eyes
with water.
• Keep dishwasher detergents in a safe area and out of children touch.
• Do not keep the appliance door open when there is detergent in the detergent dispenser.

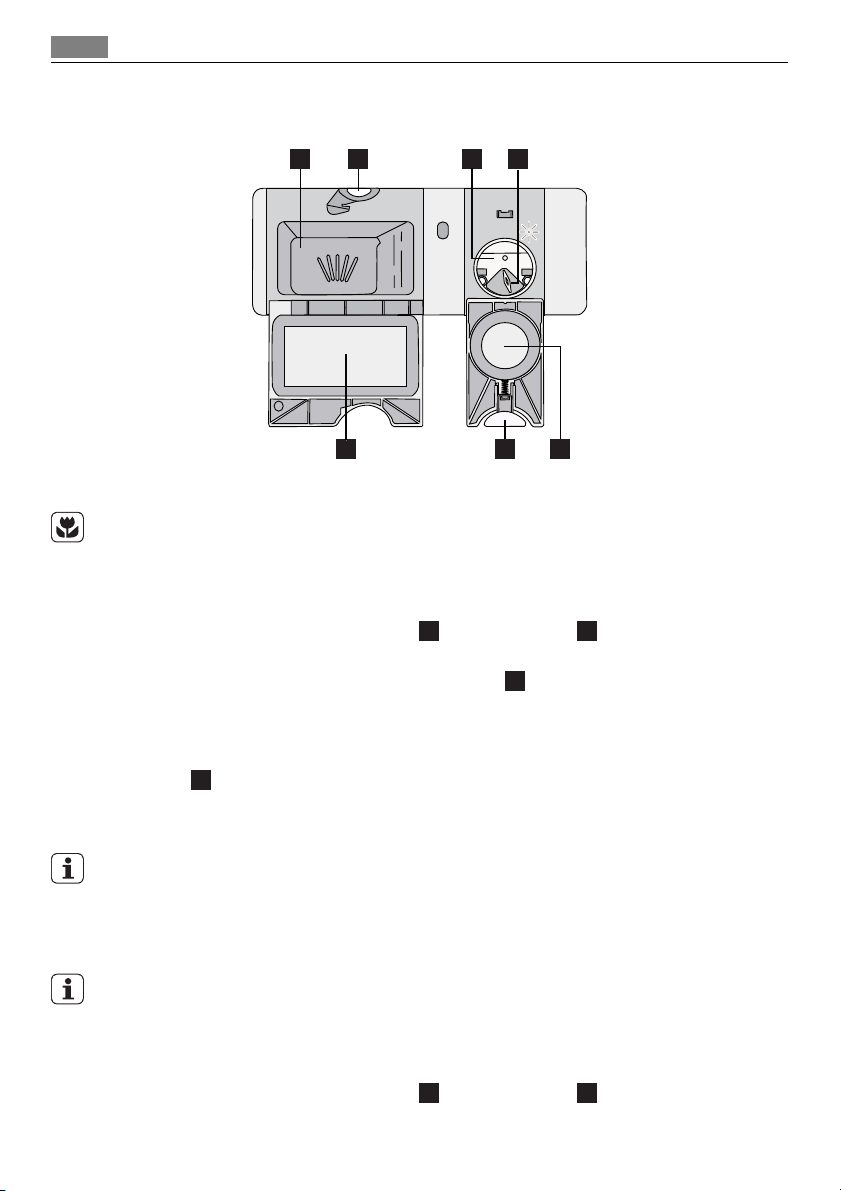

• Fill the detergent dispenser only before you start a washing programme.

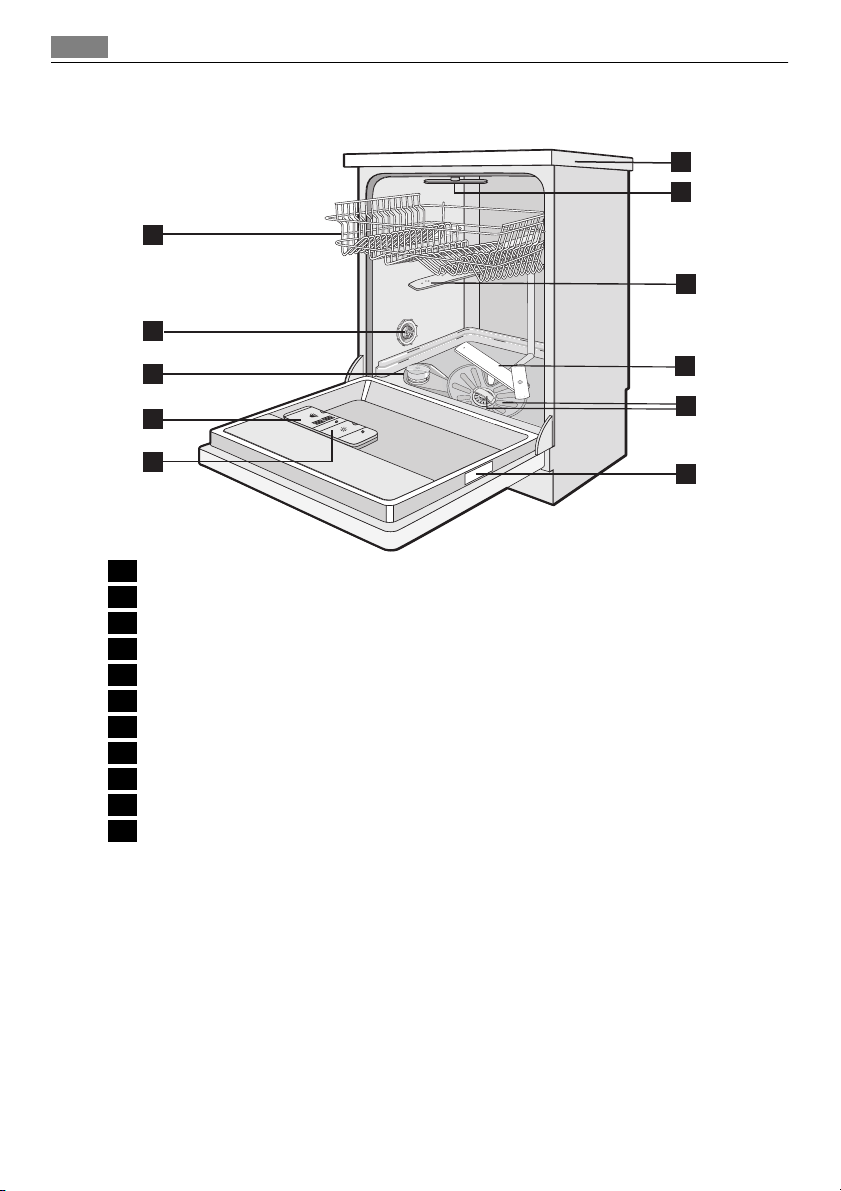

PRODUCT DESCRIPTION
1
2
7
11
10
9
3
4
5
1 Upper basket
2 Water hardness dial
3 Salt container
4 Detergent dispenser
5 Rinse aid dispenser
6 Rating plate
7 Filters
8 Lower spray arm
9 Upper spray arm
10 Top spray arm
11 Worktop
8
7
6
Control panel
8

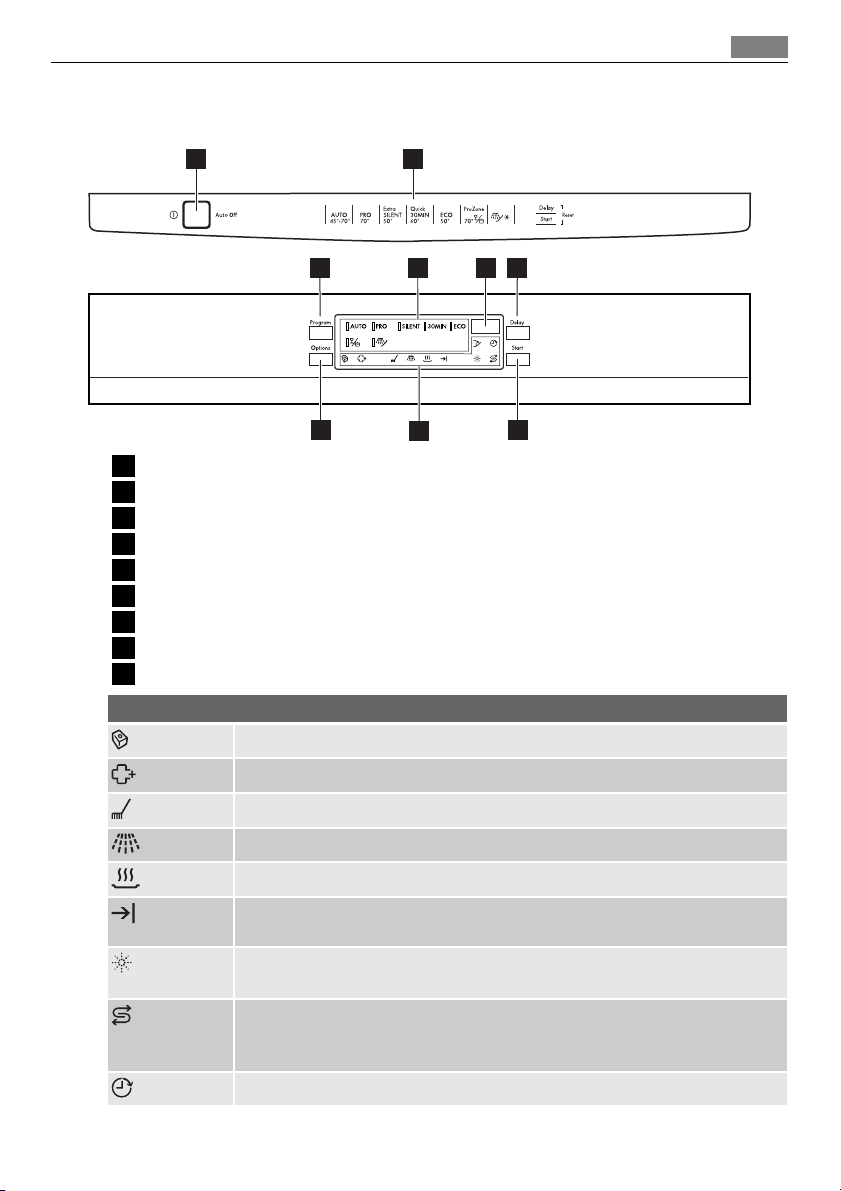

CONTROL PANEL
1
1 On/off button
2 Programme guide
3 Program button
4 Programme indicators
5 Display
6 Delay button
7 Start button
8 Indicators
9 Option button
Multitab indicator. It comes on when you activate the function.
2
3
9
4 5
8
Indicators
6
7
Extra-Hygiene indicator. It comes on when you activate the function.
Washing phase indicator. It comes on when the washing phase operates.
Rinsing phase indicator. It comes on when the rinsing phases operate.
Drying phase indicator. It comes on when the drying phase operates.
End indicator. It comes on when the washing programme is completed.
Rinse aid indicator. It comes on when it is necessary to fill the rinse aid dis-
1)
penser.
Salt indicator. It comes on when it is necessary to fill the salt container.
After you fill the container, the salt indicator can stay on for some hours. This
does not have an unwanted effect on the operation of the appliance.
Delay indicator. It comes on when you activate the delay start.
1)
Control panel
Indicators
Door indicator. It comes on when the door is open or not closed correctly.
1) When the salt container and/or the rinse aid dispenser are empty, the related indicators do not come on
while a washing programme operates.
On/off button
Press this button to activate or deactivate the appliance.
After ten minutes from the end of the washing programme, the Auto Off function automatically deactivates the appliance. This helps to decrease energy consumption.
Programme guide
This guide helps you in the selection of the washing programme.
Program button
Press this button again and again until the indicator of the washing programme comes
on. Refer to 'Washing programmes'.
Display
The display shows:
• The electronic adjustment of the level of the water softener
• The activation and deactivation of the rinse aid dispenser (only with the multitab func-
tion on)
• The washing programme time
• The remaining time to the end of the washing programme
• The end of a washing programme (the display shows a zero)
• The delay start time
• The alarm codes.
9
Delay button
Press this button again and again to delay the start of the washing programme from 1 to
24 hours.
Start button
Press this button to start:
• The washing programme
• The countdown of the delay start.
Option button
Press this button to set the functions.
When a function is activated, the related indicator comes on.
Option button Multitab Extra-Hygiene
Press one time ACTIVATED DEACTIVATED
Press two times DEACTIVATED ACTIVATED
Use of the appliance
10
Option button Multitab Extra-Hygiene
Press three times ACTIVATED ACTIVATED
Press four times DEACTIVATED DEACTIVATED
Functions
Multitab
If you use the combi detergent tablets ('3 in 1', '4 in 1', '5 in 1'), use the multitab function. Refer to 'Multitab function'.
Extra-Hygiene
This function gives better results for the hygiene. During the rinsing phase, the temperature stays at 70°C for 10 to 14 minutes.
Setting mode
The appliance must be in setting mode for these operations:
• To set and start a washing programme.
• To set and start a delay start.
• To adjust electronically the level of the water softener.
• To deactivate or activate the rinse aid dispenser (only with the multitab function on).
Activate the appliance. The appliance is in setting mode when:
• All the programme indicators come on.
• The display shows two horizontal status bars.
Activate the appliance. The appliance is not in setting mode when:
• Only one programme indicator comes on.
• The display shows the time of the washing programme or of the delay start.
– It is necessary to cancel the programme or the delay start to go back to the setting
mode. Refer to 'Select and start a washing programme'.
USE OF THE APPLIANCE
1. Be sure that the set level of the water softener agrees with the water hardness in
your area. If not, adjust the water softener.
2. Fill the salt container with dishwasher salt.
3. Fill the rinse aid dispenser with rinse aid.
4. Load cutlery and dishes into the appliance.
5. Set the correct washing programme for the type of load and soil.
6. Fill the detergent dispenser with the correct quantity of detergent.
7. Start the washing programme.
If you use the combi detergent tablets ('3 in 1', '4 in 1', '5 in 1'), use the multitab function
(refer to 'Multitab function').
Setting the water softener
SETTING THE WATER SOFTENER
The water softener removes minerals and salts from the water supply. These minerals and
salts can cause damage to the appliance.
Adjust the level of the water softener if this does not agree with the water hardness in
your area.
Contact your local water authority to know the water hardness in your area.

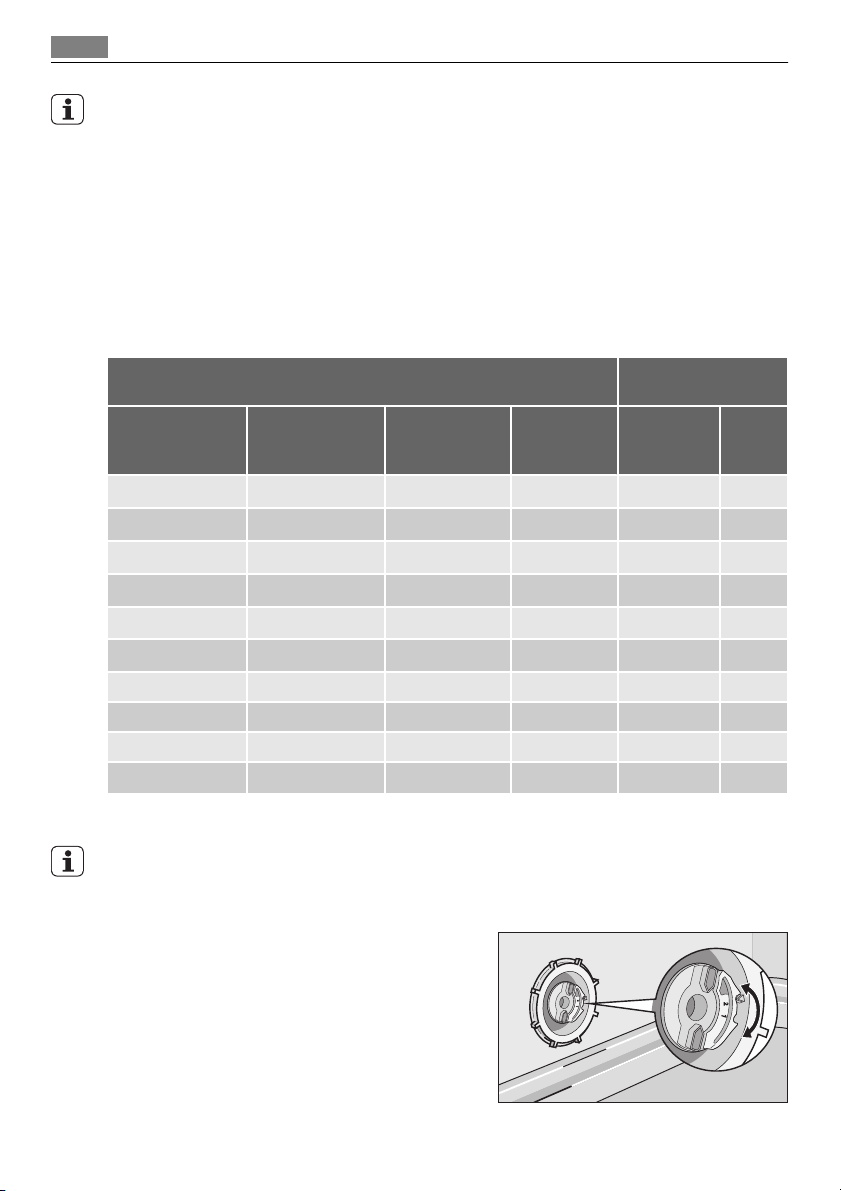

Water hardness
German degrees
(°dH)
51 - 70 91 - 125 9,1 - 12,5 64 - 88
43 - 50 76 - 90 7,6 - 9,0 53 - 63
37 - 42 65 - 75 6,5 - 7,5 46 - 52
29 - 36 51 - 64 5,1 - 6,4 36 - 45
23 - 28 40 - 50 4,0 - 5,0 28 - 35
19 - 22 33 - 39 3,3 - 3,9 23 - 27
15 - 18 26 - 32 2,6 - 3,2 18 - 22 1 4
11 - 14 19 - 25 1,9 - 2,5 13 - 17 1 3
4 - 10 7 - 18 0,7 - 1,8 5 - 12 1 2
< 4 < 7 < 0,7 < 5
1) Factory position.
2) Do not use salt at this level.
French degrees
(TH°)
mmol/l Clarke de-
grees
You must adjust the water softener manually and electronically.
Water hardness ad-
manually elec-
2
2
2
2
2
2
1
justment
1)
1)
1)
1)
1)
1)
2)
11
troni-
cally
10
9
8
7
6
1)
5
2)
1
Manual adjustment
Turn the water hardness dial to the position 1 or
2 (refer to the table).
Electronic adjustment
1. Activate the appliance.
2. Make sure that the appliance is in setting mode.
Use of dishwasher salt
12
3. Press and hold the Delay button and the Start button at the same time until the pro-
gramme indicators AUTO, PRO and SILENT flash.
4. Release the Delay button and the Start button.
5. Press the Program button,
• The programme indicators PRO and SILENT go off.
• The programme indicator AUTO continues to flash.
• The display shows the setting of the water softener (example:
6. Press the Program button again and again to change the setting.
7. Deactivate the appliance to confirm.
If the water softener is set electronically to the level 1, the salt indicator stays off.
USE OF DISHWASHER SALT

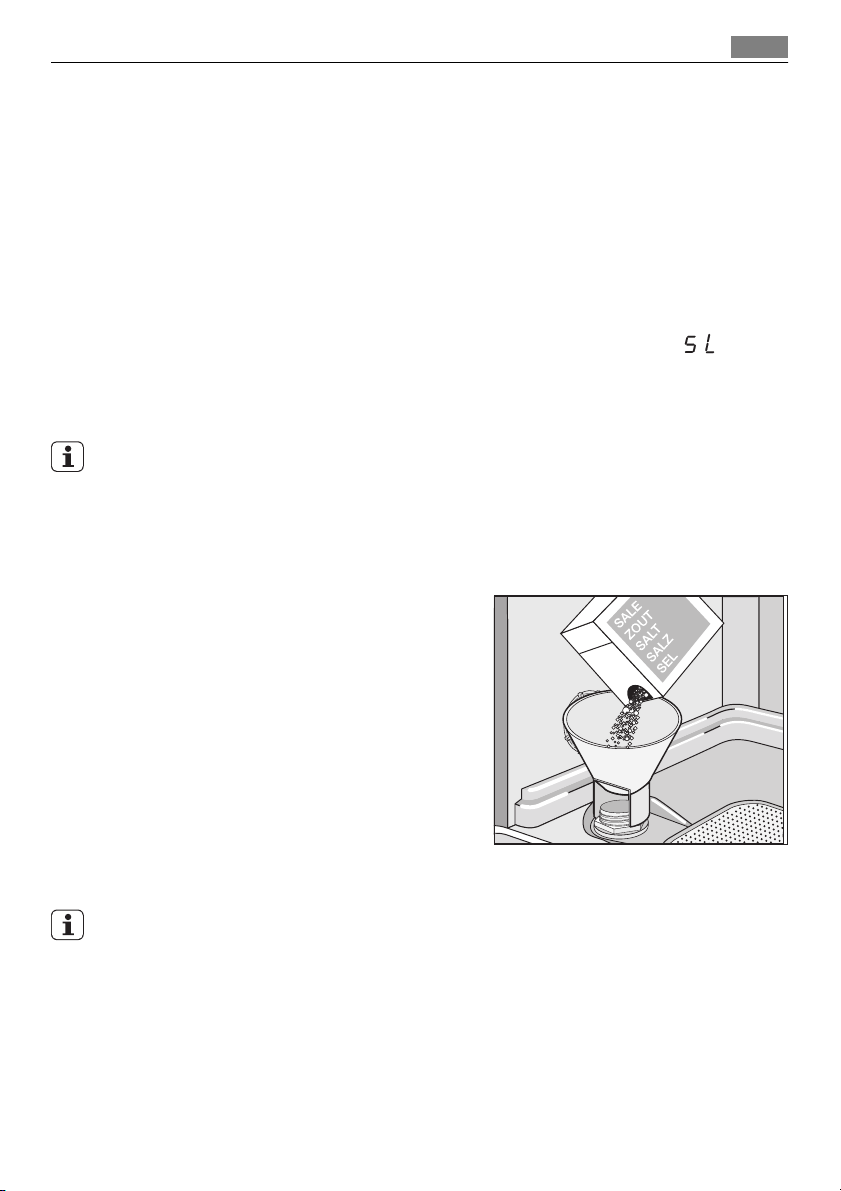

How to fill the salt container
1. Turn the cap counterclockwise and open
the salt container.
2. Fill the salt container with 1 litre of wa-
ter (only for the first time you fill with
salt).
3. Use the funnel to fill the salt container
with salt.
4. Remove the salt around the opening of
the salt container.
5. Turn the cap clockwise to close the salt
container.
It is correct that water comes out from the salt container when you fill it with salt.
= level 5).
USE OF DETERGENT AND RINSE AID
20
30
M
A
X
1
2
3
4
+
-
Use of detergent and rinse aid
13
1
2
7
3
4
6
5
Use of detergent
To help the environment, do not use more than the correct quantity of detergent.
Obey the instructions on the detergent packaging.
How to fill the detergent dispenser:
1.
Press the release button
2.
Put the detergent in the dispenser
3. If the washing programme has a prewash phase, put a small quantity of detergent
on the inner part of the appliance door.
4.
If you use the detergent tablets, put the tablet in the detergent dispenser
5. Close the detergent dispenser. Press the lid until it locks into position.
Use long washing programmes when you use the detergent tablets. These cannot fully
dissolve with short washing programmes and can decrease the washing results.
2
to open the lid 7 of the detergent dispenser.
1
.
1
.
Use of rinse aid
Rinse aid makes it possible to dry the dishes without streaks and stains.
The rinse aid dispenser automatically adds rinse aid during the last rinsing phase.
Do these steps to fill the rinse aid dispenser:
1.
Press the release button
2.
Fill the rinse aid dispenser
6
to open the lid 5 of the rinse aid dispenser.
3
with rinse aid. The mark 'max' shows the maximum level.
3. Remove the spilled rinse aid with an absorbent cloth to prevent too much foam dur-
ing the washing programme.
4. Close the rinse aid dispenser. Press the lid until it locks into position.
Adjust the rinse aid dosage
Factory set: position 3.
Multitab function
14
You can set the rinse aid dosage between position 1 (lowest dosage) and position 4 (highest dosage).
Turn the rinse aid selector
4
to increase or decrease the dosage.
MULTITAB FUNCTION
The multitab function is for combi detergent tablets.
These tablets contain agents as detergent, rinse aid and dishwasher salt. Some types of
tablets can contain other agents.
Be sure that these tablets are applicable for the water hardness in your area (refer to the
instructions on the packaging of the products).
The multitab function deactivates the flow of rinse aid and salt.
The multitab function deactivates the indicators of salt and rinse aid.
The programme duration can increase if you use the multitab function.
Activate or deactivate the multitab function before the start of a washing programme.
You cannot activate or deactivate the function when a washing programme operates.
Before the start of a washing programme, always make sure that the multitab function is
on.
To deactivate the multitab function and use separately detergent, salt and rinse aid
1. Press the Option button until the multitab indicator goes off. The function is deacti-
vated.
2. Fill the salt container and the rinse aid dispenser.
3. Adjust the water hardness to the highest level.
4. Start a washing programme without dishes.
5. When the washing programme is completed, adjust the water softener to the water
hardness in your area.
6. Adjust the quantity of rinse aid.
LOADING CUTLERY AND DISHES
Refer to the leaflet 'Examples of ProClean loads'.
Hints and tips
• Do not put in the appliance items that can absorb water (sponges, household cloths).
• Remove the remaining food from the items.
• Make soft the remaining burned food on the items.
• Put hollow items (cups, glasses and pans) with the opening down.
• Make sure that water does not collect in containers or in bowls.
• Make sure that cutlery and dishes do not bond together.
• Make sure that the glasses do not touch other glasses.
• Put small items in the cutlery basket.
Washing programmes
• Mix the spoons with other cutlery to prevent them to bond together.
• When you put the items in the baskets, make sure that the water can touch all surfaces.
• Put light items in the upper basket. Make sure that the items do not move.
• Water droplets can collect on plastic items and non-stick pans.
WASHING PROGRAMMES
Programme Type of soil Type of load Programme description Extra-Hygiene function
All Crockery, cut-
1)
Heavy soil Crockery, cut-
Normal soil Crockery and
2)
Fresh soil Crockery and
3)
lery, pots and
pans
lery, pots and
pans
cutlery
cutlery
Prewash
Wash 45 °C or 70 °C
Rinses
Dry
Prewash
Wash 70 °C
Rinses
Dry
Prewash
Wash 50 °C
Rinses
Dry
Wash 60 °C
Rinse
Yes, with effect
Yes, without effect
Yes, without effect
Yes, with effect
15
Normal soil Crockery and
4)
Mixed soil Crockery, cut-
5)
cutlery
lery, pots and
pans
Prewash
Wash 50 °C
Rinses
Dry
Prewash
Wash 70 °C
Rinses
Dry
Yes, with effect
Yes, without effect
Select and start a washing programme
16
Programme Type of soil Type of load Programme description Extra-Hygiene function
Use this programme to quickly rinse the dishes. This prevents the remaining food to
bond on the dishes and bad
odours to come out from the
appliance.
Do not use detergent with
this programme.
1) The appliance senses the type of soil and the quantity of items in the baskets. It automatically adjusts the
temperature and quantity of the water, the energy consumption and the programme time.
2) This is the most silent washing programme. The pump works at a very low speed to decrease the level of
noise. Because of the low speed, the programme time is long.
3) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
4) This is the standard programme for test institutes. With this programme you have the most efficient use of
water and energy consumption for crockery and cutlery with normal soil. Refer to the supplied leaflet for
test information.
5) With this programme you can wash a load with mixed soil. Very heavy soil in the lower basket and normal
soil in the upper basket. The water pressure in the lower basket is three times higher than in the upper
basket. The temperature of the water in the lower basket is 25% higher than in the upper basket.
Rinse Yes, without effect
Consumption values
Programme
1)
Energy (kWh) Water (litre)
0,9 - 1,7 8 - 15
1,5 - 1,6 13 - 14
1,1 - 1,2 9 - 11
0,9 9
9 - 11 0,9 - 1,0
1,4 - 1,5 14 - 15
0,1 4
1) The display shows the programme time.
The water pressure and temperature, the variations of the mains supply and the quantity
of dishes can change the consumption values.
SELECT AND START A WASHING PROGRAMME
Starting the washing programme without delay start
1. Close the appliance door.
2. Activate the appliance.
3. Make sure that the appliance is in setting mode.
4. Set the washing programme.
Loading...
