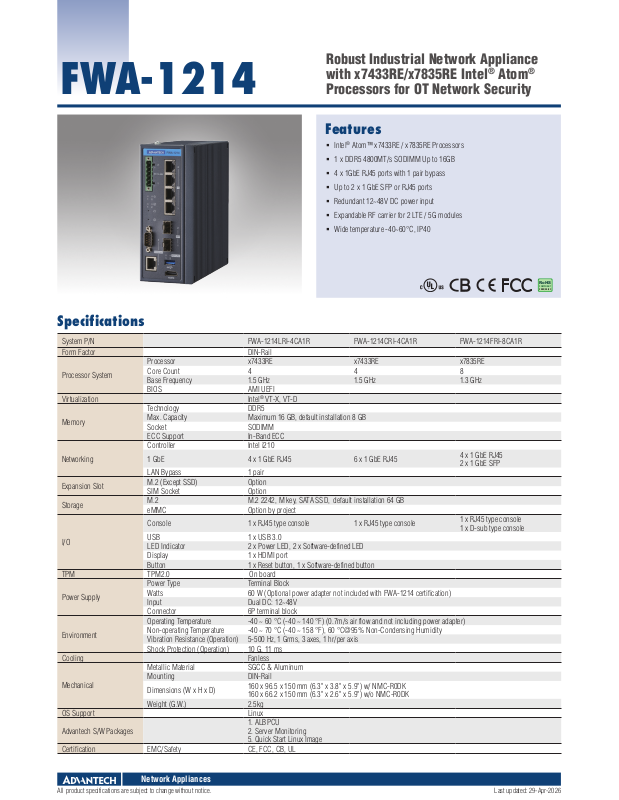

Page 1
Robust Industrial Network Appliance
®
Atom®
FWA-1214
with x7433RE/x7835RE Intel
Processors for OT Network Security
Features
Intel® Atom™ x7433RE / x7835RE Processors
1 x DDR5 4800MT/s SODIMM Up to 16GB
4 x 1GbE RJ45 ports with 1 pair bypass
Up to 2 x 1 GbE SFP or RJ45 ports
Redundant 12~48V DC power input
Expandable RF carrier for 2 LTE / 5G modules
Wide temperature -40~60°C, IP40
Specifications
System P/N FWA-1214LRI-4CA1R FWA-1214CRI-4CA1R FWA-1214FRI-8CA1R
Form Factor DIN-Rail
Processor System
Virtualization Intel
Memory
Networking
Expansion Slot
Storage
I/O
TPM TPM2.0 On board
Power Supply
Environment
Cooling Fanless
Mechanical
OS Support Linux
Advantech S/W Packages
Certification EMC/Safety CE, FCC, CB, UL
Processor x7433RE x7433RE x7835RE
Core Count 4 4 8
Base Frequency 1.5 GHz 1.5 GHz 1.3 GHz
BIOS AMI UEFI
Technology DDR5
Max. Capacity Maximum 16 GB, default installation 8 GB
Socket SODIMM
ECC Support In-Band ECC
Controller Intel i210
1 GbE 4 x 1 GbE RJ45 6 x 1 GbE RJ45
LAN Bypass 1 pair
M.2 (Except SSD) Option
SIM Socket Option
M.2 M.2 2242, M key, SATA SSD, default installation 64 GB
eMMC Option by project
Console 1 x RJ45 type console 1 x RJ45 type console
USB 1 x USB 3.0
LED Indicator 2 x Power LED, 2 x Software-defined LED
Display 1 x HDMI port
Button 1 x Reset button, 1 x Software-defined button
Power Type Terminal Block
Watts 60 W (Optional power adapter not included with FWA-1214 certification)
Input Dual DC: 12~48V
Connector 6P terminal block
Operating Temperature -40 ~ 60 °C (-40 ~ 140 °F) (0.7m/s air flow and not including power adapter)
Non-operating Temperature -40 ~ 70 °C (-40 ~ 158 °F), 60 °C@95% Non-Condensing Humidity
Vibration Resistance (Operation) 5-500 Hz, 1 Grms, 3 axes, 1 hr/per axis
Shock Protection (Operation) 10 G, 11 ms
Metallic Material SGCC & Aluminum
Mounting DIN-Rail
Dimensions (W x H x D)
Weight (G.W.) 2.5kg
®
VT-X, VT-D
160 x 96.5 x 150 mm (6.3" x 3.8" x 5.9") w/ NMC-R0DK
160 x 66.2 x 150 mm (6.3" x 2.6" x 5.9") w/o NMC-R0DK
1. ALBPCU
2. Server Monitoring
5. Quick Start Linux Image
4 x 1 GbE RJ45
2 x 1 GbE SFP
1 x RJ45 type console
1 x D-sub type console
RoHS
COMPLIANT
2002/95/EC
Network Appliances
All product specifications are subject to change without notice. Last updated: 29-Apr-2026
Page 2
FWA-1214
Dimensions
96.50
Unit: mm
150
160
Front Panel External I/O Mechanical Layout/Drawing
NMC-R0DK-00A1
12~48V DC
Terminal block
NMC-R014T
2 x Power LED
2 x SW LED
Reset button
D-Sub console
NMC-R014T
RJ45 console
FWA-1214
4 x 1GbE RJ45
SW button
2 x 1GbE SFP or
RJ45
USB3.0
HDMI
Rear Panel External I/O Mechanical Layout/Drawing
Ground screw
NMC-R0DK-00A1
FWA-1214
Din Rail Clip
Ordering Information
Part Number Processor DDR5 slot Storage slot
FWA-1214LRI-4CA1R x7433RE 8 GB 64 GB 4 1 0 1 1 1 Option
FWA-1214FRI-8CA1R x7835RE 8 GB 64 GB 4 1 2 1 2 1 Option
FWA-1214CRI-4CA1R x7433RE 8 GB 64 GB 6 1 0 1 1 1 Option
1G RJ45 Bypass 1G SFP
Packing List
Part Number Description Quantity
1700020691-01 Console cable D-SUB 9P(F)/RJ45 220cm 1
1652001524 TERMINAL BLOCK 6P 5.00mm Female 90D 1
1950027608T050 DIN RAIL 160H Holder U for FWA-1214 1
1930008529 Screw M3*4.0L for DIN RAIL Holder 4
LAN Port
USB3.0 Console HDMI PSU
Optional Accessories
Part Number Description
96PSA-A60W24T2-3 60W power adaptor
1702002600 Power cord 3P 180 cm, USA
1702002605 Power cord 3P 180 cm, Europe
1700032693-11 Power Cord 3P 183cm, BSI
1700000237 Power cord 3P 180 cm, JP
1700009652 Power cord 3P 180 cm, China
NMC-R0DK-00A1 RF carrier
NMC-R014T-12A1 LTE RF module kit
Online Download
www.advantech.com/products
Page 3
Robust Industrial Network Appliance
with x7433RE/x7835RE Intel
FWA-1214
Processors for power plant and substation
Features
Intel® Atom™ x7433RE / x7835RE Processors
1 x DDR5 4800MT/s SODIMM up to 16GB
4 x 1GbE RJ45 ports with 1 pair bypass
Up to 2 x 1 GbE SFP or RJ45 ports
Redundant 12~48V DC power input
Expandable RF carrier for 2 LTE / 5G modules
Wide temperature -40~60°C, IP40
Specifications
System P/N FWA-1214CRP-4CA1RU FWA-1214FRP-8CA1RU
Form Factor DIN-Rail
Processor System
Virtualization Intel
Memory
Networking
Expansion Slot
Storage
I/O
TPM TPM2.0 On board
Power Supply
Environment
Cooling Fanless
Mechanical
OS Support Linux
Advantech S/W Packages
Certification
Processor x7433RE x7835RE
Core Count 4 8
Base Frequency 1.5 GHz 1.3 GHz
BIOS AMI UEFI
Technology DDR5
Max. Capacity Maximum 16 GB, default installation 8 GB
Socket SODIMM
ECC Support In-Band ECC
Controller Intel i210
1 GbE 6 x 1 GbE RJ45
LAN Bypass 1 pair
M.2 (Except SSD) Option
SIM Socket Option
M.2 M.2 2242, M key, SATA SSD, default installation 64 GB
eMMC Option by project
Console 1 x RJ45 type console 1 x RJ45 type console
USB 1 x USB 3.0
LED Indicator 2 x Power LED, 2 x Software-defined LED
Display 1 x HDMI port
Button 1 x Reset button, 1 x Software-defined button
Power Type Terminal Block
Watts 60 W (Optional power adapter not included with FWA-1214 certification)
Input Dual DC: 12~48V
Connector 6P terminal block
Operating Temperature -40 ~ 60 °C (-40 ~ 140 °F) (0.7m/s air flow and not including power adapter)
Non-operating Temperature -40 ~ 70 °C (-40 ~ 158 °F), 60 °C@95% Non-Condensing Humidity
Vibration Resistance (Operation) 5-500 Hz, 1 Grms, 3 axes, 1 hr/per axis
Shock Protection (Operation) 10 G, 11 ms
Metallic Material SGCC & Aluminum
Mounting DIN-Rail
Dimensions (W x H x D)
Weight (G.W.) 2.6Kg
EMC/Safety CE, FCC, CB, UL
Others IEC-61850-3, IEEE-1613
®
VT-X, VT-D
160 x 96.5 x 150 mm (6.3" x 3.8" x 5.9") w/ NMC-R0DK
160 x 66.2 x 150 mm (6.3" x 2.6" x 5.9") w/o NMC-R0DK
1. ALBPCU
2. Server Monitoring
5. Quick Start Linux Image
4 x 1 GbE RJ45
2 x 1 GbE SFP
®
Atom®
RoHS
COMPLIANT
2002/95/EC
Network Appliances
Page 4
FWA-1214
Dimensions
96.50
Unit: mm
150
160
Front Panel External I/O Mechanical Layout/Drawing
NMC-R0DK-00A1
RJ45 console
NMC-R014T
Reset button
2 x SW LED
2 x Power LED
NMC-R014T
12~48V DC
Terminal block
FWA-1214
SW button
4 x 1GbE RJ45
2 x 1GbE SFP or
RJ45
USB3.0
HDMI
Rear Panel External I/O Mechanical Layout/Drawing
Ground screw
NMC-R0DK-00A1
FWA-1214
Din Rail Clip
Ordering Information
Part Number Processor DDR5 slot Storage slot
FWA-1214FRP-8CA1RU x7835RE 8 GB 64 GB 4 1 2 1 1 1 Option
FWA-1214CRP-4CA1RU x7433RE 8 GB 64 GB 6 1 0 1 1 1 Option
1G RJ45 Bypass 1G SFP
Packing List
Part Number Description Quantity
1700020691-01 Console cable D-SUB 9P(F)/RJ45 220cm 1
1652001524 TERMINAL BLOCK 6P 5.00mm Female 90D 1
1950027608T050 DIN RAIL 160H Holder U for FWA-1214 1
1930008529 Screw M3*4.0L for DIN RAIL Holder 4
LAN Port
USB3.0 Console HDMI PSU
Optional Accessories
Part Number Description
96PSA-A60W24T2-3 60W power adaptor
1702002600 Power cord 3P 180 cm, USA
1702002605 Power cord 3P 180 cm, Europe
1700032693-11 Power Cord 3P 183cm, BSI
1700000237 Power cord 3P 180 cm, JP
1700009652 Power cord 3P 180 cm, China
NMC-R0DK-00A1 RF carrier
NMC-R014T-12A1 LTE RF module kit
Online Download
www.advantech.com/products
