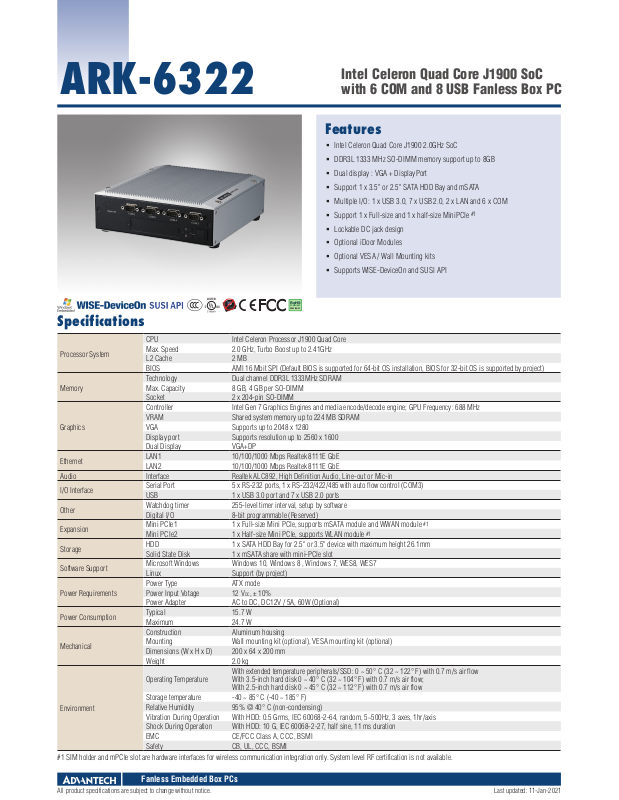

RoHS
Intel Celeron Quad Core J1900 SoC
ARK-6322
with 6 COM and 8 USB Fanless Box PC
Features
Intel Celeron Quad Core J1900 2.0GHz SoC
DDR3L 1333 MHz SO-DIMM memory support up to 8GB
Dual display : VGA + DisplayPort
Support 1 x 3.5" or 2.5" SATA HDD Bay and mSATA
Multiple I/O: 1 x USB 3.0, 7 x USB 2.0, 2 x LAN and 6 x COM
Support 1 x Full-size and 1 x half-size MiniPCIe
Lockable DC jack design
Optional iDoor Modules
Optional VESA / Wall Mounting kits
Supports WISE-DeviceOn and SUSI API
COMPLIANT
2002/95/EC
Specifications
CPU Intel Celeron Processor J1900 Quad Core
Processor System
Memory
Graphics
Ethernet
Audio Interface Realtek ALC892, High Definition Audio, Line-out or Mic-in
I/O Interface
Other
Expansion
Storage
Software Support
Power Requirements
Power Consumption
Mechanical
Environment
#1 SIM holder and mPCIe slot are hardware interfaces for wireless communication integration only. System level RF certification is not available.
Max. Speed 2.0 GHz, Turbo Boost up to 2.41GHz
L2 Cache 2 MB
BIOS AMI 16 Mbit SPI (Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported by project)
Technology Dual channel DDR3L 1333MHz SDRAM
Max. Capacity 8 GB, 4 GB per SO-DIMM
Socket 2 x 204-pin SO-DIMM
Controller Intel Gen 7 Graphics Engines and media encode/decode engine; GPU Frequency: 688 MHz
VRAM Shared system memory up to 224 MB SDRAM
VGA Supports up to 2048 x 1280
Display port Supports resolution up to 2560 x 1600
Dual Display VGA+DP
LAN1 10/100/1000 Mbps Realtek 8111E GbE
LAN2 10/100/1000 Mbps Realtek 8111E GbE
Serial Port 5 x RS-232 ports, 1 x RS-232/422/485 with auto flow control (COM3)
USB 1 x USB 3.0 port and 7 x USB 2.0 ports
Watchdog timer 255-level timer interval, setup by software
Digital I/O 8-bit programmable (Reserved)
Mini PCIe1 1 x Full-size Mini PCIe, supports mSATA module and WWAN module
Mini PCIe2 1 x Half-size Mini PCIe, supports WLAN module
HDD 1 x SATA HDD Bay for 2.5" or 3.5" device with maximum height 26.1mm
Solid State Disk 1 x mSATA share with mini-PCIe slot
Microsoft Windows Windows 10, Windows 8 , Windows 7, WES8, WES7
Linux Support (by project)
Power Type ATX mode
Power Input Votage 12 V
Power Adapter AC to DC, DC12V / 5A, 60W (Optional)
Typical 15.7 W
Maximum 24.7 W
Construction Aluminum housing
Mounting Wall mounting kit (optional), VESA mounting kit (optional)
Dimensions (W x H x D) 200 x 64 x 200 mm
Weight 2.0 kg
Operating Temperature
Storage temperature -40 ~ 85° C (-40 ~ 185° F)
Relative Humidity 95% @ 40° C (non-condensing)
Vibration During Operation With HDD: 0.5 Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis
Shock During Operation With HDD: 10 G, IEC 60068-2-27, half sine, 11 ms duration
EMC CE/FCC Class A, CCC, BSMI
Safety CB, UL, CCC, BSMI
, ± 10%
DC
With extended temperature peripherals/SSD: 0 ~ 50° C (32 ~ 122° F) with 0.7 m/s air flow
With 3.5-inch hard disk 0 ~ 40° C (32 ~ 104° F) with 0.7 m/s air flow;
With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7 m/s air flow
#1
#1
#1
Fanless Embedded Box PCs
All product specifications are subject to change without notice. Last updated: 11-Jan-2021
ARK-6322
LAN1 LAN2
VGA
DsplayPort
DC12V input
COM1
COM2
Antenna
LINE-OUT/MIC-IN
Antenna
USB3
USB4
USB1
USB3.0
USB5
USB6
USB7
USB8
Dimensions
265
100
50 50
Ø5
200
174
78.5
B
4.6
3.8
218.6
236.18
200
10.2
5.1
Detail B
Scale 4 : 1
64
70.8
Front Panel External I/O Mechanical Layout/Drawing Rear Panel External I/O Mechanical Layout/Drawing
Digital IO
COM5
COM6
COM4
COM3
DC12V input
AntennaAntenna
Antenna
DsplayPort
VGA
10047
USB1
USB3.0
USB3
USB4
LAN1 LAN2
LINE-OUT/MIC-IN
Antenna
Unit: mm
160
Idoor Expansion Slot
PWR LED
HDD LED
Power On/Off
USB8
USB7
USB6
USB5
COM1
COM2
Ordering Information
Part No. CPU DDR3 VGA DP RS-232/422/485 RS-232 USB 3.0 USB 2.0 MiniPCIe* HDD Bay GPIO** DC input
ARK-6322-Q0A2E Intel Celeron J1900 2.0GHz Up to 8 GB 1 1 1 5 1 7 2 1 x 3.5" or 2.5" 1 12V
*Full-size Mini PCIe co-lay with mSATA.
** Reserved 8-bits DIO
Note: Memory, storage and operating system bundled by request.
Packing List
Part Number Description
1960065854N001 1x bracket for idoor module
- 1x Power bracket
2006632201 1x User Manual (Simplified Chinese)
202KAKMC00 1x China RoHS for ARK-6322
2190000902 1x CARDBOARD-WARRANTY REV. A2
Embedded OS
Part Number Description
2070013367 WE8S V6.5.2 EN/SC/TC/JP
2070013550 WES7E V5.6.8 EN/SC/TC/JP
20706WX9ES0058 Win 10 IoT Ent 64bit 1809 LTSC EN (OS Size: around 12.4GB)
Note: Default BIOS is for 64bit OS support only. For 32bit OS, please update BIOS. (P/N:1420036912)
Optional Items
Part Number Description
96PSA-A60W12R1-1
1702002600 Power cable 3-pin 183 cm, USA type
1702002605 Power cable 3-pin 183 cm, Europe type
1702031801 Power cable 3-pin 183 cm, UK type
1700000237 Power cable 3-pin 183 cm, PSE type
AMK-V008E VESA mounting kit
AMK-W002E Wall mounting kit
1700024047-01 F Cable 2*5P-2.0/D-SUB 9P(F) 15CM, GPIO cable
MOS-2230-Z1201E CANBus module, 2-Ch, USB I/F.
MOS-2220-X1101E Parallel LPT module, 1-Ch, USB I/F.
MOS-2220-Z1101E High Speed Serial COM module, 1-Ch, USB I/F.
MOS-2120-Z1101E Giga LAN Ethernet module, 1-Ch, PCIe I/F.
MOS-2120-Z1201 Dual Intel I210 GbE LAN iDoor, 2-Ch, PCIe I/F
MOS-2110Z-1201E USB module, 2-Ch, PCIe I/F
MOS-1120Y-0202E Isolated RS-232, 2-Ch, DB9, PCIe I/F
MOS-1121Y-0202E Isolated RS-422/485, 2-Ch, DB9, PCIe I/F
MOS-1120Y-1402E Non-Isolated RS-232, DB37, 4-Ch, PCIe I/F
MOS-1121Y-1402E Non-Isolated RS-422/485, DB37, 4-Ch, PCIe I/F
MOS-1130Y-0201E Isolated CANBus, 2-Ch, DB9, PCIe I/F
MOS-1110Y-0101E Isolated 16 DI/8 DO, 1-Ch, DB37, PCIe I/F
AC-to-DC Adapter, DC 12V/5A 60W, with DC Jack Plug, 0 ~ 40° C for Home
and Office Use
Online Download
www.advantech.com/products
ARK Plus Extended Modules
ARK-1124 Dual Layer Expansion Option Items
Expansion Kit Selection
AMO-1101 and iDoor AMO-1101 and AMO-P011
Ordering Information
Optional ARK Plus Mechanical Kit
P/N Description
AMO-1101 Mechanical kit for 2nd layer expansion
Optional iDoor Expansion
Part Number Description
MOS-2230-Z1201E CANBus module, 2-Ch, USB Interface
MOS-2220-X1101E Parallel LPT module, 1-Ch, USB Interface
MOS-2110Z-1201E USB module, 2-Ch, PCIe Interface
MOS-2120-Z1101E Giga LAN Ethernet module, 1-Ch, PCIe Interface
MOS-1130Y-0201E Isolated CANBus, 2-Ch, DB9, PCIe Interface
MOS-1110Y-0101E Isolated 16 DI/8 DO, 1-Ch, DB37, PCIe Interface
MOS-2220-Z1101E High Speed COM module, 1-Ch, USB Interface
MOS-1120Y-0202E Isolated RS-232, 2-Ch, DB9, PCIe I/F
MOS-1121Y-0202E Isolated RS-422/485, 2-Ch, DB9, PCIe I/F
MOS-1120Y-1402E Non-Isolated RS-232, 4-Ch, DB37, PCIe I/F
MOS-1121Y-1402E Non-Isolated RS-422/485, 4-Ch, DB37, PCIe I/F
MOS-2120-Z1201 Dual Intel I210 GbE LAN, 2-Ch, PCIe I/F
Optional 12-24V DC Power module
Part Number Description
AMO-P011
96PSA-A60W12P2-3 AC to DC ADP, 12V/5A 60W (for AMO-P011)
1702002600 Power cable 3-pin 183cm, USA type
1702002605 Power cable 3-pin 183cm, EU type
1702031801 Power cable 3-pin 183cm, UK type
1700000237 Power cable 3-pin 183cm, PSE type
* For iDoor module expansion, please order AMO-1101 and iDoor P/N
* For Wide range power module expansion, please order AMO-1101 and AMO-P011
* For iDoor and wide range power module expansion, please order AMO-1101,
iDoor P/N and AMO-P011.
12-24V DC input power module
Operating temp. -20~60 °C
Fanless Embedded Box PCs
