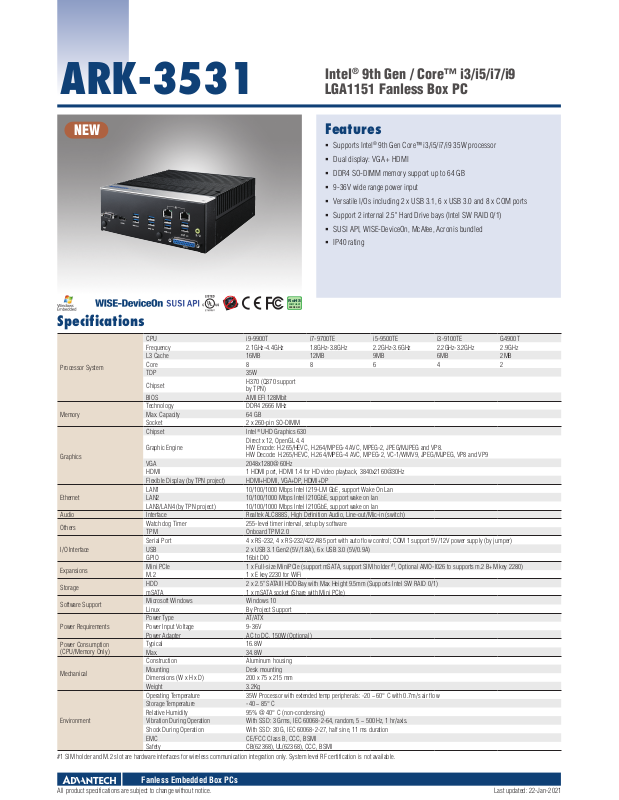

advantech ARK-3531 Datasheet
ARK-3531
Intel® 9th Gen / Core™ i3/i5/i7/i9
LGA1151 Fanless Box PC
NEW
Features
Supports Intel® 9th Gen Core™ i3/i5/i7/i9 35W processor
Dual display: VGA + HDMI
DDR4 SO-DIMM memory support up to 64 GB
9-36V wide range power input
Versatile I/Os including 2 x USB 3.1, 6 x USB 3.0 and 8 x COM ports
Support 2 internal 2.5" Hard Drive bays (Intel SW RAID 0/1)
SUSI API, WISE-DeviceOn, McAfee, Acronis bundled
IP40 rating
RoHS
COMPLIANT
2002/95/EC
Specifications
CPU i9-9900T i7-9700TE i5-9500TE i3-9100TE G4900T
Frequency 2.1GHz-4.4GHz 1.8GHz-3.8GHz 2.2GHz-3.6GHz 2.2GHz-3.2GHz 2.9GHz
L3 Cache 16MB 12MB 9MB 6MB 2MB
Processor System
Memory
Graphics
Ethernet
Audio Interface Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch)
Others
I/O Interface
Expansions
Storage
Software Support
Power Requirements
Power Consumption
(CPU/Memory Only)
Mechanical
Environment
#1 SIM holder and M.2 slot are hardware interfaces for wireless communication integration only. System level RF certification is not available.
Core 8 8 6 4 2
TDP 35W
Chipset
BIOS AMI EFI 128Mbit
Technology DDR4 2666 MHz
Max. Capacity 64 GB
Socket 2 x 260-pin SO-DIMM
Chipset Intel
Graphic Engine
VGA 2048x1280@ 60Hz
HDMI 1 HDMI port, HDMI 1.4 for HD video playback, 3840x2160@30Hz
Flexible Display (by TPN project) HDMI+HDMI, VGA+DP, HDMI+DP
LAN1 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
LAN2 10/100/1000 Mbps Intel I210GbE, support wake on lan
LAN3/LAN4 (by TPN project) 10/100/1000 Mbps Intel I210GbE, support wake on lan
Watch dog Timer 255-level timer interval, setup by software
TPM Onboard TPM 2.0
Serial Port 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper)
USB 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A)
GPIO 16bit DIO
Mini PCIe 1 x Full-size MiniPCIe (support mSATA, support SIM holder
M.2 1 x E key 2230 for WiFi
HDD 2 x 2.5" SATAIII HDD Bay with Max Height 9.5mm (Supports Intel SW RAID 0/1)
mSATA 1 x mSATA socket (Share with Mini PCIe)
Microsoft Windows Windows 10
Linux By Project Support
Power Type AT/ATX
Power Input Voltage 9-36V
Power Adapter AC to DC, 150W (Optional)
Typical 16.8W
Max. 34.8W
Construction Aluminum housing
Mounting Desk mounting
Dimensions (W x H x D) 200 x 75 x 215 mm
Weight 3.2Kg
Operating Temperature 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow
Storage Temperature -40 ~ 85° C
Relative Humidity 95% @ 40° C (non-condensing)
Vibration During Operation With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock During Operation With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMC CE/FCC Class B, CCC, BSMI
Safety CB(62368), UL(62368), CCC, BSMI
H370 (Q370 support
by TPN)
®
UHD Graphics 630
Direct x 12, OpenGL 4.4
HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.
HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
#1
, Optional AMO-I026 to supports m.2 B+M key 2280)
Fanless Embedded Box PCs
All product specifications are subject to change without notice. Last updated: 22-Jan-2021
ARK-3531
Dimensions
214.80
224.90
200
75
Front Panel External I/O Mechanical Layout/Drawing Rear Panel External I/O Mechanical Layout/Drawing
USB3.0 /4
USB3.0 5/6
LAN2
LAN1
Power on/off
COM4 COM2 DC in 9-36V
COM3
COM1
Unit: mm
VGA GPIOUSB3.0 1/2
HDMI
USB3.1 1/2
Thermal LED
HDD LED
COM7 COM5
COM8 COM6
Ordering Information
Part No. CPU DDR4 GbE VGA HDMI RS-232 RS-232/422/485 USB 3.1 USB 3.0 MiniPCIe SIM M.2 E key DC Input
ARK-3531-00A1
Note: CPU/Memory/Storage and operating system bundled by request.
Packing List
Part Number Description
ARK-3531-00A1 ARK-3531 Unit
2006K35310 User Manual (Simplified Chinese)
202KAKMC00 China RoHS
1960093556N001 Wall mount kit
36WSWPDOBUND11 WISE-DeviceOn
36WSWPDOBD0211
LGA1151
Socket Type
McAfee Application Control Lite/Acronis Backup 11.7 for
Windows PC
Up to 64GB 2 1 1 4 4 2 6 1 1 1 9-36V
ARK-3531 Option Items
Part Number Description
96PSA-A150W19P4-3 AC-to-DC Adapter, DC19V 150W, 0 ~ 40° C
96PSA-A230W24P4-3 AC to DC adapter, DC 24V 230W, -20 ~ 60° C
1702002600 Power cable 3-pin 183cm, USA type
1702002605 Power cable 3-pin 183cm, EU type
1702031801 Power cable 3-pin 183cm, UK type
ARK-3531 Optional Expansion kit
Embedded OS
Part Number Description
20706WX9HS0090 WIN10 IOT 1809 64bit for i7/i9
20706WX9VS0094 WIN10 IOT 1809 64bit for Celeron/Pentium/i3/i5
Part Number Description
AMO-I026A Expansion M.2 B key 2280 kit for USB module
AMO-I026B Expansion M.2 B Key 2280 kit for PCIe/SATA module
AMO-I026C Expansion M.2 M Key 2280 kit for PCIe/SATA module
