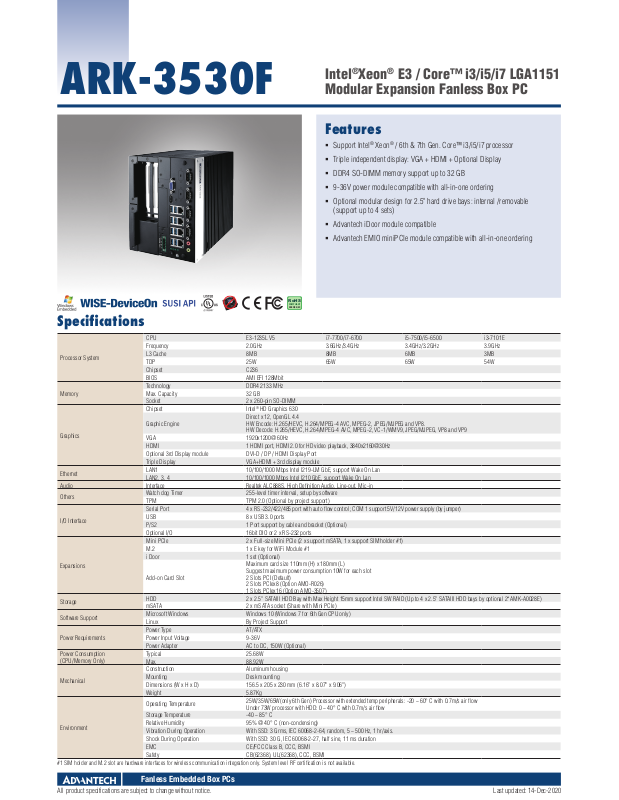

Advantech ARK-3530F Specifications
Intel®Xeon® E3 / Core™ i3/i5/i7 LGA1151
ARK-3530F
Modular Expansion Fanless Box PC
Features
Support Intel® Xeon® / 6th & 7th Gen. Core™ i3/i5/i7 processor
Triple independent display: VGA + HDMI + Optional Display
DDR4 SO-DIMM memory support up to 32 GB
9-36V power module compatible with all-in-one ordering
Optional modular design for 2.5" hard drive bays: internal /removable
(support up to 4 sets)
Advantech iDoor module compatible
Advantech EMIO miniPCIe module compatible with all-in-one ordering
RoHS
COMPLIANT
2002/95/EC
Specifications
CPU E3-1235L V5 i7-7700/i7-6700 i5-7500/i5-6500 i3-7101E
Frequency 2.0GHz 3.6GHz/3.4GHz 3.4GHz/3.2GHz 3.9GHz
Processor System
Memory
Graphics
Ethernet
Audio Interface Realtek ALC888S, High Definition Audio, Line-out, Mic-in
Others
I/O Interface
Expansions
Storage
Software Support
Power Requirements
Power Consumption
(CPU/Memory Only)
Mechanical
Environment
#1 SIM holder and M.2 slot are hardware interfaces for wireless communication integration only. System level RF certification is not available.
L3 Cache 8MB 8MB 6MB 3MB
TDP 25W 65W 65W 54W
Chipset C236
BIOS AMI EFI 128Mbit
Technology DDR4 2133 MHz
Max. Capacity 32 GB
Socket 2 x 260-pin SO-DIMM
Chipset Intel
Graphic Engine
VGA 1920x1200@ 60Hz
HDMI 1 HDMI port, HDMI 2.0 for HD video playback, 3840x2160@30Hz
Optional 3rd Display module DVI-D / DP / HDMI Display Port
Triple Display VGA+HDMI + 3rd display module
LAN1 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
LAN2, 3, 4 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan
Watch dog Timer 255-level timer interval, setup by software
TPM TPM 2.0 (Optional by project support)
Serial Port 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper)
USB 8 x USB 3.0 ports
P/S2 1 Port support by cable and bracket (Optional)
Optional I/O 16bit DIO or 2 x RS-232 ports
Mini PCIe 2 x Full-size Mini PCIe (2 x support mSATA, 1 x support SIM holder #1)
M.2 1 x E key for WiFi Module #1
i Door 1 set (Optional)
Add-on Card Slot
HDD 2 x 2.5" SATAIII HDD Bay with Max Height 15mm support Intel SW RAID (Up to 4 x 2.5" SATAIII HDD bays by optional 2*AMK-A0028E)
mSATA 2 x mSATA socket (Share with Mini PCIe)
Microsoft Windows Windows 10 (Windows 7 for 6th Gen CPU only)
Linux By Project Support
Power Type AT/ATX
Power Input Voltage 9-36V
Power Adapter AC to DC, 150W (Optional)
Typical 25.68W
Max. 88.92W
Construction Aluminum housing
Mounting Desk mounting
Dimensions (W x H x D) 156.5 x 205 x 230 mm (6.16" x 8.07" x 9.06")
Weight 5.87Kg
Operating Temperature
Storage Temperature -40 ~ 85° C
Relative Humidity 95% @ 40° C (non-condensing)
Vibration During Operation With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock During Operation With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMC CE/FCC Class B, CCC, BSMI
Safety CB(62368), UL(62368), CCC, BSMI
®
HD Graphics 630
Direct x 12, OpenGL 4.4
HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.
HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
Maximum card size 110mm (H) x 180mm (L)
Suggest maximum power consumption 10W for each slot
2 Slots PCI (Default)
2 Slots PCIex8 (Option AMO-R026)
1 Slots PCIex16 (Option AMO-3507)
25W/35W/65W(only 6th Gen) Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow
Under 73W processor with HDD: 0 ~ 40° C with 0.7m/s air flow
Fanless Embedded Box PCs
All product specifications are subject to change without notice. Last updated: 14-Dec-2020
ARK-3530F
Dimensions
Front Panel External I/O Mechanical Layout/Drawing
Optional Display
VGA
HDMI
USB 7/8 LAN4
iDoor
USB 5/6 LAN3
USB 3/4 LAN2
USB 1/2 LAN1
DC in
Power on/off
Unit: mm
156.50
205
230
240
COM4
COM3
COM2
COM1
MIC in
Line out
HDD LED
Ordering Information
Part No. CPU DDR4 Gbe VGA HDMI
ARK-3530F-00A1
Note: CPU/Memory/Storage and operating system bundled by request.
LGA1151
Socket Type
Up to 32GB 4 1 1 1 4 8 2 1 1 9-36V 2 x PCI
Packing List
Part Number Description
- ARK-3530F Unit
- User Manual (Simplified Chinese)
- China RoHS
- Desk mounting kit
Option 3rd
display module
RS-232/422/485
USB
MiniPCIe SIM M.2 DC Input Expansion
3.0
Embedded OS
Part Number Description
20706WX9HS0023 WIN10 IoT LTSC 64bit for Xeon and Core i7
20706WX9VS0026 WIN10 IoT LTSC 64bit for Core i3/i5 and Celeron
