ADAM 4000

Data Acquisition Modules

User's Manual

ADAM 4000 Series

Data Acquisition Modules

User’s Manual

This document is copyrighted, 1997, by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd., reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements upon the rights of third parties, which may result from its use.

CE Notification

The ADAM-4000 series developed by Advantech Co., Ltd. has passed the CE test for environmental specifications when operated within an industrial enclosure (ADAM-4950-ENC). Therefore, in order to protect the ADAM modules from being damaged by ESD (Electric Static Discharge), we strongly recommend that the use of CE-compliant industrial enclosure products when using any ADAM module.

Acknowledgments

ADAM is a trademark of Advantech Co., Ltd. IBM and PC are trademarks of International Business Machines Corporation.

Ninth Edition

July 2004

Table of Contents

Chapter 1 Introduction ..….....……..................…..................…….. 1-1

1.1 Overview .......................…................................….........….…… 1-2

1.2 Applications ..................….........................…….............…....... 1-4

Chapter 2 Installation Guideline ...................….................…....... 2-1

2.1 System Requirements to set up an ADAM network ..…....... 2-2

2.2 Basic configuration and hook-up ....................……............... 2-5

2.3 Baud rate and Checksum .................................……............... 2-7

2.4 Multiple Module Hookup ...............................………............... 2-10

2.5 Programming Example.....................................……................ 2-11

Chapter 3 I/O Modules ..................................................…............. 3-1

3.1 ADAM-4011/4011D Thermocouple Input Modules ...…......... 3-2

3.2 ADAM-4012 Analog Input Module ………………..…............... 3-9

3.3 ADAM-4013 RTD Input Modules .......………………….…….... 3-14

3.4 ADAM-4015 6-channel RTD Input Module .…………….......... 3-16

3.5 ADAM-4015T 6-channel Thermistor Input Module ....…........ 3-19

3.6 ADAM-4016 Analog Input/Output Module....………….…....... 3-20

3.7 ADAM-4017/4017+/4018/4018M/4018+ 8-channel Analog Input

Modules ........……………………………………………………..... 3-25

3.8 ADAM-4019 8-channel Universal Analog Input Module ....... 3-35

3.9 ADAM-4021 Analog Output Module ........................…........... 3-38

3.10 ADAM-4024 4-ch. Analog Output Module ..........….............. 3-41

3.11 ADAM-4050 Digital I/O Module ……………………………..... 3-43

3.12 ADAM-4051 16-channel Isolated Digital Input Module ..…. 3-45

3.13 ADAM-4052 Isolated Digital Input Module ……………..…... 3-47

3.14 ADAM-4053 16-channel Digital Input Module …..……..…... 3-49

3.15 ADAM-4055 16-channel Isolated Digital I/O Module ……... 3-51

3.16 ADAM-4056S 12-ch. Sink Type Isolated Digital Output

Module …………………………………………………….……..... 3-54

3.17 ADAM-4056SO 12-ch. Source Type Isolated Digital Output Module ………….…………………………………………..……... 3-56

3.18 ADAM-4060/4068 Relay Output Module ................…........... 3-58

3.19 ADAM-4080/4080D Counter/Frequency Input Modules ….. 3-62

Chapter 4 Command Set ..................................................…......... 4-1

4.1 Introduction.................................................................….......... 4-2

4.2 Syntax .........................................................................….......... 4-2

4.3 I/O Module Commands Search Table ......................….......... 4-4

4.4 Analog Input Module Command ..................…...................... 4-44

4.4.1 Analog Input Command Set ...........................................……............ 4-44

4.4.2 Data Conversion and Display Command Set ..................………........ 4-79

4.4.3 Analog Input Data Logger Command Set .........................….…......... 4-91

4.4.4 Digital I/O, Alarm and Event Command Set ...................………......... 4-104

4.4.5 Excitation Voltage Output Command Set ......................……….......... 4-119

4.5 Analog Output Module Command .........................……......... 4-127

4.6 Digital I/O and Relay Output Module Command ......……..... 4-150

4.7 Counter/Frequency Module Command .....................……..... 4-173

4.7.1 Configuration, Counter Input and Display Command Set ..………….. 4-173

4.7.2 Counter Setup Command Set ..........................................………..... .. 4-185

4.7.3 Digital Filter and Programmable Threshold Command Set .………… 4-194

4.7.4 Digital Output and Alarm Command Set ......................………........... 4-205

Chapter 5 Calibration ...........................................…..................... 5-1

5.1 Analog Input Module Calibration ............................…........... 5-2

5.2 Analog Input Resistance Calibration .................................... 5-7

5.3 Analog Output Calibration ..................................................... 5-9

Appendix A Technical Specifications..............................…......... A-1

A.1 ADAM-4011 Thermocouple Input Module ................…......... A-2

A.2 ADAM-4011D Thermocouple Input Module with LED

Display .......................................................................……...... A-5

A.3 ADAM-4012 Analog Input Module ......................................... A-8

A.4 ADAM-4013 RTD Input Module ......................................….... A-10

A.5 ADAM-4014D Analog Input Module with LED Display …..... A-12

A.6 ADAM-4016 Strain Gauge Input Module .....................…...... A-14

A.7 ADAM-4017, 4017+ 8-Channel Analog Input Module ..…..... A-16

A.8 ADAM-4018, 4018+ 8-channel Analog Input Module ...…..... A-18

A.9 ADAM-4018M 8-channel Analog Input Data Logger ....….... A-21

A.10 ADAM-4021 Analog Output Module .................................... A-24

A.11 ADAM-4050 Digital I/O Module.................................…......... A-26

A.12 ADAM-4052 Isolated Digital Input Module ................…...... A-28

A.13 ADAM-4053 16-channel Digital Input Module ............…..... A-30

A.14 ADAM-4056S 12-ch. Sink Type Isolated Digital Output

Module ........…………………………………………………...….. A-32

A.15 ADAM-4056SO 12-ch. Source Type Isolated Digital Output

Module ........………………………………………………….….... A-34

A.16 ADAM-4060 Relay Output Module....................................... A-36

A.17 ADAM-4080 Counter/Frequency Input Module .................. A-38

A.18 ADAM-4080D Counter/Frequency Input Module with LED

Display …................................................................................. A-40

Appendix B Data Formats and I/O Ranges ..................…............ B-1

B.1 Analog Input Formats.............................................…............. B-2

B.1.1 Engineering Units .............................................................…….......... B-2

B.1.2 Percent of FSR .................................................................…............. B-3

B.1.3 Twos complement hexadecimal .....................................……............ B-4

B.1.4 Ohms ..............................................................................……............ B-5

B.2 Analog Input Ranges.............................................….............. B-6

B.3 Analog Output Formats ..............................................…........ B-11

B.3.1 Engineering Units ............................................................………........ B-11

B.3.2 Percent of Span ........................................................…….................. B-11

B.3.3 Hexadecimal ............................................................………............... B-11

B.4 Analog Output Ranges .......................................…................ B-12

Appendix C Technical Diagrams .................................…............. C-1

C.1 ADAM Dimensions ..............................................…................ C-2

C.2 Installation .............................................................….............. C-3

C.2.1 DIN-Rail Mounting ......................................................…...….............. C-3

C.2.2 Panel Mounting .............................................................…….............. C-5

C.2.3 Piggyback Stack ....................................................….....…................. C-7

Appendix D Utility Software .................................…..................... D-1

D.1 ADAM-4000 Utility Software ......................…......................... D-2

Appendix E RS-485 Network .............................…........................ E-1

E.1 Basic Network Layout ................................…......................... E-3

E.2 Line Termination .........................................…........................ E-5

E.3 RS-485 Data Flow Control ..................................................... E-7

Appendix F How to use the Checksum feature ..........…............ F-1

F.1 Checksum Enable/Disable ......................................…............ F-2

Appendix G ADAM-4000 I/O Modbus Mapping Table ....…......... G-1

Appendix H Changing Configuration to Modbus Protocol ....... H-1

Introduction 1

Introduction

1.1 Overview

The ADAM Series is a set of intelligent sensor-to-computer interface modules containing built-in microprocessor. They are remotely controlled through a simple set of commands issued in ASCII format and transmitted in RS-485 protocol. They provide signal conditioning, isolation, ranging, A/D and D/A conversion, data comparison, and digital communication functions. Some modules provide digital I/O lines for controlling relays and TTL devices.

Software Configuration and Calibration

ADAM modules contain no pots or switches to set. By merely issuing a command from the host computer, you can change an analog input module to accept several ranges of voltage input, thermocouple input or RTD input. All the module’s configuration parameters including I/O address, speed, parity, HI and LO alarm, calibration parameters settings may be set remotely. Remote configuration can be done by using either the provided menu-based software or the command set’s configuration and calibration commands.

By storing configuration and calibration parameters in a nonvolatile EEPROM, modules are able to retain these parameters in case of power failure.

Watchdog Timer

A watchdog timer supervisory function will automatically reset the ADAM modules in the event of system failure. Maintenance is thus simplified.

Power Requirements

Although the modules are designed for standard industrial unregulated

power supply , they accept any power unit that supplies power

24 V

within the range of +10 to +30 V

. The power supply ripple must be

limited to 5 V peak-to-peak, and the immediat e ripple v ol t age s h ould be maintained between +10 and +30 V

Connectivity and Programming

ADAM modules can connect to and communicate with all computers and terminals. They use RS-485 transmission standards, and communicate with ASCII format commands. The command set for every module type consists of approximately ten different commands.

ADAM 4000 Series User’s Manual

Chapter 1

The command set for input modules is larger because it incorporates alarm functions. All communications to and from the module are performed in ASCII, which means that ADAM modul es c an be programmed in virtually any high-level language.

RS-485 Network

The RS-485 network provides lower-noise sensor readings, as modules can be placed much closer to the source. Up to 256 ADAM modules may be connected to an RS-485 multi-drop network by using th e ADAM RS-485 repeater, extending the maximum communication distance to 4,000 ft. The host computer is connected to the RS-485 network with one of its COM ports through the ADAM RS-232/RS-485 converter.

To boost the network’s throughput, the ADAM RS-485 repeaters use a logical RTS signal to manage the repeater’s direction. Only two wires are needed for the RS-485 network: DATA+ and DATA-. Inexpensive shielded twisted pair wiring is employed.

Panel/DIN Rail mounting

-3

Chapter 1 Introduction 1

Introduction

ADAM modules mount on any panel, on provided brackets, on DIN rails or may be stacked together.

The RS-485 network, together with screw-terminal plug connectors, allows for system expansion, reconfiguration and repair without disturbing field wiring.

Protection against the environment

Hardened plastic packing forms the outer shell of every module. Since all configuration is controlled by software, the module is not designed to be opened. This greatly enhances resistance against corrosive materials, moisture and vibration. ADAM modules’ low power requirements help them to operate in temperatures from 0 to 70

in humidities from 0 to 95% (non-condensing). They’re built compactly using automated SMT technology so you can pack them into watertight and explosion-proof industrial enclosures.

1.2 Applications

• Remote data acquisition

• Process monitoring

• Industrial process control

• Energy management

• Supervisory control

• Security systems

• Laboratory automation

• Building automation

• Product testing

• Direct digital control

C, and

ADAM 4000 Series User’s Manual

Installation Guideline 2

Installation Guideline

This chapter provides guidelines to what is needed to set up and install an ADAM network. A quick hookup scheme is provided that lets you configure modules before they are installed in a network.

To help you to connect ADAM modules with sensor inputs, several wiring examples are provided. Finally, you will find at the end of this chapter a programming example using the ADAM command set.

Be sure to carefully plan the layout and configur ation of your network before you start. Guidelines regarding layout are given in Appendix E: RS-485 Network.

NOTICE: Except for the communication modules, which have onboard switches for their baud rate setting, ADAM modules should not be opened. There is no need to open the ADAM modules: all configuration is done remotely and there are no user serviceable parts are inside. Opening the cover will therefore void the warranty.

2.1 System Requirements to set up an ADAM network

The following list gives an overview of what is needed to setup, install and configure an ADAM environment.

• ADAM modules

• A host computer, such as an IBM PC/AT compatible, that can output ASCII characters with an RS-232C or RS-485 port.

• Power supply for the ADAM modules (+10 to +30 V

• ADAM Series Utility software

• ADAM Isolated RS-232/RS-485 Converter (option a l)

• ADAM Repeater (optional)

)

Host computer

Any computer or terminal that can output in ASCII format over either RS-232 or RS-485 can be connected as the host computer. When only RS-232 is available, an ADAM RS-232/RS-485 Converter is re quired to transform the host signals to the correct RS-485 protocol. The converter also provides opto-isolation and transformer-based isolation to protect your equipment.

ADAM 4000 Series User’s Manual

Chapter 2

Power supply

For the ease of use in industrial environments the ADAM modules are designed to accept industry standard +24 V

Operation is guaranteed when using any power supply between +10 and +30 V

. Power ripples must be limited to 5 V peak to peak while the

voltage in all cases must be maintained between +10 and +30 V power supply specifications are referenced at module connector. When

modules are powered remotely, the effects of line voltage drops must be considered.

All modules use on-board switching regulators to sustain good efficiency over the 10-30 V input range, therefore we can assume that the actual current draw is inversely proportional to the line voltage. The following example shows how to calculate the required current that a power supply should be able to provide.

Assume that a +24 V

will be used to power five ADAM-4011 Analog

Input Modules. The distance from power supply to modules is not so big that significant line voltage drop will occur. One ADAM-4011 module consumes a maximum of 1.2 Watts. The total required power will equal 5 x 1.2 = 6 Watts. A power supply of +24 V

therefore be able to supply a minimal current of 6 / 24 = 0.25 Amps. Small systems may be powered by using wall-mounted modular power

supplies. Also when modules operate on long communication lines (>500 feet) it is often more reliable to power the modules locally with modular power supplies. These inexpensive units can easily be obtained from any electronics retail store.

The power cables should be selected according to the number of modules connected and the length of the power lines. When using a network with long cables, we advise the use of thicker wire to limit the line voltage drop. In addition to serious voltage drops, long voltage lines can also cause interference with communication wires.

unregulated power.

. All

should

Chapter 2 installation Guideline 2

-3

Installation Guideline

Figure 2-1 Power Supply Connections

We advise that the following standard colors (as indicated on the modules) be used for power lines:

+Vs (R) Red GND (B) Black

Communication Wiring

We recommend that shielded-twisted-pair cables that comply with the EIA RS-485 standard be used with the ADAM network to reduce interference. Only one set of twisted-pair cables is required to transmit both Data and RTS signals. We advice that the following standard colors (as indicated on the modules) be used for the communication lines:

DATA+ (Y) Yellow DATA- (G) Green

ADAM Utility Software

A menu-driven utility program is provided for ADAM module configuration, monitoring and calibration. It also includes a terminal emulation program that lets you easily communicate through the ADAM command set. (See Appendix D, Utility Software)

ADAM Communication Speed

In ADAM series, the baudrate can be configured from 1200 bps to 38.4 Kbps. And the baudrate of all modules in an RS-485 network must be the same.

ADAM 4000 Series User’s Manual

Chapter 2

ADAM Isolated RS-232/RS485 Converter (optional)

When the host computer or terminal has only a RS-232 port, an ADAM Isolated RS-232/RS-485 Converter, connected to the host’s RS-232 port, is required. Since this module is not addressable by the host, the baud rate must be set using a switch inside the module. The factory default setting is 9600 baud.

ADAM Repeater (optional)

When communication lines exceed 4000 ft (1200 meter) or the number of ADAM modules connected is more than 32, a repeater should be connected to expand the first segment. Up to 8 Repeater modules can be connected allowing connection of up to 256 ADAM modules. As with the Converter module, the Repeater module is not addressable by the host and the baud rate must be set by changing the switch inside the module. The factory default setting is 9600 baud.

2.2 Basic configuration and hook-up

Before placing a module in an existing network, the module should be configured. Though all modules are initially configured at the factory, it is recommended to check that the baud rate is set correctly.

Default Factory Settings

Baud rate: 9600 Bit/sec. Address: 01 (hexadecimal)

The basic hook-up for module configuration is shown below.

ADAM-4520 RS-232/RS-485 Converter

DATA+ DATA-

+Vs

GND

ADAM

I/O

Module

HOST PC

RS-232

TXD (3)

RXD (2)

RTS (7)

GND (5)

+Vs GND

DATA+ DATA-

RS-485

POWER

+10~+30 V

()=pin number on EIA-232-D

connector (RS-232)

Figure 2-2 Basic Hook-up of ADAM Module to Host Switches

Chapter 2 installation Guideline 2

-5

Installation Guideline

The following items are required to configure a module: an ADAM converter module, a personal computer with RS-232 port (baud rate set to 9600) and the ADAM utility software.

Configuration with the ADAM Utility Software

The easiest way to configure the ADAM module is by using the ADAM utility software: an easy-to-use menu-structured program will guide you through every step of the configuration. (See Appendix D, Utility Software)

Changing the protocol from ADAM ASCII to Modbus

Some ADAM-4000 modules support b ot h A DAM ASCII protocol and Modbus protocol . The factory default setting of these modules is ADAM ASCII protocol. If you would like to configure the modules to Modbus protocol, please refer to Appendix H which describe how to change the protocol in ADAM utility.

Configuration with the ADAM command set

ADAM modules can also be configured by issuing direct commands from within a terminal emulation program that is part of the ADAM utility software.

The following example guides you through the setup of an analog input module. Assume that an ADAM-4011 Analog Input module still has its default settings (baud rate 9600 and address 01h). Before the module is reconfigured, it is first requested to send its default settings.

NOTICE: An analog input module requires a maxi mu m of 7 seco nds to perform auto calibration and ranging after it is rebooted or powered on. During this time span, the module can not be addressed to perform any other actions.

Example:

Make sure that the module is properly connected as shown in figure 2-5. Power up all the connected devices, start the terminal emulation program, and issue the following command:

$012(cr)

requests that module with address 01 send its configuration status

!01050600

Module at address 01 responds that it is configured for an input range of +/-2.5 V, baud rate 9600, integration time of 50 ms (60 Hz), engineering units and no checksum checking or generation.

ADAM 4000 Series User’s Manual

Chapter 2

To change the configuration setting of the analog input module, the following command is issued:

%01070F0600(cr) % = change configuration 01 = target module at address 00 to: 07 = change address to 07 hexadecimal

0F = set input range to Type K thermocouple 06 = set baud rate to 9600 00 = set integration time to 50 ms (60 Hz)

disable checksum set data format to engineering units

(See Chapter 4, Command Set for a full description of the syntax of the configuration command for an analog input module)

When the module received the configuration command it will respond with its new address:

!07(cr) Wait 7 seconds to let the new configuration settings take effect before

issuing a new command to the module.

NOTICE: All reconfiguration except changing of baud rate and checksum values can be done dynamically, i.e. the modules need not to be reset. When changing the baud rate or checksum, these changes should be made for all connected devices. After reconfiguration, all modules should be powered down and powered up to force a reboot and let the changes take effect. See the next page for a strategy for changing baud rate and or checksum for an entire network.

2.3 Baud rate and Checksum

Adam modules contain EEPROMs to store configuration information and calibration constants. The EEPROM replaces the usual array of switches and pots required to specify baud rate, input/output range etc. All of the ADAM modules can be configured remotely through their communication ports, without having to physically alter pot or switch settings.

Chapter 2 installation Guideline 2

-7

Installation Guideline

Since there is no visual indication of a module’s configuration status, it is impossible just by looking at it what the baud rate, address and other settings are. It might not be possible to establish communications with a module whose baud rate and address are unknown. To overcome this problem, every module has an input terminal labeled INIT*. By booting the module while connecting the INIT* terminal with the module’s GND terminal, the modules configuration is forced into a known state. This state is called the INIT* state.

INIT* state defaults:

Baud rate: 9600 Address: 00h Checksum: disabled

Forcing the module in the INIT* state does not change any parameters in the module’s EEPROM. When the module is in the INIT* state with its INIT* and GND terminals shorted, all configuration settings can be changed and the module will respond to all other commands normally.

Changing Baud rate and Checksum

Baud rate and checksum settings have several things in common:

• They should be the same for all modules and host computer.

• Their setting can only be changed by putting a module in the INIT* state.

• Changed settings can only take effect after a module is rebooted

To alter baud rate or checksum settings you must perform the following steps:

• Power on all components except the ADAM Module.

• Power the ADAM module on while shorting the INIT* and GND terminals (See Figure 2-3).

ADAM 4000 Series User’s Manual

Chapter 2

Figure 2-3 Grounding the INIT* Terminal

• Wait at least 7 seconds to let self calibration and ranging take effect.

• Configure the checksum status and/or the baud rate.

• Switch the power to the ADAM Module OFF.

• Remove the grounding of the INIT* terminal and power the module on.

• Wait at least 7 seconds to let self calibration and ranging take effect.

• Check the settings (If the baud rate has changed, the settings on the host computer should be changed accordingly).

Chapter 2 installation Guideline 2

-9

Installation Guideline

2.4 Multiple Module Hookup

The Figure below shows how ADAM modules are connected in a multiple module example:

Figure 2-4 Multi-module Connection

ADAM 4000 Series User’s Manual

Chapter 2

2.5 Programming Example

The following example is a simple program written in Visual Basic 6.0 that demonstrates how to get temperature reading from ADAM-4011 module, which is addressed at 01H.

Step 1. Using ADAM Utility to check the settings of “Address = 01H”, “Baud rate = 9600” and “Checksum = Disabled” as following.

Step 2. Run VB 6.0 and add a control via “Project\Component”.

Chapter 2 installation Guideline 2

-11

Installation Guideline

Step 3. Select “Microsoft Comm Control”

Step 4. Add the Comm Control on the form.

ADAM 4000 Series User’s Manual

Step 5. Add three Command Buttons on the form as following

Step 6. Add one Label and one Text on the form as following.

Chapter 2

Chapter 2 installation Guideline 2

-13

Installation Guideline

Step 7. Click OPEN Button and type following codes. The source codes are listed at the end of this section.

Step 8. Click SEND Button and type following codes. The source codes are listed at the end of this section.

ADAM 4000 Series User’s Manual

Chapter 2

Step 9. Click CLOSE Button and type following codes. The source codes are listed at the end of this section.

Step 10. Run the Project → Click OPEN to open COM1 → Click SEND to send the Get Temperature Reading Command. Now you will find the reading

is displayed as following format.

Chapter 2 installation Guideline 2

-15

Installation Guideline

Program Source Codes:

 OPEN Command Button:

Private Sub Command1_Click() ' Buffer to hold input string Dim Instring As String ' Use COM1. MSComm1.CommPort = 1 ' 9600 baud, no parity, 8 data, and 1 stop bit. MSComm1.Settings = "9600,N,8,1" ' Tell the control to read entire buffer when Input ' is used. MSComm1.InputLen = 0 ' Open the port. MSComm1.PortOpen = True End Sub

 SEND Command Button:

Private Sub Command2_Click() ' Send Get AI command to ADAM-4011 Module at address 01H. MSComm1.Output = "#01" & Chr$(13) ' Wait for data to come back to the serial port. Do DoEvents Buffer$ = Buffer$ & MSComm1.Input Loop Until InStr(Buffer$, vbCr) ' Read the response till the carriage return character. Text1.Text = Buffer$ ' Display the reading. End Sub

 CLOSE Command Button

Private Sub Command3_Click() ' Close the serial port. MSComm1.PortOpen = False End Sub

ADAM 4000 Series User’s Manual

I/O Modules 3

I/O Modules

3.1 ADAM-4011/4011D Thermocouple Input Modules

ADAM-4011/4011D Thermocouple Input Modules use a microprocessor-controlled integrating A/D converter to convert sensor voltage, current or thermocouple signal into digital data. The digital data is then translated into either engineering units, two’s co mplement hexadecimal format or percentage of full-scale range (FSR) according to the module’s configuration. When prompted by the host computer, the data is sent through a standard RS-485 interface.

The ADAM-4011/4011D Thermocouple Input Modules offer signal conditioning, A/D conversion, ranging, and RS-485 digital communication functions. They protect your equipment from ground loops and power surges by providing opto-isolation of the A/D input and transformer based isolation up to 3000 V

transformer-based isolation up to 500 V

Open Thermocouple Detection and Input Surge Protection (ADAM-4011D only)

The ADAM-4011D provides an open thermocouple detection function. Users can use a simple command to detect whether the thermocouple is open or closed. The module also provides surge protection on its input channel. Internal high-speed transient suppressor on its input channel protects the module from dangerous spikes and voltages.

. (ADAM-4011 has

)

Front Panel LED Indicator (ADAM-4011D only)

The 4½ digits LED display on the back of the ADAM-401 1D let s yo u monitor process readings right at their source. The module displays readings in a wide variety of formats as well as high-low alarm messages. The ADAM-4011D offers flexibility, ease of installation and direct availability of process data. For critical process monitoring, this module is the ideal choice.

Digital Input/Output

ADAM-4011/4011D Thermocouple Input Modules also contain two digital outputs and one digital input. Outputs are open-collector transistor switches that may be controlled by the host computer. They can control solid-state relays, which in turn may control heaters, pumps, and other electrical powered equipment. The digital inputs may be read by the host computer and used to sense the state of a remote digital signal.

ADAM 4000 Series User’s Manual

Chapter 3

Event counting

The event counter is connected to the Digital Input channel and can be used to keep track of the total amount of external low-speed pulses. Its accumulated maximal count is 65535. The number 65535 is held, even if the actual number of events exceeds 65535. The counter can be read or reset to 0 by the host computer.

Since the Event counter’s data is not stored in EEPROM, the event counter is cleared and set to zero after every reset or power up of the analog input module.

Alarm signaling

Analog input modules include High and Low alarm functions. High and Low alarm limits may be downloaded into the module’s EEPROM by the host computer.

The alarm functions can be enabled or disabled remotely. When the alarm function is enabled, both Digital Output channels are used to indicate the High and Low alarm state. Digital Output channel 1 (DO1) equals High alarm state and Digital Output channel 0 (DO0) equals Low alarm state. The High and Low alarm states can be read at any time by the host computer.

Every A/D conversion will be followed by a comparison with the High and Low limit. When the input value exceeds one of these limits, the High or Low alarm state is set to ON.

There are two alarm mode options: Momentary and Latching. If the alarm is in Latching mode, the alarm will stay on even when the

input value returns within limits. An alarm in Latching mode can be turned OFF by issuing a Clear Alarm command from the host computer. A Latching alarm is cleared by the module when the opposite alarm is set. For example: the alarm is in latching mode and the High alarm is turned ON.

When the module receives a value that is lower than the Low alarm limit, it will clear the High alarm and turn the Low alarm ON.

When the alarm is in Momentary mode, the alarm will be turned OFF as soon as the input value returns to within limits.

The arrangement of coupling High and Low alarm states with Digital Output lines may be utilized to build ON/OFF controllers that can operate without host computer involvement.

Chapter 3 I/O Modules

3-3

I/O Modules

Function Description for the ADAM-4011 analog input module

To provide a better understanding of the functioning of the ADAM modules, the following is a description of the module with the most extensive set of functions, the ADAM-4011.

All analog input data first flows through the PGA (programmable gain amplifier). The amplifier can vary its gain from 1 to 128. The PGA automatically adjusts the signal to a range of -2.5 V to +2.5 V. This ensures optimal input voltage and resolution for the A/D converter.

The A/D conversion is supervised by the microprocessor that holds the calibration software. Two kinds of calibration take place automatically on startup or reset: Auto Zero calibration and Auto Span calibration. Normal calibration is used to adjust the signal according to calibration parameters defined by the user.

The digital 10 Hz filter provides a steady state output by using the ΔΣ function.

Before the data enters the microprocessor it passes through an optical isolation device. The opto-isolation prevents ground loops and limits the chance of damage from power surges.

The microprocessor has six basic functions:

- Linearization of T/C (Thermocouple)

- Communication software and command set

- Calibration software

- Alarm monitoring

- Event counting

- Management of the EEPROM device that holds the system parameters

- Data transformation After data has been transformed to the right data format its is passed on

the RS-485 output port. If an input value exceeds the High alarm setting or falls below the Low

alarm setting, a flag is set in one of the Digital Output channels. Finally, the on-board switching regulator accepts voltage between +10

and +30 V protect your equipment from damage from power surges.

. This power circuit has an isolation value of 500 VDC to

ADAM 4000 Series User’s Manual

ADAM-4011

Chapter 3

Figure 3-1 ADAM-4011 Thermocouple Input Module

Accepts:

- J, K, T, E, R, S and B thermocouples

- millivolt inputs: ±15 mV, ±50 mV, ±100 mV and ±500 mV

- Volt inputs: ±1 V and ±2.5 V

- Current input: ±20 mA (Requires a 125 Ω resistor) Two digital output channels and one digital input chann e l are

provided. Depending on the module’s configuration setting, it can forward the

data to the host computer in one of the following formats:

- engineering units (

C, mV, V, or mA)

- percent of full-scale range (FSR)

- two’s complement hexadecimal

Chapter 3 I/O Modules

3-5

I/O Modules

ADAM-4011D

Figure 3-2 ADAM-4011D Thermocouple Input Module with LED Display

Accepts:

- J, K, T, E, R, S and B thermocouples

- millivolt inputs: ±15 mV, ±50 mV, ±100 mV and ±500 mV

- Volt inputs: ±1 V and ±2.5 V

- Current input: ±20 mA (Requires a 125 Ω resistor) Two digital output channels and one digital input channel are provided. Depending on the module’s configuration setting, it can forward the

data to the host computer in one of the following formats:

- engineering units (

C, mV, V, or mA)

- percent of full-scale range (FSR)

- Two’s complement hexadecimal

ADAM 4000 Series User’s Manual

Application Wiring

Chapter 3

Figure 3-3 Thermocouple Input

Figure 3-4 Millivolt and Volt Input

Figure 3-5 Process Current Input

Chapter 3 I/O Modules

3-7

I/O Modules

Figure 3-6 Digital Output used with SSR (HI-LO alarm)

Figure 3-7 Digital Output used with SSR (HI-LO alarm)

Figure 3-8 Digital Output used with SSR (HI-LO alarm)

ADAM 4000 Series User’s Manual

Chapter 3

3.2 ADAM-4012 Analog Input Module

ADAM-4012 Analog input module uses a microprocessor-controlled integrating A/D converter to convert sensor voltage or current signals into digital data. The digital data is then translated into either engineering units, two’s complement hexadecimal format or percentage of full-scale range (FSR) according to the module’s configuration. When prompted by the host computer, the data is sent through a standard RS-485 interface.

ADAM-4012 Analog Input Modules offer signal conditioning, A/D conversion, ranging, and RS-485 digital communication functions. They protect your equipment from ground loops and power surges by providing opto-isolation of the A/D input and transformer based isolation up to 3000 V

Digital Inputs/Outputs

ADAM-4012 also contains two digital outputs and one digital input. Outputs are open-collector transistor switches that may be controlled by the host computer. They can control solid-state relays, which in turn may control heaters, pumps, and other electrical powered equipment. The digital inputs may be read by the host computer and used to sense the state of a remote digital signal.

Event counting

Since the Event counter’s data is not stored in EEPROM, the event counter is cleared and set to zero after every reset or power up of the analog input module.

Alarm signaling

Analog input modules include High and Low alarm functions. High and Low alarm limits may be downloaded into the module’s EEPROM by the host computer.

Chapter 3 I/O Modules

3-9

I/O Modules

Every A/D conversion will be followed by a comparison with the High and Low limit. When the input value exceeds one of these limits, the High or Low alarm state is set to ON.

There are two alarm mode options: Momentary and Latching. If the alarm is in Latching mode, the alarm will stay on even when the

When the module receives a value that is lower than the Low alarm limit, it will clear the High alarm and turn the Low alarm ON.

When the alarm is in Momentary mode, the alarm will be turned OFF as soon as the input value returns to within limits.

The arrangement of coupling High and Low alarm states with Digital Output lines may be utilized to build ON/OFF controllers that can operate without host computer involvement.

ADAM 4000 Series User’s Manual

ADAM-4012

Chapter 3

Figure 3-9 ADAM-4012 Analog Input Module

Accepts:

- millivolt inputs ± 150 mV and ±500 mV

- volt inputs: ±1 V, ±5 V and ±10 V

- current input: ±20 mA (requires a 125 Ω resistor) Two digital output channels and one digital input channel are provided. Depending on the module's configuration setting, it can forward the

data to the host computer in one of the following formats:

- engineering units (mV, V, or mA )

- percent of full-scale range (FSR)

- two’s complement hexadecimal

Chapter 3 I/O Modules

3-11

I/O Modules

Application Wiring

Figure 3-12 Digital Output used with SSR (HI-LO alarm)

ADAM 4000 Series User’s Manual

Figure 3-10 Millivolt and Volt Input

Figure 3-11 Process Current Input

Chapter 3

Figure 3-13 Digital Output used with SSR (HI-LO alarm)

Figure 3-14 Digital Output used with SSR (HI-LO alarm)

Chapter 3 I/O Modules

3-13

I/O Modules

3.3 ADAM-4013 RTD Module

ADAM-4013 RTD input module support s o ne RT D in p ut chan nel fo r temperature measurement. This module can accept 2 wire, 3 wire or 4 wire RTD sensor. The module offers signal conditioning, A/D conversion, ranging, and RS-485 digital communication functions. They protect your equipment from ground loops and power surges by providing opto-isolation of the A/D input and transformer based isolation up to 3000 V

ADAM-4013

Figure 3-15 ADAM-4013 RTD Input Module

Accepts:

- input from platinum and nickel RTDs Depending on the module’s configuration setting, it can forward the data to the host computer in one of the following formats:

- engineering units ( °C )

- percent of full-scale range (FSR)

- two’s complement hexadecimal

ADAM 4000 Series User’s Manual

Application Wiring

Chapter 3

Figure 3-16 RTD Inputs

Chapter 3 I/O Modules

3-15

I/O Modules

蚓蚓

3.4 ADAM-4015 6-channel RTD Input Module

A RTD module is popular for temperature measurement. Unlike the traditional design, the ADAM-4015 provides six RTD input channels for different types of RTD signal as an effective solution in industrial & building automation. Usually, broken external wiring will lead to inaccurate current value. The ADAM-4015 provides a broken wiring detecting function so users can easily troubleshoot broken wiring problems.

ADAM-4015

2 D

CODE

(IEC/JIS) 30/35

+ 2

T R

TYPE

Pt 100

Pt 1000

BALCO 500

6 2

4 1

RANGE

-50 - 150

0 - 100

蚓蚓

0 - 200

蚓蚓

0 - 400

蚓蚓

-200 - 200

-40 - 160

蚓蚓

-30 - 120

蚓蚓

-80 - 100

蚓蚓

0 - 100

蚓蚓

Figure 3-17: ADAM-4015 6-channel RTD Input Module

ADAM 4000 Series User’s Manual

T R

)

(

Application Wiring

Chapter 3

RTD 1+

2-wire RT

COM 0

RTD 0-

RTD 0+

RTD 1+

COM 0

RTD 0-

RTD 0+

Figure 3-18: ADAM-4015 RTD Input Module Wiring Diagram

3-wire RT

Chapter 3 I/O Modules

3-17

I/O Modules

Technical specification of ADAM-4015

Channel Input Type

Input type and temperature range

Pt100, Pt1000, BALCO500, Ni

Pt100: -50 to 150° C 0 to 100° C 0 to 200° C 0 to 400° C -200 to 200° C Pt1000: -40 to 160° C BALCO500: -30 to 120° C Ni: -80 to 100° C 0 to 100° C

Isolation Voltage Sampling Rate Input Impedance Accuracy Power Consumption I/O Connector Type

Table 3-1: Technical specification of ADAM-4015

3000 VDC

12 sample/sec (total)

10 MΩ

+/- 0.1% or better

1 W

13- pin plug-terminal

ADAM 4000 Series User’s Manual

3.5 ADAM-4015T 6-channel Thermistor Input Module

A Thermistor module is popular for temperature measurement. Unlike the traditional design, the ADAM-4015T provides six Thermistor input channels for different types of Thermistor signal as an effective solution in industrial & building automation. Usually, broken external wiring will lead to inaccurate current value. The ADAM-4015T provides a broken wiring detecting function so users can easily troubleshoot broken wiring pr obl ems.

ADAM-4015T

Chapter 3

Application Wiring

Figure 3-19 ADAM-4015T 6-channel Thermistor Input Module

Figure 3-20 ADAM-4015T Thermistor Input Module Wiring Diagram

Chapter 3 I/O Modules

3-19

I/O Modules

3.6 ADAM-4016 Analog Input/Output Module

A strain gauge input module uses a microprocessor-controlled integrating A/D converter to convert sensor voltage or current signals into digital data for load cell and stress measurement. The digital data is then translated into either engineering units, two’s complement hexadecimal format or percentage of full-scale range (FSR) according to the module’s configuration. When prompted by the host computer, the data is sent through a standard RS-485 interface.

The strain gauge input module offers signal conditioning, A/D conversion, ranging, and RS-485 digital communication functions. They protect your equipment from ground loops and power surges by providing opto-isolation of the A/D input and transformer based isolation up to 3000 V

Excitation Voltage Output

A strain gauge input module can supply single channel voltage output for excitation. The module receives digital input from the host computer. The format of the data is engineering units. It then uses its microprocessor-controlled D/A converter to convert the digital data into output signals.

Strain gauge input modules protect your equipment from ground loops and power surges by providing opto-isolation of the D/A output and transformer-based isolation up to 3000 V

Digital Outputs

A strain gauge input module also contains 4 digital outputs. Outputs are open-collector transistor switches that may be controlled by the host computer. They can control solid-state relays which in turn may control heaters, pumps, and other electrical equipment.

Alarm signaling

Strain Gauge input modules include High and Low alarm functions. High and Low alarm limits may be downloaded into the modu le’s EEPROM by the host computer.

ADAM 4000 Series User’s Manual

Chapter 3

Every A/D conversion will be followed by a comparison with the High and Low limit. When the input value exceeds one of these limits, the High or Low alarm state is set to ON.

There are two alarm mode options: Momentary and Latching. If the alarm is in Latching mode, the alarm will stay on even when the

When the module receives a value that is lower than the Low alarm limit, it will clear the High alarm and turn the Low alarm ON.

When the alarm is in Momentary mode, the alarm will be turned OFF as soon as the input value returns to within limits.

The arrangement of coupling High and Low alarm states with Digital Output lines may be utilized to build ON/OFF controllers that can operate without host computer involvement. .

Chapter 3 I/O Modules

3-21

I/O Modules

ADAM-4016

Figure 3-21 ADAM-4016 Analog Input/Output Module

Accepts:

- millivolt inputs: ±15 mV, ±50 mV, ±100 mV, ±500 mV Strain Gauge

- Current input: ±20 mA

- Excitation voltage output: 0 ~ 10 V Four digital output channels are provided. Depending on the module’s configuration setting, it can forward the

data to the host computer in one of the following formats:

- engineering units (mV or mA)

- percent of full-scale range (FSR)

- Two’s complement hexadecimal

ADAM 4000 Series User’s Manual

Application Wiring

Figure 3-22 Strain Gauge Voltage Input

Chapter 3

Figure 3-23 Strain Gauge Current Input

Chapter 3 I/O Modules

3-23

I/O Modules

Figure 3-24 Digital Output used with SSR

ADAM 4000 Series User’s Manual

Chapter 3

3.7 ADAM-4017/4017+/4018/4018M/4018+ 8-channel Analog Input Modules ADAM-4017/4018 8-channel Analog Input Module

The ADAM-4017/4017+/4018/4018+ is a 16-bi t , 8-channel analog input module that provides programmable input ranges on all channels. This module is an extremely cost-effective solution for industrial measurement and monitoring applications. Its opto-isolated inputs provide 3000 V

protecting the module and peripherals from damage due to high inputline voltages.

ADAM-4017/4017+/4018/4018+ offers signal conditioning, A/D conversion, ranging and RS-485 digital communication functions. The module protects your equipment from ground loops and power surges by providing opto-isolation of A/D input and transformer based isolation up to 3000 V

The ADAM-4017/4017+/4018/4018+ uses a 16-bit microprocessorcontrolled sigma-delta A/D converter to convert sensor voltage or current into digital data. The digital data is then translated into engineering units. When prompted by the host computer, the module sends the data to the host through a standard RS-485 interface.

ADAM-4018M 8-channel Analog Input Data logger

The ADAM-4018M is a 16-bit, 8-channel analog input data logger featuring programmable input ranges on all channels. This reliable and easy to use analog input logger can store up to 38,000 measurements for a maximum duration of 20 years. The ADAM-4018M can accept various analog inputs, such as thermocouple, mV, V and mA, and offers three configurable logging modes: standard log, event log, and mixed log. Optically isolated inputs provide 500 V

between the module and the analog input, pro t ecting the module and peripherals from damage due to high voltages on the input lines. The ADAM-4018M is an extremely cost-effective solution for industrial measurement and monitoring applications.

of isolation between the analog input and the module,

of isolation

ADAM-4017+ 8-channel Differential Analog Input Module

Here comes a solution to the demand for more channels of analog input. Similar to its counterpart, the ADAM-4017+ enables eight differential channels with multiple input ranges. This multi-ch/multi-range structure allows channels with different input ranges at the same time, say channel 1 with the range +/- 5 V meanwhile the others with +/- 10 V and +/- 20 mA.

Chapter 3 I/O Modules

3-25

I/O Modules

Instead of leaving two single-ended channels in ADAM-4017 module due to the limit number of pins, the ADAM-4017+ uses a jumper to switch AGND and INIT* to Vin6- and Vin7-, respectively, to allow 8channel input. Additionally, the ADAM-401 7+ has been expanded to accept 4 ~ 20 mA so the user can employ it in various applications

ADAM-4018+ 8-ch. Thermocouple Input Module

Here comes a solution to the demand for more channels of thermocouple input. Similar to its counterpart, the ADAM-4018+ enables eight differential channels with multiple input types. This multi-ch/multi-type structure allows channels with different input types at the same time, say channel 1 with K input type meanwhile the others with R and S types.

ADAM-4018+ is an 8-channel T/C input module. Compared with the universal analog input module ADAM-4019, it is rather dedicated to T/C and 4 ~ 20 mA inputs for those with special request. It improves ADAM-4018, the traditional design six differential and two singleended channels, to enhance the steadiness and reliability of wiring. Usually, broken external will lead to inaccurate current value. ADAM4018+ provides burned-out detection so that users can easily troubleshoot broken wiring pr obl ems.

ADAM 4000 Series User’s Manual

ADAM-4017

Chapter 3

Vin 4-

Vin 4+

STRAIN GAUGE

Vin 5+

Vin 5-

Vin 3-

DATA

ACQUISITION

MODULE

INPUT:

mV, V, mA

OUPUT:

RS-485

Vin 6+

Vin 2-

Vin 3+

Vin 2+

ADAM-4017

CODE INPUT RANGE

AGND

Vin 7+

INIT*

?0 V

? V

?00 mV

?0 mA

Vin 1-

Vin 0-

Vin 0+

Vin 1+

(Y) DATA+

(B) GND

(G) DATA-

(R) +Vs

Figure 3-25 ADAM-4017 8-channel Analog Input Module

Channels:

- six differential, two single-ended Accepts:

- Millivolt inputs: ±150 mV and ±500 mV

- Volt inputs: ±1 V, ±5 V, and ±10 V

- Current input: ±20 mA (requires a 125 Ω resistor) The module forwards the data to the host computer in engineering units

(mV, V, or mA)

Chapter 3 I/O Modules

3-27

I/O Modules

ADAM-4017+ 8-channel Differential Analog Input Module

i V

CQUISITION

5 n

i V

DATA

MODULE

INPUT:

mV, V, mA

OUPUT:

RS-485

+ 6 n

i V

D N G A

i V

ADAM-4017+

CODE INPUT RANGE

07 4 ~20 mA

+ 7 n

i V

STRAIN GAUGE

+ 5 n

i V

Figure 3-26 ADAM-4017+ 8-ch. differential analog input module

1 n

i V

?0 V

? V

?00 mV

?0 mA

+ A T A D ) Y (

0 n

i V

)

(

+ 2 n

i V

* T I N

Jumper setting

1. JP9 and JP10 (default setting is six differential and two single-ended) JP9, JP10

Six differential and two single-ended Eight differential

2. JP1~JP8

JP1~ JP8

Mapping to Channel

ADAM 4000 Series User’s Manual

20 mA Input Range

Voltage Input range

Ch.1 Ch.2 Ch.3 Ch.4 Ch.5 Ch.6 Ch.7 Ch.8 JP 1 JP 3 JP 5 JP 7 JP 2 JP 4 JP 6 JP 8

Chapter 3

3. JP13 JP13

4. JP12 can Enable/Disable Watchdog Timer Function. The default setting is closed, i.e., Watchdog Timer Function Enabled. Please always keep JP12 closed and enable/disable the watchdog timer function in ADAM-utility.

Technical specification of ADAM-4017+

Channel 8 Input Type mV, V, mA Input range +/- 150 mV, +/- 500 mV, +/- 1 V, +/- 5

Isolation Voltage 3000 VDC Fault and over-voltage protection Sampling Rate 10 sample/sec (total) Input Impedance 20 MW Accuracy +/- 0.1% or better Power Consumption 1.2 W I/O Connector Type 10-pin plug-terminal

Table 3-2 Technical specification of ADAM-4017+

System is normal mode System is initial mode

V, +/- 10 V, +/- 20 mV, 4 ~ 20 mA

With stands over-voltage up to +/-35 V

Chapter 3 I/O Modules

3-29

I/O Modules

ADAM-4018

Vin 4-

Vin 5+

Vin 3-

Vin 4+

ACQUISITION

MODULE

mV, V, mA

Thermocouple

OUPUT:

Vin 5-

Vin 6+

DATA

INPUT:

RS-485

Vin 2-

Vin 3+

Vin 2+

ADAM-4018

CODE INPUT RANGE

DE DF

10 11

AGND

Vin 7+

INIT*

?5 mV

?0 mV

?00 mV

? V

?.5 V

?0 mA

T/C J

T/C K

T/C T T/C E

T/C R

T/C S

T/C B

Vin 1-

Vin 0-

Vin 0+

Vin 1+

(Y) DATA+

(B) GND

(G) DATA-

(R) +Vs

Figure 3-27 ADAM-4018 8-channel Thermocouple Input Module

Channels:

- six differential, two single-ended Accepts:

- J, K, T, E, R, S and B thermocouples

- Millivolt inputs: ±15 mV, ±50 mV, ±100 mV and ±500 mV

- Volt inputs: ±1 V and ±2.5 V

- Current input: ±20 mA (requires a 125 Ω resistor) The module forwards the data to the host computer in engineering units

(

C, mV, V, or mA)

ADAM 4000 Series User’s Manual

ADAM-4018M

Chapter 3

Vin 4-

Vin 5+

Vin 3-

Vin 4+

ACQUISITION

MODULE

mV, V, mA

Thermocouple

OUPUT:

Vin 5-

Vin 6+

DATA

INPUT:

RS-485

Vin 2-

Vin 3+

Vin 2+

ADAM-4018M

CODE INPUT RANGE

?5 mV

?0 mV

?00 mV

? V

?.5 V

?0 mA

T/C J

DE DF

T/C K

T/C T

T/C E

T/C R

T/C S

T/C B

AGND

Vin 7+

INIT*

Vin 1-

Vin 0-

Vin 0+

Vin 1+

(Y) DATA+

(B) GND

(G) DATA-

(R) +Vs

Figure 3-28 ADAM-4018M 8-channel Analog Input Data Logger

Channels:

- six differential, two single-ended Accepts:

- J, K, T, E, R, S and B thermocouples

- Millivolt inputs: ±15 mV, ±50 mV, ±100 mV, ±500 mV

- Volt inputs: ±1 V and ±2.5 V

- Current input: ±20 mA (requires a 125 Ω resistor) The module forwards the data to the host computer in engineering units

(

C, mV, V, or mA)

Storage Capacity:

- 128 KB flash memory

Chapter 3 I/O Modules

3-31

I/O Modules

ADAM-4018+ 8-ch. Thermocouple Input Module

DATA

CQUISITION

MODULE

INPUT:

Thermocouple

OUPUT:

RS-485

Figure 3-29 ADAM-4018+ 8-ch. thermocouple input module

ADAM-4018+

CODE INPUT RANGE

T I

T/C J

T/C K

T/C T

T/C E

T/C R

T/C S T/C B

)

) Y

(

0 n

i V

V +

G )

)

(

Technical specification of ADAM-4018+

Channel 8 Input Type Thermocouple T/C type and Temperature Range J 0 ~ 760° C

K 0 ~ 1000° C (New for 0~1370° C) T -100 ~ 400° C E 0 ~ 1000° C R 500 ~ 1750° C S 500 ~ 1750° C B 500 ~ 1800° C

Isolation Voltage 3000 VDC Fault and over-voltage protection Withstands over voltage up to +/- 35 V Sampling Rate 10 sample/sec (total) Input Impedance 20 MW Accuracy +/- 0.1% or better Power Consumption 0.5 W I/O Connector Type 10-pin plug-terminal

Table 3-3 Technical specification of ADAM-4018+

ADAM 4000 Series User’s Manual

Application Wiring

Chapter 3

mV/V

Vin0-

Vin0+

Figure 3-30 Differential Input (CH0 to CH5)

Figure 3-31 Single-ended Input (CH6 to CH7)

mV/V

Vin5+

Vin5-

Vin6+

AGND

Vin7+

Chapter 3 I/O Modules

3-33

I/O Modules

Vin 1-

Vin 1+

Vin 0Vin 0+

mV/V

Vin 1-

Vin 1+

Vin 0-

4~20 mA

Vin 0+

Built-in 120 Ohm Resister

Figure 3-32 ADAM-4017+ voltage and current input

Vin 1-

Vin 1+

Vin 0-

Vin 0+

T/C or 4~20m

Figure 3-33 ADAM-4018+ thermocouple input

ADAM 4000 Series User’s Manual

Chapter 3

3.8 ADAM-4019 8-channel Universal Analog Input Module

Here comes good news for users needing various analog input signals. If there are different types of analog input, such as V, mV, mA, or thermocouple signals, users have to prepare individual modules for data acquisition. Now Advantech announces the ADAM-4019 universal analog input module to integrate the various AI modules as one. It not only reduces hardware cost, but also simplifies wiring engineering.

ADAM-4019

/ N

CODE

INPUT RANGE

? 100 mV

500 mV

1 V

2.5 V

10 V

5 V

20 mA

T/C,J

T/C,K

T/C,Y

T/C,E

T/C,R

T/C,S

T/C,B

+ 5

i V

7 n

i V

)

(

Figure 3-34: ADAM-4019 8-channel Universal AI

Chapter 3 I/O Modules

3-35

I/O Modules

Application Wiring

Vin 1-

Vin 1+

Vin 0-

Vin 0+

Vin 1-

Vin 1+

Vin 0-

Vin 0+

Vin 1-

Vin 1+

125

0.1%

mV/V

Ω

? ~20 mA

Vin 0-

Vin 0+

Figure 3-35: ADAM-4019 Universal AI wiring diagram

ADAM 4000 Series User’s Manual

T/C

Technical specification of ADAM-4019

Channel 8 Input Type V, mV, mA, T/C Input type and temperature range

Isolation Voltage 3000 VDC Sampling Rate 6 sample/sec (total) Input Impedance 20 MW Accuracy +/- 0.1% or better Power Consumption 1 W I/O Connector Type 13-pin plug-terminal

V: +/-1V , +/-2.5V, +/-5V , +/-10V mV: +/- 100mV , +/-500mV mA: +/-20mA (w/125W resister) Thermocouple: J 0 to 760° C K 0 to 1370° C T -100 to 400° C E 0 to 1400° C R 500 to 1750° C S 500 to 1750° C

B 500 to 1800° C

Table 3-4: Technical specification of ADAM-4019

Chapter 3

Chapter 3 I/O Modules

3-37

I/O Modules

3.9 ADAM-4021 Analog Output Module

Analog output module receives their digital input through an RS-485 interface from the host computer. The format of the data is either engineering units, two’s complement hexadecimal format or percentage of full-scale range (FSR), depending on the module’s configuration. It then uses its microprocessor-controlled D/A converter to convert the digital data into output signals. You get a true read-back of the analog output signal from the unit’s ADC, which independently monitors the output. You can specify slew rates and start up currents through the configuration software. The Analog Output Module can supply single-channel analog output in a range of voltages or currents. They protect your equipment from ground loops and power surges by providing opto-isolation of the D/A output and transformer based isolation up to 3000 V

Slew Rate

The slew rate is defined as the discrepancy between the number of milliamps (or Volts) per second of the present and the required output currents (or voltages). An ADAM analog output module may be configured for a specific slew rate.

ADAM 4000 Series User’s Manual

Chapter 3

ADAM-4021

Figure 3-36 ADAM -4021 Analog Output Module

Depending on its configuration settings the module accepts the following formats from the host computer:

- Engineering units

- Percent of full-scale range (FSR)

- Two’s complement hexadecimal format, Output types:

- Voltage: 0 to 10 V (Slew rate: 0.0625 to 64 V/sec)

- Currents: 0 to 20 mA, or 4 to 20 mA. (Slew rate: 0.125 to 128 mA/sec)

Chapter 3 I/O Modules

3-39

I/O Modules

Application Wiring

Figure 3-37 Analog Output

ADAM 4000 Series User’s Manual

Chapter 3

3.10 ADAM-4024 4-channel Analog Output Module

ADAM-4024 is a 4-channel analog output with module mixed type module. Currently, there is not any ADAM-4000 series module providing more than one analog output channel. Under some circumstances, however, it is a demand for multiple analog outputs to fulfill particular applications without many duplicated modules. ADAM-4024 is designed to achieve this purpose by integrating four A/O channels and four isolated D/I channels into only one module. The four digital input channels function as interlock for emergency latch output.

ADAM-4024, inherited from both ADAM4019 the multi-channel universal A/I module and ADAM4021 multi-range A/O support, is allowed its four A/O channels working at the same time with different and more output ranges, e.g. 4 to 20 mA and +/- 10 V. To ensure the operation of machines and facilities, ADAM-4024 has the functionality of slew rate control. Output slope is programmable through ramping/clamping the slew rate. Unlike traditional mechanism, ADAM4024 permits start-up user value to substitute its default value. Users can easily set up and configure the module to be more adaptive and customized.

Figure 3-38 ADAM-4024 4-ch. analog output module

Chapter 3 I/O Modules

3-41

I/O Modules

Technical specification of ADAM-4024

• Effective resolution: 12-bit

• Output type: mA, V

• Output range: 0 to 20 mA, 4 to 20 mA, and ±10V

• Isolation voltage: 3000 V

• Output Impedance: 0.5 O

• Accuracy: ±0.1% of FSR for current output ±0.2% of FSR for voltage output

• Resolution: ±0.015% of FSR

• Zero drift: Voltage output: ±30 µV/° C, Current output: ±0.2 µA/° C

• Span temperature coefficient: ±25 ppm/° C

• Programmable output slope:

0.125 ~ 128 mA/sec.

0.0625 ~ 64.0 V/sec.

• Current load resistor: 0 to 500 & (source)

• Built-in Watchdog Timer

• Isolated Digital Input: Channel: 4 Level 0: +1V max Level 1: +10~30 V

Application Wiring

Figure 3-39 ADAM-4024 4-ch. analog output module wiring diagram

ADAM 4000 Series User’s Manual

Chapter 3

3.11 ADAM-4050 Digital I/O Module

The ADAM-4050 features seven digital input channels and eight digital output channels. The outputs are open-collector transistor switches that you can control from the host computer. You can also use the switches to control solid-state relays, which in turn can control heaters, pumps and power equipment. The host computer can use the module's digital inputs to determine the state of limit or safety switches or remote digital signals.

ADAM-4050

Figure 3-40 ADAM-4050 Digital I/O Module

Channels:

- 7 input channels

- 8 output channels Digital Input:

- logic level 0: +1 V max.

- logic level 1: +3.5 V to +30 V Digital Output:

- open collector to 30 V, 30 mA max. load

Chapter 3 I/O Modules

3-43

I/O Modules

Application Wiring

Figure 3-41 TTL Input (ADAM-4050)

Figure 3-42 Contact Closure Input (ADAM-4050)

Figure 3-43 Digital Output used with SSR (ADAM-4050)

ADAM 4000 Series User’s Manual

Chapter 3

3.12 ADAM-4051 16-channel Isolated Digital Input Module

The ADAM-4051 is a 16-ch. Digital Input Module built with 2500V optical isolation, it is suitable to critical applications. Different from

other modules, the ADAM-4051 accept 10 ~ 50V input voltage to fit various digital signals, such as 12 V, 24 V, 48 V. Moreover, users can read the current status from the LED indicators on the front panel.

ADAM-4051

Figure 3-44 ADAM-4051 16-channel Digital Input Module

• Channel: 16 (4-channel/group)

• Optical Isolation: 2500 VDC

• Opto-isolator response time: 25 s　

• Over-voltage Protect: 70 VDC

• ESD (Electro Static Discharge) : 2000 VDC

• LED Indicator : On: Active; Off: Non-active

• Input Voltage: Logic level 1: 10 ~ 50 V Logic level 0: 3 V

• Power consumption: 1W

• I/O Connector Type: 13-pin plug-terminal*2

Chapter 3 I/O Modules

3-45

I/O Modules

Application Wiring

Figure 3-45 Dry Contact Wiring (ADAM-4051)

Figure 3-46 Wet Contact Wiring (ADAM-4051)

ADAM 4000 Series User’s Manual

3.13 ADAM-4052 Isolated Digital Input Module

The ADAM-4052 provides eight digital input channels: six fully independent isolated channels and two isolated channels with a common ground. All have 5000 V

isolation to prevent ground loop

RMS

effects and prevent damage from power surges on the input lines.

ADAM-4052

Chapter 3

Figure 3-47 ADAM-4052 Isolated Digital Input Module

Channels: 8

- 6 differential

- 2 single ended Digital Input:

- logic level 0: +1 V max.

- logic level 1: +3.5 V to +30 V

Chapter 3 I/O Modules

3-47

I/O Modules

Application Wiring

Figure 3-48 Isolation Digital Input (ADAM-4052)

ADAM 4000 Series User’s Manual

3.14 ADAM-4053 16-channel Digital Input Module

The ADAM-4053 provides 16 digital input chan nel s fo r dr y contact or wet contact signals. For dry contact, effective distance from DI to contact point is up to 500 m.

ADAM-4053

Chapter 3

Figure 3-49 ADAM-4053 16-channel Digital Input Module

Channels: 16 Digital Input:

-Dry contact logic level 0: Close to GND logic level 1: OPEN

-Wet contact logic level 0: +2 V max. logic level 1: +4 V to +30 V

Chapter 3 I/O Modules

3-49

I/O Modules

Application Wiring

DI15 INIT* DI15 INIT

DI15

IN IT *

Figure 3-50 Wet Contact Input (ADAM-4053)

Figure 3-51 Contact Closure Input (ADAM-4053)

ADAM 4000 Series User’s Manual

Chapter 3

3.15 ADAM-4055 16-channel Isolated Digital I/O Module

The ADAM-4055 offers 8-ch. isolated digital input and 8-ch. isolated digital output for critical applications. The inputs accept 10~50V voltage, and the outputs supply 5~40V

user friendly, the ADAM-4055 also built with LED indicator for status reading easily.

ADAM-4055

open collector. Considere d to

Figure 3-52 ADAM-4055 16-channel Digital I/O Module

Chapter 3 I/O Modules

3-51

I/O Modules

ADAM-4055 Technical Specifications:

• Number of Input Channel : 8 (4-channel/group)

• Optical Isolation : 2500 VDC

• Opto-isolator response time : 25 µs

• Over-voltage Protect: 70VDC

• ESD (Electro Static Discharge): 2000 VDC

• Input Voltage: Dry Contact Logic level 0: Open Logic level 1: Close to GND Wet Contact Logic level 1: 10 ~ 50 V Logic level 0: 3 V Dry Contact & Wet contact Selectable

• Number of Output Channel: 8 (8-channel/group)

• Optical Isolation: 2500 VDC

• Opto-isolator response ti me: 25 µs

• Supply Voltage: Open Collector 5 ~ 40 VDC

• Sink Current: 200 mA max/channel

• LED Indicator: On: Active Off: Non-active

• Power Consumption: 1 W

• I/O Connector Type: 13-pin plug-terminal * 2

Application Wiring:

Figure 3-53 Digital Output wiring (ADAM-4055)

ADAM 4000 Series User’s Manual

Chapter 3

Figure 3-54 Digital Input Dry Contact Wiring (ADAM-4055)

Figure 3-55 Digital Input Wet Contact Wiring (ADAM-4055)

Chapter 3 I/O Modules

3-53

I/O Modules

3.16 ADAM-4056S 12-channel sink type isolated digital output module

ADAM-4056S is a 12-channel sink type isolated digital output module. The isolated channels are designed for digital output in critical applications. Open collector outputs can provide from +5 VDC to +40 VDC. Both ADAM ASCII and Modbus/RTU protocols are supported. LED indicators are used for convenient status reading.

Figure 3-56 ADAM-4056S

Technical Specification of ADAM-4056S

 Number of Output Channel: 12  Digital Output: Open Collector from +5V to +40V, 200mA( Sink)  LED Indicator: On: Active, Off: Non-active  Power Consumption: 0.6 W  Optical isolation: 5000 VDC

 Supports Modbus/RTU protocol  I/O Connector Type: 10-pin plug-terminal*2

ADAM 4000 Series User’s Manual

Application Wiring

Figure 3-57 Digital Output Wiring

LOAD

+5V ~ +40V

Chapter 3 I/O Modules

Chapter 3

3-55

I/O Modules

3.17 ADAM-4056SO 12-channel source type isolated digital output module

ADAM-4056SO is 12-channel source type isolated digital output module. The 12 isolated digital output channels are designed for critical applications. The digital output signals are sent at +10 ~ +35 VDC with maximum 1A per channel. Both ADAM ASCII and Modbus/RTU protocols are supported. The LED indicators provides convenient status reading.

Figure 3-58 ADAM-4056SO

Technical Specification of ADAM-4056SO

 Number of Output Channel: 12  Digital Output: VCC: +10V~ +35V, 1A per Channel ( Source)  LED Indicator: On: Active, Off: Non-active  Power Consumption: 0.4 W  Optical isolation: 5000 VDC

 Supports Modbus/RTU protocol  I/O Connector Type: 10-pin plug-terminal*2

ADAM 4000 Series User’s Manual

Application Wiring

Chapter 3

+10V ~ +35V

LOAD

Figure 3-59 Digital Output Wiring

Chapter 3 I/O Modules

3-57

I/O Modules

3.18 ADAM-4060/4068 Relay Output Module

The ADAM Relay Output Module is a low-cost alternative to SSR modules. The ADAM-4060 Relay Output M od ul e pr ovides four relay channels, two of Form A and two of Form C. The ADAM-4068 Relay Output Module provides eight channels, four of Form A and four of Form C. These two modules are excellent for ON/OFF control or lowpower switching applications.

ADAM-4060

Figure 3-60 ADAM-4060 Relay Output Module

Contact rating for Form A and Form C: AC: 0.5 A / 120 V DC: 1 A / 24 V

ADAM 4000 Series User’s Manual

ADAM-4068

Chapter 3

O C

L R

RELAY

TYPE

RE LA Y 3 ,4,5,6 F orm A

RELAY 0,1,2,3

RE LA Y 0 ,1,2,7 F orm C

RELAY 4,5,6,7

1234567

O N 2 L R

C N 7 L R

L R

SIGNAL

FORM A

FORM C

* T

N I

L R

0 1

)

(

Figure 3-61 ADAM-4068 8-channel Relay Output Module

Contact Rating : AC 125V@0.6A; 250V@0.3A DC 30V@2A; 110V@0.6A

Chapter 3 I/O Modules

3-59

I/O Modules

Application Wiring

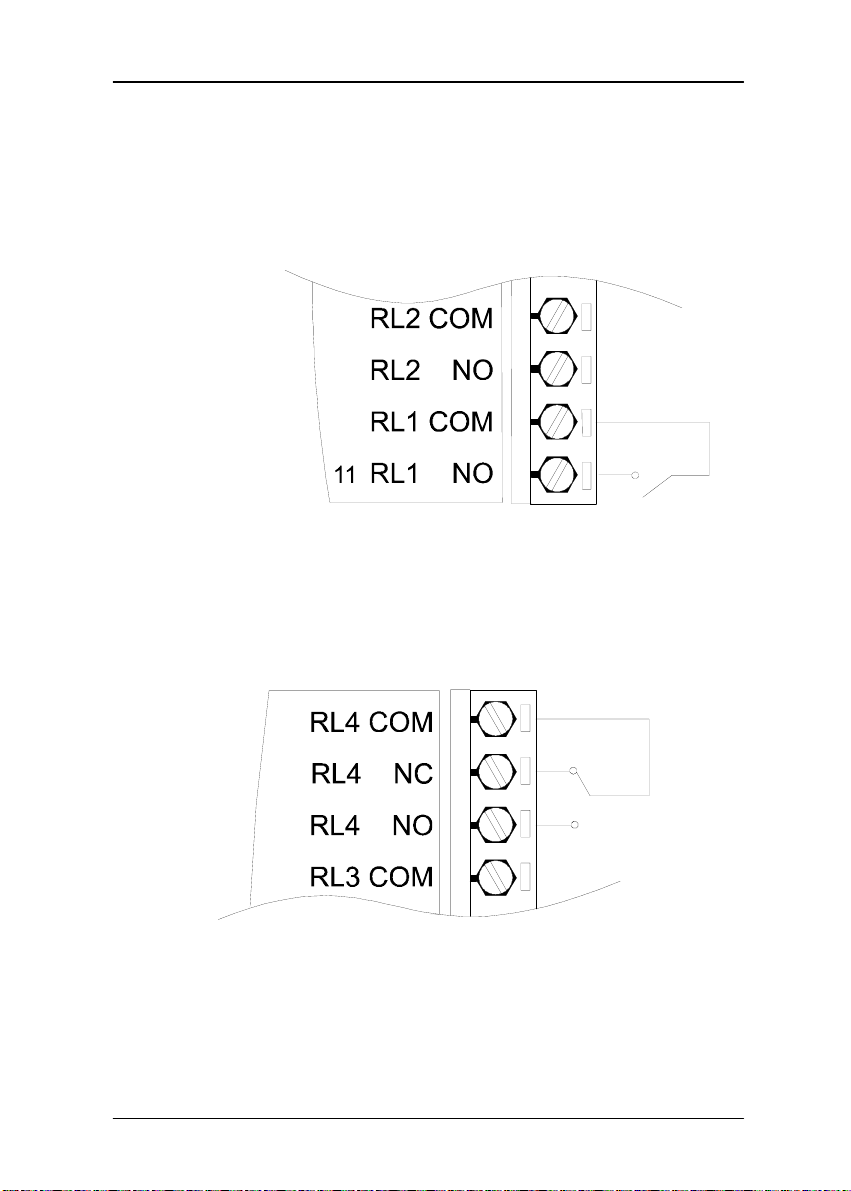

The following gives you examples on how to connect form A and form C relay output applications to your ADAM modules.

Figure 3-62 Form A relay output (ADAM-4060)

Figure 3-63 Form C relay output (ADAM-4060)

ADAM 4000 Series User’s Manual

RL1 NO RLO NO RLO COM

Chapter 3

RLO NO

Figure 3-64 Form C relay output (ADAM-4068)

RL4 NO RL4 COM RL3 NO RL3 COM

Figure 3-65 Form A relay output (ADAM-4068)

Chapter 3 I/O Modules

3-61

I/O Modules

3.19 ADAM-4080/4080D Counter/Frequency Input Modules

ADAM-4080/4080D Counter/frequency input module has two 32-bit counter input channels (counter 0 and counter 1) with built-in programmable timer for frequency measurement. These cost-effective modules let you monitor counter/frequency data as measurements are taken.

Front Panel LED Indicator (ADAM-4080D only)

The 5-digit LED display of the ADAM-4080D lets you monitor its counter data right at the source. The module's LED display shows counter values as well as high-low alarm messages as a counter exceeds its programmed limits (direct display).

Another option is to display data send by the host computer. The module first sends counter data to the host computer for conversion or calculation. The host computer sends the data back to the ADAM4080D and the module shows it on the module's LED display (remote display).

Signal Input Mode

The ADAM-4080/4080D provides separate t erminals for photo isolated input and non-isolated input to simplify wiring. Opto-isolated input provides 2500 V

loops. After you make the physical connections, program the module to identify which of its two sets of input terminals it should activate (isolated or non-isolated terminals).

isolation to protect your equipment from ground

RMS

Programmable Digital Filter

The ADAM-4080/4080D module includes a unique programmable digital filter to reject noise on the input lines. You can specify separate time constants, such as minimum signal width at high level and minimum signal width at low level, to provide stable output readings.

Programmable Threshold

When the ADAM-4080/4080D is programmed for non-isolated input you can set a high and low trigger level. Like the programmable digital filter, the programmable threshold rejects noise on the input lines and provides stable input readings

ADAM 4000 Series User’s Manual

Chapter 3

External Control (Gate mode)

Besides the GND and counter terminal each channel has a gate terminal to connect an external gate signal. The gate signal (high or low) can trigger the counter to start or stop counting. The gate mode can be either low, high or disabled (low means that counting starts when the gate signal is low and stops when the gate signal becomes high)

Programmable Alarm Output

The ADAM-4080 module provides a configurable alarm for each counter. The ADAM-4080D provides high and low alarm functions for counter 0. When the counter reaches an alarm limit, it will trigger the built-in digital output for machine ON/OFF control. The alarm limits may be downloaded into the module's EEPROM by the host computer. The initial count value of ADAM-4080 module's counter can be configured as any v alues.

The alarm functions can be enabled or disabled remotely. When the alarm functions are enabled, digital output channels are used to indicate the alarm states. For ADAM-4080, digital output channel 0 equals the alarm state of counter 0, and digital output channel 1 equals the alarm state of counter 1. For ADAM-4080D, digital output channel 0 equals the low alarm state of the counter 0 and digital output channel 1 equals the high alarm state of the counter 0.

Every A/D conversion will be followed by a comparison with the alarm limits. If the input value exceeds one of these limits, the corresponding alarm state is set to ON.

There are two alarm mode options for the ADAM-4080D: momentary and latching. If the alarm is in latching mode, the alarm will stay on even when the input value returns within limits. An alarm in latching mode can be turned off by issuing a Clear Alarm command from the host computer. A latching alarm is cleared by the module when the opposite alarm is set. For example: the alarm is in latching mode and the high alarm is turned ON. When the module receives a value that is lower than the low alarm limit, it will clear the high alarm and turn the low alarm ON.

When the alarm is in Momentary mode, the alarm will be turned OFF as soon as the input value returns to within limits.

The arrangement of coupling high and low alarm states with digital output lines may be utilized to build ON/OFF controllers that can operate without host computer involvement.

Chapter 3 I/O Modules

3-63

I/O Modules

ADAM-4080

DO 1

IN 0

DO 0

IN 0+

ACQUISITION

MODULE

(Non-isolation)

GATE 0

D.GND

IN 0-

DATA

IN 1

IN 1+

GATE 0-

GATE 0+

ADAM-4080

CODE INPUT RANGE

COUNTER

FREQUENCY

(Y) DATA+

GATE 1

INIT*

(G) DATA-

IN 1-

GATE 1-

GATE 1+

(B) GND

(R) +Vs

Figure 3-66 ADAM-4080 Counter/Frequency Input Module

Channels: Two independent 32-bit counters (counter 0 and counter 1) Input frequency: 50 kHz max. Input mode: Isolated or non-isolated Isolation input level:

-Logic level 0: +1 V max

-Logic level 1: +3.5 V to +30 V Non-isolation input level (programmable threshold) :

- Logic level 0: 0 to +5V (default=0.8 V)

- Logic level 1: 0 to +5V (default = 2.4 V)

ADAM 4000 Series User’s Manual

ADAM-4080D

Chapter 3

DO 1/HI

IN 0

IN 0+

DO 0/LO

ACQUISITION

MODULE

(Non-isolation)

GATE 0

D.GND

IN 0-

(Photo-isolation)

DATA

IN 1

IN 1-

IN 1+

GATE 0-

GATE 0+

ADAM-4080D

CODE INPUT RANGE

COUNTER

FREQUENCY

(Y) DATA+

GATE 1

INIT*

(G) DATA-

GATE 1-

GATE 1+

(B) GND

(R) +Vs

Figure 3-67 ADAM-4080D Counter/Frequency Input Module with LED Display

Channels: Two independent 32-bit counters (counter 0 and counter 1) Input frequency: 50 kHz max. Input mode: Isolated or non-isolated Isolation input level:

-Logic level 0: +1 V max

-Logic level 1: +3.5 V to +30 V Non-isolation input level (programmable threshold) :

- Logic level 0: 0 to +5V (default=0.8 V)

- Logic level 1: 0 to +5V (default = 2.4 V)

Chapter 3 I/O Modules

3-65

I/O Modules

Application Wiring

Counter Input

Gate Control

GND

GATE1+

GATE1-

Figure 3-68 Non-isolated Input

IN1+

IN1-

Figure 3-69 Photo-isolated Input

IN0

GATE0

D.GND

Counter Input

GATE Control

ADAM 4000 Series User’s Manual

Command Set 4

Command Set

4.1 Introduction

To avoid communication conflicts when several devices try to send data at the same time, all actions are instigated by the host computer. The basic form is a command/response protocol with the host initiating the sequence.

When modules are not transmitting they are in listen mode. The host issues a command to a module with a specified address and waits a certain amount of time for the module to respond. If no response arrives, a timeout aborts the sequence and returns control to the host.

Changing ADAM’s configuration might require the module to perform auto calibration before changes can take effect. Especially when changing the range, the module has to perform all stages of auto calibration that it also performs when booted. When this process is under way, the module does not respond to any other commands. The command set includes the exact delays that might occur when modules are reconfigured.

4.2 Syntax

[delimiter character][address][command][data][checksum] [carriage return]

Every command begins with a delimiter character. There are four valid characters: a dollar sign $, a pound sign #, a percentage sign % and an at sign @.

The delimiter character is followed by a two-character address (hexadecimal) that specifies the target module. The actual two character command follows the address. Depending on the command, an optional data segment follows the command string. An optional two character checksum may be appended to the total string. Every commands is terminated by a carriage return (cr).

ALL COMMANDS SHOULD BE ISSUED IN UPPERCASE CHARACTERS!

ADAM 4000 Series User’s Manual

Chapter 4

Before the command set, we provide the I/O module commands search table to help you find the commands you wish to use. The command set is divided into the following four subsections:

• Analog Input Module commands

• Analog Output Module commands

• Digital I/O and Relay Output Module commands

• Counter/Frequency Module commands

Every subsection starts with a command summary of the particular type of module, followed by datasheets that give detailed information about individual commands.

Although commands in different subsections sometimes share the same format, the effect they have on a certain module can be completely different than they have on another. For example, the configuration command: %AANNTTCCFF affects analog input modules and analog output modules differently. Therefore, the full command set for every module is listed.

Chapter 4 Command Set

4-3

Command Set

4.3 I/O Module Commands Search Table

ADAM-4011 Command Table

Command Syntax Command Name Command Description Page No. %AANNTTCCFF Configuration Sets the address, input range,baud

rate, data format, checksum status, and/or integration time for a specified analog input module

#AA Analog Data In Returns the input value from a

specified analog input module in the currently configured data format

$AA0 Span Calibration Calibrates an analog input module

to correct for gain errors

$AA1 Offset Calibration Calibrates an analog input module

to correct for offset errors

#** Synchronized

Sampling

$AA4 Read Synchronized

Data

$AA2 Configuration Status Returns the configuration

$AA3 CJC Status Returns the value of the CJC

$AA9 CJC Offset

Calibration

$AAF Read Firmware

Version

$AAM Read Module Name Return the module name from the

Orders all analog input modules to sample their input values and store them in special registers Returns the value that was stored in the specified module's register after the #** command

parameters for the specified analog input module

sensor for a specified analog input module Calibrates the CJC sensor for offset errors Return the firmware version code from the specified analog input module

specified analog input module

4-47

4-55

4-60

4-61

4-62

4-63

4-51

4-66

4-67

4-53

4-54

(Continued on following page)

ADAM 4000 Series User’s Manual

Chapter 4

Command Syntax Command Name Command Description Page No. @AADI Read Digital I/O and

Alarm Status

@AADO(data) Set Digital Output Set the values of the module's two

@AAEAT Enable Alarm Enables the alarm in either

@AAHI(data) Set High Alarm Downloads the High alarm limit

@AALO(data) Set Low Alarm Downloads the Low alarm limit

@AADA Disable Alarm Disables all alarm functions 4-113 @AACA Clear Latch Alarm The latch alarm is reset 4-114 @AARH Read High Alarm The addressed analog input

@AARL Read Low Alarm The addressed analog input

@AARE Read Event Counter The addressed module is asked to

@AACE Clear Event Counter The event counter is set to 0 4-118

The addressed module returns the state of its digital input channel, its two digital output channels and the status of its alarm

digital outputs (ON or OFF)

Momentary or Latching mode

value

module is asked to return its high alarm value

module is asked to return its low alarm value

return its event counter value

4-105

4-107

4-109

4-111

4-112

4-115

4-116

4-117

(Continued on following page)

Chapter 4 Command Set

4-5

Command Set

ADAM-4011D Command Table

Command Syntax Command Name Command Description Page No. %AANNTTCCFF Configuration Sets the address, input range,baud

rate, data format, checksum status, and/or integration time for a specified analog input module

#AA Analog Data In Returns the input value from a

specified analog input module in the currently configured data format

$AA0 Span Calibration Calibrates an analog input module

to correct for gain errors

$AA1 Offset Calibration Calibrates an analog input module

to correct for offset errors

#** Synchronized

Sampling

$AA4 Read Synchronized

Data

$AA2 Configuration Status Returns the configuration

$AA3 CJC Status Returns the value of the CJC

$AA9 CJC Offset

Calibration

$AAF Read Firmware

Version

$AAM Read Module Name Return the module name from the

$AAB Open Thermocouple

Detection

Orders all analog input modules to sample their input values and store them in special registers Returns the value that was stored in the specified module's register after the #** command

parameters for the specified analog input module

sensor for a specified analog input module Calibrates the CJC sensor for offset errors Return the firmware version code from the specified analog input module

specified analog input module Ask the module to respond whether the thermocouple is open or not

(Continued on following page)

4-47

4-55

4-60

4-61

4-62

4-63

4-51

4-66

4-67

4-53

4-54

4-65

ADAM 4000 Series User’s Manual

Chapter 4

Command Syntax Command Name Command Description Page No. @AADI Read Digital I/O and

Alarm Status

@AADO(data) Set Digital Output Set the values of the module's two

@AAEAT Enable Alarm Enables the alarm in either

@AAHI(data) Set High Alarm Downloads the High alarm limit

@AALO(data) Set Low Alarm Downloads the Low alarm limit

@AADA Disable Alarm Disables all alarm functions 4-113 @AACA Clear Latch Alarm The latch alarm is reset 4-114 @AARH Read High Alarm The addressed analog input

@AARL Read Low Alarm The addressed analog input

@AARE Read Event Counter The addressed module is asked to

@AACE Clear Event Counter The event counter is set to 0 4-118

The addressed module returns the state of its digital input channel, its two digital output channels and the status of its alarm

digital outputs (ON or OFF)

Momentary or Latching mode

value

module is asked to return its high alarm value

module is asked to return its low alarm value

return its event counter value

4-105

4-107

4-109

4-111

4-112

4-115

4-116

4-117

Chapter 4 Command Set

4-7

Command Set

ADAM-4012 Command Table

Command Syntax Command Name Command Description Page No. %AANNTTCCFF Configuration Sets the address, input range,baud

rate, data format, checksum status, and/or integration time for a specified analog input module

#AA Analog Data In Returns the input value from a

specified analog input module in the currently configured data format

$AA0 Span Calibration Calibrates an analog input module

to correct for gain errors

$AA1 Offset Calibration Calibrates an analog input module

to correct for offset errors

#** Synchronized

Sampling

$AA4 Read Synchronized

Data

$AA2 Configuration Status Returns the configuration

$AAF Read Firmware

Version

$AAM Read Module Name Return the module name from the

Orders all analog input modules to sample their input values and store them in special registers Returns the value that was stored in the specified module's register after the #** command

parameters for the specified analog input module Return the firmware version code from the specified analog input module

specified analog input module

(Continued on following page)

ADAM 4000 Series User’s Manual

4-47

4-55

4-60

4-61

4-62

4-63

4-51

4-53

4-54

Advantech ADAM-4015, ADAM-4015T, ADAM-4018+, ADAM-4017+, ADAM-4024 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
