Advanced Elements AE1062 User Manual

Owner’s Instruction Manual

IMPORTANT!

PLEASE READ THIS MANUAL CAREFULLY BEFORE PROCEEDING. AFTER READING THIS

MANUAL, SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Congratulations on your purchase of the Advanced Elements Lotus YSUP™. It is our goal at Advanced Elements to
develop new and unique paddle sports products that enhance our customer’s outdoor experience. This versatile

paddleboard has been designed for a stable ride and a balanced yoga session on the water. Made of quality materials,
this compact and highly durable SUP is easy to set up and will have you out on the water in no time.

1 CAUTION – SAFETY WARNING

Users of this product agree by their use to accept the inherent risks involved in this paddle sports activity and agree to
follow all instructions, cautions, and warnings carefully before using this Paddleboard.

(PLEASE READ CAUTION STATEMENT CARFULLY)

2 Set Up and Inflation

2.1 Set Up

1. Pull the Lotus YSUP™ out of its bag and un-fold it.

2. Locate the Fin holders on the bottom side of the board at the tail end. Take each Fin and hook them into place

making sure that the longer portion is going towards the end of the board. You will need to bring the two Fin
holders close together in order to get each Fin hooked into place. See images 1 and 2.

3. Once the Fins are in place, turn the board over so that the valve at the front of the board is facing up.

Image 1 Image 2

2.2 Inflation

Pump Set-up:

Your Single Action Hand Pump comes with a removable pressure gauge that needs to be attached to the pump before
use. Note: When the pump is stored, it is recommended that you detach the pump gauge and store it somewhere that
the gauge will be protected from being crushed or damaged.

1. Attach the gauge housing to the T-Handle of the pump.

2. Attach the pump hose to the gauge housing.

Inflation

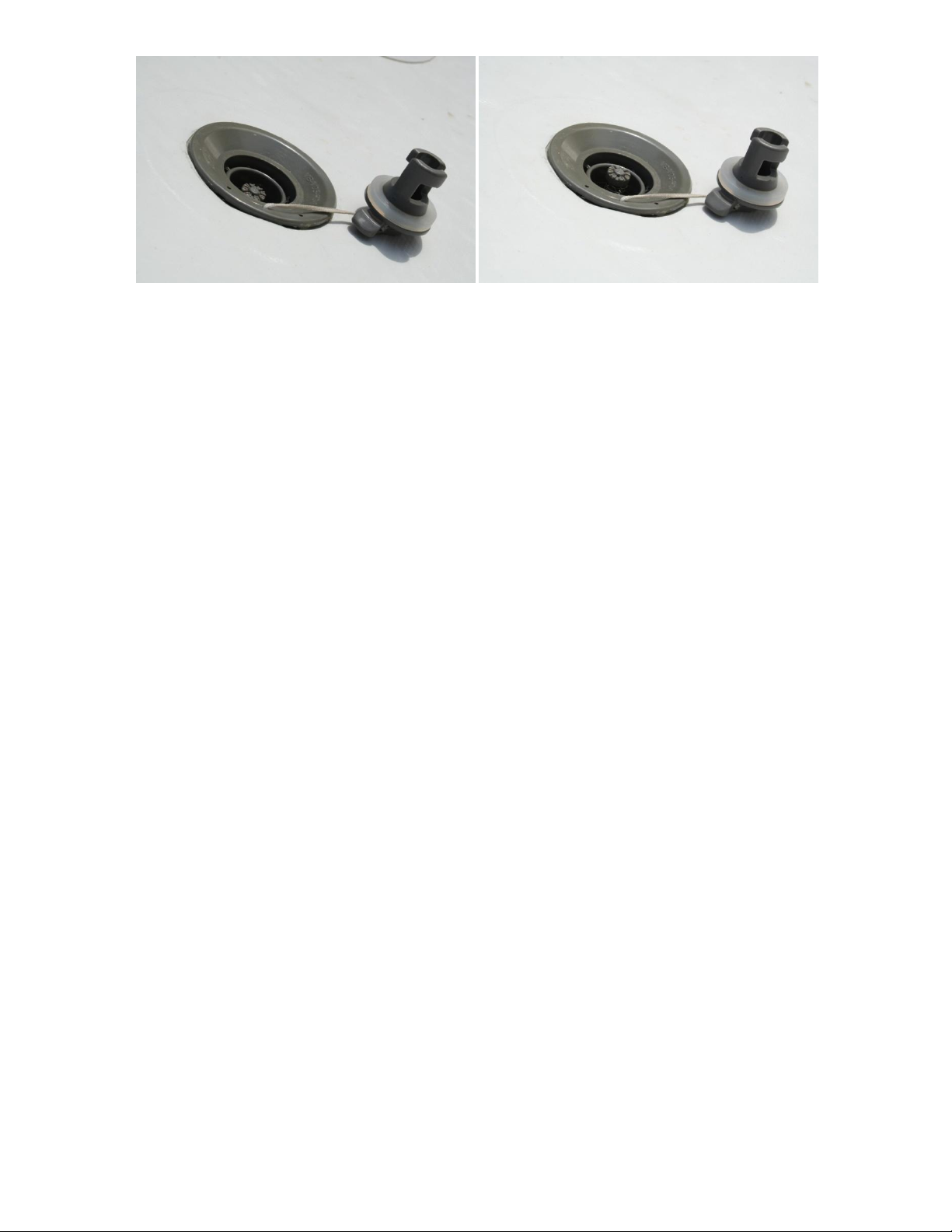

1. Remove the cap from the valve and check to see if the stem in the center of the valve is up (sticking up out of

the valve) or down (even with the inner rim of the valve). The stem of this valve must be in the up (inflate)
position to inflate the SUP. If the valve is not in the inflate position, use your finger to push in and turn the stem
counterclockwise a quarter turn and it will spring up into the inflate position. SEE IMAGES 3 AND 4.

2. Seat the valve adaptor included with the SUP Pump onto the valve turning clockwise to lock the adaptor into

place.

3. Inflate the SUP to 8.0 psi. Make sure that you do not exceed 9.0 psi or you will damage the SUP.

4. Once you are done inflating the SUP, disconnect the valve adaptor by turning counterclockwise and close the

valve using the attached valve cap. Make sure you lock the valve cap into place by turning clockwise.
