ADT Security Services PremisePro none User Manual

WARNING: This manual contains information on limitations regarding product use and function and

information on the limitations as to liability of the manufacturer. The entire manual should be carefully read.

User Manual

Table of Contents

System Keypads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Keypad Display Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Reference Sheets 3

Access Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Sensor / Zone Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

About Your Security System . . . . . . . . . . . . . . . . . . . . . . . . . .5

Fire Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

General System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

PK5500 Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . .6

Arming & Disarming the System . . . . . . . . . . . . . . . . . . . . . . . . .6

Arming (Turning On/Setting) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Away Arming (Turned On/Set) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Quick Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Bell/Siren Sounds After Away Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Disarming (Turning Off /Unsetting) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Stay Arming (Partially Turning On / Part Setting) . . . . . . . . . . . . . . . . . . . . . . . . 7

Night Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Silent Exit Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Remote Arming and Disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Emergency Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

When Alarm Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Intrusion (Burglar) Alarm Continuous Siren . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Fire Alarm Pulsed Siren . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Time & Date Programming . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Bypassing Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Trouble Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Trouble Menu Acknowledgement . . . . . . . . . . . . . . . . . . . . . . . . 10

Alarm Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Door Chime (Entry/Exit Beeps) . . . . . . . . . . . . . . . . . . . . . . . . . 10

Access Code Programming . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Access Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

User Code Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Bell Squawk Attribute . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Partition Assignment Mask . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Erasing an Access Code . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

User Function Commands . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Changing Brightness/Contrast . . . . . . . . . . . . . . . . . . . . . . . . . 14

Changing the Buzzer Level . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Label Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Viewing the Event Buffer from a PK5500/LCD5500 Keypad . . . . . . . . . . . . . . . 15

PK5500 Global Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . 15

Sensor Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Testing Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Testing Your Keypad Sounder and Siren . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Testing Your Entire System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Walk Test Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Allowing Computer Access To Your System . . . . . . . . . . . . . . . . . . . . . . . . . . 16

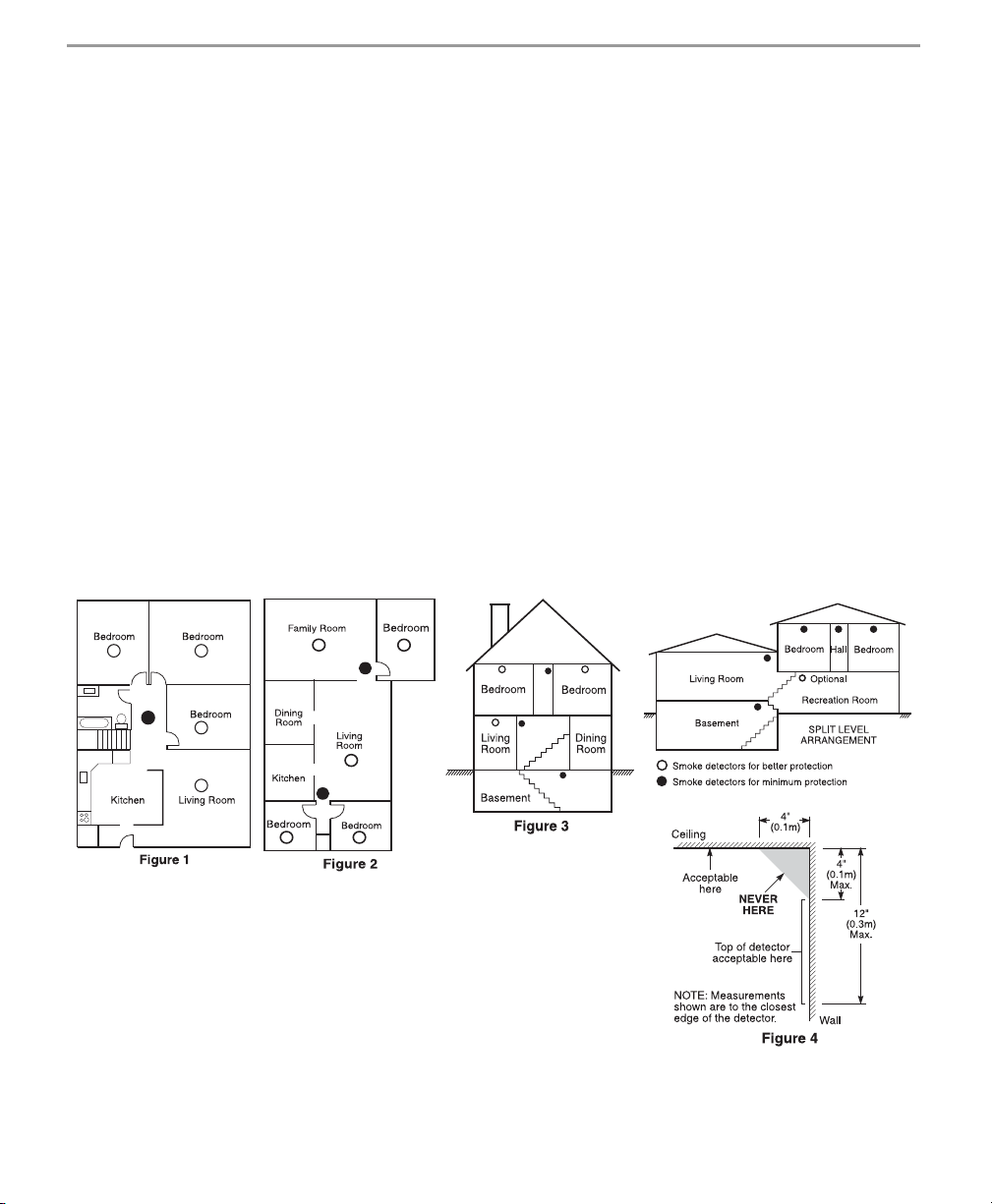

Guidelines for Locating Smoke Detectors . . . . . . . . . . . . . . . . . . . . . 17

Household Fire Safety Audit . . . . . . . . . . . . . . . . . . . . . . . . . 18

Fire Escape Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

FCC COMPLIANCE STATEMENT

Telephone

Computer

Telephone

Fax Machine

Alarm Dialing

Equipment

RJ-31X

Jack

Unused

RJ-11 Jack

Telephone

Line

Network Service

Provider's

Facilities

Customer Premises Equipment and Wiring

Unused

RJ-11 Jack

Network

Demarcation

Point

Answering

System

CAUTION: Changes or modifications not expressly approved by Digital Security Controls could void your authority to use this equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re-orient the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

The user may find the following booklet prepared by the FCC useful: "How to Identify and Resolve Radio/Television Interference Problems". This booklet is available from the U.S. Government Printing Office, Washington D.C. 20402, Stock # 004-000-00345-4.

The keypads represented in this manual can be used with the following Control Units: PC1616, PC1832, PC1864.

IMPORTANT INFORMATION

This equipment complies with Part 68 of the FCC Rules and, if the product was approved July 23, 2001 or later, the requirements adopted by the ACTA. On the side of this equipment is a label that contains, among other information, a product identifier. If requested, this number must be provided to the Telephone Company.

PC1616 Product Identifier US: F53AL01BPC1614 PC1832 Product Identifier US: F53AL01BPC1832 PC1864 Product Identifier US: F53AL01BPC1864

USOC Jack: RJ-31X

Telephone Connection Requirements

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.

Ringer Equivalence Number (REN)

The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local Telephone Company. For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US: AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.

Incidence of Harm

If this equipment ( PC1616, PC1832, PC1864) causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the Telephone Company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

Changes in Telephone Company Equipment or Facilities

The Telephone Company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the Telephone Company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

Equipment Maintenance Facility

If trouble is experienced with this equipment (PC1616, PC1832, PC1864) for repair or warranty information, contact the facility indicated below. If the equipment is causing harm to the telephone network, the Telephone Company may request that you disconnect the equipment until the problem is solved. This equipment is of a type that is not intended to be repaired by the end user.

DSC c/o APL Logistics 757 Douglas Hill Rd, Lithia Springs, GA 30122

Additional Information

Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. Alarm dialing equipment must be able to seize the telephone line and place a call in an emergency situation. It must be able to do this even if other equipment (telephone, answering system, computer modem, etc.) already has the telephone line in use. To do so, alarm dialing equipment must be connected to a properly installed RJ-31X jack that is electrically in series with and ahead of all other equipment attached to the same telephone line. Proper installation is depicted in the figure below. If you have any questions concerning these instructions, you should consult your telephone company or a qualified installer about installing the RJ-31X jack and alarm dialing equipment for you.

This product is in conformity with EMC Directive 89/336/EEC based on results using harmo-

This product is in conformity with EMC Directive 89/336/EEC based on results using harmonized standards in accordance with article 10(5), R&TTE Directive 1999/5/EC based on fol-

nized standards in accordance with article 10(5), R&TTE Directive 1999/5/EC based on following Annex III of the directive and LVD Directive 73/23/EEC as amended by 93/68/EEC

lowing Annex III of the directive and LVD Directive 73/23/EEC as amended by 93/68/EEC based on results using harmonized standards.

based on results using harmonized standards. This product meets the requirements of Class II, Grade 2 equipment as per EN 50131-1:2004

This product meets the requirements of Class II, Grade 2 equipment as per EN 50131-1:2004 Standard. This product is suitable for use in systems with the following notification options:

Standard. This product is suitable for use in systems with the following notification options:

- A (use of two warning devices and internal dialer required),

- B (self powered warning device and internal dialer required),

- D (use of DSC model T-Link TL250 encrypted Ethernet communicator required).

INDUSTRY CANADA STATEMENT

INDUSTRY CANADA STATEMENT NOTICE: This Equipment meets the applicable Industry Canada Terminal Equipment Tech-

NOTICE: This Equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, be-

nical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration

fore the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not

of Conformity indicating that Industry Canada technical specifications were met. It does not imply that that Industry Canada approved the equipment

imply that that Industry Canada approved the equipment NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The

NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN assigned to each terminal equipment provides an indication of the maximum number of

REN assigned to each terminal equipment provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface

terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the

may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all devices does not exceed five.

Ringer Equivalence Numbers of all devices does not exceed five. PC1864 Registration numberIC: 160A-PC1864 PC1832 Registration numberIC: 160A-PC1832 PC1616 Registration numberIC: 160A-PC1614

System Keypads

Trouble

Ready

Armed

LCD5500Z Keypad

LCD5501Z Keypad

Trouble

Ready

Armed

123

456

Stay

Away

Chime

Reset

Bypass

PK5500/PK5501

Keypad Display Symbols

11 10

LCD5501 Fixed Message

PK5501

810

1 Clock Digits 1, 2 – These two 7 segment clock digits indicate the hour digits when the local clock is

active, and identify the zone when the OPEN or ALARM icons are active. These two digits scroll one zone per second from the lowest zone number to the highest when scrolling through zones.

2: (Colon) – This icon is the hours/minutes divider and will flash once a second when the local clock

is active.

3Clock Digits 3, 4 – These two 7 segment displays are the minute digits when the local clock is

active.

41 to 8 – These numbers identify troubles when [

5Memory – Indicates that there are alarms in memory.

6 Bypass – Indicates that there are zones automatically or manually bypassed.

7Program – indicates that the system is in Installer’s Programming, or the keypad is busy.

,][2] is pressed.

8Away – Indicates that the panel is armed in the Away Mode. It will turn on at the beginning of the

Exit Delay.

9Fire – Indicates that there are fire alarms in memory.

10 Stay – Indicates that the panel is armed in the Stay Mode. It will turn on at the beginning of the Exit

Delay.

11 Chime – This icon turns on when the Chime

function key is pressed to enable Door Chime on the

system. It will turn off when the chime function key is pressed again to disable Door Chime.

12 AM, PM – This icon indicates that the local clock is displaying 12 Hr. time. These icons will not be

on if the system is programmed for 24 Hr. time.

13 ALARM – This icon is used with clock digits 1 and 2 to indicate zones in alarm on the system. When

a zone is in alarm, the ALARM icon will turn on, and 7 segment displays 1 and 2 will scroll through the zones in alarm.

14 OPEN – This icon is used with clock digits 1 and 2 to indicate violated zones (not alarm) on the sys-

tem. When zones are opened, the OPEN icon will turn on, and 7 segment displays 1 and 2 will scroll through the violated zones.

15 Night – Indicates that the panel is armed in the Night Mode.

Reference Sheets

The Entry Delay Time is _______ seconds.

The Exit Delay Time is _______ seconds.

Fill out the following information for future reference and store this guide in a safe place.

Access Codes

Master Code [40] : _________________________

Code Access Code Code Access Code Code Access Code Code Access Code

01 10 19 28

02 11 20 29

03 12 21 30

04 13 22 31

05 14 23 32

06 15 24 33 (Duress)

07 16 25 34 (Duress)

08 17 26

09 18 27

System Information

Enabled?

J [F] FIRE J [A] AUXILIARY J[P] PANIC

For Service

Central Station Information:

Account#: ___________________ Telephone#: __________________

Installer Information :

Company: ___________________ Telephone#: __________________

If you suspect a false alarm signal has been sent to the central monitoring station, call the station to avoid an unnecessary response.

Sensor / Zone Information

Sensor Protected Area Sensor Type Sensor Protected Area Sensor Type

01 33

02 34

03 35

04 36

05 37

06 38

07 39

08 40

09 41

10 42

11 43

12 44

13 45

14 46

15 47

16 48

17 49

18 50

19 51

20 52

21 53

22 54

23 55

24 56

25 57

26 58

27 59

28 60

29 61

30 62

31 63

32 64
