THE ADT-UZC-256
UNIVERSAL ZONE CODER
for the Unimode® 2020/1010, Unimode® II and Unimode® 4-16
Fire Alarm Control Panels
Document 51349
4/25/00 Rev:
A15216:D ECN 99-402
D
Fire Alarm System Limitations
While a fire alarm system may lower insurance
rates, it is not a substitute for fire insurance!
An automatic fire alarm system–typically made up of smoke
detectors, heat detectors, manual pull stations, audible warning devices, and a fire alarm control with remote notification
capability–can provide early warning of a developing fire.
Such a system, however, does not assure protection against
property damage or loss of life resulting from a fire.
The Manufacturer recommends that smoke and/or heat detectors be located throughout a protected premise following the
recommendations of the current edition of the National Fire
Protection Association Standard 72 (NFPA 72),
manufacturer's recommendations, State and local codes, and
the recommendations contained in the Guide for Proper Use
of System Smoke Detectors, which is made available at no
charge to all installing dealers. A study by the Federal Emergency Management Agency (an agency of the United States
government) indicated that smoke detectors may not go off in
as many as 35% of all fires. While fire alarm systems are designed to provide early warning against fire, they do not guarantee warning or protection against fire. A fire alarm system
may not provide timely or adequate warning, or simply may not
function, for a variety of reasons:
Smoke detectors may not sense fire where smoke cannot
reach the detectors such as in chimneys, in or behind walls, on
roofs, or on the other side of closed doors. Smoke detectors
also may not sense a fire on another level or floor of a building. A second-floor detector, for example, may not sense a
first-floor or basement fire.
Particles of combustion or "smoke" from a developing fire
may not reach the sensing chambers of smoke detectors because:
• Barriers such as closed or partially closed doors, walls, or
chimneys may inhibit particle or smoke flow.
• Smoke particles may become "cold," stratify, and not reach
the ceiling or upper walls where detectors are located.
• Smoke particles may be blown away from detectors by air
outlets.
• Smoke detectors may be drawn into air returns before
reaching the detector.
The amount of "smoke" present may be insufficient to alarm
smoke detectors. Smoke detectors are designed to alarm at
various levels of smoke density. If such density levels are not
created by a developing fire at the location of detectors, the
detectors will not go into alarm.
Smoke detectors, even when working properly, have sensing
limitations. Detectors that have photoelectronic sensing
chambers tend to detect smoldering fires better than flaming
fires, which have little visible smoke. Detectors that have ionizing-type sensing chambers tend to detect fast-flaming fires
better than smoldering fires. Because fires develop in different ways and are often unpredictable in their growth, neither
type of detector is necessarily best and a given type of detector may not provide adequate warning of a fire.
Smoke detectors cannot be expected to provide adequate
warning of fires caused by arson, children playing with
matches (especially in bedrooms), smoking in bed, and violent
explosions (caused by escaping gas, improper storage of
flammable materials, etc.).
Heat detectors do not sense particles of combustion and
alarm only when heat on their sensors increases at a predetermined rate or reaches a predetermined level. Rate-of-rise
heat detectors may be subject to reduced sensitivity over time.
For this reason, the rate-of-rise feature of each detector
should be tested at least once per year by a qualified fire protection specialist.
Heat detectors are designed to protect
property, not life.
IMPORTANT!
Smoke detectors must be installed in the
same room as the control panel and in rooms used by the system for the connection of alarm transmission wiring, communications, signaling, and/or power.
cated, a developing fire may damage the alarm system, crippling its ability to report a fire.
Audible warning devices such as bells may not alert people
if these devices are located on the other side of closed or
partly open doors or are located on another floor of a building.
Any warning device may fail to alert people with a disability or
those who have recently consumed drugs, alcohol or medication. Please note that:
• Strobes can, under certain circumstances, cause seizures
in people with conditions such as epilepsy.
• Studies have shown that certain people, even when they
hear a fire alarm signal, do not respond or comprehend the
meaning of the signal. It is the property owner's responsibility to conduct fire drills and other training exercise to make
people aware of fire alarm signals and instruct them on the
proper reaction to alarm signals.
• In rare instances, the sounding of a warning device can
cause temporary or permanent hearing loss.
A fire alarm system will not operate without any electrical
power. If AC power fails, the system will operate from standby
batteries only for a specified time and only if the batteries
have been properly maintained and replaced regularly.
Equipment used in the system may not be technically compatible with the control. It is essential to use only equipment
listed for service with your control panel.
Telephone lines needed to transmit alarm signals from a
premise to a central monitoring station may be out of service
or temporarily disabled. For added protection against telephone line failure, backup radio transmission systems are recommended.
The most common cause of fire alarm malfunction is inadequate maintenance. To keep the entire fire alarm system in
excellent working order, ongoing maintenance is required per
the manufacturer's recommendations, and UL and NFPA standards. At a minimum, the requirements of Chapter 7 of NFPA
72 shall be followed. Environments with large amounts of
dust, dirt or high air velocity require more frequent maintenance. A maintenance agreement should be arranged
through the local manufacturer's representative. Maintenance
should be scheduled monthly or as required by National and/
or local fire codes and should be performed by authorized professional fire alarm installers only. Adequate written records
of all inspections should be kept.
If detectors are not so lo-
Precau-Lg.p65 01/18/2000
Installation Precautions
Adherence to the following will aid in problem-free
installation with long-term reliability:
WARNING -
nected to the fire alarm control panel.
of power before servicing. Control unit and associated equipment may be damaged by removing and/or inserting cards,
modules, or interconnecting cables while the unit is energized.
Do not attempt to install, service, or operate this unit until this
manual is read and understood.
CAUTION -
Changes.
must be tested in accordance with NFPA 72 Chapter 7 after
any programming operation or change in site-specific software. Reacceptance testing is required after any change, addition or deletion of system components, or after any modification, repair or adjustment to system hardware or wiring.
All components, circuits, system operations, or software functions known to be affected by a change must be 100% tested.
In addition, to ensure that other operations are not inadvertently affected, at least 10% of initiating devices that are not
directly affected by the change, up to a maximum of 50 devices, must also be tested and proper system operation verified.
This system meets NFPA requirements for operation at
0-49° C/32-120° F
condensing) at 30° C/86° F. However, the useful life of the
system's standby batteries and the electronic components
may be adversely affected by extreme temperature ranges
and humidity. Therefore, it is recommended that this system
and all peripherals be installed in an environment with a nominal room temperature of 15-27° C/60-80° F.
Verify that wire sizes are adequate for all initiating and
indicating device loops. Most devices cannot tolerate more
than a 10% I.R. drop from the specified device voltage.
Several different sources of power can be con-
Disconnect all sources
System Reacceptance Test after Software
To ensure proper system operation, this product
and at a relative humidity of 85% RH (non-
Like all solid state electronic devices, this system may
operate erratically or can be damaged when subjected to lightning-induced transients. Although no system is completely
immune from lightning transients and interferences, proper
grounding will reduce susceptibility.
Overhead or outside
aerial wiring is not recommended, due to an increased susceptibility to nearby lightning strikes.
cal Services Department if any problems are anticipated or
encountered.
Disconnect AC power and batteries prior to removing or inserting circuit boards. Failure to do so can damage circuits.
Remove all electronic assemblies prior to any drilling, filing,
reaming, or punching of the enclosure. When possible, make
all cable entries from the sides or rear. Before making modifications, verify that they will not interfere with battery, transformer, and printed circuit board location.
Do not tighten screw terminals more than 9 in-lbs.
Over-tightening may damage threads, resulting in reduced
terminal contact pressure and difficulty with screw terminal
removal.
Though designed to last many years, system components
can fail at any time. This system contains static-sensitive
components. Always ground yourself with a proper wrist strap
before handling any circuits so that static charges are removed from the body. Use static-suppressive packaging
to protect electronic assemblies removed from the unit.
Follow the instructions in the installation, operating, and
programming manuals. These instructions must be followed
to avoid damage to the control panel and associated
equipment. FACP operation and reliability depend upon
proper installation by authorized personnel.
Consult with the Techni-
FCC Warning
WARNING: This equipment generates, uses, and can
radiate radio frequency energy and if not installed and
used in accordance with the instruction manual, may
cause interference to radio communications. It has
been tested and found to comply with the limits for class
A computing device pursuant to Subpart B of Part 15 of
FCC Rules, which is designed to provide reasonable
protection against such interference when operated in a
commercial environment. Operation of this equipment in
a residential area is likely to cause interference, in which
case the user will be required to correct the interference
at his own expense.
Canadian Requirements
This digital apparatus does not exceed the Class A
limits for radiation noise emissions from digital
apparatus set out in the Radio Interference Regulations
of the Canadian Department of Communications.
Le present appareil numerique n'emet pas de bruits
radioelectriques depassant les limites applicables aux
appareils numeriques de la classe A prescrites dans le
Reglement sur le brouillage radioelectrique edicte par le
ministere des Communications du Canada.
Precau-Lg.p65 01/18/2000
Contents
Section One:
ADT-UZC-256 Universal Zone Coder......................................................... 5
Section Two:
Board Description.........................................................................................7
Section Three:
Installing the ADT-UZC-256 ....................................................................... 8
Unimode II Installation................................................................................. 8
Figure 3-1: Mounting the ADT-UZC-256 to a CHS-4 ................................. 8
Unimode 4-16 Installation ............................................................................ 9
Figure 3-2: Mounting the ADT-UZC-256 in the ADT-CAB-500..........................9
Unimode 2020/1010 Installation ................................................................ 10
Figure 3-3: Mounting the ADT-UZC-256 in an ICA-4L chassis ............... 10
Section Four:
Power/NAC Configurations ....................................................................... 11
Section Five:
Unimode 2020/1010 / ADT-UZC-256 Configuration................................ 13
Section Six:
ADT-UZC-256 Connections to M300CADT Modules..............................14
Appendix A:
Plug/Terminal Schematic ........................................................................... 15
4
51349:D 4/25/00
Section One:
ADT-UZC-256 Universal Zone Coder
General
The ADT-UZC-256 Universal Zone Coder provides separate codes for up to 256 initiating
zones. Each code requires a different initiating circuit. Only one Notification Appliance
Circuit is required, but coded output from the ADT-UZC-256 can be fed to many output
circuits.
Coded Outputs
The ADT-UZC-256 contains three outputs, each rated for three amps at 30 VDC. These
outputs allow the ADT-UZC-256 to supply different coded information to certain output
circuits, depending on the alarm initiation condition. This can be useful when employing
coded outputs in floor-above, floor-below applications, or to provide various numbers of
rounds for bell circuits and strobe or lamp circuits.
These relays are controlled by a predefined program, and can be set to respond to general
alarm conditions with the fire alarm system. The ADT-UZC-256 also provides a second zonein-alarm override of the general alarm delay.
EIA-485 Communication
The ADT-UZC-256 and the CPU use the EIA-485 circuit for communication. When installed,
the zone coder automatically assumes the lowest available address on the EIA-485 interface.
61-4edominUIIedominU0101/0202edominU
stnioPfo#65-165-1021-7546-1821-56291-921652-391
sesserddA 1 1212 3 4
Assignment of points to zone codes within the ADT-UZC-256 is automatic in the Unimode
II and Unimode 4-16. It is programmable in the Unimode 2020/1010. Addresses occupied
by the ADT-UZC-256 are unavailable to other devices on the EIA-485 circuit (AMG,
annunciators, etc.).
Zone Code Protocol
The ADT-UZC-256 allows the specification of several parameters:
• Up to four code digits.
• Number of rounds
• Pulse-ON, Pulse-OFF time
• Time between digits
• Time between rounds
Note: Due to the nature of coded outputs, the ADT-UZC-256 is not compatible with
notification appliances which do not produce a steady sound. Periodic appliances that
produce their own code (such as some codes available with electronic sounders) will
not be compatible with the ADT-UZC-256; some appliances may have a response
time which is too slow to operate with the programmed code.
51349:D 4/25/00
5
Mounting
The ADT-UZC-256 plugs into the ICA-4L in Unimode 2020/1010 systems, or mounts behind
modules in the Unimode 4-16 and Unimode II.
Additional Reference
The ADT-UZC-256 Zone Coder can be used with the Unimode 4-16, the Unimode II, and the
Unimode 2020/1010 Fire Alarm Control Panels. For more information on these systems,
refer to the following documents:
The Unimode 4-16 Installation & Programming Manual, Document A15019
The Unimode II Installation Manual, Document A15583
The Unimode 2020/1010 Manual, Document 51167
Standby Battery Calculation
Use the following figures when calculating the required standby battery capacity as indicated
in the above-mentioned installation manuals:
Standby Load: 35mA
Alarm Load: 85mA
6
51349:D 4/25/00
Section Two:
Board Description
TROUBLE LED (Yellow)
Lights when one or more trouble conditions are detected.
ALARM TEST (Red)
Follows the main coded output.
SLC ON-LINE LED (Green)
Blinks during communication with the master FACP.
Notification Appliance Circuit
Power Connections*
See diagram below for terminal/connector
designations.
POWER OUT (Unimode II and Unimode 4-16
only)
to next device in power chain.
POWER IN* (Unimode II and Unimode 4-16
only)
connection to main power supply.
* use a power limited power supply
Power Supervision
EIA-232 Connection*
Female DB-9 connector for programming
from an IBM-compatible computer.
EIA-485 Connection*
All connections are power limited and
supervised. See diagram below for
terminal assignment.
Mode Select Switch
for normal/programming mode selection.
Power Connector* (for the Unimode 2020/
1010)
9V POWER CONNECTOR for
powering the ADT-UZC-256 during remote
programming.
Power Connections for Notification Appliance Circuits
CKT 1 CKT 2 CKT 3
OUT IN OUT IN OUT IN
CKT 3 CKT 2 CKT 1
NC NC NC
COM COM COM
NO NO NO
51349:D 4/25/00
(-) (-)
OUT IN
(+) (+)
OUT IN
REF.
7
Section Three:
Installing the ADT-UZC-256
Unimode II Installation
Mechanical Installation
The ADT-UZC-256 mounts beneath the third and fourth modules, to the right of the CPU. The
ADT-UZC-256 fastens to the base of the CHS-4 chassis using the four hex standoffs
(provided), which are screwed onto four PEM studs. The ADT-UZC-256 is then attached to
three of the four standoffs using the mounting screws provided (see Figure 3 - 1).
ADT-UZC-256
ADT-UZC-256 CHS--4
STEP 1 STEP 2
Figure 3-1: Mounting the ADT-UZC-256 to a CHS-4
Electrical Installation
Connect the main power harness from the MPS power supply to P3 on the ADT-UZC-256.
Connect the short power harness (provided) from P2 on the ADT-UZC-256 to the
CPU-5000. See Section Two for all terminal assignments.
Connect the EIA-485 annunciator signal from the two-terminal connector on the lower CPU
board (TB-2) to the ADT-UZC-256 EIA-485 IN terminals.
For connection of notification appliance power to and from the ADT-UZC-256, refer to the
power configuration illustrations in Section Four.
8
51349:D 4/25/00
Unimode 4-16 Installation
Mechanical Installation
In a Unimode 4-16, the ADT-UZC-256 mounts beneath the third (right most) module. The
ADT-UZC-256 fastens to the back of the box using three hex standoffs (one aluminum and
two nylon provided), which are screwed into the three female PEM nuts as shown. The
ADT-UZC-256 is then attached to two of the four standoffs using captive screws on the board
(see Figure 3 - 2).
ADT-UZC-256
ADT-UZC-256 CAB--500
STEP 1 STEP 2
Figure 3-2: Mounting the ADT-UZC-256 in the ADT-CAB-500
Electrical Installation
Connect the main power harness from the Unimode 4-16 power supply to P3 on the
ADT-UZC-256. Connect the power harness provided with the ADT-UZC-256 from P2 on the
ADT-UZC-256 to the CPU-500. See Section Two for all terminal assignments.
Connect the EIA-485 annunciator signal from the two-terminal connector on the lower CPU
board (TB-2) to the EIA-485 IN terminals on the ADT-UZC-256.
For connection of notification appliance power to and from the ADT-UZC-256, refer to the
power configuration illustrations in Section Four.
51349:D 4/25/00
9
Unimode 2020/1010 Installation
Mechanical Installation
In a Unimode 2020/1010, the ADT-UZC-256 plugs into a slot on the ICA-4L chassis. If the
Unimode 2020/1010 is in an A-size cabinet (only one ICA-4L), the ADT-UZC-256 mounts
beneath the CPU or the SIB. If a second or third ICA-4L chassis is available, the
ADT-UZC-256 should be mounted in one of the two upper slots to permit easy access to
ADT-UZC-256 wiring and switch settings. Note that the ADT-UZC-256 mechanically
eliminates one LIB position, requiring the installation of an additional chassis in some
instances. As an alternative, the Unimode 2020/1010 may use a CHS-4 chassis to mount the
ADT-UZC-256 (see Figure 3 - 3).
Note also that the Unimode 2020/1010 does not require LIB boards to be installed in
consecutive positions. For example, in a five-loop system, the ADT-UZC-256 could be
installed in LIB position 3 (upper left of second chassis), with LIBs in all other slots. In this case,
the Unimode 2020/1010 would be programmed for loops 1, 2, 4, 5, and 6.
Figure 3-3: Mounting the ADT-UZC-256 in an ICA-4L Chassis
10
51349:D 4/25/00
Section Four:
Power/NAC Configurations
ADT-UZC 256
ADT-UZC 256
ADT-UZC 256
These two Notification
Appliance Circuits share
3.0 amps of coded power.
These six Notification
Appliance Circuits share
3.0 amps of coded power.
These ten Notification
Appliance Circuits share
3.0 amps of coded power.
These two Notification
Appliance Circuits share
ADT-UZC 256
ADT-
APS-6R
3.0 amps of coded power.
These four Notification
Appliance Circuits share
3.0 amps of coded power.
NOTE: Cable from MPS to ADT-UZC-256: P/N 71093; all others: P/N 71091.
51349:D 4/25/00
11
ADT-
APS-6R
ADT-
APS-6R
ADT-UZC 256
ADT-UZC 256
These two Notification
Appliance Circuits share
3.0 amps of coded power.
These eight Notification
Appliance Circuits share
3.0 amps of coded power.
These two Notification
Appliance Circuits share
3.0 amps of coded power.
These four Notification
Appliance Circuits share
3.0 amps of coded power.
12
ADT-
APS-6R
ADT-
APS-6R
ADT-
APS-6R
ADT-UZC 256
Cut JP1 on the ICM-4.
51349:D 4/25/00
These four Notification
Appliance Circuits share
3.0 amps of coded power.
These two Notification
Appliance Circuits share
3.0 amps of coded power.
These two Notification
Appliance Circuits share
3.0 amps of coded power.
These two Notification
Appliance Circuits share
3.0 amps of coded power.
Section Five:
Unimode 2020/1010 / ADT-UZC-256 Configuration
SLC
XPP-1
LIB-200A
ADT-SIB-NET
EIA-485
XPC-8
CCM-1
CPU-2020
XPM
ADT-LCD-80
Universal Zone
Coder
ADT-UZC-256
EIA-232
CRT
ARM-4
Bell Power
MPS-24A
3 AMP MAX.
BATTERY BATTERY
51349:D 4/25/00
UZC-2020.CDR
13
Section Six:
ADT-UZC-256 Connections to M300CADT Modules

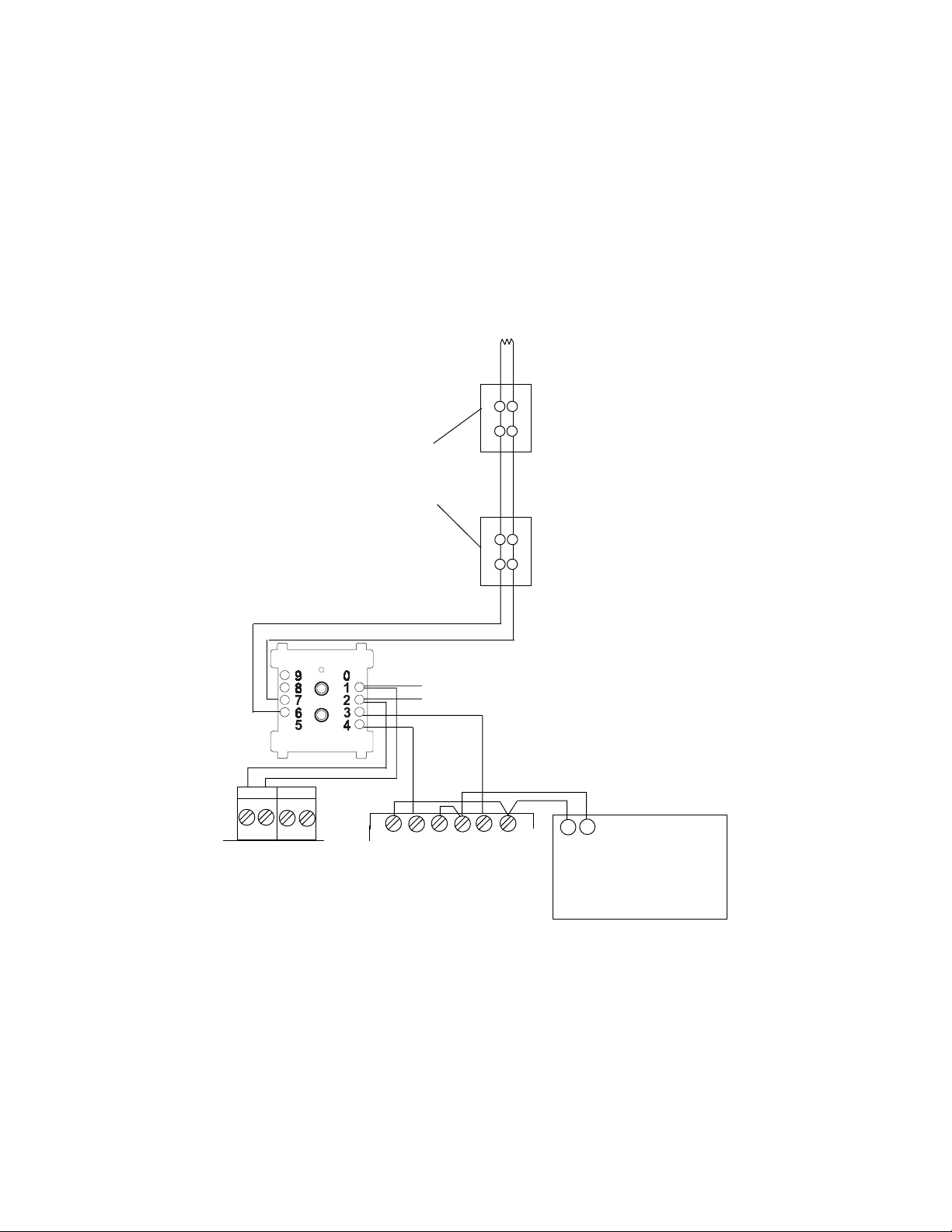

The following illustration shows connections to an M300CADT control module. For wiring other types
of control modules, refer to the specific literature for that module.
System Sensor A2143-00
(Canada: N-ELR)
End-of-Line Resistor, 47K, .5 watts,
supervised and power-limited
-
+
-
+
24VDC
Notification Appliance
(See Device Compatibility
Document 51352 for
compatible devices)
-
+
-
+
14
M300CADT
-
+
ADT-AIM-200
or
Unimode
2020/1010
-
+
SLC
OUT
1 2 3 4 5 6
NO COM NC NO COM NC
ADT-UZC-256
SLC to Next
Device
TB1
51349:D 4/25/00
-
+
MPS-24A, TB3 Terminal 4 (-) and 3 (+)
MPS-24B,TB2 Terminal 4 (-) and 3 (+)
UL listed 24VDC power limited, resettable
power supply for Fire Protective Signaling
or
or

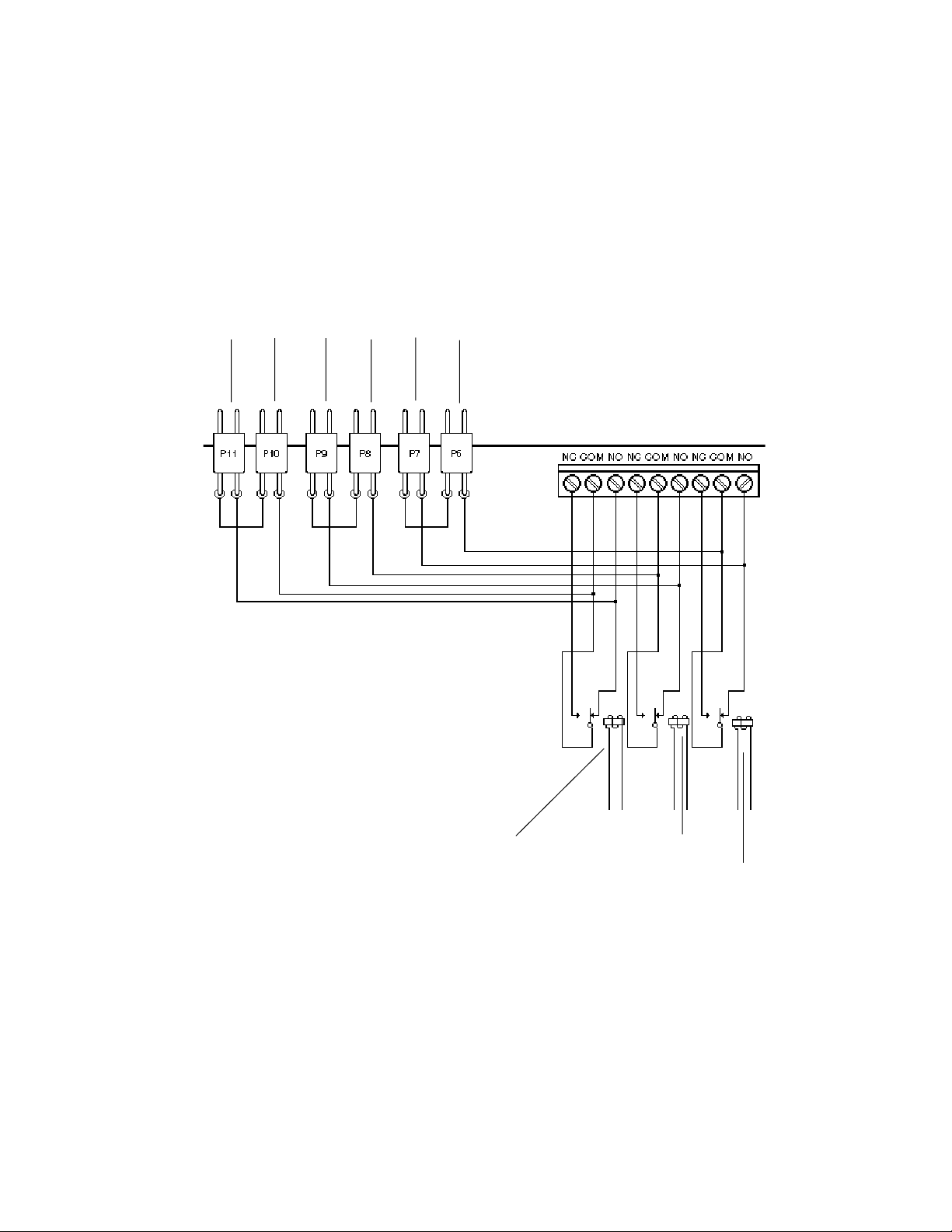

Appendix A:
Plug/Terminal Schematic
Coded Output 3
Power Input 3
Coded Output 2
Power Input 2
Power Input 1
Coded Output 1
Coded Outputs
32 1
Code Relay 3
51349:D 4/25/00
Code Relay 2
Code Relay 1
15
Loading...
