ADTRAN NetVanta VPN Accelerator Card Quick Start Guide

Quick Start Guide

For more detailed documentation, visit us online at www.adtran.com.

NetVanta VPN Accelerator Card P/N 1202368L1

INSTALLATION INSTRUCTIONS

1. Remove power from the unit.

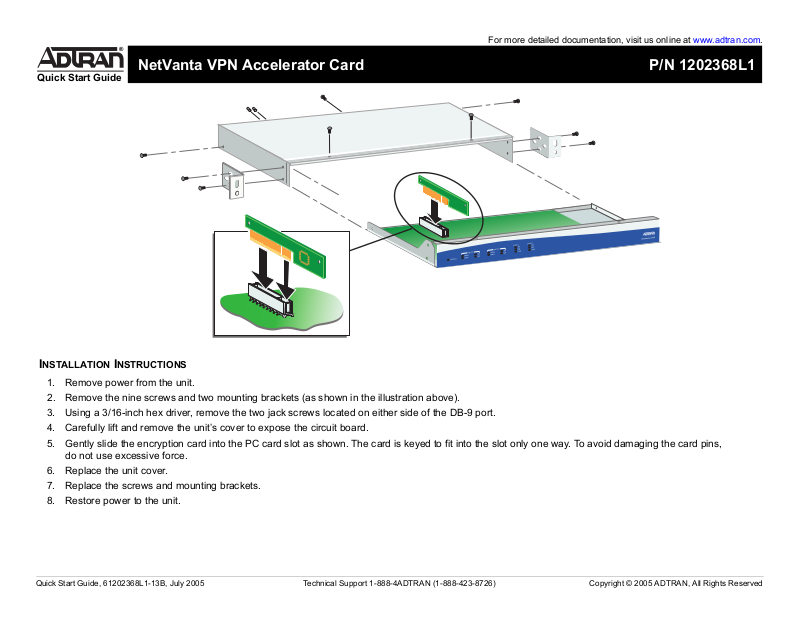

2. Remove the nine screws and two mounting brackets (as shown in the illustration above).

3. Using a 3/16-inch hex driver, remove the two jack screws located on either side of the DB-9 port.

4. Carefully lift and remove the unit’s cover to expose the circuit board.

5. Gently slide the encryption card into the PC card slot as shown. The card is keyed to fit into the slot only one way. To avoid damaging the card pins, do not use excessive force.

6. Replace the unit cover.

7. Replace the screws and mounting brackets.

8. Restore power to the unit.
