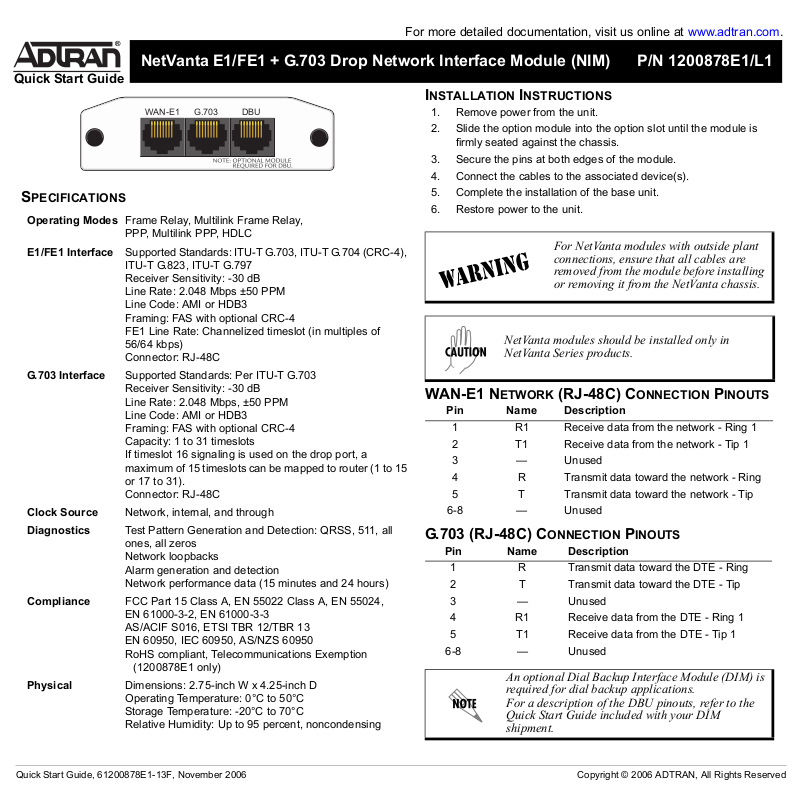

ADTRAN NetVanta Series E1 with G.703 Drop NIM Quick Start Guide

NetVanta E1/FE1 + G.703 Drop Network Interface Module (NIM) P/N 1200878E1/L1

Quick Start Guide

WAN-E1 G.703 DBU

SPECIFICATIONS

Operating Modes Frame Relay, Multilink Frame Relay,

E1/FE1 Interface Supported Standards: ITU-T G.703, ITU-T G.704 (CRC-4),

G.703 Interface Supported Standards: Per ITU-T G.703

Clock Source Network, internal, and through

Diagnostics Test Pattern Generation and Detection: QRSS, 511, all

Compliance FCC Part 15 Class A, EN 55022 Class A, EN 55024,

Physical Dimensions: 2.75-inch W x 4.25-inch D

PPP, Multilink PPP, HDLC

ITU-T G.823, ITU-T G.797 Receiver Sensitivity: -30 dB Line Rate: 2.048 Mbps ±50 PPM Line Code: AMI or HDB3 Framing: FAS with optional CRC-4 FE1 Line Rate: Channelized timeslot (in multiples of 56/64 kbps) Connector: RJ-48C

Receiver Sensitivity: -30 dB Line Rate: 2.048 Mbps, ±50 PPM Line Code: AMI or HDB3 Framing: FAS with optional CRC-4 Capacity: 1 to 31 timeslots If timeslot 16 signaling is used on the drop port, a maximum of 15 timeslots can be mapped to router (1 to 15 or 17 to 31). Connector: RJ-48C

ones, all zeros Network loopbacks Alarm generation and detection Network performance data (15 minutes and 24 hours)

EN 61000-3-2, EN 61000-3-3 AS/ACIF S016, ETSI TBR 12/TBR 13 EN 60950, IEC 60950, AS/NZS 60950 RoHS compliant, Telecommunications Exemption

(1200878E1 only)

Operating Temperature: 0°C to 50°C Storage Temperature: -20°C to 70°C Relative Humidity: Up to 95 percent, noncondensing

For more detailed documentation, visit us online at www.adtran.com.

INSTALLATION INSTRUCTIONS

1. Remove power from the unit.

2. Slide the option module into the option slot until the module is firmly seated against the chassis.

3. Secure the pins at both edges of the module.

4. Connect the cables to the associated device(s).

5. Complete the installation of the base unit.

6. Restore power to the unit.

For NetVanta modules with outside plant connections, ensure that all cables are removed from the module before installing or removing it from the NetVanta chassis.

NetVanta modules should be installed only in NetVanta Series products.

WAN-E1 NETWORK (RJ-48C) CONNECTION PINOUTS

Pin Name Description

1 R1 Receive data from the network - Ring 1

2 T1 Receive data from the network - Tip 1

3 — Unused

4 R Transmit data toward the network - Ring

5 T Transmit data toward the network - Tip

6-8 — Unused

G.703 (RJ-48C) CONNECTION PINOUTS

Pin Name Description

1 R Transmit data toward the DTE - Ring

2 T Transmit data toward the DTE - Tip

3 — Unused

4 R1 Receive data from the DTE - Ring 1

5 T1 Receive data from the DTE - Tip 1

6-8 — Unused

An optional Dial Backup Interface Module (DIM) is required for dial backup applications. For a description of the DBU pinouts, refer to the Quick Start Guide included with your DIM shipment.

NetVanta E1/FE1 + G.703 Drop Network Interface Module (NIM) P/N 1200878E1/L1

Quick Start Guide

E1/FE1 NIM COMMANDS

clock source [internal | line* | through]

Configures the source timing used for the interface. Use the no form of this command to return to the default value. Note: the E1 + G.703 module supports a single clock source for both E1 interfaces.

internal Provides clocking using the internal oscillator.

line* Recovers clock from the E1 circuit.

through Configures the unit to recover clocking from the circuit connected to the

coding [ami | hdb3*]

Configures the line coding for the E1 physical interface. The settings must match the line coding supplied on the circuit by the service provider.

ami Configures the line coding for alternate mark inversion (AMI).

hdb3

framing [crc4]

Configures the framing format for the E1 interface. This parameter should match the framing format provided by the service provider or external device. Use the no form of this command to return to the default value.

crc4 Enables CRC-4 bits to be transmitted in the outgoing data stream.

loop-alarm-detect

Enables detection of loop alarms on the E1 interface. Use the no form of this command to disable loop alarm detection. This setting is enabled by default.

loopback network [line | payload]

Initiates a loopback on the interface toward the network. Use the no form of this command to deactivate the loopback.

line Initiates a metallic loopback of the physical E1 network interface.

paylo ad Initiates a loopback of the E1 framer (CSU portion) of the E1 network

loopback remote v54

Initiates an E1 remote loopback test (with a V.54 loopback pattern). Use the no form of this command to disable this feature.

remote-alarm [r ai* | ais]

Selects the alarm signaling type to be sent when a loss of frame is detected on the E1 receive signal. Use the no form of this command to disable all transmitted alarms.

rai* Specifies sending a remote alarm indication (RAI) in response to a loss

ais Sends an alarm indication signal (AIS) as an unframed all-ones signal

remote-loopback

Configures the interface to respond to loopbacks initiated by a remote unit (or the service provider). Use the no form of this command to disable this feature. This setting is enabled by default.

sa4tx-bit [0 | 1*]

Selects the Tx value of Sa4 in this E1 interface. Use the no form of this command to return to the default value of 1.

shutdown

Disables the interface (both physical and virtual) so that no data will be passed through. Use the no form of this command to turn on the interface and allow it to pass data. By default, all interfaces are disabled.

G.703 interface.

Configures the line coding for high-density bipolar 3 (HDB3).

Received signal is checked for CRC-4 errors.

interface.

of frame. Also prevents a received RAI from causing a change in interface operational status..

For more detailed documentation, visit us online at www.adtran.com.

snmp trap line-status

Controls the Simple Network Management Protocol (SNMP) variable dsx1LineStatusChangeTrapEnable (RFC2495) to enable (or disable) the interface to send SNMP traps when there is an interface status change. Use the no form of this command to disable this trap.

snmp trap link-status

Controls the Simple Network Management Protocol (SNMP) variable ifLinkUpDownTrapEnable (RFC2863) to enable (or disable) the interface to send SNMP traps when there is an interface status change. Use the no form of this command to disable this trap.

snmp trap threshold-reached

Controls the Simple Network Management Protocol (SNMP) variable adGenAOSDs1ThresholdReached (adGenAOSDs1-Ext MIB) to enable the interface to send SNMP traps when a DS1 performance coun ter threshold is reached. Use the no form of this command to disable this trap.

tdm-group <group number> timeslots <1-31> speed 64

Creates a group of contiguous channels on this interface to be used during the cross-connect process.

<group number> Identifies the created TDM group (valid range: 1 to 255).

timeslots <1-31> Specifies the channels to be used in the TDM group. This can be entered as

speed 64 Specifies the individual channel rate on the E1 interface to be 56 kbps or

Activates the built-in pattern generator and begins sending the specified test pattern. Can be used to verify a data path when used in conjunction with an active loopback. Use the no form of this command to cease pattern generation.

clear Clears the test pattern error count.

errors Displays the test pattern error count.

insert Inserts an error into the currently active test pattern.

ones Generates a test pattern of continuous ones.

p511 Generates a test pattern of repeating ones and zeros.

qrss Generates a test pattern of random ones and zeros.

zeros Generates a test pattern of continuous zeros.

ts16

Enables timeslot 16 multiframe to be checked on the receive signal. Use the no form of this command to disable timeslot 16.

* Indicates default values.

a single number representing one of the 31 E1 channel timeslots or as a contiguous group of channels. (For example, 1-10 specifies the first 10 channels of the E1.)

64 kbps. The default speed is 64 kbps. This is the only supported speed for this module.

Important: For additional details on product features, specifications, installation, and safety, refer to the appropriate Hardware Installation Guide on the ADTRAN OS System Documentation CD shipped with the base unit and available online at www.adtran.com.
