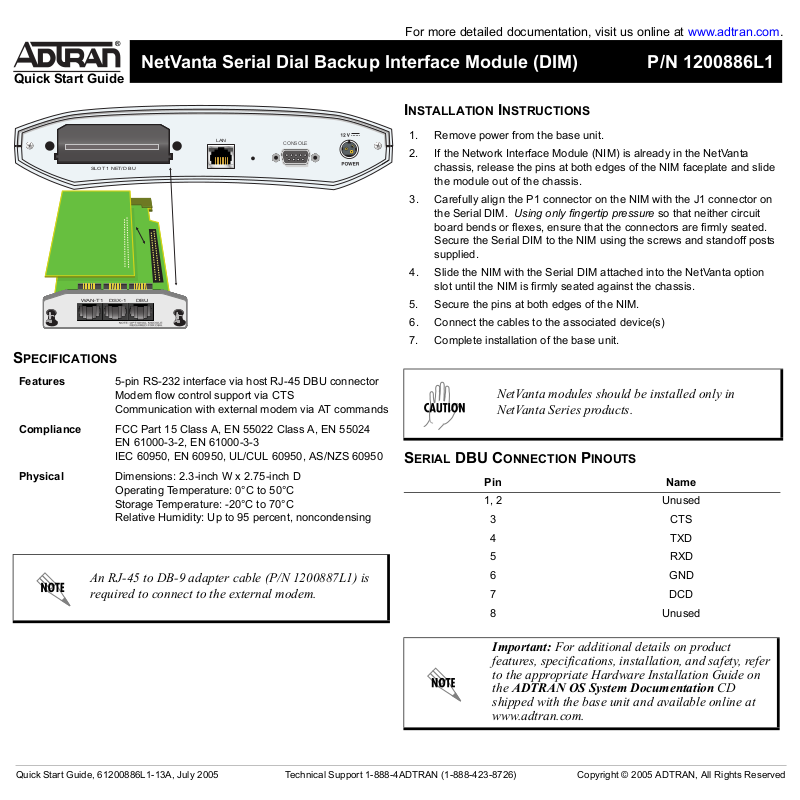

ADTRAN NetVanta Serial DIM INSTALLATION INSTRUCTIONS

NetVanta Serial Dial Backup Interface Module (DIM) P/N 1200886L1

Quick Start Guide

LAN

SLOT 1 NET/D BU

WAN-T1 DSX-1 DBU

WAN-DDS DBU

SPECIFICATIONS

Features 5-pin RS-232 interface via host RJ-45 DBU connector

Modem flow control support via CTS Communication with external modem via AT commands

Compliance FCC Part 15 Class A, EN 55022 Class A, EN 55024

EN 61000-3-2, EN 61000-3-3 IEC 60950, EN 60950, UL/CUL 60950, AS/NZS 60950

Physical Dimensions: 2.3-inch W x 2.75-inch D

Operating Temperature: 0°C to 50°C Storage Temperature: -20°C to 70°C Relative Humidity: Up to 95 percent, noncondensing

An RJ-45 to DB-9 adapter cable (P/N 1200887L1) is required to connect to the external modem.

CONSOLE

For more detailed documentation, visit us online at www.adtran.com.

INSTALLATION INSTRUCTIONS

1. Remove power from the base unit.

2. If the Network Interface Module (NIM) is already in the NetVanta chassis, release the pins at both edges of the NIM faceplate and slide the module out of the chassis.

3. Carefully align the P1 connector on the NIM with the J1 connector on the Serial DIM. Using only fingertip pressure so that neither circuit board bends or flexes, ensure that the connectors are firmly seated. Secure the Serial DIM to the NIM using the screws and standoff posts supplied.

4. Slide the NIM with the Serial DIM attached into the NetVanta option slot until the NIM is firmly seated against the chassis.

5. Secure the pins at both edges of the NIM.

6. Connect the cables to the associated device(s)

7. Complete installation of the base unit.

NetVanta modules should be installed only in NetVanta Series products.

SERIAL DBU CONNECTION PINOUTS

Pin Name

1, 2 Unused

3CTS

4TXD

5RXD

6GND

7 DCD

8 Unused

Important: For additional details on product features, specifications, installation, and safety, refer to the appropriate Hardware Installation Guide on the ADTRAN OS System Documentation CD shipped with the base unit and available online at www.adtran.com.

NetVanta Serial Dial Backup Interface Module (DIM) P/N 1200886L1

Quick Start Guide

SERIAL DIM COMMANDS

alias <“text”>

Populates the ifAlias OID (Interface Table MIB of RFC2863) for all physical and virtual interfaces when using SNMP management station.

caller-id override [always <number> | if-no-CID <number>]

Configures the unit to replace caller ID information with a user-specified number. Use the no form of this command to disable any caller ID overrides.

always <number> Always forces replacement of the incoming

caller ID number with the number given.

if-no-CID <number> Replaces the incoming caller ID number with

the number given only if there is no caller ID information available for the incoming call.

description <text>

Identifies the specified interface, both physical and virtual (for example, circuit ID, contact information, etc.), using up to 80 alphanumeric characters.

dialin

Enables the modem for remote console dial-in, disabling the use of the modem for dial-backup.

For more detailed documentation, visit us online at www.adtran.com.

init-string <string>

Specifies an initialization string using standard AT commands. Use the no form of this command to return to the default initialization string.

<string> Specifies an initialization string using standard

AT commands. This string must start with AT and cannot contain spaces. The default string is ate0q0v1x4\n0.

shutdown

Disables the interface (both physical and virtual) so that no data will be passed through. Use the no version of this command to turn on the interface and allow it to pass data.
