ABOUT THIS MANUAL

The ATLAS 800 Each ATLAS 800

PLUS

system consists of the Base Unit and one or more modules.

PLUS

option module includes its own User Manual, containing

specific information about installing, configuring, and testing the module.

This manual includes information you need to install, configure, test, and troubleshoot an ATLAS 800

PLUS

system, often referring you to the individual module

manual when applicable.

This manual is arranged so you can quickly and easily find the information you need. The following is an overview of the contents of this manual:

Introduction

• Chapter 1, Introduction on page 1-1, familiarizes you with the ATLAS 800 unit and provides some sample ATLAS 800

PLUS

applications.

PLUS

Getting Started

• Chapter 2, Installation on page 2-1, describes the rear pan el layout and h ow to

PLUS

install the ATLAS 800

• Chapter 3, Operation on page 3-1, describes the front panel layout and the different ways to operate the ATLAS 800

PLUS

Reference Information

• Chapter 4, Front Panel Operation and Menu Structure on page 4-1, describes how to navigate the front panel. This chapter also describes each option accessible through the front panel.

• Chapter 5, Using the Terminal Menu on page 5-1, de scribes how to navi gate the terminal menus. This chapter also describes each option you can access through the terminal menus.

Working with the ATLAS 800

PLUS

• Chapter 6, Creating a Dedicat ed Map on page 6-1, provides step-by-step instruction on how to use the Dedicated Map commands.

• Chapter 7, Creating a Dial Plan on page 7-1, provides step-by-step instructions on how to create a dial plan for ATLAS.

• Chapter 8, Updating Firmwar e on page 8-1, provides step-by-step instruction on how to update the ATLAS 800

PLUS

firmware.

• Chapter 9, SNMP Management on page 9-1, describes how to control the ATLAS 800

PLUS

via SNMP.

• Chapter 10, ADTRAN Utilities on page 10-1, d escribes t he Telne t, VT 100, and TFTP Server programs delivered with ATLAS 800

PLUS

Appendices

• Appendix A, System Event Logg i n g on page A-1, describes the events ATLAS

PLUS

800

monitors.

• Appendix B, Troubleshooting on page B-1 describes how to diagnose different problems you may experience with the ATLAS 800

• Appendix C, Warranty and Technical Support Information on page C-1, describes your warranty and how to contact technical support.

61200226L1-1 ATLAS 800

PLUS

User Manual

PLUS

iii

FCC regulations require that the following information be provided to the customer in this manual:

1. This equipment complies with Part 68 of the FCC rules. The required label is affixed to the bottom of the chassis.

2. An FCC compliant telephone cord and modular plug are provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.

3. If your telephone equipment (ATLAS) causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice isn’t practical, you will be notified as soon as possible. You will be advised of your right to file a complaint with the FCC.

4. Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper operation of your equipment. If they do, you will be given advance notice to give you an opportunity to maintain uninterrupted service.

5. If you experience trouble with this equipment (ATLAS), please contact ADTRAN at (20 5) 963-800 0 for repair/ warranty information. The telephone company may ask you to disconnect this equipment from the network until the problem has been corrected, or until you are sure the equipment is not malfunctioning.

6. This unit contains no user-serviceable parts.

7. The following information may be required when applying to your local telephone company for leased line facilities.

Service Type REN/SOC FIC USOC

1.544 Mbps - SF 6.0N 04DU9-BN

1.544 Mbps - SF and B8ZS 6.0N 04DU9-DN RJ48C

1.544 Mbps - ESF 6.0N 04DU9-1KN RJ48C

1.544 Mbps - ESF and B8ZS 6.0N 04DU9-1SN RJ48C ISDN 6.0N

04DU9-ISN RJ48C

RJ48C

ATLAS 800

PLUS

User Manual 61200226L1-1

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio frequencies. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Shielded cables must be used with this unit to ensure compliance with Class A FCC limits.

Change or modifications to this unit not expre ssly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

61200226L1-1 ATLAS 800

PLUS

User Manual

AFFIDAVIT REQUIREMENTS FOR CONNECTION TO DIGITAL SERVICES

• An affidavit is required to be given to the telephone company whenever digital terminal equipment without encoded analog content an d billing protection is used to transmit digital signals containing encoded analog content which are intended for eventual conversion into voiceband analog signals and transmitted on the network.

• The affidavit shall affirm that either no encoded analog content or billing information is being transmitted or that the output of the device meets Part 68 encoded analog content or billing protection specifications.

• End user/customer will be responsible to file an affidavit with the local exchange carrier when connecting unprotected customer premise equipment (CPE) to 1.544 Mbps or subrate digital services.

• Until such time as subrate digital terminal equipment is registered for voice applications, the affidavit requirement for subrate services is waived.

ATLAS 800

PLUS

User Manual 61200226L1-1

AFFIDAVIT FOR CONNECT ION OF CU STOMER PREMISES EQUIPMENT TO 1.544 MBPS AND/ OR SUBRATE DIGITAL SERVICES

For the work to be performed in the certified territory of ________________________(telco name)

State of ________________

County of ________________

I, _____________________________ (name), _____________________

(business address), ____________________ (telephone number) being

duly sworn, state: I have responsibility for the operation and maintenance of the terminal equipment to be connected to

1.544 Mbps and/or ________ subrate digital servi ces. The terminal equipment to be connected complies with Part 68 of the FCC rules except for the encoded analog content and billing protection specifications. With respect to encoded analog content and billing protection:

( ) I attest that all operations associated with the establishment, maintenance, and adjustment of the

digital CPE with respect to analog content and encoded billing protection information continuously complies with Part 68 of th e F CC Rules and Regulations.

( ) The digital CPE does not transmit digital signals containing encoded analog content or billing

information which is intended to be decoded within the telecommunications network.

( ) The encoded analog content and billing protection is factory set and is not under the control of the

customer .

I attest that the operator(s)/maintainer(s) of the digital CPE responsible for the establishment, maintenance, and adjustment of the encoded analog content and billing information has (have) been trained to perform these functions by successfully having completed one of the following (check appropriate blocks):

( ) A. A training course provided by the manufacturer/grantee of the equipment used to encode

analog signals; or

( ) B. A tra ining course pr ovided by the customer or authorized r epr esentative, using training mate-

rials and instructions provided by the man ufactur er/grantee of the equipment used to encode analog signals; or

( ) C. An independent training course (e.g., trade school or technical institution) recognized by the

manufacturer/grantee of the equipment used to encode analog signals; or

( ) D. In lieu of the preceding training requirements, the operator(s)/maintainer(s) is (ar e) under the

control of a supervisor trained in accordance with _________ (circle one) above.

61200226L1-1 ATLAS 800

PLUS

User Manual

vii

I agree to provide ______________________ (telco’s name) with proper documentation to demonstrate compliance with the information as provided in the preceding paragraph, if so requested.

_________________________________Signature

_________________________________Title

_________________________________ Date

Tr anscribed and sworn to before me

This ________ day of ________, 199___

_________________________________ Notary Public

My commission expires:

_________________________________

viii

ATLAS 800

PLUS

User Manual 61200226L1-1

CANADIAN EQUIPMENT LIMITATIONS

The Industry Canada Certification label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational, and safety requirements. The Department does not guarantee the equipment will operate to the user's sat isfaction.

Before installing this equipment, users should ensure that it is permissible to be con nected to th e facilities of the local telecommunications company. The equipment must also be installed usin g an acceptable method of connection. In some cases, the company's inside wiring associated with a single line individual service may be extended by means of a certified connector assembly (telephone extension cord). The customer should be awar e that compliance with the abo ve conditions may not pr event degradation of service in some situations. Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic waterpipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Users should not attempt to m ake s uch con n ect ions the ms elves , b ut sh ould contact th e appropriate electric inspection authority, or an electrician, as appropriate.

The Load Number (LN) assigned to each terminal device denotes the percentage of the total load to be connected to a telephone loop which is used by the device, to prevent overloading. The termination on a loop may consist of any combination of devices subject only to the equipment that the total of the LNs of all devices does not exceed 100. The ringer equivalence number (REN) assigned to each terminal ad apter is used to dete rmine the total number of devices that may be connected to each circuit. The sum of the RENs from all devices in the circuit should not exceed a total of 5.0.

61200226L1-1 ATLAS 800

PLUS

User Manual

ATLAS 800

PLUS

User Manual 61200226L1-1

Table of Contents

List of Figures................................................................................................................................................ xv

List of Tables............................................................................................................................................... xvii

Chapter 1 Introduction..............................................................................................................................1-1

Product Overview......................................................................................................................................... 1-1

ATLAS 800 PLUS Base Unit........................................................................................................................ 1-1

Frame Relay......................................................................................................................................1-2

Dedicated and Switched Connection Maps in a Single Platform.............................................1-3

Signaling Conversion for Maximum Interoperability....................................... ...... ...................1-3

Flexible Network Management and Maintainability.................................................................1-4

Digital Access Cross-Connect System (DACS) ...........................................................................1-4

T1 Bandwidth Manager..................................................................................................................1-5

ISDN Access Switch........................................................................................................................1-5

WAN Overbooking.........................................................................................................................1-5

ATLAS_800PLUS Features .......................................................................................................................... 1-6

Configuration and Management........................................................................................... 1-6

Software Upgrade ................................................................................................................... 1-6

Signaling Support.................................................................................................................... 1-6

ISDN Switch Types................................................................................................................. 1-7

Dedicated Connection Maps.................................................................................................. 1-7

Switched Connection Maps................................................................................................... 1-7

Testing ....................................................................................................................................... 1-7

Performance Monitoring...................................................................................... .................. 1-7

Chapter 2 Installation................................................................................................................................2-1

Before Installing the ATLAS_800PLUS...................................................................................................... 2-1

Contents of ADTRAN Shipments............................................................................................................... 2-1

Customer Provides ....................................................................................................................................... 2-1

Checking the Power Connection ................................................................................................................ 2-1

Grounding Instructions................................................................................................................................ 2-2

Rear Panel ...................................................................................................................................................... 2-2

Control In/Chain In........................................................ ...... ..... ........................................ ..... ...... ..2-3

Connection......................... ...... ...... ......................................................................... .................. 2-3

Control Out/Chain Out.................................................. ...... ....................................... ...................2-4

Connection......................... ...... ...... ......................................................................... .................. 2-4

Network Connection.......................................................................................................................2-5

Connection................................................................................................................................ 2-5

Ethernet 10BaseT Connection............................................................... .........................................2-6

Connection......................... ...... ...... ......................................................................... .................. 2-6

MON (Monitor)................................................................................................................................2-6

Option Slot Arrangement ............................................ ...... ..... ..................................................................... 2-7

Installing Modules........................................................................................................................................ 2-7

61200226L1-1 ATLAS 800

PLUS

User Manual

Table of Contents

Power Up Testing And Initialization......................................................................................................... 2-7

Self-Test.............................................................................................................................................2-7

Chapter 3 Operation ..................................................................................................................................3-1

Front Panel Layout........................................................................................................................................ 3-1

LCD Window ...................................................................................................................................3-1

Enter...................................................................................................................................................3-1

Up and Down Arrows.....................................................................................................................3-1

Cancel................................................................................................................................................3-1

Numeric Keypad..............................................................................................................................3-1

Shift....................................................................................................................................................3-2

Operation Keys.................................................................................................................................3-3

System LED Description.................................................................................................................3-3

Channel Service Unit (CSU) Status...............................................................................................3-4

Module Status LEDs............................................................ ..... ...... ....................................... 3-4

Operating the ATLAS 800 PLUS................................................................................................................. 3-5

Getting Started Using Terminal Menus........................................................................................3-5

Telnet......................................................................................................................................... 3-6

VT-100 Operation ........................................... ...... ................................................................... 3-7

T-Watch Pro.............................................................................................................................. 3-8

Chapter 4 Front Panel Operation and Menu Structure .......................................................................4-1

Navigating the Front Panel............................................................................................................4-2

Data Field.................................................................................................................................. 4-2

Status Field ............................................................................................................................... 4-2

Select and Activate a Menu Item........................................................................................... 4-2

Set the Data Field..................................................................................................................... 4-2

Exit Any Menu Field Operation Or Display........................................................................ 4-2

Front Panel Main Menu................................................................................................................................ 4-3

Status Menu......................................................................................................................................4-4

Configuration Menu........................................................................................................................4-5

Utility Menu .....................................................................................................................................4-6

Alarm (ALRM) Menu......................................................................................................................4-9

Chapter 5 Using the Terminal Menu........................................................ ............................................. .5-1

ATLAS_ 800PLUS Terminal Menu Structure............................................................................................ 5-1

Navigating the Terminal Menu................................................................................................................... 5-2

Menu Path.........................................................................................................................................5-2

Window Panes ....................................................... ...... ..... ........................................ .......................5-2

Right Window Pane Notation........................................................................................................5-5

Using the Keyboard Keys...............................................................................................................5-5

Getting Help................................................................. ....................................... .............................5-7

System Information....................................................................................................................................... 5-7

System Status................................................................................................................................................. 5-9

System Configuration................................................................................................................................. 5-12

System Utility .............................................................................................................................................. 5-18

Modules........................................................................................................................................................ 5-23

ATLAS_ 800PLUS Controller T1/PRI Submenu Items............................................................5-25

Dedicated Maps .............................................................................................................................5-28

Dial Plan..........................................................................................................................................5-33

Global Parameters ................................................................................................................. 5-39

Interface Configuration.................................................... ...... ...... ....................................... ..........5-41

Quad T1/PRI Module Interface Configuration.........................................................................5-41

Quad T1/PRI Module (Network Termination/PRI)........................................................ 5-41

xii

ATLAS 800

PLUS

User Manual 61200226L1-1

Table of Contents

Quad T1/PRI Module (User Termination/PRI)............................................................... 5-46

Quad T1/PRI Module (User Termination/RBS).............................................................. 5-48

Quad Nx56/64 Module Interface Configuration......................................................................5-49

Quad Nx56/64 Module (User Termination)..................................................................... 5-50

Octal BRI Module Configuration................................................................................................5-50

Octal BRI Module (Network Termination)........................................................................ 5-50

Octal BRI Module (User Termination)............................................................................... 5-51

Chapter 6 Creating a Dedicated Map..................................................................................................... 6-1

Overview........................................................................................................................................................ 6-1

Dedicated Map Design ...................................................................................................................6-1

Chapter 7 Creating a Dial Plan................................................................................................................7-1

Overview........................................................................................................................................................ 7-1

Understanding the Application.....................................................................................................7-1

Understanding the Dial Plan .........................................................................................................7-2

Configure the Ports .........................................................................................................................7-2

Plan the Dial Plan...........................................................................................................................7-3

Implement the Dial Plan.................................................................................................................7-5

Chapter 8 Updating Firmware.................................................................................................................8-1

Firmware Updating...................................................................................................................................... 8-1

XMODEM Firmware Updating.................................................................................................................. 8-1

Update Firmware Using XMODEM.............................................................................................8-1

Update Firmware Using TFTP ......................................................................................................8-4

Chapter 9 SNMP Management................................................................................................................9-1

Understanding SNMP.................................................................................................................................. 9-1

Basic Components...........................................................................................................................9-1

Network Manager................................................................................................................... 9-1

MIB ............................................................................................................................................ 9-1

Traps ............................................................................................................................................................... 9-2

Defining a Trap Destination List ............................................................ ...... ............................. ................. 9-2

Filtering Traps ........................................ ...... ...... ........................................................................................... 9-2

Standard Traps.............................................................................................................................................. 9-2

DS1 Traps.................... ...... ....................................... ........................................ .............................................. 9-3

DS1 Alarm Traps................................................................................................... ........................................ 9-3

DS1 Alert Traps................ ...... ..... .......................................................................... ........................................ 9-5

Chapter 10 ADTRAN Utilities.................................................................................................................10-1

Utilities delivered with the ATLAS_800PLUS........................................................................................ 10-1

Telnet...............................................................................................................................................10-1

Menu Options........................................................................................................................ 10-1

VT-100 .............................................................................................................................................10-3

Menu Options........................................................................................................................ 10-3

Options Menu........................................................................................................................ 10-4

TFTP Server................................................................ ....................................................................10-4

Menu Options........................................................................................................................ 10-5

Saving the Current Configuration to a TFTP Server........................................................ 10-6

To retrieve the configuration from a TFTP server............................................................ 10-7

Appendix A System Event Logging .......................................................................................................A-1

Appendix B Troubleshooting..................................................................................................................B-1

PLUS

61200226L1-1 ATLAS 800

User Manual

xiii

Table of Contents

Appendix C Warranty and Technical Support Information..............................................................C-1

Index...................................................................................................................................................... Index-1

xiv

ATLAS 800

PLUS

User Manual 61200226L1-1

List of Figures

Figure 1-1. Point-to-Point Circuit............................................... ....................................... ........................ 1-2

Figure 1-2. Frame Relay Circuit ................................................. ...... ..... .................................................... 1-3

Figure 1-3. Digital Access Cross-Connect System (DACS) ................................................................... 1-4

Figure 1-4. T1 Bandwidth Management ................................... ....................................... ........................ 1-5

Figure 1-5. WAN Overbooking.................................................. ....................................... ........................ 1-6

Figure 2-1. ATLAS_800PLUS Rear Panel................................................................................................. 2-3

Figure 2-2. ATLAS_800PLUS Slot Designation (Rear View) ................................................................ 2-7

Figure 3-1. ATLAS_800PLUS Front Panel Layout.................................................................................. 3-2

Figure 3-2. Example of Basic Front Panel Menu Navigation................................................................ 3-5

Figure 4-1. Front Panel LCD............................................................. ..... ...... ............................. ................. 4-1

Figure 4-2. Front Panel Menu Tree..................... ...... ........................................ ........................................ 4-3

Figure 5-1. Top-Level Terminal Menu ..................................................................................................... 5-4

Figure 5-2. System Information Menu ..................................................................................................... 5-7

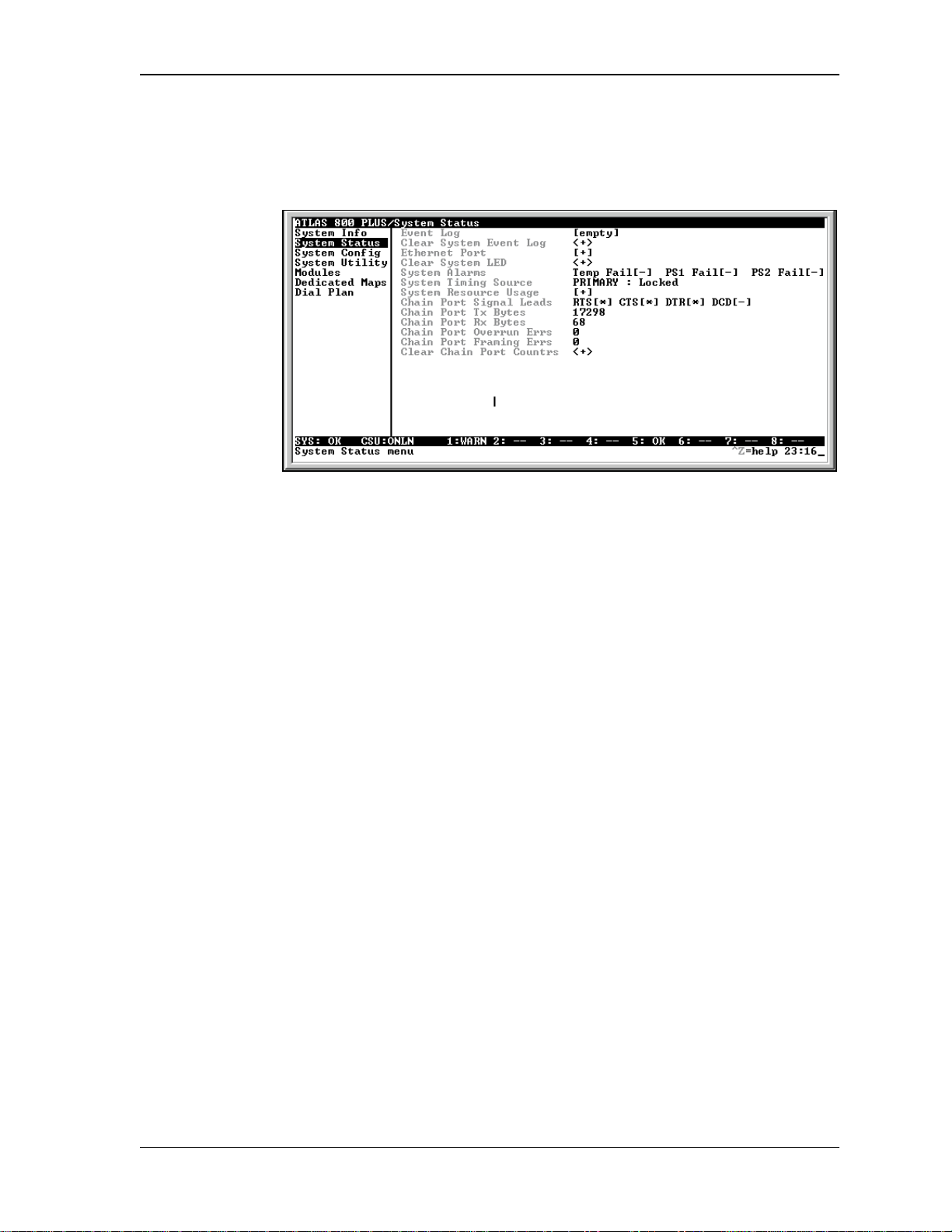

Figure 5-3. System Status Menu................................................................................................................ 5-9

Figure 5-4. System Configuration Menu................................................................................................ 5-12

Figure 5-5. System Utility Menu............................................................................................................. 5-18

Figure 5-6. View Self-test Log....................................................................................... ........................... 5-22

Figure 5-7. Modules Menu............. ..... ........................................ ....................................... ...................... 5-23

Figure 5-8. Dedicated Maps Menu ......................................................................................................... 5-29

Figure 5-9. Trunk Conditioning........................................................................................ ...................... 5-31

Figure 5-10.Dial Plan Menu...................................................................................................................... 5-33

Figure 6-1. Dedicated Map Overview Example...................................................................................... 6-1

Figure 6-2. Slot 0 Module Configuration Menu...................................................................................... 6-2

Figure 6-3. Completed Dedicated Map.................................................................................................... 6-4

Figure 7-1. Case 1: PSTN Connection...................................................................................................... 7-1

Figure 7-2. Case 2: Point-to-Point ............................................................................................................ 7-1

Figure 7-3. Remote Access and Video Conferencing Setup.................................................................. 7-2

Figure 7-4. Completed Network Map ...................................................................................................... 7-6

Figure 7-5. Completed User Map.............................................................................................................. 7-7

Figure 8-1. Update Firmware Menu Interface ........................................................................................ 8-2

Figure 8-2. Update Firmware Menu Interface ........................................................................................ 8-5

Figure 10-1.Add New Dialog Box............................................................................................................ 10-2

Figure 10-2. Edit Entry Dialog Box ............................. ...... ..... ........................................ ........................... 10-2

Figure 10-3. Port Settings Dialog Box.......................................... ....................................... ...................... 10-4

Figure 10-4. TFTP Server Interface .......................................................................... ................................. 10-5

61200226L1-1 ATLAS 800

PLUS

User Manual

List of Figures

xvi

ATLAS 800

PLUS

User Manual 61200226L1-1

List of Tables

Table 2-1. Control In/Chain In Pinout................................................................................................... 2-4

Table 2-2. Control Out/Chain Out Pinout ............................. ...... ......................................................... 2-5

Table 2-3. Network Pinout ...................................................................................................................... 2-6

Table 2-4. Ethernet 10BaseT Pinout ............................................................................................ ............ 2-6

Table 6-1. Connections.............................................................................................................................. 6-2

Table 7-1. Network Terminations ........................................................................................................... 7-4

Table 7-2. User Termination .................................................................................................................... 7-5

Table 9-1. Trap Destination List .............................................................................................................. 9-2

Table 9-2. Standard Trap.......................................................................................................................... 9-3

Table 9-3. DS1 SNMP Traps ..................................................... ....................................... ........................ 9-4

Table 9-4. DS1 Current Alert SNMP Trap ............................................................................................. 9-5

Table 9-5. Total Alert Traps ..................................................................................................................... 9-6

Table A-1. Source: System ....................................................................................................................... A-2

Table A-2. Source: Switchboard .............................................................................................................. A-3

Table A-3. Source: Nx 56/64 ................................................................................................................... A-3

Table A-4. Source Time ............................................................................................................................ A-4

Table A-5. Source: Ethernet...................................................................................................................... A-6

Table A-6. Source: ISDN .......................................................................................................................... A-6

Table A-7. ISDN Cause Codes ................................................................................................................ A-9

Table A-8. Cause Code Log Entries...................................................................................................... A-11

Table A-9. Source: ISDN L2 Messages ................................................................................................. A-11

Table A-10. Source: ISDN Call Control Messages ................................................................................ A-11

Table A-11. Source: ISDN Information Elements ................................................................................. A-12

Table B-1. Troubleshooting ..................................................................................................................... B-1

61200226L1-1 ATLAS 800

PLUS

User Manual

xvii

List of Tables

xviii

ATLAS 800

PLUS

User Manual 61200226L1-1

Chapter 1 Introduction

PRODUCT OVERVIEW

The ATLAS_800

PLUS

is a modular, highly scalable platform th at provides robust solutions for the wide area communication needs of medium-to-large corporations and network access providers. ATLAS is an Integrated Access System with the most extensive support of dedicated bandwidth management and access switching in the industry.

The ATLAS_800 ATLAS_800

PLUS

is a high performance version of the ATLAS 800. The

PLUS

contains a high-performance CPU, more memory, and powerful communications drivers which allow the support of optional applications such as frame relay.

With the ATLAS 800

PLUS

, you can consolidate your voice, data, and video appli-

cations into a single platform while optimizing wide area bandwidth and reduc-

PLUS

ing equipment costs. The ATLAS_800

architecture and the chassis’ eight expansion slots allow for a variety of modules, making it one of the most versatile access systems on the market. With the appropriate modules installed, the

ATLAS_800

PLUS

functions as follows:

• A Frame Relay Switch

• A Digital Access Cross-Connect System (DACS)

• A T1 Bandwidth Manager

• An ISDN Access Switch

• A Remote Access Manager

ATLAS 800

PLUS

BASE UNIT

The ATLAS_800

PLUS

architecture includes a packet switching and a circuit switching bussing scheme. The result is a highly sca lable system capable of supporting bandwidth requirements up to 34 T1/E1 or Primary Rate ISDN (PRI) circuits. Designed for standalone, rackmo unt, or wallmount installations, the

PLUS

ATLAS_800

Base Unit provides two network interfaces, each independently configurable for T1, DSX-1, or PRI operation. Eight expa nsion slots a ccommodate hot-swappable modules for a variety of applications. A 10BaseT connection for

remote access and network management is standard with the ATLAS_800 Base Unit.

61200226L1-1 ATLAS_800

PLUS

User Manual

PLUS

1-1

Chapter 1. Introduction

Frame Relay

The modules include the following:

• Quad Nx 56/64 Module

• Quad T1/PRI Module

• Octal Basic Rate ISDN Module

• T3 Module

• Async-232 Module

• Modem-16 Module

Frame relay is a packet-switched service that allows efficient transfer of bursty traffic in a WAN environment. It offers lower-cost data transfer when compared to typical point-to-point applications. Using virtual connections within the frame relay network and combining those into a single physical connection at each location results in lower cost. Frame relay providers use a frame relay switch to route the data on each virtual cir cuit to th e a ppropriate destination. Figures 1-1 an d 1-2 illustrate a conversion from a typical point-to-po int application to a frame relay application.

Router

PBX

Frac T1

ATLAS 800

PLUS

Frac T1

Figure 1-1. Point-to-Point Circuit

Router

PBX

Router

PBX

Router

PBX

1-2

ATLAS

_800

PLUS

User Manual 61200226L1-1

Frame

Relay

Chapter 1. Introduction

Frac T1

Figure 1-2. Frame Relay Circuit

The Frame Relay/Router upgrade option adds the capability for the ATLAS series of Integrated Access Devices to act as a voice/data FRAD, a frame relay switch, and an IP router in addition to the current available bandwidth manager and switch applications.

Dedicated and Switched Connection Maps in a Single Platform

The A TLAS_800 unique connection maps. Any DS0 on any T1 circuit can be mapped to any other DS0 on up to 34 T1 circuits in the system. Dedicated Connection Maps can be invoked manually or implemented automatically based on the time of day and day of the week.

Additionally, the ATLAS_800 cific ports or DS0s based on the number that is dialed. Switched connection mapping is supported for dial calls placed over basic rate ISDN, primary rate ISDN, or channelized T1.

PLUS

allocates dedicated bandwidth according to any of up to five

PLUS

can be configured to switch dialup calls to spe-

Signaling Conversion for Maximum Interoperability

The ATLAS_800 D channel signaling, giving you the flexibilit y to get the speed and reliability of ISDN, while preserving your investment in non-ISDN equipment. ATLAS can also convert between D4 and ESF frame formats as well as AMI and B8ZS line coding, providing interoperability with legacy equipment.

PLUS

can convert between Robbed Bit Signaling and ISDN

61200226L1-1 ATLAS_800

PLUS

User Manual

1-3

Chapter 1. Introduction

Flexible Network Management and Maintainability

Several network management methods are available for the ATLAS_800

PLUS

, including SNMP support. VT 100 and Telnet are also offered, providing detailed system configuration through an easy-to-use menu system. The terminal interface is secured by six levels of password protection with varying deg r ees of management privileges. The terminal interface is accessed locally or remotely using either the EIA-232 Chain In port on the rear of the unit or the Telnet interface. The 10BaseT interface on the Base Unit provides an Ethernet connection for SNMP and Telnet connections.

Additionally, T-Watch PRO, ADTRAN’s Microsoft

Windows®-based GUI management system can allow end-to-end management with downstream ADTRAN T1 products. User configurations can be preserved in non-volatile memory and duplicated for managing multiple A TLAS implementations. ATLAS also supports FLASH upgrades for future enhancements. You can remotely download software using TFTP or XMODEM.

The front panel contains a 2x16 character backlit LCD display and an extensive array of LEDs for alarm and status information pertaining to the system and the individual modules. A front panel keypad allows navigation through the menu system and access to system testing.

Several test capabilities allow you to diagnose the health of your T1, PRI, or BRI circuits without additional test equipment. Standard Bantam test jacks located on the rear panel also allow you to use external test equipment to monitor traffic. Tests include local, remote, and V.54 loopbacks utilizing the 511, QRSS, all zeros, and all ones test patterns.

Digital Access Cross-Connect System (DACS)

Inherent in the ATLAS_800 DACS, up to thirty-four T1 circuits. DACSing allows the assignment and redistribution, or grooming, of any DS0 on any T1 circuit to any other DS0 on any of the thirty-four T1 circuits in the system. For optimizing network resources, any of five dedicated connection maps can be invoked manually or automatically, based on the time of day and day of the week (see Figure 1-3).

Figure 1-3. Digital Access Cross-Connect System (DACS)

PLUS

architecture is the ability to cross connect, or

1-4

ATLAS

_800

PLUS

User Manual 61200226L1-1

T1 Bandwidth Manager

Chapter 1. Introduction

As a T1 Bandwidth Manager, ATLAS_800

PLUS

combines the functions of a T1 CSU/DSU, an intelligent chann el bank, a T1 Multiplexer, and DACS into a single platform. The Bandwidth Manager supports a wide range of data applications including T1 “drop and insert,” channel grooming, and wide area data transport. ATLAS is ideal for point-to-point configurations or access to public networks. For optimization of existing equipment and network resources, ATLAS can be paired with ADTRAN’s TSU product offerings to support a variety of data and analog voice applications (see Figure 1-4).

ISDN Access Switch

The ATLAS_800 up calls to specific ports or DS0s. As an access switch functioning in a user-to-user network and user-to-user mode, ATLAS consolidates multiple basic rate ISDN (BRI) connections onto T1/PRI access lines. Additionally, BRI-to-BRI, BRI-to-PRI, and PRI-to-PRI switching are supported. ATLAS also converts between ISDN D channel (PRI or BRI) and T1 robbed bit signaling, allowing a non-ISDN PBX to access a more efficient ISDN facility. For network optimization, when bandwidth is not being used for switched applications such as video conferencing, switched connection mapping dynamically allocates bandwidth to the PB for voice traffic. Call Filtering allows you to program the call types that will be answered and/or originated on a per-user basis.

WAN Overbooking

The WAN Overbooking feature of ATLAS_800 switched bandwidth for situations where simultaneous access to the network by every subscriber is not required. WAN Overbooking reduces telecommunications expenses while still giving your subscriber base the connectivity they require. Local subscriber-to-subscriber connections are made without accessing the network at all, resulting in even more efficient use of wide area bandwidth (see Figure 1-5 on page 1-6).

Figure 1-4. T1 Bandwidth Management

PLUS

includes an advanced access architecture for switching dial-

PLUS

allows you to oversubscribe

61200226L1-1 ATLAS_800

PLUS

User Manual

1-5

Chapter 1. Introduction



ATLAS_800

Configuration and Management

Software Upgrade

Signaling Support

Figure 1-5. WAN Overbooking

PLUS

FEATURES

• VT 100 Emulation

• T-Watch PRO, Micros oft Windows based GUI

• SNMP, per MIB II (RFC1213), DS1 MIB (RFC1406), and ADTRAN private MIBs

•Telnet

• LCD Front Panel

• Six levels of password protection and privileges

• Flash Memory

• TFTP Downl oad

• XMODEM via control port

• ISDN D Channel

• Robbed bit, E&M, Ground Start, Loop Start

• Convert between Robbed Bit Signaling and ISDN D Channel

• Direct Inward Dialing

1-6

ATLAS

_800

PLUS

User Manual 61200226L1-1

ISDN Switch Types

• 5ESS™, DMS-100™, National ISDN

Dedicated Connection Maps

• Up to five connection maps

• Time of day/day of week configurable

• Preserves signaling through cross-connect

• No effect on non-configured channels

Switched Connection Maps

• Inbound and outbound call filtering and blocking

Test ing

• Local and remote: payload/line, V.54

• Patterns: 511, QRSS, all ones, all zeros

Performance Monitoring

Chapter 1. Introduction

• Error counts: ES, SES, UAS, %AS, %EFSEC, Alarms, Error Rates

• Reports: Information stored for last 24 hours in 15 minute increments

61200226L1-1 ATLAS_800

PLUS

User Manual

1-7

Chapter 1. Introduction

1-8

ATLAS

_800

PLUS

User Manual 61200226L1-1

Chapter 2 Installation

BEFORE INSTALLING THE ATLAS_800

Carefully inspect the ATLAS_800 damage, file a claim immediately with the carrier and then contact ADTRAN Technical Support (see “Warra nty an d Technical Support Information” on page C-

1). If possible, keep the original shipping container for returning the ATLAS_800

PLUS

for repair or for verification of damage during shipment.

CONTENTS OF ADTRAN SHIPMENTS

The following items are included in the ADTRAN shipment:

• The ATLAS_800

• Power cord

• Network cables (2)

• Rackmount brackets (left and right)

• RJ-45 to DB-25 adapter (modem and direct)

• RJ-45 control port cable (1)

• DSX-1 crossover cable (1)

• RJ-48 to DB-15 adapter (1)

• ADTRAN Utilities diskettes (3)

PLUS

Base Unit

PLUS

User Manual

PLUS

unit for shipping damage. If you suspect

CUSTOMER PROVIDES

Yo u must supply the 10BaseT cable.

CHECKING THE POWER CONNECTION

Each ATLAS_800 three-prong plug which connects to a grounded power receptacle.

Power to the ATLAS_800 VAC, 50-60 Hz source.

61200226L1-1 ATLAS_800

PLUS

is equipped with a detachable 8-foot power cord with a

PLUS

User Manual

PLUS

must be from a grou nded 11 5 VAC, 60 Hz or 220

2-1

Chapter 2. Installation

GROUNDING INSTRUCTIONS

This section provides grounding instruction information from the Underwriters' Laboratory UL 1459 Standar d for Saf ety: Telephone Equipment, of September 20,

1993.

An equipment grounding conductor that is not smaller in size than the ungrounded branch-circuit supply conductors is to be installed as part of the circuit that supplies the product or system. Bare, covered, or insulated grounding conductors are acceptable. Individually covered or insulated equipment grounding conductors shall have a continuous outer finish that is either green, or green with one or more yellow stripes. The equipment grounding conductor is to be connected to ground at the service equipment.

The attachment-plug receptacles in the vicinity of the product or system are all to be of a grounding type, and the equipment grounding conductors serving these receptacles are to be connected to earth ground at the service equipment.

A supplementary equipment grounding conductor shall be installed between the product or system and ground that is in addition to the equipment grounding conductor in the power supply cord.

REAR PANEL

The supplementary equipment grounding conductor shall not be smaller in size than the ungrounded branch-circuit supply conductors. The supplementary equipment grounding conductor shall be co nnected to the pr oduct at the terminal provided, and shall be connected to ground in a manner that will retain the ground connection when the product is unplugged from the receptacle. The connection to ground of the supplementary equipment grounding conductor shall be in compliance with the rules for terminating bonding jumpers at Part K or Article 250 of the National Electrical Code, ANSI/NFPA 70. Termination of the supplementary equipment grounding conductor is permitted to be made to buildin g steel, to a metal electrical raceway system, or to any grounded item that is permanently and reliably connected to the electrical service equipment ground.

Bare, covered, or insulated grounding conductors are acceptable. A covered or insulated grounding conductor shall have a continuous outer finish that is either green, or green with one or more yellow stripes.

The ATLAS_800

PLUS

unit is equipped with eight slots in the rear panel to house modules which provide a variety of additional resources and data ports. All slots are functionally identical except slots 7 and 8. These slots also accommodate an optional power supply for redundancy (see Figure 2-1 on page 2-3).

2-2

ATLAS

_800

PLUS

User Manual 61200226L1-1

Chapter 2. Installation

Control/Chain

Connects to Chain

In of another unit

Control/ Chain In

Interface of

Chain In

CONTROL

/CHAIN

IN OUT

Out

10 Base T

RJ-48C Connection

Port

CAUTION: MAINTENANCE TO BE PERFORMED BY TRAINED SERVICE PERSONNEL ONLY

ALL EMPTY SLOTS MUST BE COVERED WITH BLANK PANELS

Blank panel covering an

unused option slot

MON (Monitor)

Bantam test jack

CAUTION-RISK OF ELECTRIC SHOCK

NTWK1

RJ-48C Connection

Port

NTWK 1 NTWK 2

MON10 BASE T

SUPPLAMENTAL EARTH GROUND MUST BE CONNECTED

PRIOR TO CONNECTION OF TELECOMMUNICATION WIRING

NTWK2

RJ-48C Connection

Port

Power Switch

CAUTION:

REMOVE POWER CORD PRIOR TO

REMOVAL OF POWER SUPPLY

90-130/190-240VAC 4A/2A, 50/60 HZ

4A/25OV SLOBLO

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE REPLACE ONLY WITH SAME TYPE AND RATING OF FUSE.

Supplemental

earth ground lug

Control In/Chain In

The Control In/Chain In port is an EIA-232 port for connection to a computer or modem (control in) or to another ATLAS_800

on page 2-4 for a description of the pinout.

The control port input provides the following functions:

• EIA-232 input from a PC or a modem for control of the ATLAS_800

• Chain input

• 2400, 9600, 19200, or 38400 bps operation

• Acts as input for PC control or as input for a chained connection

• Interface for flash memory software downloads using XMODEM

Connection

The Control In/Chain In connection is as follows:

Figure 2-1. ATLAS_800

Connector type Part number

PLUS

RJ-48C AMP# 555164-2

Rear Panel

unit (Chain In). See Table 2-1

PLUS

61200226L1-1 ATLAS_800

PLUS

User Manual

2-3

Chapter 2. Installation

Table 2-1. Control In/Chain In Pinout

PIN NAME DESCRIPTION

GND Ground - connected to unit chassis

RTS Request to send - flow control

Control Out/Chain Out

The Control Out/Chain Out is an RJ-48C port used to connect to another ATLAS_800

chain out pinout.

The Control Out/Chain Out port output provides the following functions:

• EIA-232 output to chain control to other units

• 2400, 9600, 19200, or 38400 bps operation

• Automatic setup; no user input required

Connection

RXDATA

DTR Data terminal ready

TXDATA

CD Carrier detect

UNUSED —

CTS Clear to send - flow control

PLUS

Chain In connector. See Table 2-2 on page 2-5 for the control out/

Data received by the ATLAS_800

Date transmitted by the ATLAS_800

PLUS

2-4

The control out/chain out co nnection is as follows:

Connector type Part number

_800

ATLAS

RJ-48C AMP# 555164-2

PLUS

User Manual 61200226L1-1

Table 2-2. Control Out/Chain Out Pinout

PIN NAME DESCRIPTION

GND Ground - connected to unit chassis.

Connect to GND of next unit (pin1).

UNUSED —

TX DATA Data transmitted to chained units by the ATLAS.

Connect to RX DATA of the next unit (chain in pin 3).

UNUSED —

RX DATA Data received from chained units by the ATLAS.

Connect to TX DATA of the next unit (chain in pin 5).

Chapter 2. Installation

6,7,8

Network Connection

The two eight-position modular jacks labeled work connection. Table 2-3 on page 2-6 shows the pinout for the network connectors.

The two Network Interface (NI) ports comply with the applicable ANSI and

AT&T

The NIs provide the following functions:

• AMI or B8ZS coding

• Manual line build out

• D4 or ESF framing

• Network performance monitoring and reporting

• Test loopbacks with QRSS generation and checking

• Extensive self test

Connection

UNUSED —

standards.

NTWK 1

and

NTWK 2

provide net-

The network connection is as follows:

Connector type Part number

61200226L1-1 ATLAS_800

PLUS

User Manual

(USOC) RJ-48C AMP# 555164-2

2-5

Chapter 2. Installation

Table 2-3. Network Pinout

PIN NAME DESCRIPTION

R1 RXDATA-RING Receive data from the network

T1 RXDATA-TIP Receive data from the network

UNUSED —

R TXDATA-RING Send data toward the network

T TXDATA-TIP Send data toward the network

6,7,8

UNUSED —

Ethernet 10BaseT Connection

The 10BaseT port (RJ-48C) provides an Ethernet LAN connection, which is used for TFTP, SNMP, and Telnet connection. See Table 2-4 on page 2-6 for the pinout.

Connection

The network connection is as follows:

Connector type Part number

PIN NAME DESCRIPTION

(USOC) RJ-48C AMP# 555164-2

Table 2-4. Ethernet 10BaseT Pinout

TX1 Transmit Positive

TX2 Transmit Negative

RX1 Receive Positive

MON (Monitor)

2-6

4 & 5

7 & 8

UNUSED —

RX2 Receive Negative

UNUSED —

The MON test jack provides a bridged access jack for non-intrusive monitoring of the T1 circuits receiving data. When connected to this jack, the test equipment should be configured for a bridged termination.

PLUS

ATLAS

_800

User Manual 61200226L1-1

OPTION SLOT ARRANGEMENT

Chapter 2. Installation

As viewed from the re ar o f the ATLAS_800 in Figure 2-2. All slots are functionally identical except slots 7 and 8, which also accommodate an optional power supply for redundancy.

Figure 2-2. ATLAS_800

INSTALLING MODULES

After installing the base ATLAS _800 you can install modules. If you need instructions for installing a module, refer to the User Manual for the module you want to install.

SLOT 1 SLOT 2 SLOT 3 SLOT 4

PLUS

, the slots are number ed as shown

SLOT 5 SLOT 6 SLOT 7 SLOT 8

PLUS

Slot Designation (Rear View)

PLUS

unit and connecting the required cables,

POWER SUPPLY

POWER UP TESTING AND INITIALIZATION

After installing the base unit and any modules, the ATLAS_800 powered up.

When shipped from the factory, the ATLAS_800 ditions. When you power up the unit, it automatically executes a memory self test. You can run a full self test from the front panel and set a pass code (through the UTIL menu) and unit ID (through the CONFIG menu) from the front panel. See “Unit ID” on page 4-6 and “Set Passcode (Front Panel)” on page 4-8 for details.

Self-Test

Upon a power-up, the test LEDs light up and the LCD displays the message Memory Test Now Testing. When the self test is complete with no failures detected, the OK LED lights up and the LCD momentarily displays

Passed

full self test procedure consists of the following steps:

. If a failure is detected, a list of failures displays in the LCD window . The

Board-level tests

executes a series of tests checking the circuitry on the board.

RAM tests; EPROM checksum TDM map tests. On-board data path.

loop.

. The Controller contains an on- board processor which

Sending a known test pattern through an on-board

PLUS

is ready to be

PLUS

is set to factory default con-

All Tests

61200226L1-1 ATLAS_800

PLUS

User Manual

2-7

Chapter 2. Installation

Board-to-board interface test.

A test pattern is sent from the controller through a loopback on all other boards and checked on the controller. This verifies the data path, clocks, and control signals

If the front panel indicates a failure, see Troubleshooting on page B-1 to diagnose the problem.

2-8

ATLAS

_800

PLUS

User Manual 61200226L1-1

Chapter 3 Operation

FRONT PANEL LAYOUT

The ATLAS_800 select and set up the method of connectivity for controlling the unit through the front panel and use it to monitor the operation and status of the unit. Figure 3-1 on page 3-2 identifies the display panels and operation keys.

LCD Window

Displays menu items and messa ges in two lines by 16 characters in a backlit liquid crystal display (LCD). It also display s alarm and status information.

Enter

Selects active menu items. To select a menu item, press the number of the item. The menu item flashes, indicating it is activated. Press Enter to select the menu item.

Up and Down Arrows

Up and down arrows scroll through and activate the submenu items available in the current menu. When the submenu items are scrolled, the flashing cursor indicates the active parameter.

PLUS

front panel provides limited control of the unit. You can

Cancel

Pressing the Cancel key stops the current activity and returns to the previous menu. Repeat until you reach the desired menu level. When a submenu item displays, press Cancel to exit the current display and return to the previous menu.

Numeric Keypad

The numeric keypad contains the numbers 0 through 9, which you use to activate menu items and enter information (such as the IP address).

61200226L1-1 ATLAS_800

PLUS

User Manual

3-1

Chapter 3. Operation

L i



lear

Module Statu

Module Status

LEDs

LCD

Cancel

Home

Shift

Enter

Alarm

Up & Down Arrows

Cancel

Displays menu items and messages

Clear

Home

Module Slot

Shift

Numbers

Clear data/results fields.

in 2 lines by 16 characters.

Stops current activity and returns to the previous menu.

Returns to the main menu.

Provides access to special function keys.

Selects active menu items.

Quick access to the active alarm display menus

CSU Status LEDs

Module Slot Numbers

System LED

Module Status

Module Status LEDs

Indicate the status of both network interfaces.

LEDs correspond to the option modules installed in the unit.

Indicates the status of the entire

PLUS

ATLAS 800

Displays the operational condition of modules installed in the option slots.

Indicates the status of each module.

Scroll through and activate the submenu items available in the current menu. The flashing cursor indicates the active parameter.

Shift

3-2

Figure 3-1. ATLAS_800

Activate the front panel operation keys (

Shift

ing

If you press a key without using

. The next section describes all of the available operation keys.

Shift

, the numbered item becomes active instead

of the operation key.

PLUS

ATLAS

_800

User Manual 61200226L1-1

PLUS

Front Panel Layout

Alarm, Clear

, and

Home

) by first press-

Operation Keys

Chapter 3. Operation

Operation keys are ATLAS 800 tions. To activate an operation key, simultaneously press the front panel shift key and the operation key that you want to activate.

To do this... Press these front panel keys...

Quickly accesses the active alarm display menus.

(This function can be activated while any other menu item is in use. When you exit the Alarm menu, the unit returns to the same menu that was active when you selected Alarm.)

Clear data/result fields in various menus.

Return to the Main menu from any menu location.

System LED Description

The System LED indicates the general status of the entire ATLAS_800 green light indicates that conditions are normal. A red light indicates a system problem or alarm condition.

This color light... Indicates that...

PLUS

front panel keys that perform alternate func-

Shift + Alarm

Shift + Clear Shift + Home

PLUS

. A

Green (solid) No diagnosed system faults were found.

Green (fast blink) Flash download is in progress.

Yellow Fault was diagnosed, but the condition no longer exists. The

condition will be recorded in the system log.

Red (solid) An error condition is present with either the power supply or

temperature.

Red (fast blink) A fatal error occurred during flash download.

Off Power is not currently applied to the system.

61200226L1-1 ATLAS_800

PLUS

User Manual

3-3

Chapter 3. Operation

Channel Service Unit (CSU) Status

The CSU Status LEDs indicate the status of both network interfaces.

This color light... Indicates this CSU status...

OK (green) Indicates normal, error-free operation of both network

interfaces. If either interface experiences alarms, the OK LED remains off.

Test (yellow) Indicates that one of the interfaces is operating in a test mode.

This includes a self-test, a test pattern, or a test loopback. When illuminated, this LED also indicates that normal data flow is not occurring in at least one of the module ports.

Error (flashing red) The

violation),

Error

LED indicates an error such as

OOF

(out of frame), or

CRC

BPV

(bipolar

(cyclic redundancy

check).

Alarm (red) Indicates an alarm condition has been detected. When the

alarm condition is no longer valid, the OK LED illuminates. To view an alarm condition, select the active alarm menu item or

Alarm

select

by pressing Shift+8. If the alarm conditions have

been corrected, you can view the alarm which caused the activation of the

Alarm

LED under the View History menu.

Module Status LEDs

The Module Status LEDs display, by row, the operational condition (

Online

, and

Test

) of each module installed in the option slots.

Status

This color light... Indicates this module status...

Green (solid) The module is OK.

Green (blinking) The module has been disabled by the user.

Red (solid) At least one port on the module has an alarm.

Red (blinking) The module is enabled, but is not responding to the system controller.

Off No module occupies the slot.

Online

The

LED indicates that the module is available for use or is currently in

use. If the module is manually taken offline, this LED is turned off.

Test (yellow)

One or more ports in a module is in test.

3-4

ATLAS

_800

PLUS

User Manual 61200226L1-1

Chapter 3. Operation

OPERATING THE ATLAS 800

PLUS

Yo u can access basic setup funct ions from the ATLAS_800 access all of the ATLAS_800

PLUS

The following sections provide an overview of the different ways to operate the

PLUS

ATLAS_800 ATLAS_800

. After you understand the different ways to operate the

PLUS

, you will be ready to configure the unit.

Getting Started Using the Front Panel

With the ATLAS_800 ious menu items. To select a menu item, either press the corresponding number on the front panel keypad or press the front panel up and down arrows to scroll to the menu selection. The following steps describe how to set up the Unit ID from the front panel (see also Figure 3-2).

1. Activate Configuration (

pressing 2. (The cursor flashes on the number next to the activated selection.)

Enter

Press

2. Use the

3. Select

4. Activate

5. Activate

arrow keys

S0) SYSTEM

2) CHAIN PORT

4) UNIT ID

6. The Unit ID field displays. Type the new Unit ID in this field and press

The new Unit ID is now set.

PLUS

powered-up, the fr ont panel LCD wind ow displays var-

CONFIG

to view the submenu items.

. Press

using the

PLUS

front panel. To

function s, set up a Telnet sess ion o r use a VT- 100.

) using the front panel

Enter

arrow keys

or by pressing 2. Press

or by pressing 4. Press

arrow keys

Enter

or by

Enter

S0) SYSTEM 2) FLOW CTL

2) CONFIG S1) 2) CHAIN PORT 3) TYPE

S8) 5) INIT MODEM

Figure 3-2. Example of Basic Front Panel Menu Navigation

For detailed information about the commands available through the front panel menus, see “Front Panel Operation and Menu Structure” on page 4-1.

Getting Started Using Terminal Menus

T er minal menus provide one of the primary means of monitoring and configuring the ATLAS_800

VT-100 terminal to provide the quickest and most intuitive operation possible. To receive the full benefit of the terminal menu interface, you should use a fully VT-100 compatible client. The ADTRAN Utilities floppy disks (that you can install on a PC) contain both a VT-100 client and a customized Telnet program. See “ADTRAN Utilities” on pag e 10-1 for details on the available programs.

PLUS

. The terminal menu interface uses the full capabilities of the

1) ETHERNET 1) BAUD RT 9600

4) UNIT ID

61200226L1-1 ATLAS_800

PLUS

User Manual

3-5

Chapter 3. Operation

Teln et

You can access the terminal menu using a VT-100 terminal or a computer running VT-100 terminal-emulation software. The two basic connection methods sup-

ported by the ATLAS_800

PLUS

are a direct connection through the EIA-232 Chain In port and a Telnet session. The following sections describe how to get started using both of these methods.

To connect to the ATLAS_800

PLUS

via Telnet, follow these steps:

Define the IP Address

You must define the IP address before attempting to connect via Telnet.

PLUS

1. Obtain an IP address for the ATLAS_800

2. From the front panel, select

1) ETHERNET

3. When the submenu displays, select

2) CONFIG

1) IP ADDRESS

4. Enter the IP address by entering each number followed by

from your LAN administrator.

S0) SYSTEM

, then

Enter

the next field.

5. Press

Enter

after keying in the entire IP address.

Set the Subnet Mask

1. Obtain a subnet mask address from your LAN administrator.

2. From the front panel, select

1) ETHERNET

2) CONFIG

3. When the submenu displays, select

2) SUBNET MASK

, then

S0) SYSTEM

, then

4. Enter the subnet mask by entering each number followed by

the next field.

5. Press

Enter

after keying in the entire subnet mask address.

to move to

Enter

to move to

3-6

Set the Default Gateway IP address (typically required)

You will need a default gateway if the LAN contains multiple segments. Contact your LAN administrator for the appropriate address.

1. From the front panel, select

1) ETHERNET

2. When the submenu displays, select

2) CONFIG

3) DEF GATEWAY

3. Enter the default gateway by entering each number followed by

, then

S0) SYSTEM

, then

Enter

move to the next field.

4. Press

Enter

after keying in the entire address.

Start a Telnet Session

When you begin the Telnet session, you will be prompted for a password. The default password is password (which is a Level 0 superuser password). You can change this password using the Access Passwords option, which is only accessible

PLUS

ATLAS

_800

User Manual 61200226L1-1

through the terminal menus. See “Access Passwords” on page 5-16 for details. The Telnet session will time out and display the Login prompt after a pre-defined time that is set in the Session Timeout option (see “Session Timeout” on page 5-12 for details).

For detailed information on the commands available during a Telnet session, refer to Chapter 5, “Using the Terminal Menu” on page 5-1.

VT-100 Operation

Chapter 3. Operation

Use the Max Telnet Sessions option to define the number of Telnet sessions that can be active at one time (see “Max Telnet Sessions” on page 5-13 for details).

Microsoft Telnet version 1.0 does not implement full VT-100 emulation. However, many commercial Telnet clients for Microsoft Windows exist which fully implement VT-100. In addition, a freeware client whi c h is recommended for op-

timum performance is delivered with the ATLAS_800

PLUS

. See “VT-100” on

page 10-3 for details.

An EIA-232 serial connection is available via the cha in-in port on th e r ear panel of the ATLAS_800

PLUS

. The ATLAS_800

VT-100 type terminal. Follow these steps to set up the ATLAS_800

PLUS

provides the front panel menus to a

PLUS

for VT-100

terminal mode:

1. Set the baud rate on the VT-100 terminal to 9600 baud (8/N/1).

2. Use the front panel to set the A TLA S_800 baud rate. Select

RATE

2) CONFIG, S0) SYSTEM, 2) CHAIN PORT,

PLUS

baud rate to match the terminal

then

1) BAUD

3. Use the ADTRAN-provided VT-100 terminal adapter to connect the COM port of a VT-100 compatible terminal, or equivalent, to the eight-pin modular jack labeled CONTROL on the rear of the unit. This connection provides both local and remote configuration.

4. Repeatedly press

Enter

on the front panel until the Login Menu appears.

After connecting a VT-100 terminal or a computer running VT-100 terminal-emulation software to this port, you may need to press Ctrl-R to refresh the display. Refer to “Using the Terminal Menu” on page 5-1 for detailed information on using the terminal menus.

When you begin the VT-100 session, you will be prompted for a password. The default password is password (which is a Level 0 superuser password). Yo u can change this password using the Access Passwords option, which is only accessible through the terminal menu. See “Access Passwords” on page 5-16 for details.

For detailed information on the commands available during a VT-100 session, refer to Chapter 5, “Using the Terminal Menu” on page 5-1.

61200226L1-1 ATLAS_800

PLUS

User Manual

3-7

Chapter 3. Operation

T-Watch Pro

T-Watch PRO is the ADTRAN Microsoft Windows management software program designed to control TSU units from a remote PC. It provides limited control

over the configuration of the ATLAS_800

PLUS

you can choose ATLAS_800

from a list of products, and T-Watch PR O auto-

PLUS

using a graphic interface. Currently,

matically initiates a Telnet session by which you can connect to and manage the

PLUS

ATLAS_800 from an ATLAS_800

unit. Currently T-Watch PRO automatically receives SNMP traps

PLUS

3-8

ATLAS

_800

PLUS

User Manual 61200226L1-1

Chapter 4 Front Panel Operation and

Menu Structure

ATLAS 800

PLUS

FRONT PANEL MENU STRUCTURE

The ATLAS_800 items and data fields. All menu operations and data display in the LCD window. However , you only have access to limited configuration options through the front

panel. To access all of the ATLAS_800 “Using the Terminal Menu” on page 5-1.

The front panel opening menu (Main menu) is the access point to all other operations. Each Main menu item has several functions and submenus to identify and access specific parameters.

The front panel LCD of the Main menu contains the menu options STATUS, CONFIG, UTIL, and ALRM (see Figure 4-1).

PLUS

uses a multilevel menu structure containing both menu

PLUS

options, use the Terminal m enu. See

1)STATUS 3)UTIL

2)CONFIG 4)ALRM

Figure 4-1. Front Panel LCD

61200226L1-1 ATLAS_800

PLUS

User Manual

4-1

Chapter 4. Front Panel Operation and Menu Structure

To do this... Go to this

menu...

Display the status of the ATLAS_800

PLUS

Status See page 4-4.

Main

For more information...

Display the card type in each slot Status See page 4-4.

PLUS

Perform limited configuration of the ATLAS_800

Config See page 4-5.

Monitor and modify miscellaneous settings Util See page 4-6.

View a log of system events Alarm See page 4-9.

Navigating the Front Panel

The following sections provide general information on how to navigate the front panel menus.

Data Field

Menu items followed by a colon (:) indicate a data field that you can edit.

Status Field

Menu items followed by an equal sign (=) indicate the state of the item (such as Online).

Select and Activate a Menu Item

To choose a menu item, place the cursor on the menu item by pressing the number corresponding to the menu item or by highlighting the menu item with the up or down arrows.

Set the Data Field

You can edit data fields preceded by a colon. With the cursor positioned on the submenu item number, press

Enter

data field (to the right of the submenu item name).

Using the front panel

arrows

, scroll to scan the available value settings. The value settings display one at a time. When the desired value displays, press the front panel to set the value. When the value is set, the cursor moves back to the submenu item position, indicating the operation is complete.

You can select another submenu field, or press

Pressing

Cancel

prior to pressing

Enter

value is restored and the cursor returns to the submenu field.

Exit Any Menu Field Operation Or Display

Cancel

Press press

Home

as many times as required to return to the desired menu level or

to return to the Main menu.

on the front panel. The cursor moves to the

Enter

Cancel

to return to the submenu.

voids any data changes. The original data

4-2

ATLAS

_800

PLUS

User Manual 61200226L1-1

FRONT PANEL MAIN MENU

The front panel Main menu provides limited configuration and control of the ATLAS_800

front panel Main menu.

S0) SYSTEM 1) ETHERNET

1) STATUS 2) CHAIN PORT

S1)

: 1) IP ADDRESS

S8) 1) ETHERNET 2) SUBNET MASK

2) CONFIG

PLUS

Chapter 4. Front Panel Operation and Menu Structure

. Figure 4-2 displays the submenu options offered through the

S0) SYSTEM 3) DEF GATEWAY

1) BAUD RT

ATLA S

MAIN MENU

S1) 2) FLOW CTL

1) TIME/DATE : 2) CHAIN PORT 3) TYPE

2) SOFTWARE REV 1) RUN SELFTEST : 4) UNIT ID

3) UTIL 3) SELFTEST 2) SHOW RESULTS S8) 5) INIT MODEM

4) SET PASSCODE 3) CLEAR RESULTS

5) PASSWORD RESET

1) ACTIVE ALARMS

4) ALRM 2) VIEW HISTORY

3) CLEAR HIISTORY

Figure 4-2. Front Panel Menu Tree

61200226L1-1 ATLAS_800

PLUS

User Manual

4-3

Chapter 4. Front Panel Operation and Menu Structure

Status Menu

The Status menu branch lets you view the status of the ATLAS_800

PLUS

Unit and any installed modules.

S0 System

The S0) System option displays status options that are available for the ATLAS_800

PLUS

Base Unit. Choose from Ethernet (see “Ethernet Status” on page

4-4) or Chain Port (see “Chain Port Status” on page 4-4).

Ethernet Status

This read-only option shows the status of the 10BaseT Ethernet connection port. The following port status options display in the LCD window. An asterisk (*) indicates activity for the item.

Port status ... Means that...

TX Data is being transmitted from the 10BaseT

port on the system controller. RX Data is being received on the 10BaseT port. LNK Indicates the current status of the 10BaseT link

integrity test (should always be on when the

unit is connected to a functional 10BaseT hub).

Base

Chain Port Status

This read-only option indicates the status of the Chain Port. The following port status options display in the LCD window. An asterisk (*) indicates activity for the item.

Port status... Means that...

RTS Request to send. CTS Clear To send. DTR Data terminal ready. DCD Data carrier detect.

S1 through S8 (modules)

Select option s S1 through S8 to display the current status of installed modules. S1 corresponds to slot 1, S2 to slot 2, and so on. When you select one of these options, an expanded description of the card status displays. The status types include ON (Online),

OFF

(Offline),

NRSP

(No Response),

NRDY

(Not Ready), and

RST

(Restarting).

4-4

ATLAS

_800

PLUS

User Manual 61200226L1-1

Configuration Menu

The Config menu branch provides limited configuration control of the ATLAS_800

S0 System

S0) System displays configuration options that are available for the ATLAS_800

Configuration” on page 4-5) or Chain Port Configuration (see “Chain Port Configu- ration” on page 4-5).

Ethernet Configuration

Ethernet Configuration allows you to create and change settings for the 10BaseT Ethernet connection.

Chapter 4. Front Panel Operation and Menu Structure

PLUS

Base Unit. Choose from Ethernet Configuration (see “Ethernet

IP Address

This is the address that uniquely identifies the ATLAS_800

PLUS

on a TCP/IP network. This address is composed of four decimal numbers, each in the range of 0 to 255, separated by periods. This value is set to 0.0.0.0 by default. The IP address is used for the 10BaseT Ethernet interface. Obtain the correct IP address from your LAN administrator. Enter the IP address by entering each number followed by

Enter

to move to the next field.

You must define the IP add ress before attempting to use a Telnet program.

Subnet Mask

This option defines which part of a destination IP address is the Network number. This address is composed of four decimal numbers, each in the range of 0 to 255, separa ted by periods. This option is used

along with the ATLAS_800

PLUS

IP address to determine which nodes must be reached through the default IP gateway. Enter the subnet mask address by entering each number followed by

Enter

to move to

the next field.

Def Gateway

This option allows you to define or change the default gateway. You will need a default gateway if the LAN contains multiple segments. This address is composed of four decimal numbers, ea ch in the ran g e of 0 to 255, separated by periods. This value is set to 0.0.0.0 by default. Contact your LAN administrator for the appropriate addr ess. Enter the default gateway address by entering each number followed

Enter

to move to the next field.

Chain Port Configuration

The Chain Port menu option modifies selected items in its menu branch.

Baud Rt

This option displays and changes the baud rate. The supported baud rates for the chain port include 2400 and 9600 bps. If Ty pe is set to

Dial

, make sure this field matches the modem baud rate.

61200226L1-1 ATLAS_800

PLUS

User Manual

4-5

Chapter 4. Front Panel Operation and Menu Structure

Flow Ctl

This option sets the flow contr ol fo r th e chain po rt. You can configure the chain port flow control for

Type

Sets the Po r t T y p e to either local VT 100 and select

Unit ID

This menu accesses the current Unit ID setting, which is the system identifier used for ADTRAN Data Link Layer Protocol (ADLP) configuration control (such as using T-Watch PRO).

Editing or changing the Unit ID requires the use of a passcode if a passcode is defined. See “Set Passcode (Front Panel)” on page 4-8 for details on working with passcodes. Unit Identification numbers must be between 2 and 9999. The number 1 is reserved for the PC.

Enter

Press when operating by remote control. Press the editing process.

Init Modem

Selecting Init Modem provides the option to send the modem initial- ization string (e.g., ATE0V1&D2S0=1) from the chain port to a modem connected to the chain port. Configure this string in the terminal menus. See “Modem Initiali zation String” on page 5-14 for details on how to change this field.

OFF

Direct

Dial

to connect via a modem.

Dial

H/W

(hardware).

. Select

Direct

to connect to a

to record the Unit ID number and establish its availability

Cancel

at any time to end

Utility Menu

The Init Modem option is only used if Type is set to Dial.

S1 through S8 (modules)

Select options S1 through S8 to display the current configuration options of installed modules. S1 corresponds to slot 1, S2 to slot 2, and so on. When you select one of these options, you can enable or disable the selected module. The current status,

ENA

(Enabled) or

name. Set this field to ATLAS_800

PLUS

unit.

DIS

(Disable) prior to removing a module from the

DIS

(Disabled), displays next to the module

The Utility menu allows miscellaneous settings to be displayed or modified.

Time/Date

This menu option displays and/or edits the current time and date. The

PLUS

ATLAS_800 After any numeric change, press

editing position. You can also move to a different field to edit by pressing at the editing position without making any change, or by using the up and

arrow keys

maintains the time and date during power off conditions.

Enter

to record the entry and move to the next

. Press

Cancel

at any time to end the editing process.

Enter

down

4-6

ATLAS

_800

PLUS

User Manual 61200226L1-1

Chapter 4. Front Panel Operation and Menu Structure

Software Rev

This option displays the current software revision level loaded into the base unit controller. This information is required when requesting assistance from ADTRAN Technical Support or when updates are needed. Press

Cancel

to exit

this option.

Selftest

Selftest executes a system self-test, and the LCD displays the

Pass

Fail

when

the test is complete.

The Sefltest option disrupts data flow.

Run Selftest

This command initiates a self-test. When you select this option, the prompt

Selftest, Are You Sure Y/N?

Enter

press

. Select N and press

displays. To initiate the self-test, select Y and

Enter

to cancel the self-test.

If you select Y and proceed with the self-test, the LCD displays the message

Selftest in progress....

detected, the OK LED illuminates and the LCD momentarily displays

Self-Test Passed.

When the self-test is complete with no failures

If failures are detected, a list of failures displays in the

LCD window. The full self-test procedure consists of the following steps:

Board-level tests.

1. The Controller contains an on-board processor which executes a series of tests checking the circuitry on the board.

RAM tests;

EPROM checksum. TDM map tests.

On-board data path.

4. Sending a known test pattern through an on- board loop.

Board-to-board interface test.

5. A test pattern is sent from the controller through a loopback on all other boards and checked on the controller. This verifies the data path, clocks, and control signals.

During a self-test, ATLAS_800

PLUS

checks data integrity and verifies processor control to each port. Each port is looped back and a data pattern is sent and tested.

61200226L1-1 ATLAS_800

PLUS

User Manual

4-7

Chapter 4. Front Panel Operation and Menu Structure

Show Results

This option displays the types of tests performed during a self-test, as well as the results of the tests. Each item in the list displays either The following items display:

Test... Checks this...

NVRAM Non-volatile RAM DSP RAM Digital signal processor RAM RTC RAM Real time clock RAM TDM MAP TDM time slot mapping RAM DRAM Dynamic program memory used for program execution Slot 1—8 Data path test to individual modules

A RAM test failure indicates a controller board problem. If a slot fails, the module in the slot may have a problem,

Clear Results

This option resets the self-test log that you access with the Show Results option. When you select this option, the message plays. After the command is finished executing, the message

Cleared

displays.

Passed

Failed

Self-Test Log Clearing

Self-Test Log

dis-

If you clear the message log, you cannot retrieve the data.

Set Passcode (Front Panel)

The Set Passcode option provides security for front panel access. You can change or set the front panel passcode at any time or eliminate it altogether through the Set Passcode option. By default, the front panel does not have a passcode.

The passcode can only be entered by using numbers (any number except zero). After entering the desired passcode, press displays. Enter the passcode again and press

Enter

. The prompt

Enter

Set a null passcode by pressing 0 and then pressing

word

prompt displays, press 0 and

Enter

again. A null passcode grants unlimited

Enter

Verify Passcode

. When the

Verify Pass-

access to front panel options.

Password Reset

You can create a list of system passwords with the terminal menus (see “Access Passwords” on page 5-16 for details). If you forget the password and ar e unable to log in to the terminal menus, use the Pa s s w o rd R e s e t option. When you select this option, two items display in the LCD window:

RESPONSE #

CHALLENGE #

and

Call ADTRAN technical support, and tell them the challenge number. They use this to generate a random response number. Enter this response number in the

RESPONSE #

field, and ATLAS_800

PLUS

inserts a default password into the system password list. You can then use the new default password to log into the terminal menus.

4-8

ATLAS

_800

PLUS

User Manual 61200226L1-1

Alarm (ALRM) Menu

From the terminal menus you can view a log of system events. To control the types of events logged, a series of filters have been defined for each event source (System, T1/PRI, ISDN, Ethernet, etc.). Any event with a severity greater than, or equal to, the threshold defined in the event logging filter list is logged to the system event log. Events that do not appear in the event log do not appear in the front panel alarm lists. Therefore, the event logging filters are applied to both the terminal and the front panel menu lists. See “System Event Logging” on page 5-16 for details on setting the thresholds for event logging.

Active Alarms

This menu item displays a list of current alarms reported by the base controller. If no alarms are current, this menu item displays alarms, this display includes two lines of text. The top line is the alarm source. The bottom line is the alarm message.

View History

This option displays a time and date-stamped list of the alarms that have occurred in the ATLAS_800

active and

Chapter 4. Front Panel Operation and Menu Structure

PLUS

. Some alarm types include -A to indicate the alarm is

-I

to indicate the alarm is inactive.

End of List

. If there are current

Clear History

This option clears the alarm hist ory log.

When you clear the alarm history log, you cannot retrieve the data.

61200226L1-1 ATLAS_800

PLUS

User Manual

4-9

Chapter 4. Front Panel Operation and Menu Structure

4-10

ATLAS

_800

PLUS

User Manual 61200226L1-1

Chapter 5 Using the Terminal Menu

ATLAS_ 800

To do this... Go to this

Review and monitor general system information for the ATLAS 800

Review and monitor system status for the ATL AS 8 00

Set up the operational configuration for the ATLAS 800

PLUS

TERMINAL MENU STRUCTURE

The ATLAS_ 800

PLUS

uses a multilevel menu structure that contains both menu

items and data fields. All menus and data display in the terminal menu window,

PLUS

through which you have complete control of the ATLAS_ 800 connecting to the ATLAS_ 800

PLUS

terminal menu, see “Getting Started Using

. For details on

Terminal Menus” on page 3-5.

The terminal menu is the access point to all other operations. Each terminal menu item has several functions and submenus that identify and provide access to specific operations and parameters. Use the chart below to help you work with the

ATLAS 800

PLUS

terminal menu.

For more

menu...

information...

System Info See page 5-7.

PLUS

System Status See page 5-9.

PLUS

System Config See page 5-12.

PLUS

Update settings, transfer files, perform system diagnostics, and reboot the ATLAS

PLUS

800

Review and configure settings for each installed module, including the ATLAS_

PLUS

800

61200226L1-1 ATLAS_ 800

base unit

System Utility See page 5-18.

Modules See page 5-23.

PLUS

User Manual

5-1

Chapter 5. Using the Terminal Menu

To do this... Go to this

Assign dedicated connections between any two ports in the ATLAS_ 800

Set global ATLAS_ 800

PLUS

switch

parameters or set individual parameters

PLUS

for each port in ATLAS_ 800

that

handles a switched call

To edit terminal menu items, you must have the appropriate password (security) level. Each menu item description in the following sections indicates the required password (s ecurit y) le vel fo r read and w rite a cces s. See “Access Passwords” on page 5-16 for detailed information on working with password s.

NAVIGATING THE TERMINAL MENU

The following sections provide information on navigating through the terminal menu. Figure 5-1 shows the top-level terminal menu and describes various window areas.

For more

menu...

information...

Dedicated Maps See “Dedicated

Maps” on page 5-28.

Dial Plan See “Dial Plan”

on page 5-33.

Menu Path

Window Panes

To do this... Press one of

Move from left pane to right pane

The first line of the window (menu path) shows this session’s current path (position) in the menu structure. Figure 5-1 shows the top-level menu with the cursor on the System Info submenu; therefore, the menu path reads ATLAS 800 PLUS/ System Info.

When you first start a terminal menu session, the terminal menu window is divided into left and right panes. The left pane shows the current list of submenus, while the right pane shows the contents of a selected submenu. Use the following chart to assist you in moving between and within the window pan es .

these keys...

Tab

Enter

Left arrow

Right arrow

5-2

ATLAS

_ 800

PLUS

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

To do this... Press one of

these keys...

Move from right pane back to left pane

Move around in each pane

Tab

Escape

Left arrow

Right arrow

Up arrow

Down arrow

Left arrow

Right arrow

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-3

Chapter 5. Using the Terminal Menu

Menu Path

Left Pane

Sys

Tool Tip

Menu Path

Left Pane

Right Pane

Sys

Tool Tip

Port Status

Extended Help

Navigation Help

System Time

Right Pane

Port Status

Extended Help

System Time

Navigation Help

Describes current position in the terminal menu structure. Lists available menus. Shows contents of currently selected menu. Describes ATLAS base unit. Brief description of currently selected command. Displays information about ports 1—8. Displays information about selected commands (Ctrl-A). Lists characters used for navigating the terminal menu (Ctrl-Z). Displays current time. See “Current Time/Date (24h)” on page 5-8 for details

on editing the time.

5-4

Figure 5-1. Top-Level Terminal Menu

PLUS

ATLAS

_ 800

User Manual 61200226L1-1

Right Window Pane Notation

This notation... Means that...

[+] More items are available when selected.

[DATA] More items are available when selected.

<+> An action is to be taken, such as activating a test.

highlighted menu item You can enter data in this field.

underlined field The field contains read-only information.

Using the Keyboard Keys

You can use various keystrokes to navigate through the terminal menu, to manage a terminal menu session, and to configure the system. Press Ctrl-Z to activate a pop-up screen listing the navigation keystrokes.

Chapter 5. Using the Terminal Menu

Terminal Menu Navigation

To do this... Press this key...

Return to the home screen.

Jump between two menu items.

Press J while the cursor is located on a menu item, and you jump

back to the main screen.

Go to another menu item, press screen that was displayed the first time you pressed

Press J anytime you want to jump between these items.

J, and you jump back to the

Select items.

Edit a selected menu item.

Cancel an edit.

Close pop-up help screens.

Move between the left and right panes.

Arrow Keys

Enter Escape Escape

Tab

Arrow Keys

Move to the top of a screen.

Move to the bottom of a screen.

Ascend one menu level.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

Backspace

5-5

Chapter 5. Using the Terminal Menu

Session Management Keystrokes

To do this... Press these keys...

Log out of a session. Ctrl-L Invalidate the password entry and return to the login screen. Ctrl-S

Refresh the screen.

To save time, only the portion of the screen that has changed is refreshed. This option should only be necessary if the display picks up incorrect characters.

Ctrl-R

Configuration Keystrokes

To do this... Press this key...

Restore factory default settings.

This setting restores the factory defaults based on the location of the cursor. If the cursor is on a module line (in the the selected module is updated to factory defaults.

Modules menu), then only

Copy selected items to the clipboard.

The amount of information you can copy depends on the cursor location when you press

• If the cursor is over an editable field, only that item is copied.

5-6

• If the cursor is over the index number of a list, then all of the items

in the row of the list are copied. For example, if the cursor is over the Slot # field in the Modules screen, all of the information associated with the slot is copied.

Paste the item stored in the clipboard, if the information is compatible.

You must confirm all pastes—except those to a single editable field.

Increment the value of certain types of fields by one when you paste information into those fields.

Decrement the value of certain types of fields by one when you paste information into those fields.

PLUS

ATLAS

_ 800

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

Configuration Keystrokes (Continued)

To do this... Press this key...

Insert a new list item.

For example, add a new item to the Dedicated Map connection list by pressing

I while the cursor is over the index number.

Delete a list item.

For example, delete an item from the Dedicated Map connection list by pressing

D while the index number is active.

Getting Help

The bottom line of the terminal menu window contains context-sensitive help information. When the cursor is positioned over a set of configuration items, a help message displays (when available) providing a descript ion of the item. When more detailed help is available for a particular item, ^A displays at the bottom of the window. At this point, if you press Ctrl-A, a pop-up help screen displays with information about the item.

Press Ctrl-Z to activate a help screen that displays the available keystrokes you can use to navigate the terminal menu.

SYSTEM INFORMATION

The System Info menu provides basic information about the unit as well as data fields for editing information. Figure 5-2 displays the submenus that are available when you select this menu item.

Figure 5-2. System Information Menu

System Name

Write security: 3; Read security: 5 Provides a user-configurable text string for the name of the ATLAS_ 800

name can help you distinguish between different installations. You can enter up to

61200226L1-1 ATLAS_ 800

PLUS

User Manual

PLUS

. This

5-7

Chapter 5. Using the Terminal Menu

40 alpha-numeric characters in this field, including spaces and special characters (such as an underbar).

System Location

Write security: 3; Read security: 5 Provides a user-configurable text string for the location of the ATLAS_ 800

This field is to help you keep track of the actual physical location of the unit. You can enter up to 40 alphanumeric characters in this field, including spaces and special characters (such as an underbar).

System Contact

Write security: 3; Read security: 5 Provides a user-configurable text string for a contact name. You can use this field to enter the name, phone number, or email address of a person r esponsible for the

ATLAS_ 800 field, including spaces and special characters (such as an underbar).

Firmware Revision

Read security: 5 Displays the current firmware revision level of the controller. This field is readonly.

PLUS

system. You can enter up to 40 alpha-numeric characters in this

PLUS

System Uptime

Read security: 5 Displays the length of time the ATLAS_ 800

PLUS

system has been running. Each time you reset the system, this value resets to 0 days, 0 hours, 0 min and 0 secs. This field is read-only.

Startup Mode

Read security:5 Displays details about the last system startup. This field is read-only.

Current Time/Date (24h)

Write security: 3; Read security: 5 Displays the current date and time, including seconds. You can edit this field. Enter the time in 24-hour format (such as 23:00:00 for 11:00 pm). Enter the date in mm-dd-yyyy format (for example, 09-30-1997).

Installed Memory

Read security: 5 Displays the type and amount of memory in use (including Flash memory and DRAM). This field is read-only.

Serial Number

Read security: 5 Displays the serial number for the unit. This field is read-only. The serial number

of the ATLAS_ 800

PLUS

will automatically displa y in this field.

5-8

Boot ROM Rev

Read security: 5 Displays the boot ROM revision. This fiel d is read-only.

PLUS

ATLAS

_ 800

User Manual 61200226L1-1

SYSTEM STATUS

The System Status menu provides information on the status of the unit. Figure 53 shows the submenu functions available in the System Status menu.

Chapter 5. Using the Terminal Menu

Figure 5-3. System Status Menu

Event Log

Read security: 5 Displays the last 250 warning or failure messages sent—including the day, date, and priority of the message. The most recent messages display at the top of the list. These fields are read-only. The following options are available to review:

Time Event Log/Time

Displays the date (in mm/dd format) and the time (in hh:mm:ss format) that the event occurred.

Category

Displays the severity of the event. The possible categories are Critical, Major, Minor, Warning, Normal, and Info. You can specify which types of errors you want the system to log with the System Event Logging option. See “System Event Logging” on page 5-16 for details.

Slot

Displays the slot number in which the event occurred. If this field displays a dash (—), the event occurred in the ATLAS_ 800

PLUS

Base Unit.

Port

Displays the port in which the event occurred.

Description

Displays a description of the event.

Clear System Event Log

Write security: 3; Read security: 5 Clears the event log. When you select the command, the following prompt displays:

This will clear the entire event log. Con firm (y/n)

N to exit the command.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

. Select Y to clear the log or

5-9

Chapter 5. Using the Terminal Menu

Ethernet Port

Read security: 5 Displays status information about the Ethernet port. These fields are read-only. An asterisk (*) indicates activity for the item.

I/F Status

Indicates the current status of the 10BaseT port.

Tx Frames

Indicates the number of frames transmitted from the 10BaseT port since system startup.

Rx Frames

Indicates the number of frames received on the 10BaseT port since system startup.

Clear System LED

Write security: 3; Read security: 5 Changes the color of the system LED on the front panel from yellow (indicating a

previous error) to green (OK). The system LED turns red if the ATLAS_ 800 detects a major system failure. If the failure condition clears, the LED turns yellow and remains yellow to warn of the past failure.

If you clear the event log, you cannot retrieve the data.

PLUS

System Alarms

Read security: 5 Indicates the status of major system components. An asterisk (*) indicates activity for the items. These fields are read-only. The following options display in this field:

Temp Fail

The system’s internal temperature is outside normal limits.

PS1 Fail

The main power supply is not functioning correctly.

PS2 Fail

The backup power supply is not functioning correctly.

System Timing Source

Read Security 5 Indicates which timing source (primary or backup) is currently being used by ATLAS and if ATLAS is locked onto this source. If the display does not indicate

locked, the ATLAS_ 800

PLUS

does not have a valid source of timing and cannot reliably transfer data. Review the current setting for system timing source in the System Config menu. See “Primary Timing Source” on page 5-12 and “Backup Timing Source” on page 5-12 for details.

System Resource Usage

Write Security: 4 Read Security: 5 Indicates resource use (Analog Modems; Digital modems; Voice Compression).

5-10

ATLAS

_ 800

PLUS

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

Data Tables

This statistic... Does this...

Resource Type Displays the system resources list Current Shows the number of resources available (not in use)

and the total number of resources. If a resource is taken off line, it is not included in the total.

Average Shows the average number of resources available

since the statistics were last reset

Minimum Shows the fewest number of resources available since

the last reset.

0 (zero) available Provides a count of the number of times the quantity of

available resources reached 0.

Hour Data Shows availability information by hour for a 24-hour

period.

Reset Activates the reset of all accumulated availability

statistics.

Configuration

Write Security: 4 Read Security: 5 Configures the statistics displayed under data tables.

This option... Does this...

Display Formt Selects the statistics display format—Raw Data or %. Reset Mode Selects the mode for resetting statistics—Manual, Daily,

or Weekly.

Chain Port Signal Leads

Read security: 5 Displays the state of the following options (these fields are read-only). An asterisk (*) indicates activity for the item.

This option... Indicates this state...

RTS Request to send. CTS Clear to send. DTR Data terminal ready. DCD Data carrier detect.

Chain Port Tx Bytes

Read security: 5 Displays the number of transmitted data bytes. This field is read-only.

Chain Port Rx Bytes

Read security: 5 Displays the number of received data bytes. This field is read-only.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-11

Chapter 5. Using the Terminal Menu

Chain Port Overrun Errs

Read security: 5 Displays the number of overrun errors. This field is read-only.

Chain Port Framing Errs

Read security: 5 Displays the number of received framing errors. This field is read-only.

SYSTEM CONFIGURATION

The System Config menu allows you to set up the ATLAS operational configuration. Figure 5-4 shows the items included in this menu.

Figure 5-4. System Configuration Menu

Primary Timing Source

Write security: 3; Read security: 5 Selects the primary timing source. You can select either INTERNAL or a port from one of the installed modules.

Backup Timing Source

Write security: 3; Read security: 5 Selects the secondary timing source. You can select either INTERNAL or a port

PLUS

from one of the installed modules. ATLAS_ 800

uses the backup timing source if the primary timing source goes into alarm. The Backup Timing Source should be different from the Primary Timing Source.

ADLP Address

Write security: 2; Read security: 5 Shows the system ADTRAN Data Link Layer Protocol (ADLP) address for connecting remote devices to management software (such as T-Watch PRO). The allowable range is between 2 and 65520. Enter a value not used by any of the TSU units controlled by the management software.

Session Timeout

Write security: 3; Read security: 5 Defines the number of seconds the terminal session must remain idle before the session times out. You can enter zero to deactivate this option (the session will never time out).

5-12

ATLAS

_ 800

PLUS

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

Max Telnet Sessions

Write security: 3; Read security: 5 Defines the maximum number of Telnet sessions that can be active at the same time. Enter a number between 0 and 100 in this field.

If you enter zero in this field, you will not be able to use Telnet. Only enter zero if you want to completely lock out Telnet access.

Ethernet Port

Write security: 2; Read security: 5 Provides a way to configure various settings for the Ethernet port. The following options are available for review and editing:

Port Name

Defines the name of the Ethernet port. You can leave this field blank.

IP Address

Lists the address assigned to the base Ethernet port. This address is composed of four decimal numbers, each in the range of 0 to 255, separated by periods. This value is set to 0.0.0.0 by default. The IP address is used for the 10BaseT Ethernet interface. Obtain the correct IP address from your LAN administrator.

Default Gateway

Defines or changes the default gateway. Enter the default gateway address by entering a decimal number into the appropriate field and then pressing Enter to move to the next field. You will need a default gateway if the LAN contains multiple segments. This address is composed of four decimal numbers, each in the range of 0 to 255, separated by periods. This value is set to 0.0.0.0 by default. Contact your LAN administrator for the appropriate address.

Subnet Mask

Defines which part of a destination IP address contains the network number. This address is composed of four decimal numbers, each in the range of 0 to 255, separated by periods. This value is set to 0.0.0.0 by default. This part of

the destination IP address is used along with the ATLAS_ 800

PLUS

IP address

to determine which nodes must be reached through the default IP gateway.

Chain Port

Write security: 2; Read security: 5 Supplies options for configuring the chain-in port.

Port Name

Write security: 2; Read security: 5 Defines the name of the chain port. Type in an alpha-numeric name up to 57 characters long. The name can include spaces and special characters.

Port Type

Write security: 2; Read security: 5 Specifies whether you use Direct or Dial mode.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-13

Chapter 5. Using the Terminal Menu

Port Speed

Write security: 2; Read security: 5 Specifies the baud rate of the port. Select either 2400 or 9600. If you are using Dial for Po r t Ty p e , ensure that the Port Speed setting matches the modem baud rate.

Modem Initialization String

Write security: 2; Read security: 5 Specifies the initialization string for a modem. Refer to your modem documentation for acceptable initialization strings.

Initialize Modem

Write security: 4; Read security: 5 Sends the Modem Initialization string to the modem. When you select this command, the following message displays:

nected to the chain port before continuing. Confirm (y/n).

modem is connected before selecting Y.

Flow Control

Write security: 2; Read security: 5 This option sets the flow control for the chain port. You may configure the chain port flow control for

OFF

H/W

(hardware).

Please verify a mode m is c on-

Ensure that a

SNMP

Write security: 3; Read security: 5 Provides a way to configure SNMP access for the ATLAS_ 800

PLUS

. For detailed information on SNMP, refer to “SNMP Management” on page 9-1. The following options are available for review and editing:

SNMP Access

Write security: 3; Read security: 5

PLUS

Defines whether SNMP access to the ATLAS_ 800

is enabled or disabled.

Select the appropriate option.

SNMP Communities

Write security: 3; Read security: 5 Defines SNMP manager(s) characteristics. The following options are available for review and editing:

5-14

ATLAS

_ 800

PLUS

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

This option... Does this...

IP Address Specifies the IP address of the network manager. Privileges Defines Get (read-only) and Get/Set (read and write)

privileges.

Get Name Defines the community name for Get access. This value

must match the Get name defined on the network management station. Public is the default name.

Set Name Defines the community name for Set access. This value

must match either the Get or Set name defined on the network management station. Public is the default name.

Trap Transmission

Write security: 3; Read security: 5 Enables and disables SNMP trap transmission.

Authen Trap Transmission

Write security: 3; Read security: 5 Enables and disables the authentication failure trap.

Traps Destination

Write security: 3; Read security: 5 Defines the destination for SNMP traps. The following options are available:

This option... Does this...

IP Address Identifies the IP address to which the network manager

sends traps.

Community Defines the community name for trap destinations. This

name must match the community name defined at the network management station.

Trap Filtering Sets the minimum severity level required for a system

event to generate an SNMP trap. (See also ”Trap Filtering” below.)

Trap Filtering

You can set filters for the system controller, the switchboard, the Quad Nx56/64 module, the Quad T1/PR I module , an d IS DN events. If a trap event occurs and if the trap’s severity level is equal to or more severe than the trap type’s current threshold setting, that event

is sent as an SNMP trap. (Refer to the ATLAS_ 800

PLUS

MIB for a list-

ing of all traps and their severity levels.)

You can set the following threshold levels for the available selections:

• Disabled • Major • Warning • Info

• Critical • Minor • Normal

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-15

Chapter 5. Using the Terminal Menu

System Event Logging

Write security: 3; Read security: 5 Sets the system event severity level threshold for each of the A TLAS_ 800

tem event types. Whenever a system event occurs, that event is logged if the event’s severity level is equal to or more severe than the event type’s current threshold setting. See “System Event Logging” on page A-1 for detailed information on the system events.

Syslog Setup

Write Security: 3 Read Security: 5 Configures the ATLAS Syslog client for use with a Syslog server (supplied on Adtran /Utility disk).

Transmission

Enables or disables the transmission of log events to the external Syslog server.

Host IP Address

Lists the IP address of the external server that is running the Syslog host daemon.

Host Facility

Specifies the facility destination of log events. Facilities are located on the host and are managed by the Syslog host daemon running on either a UNIX machine or a PC.

PLUS

sys-

Real Time Clock

Write security: 3; Read security: 5 Provides access to the following two options that you can review and edit:

Current Time/Date

Write security: 3; Read security: 5 Displays the current date and time, including seconds. To edit this field, enter the time in 24-hour format (such as 23:00:00 for 11:00 pm), and enter the date in mm-dd-yyyy format (for example, 09-23-1998).

Auto Daylight Savings

Write security: 3; Read security: 5 When enabled, automatically updates the time and date when Daylight Savings Time starts and, also, when Standard Tim e starts.

Access Passwords

Write security: 0; Read security: 5 Provides a way to edit passwords and, also, to add new users/passwords. All menu items are protected by passwords—of varying security levels. By assigning different passwords to different se curity lev els, the ATLAS system ad m inistrato r can control which users can change various menu items. You can assign multiple passwords at the same access level. This way, differ ent users with the same access privileges can have different passwords.

5-16

Passwords are case-sensitive.

PLUS

ATLAS

_ 800

User Manual 61200226L1-1

Follow this procedure to add or delete passwords:

Chapter 5. Using the Terminal Menu

1. To add new passwords, select the first column

2. To delete a password, select the first column

(0)

and press I.

(0)

and press D.

Each of the six password security levels are described in “Access Rights” on page 5-17.

If you lose or forget the ATLAS_ 800

PLUS

system administrator password, contact ADTRAN technical support for help in resetting the password. In order to reset the password, you must have access to the front panel. For details on resetting the password, see Password Reset on page 1-30.

Label

Write security: 0; Read security: 5 Defines a user name.

Access Rights

Write security: 0; Read security: 5 Defines the password level for the corresponding label. You can select from six different password levels.

If you want the user to... Select level...

Have read-only permission for all menu items—

minimum rights

Have read permission for all menu items and permission to use test commands

Have access to all commands except passwords, flash download, authentication methods, and interface configurations

Have access to all commands except passwords, flash download, and authentication methods

Have access to all commands except passwords

Have permission to edit every menu item, including creating and editing passwords—

maximum rights

Password

Write security: 0; Read security: 5 Allows you to change the password (the default password is password). The current password displays as a series of asterisks (********).

Passwords are case-sensitive.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-17

Chapter 5. Using the Terminal Menu

To change the password, follow this procedure:

1. Select the Password field—a new Pa s s w o r d field displays.

2. Type the new password in the Enter field.

3. Type the new password again in the Confirm field. The password can contain up to 12 alphanumeric ch aracters. You can also use

spaces and special characters in the password.

Active

Read security: 5 Displays t he number o f users for each label t h at are currently logged into the system.

SYSTEM UTILITY

Use the System Utility menu to view and set the system parameters shown in Figure 5-5.

5-18

Figure 5-5. System Utility Menu

Update Firmware

Write security: 1; Read security: 5

PLUS

Updates firmware when ATLAS_ 800

enhancements are released. Two transfer methods are available for use in updating any modules that contain flash memory—including the ATLAS system controller. The first transfer method uses the ATLAS serial Chain-In port of the system controller and XMODEM protocol. The second transfer method uses the ATLAS built-in Ethernet port of the system controller and TFTP (Trivial File Transfer Protocol). For detailed information on how to update firmware, see “Updating Firmware” on page 8-1.

The available update options change depending on whether you select Slot 0, Slots 1 through 8, or All Modules of a Type.

Module Slot

Write security: 1; Read security: 5 Displays the slot you selected for firmware updating. When this option first appears, None Selected displays. Press Enter, and a new field displays allow-

PLUS

ATLAS

_ 800

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

ing you to select Slot 1 through Slot 8 or All Modules of a Type (this is useful if there are several identical modules installed in the ATLAS_ 800

PLUS

Module Type

Write security: 1; Read security: 5 Displays the type of module that is selected in the Module Slot option. If you selected All Modules of a Type in the Module Slot field, the Module Type option allows you to select a particular module type to update all modules of that type.

Transfer Method

Write security: 1; Read security: 5 Indicates the configured transfer method to use in updating firmware. XMODEM transfers files by connecting to a communications program that supports XMODEM uploading to the terminal interface. TFTP transfers software using TFTP protocol by specifying an appropriate server address and filename.

TFTP Server IP Address

Write security: 1; Read security: 5 Configures the IP address of the TFTP server on which the update file resides.

TFTP Server Filename

Write security: 1; Read security: 5 Identifies the name of the update file to retrieve from the TFTP server. Enter the full path name and filename for the file.

Restart Schedule

Write security: 1; Read security: 5 Indicates when to restart the module that is being updated. Restart Immedi- ately After Update restarts the module immediately after the update is complete. Restart At Specified Date and Time allows you to select when the updated module will restart. If you select this option, a new field called Restart Date And Time displays below the current field.

Restart Date and Time

Write security: 1; Read security: 5 Defines the day and time to restart the system after updating firmware. Enter the time in 24-hour format (such as 23:00:00 for 11:00 pm). Enter the date in mm-dd-yyyy format (for example, 09-30-1998). This field only displays if Restart Schedule is set to Restart At Specified Date and Time.

Current Update Status

Read security: 5 Displays the status of the current update. This field is read-only. If you are updating several modules at the same time (if Module Slot is set to All Modules of a Type), this option only displays [+], indicating this field con- tains submenu items. Select [+] and press Enter to display the following fields:

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-19

Chapter 5. Using the Terminal Menu

This field... Does this...

Type Defines the type of module for each slot. Current Status Indicates the status of the current update. Previous Status Indicates the status of the previous update. Previous Time Indicates the time of the previous update.

Previous Update Status

Read security: 5 Displays the status of the previous update.

Begin Firmware Update

Write security: 1; Read security: 5 Begins updating the firmware for the selected modules.

Update Status

Read security: 5 Displays the status of the current firmware update. All items are read-only. All of the fields are defined in the previous section, “Current Update Status” on page 5-

19.

Config Transfer

Write security: 3; Read security: 5

PLUS

Tr ansfers a file containing the ATLAS_ 800

configuration to a file on a TFTP

server using the TFTP protocol (a TCP/IP user protocol) through the 10BaseT

PLUS

Ethernet port. Config Transfer lets you save the A TLAS_ 800

configuration as a

backup file. You can then use the same configuration with multiple ATLAS_

PLUS

800

units.

You can also use Config Transfer to retrieve a configuration file from a TF TP server. ADTRAN delivers a TFTP program with ATLAS_ 800

PLUS

called TFTP Server. You can configure any PC running Microsoft Windows with this software to store the configuration file. See “TFTP Server” on page 10-4 for details on how to use the TFTP Server software with these menu items to transfer configuration files.

PLUS

Before using this command, the ATLAS 800

should have a valid IP address, subnet mask, and default gateway (if required), and should be connected to an Ethernet network.

Only one configuration transfer session (upload or download) can be active at a time. The TCP/IP parameters are not saved or overwritten as part of an ATLAS

PLUS

800

unit’s transferred configuration to allow sending identical configurations

to multiple units.

5-20

Transfer Method

Write security: 3; Read security: 5 Displays the method used to transfer the configuration file to or f rom a server. Currently, you must use TFTP.

PLUS

ATLAS

_ 800

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

TFTP Server IP Address

Write security: 3; Read security: 5 Specifies the IP address of the TF TP server. Get this number from your system administrator.

TFTP Server Filename

Write security: 3; Read security: 5 Defines the name of the configuration file that you will transfer to or retrieve from the server. The default name is atlas.cfg, but you can edit this name.

Current Transfer Status

Read security: 5 Indicates the current status of the update.

Previous Transfer Status

Read security: 5 Indicates the status of the previous update.

Load and Use Config

Write security: 3; Read security: 5 Retrieves the configuration file specified in the TFTP Server Filename field from the server.

If you execute this command, the ATLAS_ 800

PLUS

system retrieves the configu-

ration file, reboots, then restarts using the new configuration.

Save Config Remotely

Write security: 3; Read security: 5 Saves the configuration file specified in the TFTP Server Filename field to the server identified in the TFTP Server IP Address field.

Before using this command, you must have identified a valid TFTP server in the TFTP Server IP Address field.

System Self-test

Conducts a system self-test. The self-test consist s of memory tests and data paths to each installed module.

Self-tests disrupt data flow.

Self-test Run

Write security: 3; Read security: 5 Activates the self-test.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-21

Chapter 5. Using the Terminal Menu

View Self-test Log

Read security: 5 Displays a read-only, time-stamped log of the tests conducted and the Pass/ Fail results. The tests associated with the system controller include the following:

This test... Logs this result...

Flash Flash memory checksum verified. BootRom Boot ROM checksum verified. DSP RAM Memory associated with the DTMF DSP. RTC RAM Memory associated with the real time clock. TDM RAM Memory associated with mapping TDM bandwidth. DRAM Dynamic RAM used for program execution.

The self-test also verifies data integrity and processor control to each port. Each port is looped back and a data pattern is sent and tested. The result of the test on each installed port is listed with Pass/Fail results. A typical test log is shown in Figure 5-6.

5-22

Figure 5-6. View Self-test Log

Clear Self-test Log

Write security: 3; Read security: 5 Clears the self-test log.

Reboot System

Write security: 2; Read security: 5

PLUS

Reboots the ATLAS_ 800

. When you select this command, the following mes-

sage displays:

Warning! This will reboot the entire system! Confirm (y/n).

Select Y to reboot the system, or N to exit the command.

PLUS

ATLAS

_ 800

User Manual 61200226L1-1

MODULES

Chapter 5. Using the Terminal Menu

The Modules menu provides options that allow you to configure and control the installed option modules as well as the controller T1/PRI ports. Figure 5-7 shows the Modules menu. (Write security: 3; Read security: 5)

Figure 5-7. Modules Menu

The controller board (slot 0) has two T1/PRI interface ports. This section only describes the module options available for the T1/PRI interface ports. Individual module choices are described in the applicable module manuals.

The ATLAS system controller automatically detects the presence of modules when they are installed in the system. To view the menus for the installed modules via the terminal menu, use the arrow keys to scroll to the appropriate menu and press Enter. You can then access the module choices.

Slt

Write security: 3; Read security: 5 Identifies the slot number . Slot 0 r efers to the A TLA S_ 800

PLUS

base unit. This field

is read-only.

Type

Write security: 3; Read security: 5 Displays the type of module actually installed in the slot or the type of module

you plan to install in the slot. The ATLAS_ 800

PLUS

automatically detects the type

of module installed in each slot, and the Type field automatically defaults to the installed module type. Yo u can also use this field to pre-configure a unit before actually installing modul es by specifying the module that you want to install in each slot.

To use this option, navigate to the field you want to edit and press Enter. For empty slots, a list of all the available module types displays. Select the one you want and it displays in the Type field. If this field is already configured with a module, you can only set this field to Empty.

If you install a module in a slot, then want to install a different type of module in the slot, you must set this field to Empty before selecting another module type.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-23

Chapter 5. Using the Terminal Menu

Displays additional status and configuration menus for the selected module. To access the submenus for this item, use the Arrow Keys to scroll to the Menu col- umn for the module you want to edit, and press Enter. For detailed information on each submenu item, see “ATLAS_ 800PLUS Controller T1/PRI Submenu Items” on page 5-25.

Alarm

Read security: 5 Displays whether there is an alarm condition on the ATLAS_ 800

Press Enter to access the Alarm menu. (Read-only field.)

Test

Read security: 5 Displays whether the ATLAS_ 800

the Menu submenu on this screen. Then, select the Test option to access the screen that allows you to set up and initiate tests. See “Test” on page 5-24 for details. Press Enter to access the Te st menu.

If a module is installed, the module type automatically di splays the name of the installed module, and cannot be set to any other option.

Only the submenu items for the base T1/PRI menus are described in this manual.

PLUS

base unit.

PLUS

is executing a test. To initiate a test, choose

State

Write security: 3; Read security: 5 Displays whether the module is online of offline. Even though a module is physically installed, it must be marked Online for it to be considered an available resource. This parameter allows an installed module to be marked Offline, which may be useful in system troubleshooting. If you choose Offline, the modu le will not be in alarm condition, but will dis play Offline.

Once a module is installed, you must change the state to Online in order for the ATLAS to utilize the module for any data bandwidth.

Status

Read security: 5 Displays status informatio n on the ATLAS_ 800

PLUS

T1/PRI ports and other

installed modules. The following messa ges may display:

Online

The module is enabled and is responding to the system controller’s status polls. This is the normal response of the system .

No Response

The module is enabled but is not responding to the system controller’s status polls. This response indicates a problem in the system or that the module is not installed.

5-24

ATLAS

_ 800

PLUS

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

Empty

The system controller has not detected the presence of a module in the system, nor has a module been manually enabled for this option slot.

Offline

The modules is installed but has been taken Offline by a user. The module is still responding to controller polls.

Offline/No Response:

The module is installed but has been taken Offline by a user. The module is not responding to polls.

Rev

Read security: 5 Displays the hardware revision of the ATLAS_ 800

PLUS

ATLAS_ 800

PLUS

Controller T1/PRI Submenu Items

The Modules/Menu submenu provides access to commands that allow you to review the status of various options, change the configuration for general parameters, and initiate tests. This section only describes the menu options for the T1/

PRI controller port (the ATLAS_ 800

PLUS

base unit). For details on menu options

for individual modules, refer to the appropriate module manuals.

Controller Info

Read security: 5

PLUS

Displays general information about the ATLAS_ 800

Base Unit and T1/PRI

ports. The following items are read-only.

Part Num

PLL Status

Displays the part number of the ATLAS_ 800

Indicates whether the clock is locked to its specific source.

PLUS

(Phase Lock Loop)

Alarm Status

Read security: 5 Displays any active alarms. These fields are read-only.

This alarm... Means this...

Prt Displays the port number. Loss of Signal

(LOS) Red Alarm

(RED) Ye ll ow Al a rm

(YELLOW) Blue Alarm

(BLUE)

61200226L1-1 ATLAS_ 800

No signal detected on port interface.

Not able to frame data received on the port. Alternately referred to as Out of Frame (OOF).

Remote alarm indicator (RAI) being received on port.

Receiving unframed all ones from the port alarm indicator signal (AIS).

PLUS

User Manual

5-25

Chapter 5. Using the Terminal Menu

This alarm... Means this...

D Channel Sync (D-Chan)

HDLC framing is operational on PRI D channel. This indication only applies when operating in PRI mode.

Receive Level (Rx Level)

Indicates the strength of the signal received on the port.

DS0 Status

Read security: 5 Indicates usage on a DS0 basis for each port. These options are read-only.

DS0 status... Means this...

Inactive Active call on this DS0 Active D Channel DS0 Maintenance DS0 Dedicated DS0 Off hook Detected Ringing Detected

Sig Status

Read security: 5 Indicates signaling of all 24 DS0s. The A/B bits for Rx and Tx DS0s are shown for each port.

Performance: Current

Write security: 4; Read security: 5 The performance fields – either current, 15 minute total, or 24 hour total – provide status on key performance measures as specified in ANSI T1.403 and AT&T TR54016 for each of the four T1/PRI ports. All of these options (except CLR) are read-only. The parameters monitored include the following:

Field... Provides this status information...

Prt Displays the port number. CLR Clears information for the selected port. Press Enter when

the cursor is over this field to clear the data.

ES Errored Seconds. An ES is a second with one or more error

events OR one or more Out Of Frame events OR one or more Controlled Slips.

BES Bursty Errored Seconds. A BES is a second with more than

one, but less than 320 error events.

SES Severely Errored Seconds. An SES is a second with 320 or

more error events OR one or more Out Of Frame events. SEFS Severely Errored Frame Seconds. LOFC Loss of Frame Count. CSS Controlled Slip Seconds.

5-26

ATLAS

_ 800

PLUS

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

Field... Provides this status information...

UAS Unavailable Seconds. LCV Line Code Violations. RCV Path Code. LES Line Errored Seconds.

Performance: 15 Min

Write security: 3; Read security: 5 In the Performance 15 min. menu, the Performance data for the previous 15 minute window is stored. Refer to “Performance: Current” on page 5-26 for a detailed description.

Performance: 24 Hr.

Write security: 3; Read security: 5 In the Performance 24 hr. menu, the performance data for the previous 24 hour window is stored. Refer to “Performance: Current” on page 5-26 for a detailed description.

Configuration

All of the configurable parameters apply to whether the port is connected to a Primary Rate ISDN circuit or a Channelized T1 circuit—dedicated or switched.

This Configuration submenu...

Prt

Read security: 5

Port Name

Write security: 3; Read security: 5

Frame

Write security: 2; Read security: 5

Code

Write security: 2; Read security: 5

Tx Yellow (Auto Tx Yellow Alarm)

Write security: 3; Read security: 5

Tx PRMs (Transmit PRMs)

Write security: 3; Read security: 5

LBO (Line Build Out)

Write security: 2; Read security: 5

LB Accept (Loopback Accept)

Write security: 3; Read security: 5

Does this...

Identifies the port number.

Accepts any alphanumeric name up to 16 characters long to uniquely identify each port.

Matches the frame format of the circuit to which it is connected (available from the network supplier).

Matches the line code of the circuit to which it is connected (available from the network supplier).

Enables and disables the transmitting of yellow alarms.

Enables and disables the sending of PRM data on the facility data link (FDL). The PRM data continues to be collected even if XMIT PRM is disabled (possible only with ESF format).

Depends on whether the circuit is provisioned for DS1 by the telephone company.

Sets unit to accept or reject the in-band loop up and loop down codes as defined in ANSI T1.403. This is a line loopback.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-27

Chapter 5. Using the Terminal Menu

Test

Initiates different t ypes of tests and d isplays test results.

These commands temporarily disrupt service.

This Te st submenu...

Prt

Loc LB

(Local Loopback)

Read security: 5

Remote LB

(Remote Loopback)

Write security: 4; Read security: 5

Pattern

Write security: 4; Read security: 5

QRSS/RLB Results

(Test Pattern Results) Read security: 5

Does this...

Identifies the port number.

Causes loopback on near-end port

Line - Metallic loopback Payld - Payload loopback - framing and clocking are regenerated.

Sends a loopback code to a remote CSU.

ANSI FDL Line (Requires ESF mode) ANSI FDL Pyld (Requires ESF mode) AT1 Inband line

Specifies the test pattern to be transmitted out the port.

All ones - framed ones All zeros - framed zeros QRSS - 2 20-1 pseudorandom pattern with suppression of excess zeros.

Suppresses excess zeros—indication of sync and errors of received data pattern.

(Test Pattern Results Clear)

Clr

Write security: 4; Read security: 5

(Test Pattern Error Inject)

Inj

Write security: 4; Read security: 5

Dedicated Maps

The Dedicated Maps menu (Figure 5-8) assigns dedicated connections between any two ports in the unit. For a detailed description of how to set up dedicated maps, refer to “Creating a Dedicated Map” on page 6-1.

5-28

ATLAS

Clears current error counters on test pattern results menu.

Injects errors into transmitted test pattern.

PLUS

_ 800

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

Figure 5-8. Dedicated Maps Menu

Activate Map

Write security: 3; Read security: 5

PLUS

ATLAS_ 800

allows you to have up to five different dedicated maps with an

optional name designator. You can manually a c tivate a map by pressing Enter in this field, and then selecting the appropriate map. You can also select Auto, which permits the maps to activate automatically depending on the time and day settings defined in the field Activate Time (a submenu of “Create/Edit Maps” on page 5-29).

Current Map

Read security: 5 Displays t he name of the currently active dedicated map. This field is read-only.

Create/Edit Maps

This option allows you to create new maps and define settings. To add a new map, press I when the cursor is in the first column. You can also use this option to

edit existing maps. ATLAS_ 800

PLUS

names the maps in the sequence they are cre-

ated (Map 1, Map 2, and so on). You can change the names with Map Name.

Map Name

Write security: 3; Read security: 5 Displays the name of the dedicated map. You can edit the name by pressing Enter. The name can contain up to 57 alphanumeric characters, including spaces and special characters.

Sort To/From

Write security: 3; Read security: 5 Specifies which field group will be used to sort the connections (sorted on the FROM end point or the TO end points). This is beneficial when you are attempting to find a particular connection in a large connection list.

Connects

Enters the dedicated map connections. Press Enter to activate the submenu.

Some of the options available in this submenu change depending on the type of modules selected in the FROM or TO fields.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-29

Chapter 5. Using the Terminal Menu

Displays the number of the dedicated map connection. If you press I

PLUS

in this field, ATLAS_ 800

adds another dedicated map connec-

tion, numbered consecutively.

FROM Slot

Write security: 3; Read security: 5 Specifies the slot to use for the FROM connection. Select this option, and a list of all of the slots an d the modules installed in the slots displays. Pick the appropriate slot.

Port

Write security: 3; Read security: 5 Specifies the port in the selected slot to use for the FROM connection.

From Config

Write security: 3; Read security: 5 Specifies the configuration for the FROM connection. The selections displayed in this field are based on the type of module selected in the From Slot option. You must input the following information—based on the module type:

DS0 Selection

Write security: 3; Read security: 5 If the selected entry is a T1 port, use this field to define which DS0s will be used for this connection. You can enter the DS0s in several ways. For example, to enter DS0s one through five, enter 1-5. For DS0s one and five, enter 1,5.

DS0 Available

Read security: 5 Read-only. Indicates which DS0s of the T1 are assigned. DS0 assignment is depicted based on the following items:

digits

0—9

This DS0 is available. The digit that displays in this field represents the last digit of the DS0 number.

This port is requesting this DS0 for this connection,

but the DS0 is not yet activated. This DS0 is used by this port in this connection and is

activated. This DS0 is used in the switched Dial Plan.

This DS0 is used in the switched Dial Plan and

conflicts with this connection. This DS0 is already used in this dedicated map.

5-30

This DS0 is already used in this dedicated map and

conflicts with this connection.

Data Rate

Write security: 3; Read security: 5 If the FROM slot is an Nx port, use this field to define the data r ate per DS0. You can choose from 64 Kbps or 56 kbps. If the FROM slot is an Nx port, the data rate per DS0 must be set.

PLUS

ATLAS

_ 800

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

Trunk Conditioning

Trunk conditioning is a process which sets known values in the signaling bits and the data field for outgoing DS0s which are cross connected to a T1 port which is experiencing alarms (see Figure 5-9). The trunk conditioning process consists of a 2.5-second transmission (indicating call termination), follo wed by a continuous transmission signaling the final condition (Seized or Idle) as chosen by the user.

Trunk conditioning only applies to RBS T1s in the dedicated map.

PBX

T1-A

ATLAS 800

T1-B

Figure 5-9. Trunk Conditioning

Example:

Voice traffic received on T1-A, and T1-B is groomed onto T1-C to the PBX. If T1-A fails, the DS0s which were cross connected to T1-C would receive trunk conditioning.

Trunk conditioning includes Fault Signaling (setting the state of the signaling bits) and Fault Data Code (setting the state of the data bits). Trunk conditioning can be set for each end of each T1 to T1 connection in a dedicated map. This is simplified by using the copy command (pressing C). The state of the signaling bits will be different for connections to the Network versus connect ions to user equipment (PBX).

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-31

Chapter 5. Using the Terminal Menu

Defining Trunk Conditioning

Write security: 3; Read security: 5

Fault Signaling

Defines to ATLAS the type of signaling being used on the trunk (E&M; LS/GS Network or User; SW56; Custom).

Fault State

Final fault signaling state (Trunk Idle or Seized). Idle would normally be used for one-way trunks (only used for outgoing or incoming calls—not both). Seized would normally be used for twoway trunks. This would prevent the PBX from attempting to use a failed trunk for an outgoing call.

Custom

This permits the user to define the Fault signaling to use in the form of A/B set to 1/0.

Fault signaling is only visible when RBS is on.

TO Slot

Write security: 3; Read security: 5 This is the same as From Slot (described on page 5-30) except this option designates the second end of a connection.

Port

Write security: 3; Read security: 5 This option selects which port of the To Sl ot will be used for the second connection. When you select this option, a list of all the slots and available modules displays. Select the appropriate slot.

5-32

To Co nfig

Write security: 3; Read security: 5 Specifies the configuration for the To connection. The selections that display in this field are based on the type of module selected in the TO Slot option. You must input the following information (based on the type). The same options for setting DS0s are available for this command as with the FROM Config option.

(robbed bit signaling)

RBS

Write security: 3; Read security: 5 Defines whether the connection has active robbed bit signaling.

Where RBS is not an option, ATLAS_ 800

PLUS

automatically assigns

the correct setting. (For example, a T1-to-Nx connection is set to Off.)

Preserves the signaling bits between the connections.

Ignores signaling bits.

Off

Activate Time

Write security: 3; Read security: 5 Sets the time when the map will become active if you se lect AUTO in the Activate Map field. Enter this time in hh:mm:ss 24-hour format. If you use this

PLUS

ATLAS

_ 800

User Manual 61200226L1-1

Dial Plan

Chapter 5. Using the Terminal Menu

option, you can select AUTO in the Activate Map field (see “Activate Map” on page 5-29).

Enbl Day

Write security: 3; Read security: 5 Specifies which days of the week the map is active.

Write security: 3; Read security: 5 Dial Plan includes menus for setting global ATLAS switch parameters and for setting individual parameters for each port in ATLAS that handles a switched call (see Figure 5-10). The individual ports are separated into two groups—network ports which terminate a connection from the Network and User ports which terminate incoming calls and in turn may be connected to user equipment.

Figure 5-10. Dial Plan Menu

In the menus described in the following sections, Incoming Calls refers to calls coming to ATLAS from the Network (PSTN) and Outgoing Calls refers to calls directed toward the Network (PSTN).

Network Term

(Terminations)

This menu allows the user to define option parameters for ports which terminate a connection from the Network (PSTN).

In applications where two ATLAS units are used in a point-to-point configuration, a port in the ATLAS at one end would act as the Network (User Termination), while the ATLAS at the opposite end would be terminating a “Network” connection.

This menu includes a submenu (Interface Configuration) which varies with port type. The section “Interface Configuration” on page 5-41 reflects the options for port types which existed at the release of this manual. This information will also be reflected in the manuals for individual option module types. If the option mod-

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-33

Chapter 5. Using the Terminal Menu

Slot/Port

Write security: 3; Read security: 5 These fields are used to select the ATLAS port that terminates a Network connection.

Sig

Write security: 3; Read security: 5 Defines the type of signaling being used for this connection (end point). RBS would be for a T1 using Robbed Bit Signaling while PRI designates a Primary Rate ISDN interface. This selection is only necessary if a T1/PRI is selected as the Slot/Port type.

ule type being used is not reflected in the Interface Configuration section, please refer to the option module manual for information on the interface parameters.

There may be more than one “end point” associated with a particular port. If a T1 is connected to the PSTN, some DS0s may be used for long di stance, while others are used for local calls. These would constitute two “end points” (trunks) over a single physical p or t.

(Signalling)

Outgoing#Accept

Write security: 3; Read security: 5 This submenu defines the parameters for the outgoing calls that ATLAS sends to the Network.

Source ID

Write Security: 3 Read Security: 5 This field identifies the ID of the call sources that this endpoint will accept calls from. The Source ID field is used to simplify the creation of a Dial Plan in applications where the criterion for switching calls to a certain endpoint is a function of which endpoint originated the call.

Source ID may be entered with the usual wild card entries (except $)

= any digit 0—9

[1,3,5]

= any of these digits

Default value = 0. The default ID for all Source endpoint is 0 and all accept #'s is 0. This results in all calls being routed based on the dialed number.

5-34

ATLAS

_ 800

PLUS

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

Accept Numbers

This field designates which numbers this end point will pass on toward the Network (PSTN). The accept list may consist of multiple entries. The numbers are defined using “wild cards”:

Any single digit

= Any single digit 2—9

= Any number of digits of any value

This specific number

[1,2,3...]

= A sing le di git in this group

Example: 1-800-$ would only permit toll free long distance calls to 1-800. If this were used, then a second accept # would need to be specified - NXXXXXX. This would permit local numbers to be dialed.

Any specific entry will take precedence over a wild card. For example, if end point “A” was designated as $ while e nd point “B ” accepte d 963 -800X, then an inc oming call to 963-800X would only be accepted by end point “B”.

Data 64 kbps, Analog, Speech, and Treat Call As

These options reflect the bearer capability the Network has provisioned for this line. If the ISDN lines were purchased with different services provisioned, then ATLAS would send the call out of the port which supports the type of service the call requires.

Example:

The Network Termination is on a pair of BRIs (with the same phone number) with one pr ovisioned for data a nd the oth er fo r voice. By enabling data in on e a nd not the other, ATLAS ensures that calls bearing data will be sent out the right BRI interface.

Write Security: 3 Read Security: 5

Primary Search

The Search parameter instructs ATLAS which order to search for an accept number match. Normally all searches are set to Primary. The Secondary search selection would be used to force ATLAS to only accept a call at this end point if all Primary end points were unavailable.

Example:

All long distance calls should go out a PRI directly to an IXC (MCI, ATT, etc.) and local calls should go out a T1 to the LEC. It may be desirable to place long distance calls on the local exchange if all of the IXC trunks are unavailable (busy or in alarm). In this case, the primary accept number for the local exchange would be N$, and the s econdary accept woul d be 1$.

Secondary Search

The same accept rules apply for all secondary number searches as for primary searches.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-35

Chapter 5. Using the Terminal Menu

Out#Rej

Write security: 3; Read security: 5 This submenu defines the parameters for the outgoing calls that ATLAS will not send to the Network.

Reject Numbers

This field identifies which numbers this end point will not pass on toward the Network (PSTN). The reject list may consist of multiple entries. The reject list may be used to more easily specify the call filtering desired. The “wild cards” are identical as in Outgoing Call Accept.

The Reject list takes precedence over the Accept list.

Examples:

1- 900-$ would reject all 1-900 long distance calls. 1-$ would reject all long distance calls.

Data 64 Kbps, Analog, Speech, and Treat Call As.

These items allow ATLAS to reject outgoing calls based on call type.

Example:

A “$” for the Reject Number and Digital 56/64 enabled and Audio & Speech Disabled would reject all digital calls while not rejecting analog calls.

This list may remain blank if the Accept list meets desired filtering.

Interface Configuration

This menu sets configuration parameters for the end point. These pa rameters will vary by the type of port selected. For detailed information on the interface configuration for all of the available modules, refer to “Interface Configuration” on page 5-41.

User Terminations

This menu allows you to define option parameters for ports which terminate a connection from user equipment. In this case, ATLAS_ 800

PLUS

is acting like the

Network.

In applications where two ATLAS units are used in a point-to-point configuration, a port in the ATLAS at one end would act as the Network (set up as a User Termination), while the ATLAS at the opposite end would be terminating a Network connection.

5-36

ATLAS

_ 800

PLUS

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

Slot/Port (Select list of option modules/ports)

Write security: 3; Read security: 5 These fields are used to select the ATLAS port that terminates a User connection.

There may be more than one “end point” associated with a particular port. If a T1 port is connected to a channel bank with analog voice cards, each DS0 or a group of DS0s may have a different phone number. These would constitute multiple “end poin ts” over a single p hysical port.

Signaling: (User Selection - RBS; PRI)

In#Accept

Write security: 3; Read security: 5 This submenu defines the parameters for incoming calls that A TLAS_ 800

PLUS

will accept from the Network.

Source ID

Write Security: 3 Read Security: 5 This field identifies the ID of the call sources that this endpoint will accept calls from. The Source ID field is used to simplify the creation of a Dial Plan in applications where the criteria for switching calls to a certain endpoint is a function of whic h endpoint originated the call.

Source ID may be entered with the usual wild card entries (except $)

= any digit 0—9

[1,3,5]

= any of these digits

Default value = 0. The default ID for all Source endpoint is 0 and all accept #'s is 0. This results in all calls being routed based on the dialed number.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-37

Chapter 5. Using the Terminal Menu

Accept Numbers

Write security: 3; Read security: 5 This field designates which numbers this end point will accept (terminate) from the Network (PSTN). The accept list may consist of multiple entries. The numbers are defined using “wild cards”:

= Any single digit

= Any single digit 2—9

= Any number of digits of any value

= This specific number

[1,2,3...]

= A s ingle digit in this group

Example

963-8000 would be a specific incoming number that would be accepted by this end point. If this end point consisted of a T1 with multiple DS0s, a “hunt” group for 963-8000 would be formed. The entry $ would accept any call.

Write Security: 3 Read Security: 5

Primary Search

Example:

5-38

Secondary Search

The same accept rules apply for all secondary nu mber searches as for primary searches.

Data 64kbps/Data 56kbps/Analog/Speech

Write security: 3; Read security: 5 This reflects the bearer capability that the attached user equipment (typically a TA) has. If the attached TA can only handle digital calls, then a voice call sent to this end point would be rejected.

PLUS

ATLAS

_ 800

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

Treat Call As

Write security: 3; Read security: 5 This allows you to treat an incoming voice call (as designated by the ISDN call type identifier) as a data call. This is useful if the ISDN lines are provisioned for voice but are actually being used for data.

Out#Rej (Outgoing Number Reject List)

Write security: 3; Read security: 5 This submenu is used to define the parameters for outgoing calls that

ATLAS_ 800

PLUS

will not send to the Network.

Reject Numbers

This field designates which numbers this particular end point will NOT pass on toward the Network (PSTN). This is used when the outgoing call filter is different for different users. The “wild cards” are identical as in Outgoing Call Accept.

Example:

If desired, each user termination port can be set to reject different numbers.

[0,1]-$ would reject all long distance calls, but only for this user termination. If permitted in the Network Term ination end point, this user could not dial long dis tance numbers while oth er users could.

Data 56kbps/Data 64kbps/Audio/Speech

These items allow ATLAS_ 800

PLUS

to reject outgoing calls based on

call type.

Example:

A “$” for the Reject Number, Digital 56/64 enabled, and Audio & Speech Disabled would reject all digital calls while not rejecting analog calls.

This list may remain blank if the Accept List meets desired filtering. The Call Reject list takes precedence over the Call Accept list.

Interface Configuration

Global Parameters

These menus set ATLAS options which will apply to all switched operations, both incoming and outgoing calls.

End of Number Timeout

Write security: 3; Read security: 5 This parameter sets the length of time ATLAS will wait before assuming the outgoing dialed number is complete. The default value is six second s. This timeout

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-39

Chapter 5. Using the Terminal Menu

will only be invoked if the dialed number does not match one of the patterns set in the Number Complete Template menu.

Area Code

Write security: 3; Read security: 5 The local area code. This is used for sending caller ID to the Network.

Number Complete Template

Write security: 1; Read security: 5 For any outgoing call, ATLAS must be able to recognize when the phone number is complete. For example, a local number will be seven digits long while a long distance (1+ #) will be 11 digits long. The ATLAS defaults will cover almost any installation, and these templates should not require any additional user input except for unusual circumstances. The template allows the use of “wildcard” inputs to define numbers:

911

[1,2,3...]

= Any single digit = Any single digit 2—9 = This specific number = A s ingle digit in this group

Example:

1+(NXX) NXX - XXXX would be a pattern for a normal long distance call. Note that the symbols ( ), +, - and space are not required and are only used to improve readability.

Number Type Templates

Write security: 1; Read security: 5 ISDN interfaces require that a number type be sent over the D channel when a call is sent or received. A normal RBS trunk does not send a type designator , but uses prefixes instead. For example, “1 +” prefix is national long distance call type while a “011 +” prefix would be an international long distance call type. These templates form a table to permit ATLAS to translate the RBS prefix into a call type for ISDN and vice- versa. The ATLAS default templates should cover all applications and should not need to be added to by the user except for very rare circumstances.

Automatic Routeback Rejection

Write security: 1; Read security: 5

Use extreme caution when disabling this option!

When enabled, Automatic Routeback Rejection prevents calls which enter through network termination interfaces from being forwarded out another network interface. Such an event could happen if an incoming call specifies a number that has no endpoint configured to accept it and another network interface has a call acceptance entry which could accept it (such as $). Without automatic rejection, such a call would be forwarded back to the Network. The Network would in turn resend the call to the unit until all incoming resources are consumed.

5-40

ATLAS

_ 800

PLUS

User Manual 61200226L1-1

Interface Configuration

The Interface Configuration option for the Dial Plan me nu s et s configurat i on parameters for the end point. These parameters vary by the type of port selected. The following sections describe the configuration options for each available type of module and port that existed when this manual was released. Configuration information for specific modules is also located in the manual for each module. If configuration information for a particular module you are using is not described in the following sections, please refer to the module manual for information on the interface parameters.

Quad T1/PRI Module Interface Configuration

This section describes the Network Termination and User Termination configuration settings for the Quad T1/PRI module when using the Dial Plan menus.

Quad T1/PRI Module (Network Termination/PRI)

When you are working in the Network T ermination section of the Dial Plan menu, the Slot is defined as a T1/PRI module, and Sig is set to PRI, the following configuration options are available:

Chapter 5. Using the Terminal Menu

Switch Type

Write security: 2; Read security: 5 Defines the type of PRI switch that ATLAS is connected to. If connected to another ATLAS, both need to be set to the same type. The following options are available:

• Lucent 5E

• Northern DMS 100

• National ISDN

•AT&T 4ESS

First DS0

Number of DS0s

Write Security: 3 Read Security: 5 These two items permit fractional PRI to be defined. These menu items define the first active DS0 and the number of DS0s used for calls on this PRI. DS0 24 is assumed to be used by the PRI for the “D” channel.

Outgoing Number Conversion

Write Security: 3 Read Security: 5 This item defines the rules for converting as-dialed numbers into ISDN number type and plan.

As dialed

ISDN National pref

ISDN Subscriber pref

ISDN - National DMS Reserved pref

Send digits provided as unknown number type. Convert to ISDN type, using the 10-digit national

form if possible. Convert to ISDN type, using the 7-digit subscriber

form if possible. Send digits provided as National Number Type,

DMS Reserved Numbering Plan.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-41

Chapter 5. Using the Terminal Menu

Strip MSD

Write Security: 3 Read Security: 5 This option allows a selected quantity of the Most Significant Digits (MSD) of a dialed number for ATLAS to be stripped prior to being forwarded out of the port.

Example:

A Network port could be set to accept all calls beginning with 9 (9$), and then with Strip MSD set to 1, all digits would be sent toward the Network except the leading 9.

When a 4ESS is configured, many installations will require the national form where possible; this may also be the preferred form in 10-digit calling areas.

The Strip MSD parameter does not affect the Call Accept criteria. All of the digits (including the MSDs that are subsequently stripped) are used as accept criteria.

Network Specific Facility Voice

Write Security: 3 Read Security: 5 This option allows for the definition of specific facility IEs be sent to the Network. This would be used if the customer has subscribed to special facilities such as AT&T Megacom service. The facility request sent can be different for voice calls versus data calls. A setting of

Normal

indicates no special facilities

have been subscribed.

Network Specific Facility Data

Normal

indicates no special facilities

have been subscribed.

Called Digits Transferred

Write security: 2; Read security: 5 Some PRI switches may be provisioned to only send a portion of the called number (like DID). This menu item allows ATLAS to know how many digits to expect (choose from

None, Three, Four,

and

All

). The default is All and would almost

always be correct. If less than All digits are sent, then the prefix is defined below.

Outgoing Caller ID

Write Security: 3 Read Security: 5 This item allows the user to insert a called ID based on selection. If set to

Provided

set to no value is received. If set to

, then ATLAS will forward whatever ID it receives (including none). If

Substitute if not present

, then A TLAS will insert a User defined ID value if

Substitute Always

, then ATLAS will always insert

Send as

the user-defined ID in place of the value received.

5-42

ATLAS

_ 800

PLUS

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

ID Presentation

Sends to the Network control information for the presentation of Caller ID

Presentation Allowed; Present ation R estric ted; Num ber Not A vail able

(

ID Number

Value for Caller ID to be sent to the Network( i.e. 256 963 8020).

Source ID

The Source ID field simplifies the creation of a Dial Plan in applications where the criteria for switching calls to a certain end point is a functio n of which end point originated the call.

• Default value = 0. The default ID for all end points is 0 and for all accept # s is

0. With default values, all calls are routed based only on dialed number.

• Multiple end points can have the same Source ID

• When creating the Call Accept list, specify a Source ID(s) as well as a dialed number or range of dialed numbers to accept.

Example:

An application requires that all calls originating from Port 1 of the Qu ad T1/PRI module in Slot 1 be switched to Port 4 of that same module. Assign a unique Source ID (e.g., 7) to Port 1 of the module, and then configure Port 4 to on ly accept calls from that unique Source ID (7).

Swap ANI/DNIS

This option swaps the ANI and DNIS numbers received from the Network. ANI (Automatic Number Identification), is the billing number of the calling party, and DN IS ( Dia led Num ber Id ent ifi cat ion Ser vice) , is the ca lle d pa rty number.

This swap will cause the ATLAS switchboard to use ANI to route the call. The accept # in the dial plan must use the ANI number, not the DNIS number.

Quad T1/PRI Module (Network Termination/RBS)

When you are working in the Network T ermination section of the Dial Plan menu, the Slot is defined as a T1/PRI module, and Sig is set to RBS, the following interface configuration options are available:

First DS0

Write security: 2; Read security: 5 Defines to ATLAS the DS0s which will be used for this endpoint. These are the DS0s which ATLAS will use to send and receive calls to and from the Network (PSTN). Outgoing calls which will be allo wed or restricted over these DS0 s a re set by the Outgoing Call Accept and Reject Numbers discussed earlier.

Number of DS0s

Write security: 3; Read security: 5 Specifies the number of DS0s already defined for this endpoint. This field is readonly.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-43

Chapter 5. Using the Terminal Menu

DS0s Available

Read security: 5

5-44

ATLAS

_ 800

PLUS

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

DID Prefix

Write security: 3; Read security: 5 Defines to ATLAS the pre fix digits which ar e no t re ceived as a pa rt of the D ID number. ATLAS uses the combination of prefix and DID number to determine the User end point that should receive the incoming call. This option only displays if Direct Inward Dialing (DID) is set to Enabled. If DID is Disabled, then you must define the trunk number.

Trunk Number

Write security: 3; Read security: 5 When the Network connection does not provide DID digits, then ATLAS must be given a number to use to determine which user end point should receive the incoming call. This field only displays when Direct Inward Dialing is set to Disabled.

The trunk number must be specific (i.e., no “wild cards”).

Example:

If a certain incoming DS0 (trunk) is meant to connect to an end point

with the accept number of 963-8615, the trunk number would be set to 963-8615.

Strip MSD

Write Security: 3 Read Security: 5 This option allows a selected quantity of the Most Significant Digits (MSD) of a dialed number to be stripped prior to being forwarded out of the port.

Example:

A Network port could be set to accept all calls beginning with 9 (9$), and then with Strip MSD set to 1, all digits would be sent toward the Network except the leading 9.

The Strip MSD parameter does not affect the Call Accept criteria. All of the digits (including the MSDs that are subsequently stripped) are used as accept criteria.

Source ID

The Source ID field is used to si mpl ify the creation of a Dial Plan in applications where the criteria for switching calls to a certain end point is a function of which end point originated the call.

• Default value = 0. The default ID for all end points is 0 and all accept # s is 0. With default values, all calls are routed based only on dialed number.

• Multiple end points can have the same Source ID

• When creating the Call Accept list, specify a Source ID(s) as well as a dialed number or range of dialed numbers to accept.

Example

: An application requires that all calls originating from Port 1 of the Qu ad T1/ PRI module in Slot 1 be switched to Port 4 of that same module. Assign a unique Source ID (e.g., 7) to Port 1 of the module, and then configure Port 4 to only accept calls from that unique Source ID (7).

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-45

Chapter 5. Using the Terminal Menu

Quad T1/PRI Module (User Termination/PRI)

When you are working in the User Termination section of the Dial Plan menu, the Slot is defined as a T1/PRI module, and Sig is set to PRI, the following configuration options are available:

Switch Type

Write security: 3; Read security: 5 Defines the type of PRI switch that ATLAS is going to emulate. If connected to another ATLAS, both need to be set to the same type.

• Lucent 5E

•AT&T 4ESS

First DS0

Number of DS0s

Strip MSD

Write Security: 3 Read Security: 5 This option allows a selected quantity of the Most Significant Digits (MSD) of a dialed number for ATLAS to be stripped prior to being forwarded out of the port.

Example

: A Network port could be set to accept all calls beginning with 9 (9$), and then with Strip MSD set to 1, all digits would be sent toward the Network except the leading 9.

The Strip MSD parameter does not affect the Call Accept criteria. All of the digits (including the MSDs that are subsequently stripped) are used as accept criteria.

Network Specific Facility Voice

Write Security: 3 Read Security: 5 This option defines the specific facility IEs be sent to the Network. This would be used if the customer has subscribed to special facilities such as AT&T Megacom service. The facility request sent can be different for voice calls versus data calls. A setting of

Normal

indicates no special facilities have

been subscribed.

5-46

Network Specific Facility Data

Normal

indicates no special facilities have

been subscribed.

PLUS

ATLAS

_ 800

User Manual 61200226L1-1

Chapter 5. Using the Terminal Menu

Called Digits Transferred

Write security: 3; Read security: 5 Defines to A TLAS the number of called-number digits to forward. When attached to a PBX, the PBX may be provisioned to expect to receive fewer than all of the called digits of the incoming call. This would normally be set to

All

Outgoing Caller ID

Write Security: 3 Read Security: 5 This item allows the user to insert a called ID to be added to outgoing calls (coming in from attached User equipment). If set to will forward whatever ID it receives (including none). If set to

present

set to

, then A TLAS will insert a User defined ID value if no value is received. If

Substitute Always

, then ATLAS will always insert the User defined ID in

Send as Provided

Substitute if not

, then ATLAS

place of the value received.

ID Presentation

Defines control information for the presentation of Caller ID to be inserted:

Presentation Allowed; Present ation R estric ted; Num ber Not A vail able

(

ID Number

Value for Caller ID to be sent to the Network (i.e., 256 963 8020).

Source ID

The Source ID field simplifies the creation of a Dial Plan in applications where the criterion for switching calls to a certain end point is a function of which end point originated the call.

• Default value = 0. The default ID for all end points is 0 and all accept # s is

0. With default values, all calls are routed based only on dialed number.

• Multiple end points can have the same Source ID.

• When creating the Call Accept list, specify a Source ID(s) as well as a dialed

number or range of dialed numbers to accept.

Example:

Swap ANI/DNIS

This option swaps the ANI and DNIS numbers prior to being forwarded to the attached user equipment. ANI (Automatic Number Identifica tion) is the billing number of the calling party, and DNIS (Dialed Number Identification Service) is the called party number.

This swap will occur after the ATLAS switchboard has routed the call. The accept # in the dial plan must use the number in the DNIS position prior to swap ping.

61200226L1-1 ATLAS_ 800

PLUS

User Manual

5-47

Chapter 5. Using the Terminal Menu

Quad T1/PRI Module (User Termination/RBS)

When you are working in the User Termination section of the Dial Plan menu, the Slot is defined as a T1/PRI module, and Sig is set to RBS, the following configuration options are available:

First DS0/Number of DS0s

Write security: 3; Read security: 5 Defines to ATLAS the DS0s which will be used for this end point. These are the DS0s which will be used by ATLAS to send and receive calls to and from User equipment (PBX). The incoming calls which will be accepted and the outgoing calls which will be restricted over these DS0s are set by the Incoming Call Accept and Outgoing Call Reject Numbers discussed earlier.

DS0s Available

Read security: 5 Indicates which DS0s of the T1 have been defined in this switched end point (indicated by “! “), in another switched end point (indicated by “s”), or in a Dedicated Map (indicated by “n”).

digits 0—9

This DS0 is available. The digit that displays in this field represents the last digit of the DS0 number.

This port is requesting this DS0 for this connection, but the DS0 is not yet activated.

This DS0 is used by this endpoint.

This DS0 is used elsewhere in the switched dialplan.

This DS0 is in the switched dialplan and conflicts with this endpoint.

This DS0 is used in one or more dedicated maps.

This DS0 is in one or more dedicated maps and conflicts with this endpoint.

Signaling Method

Write security: 3; Read security: 5 Defines to ATLAS the type of signaling to be used across this trunk. The signaling selected needs to match that being used by the user equipment (PBX). The choices are:

• E&M Immediate

•E&M Wink

•Loop Start

• Ground Start

5-48

ATLAS converts signaling types between Network and User Terminations.

PLUS

ATLAS

_ 800

User Manual 61200226L1-1
