Product Features

■ Standards-based IPSec

VPN tunneling with
DES/3DES/AES encryption

■ Internet Key Exchange (IKE)

for user authentication

■ Stateful inspection firewall

for network security

■ Unlimited users and up to

ten private tunnels

■ Built-in IP router supporting

BGP, OSPF, and RIP

■ Quality of Service (QoS)

for delay sensitive traffic
like VoIP

■ Network Address

Translation for IP
address concealing

■ Web-based and CLI remote

management

■ 10/100Base-T Ethernet

interfaces for flexible
connectivity

■ Logging and alerts

■ Industry-leading five-year

North American warranty

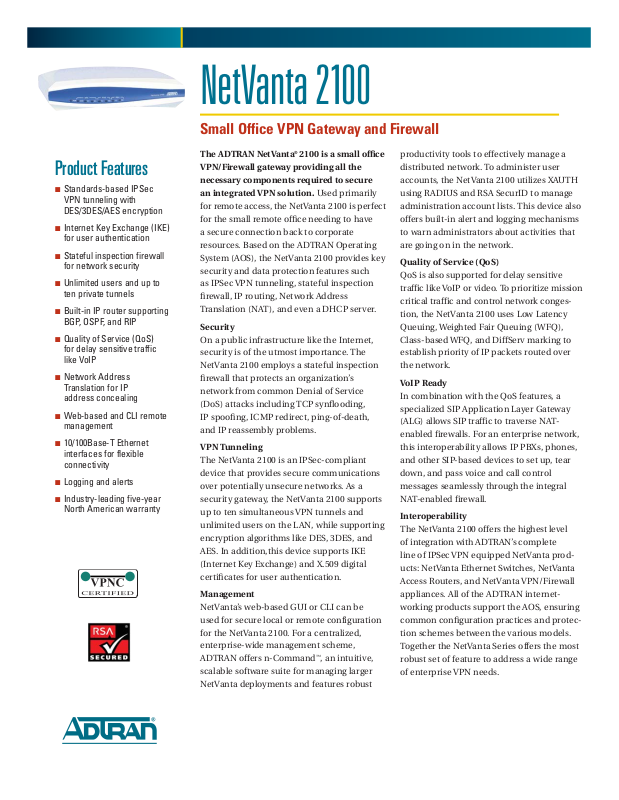

The ADTRAN NetVanta®2100 is a small office
VPN/Firewall gateway providing all the
necessary components required to secure
an integrated VPN solution. Used primarily

for remote access, the NetVanta 2100 is perfect
for the small remote office needing to have
a secure connection back to corporate
resources. Based on the ADTRAN Operating
System (AOS), the NetVanta 2100 provides key
security and data protection features such
as IPSec VPN tunneling, stateful inspection
firewall, IP routing, Network Address
Translation (NAT), and even a DHCP server.

Security

On a public infrastructure like the Internet,
security is of the utmost importance. The
NetVanta 2100 employs a stateful inspection
firewall that protects an organization’s
network from common Denial of Service
(DoS) attacks including TCP synflooding,
IP spoofing, ICMP redirect, ping-of-death,
and IP reassembly problems.

VPN Tunneling

The NetVanta 2100 is an IPSec-compliant
device that provides secure communications
over potentially unsecure networks. As a
security gateway, the NetVanta 2100 supports
up to ten simultaneous VPN tunnels and
unlimited users on the LAN, while supporting
encryption algorithms like DES, 3DES, and
AES. In addition,this device supports IKE
(Internet Key Exchange) and X.509 digital
certificates for user authentication.

Management

NetVanta’s web-based GUI or CLI can be
used for secure local or remote configuration
for the NetVanta 2100. For a centralized,
enterprise-wide management scheme,
ADTRAN offers n-Command

™

, an intuitive,
scalable software suite for managing larger
NetVanta deployments and features robust

productivity tools to effectively manage a
distributed network. To administer user
accounts, the NetVanta 2100 utilizes XAUTH
using RADIUS and RSA SecurID to manage
administration account lists. This device also
offers built-in alert and logging mechanisms
to warn administrators about activities that
are going on in the network.

Quality of Service (QoS)

QoS is also supported for delay sensitive
traffic like VoIP or video. To prioritize mission
critical traffic and control network conges­tion, the NetVanta 2100 uses Low Latency
Queuing, Weighted Fair Queuing (WFQ),
Class-based WFQ, and DiffServ marking to
establish priority of IP packets routed over
the network.

VoIP Ready

In combination with the QoS features, a
specialized SIP Application Layer Gateway
(ALG) allows SIP traffic to traverse NAT­enabled firewalls. For an enterprise network,
this interoperability allows IP PBXs, phones,
and other SIP-based devices to set up, tear
down, and pass voice and call control
messages seamlessly through the integral
NAT-enabled firewall.

Interoperability

The NetVanta 2100 offers the highest level
of integration with ADTRAN’s complete
line of IPSec VPN equipped NetVanta prod­ucts: NetVanta Ethernet Switches, NetVanta
Access Routers, and NetVanta VPN/Firewall
appliances. All of the ADTRAN internet­working products support the AOS, ensuring
common configuration practices and protec­tion schemes between the various models.
Together the NetVanta Series offers the most
robust set of feature to address a wide range
of enterprise VPN needs.

NetVanta 2100

Small Office VPN Gateway and Firewall

Specifications subject to change without notice. ADTRAN, and NetVanta are registered trademarks
of ADTRAN, Inc. n-Command is a trademark of ADTRAN, Inc. All other registered trademarks and
trademarks mentioned in this publication are the property of their respective owners.

Product Specifications

Physical Interface

■

Public: Auto-Sensing 10/100Base-T

■

Private: Auto-sensing 10/100Base-T

■

Serial Port: RS-232 for off-net configuration

Diagnostics

Front Panel Status LEDs

■

Power: status

■

VPN: status, transmit, receive

■

Private: transmit, receive

■

Public: transmit, receive

Security

Firewall

■

Stateful Inspection Firewall

■

Denial of Service (DoS) Protection

■

Access Control Lists

■

Application Level Gateways (ALGs)

Virtual Private Network (VPN)

■

IPSec Mode: Tunnel

■

Encryption: DES, 3DES, and AES

■

Diffie Hellman Group Support:

❍

Group 1: MODP 768

❍

Group 2: MODP 1024

■

Hash Algorithms:

❍

MD5-HMAC

❍

SHA1-HMAC

■

Authentication Mechanisms:

❍

XAUTH

❍

X.509 Digital certificates

❍

Preshared keys

❍

Secure ID

❍

DSS Signatures

■

Key Management: IKE (ISAKMP/Oakley)

■

IKE Modes:

❍

Main

❍

Aggressive

❍

Perfect Forward Secrecy

❍

Mode Config

■

Dead Peer Detection

■

NAT Traversal V2

Network Address Translation

■

Basic NAT (1:1), NAPT (Many:1), 1:1 Port Translation

■

NAT compatible SIP ALG

Secure Management

■

Multi-level access control

■

RADIUS AAA

■

SSH CLI and SSL GUI

NetVanta®2100

Small Office VPN Gateway and Firewall

ADTRAN, Inc.

Attn: Enterprise Networks

901 Explorer Boulevard

Huntsville, AL 35806

P.O. Box 140000

Huntsville, AL 35814-4000

256 963-8000 voice

256 963-8699 fax

General Information

800 9ADTRAN
[e-mail]
www.adtran.com

Pre-Sales

Technical Support

800 615-1176 toll-free

[e-mail]

www.adtran.com/support

Where to Buy

877 280-8416 toll-free

[e-mail]

www.adtran.com/where2buy

Post-Sales

Technical Support

888 423-8726

[e-mail]

www.adtran.com/support

ACES Installation &

Maintenance Service

888 874-ACES

[e-mail]

www.adtran.com/support

International Inquiries

256 963 8000 voice

256 963-6300 fax

[e-mail]

www.adtran.com/international

For the regional office

nearest you, visit:

www.adtran.com/where2buy

Protocols

■

IP

■

RIP (v1 and v2)

■

eBGP/iBGP

■

GRE

■

OSPF

■

PPPoE

Quality of Service (QoS)

■

Class-based Weighted Fair Queuing

■

Low Latency Queuing

■

Weighted Fair Queuing

■

DiffServ marking and packet recognition

■

DiffServ preservation through VPN tunnel

Administration

■

Familiar Command Line Interface (CLI)

■

Web-based GUI

■

SYSLOG Logging

■

n-Command™support

■

Email Alerts (SMTP)

■

SNMP v2

■

Policy Statistics

DHCP

■

Server, Client, Relay

■

MAC Address Masquerading

Environment

■

Operating Temperature: 0° to 50°C (32° to 122°F)

■

Storage Temperature: -20° to 70°C (-4° to 158°F)

■

Relative Humidity: Up to 95%, non-condensing

Physical

■

Size: 1.625" H, 7.5" W, 5.437" D

■

Weight: 2 lbs. (shipping weight)

■

Power: 12 VDC Power, 4 W

Agency Approvals

■

FCC Part 15 (Class B)

■

UL and Canadian UL (CUL), IEC/EN, CSA, CE Mark

Product Includes

■

12 VDC locking power supply

■

6 ft. crossover Ethernet cable

■

User manual

■

Quick start guide

Ordering Information

Equipment Part #

NetVanta 2100 1202361L2

61202361L2-8G 10.1 August 2005
