Total Access Rackmount 6-Amp Power
Supply Battery Charger

GENERAL

This practice is an installation and maintenance guide for the ADTRAN® Total Access® Rackmount 6-Amp Power Supply Battery Charger (PS/BC). Figure 1 illustrates the PS/BC (P/N 1180043L2) right and left side panels.

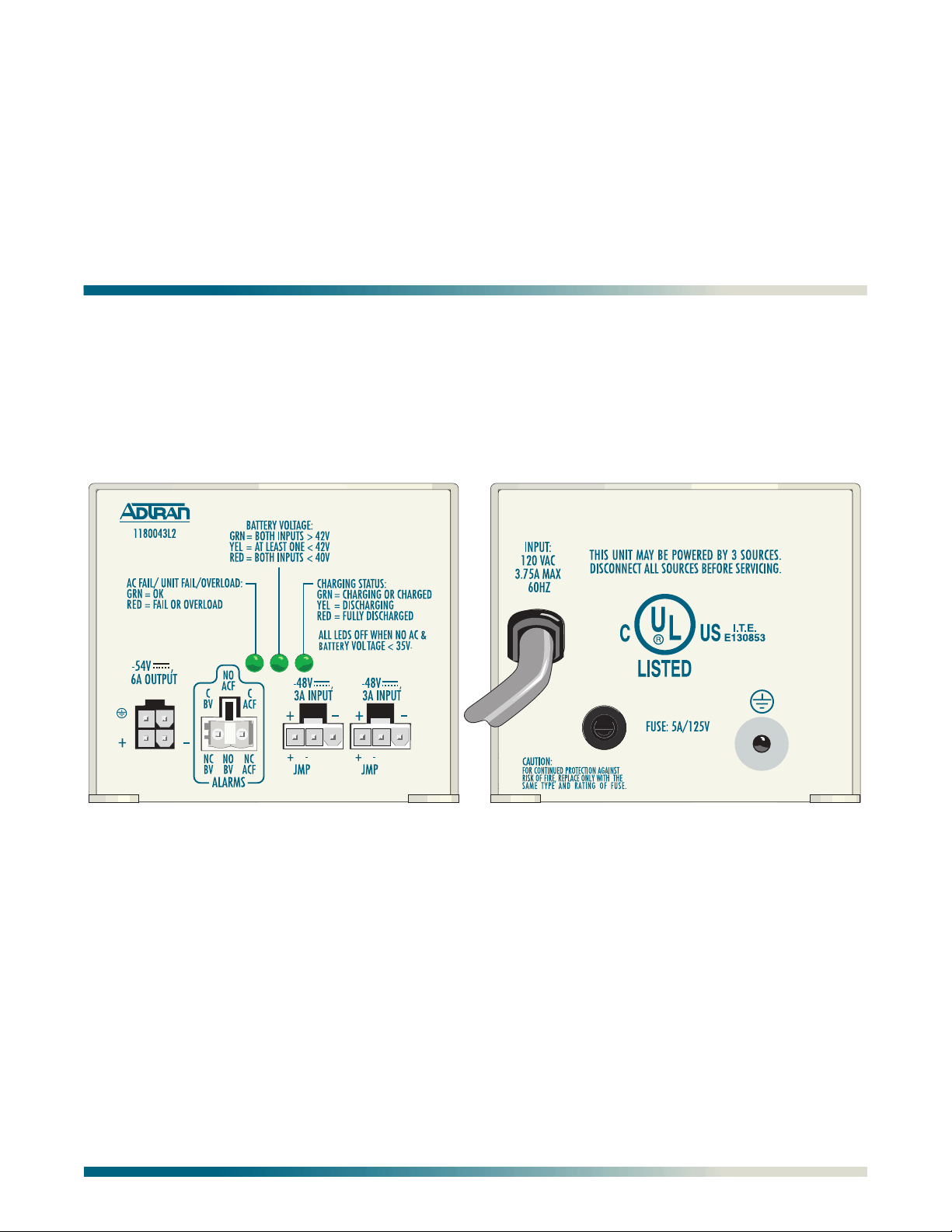

Figure 1. Total Access PS/BC

Features

The Total Access PS/BC features include the following:
• –54 VDC at 6-amps output for multiple use
• Modular connections for two backup battery packs
• Modular power output connection
• LED status for VAC, VDC, and battery charging
S
S
E
E
U
U
F
F
• Full battery recharge in less than eight hours
• Two PS/BC configuration options available
61180043L2-5D 1
Total Access Rackmount 6-Amp Power Supply Battery Charger Installation and Maintenance Practice
• Fuse protection
• Positive ground
• Battery Pack mounting hardware included
• Completely automatic operation
• Multiple protection features
• Uninterrupted power output if backup battery connected
• Meets NEBS Level 3 (all requirements of GR-63-CORE and GR-1089-CORE)
• FCC and UL 60950 compliant

Document Review

This document contains important pre-installation information. Craft personnel should review the entire document as part of installation planning.

DESCRIPTION

The PS/BC rectifier is part of the Total Access Rackmount AC Power Supply/Backup Battery System (APS/BBS). The unit is designed to work in conjunction with one or two ADTRAN backup battery packs (P/N 1175044L1).
Originally designed for the Total Access 1500 system, the PS/BC can be used in any appli­cation using 120 VAC input, and requiring up to –54 VDC, 6-amps output.
In the Total Access 1500 configuration, the rectifier performs AC to DC conversion and when used with the dual battery provides up to eight hours of backup power for a fully populated Total Access 1500 bank (96 FXS circuits) with up to 50 percent off-hook circuits at any one time.
For general use, the rectifier receives AC power from a standard 120 VAC wall outlet and converts this to –54 VDC, 6-amp output to the designated load plus recharging the single or dual battery, or maintaining battery at peak charge. Each battery has four series connected 12 volt rechargeable cells.

Single or Dual Battery

Each battery string is rated for 3 amps of current and 7 amp-hours of capacity. Dual batteries are required if the load exceeds these ratings during AC power failure (backup battery mode).

PS/BC Mounting Location

The PS/BC normally mounts to the associated battery pack. The unit can also mount to a special bracket within a cabinet, or mount external to a cabinet against a wall.
Description

Battery Disconnect Protection Circuit

During battery operation a protection circuit disconnects battery from the main output when battery voltage drops below 39 VDC, preventing over discharge. When AC returns, the main output provides regulated –54 VDC, batteries recharge, and the system returns to normal. Refer to “LED Indication”.
After the protection circuit initiates, the LEDs remain on (red), continuing to slowly drain the battery. When battery voltage drops to 35 VDC, all load is removed from the battery. If AC power will not be available for an extended period (several days), disconnect the battery to prevent unnecessary discharge.

DC Over Voltage Protection

The PS/BC has a protection circuit that disables the rectifier to protect the load from a high output voltage caused by rectifier failure. The backup battery or redundant PS/BC supports the load in this instance. The over voltage event can permanently disable the PS/BC. Confirm this by performing the following procedure:
1. Disconnect the PS/BC from the AC source.
2. Wait 30 minutes minimum.
3. After 30 minutes plug back into the AC source.
4. If the unit has recovered, the unit returns to service. If the LED does not turn on green, replace the PS/BC.
AC FAIL/UNIT FAIL/OVERLOAD LED will turn on green and the

Alarm Relays

There are two uncommitted alarm relays associated with PS/BC operation:
• AC Fail (ACF): Alarms if AC fails, the rectifier overloads, or the rectifier fails
• Battery Low Voltage (BV): Alarms if either or both battery voltage drops below 42 VDC

Fuse

A standard 5×20 mm 5-amp fuse adjacent to the AC power cord protects AC power feed overload in case of rectifier failure.
61180043L2-5D 3
Total Access Rackmount 6-Amp Power Supply Battery Charger Installation and Maintenance Practice

LED Indication

A set of three PS/BC multi color LEDs provide status for AC, DC, and battery charge condi­tions. See Table 1 for LED descriptions. Descriptions are also labeled on the PS/BC.
Table 1. LED Descriptions
LED Color Description
AC FAIL/UNIT FAIL/OVERLOAD
BATTERY VOLTAGE
CHARGING STATUS
All LEDs
Note: Descriptions are the same for a single battery.
Green
Red
Green
Yellow
Red
Green
Yellow
Red
Normal 120 VAC operation
AC fail or rectifier overload or fail
Battery 1 and Battery 2 greater than 42 VDC
Battery 1 or Battery 2 less than 42 VDC
Battery 1 and Battery 2 less than 40 VDC
Battery 1 and Battery 2 charged or recharging
Battery 1 or Battery 2 discharging
Battery 1 and Battery 2 fully discharged
Off AC lost, Battery less than 35 VDC

Compliance

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by ADTRAN could void the user’s authority to operate this equipment.

Installation

INSTALLATION
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
After unpacking the Total Access PS/BC, inspect it for damage. If damage has occurred, file a claim with the carrier, then contact ADTRAN Customer Service. Refer to “Appendix A,
Warranty” for further information. If possible, keep the original shipping container for
returning the PS/BC for repair or for verification of shipping damage.
CAUTION
Electronic modules can be damaged by ESD. When handling mod­ules, wear an antistatic discharge wrist strap to prevent damage to electronic components. Place modules in antistatic packing mate­rial when transporting or storing. When working on modules, always place them on an approved antistatic mat that is electrically grounded.

Shipping Contents

The contents include the following items:
• Rackmount 6-Amp Power Supply Battery Charger
• Rackmount 6-Amp Power Supply Battery Charger Installation and Maintenance Practice
• Appropriate wiring:
– PS/BC to AC source (hardwired)
– PS/BC to load
– PS/BC alarm output
• Battery Pack mounting hardware
Separately purchased Rack Mounting Kits for the PS/BC are available for the following racks:
• 19-inch (P/N 1175050L1)
• 23-inch (P/N 1175051L1)
61180043L2-5D 5
Total Access Rackmount 6-Amp Power Supply Battery Charger Installation and Maintenance Practice

Mounting the PS/BC

The PS/BC housing occupies a nominal area 15.35 inches (with mounting tabs) wide by 3.45 inches high and is designed so the four mounting tab screw holes align to threaded screw holes on the ADTRAN battery pack housing. This procedure assumes that the battery pack is mounted in the designated 19-inch or 23-inch rack. Hardware for mounting the PS/BC to the battery pack is included. To mount the PS/BC, perform the following steps:
1. Ensure a 120 VAC wall outlet is within reach of the PS/BC 10-foot power cord.
2. Determine the most convenient direction to view the status LEDs and position the PS/BC accordingly.
3. Align the mounting tabs to the threaded mounting holes on the battery pack.
4. Using the included “sems” screws with star washer, mount the PS/BC to the battery pack. Tighten fasteners firmly.
See Figure 2 for a representative example of the PS/BC mounted to the battery.
BATTERY BACKUP
1175044L1
S
M
C
A
R
Y
E
P
W
U
LE
N
C
N
TU
WARNING:
G
T
R
H
E
S
B
E
A
X
T
C
T
E
R
E
IE
D
S
IN
.
G
3/8"
1175044L1
BATTERY BACKUP
SAME TYPE AND RATING OF FUSE
RISK OF FIRE, REPLACE ONLY WITH THE
FOR CONTINUED PROTECTION AGAINST
CAUTION:
FUSE: 12A/125V
F
F
U
U
S
S
E
E
.
1180043L2
Figure 2. PS/BC Mounted On Battery Pack
3/8"
G
IN
D
.
E
S
E
NING:
IE
R
XC
T
E
S
AT
H
WAR
B
T
E
G
R
N
U
T
LE
C
N
W
U
E
R
P
C
Y
S
A
M

Wiring Descriptions

Alternate Mounting

Two alternate mounting methods include mounting directly to a wall using customer supplied wood screws, or to a 16-gauge steel bracket (P/N 3265555) that mounts in the cabinet. Bracket mount location is normally at the battery position when batteries are mounted external to the cabinet. The bracket has threaded mounting holes that align to the PS/BC mounting tabs. The PS/BC can be mounted to either side of the bracket, or two PS/BCs can be mounted, one on each side. Openings in the bracket allow for wire management. Hardware for bracket mounting is purchased from ADTRAN. When determining the alternate mounting location, ensure supplied cabling reaches the designated termination point including dressing and lacing.

Provisioning

Aside from various PS/BC and battery mounting and wiring configurations, there are no end user controls, adjustments, or options associated with the PS/BC.
WIRING DESCRIPTIONS
The wiring required for the single PS/BC and dual battery configuration is included.
CAUTION
All grounds must terminate at a known ground location. Check metal-to-metal contact on all ground connections. Do not stack or combine grounds. Ensure ground circuit continuity.

Ground

A ground post adjacent to the PS/BC fuse is available for frame ground.
WARNING
Do not connect AC power or make battery connections until all other connections have been made for the designated installation and protective covers and shields have been installed.

120 VAC Power Input

AC input is through a 10-foot wire with a three prong grounded plug on the end. The line is hardwired to the PS/BC.
NOTE
In the optional two PS/BC configuration, a fully redundant system requires that each PS/BC have an independent AC source.
61180043L2-5D 7
Total Access Rackmount 6-Amp Power Supply Battery Charger Installation and Maintenance Practice

DC Power Output

The 4-foot long, three conductor PS/BC power output wire originates at the –54V 6A OUTPUT modular connector and terminates at three #6 ring lugs for customer designated connection. Wire color-code is as follows:
•Red = –54 VDC
• Black = Return
• Green = Ground

PS/BC to Battery Configurations

The basic design configuration consists of one PS/BC with two batteries. A variety of other configurations are possible with more (or less) redundant capability, see Figure 3 for standard configurations I and II.
PS/BC
A
PS/BC
A
A
LoadAB
I
Load
II
Batt
Batt
Batt
B
PS/BC
B
Batt
Batt
II
IIa
IIb
IIc
Configuration I, Ia, Ib I. PS/BC, no battery. Ia. PS/BC + 1 battery string. Ib. PS/BC + 2 battery strings.
Ia
Ib
Configuration II, IIa, IIb, IIc, IId II. 2 PS/BC, no battery. IIa. 2 PS/BC + 1 battery string. IIb. 2 PS/BC + 2 battery strings. IIc. 2 PS/BC + 3 battery strings. IId. 2 PS/BC + 4 battery strings.
This configuration shows adding battery strings alternately to PS/BC A and B. Other wiring configurations are optional.
Batt
IId
Figure 3. Wiring Block Diagrams
These would include one or two PS/BCs, none, one, or two batteries, or some combination of PS/BC and battery. The most reliable configuration would be two PS/BCs with two batteries each and with independent AC sources. The two PS/BC outputs would terminate at a single load that has primary and secondary power sharing terminals.

Operation

Battery Charge/Discharge

CAUTION
To prevent battery discharge prior to system operation, do not con­nect the battery to the PS/BC until the AC power is connected or imminent.
Each battery has a hardwired 6-foot battery charge/discharge wire that originates at the battery housing and terminates at a modular connector. The PS/BC has two mating connector ports each labeled which port.
To prevent heat buildup the battery charge current is limited to 1 amp per battery. This elimi­nates the need for temperature compensation.
–48V 3A INPUT. It does not matter which battery connects to

Alarm Wiring

The alarm relay output originates at a modular connector with a 6-foot wire stub. Wiring termination of the output is customer designated. The alarm outputs: AC Fail, Battery Low Voltage, are assigned the following wire color-codes:
• ACF = orange, orange/white
• BV = blue, blue/white
OPERATION
The PS/BC starts operation when AC or battery power is applied. During operation ambient temperature can increase up to 50°C without affecting output. If ambient temperature increases beyond 50°C, output must be derated. At 70°C ambient, output load is limited to 5 amps.
CAUTION
External PS/BC surfaces can become hot during operation above 50°C ambient temperature.

MAINTENANCE

The Total Access PS/BC does not require routine maintenance for normal operation.
ADTRAN does not recommend that repairs be attempted in the field. Repair services may be obtained by returning the defective unit to ADTRAN. Refer to “Appendix A, Warranty” for further information.

Fuse

If the fuse fails, replace with a fuse of identical type and rating.
61180043L2-5D 9
Total Access Rackmount 6-Amp Power Supply Battery Charger Installation and Maintenance Practice

SPECIFICATIONS

Power Factor specifications for the Total Access PS/BC are listed in Table 2. PS/BC specifica­tions are listed in Table 3.
Table 2. Power Factor and Efficiency
Power Output vs. Efficiency
Power Output Power Factor Efficiency Power Dissipation
50 watts > 98% > 81% 11 watts
150 watts > 99% > 89% 18 watts
325 watts > 99% > 91% 29 watts
Table 3. PS/BC Specifications
Specification Description
Environmental
Operating Temperature:
Derated Operation,
Linear:
Storage Temperature:
Relative Humidity:
Max Heat Dissipation:
Physical
Height:
Width:
Depth:
Weight:
Electrical
AC Input:
DC Output:
Max power up to 50°C:
Max power @ 70°C:
Power Output:
–40°C to 50°C
50°C to 70°C (0.05 amp/°C)
–40°C to 85°C
95 percent noncondensing
29 watts at 325 watts output 50 watts maximum during overload
3.45 inches
15.35 inches (with mounting tabs)
2.92 inches
5.5 pounds
120 Volts, 3.75 amps max, 60 Hz
–54 Volts, 6 amps
6 amps
5 amps
325 watts
Compliance
NEBS:
ETL:
FCC:
Level 3+
UL:
60950
Listed
Part 15, Class A
Appendix A
Warranty

WARRANTY AND CUSTOMER SERVICE

ADTRAN will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can be found at
www.adtran.com/warranty
Refer to the following subsections for sales, support, Customer and Product Service (CAPS) requests, or further information.

ADTRAN Sales

Pricing/Availability:
800-827-0807
.

ADTRAN Technical Support

Pre-Sales Applications/Post-Sales Technical Assistance:
800-726-8663
Standard hours: Monday - Friday, 7 a.m. - 7 p.m. CST Emergency hours: 7 days/week, 24 hours/day

ADTRAN Repair/CAPS

Return for Repair/Upgrade:
(256) 963-8722

Repair and Return Address

Contact CAPS prior to returning equipment to ADTRAN.
ADTRAN, Inc. CAPS Department 901 Explorer Boulevard Huntsville, Alabama 35806-2807
61180043L2-5D A-1
®
Carrier Networks Division
901 Explorer Blvd.
Huntsville, AL 35806
Loading...
