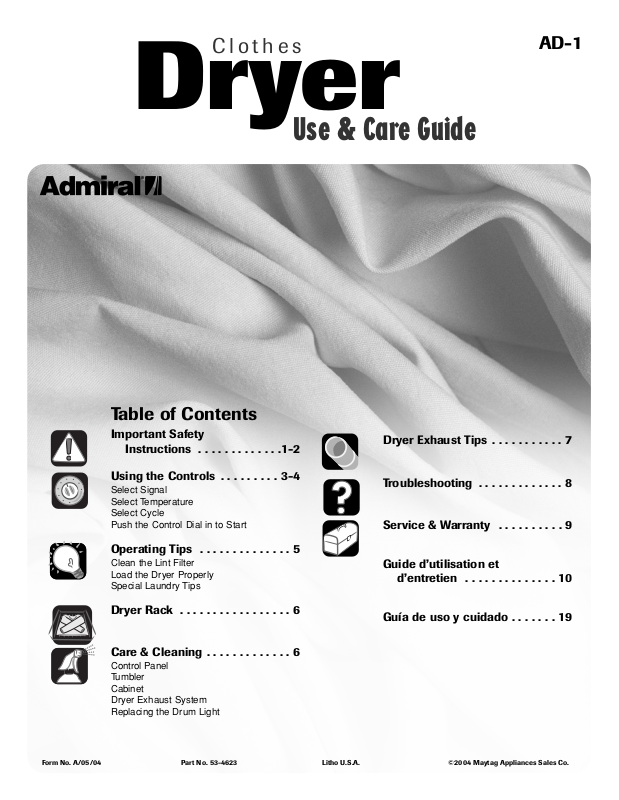

Admiral AD-1 User Manual

AD-1

Dryer

Clothes

Use & Care Guide

Table of Contents

Important Safety

Instructions . . . . . . . . . . . . .1-2

Using the Controls . . . . . . . . . 3-4

Select Signal Select Temperature Select Cycle Push the Control Dial in to Start

Operating Tips . . . . . . . . . . . . . . 5

Clean the Lint Filter Load the Dryer Properly Special Laundry Tips

Dryer Rack . . . . . . . . . . . . . . . . . 6

Care & Cleaning . . . . . . . . . . . . . 6

Control Panel Tumbler Cabinet Dryer Exhaust System Replacing the Drum Light

Dryer Exhaust Tips . . . . . . . . . . . 7

Troubleshooting . . . . . . . . . . . . . 8

Service & Warranty . . . . . . . . . . 9

Guide d’utilisation et

d’entretien . . . . . . . . . . . . . . 10

Guía de uso y cuidado . . . . . . . 19

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

WARNING

Important Safety Instructions

WARNING – Hazards or unsafe practices which COULD result in severe personal injury or death.

WARNING

CAUTION – Hazards or unsafe practices which COULD result in minor personal injury.

CAUTION

What You Need to Know About Safety Instructions

Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating appliance.

Always contact your dealer, distributor, service agent or manufacturer about problems or conditions you do not understand.

Recognize Safety Symbols, Words, Labels

WARNING! FIRE HAZARD

Do not place into your dryer items that have been spotted or soaked with vegetable oil or cooking oil. Even after being washed, these items may contain significant amounts of these oils. The remaining oil can ignite spontaneously. The potential for spontaneous ignition increases when the items containing vegetable oil or cooking oil are exposed to heat. Heat sources, such as your clothes dryer, can warm these items, allowing an oxidation reaction in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing these kinds of items may prevent heat from escaping and can create a fire hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous. Washing these items in hot water with extra detergent will reduce, but will not eliminate, the hazard. Always use the Cool Down cycle for these items to reduce the items’ temperature. Never remove these items from the clothes dryer hot or interrupt the drying cycle until the items have run through the Cool Down cycle. Never pile or stack these items when they are hot.

Installer: Please leave this manual with this appliance.

Consumer: Please read and keep this manual for future reference. Keep sales receipt and/or canceled check as proof of purchase.

Model Number _______________________________

Serial Number ________________________________

Date of Purchase______________________________

If you have questions, call: 1-800-688-9920 U.S.A. and 1-800-688-2002 Canada

(Mon.–Fri. 8 a.m.–8 p.m. Eastern Time) U.S.A. Customers using TTY for deaf, hearing

impaired or speech impaired, call 1-800-688-2080. In our continuing effort to improve the quality and

performance of our appliances, it may be necessary to make changes to the appliance without revising this guide.

For service information, see page 9.

1. Read all instructions before using the appliance.

2. To avoid the possibility of fire or explosion: a. Do not dry items that have been previously

cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode. Any material on which you have used a cleaning solvent, or which is saturated with flammable liquids or solids, should not be placed in the dryer, until all traces of these flammable liquids or solids and their fumes have been removed. There are many highly flammable items used in homes, such as: acetone, denatured alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes and wax removers.

b. Items containing foam rubber (may be labeled

latex foam) or similarly textured rubber-like materials must not be dried on a heat setting. Foam rubber materials when heated, can under certain circumstances produce fire by spontaneous combustion.

3. Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is necessary when the appliance is used near children and pets.

4. Before the appliance is removed from service or discarded, remove the door to the drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in published user-repair instructions that you understand and have the skills to carry out.

9. Do not use fabric softeners or products to eliminate static unless recommended for dryer use by the manufacturer of the fabric softener or product.

To reduce the risk of fire, explosion, electric shock, or personal injury when using your dryer, follow basic safety precautions, including the following:

WARNING

Gas leaks may occur in your system and result in a dangerous situation. Gas leaks may not be detected by smell alone. Gas suppliers recommend you purchase and install an UL approved gas detector. Install and use in accordance with the manufacturer's instructions.

WARNING

10. Clean the lint screen before or after each load.

11. Keep the area around the exhaust opening and surrounding areas free from lint accumulation, dust and dirt.

12. The interior of the dryer and exhaust duct should be cleaned periodically by qualified service personnel.

13. This appliance must be properly grounded. Never plug the appliance cord into a receptacle which is not grounded adequately and in accordance with local and national codes. See installation instructions for grounding this appliance.

14. Do not sit on top of the clothes dryer.

Important Safety Notice & Warning

The California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition 65) requires the Governor of California to publish a list of substances known to the State of California to cause cancer or reproductive harm, and requires businesses to warn customers of potential exposures to such substances.

Users of this appliance are hereby warned that the burning of gas can result in low–level exposure to some of the listed substances, including benzene, formaldehyde, and soot, due primarily to the incomplete combustion of natural gas or liquid petroleum (LP) fuels. Exhaust ducts should be kept free of obstructions and properly exhausted dryers will minimize exposure.

Important Safety Instructions

SAVE THESE INSTRUCTIONS

STEP 2

STEP 1

Using the Controls

Select Temperature

In order to select the correct temperature, turn the temperature control to Regular, Delicate or Air Fluff.

DRYER TEMPS

Regular

Delicate

Air Fluff

LOAD TYPE

Sturdy cottons or labels marked Tumble Dry.

For heat sensitive items labeled Tumble Dry Low or Tumble Dry Medium.

Items which need freshening. Load tumbles with room temperature air.

Select Signal

End of Cycle Signal

When the cycle is complete, a signal will sound several times. To turn the signal off, turn the End of Cycle Signal control to off.

Select Cycle

To select a cycle, rotate the control dial to the desired setting. When using an Auto Dry cycle, the control dial should point between More Dry and Less Dry for most loads.

Loads of larger or bulkier size may require the More Dry setting to completely dry the load. The Less Dry setting is best suited for lightweight fabrics or for leaving some moisture in the clothing at the end of the cycle.

Auto Dry Regular Fabrics

The Auto Dry Regular Fabrics cycle is designed to dry most cottons and linens. At the end of the cycle, the clothes are cooled for approximately 10 minutes to reduce wrinkling.

Auto Dry Wrinkle-Free Fabrics

The Auto Dry Wrinkle-Free Fabrics cycle is designed to dry wrinkle free cottons, synthetic fabrics and permanent press fabrics automatically.

STEP 3

Note

• Using the Air Fluff temperature setting will require a longer drying time.

Note

• The dial can be turned in either direction to select a cycle. Once started, the dial will not advance at a specific rate during the Auto Dry cycles. At first the dial may not advance at all. Toward the end of the cycle (when the load begins to dry), the dial will advance at a more regular rate and much more quickly. This is normal operation.

Special Options (select models)

Damp Dry is located on the Time Dry section of the

dial. It is designed to partially dry items and can be used with any temperature selection. Damp Dry will provide 20 minutes of tumbling time, followed by five minutes of cool-down tumbling.

Touch Up will release wrinkles from items that are clean and dry but only slightly wrinkled, such as from a crowded closet or suitcase, or from sitting in the dryer too long after the cycle has ended. Touch Up provides 10 minutes of tumbling followed by five minutes of cool-down tumbling and can be used with any temperature selection.

Time Dry

This cycle can be used to regulate the drying time. Use with Air Fluff, Delicate or Regular temperature settings. For timed drying, turn the control dial clockwise until the pointer points to the proper time setting in the Time Dry cycle.

STEP 4

Push the Control Dial in to Start

Push the control dial in to start the dryer. The dryer door must be closed for the dryer to start.

Operating Tips

Note

• Do not operate the dryer without the lint filter in place.

Clean the Lint Filter

• After each load.

• To shorten drying time.

• To operate more energy efficiently.

Load the Dryer Properly

• Place only one washload in the dryer at a time.

• Mixed loads of heavy and lightweight clothes will dry differently. Lightweight clothes will dry, while heavy clothes may be damp.

• Add one or more similar items to the dryer when only one or two articles need drying. This improves the tumbling action and drying efficiency.

• Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some fabrics.

LAUNDERING TIPS

• Follow the care label instructions or dry on the Regular cycle.

• Be sure the item is thoroughly dry before using or storing.

• May require repositioning to ensure even drying.

• Dry only one blanket at a time for best tumbling action.

• Be sure the item is thoroughly dry before using or storing.

• Use the Wrinkle Free Fabrics cycle to help minimize wrinkling.

• Dry in small loads for best results and remove as soon as possible.

• Use the Regular cycle for soft, fluffy diapers.

• Use the Regular cycle and a delicate temperature setting.

• Place a clean pair of sneakers in the dryer with the item to fluff the down comforters, etc. Adding a couple of dry towels shortens dry time and absorbs moisture.

• DO NOT dry on a heat setting. Use the Time Dry cycle (no heat).

• WARNING – Drying a rubber item with heat may damage it or be a fire hazard.

• DO NOT dryer-dry kapok or foam pillows.

• Use the Regular cycle.

• Add a couple of dry towels and a pair of clean sneakers to help the tumbling action and to fluff the item.

• Use the Time Dry cycle on a Delicate or Air Fluff temperature depending on the care label instructions.

ITEM

Bedspreads and Comforters

Blankets

Curtains and Draperies

Cloth Diapers Down-Filled

Items

(jackets, sleeping bags, comforters,etc.)

Foam Rubber

(rug backs, stuffed toys, certain shoulder pads,etc.)

Pillows

Plastics

(shower curtains, outdoor furniture covers,etc.)

Special Laundry Tips

Please follow the care label or manufacturer’s instructions for drying special items. If care label instructions are not available, use the following information as a guide.

Dryer Rack

Note

• Do not place hands in dryer while drum is rotating.

Care & Cleaning

Control Panel

Clean with a soft, damp cloth. Do not use abrasive substances.

Tumbler

Remove any stains (such as crayon, ink pen or fabric dye) with soap and water. Then tumble clean old towels or rags to remove any excess stain.

Cabinet

Wipe off any marks with soap and water. Use an appliance wax once a year if desired.

Dryer Exhaust System

Inspect and clean once a year to maintain optimum performance. The outside exhaust hood should be cleaned more frequently to ensure proper operation. (Refer to the Installation Instructions for more information.)

Replacing the Drum Light

(select models)

1. Unplug or disconnect the dryer from the power supply.

2. Lift top of dryer by inserting a putty knife under top, 4" in from each side.

3. Rotate bulb holder to vertical position before removing bulb.

4. Push bulb down and rotate counterclockwise to remove.

5. Replace with a 25 watt, 115/125 volt twist lock utility light Part No. 53-0570 or equivalent. Place bulb in socket, push down and rotate clockwise.

6. Rotate bulb holder to horizontal position.

7. Place top of dryer back in original position. Make sure metal tabs hold top in place.

8. Reconnect dryer to power supply.

Use the removable drying rack for boots, sneakers, fragile sweaters, nylon stockings – any items that might be damaged by tumbling.

To use the rack:

1. Position L-shaped legs against round inset at back of dryer.

2. Rest the two front legs on either side of the lint screen.

3. Check to see that the rack is securely in position.

4. Place items to be dried on top of the rack. Allow space for air to circulate. Items should not hang over the edge, between the supports, or touch any other part of dryer. NOTE: The rack does not move, but the drum rotates around the rack.

5. Close dryer door.

6. Use TIME DRY CYCLE. Select temperature Regular, Delicate or Air Fluff, depending on the item.

7. Some items may need to be rotated from front to back or refolded to dry inner layers – check periodically.

8. To remove rack, simply grasp sides with hands and lift out.

Read the installation instructions and the use and care guide.

Let your dryer exhaust the air easily.

Use 4" diameter rigid metal duct. Tape all joints, including at the dryer. Never use lint-trapping screws.

Keep duct runs as straight as possible.

Clean all old ducts before installing your new dryer. Be sure vent flap opens and closes freely. Inspect and clean the exhaust system annually.

Don’t

Allow crushed or clogged ducts and vent.

Don’t

Use longer than necessary duct runs with many elbows.

Don’t

Use plastic, thin foil, or non-metal flexible duct.

Don’t

Restrict your dryer with a poor exhaust system.

Don’t

Let a poor exhaust system cause slow drying.

Plastic or nonmetal flexible duct presents a potential fire hazard.

WARNING

Dryer Exhaust Tips

Troubleshooting

• Be sure the door is shut.

• Is the electrical cord plugged in?

• Has a fuse blown or the circuit breaker tripped?

• Push the control dial in again if the door was opened during the cycle.

• Has a fuse blown or the circuit breaker tripped?

• Select a heat setting, not air fluff.

• Check that the gas supply is on for gas dryers.

• Clean the lint filter and exhaust duct.

• Dryer timer may have moved into the cool-down portion of the cycle.

• Check all of the above, plus . . .

• Check the exhaust hood outside the house, does it open and close freely?

• Check exhaust system for lint buildup. Ducting should be inspected and cleaned annually.

• Use rigid 4" metal exhaust duct.

• Do not overload. 1 wash load = 1 dryer load.

• Sort heavy items from lightweight items.

• Large, bulky items like blankets or comforters may require repositioning to ensure even drying.

• Check the washer to be sure it is draining properly to extract water from the load.

• Clothes load is too small to tumble properly. Add a few towels.

• Check the load for objects such as coins, nails, etc. Remove promptly from dryer.

• It is normal to hear the dryer gas valve or heating element cycle on and off during the drying cycle.

• The dryer should be level and installed on a solid floor.

• A clicking noise may be the timer advancing.

• It is normal for the dryer to hum due to the high velocity of air moving through the dryer drum and exhaust system.

• This is normal operation for an Auto Dry cycle, especially at the beginning of cycle. Once the load begins to dry, the control knob will start to advance. The rate of advancement will be slow at the beginning of the cycle because there is more moisture in the load. As the load becomes more dry, the control knob will advance more quickly.

• Seams, pockets and other similar heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal. Select the More Dry setting if desired.

• If one heavy item is dried with a lightweight load, such as one towel with sheets, it is possible that the heavy item will not be completely dry when the rest of the load has reached the selected dryness level. Sort heavy items from lightweight items for best drying results.

• Household odors such as from painting, varnishing, strong cleaners, etc. may enter the dryer with the surrounding room air. This is normal as the dryer draws the air from the room, heats it, pulls it through the tumbler and exhausts it to the outside. When these odors are present in the air, ventilate the room completely before using the dryer.

For further assistance contact Maytag ServicesSM, Customer Assistance: U.S.A. 1-800-688-9920 and Canada 1-800-688-2002.

U.S.A. Customers using TTY for deaf, hearing impaired or speech impaired, call 1-800-688-2080.

Doesn’t Run

Doesn’t Heat

Doesn’t Dry Properly

Is Noisy

Control Knob Advances Slowly

Dries Unevenly

Has an Odor

To Obtain Warranty Service

To locate an authorized service company in your area, contact the dealer from whom your appliance was purchased; or call Maytag Services

, Customer Assistance. Should you not

receive satisfactory warranty service, please call or write:

Maytag Services

Attn: CAIR®Center P.O. Box 2370 Cleveland, TN 37320-2370

1-800-688-9920 U.S.A. and 1-800-688-2002 Canada U.S.A. Customers using TTY for deaf, hearing impaired or speech impaired, call 1-800-688-2080.

Note

• When contacting Maytag ServicesSM, Customer Assistance about a service problem, please include the following:

a. Your name, address and telephone number; b. Model number and serial number (found on the

back center of the control panel) of your appliance;

c. Name and address of your dealer and the date the

appliance was purchased; d. A clear description of the problem you are having; e. Proof of purchase.

Dryer Warranty

Full One Year Warranty

For one (1) year from the date of original retail purchase, any part which fails in normal home use will be repaired or replaced free of charge.

Please Note: This full warranty applies when the dryer is located in the United States or Canada.

Canadian Residents

This warranty covers only those dryers installed in Canada that have been listed with the Canadian Standards Association unless the dryers are brought into Canada due to transfer of residence from the United States to Canada.

The specific warranties expressed above are the ONLY warranties provided by the manufacturer. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

Service & Warranty

What is Not Covered By These Warranties:

1. Conditions and damages resulting from any of the following:

a. Improper installation, delivery or maintenance. b. Any repair, modification, alteration, or adjustment not

authorized by the manufacturer or an authorized

servicer. c. Misuse, abuse, accidents or unreasonable use. d. Incorrect electric current, voltage or supply. e. Improper setting of any control.

2. Warranties are void if the original serial numbers have been removed, altered or cannot be readily determined.

3. Light bulbs.

4. Products purchased for commercial or industrial use.

5. The cost of service or service call to:

a. Correct installation errors. b. Instruct the user on the proper use of the product. c. Transport the appliance to the servicer.

6. Consequential or incidental damages sustained by any person as a result of any breach of these warranties.

Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above exclusion may not apply.

+ 22 hidden pages
