ADLink M-815E User Manual

Socket 370 Micro ATX Industrial MB for

Pentium® III /Celeron® Processors with

VGA/USB 2.0

User’s Guide

M-815E

Copyright 2004 ADLINK TECHNOLOGY INC.

All Rights Reserved.

Manual Rev. 1.00: January 16, 2004

Part No: 50-13044-100

The information in this document is subject to change without prior notice in
order to improve reliability, design, and function and does not represent a
commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to use
the product or documentation, even if advised of the possibility of such
damages.

This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.

Trademarks

M-815E is a registered trademark of ADLINK Technology Inc.

Other product names mentioned herein are used for identification purposes
only and may be trademarks and/or registered trademarks of their respective
companies.

Getting Service from ADLINK

Customer Satisfaction is top priority for ADLINK TECHNOLOGY INC. If you
need any help or service, please contact us.

ADLINK TECHNOLOGY INC.

Web Site http://www.adlinktech.com
Sales & Service [e-mail]
TEL [phone] FAX [phone]
Address 9F, No. 166, Jian Yi Road, Chungho City, Taipei, 235 Taiwan

Please email or FAX your detailed information for prompt, satisfactory, and
consistent service.

Detailed Company Information

Company/Organization
Contact Person
E-mail Address
Address
Country
TEL FAX
Web Site

Questions

Product Model

OS:
Computer Brand:
M/B: CPU:

Environment

Detail Description

Chipset: BIOS:
Video Card:
NIC:
Other:

Suggestions for ADLINK

Table of Contents

Introduction ........................................................................1

1.1 Features .................................................................................... 2

1.2 Specifications ............................................................................ 3

Getting Started....................................................................5

2.1 What’s Included......................................................................... 5

2.2 Unpacking ................................................................................. 6

2.3 Pinouts....................................................................................... 7

2.4 Jumper Settings ...................................................................... 17

Driver Installation.............................................................19

3.1 Intel(R) Chipset Software Installation Utility Installation.......... 19

3.2 VGA Driver Installation ............................................................ 21

3.3 LAN Driver Installation............................................................. 22

3.4 USB 2.0 Driver Installation ...................................................... 23

3.5 AUDIO Driver Installation ........................................................ 25

Warranty Policy ................................................................ 27

How to Use This Guide

This manual is designed to assist users in understanding the M-815E and
describes how to modify settings to meet specific application requirements.

Chapter 1 Introduction

Overview of product features, applications, and specifications.

Chapter 2 Getting Started

Describes unpacking and illustrates connector pin assignments.

Chapter 3 Installation

Describes setup and installation.

How to Use This Guide • iii

1

Introduction

M-815E is a low-cost, Intel Architecture (IA), Micro-ATX form factor,
computer motherboard, targeted to run Windows NT, 2000, and Linux. M­815E is based on the Intel PGA370 socket processor with the Intel 815E
AGP set. It accommodates either the Pentium III or Celeron processor.

Introduction • 1

1.1 Features

• Socket 370 for Intel® Pentium® III / Celeron™ Processors, up to

1.4GHz

®

• Intel

• Memory supports 133/100MHz SDRAM, up to 512MB

• Intel

• AC97 Audio Codec, 2 x USB 2.0 ports / 2 x COM ports

• 3 x PCI / 2 x ISA Slots, 1 Type II CompactFlash

• WatchDog Timer & Hardware monitoring

815E Chipsets + ICH2, 133/100MHz FSB

®

82562EM Fast Ethernet LAN, Support 10/100 Base-TX

Ethernet

2 • Introduction

1.2 Specifications

Standards Micro ATX

Form Factor

CPU/Cache

Front Side Bus Speed 133/100MHz

Chipset

BIOS Award 4Mb flash memory

RAM

VGA

Ethernet

IDE ATA-100, dual channels

Floppy Standard 34-pin connector

USB

Super I/O

Hardware Monitoring

Watchdog Timer

Audio Integrated Audio Controllers with AC'97 Interface

External Power Connector One ATX type connector

Extension slot

Operating Temp. 0 to 55°C

Storage Temp. -20 to 80°C
Relative humidity 10% to 90% (Non-Condensing)
Certificate or Test CE, FCC class A, HALT

Standard Micro ATX Motherboard
Dimensions: 244(L)x244(W)mm
Intel Socket 370 FC-PGA2 Pentium III with 512KB on-die L2

cache @ full core speed & 133MHz FSB

Intel Socket 370 FC-PGA Pentium III with 256KB on-die L2

cache @ full core speed & 100/133MHz FSB

Intel Socket 370 FC-PGA Celeron with 128KB on-die L2

cache @ full core speed & 66/100MHz FSB

VIA Socket 370 FC-PGA C3 with 64/128KB L2 cache @ full

core speed and 100/133MHz FSB

Intel® 815E Integrated Gfx Memory Control Hub(GMCH),

ICH2

Two 168-pin DIMM sockets, Max. 512MB un-buffered PC-

133 SDRAM

Intel 815E build-in hyper-pipelined architecture 3D graphics

engine,4MB Video Cache for optimized performance,
AGP 4X, ACPI, and VESA compliant

One 10/100 Fast Ethernet ports by Intel 82562 Ethernet

Controller

Supports 2 x USB 2.0 ports
Supports 2 x USB 1.1 ports
Winbond W83627HF, Two 16C550 UART compatible RS-

232 COM ports with ESD protection up to 2kV
Printer Port Supported
Monitoring CPU temperatures, FAN speed, system

temperature, and Vcore, and DC voltages
1-255 sec or 1-255 min software programmable, can

generate NMI or system resets.

3 x PCI slots
2 x ISA slots
1 x Type II CompactFlash

Introduction • 3

2

Getting Started

This chapter describes how to prepare the M-815E for installation. Please
carefully review the unpacking information before removing the product.
Optional settings are also specified below.

2.1 What’s Included

In addition to this User's Manual, the package includes the following item:

• M-815E Motherboard

If anything is missing or damaged, contact the dealer the product was
purchased. Save the shipping materials and carton to ship or store the
product in the future.

Getting Started • 5

2.2 Unpacking

The M-815E contains sensitive electronic components that can be easily
damaged by static electricity.

Prepare a grounded anti-static mat. The operator should be wearing an anti­static wristband, grounded at the same point as the anti-static mat.

Inspect the card module carton for obvious damage. Shipping and handling
may cause damage to the module. Be sure there is no obvious damage due
to shipping and handing by examining the shipping box.

After opening the card module carton, extract the system module and place it
only on a grounded anti-static surface, component side up.

Note: DO NOT APPLY POWER TO THE CARD IF IT HAS BEEN

DAMAGED.

6 • Getting Started

2.3 Pinouts

CN1: CPU FAN connector

CN2: PS2 KB/MS connector

PIN SIGNAL FUNCTION COMMENTS

1 KBDAT_FB_L Keyboard Data
2 NC No Connect
3 KYMSE_GND Ground
4 KB5V_FB Power
5 KBCLK_FB_L Keyboard Clock
6 NC No Connect
7 MSDAT_FB_L Mouse Data
8 NC No Connect

9 KYMSE_GND Ground
10 KB5V_FB Power
11 MSCLK_FB_L Mouse Clock

12 NC No Connect

PIN SIGNAL

1 GND
2 Fan power
3 Fan speed

Keyboard Interface
(Bottom connector)

Mouse Interface
(TOP connector)

CN3: SYS FAN connector

PIN SIGNAL

1 GND
2 Fan power
3 Fan speed

Getting Started • 7

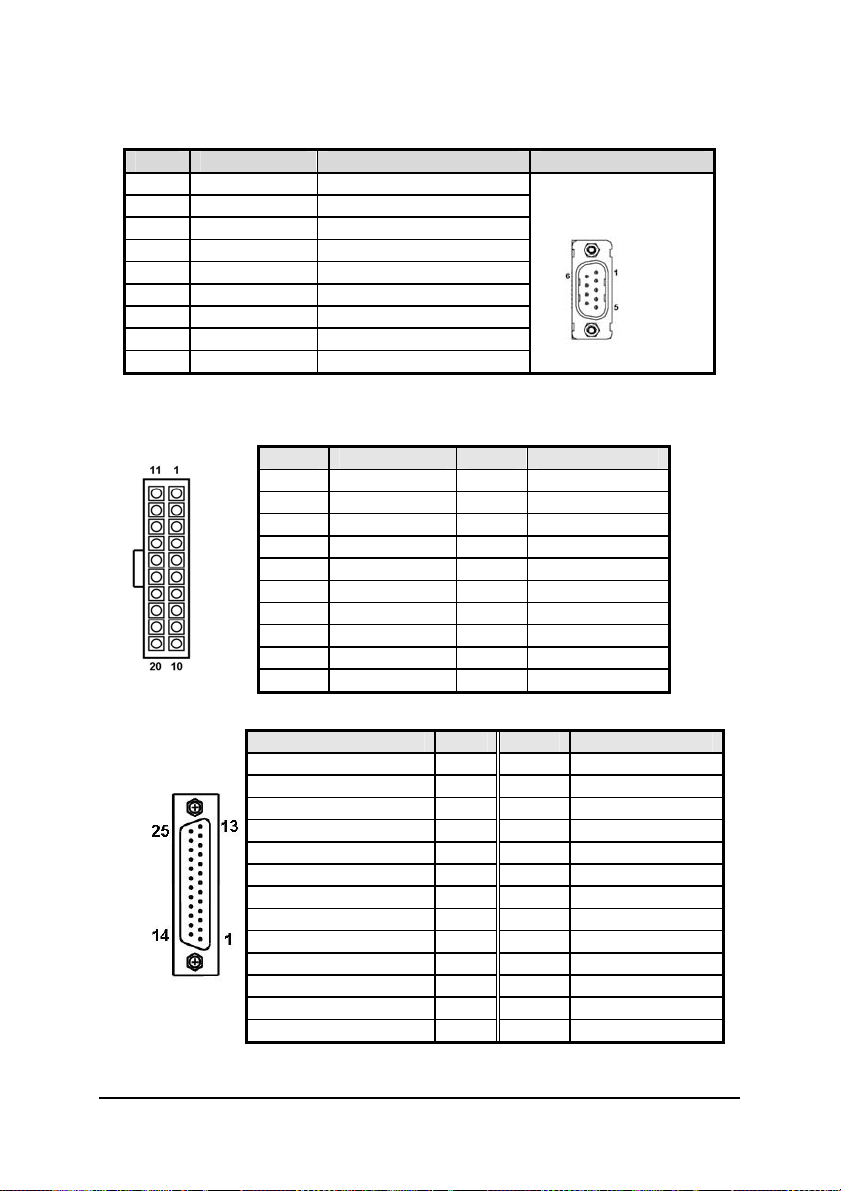

CN4: COM1 DB-9 connector

PIN SIGNAL FUNCTION COMMENTS

P1 SP_DCD0 Data Carrier Detect
P2 SP_RXD0 Receive Data
P3 SP_TXD0 Transmit Data
P4 SP_DTR0 Data Terminal Ready
P5 SRL_GND Ground
P6 SP_DSR0 Data Set Ready
P7 SP_RTS0 Request to Send
P8 SP_CTS0 Clear to Send
P9 SP_RI0 Ring Indicate

COM1 Serial Port
(Left Connector)

CN5: ATX 20-pin power connector

PIN SIGNAL PIN SIGNAL

1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 GND 13 GND
4 +5V 14 PS_ON#
5 GND 15 GND
6 +5V 16 GND
7 GND 17 GND
8 PWRGOOD 18 -5V
9 STB5V 19 +5V

10 +12V 20 +5V

CN6: Parallel port DB-25 connector

SIGNAL NAME PIN PIN SIGNAL NAME

Line printer strobe 1 14 AutoFeed
PD0, parallel data 0 2 15 Error
PD1, parallel data 1 3 16 Initialize
PD2, parallel data 2 4 17 Select In
PD3, parallel data 3 5 18 Ground
PD4, parallel data 4 6 19 Ground
PD5, parallel data 5 7 20 Ground
PD6, parallel data 6 8 21 Ground
PD7, parallel data 7 9 22 Ground

ACK, acknowledge 10 23 Ground

Busy 11 24 Ground

Paper empty 12 25 Ground

Select 13

8 • Getting Started

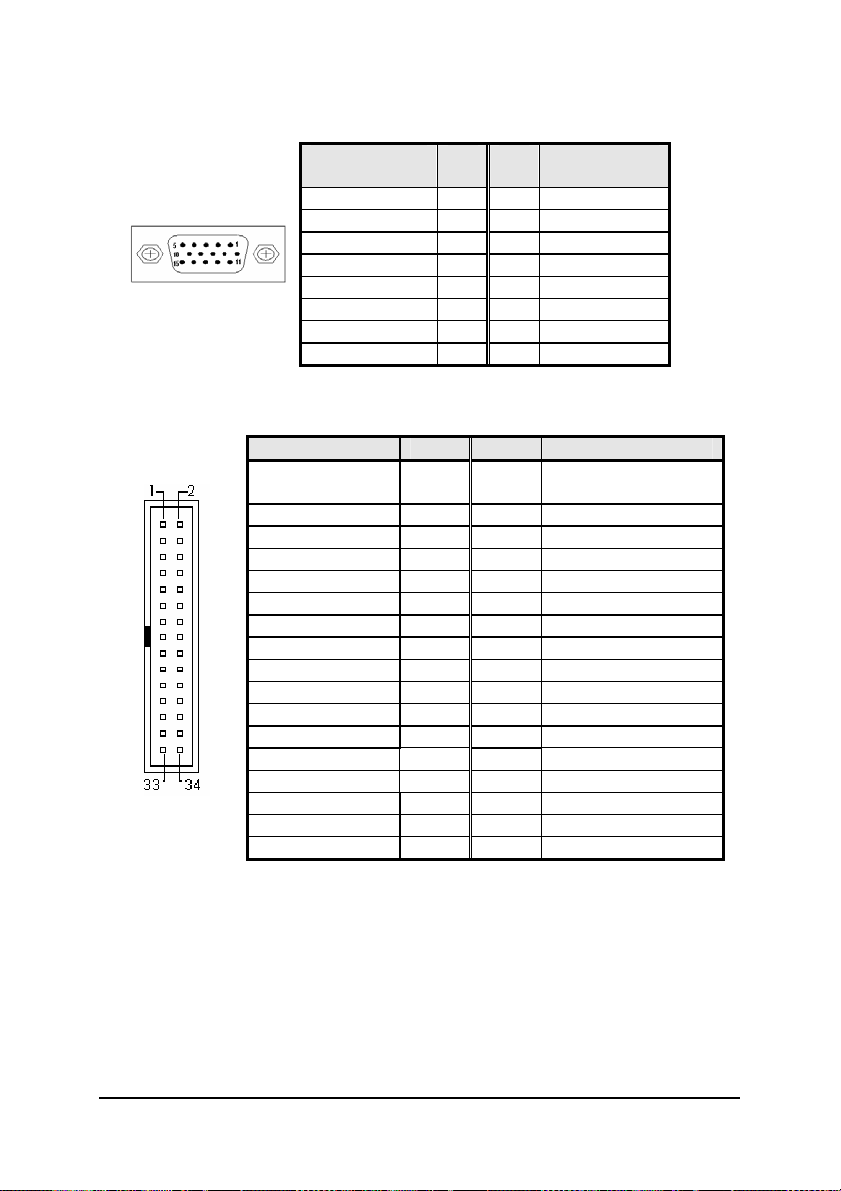

CN7: VGA CRT connector

SIGNAL

NAME

Red 1 2 Green

Blue 3 4 VCC pull-up
GND 5 6 GND
GND 7 8 GND

VCC 9 10 GND

VCC pull-up 11 12 DDC2B data

HSYNC 13 14 VSYNC

DDC2B clock 15

CN8: Floppy connector

SIGNAL NAME PIN PIN SIGNAL NAME

Ground 1 2

Ground 3 4 N.C.

N.C. 5 6 N.C.
Ground 7 8 Index
Ground 9 10 Motor enable 0 (1)
Ground 11 12 Drive select 1
Ground 13 14 Drive select 0 (1)
Ground 15 16 Motor enable 1
Ground 17 18 Direction
Ground 19 20 Step
Ground 21 22 Write data
Ground 23 24 Write gate
Ground 25 26 Track 00
Ground 27 28 Write protect
Ground 29 30 Read data
Ground 31 32 Side 1 select
Ground 33 34 Diskette change

PIN PIN SIGNAL

NAME

Drive density

selection

Getting Started • 9

CN10: RJ-45 LAN connector + USB 1.1 x2 connector

PIN SIGNAL FUNCTION

1 TDP Transmit Data(+)
2 TDN Transmit Data(-)
3 RDP Receive Data(+)
4 LANCT1 Termination
5 LANCT2 Termination
6 RDN Receive Data(-)
7 N.C. No Connect
8 GND Ground

PIN SIGNAL NAME

1 VCC
2 USB1.1­3 USB1.1+
4 Ground

CN11: Compact flash type I/II connector

Signal Name Pin Pin Signal Name

GND 1 26 GND
SDD3 2 27 SDD11
SDD4 3 28 SDD12
SDD5 4 29 SDD13
SDD6 5 30 SDD14
SDD7 6 31 SDD15

SDCS#1 7 32 SDCS#3

GND 8 33 GND

GND 9 34 SDIOR#

GND 10 35 SDIOW#

GND 11 36 +5V

GND 12 37 IDEIRQ15

+5V 13 38 +5V
GND 14 39 PCSEL
GND 15 40 NC
GND 16 41 SIDERST#
GND 17 42 SIORDY

SDA2 18 43 NC
SDA1 19 44 SDDACK#
SDA0 20 45 IDEACT#
SDD0 21 46 S66DECT
SDD1 22 47 SDD8

10 • Getting Started

SDD2 23 48 SDD9

IOIS16# 24 49 SDD10

GND 25 50 GND

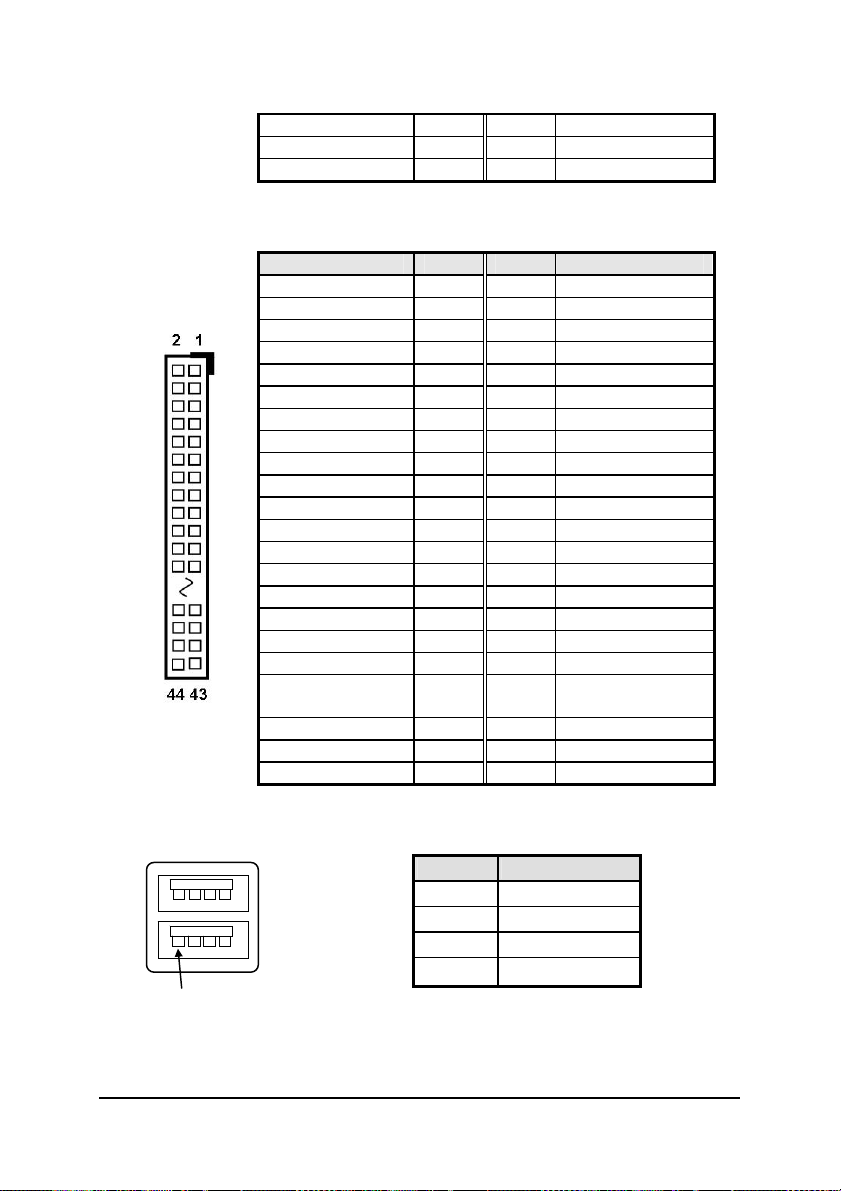

CN12, 13: IDE1,2 40-pin connector

SIGNAL NAME PIN PIN SIGNAL NAME

Reset IDE 1 2 GND
PIDE Data 7 3 4 PIDE Data 8
PIDE Data 6 5 6 PIDE Data 9
PIDE Data 5 7 8 PIDE Data 10
PIDE Data 4 9 10 PIDE Data 11
PIDE Data 3 11 12 PIDE Data 12
PIDE Data 2 13 14 PIDE Data 13
PIDE Data 1 15 16 PIDE Data 14
PIDE Data 0 17 18 PIDE Data 15

Ground 19 20 KEY
DREQ0 21 22 GND

IDEIOW# 23 24 GND

IDEIOR# 25 26 GND

IDEIORDY 27 28 CBSEL

DACK0# 29 30 GND

IDEIRQ14 31 32 SCSEL

PIDE Address 1 33 34 PDIAG#
PIDE Address 0 35 36 PIDE Address 2

PIDE Chip select

1#

PIDE activity 39 40 GND

VCC 41 42 VCC
GND 43 44 N.C.

37 38

PIDE Chip select

3#

CN14: USB2.0 x2 connector

Port 1

Port 2

PIN SIGNAL NAME

1 VCC
2 USB­3 USB+
4 Ground

Getting Started • 11

2

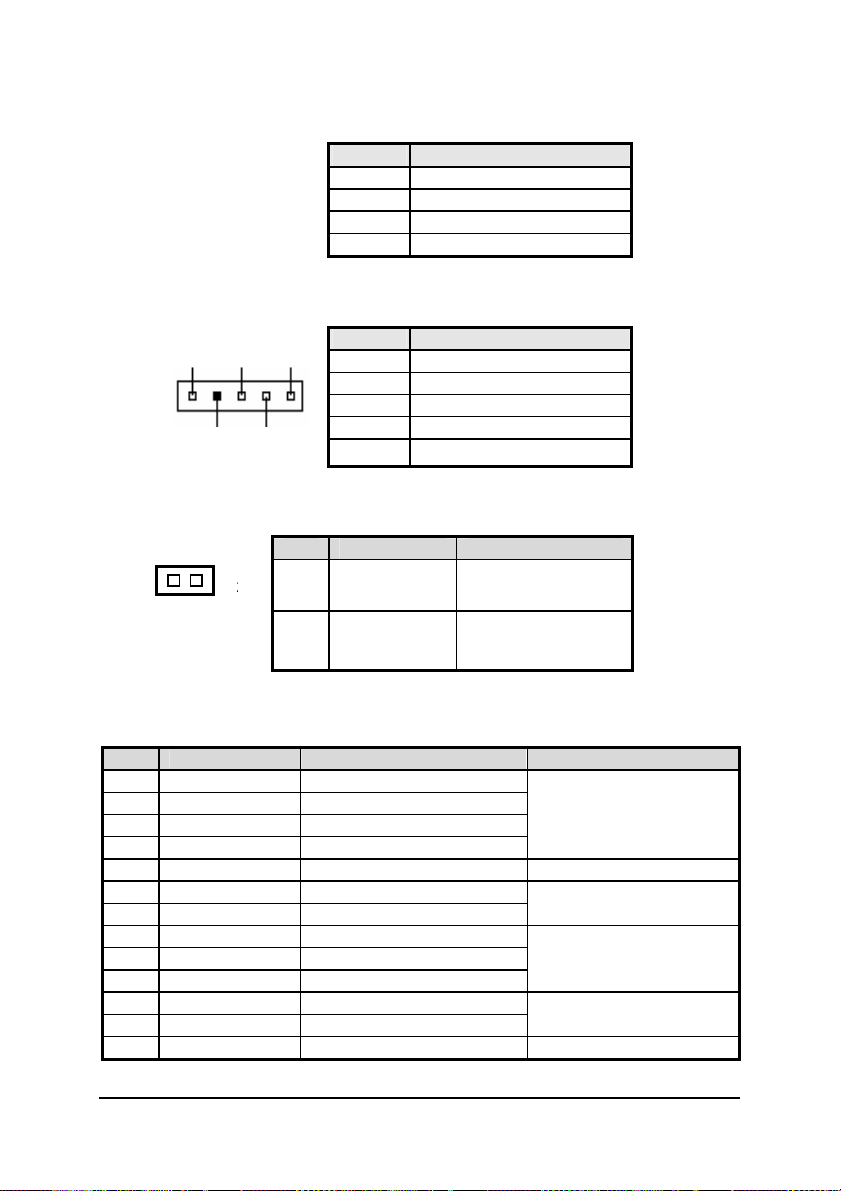

CN15: CD-IN

PIN SIGNAL NAME

1 CD audio right channel
2 GND
3 GND
4 CD audio left channel

CN16: IrDA connector

+3.3V IrRXD IrTXD

N.C. GND

PIN SIGNAL NAME

1 +3.3V
2 No connect
3 IrRXD
4 Ground
5 IrTXD

CN17: External thermal sensor connector

1

PIN SIGNAL FUNCTION

1 TSEN_I

2 TSEN_G

Thermal resistor

Thermal resistor

input

Ground

CN19: General Purpose System Signals

PIN SIGNAL FUNCTION PIN GROUP

1 WDSPK Speaker signal
2 NC
3 NC
4 +5V Power
5 NC
6 GND Ground
7 KEYLOCK Keyboard lock
8 PLED Power LED signal

9 NC
10 +5V Power LED pull-up
11 GND Ground
12 RESETBT RESET signal
13 NC

12 • Getting Started

Chassis Speaker

Key Lock

Power LED

RESET button

14 GND Ground
15 POWERBT Power-on signal
16 NC
17 NC
18 HDDLED Hard Disk LED signal
19 +5V Hard Disk LED pull-up
20 NC

Power on button

Hard Disk LED

CN20: COM2 Serial Ports

PIN RS-232

1

2 RXD, Receive data
3 TXD, Transmit data

4

5 GND, ground
6 DSR, Data set ready
7 RTS, Request to send
8 CTS, Clear to send
9 RI, Ring indicator

10 NC

DCD, Data carrier

detect

DTR, Data terminal

ready

CN21: USB 1.1 pin header

7

1
2

PIN PIN SIGNAL NAME

1 2 VCC
3 4 USB0- / USB1­5 6 USB0+ / USB1+
7 8 Ground

CN22: External LAN LED connector

4

2

3

1

PIN FUNCTION

1-2 Speed 10/100
3-4 LINK/ACTIVE#

Getting Started • 13

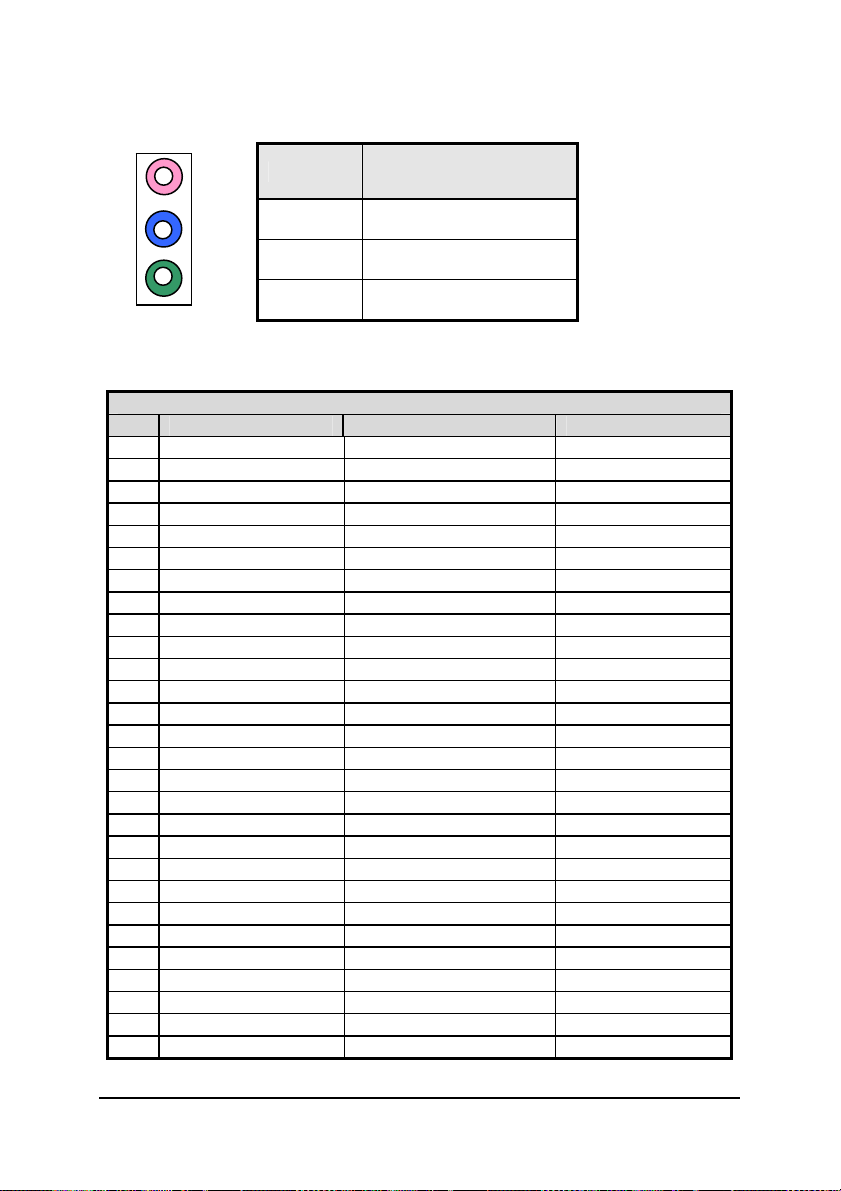

PH1: Three-in-one audio phone jack

SIGNAL NAME

PINK MIC IN

LINE-IN LINE IN

LINE-OUT LINE OUT

PCI slots (PCI1, PCI2, PCI3)

5V BOARD PCI REVISION 2.1

PIN SIDE B SIDE A COMMENTS

1 -12V TRST_L 32-bit start
2 TCK +12V
3 Ground TMS
4 TDO TDI
5 +5V +5V
6 +5V INTA_L
7 INTB_L INTC_L
8 INTD_L +5V

9 PRSNT1_L Reserved
10 Reserved +5V
11 PRSNT2_L Reserved
12 Ground Ground 3.3V key
13 Ground Ground 3.3V key
14 Reserved Reserved
15 Ground RST_L
16 CLK +5V
17 Ground GNT_L
18 REQ_L Ground
19 +5V Reserved
20 AD[31] AD[30]
21 AD[29] +3.3V
22 Ground AD[28]
23 AD[27] AD[26]
24 AD[25] Ground
25 +3.3V AD[24] +3.3V
26 C/BE[3]_L IDSEL
27 AD[23] +3.3V
28 Ground AD[22]

14 • Getting Started

5V BOARD PCI REVISION 2.1

PIN SIDE B SIDE A COMMENTS

29 AD[21] AD[20]
30 AD[19] Ground
31 +3.3V AD[18]
32 AD[17] AD[16]
33 C/BE[2]_L +3.3V
34 Ground FRAME_L
35 IRDY_L Ground
36 +3.3V TRDY_L
37 DEVSEL_L Ground
38 Ground STOP_L
39 LOCK_L +3.3V
40 PERR_L Reserved
41 +3.3V Reserved
42 SERR_L Ground
43 +3.3V PAR
44 C/BE[1]_L AD[15]
45 AD[14] +3.3V
46 Ground AD[13]
47 AD[12] AD[11]
48 AD[10] Ground
49 Ground AD[09]
50 KEYWAY KEYWAY 5V key
51 KEYWAY KEYWAY 5V key
52 AD[08] C/BE[0]_L
53 AD[07] +3.3V
54 +3.3V AD[06]
55 AD[05] AD[04]
56 AD[03] Ground
57 Ground AD[02]
58 AD[01] AD[00]
59 +5V +5V
60 ACK64_L REQ64_L
61 +5V +5V
62 +5V +5V 32-bit end

Getting Started • 15

ISA slot

5V BOARD ISA SLOT

PIN SIDE B SIDE A COMMENTS

1 GND IOCHK#
2 RSTDRV SD7
3 +5V SD6
4 IRQ9 SD5
5 +5V SD4
6 DRQ2 SD3
7 -12V SD2
8 NOWS# SD1

9 +12V SD0
10 GND IOCHRDY
11 SMEMW# AEN
12 SMEMR# SA19
13 IOW# SA18
14 IOR# SA17
15 DACK#3 SA16
16 DRQ3 SA15
17 DACK#1 SA14
18 DRQ1 SA13
19 REFSH# SA12
20 SYSCLK SA11
21 IRQ7 SA10
22 IRQ6 SA9
23 IRQ5 SA8
24 IRQ4 SA7
25 IRQ3 SA6
26 DACK#2 SA5
27 TC SA4
28 BALE SA3
29 +5V SA2
30 OSC SA1
31 GND SA0

KEY

PIN SIDE D SIDE C COMMENTS

1 MCS16# SBHE#

2 IOCS# LA23

3 IRQ10 LA22

4 IRQ11 LA21

5 IRQ12 LA20

6 IRQ14 SA19

16 • Getting Started

7 IRQ15 SA18

8 DACK#0 SA17

9 DRQ0 MEMR#
10 DACK#5 MEMW#
11 DRQ5 SD8
12 DACK#6 SD9
13 DRQ6 SD10
14 DACK#7 SD11
15 DRQ7 SD12
16 +5V SD13
17 MASTER# SD14
18 GND SD15

2.4 Jumper Settings

JP1 ：Clear CMOS jumper

The RTC RAM data containing the date, time, and password
information, is powered by the onboard button cell battery.

To erase the RTC data:

1. Unplug the system

2. Short the JP4 Pins 2 and 3 instead of Pins 1 and 2

3. Turn the power on

RTC STATUS JP4

Normal operation

Clear RTC

JP2: Case open jumper

PIN STATUS FUNCTION

Open Chassis open

Close Chassis closed

Getting Started • 17

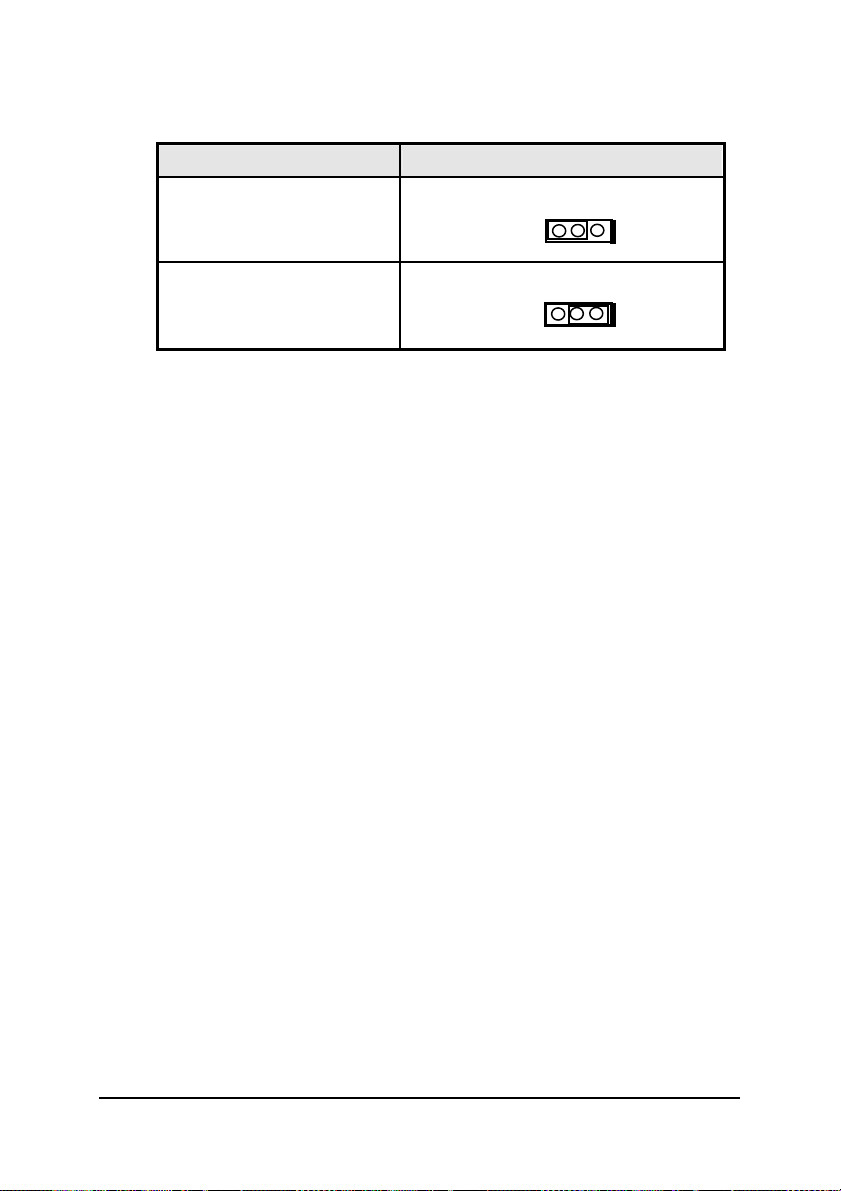

JP3: CF master/slave select jumper

CF1 MASTER/SLAVE JP1

CF Master

2-3

CF1 Slave

1-2

18 • Getting Started

3

Driver Installation

This chapter describes the installation procedures of all the device drivers
associated with the M-815E for Windows 98/ME/2000/XP. For installation
information of non-Windows based operating systems, please refer the
extensive explanation inside the ADLINK CD.

3.1 Intel(R) Chipset Software Installation Utility Installation

This section describes system requirements of Intel 815 chipset Device
Driver. This driver has been designed for and tested with Windows
98/ME/2000/XP.

The system must contain an Intel Pentium-III processor and chipset
configuration. Ensure that a mouse is connected to the system. One of the
following versions of Windows 98/ME/2000/XP must be installed on the
system prior to running the utility program:

• Windows* 98 SE 4.10.2222 (Original Release)

• Windows* Me 4.90.3000 (Original Release)

• Windows* 2000 5.00.2195 (Original Release)

• Windows* XP 5.10.2600 (Original Release)

Installation • 19

Installing Hardware Configuration Files

This subsection describes how to install the hardware configuration file on a
system where Windows 98/ME/2000/XP is installed.

Note: Record the location of the Windows 98/ME/2000/XP directory before

installing the driver.

1. Check the System Requirements. Windows 98/ME/2000/XP must be
fully installed and running on the system prior to running this software.

2. Close any running applications.

3. The files are stored in an integrated application setup program. This
program is designed for a Windows 98/ME/2000/XP program that
allows the INF files to be installed.

4. Locate the directory X:\CHIPDRV\Chipset\I815 in the CD-ROM, and
then Run “infinst_autol.exe”.

5. Click 'Next' on the Welcome
agreement. Click Yes if you agree to continue. NOTE: If you click No,

the program will terminate.

6. Click ‘Next’ on Readme Information screen to install INF files.

7. Click 'Finish' to restart the system when prompted to do so.

8. Follow the screen instructions and use the default settings to complete
the setup when Windows 98/ME/2000/XP re-starts. Upon re-start,
Windows will display that it has found new hardware and is installing
drivers for them. If
requesting the location of the drivers, use the mouse to click on the
scrollbar and click on the <Windows directory>.

9. Select Yes, when prompted to re-start Windows 98/ME/2000/XP.

20 • Installation

New Hardware Found

screen to read and agree to the license

dialog box is displayed

3.2 VGA Driver Installation

This section provides information on how to install the VGA driver that comes
on the Compact Disk with the package. Please follow the instructions set
forth in this section carefully. Please note that there must be relevant
software installed in your system before you could proceed to install the VGA
driver.

Installing Drivers for Windows 98/ME/2000/XP

The following section describes the normal display driver installation
procedures for Windows 98/ME/2000/XP. Use the following procedures when
installing the display drivers for Windows 98/ME/2000/XP.

Installing the Drivers for Windows 98/ME

1. Boot Windows 98/ME.

2. The driver is included in the ADLINK CD. Run the win9xm67.exe
under the following directory: X:\CHIPDRV\VGA\I815.

3. Click Next> on Welcome screen. And select Typical on Setup Type
screen and click Next>.

4. Use default program folders on Select Program Folder screen. Click

Next> to install driver. Finally, click Finish to re-start.

5. X:\CHIPDRV\VGA\I815.

6. Click Next> on Welcome
screen and click Next>.

7. Use default program folders on Select Program Folder

Next> to install driver. Finally, click Finish to re-start.

screen. And select Typical on Setup Type

screen. Click

Installing the Drivers for Windows 2000/XP

1. Boot Windows 2000/XP.

2. The driver is included in the ADLINK CD. Run the win2k_xpm67.exe
under the following directory: X:\CHIPDRV\VGA\I815.

3. Click Next> on Welcome
screen and click Next>.

screen. And select Typical on Setup Type

Installation • 21

4. Use default program folders on Select Program Folder screen. Click

Next> to install driver. Finally, click Finish to re-start.

3.3 LAN Driver Installation

This section describes the LAN driver installation for the onboard Ethernet

controllers, the Intel ® PRO/100VM. The relative drivers are located in the
following ADLINK CD directory: X:\CHIPDRV\LAN.

The Intel LAN driver supports the following OS or platforms: Windows 98,
Windows ME, Windows, Windows 2000, and Windows XP

All the above drivers are included in the ADLINK CD. In the following section,
we will describe the LAN driver installation for Windows 98/ME and Windows
2000/XP. For LAN driver installation of other OS’s, please refer to the
readme file in the CD.

Driver Installation on Windows 98/ME

Windows 98 will install the LAN drivers automatically. We recommend you to
manually update the LAN drivers that come with the ADLINK CD to
guarantee compatibility. After installing Windows 98, please update to the
new drivers by following these procedures.

1. Boot Windows 98.

2. The driver is included in the ADLINK CD. Run the pro98me.exe
under the following directory: X:\CHIPDRV\LAN\8262EM.

3. On the license agreement
Click 'I accept the terms in the license agreement’ if you agree to

continue.

4. Location to Save Files, click Next to save files in folder.

5. Intel PRO Network Connections
drivers and Intel PROSet.

to read and agree to the license agreement.

, click Install Software to install

Driver Installation on Windows 2000/XP

22 • Installation

Windows 2000/XP may automatically try to install a LAN driver within its
directory. We recommend you to manually install the most updated LAN
driver, which comes with the ADLINK CD to guarantee compatibility. After
installing Windows 2000/XP, please update to the new drivers by following
these procedures.

1. Boot Windows 2000/XP.

2. The driver is included in the ADLINK CD. Run the pro2kxp.exe under

the following directory: X:\CHIPDRV\LAN\8262EM.

3. On the license agreement

Click 'I accept the terms in the license agreement’ if you agree to

continue.

4. Location to Save Files, click Next to save files in folder.

5. Intel PRO Network Connections

drivers and Intel PROSet.

to read and agree to the license agreement.

, click Install Software to install

3.4 USB 2.0 Driver Installation

This section describes the USB 2.0 driver installation for the onboard USB

2.0 controller (Philips ISP1561 Enhanced Host Controller).

Installing Drivers for Windows 98

1. Choice the Start→Settings→Control Panel→System→Device
Manager.

2. Choice the Other device→PCI Universal Serial Bus
choice Properties→Driver→Update Drive .

3. Update Device Driver Wizard, click Next.

4. Choice the ‘Search for a better driver than the one your device is
using now (Recommended)’, and click Next.

→

right click and

5. Choice the ‘Specify a location’, and choice browse
X:\CHIPDRV\USB2.0\M67-USB98 in the CD-ROM, click Next.

Installation • 23

6. Choice ‘The updated driver (Recommended) Philips Enhance
Host Controller Es4’ and click Next.

7. Windows driver files search for the device: Philips Enhance Host

Controller Es4 and click Next .

8. Finally, click Finish and the USB 2.0 driver installation is complete.

Installing Drivers for Windows 2000

Note: Before installing the USB 2.0 driver, the M67 must connected to the

internet.

1. Choice the Start→Settings→Control
Panel→System→hardware→Device Manager.

2. Choice the Other device→Universal Serial Bus

(USB)Controller→right click and choice
Properties→Driver→Update Driver .

3. Update Device Driver Wizard, click Next .

4. Choice the ‘Search for a suitable driver for my device
(Recommended)’, and click Next .

5. Locate Driver Files, choice the ‘Microsoft Windows Update’ and
click Next.

6. Driver Files Search Results, click Next .

7. Completing the Upgrade Device Driver Wizard, ‘standard Enhanced
PCI to USB Host Controller’ and click Finish, the USB 2.0 driver

installation is complete.

Installing Drivers for Windows XP

Update Windows XP to SP1 and the USB 2.0 driver installation is
complete automatically.

24 • Installation

3.5 AUDIO Driver Installation

This section describes the AUDIO driver installation for the onboard AUDIO

controllers, the Avance AC’97 audio driver. The relative drivers are located
in the following ADLINK CD directory: X:\CHIPDRV\AUDIO

Installing Drivers for Windows 98/ME/2000/XP

The following section describes the normal AUDIO driver installation
procedures for Windows 98/ME/2000/XP.

Installing the Drivers for Windows 98/ME/2000/XP

1. Boot Windows 98SE/ME/2000/XP.

2. Locate the directory X:\CHIPDRV\ACL-200\WDM\ in the CD-ROM,
and then Run “Setup.exe”.

3. Click Next> on Welcome

4. Finally, click Finish to restart.

screen, and click Next>.

Installation • 25

Warranty Policy

Thank you for choosing ADLINK. To understand your rights and enjoy all the
after-sales services we offer, please read the following carefully:

1. Before using ADLINK’s products please read the user manual and follow
the instructions exactly.

2. When sending in damaged products for repair, please attach an RMA
application form.

3. All ADLINK products come with a two-year guarantee, repaired free of
charge.

• The warranty period starts from the product’s shipment date from

ADLINK’s factory.

•

Peripherals and third-party products not manufactured by ADLINK
will be covered by the original manufacturers’ warranty.

•

End users requiring maintenance services should contact their local
dealers. Local warranty conditions will depend on local dealers.

4. This warranty will not cover repair costs due to:

•

Damage caused by not following instructions.

•

Damage caused by carelessness on the users’ part during product
transportation.

•

Damage caused by fire, earthquakes, floods, lightening, pollution,
other acts of God, and/or incorrect usage of voltage transformers.

•

Damage caused by unsuitable storage environments (i.e. high
temperatures, high humidity, or volatile chemicals.

•

Damage caused by leakage of battery fluid.

•

Damage from improper repair by unauthorized technicians.

•

Products with altered and/or damaged serial numbers.

•

Other categories not protected under our guarantees.

5. Customers are responsible for shipping costs to transport damaged
products to our company or sales office.

6. To ensure the speed and quality of product repair, please download a
RMA application form from our company website: www.adlinktech.com
Damaged products with attached RMA forms receive priority.

For further questions, please contact our FAE staff.

ADLINK: [e-mail]

Warranty Policy• 27

.
