ADLink M-322 User Manual

M-322

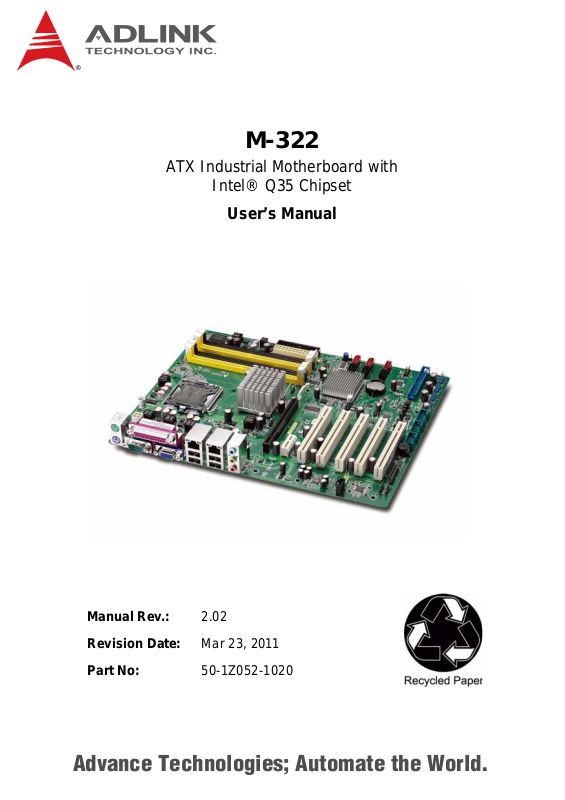

ATX Industrial Motherboard with

Intel® Q35 Chipset

User’s Manual

Manual Rev.: 2.02
Revision Date: Mar 23, 2011
Part No: 50-1Z052-1020

Advance Technologies; Automate the World.

Revision History

Revision Release Date Description of Change(s)

2.00 2010/06/23 Initial Release

2.01 2010/09/27 Correct System Panel Pin Header drawing

2.02 2011/05/23 Correct misc. typos; update addresses

M-322

Preface

Copyright 2010-2011 ADLINK Technology Inc.

This document contains proprietary infor mation protected by copy­right. All rights are reserved. No part of this manual may be repro­duced by any mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.

Disclaimer

The information in this document is subject to change without prior
notice in order to improve reliability, design, and function and does
not represent a commitment on the part of the manufa cturer.

In no event will the manufacturer be liable for direct, indirect, spe­cial, incidental, or consequential damages arising out of the use or
inability to use the product or documentation, even if advised of
the possibility of such damages.

Environmental Responsibility

ADLINK is committed to fulfill its social responsibility to global
environmental preservation through compliance with the Euro­pean Union's Restriction of Hazardous Substances (RoHS) direc­tive and Waste Electrical and Electronic Equipment (WEEE)
directive. Environmental protection is a top priority for ADLINK.
We have enforced measures to ensure that our products, manu­facturing processes, components, and raw materials have as little
impact on the environment as possible. When products are at their
end of life, our customers are encouraged to dispose of them in
accordance with the product disposal and/or recovery programs
prescribed by their nation or company.

Trademarks

Product names mentioned herein are used for identification pur­poses only and may be trademarks and/or registered trademarks
of their respective companies.

Preface iii

Using this Manual

Audience and Scope

The M-322 User’s Manual is intended for hardware technicians

and systems operators with knowledge of installing, configuring
and operating industrial grade computers.

Manual Organization

This manual is organized as follows:
Preface: Presents copyright notifications, disclaimers, trade-

marks, and associated information on the proper usage of this
document and its associated product(s).

Chapter 1, Introduction: Introduces the M-322, its features,
applications, and specifications, including functional descriptions
and board layout.

Chapter 2, Connectors & Jumpers: Provides technical informa­tion on connectors, jumpers and pin assignments for configuring
the M-322.

Chapter 3, Getting Started: Describes how to install components
and drivers on the M-322.

Chapter 4, BIOS Setup: Presents information aid in configuring
the system BIOS.

Appendix A, Watchdog Timer: Presents information on under­standing and configuring the watchdog timer.

Appendix B, System Resources: Presents information on I/O
mapping, IRQ routing, and resource allocation.

Important Safety Instructions: Presents safety instructions all
users must follow for the proper setup, installation and usage of
equipment and/or software.

Getting Service: Contact information for ADLINK’s worldwide
offices.

iv Preface

M-322

Conventions

Take note of the following conventions used throughout this
manual to make sure that users perform certain tasks and
instructions properly.

Additional information, aids, and tips that help users perform
tasks.

NOTE:

NOTE:

Information to prevent minor physical injury, component dam­age, data loss, and/or program corruption when trying to com-

CAUTION:

WARNING:

plete a task.

Information to prevent serious physical injury, component
damage, data loss, and/or program corruption when trying to
complete a specific task.

Preface v

This page intentionally left blank.

vi Preface

M-322

Table of Contents

Revision History...................................................................... ii

Preface.................................................................................... iii

List of Figures........................................................................ xi

List of Tables........................................................................ xiii

1 Introduction ........................................................................ 1

1.1 Package Contents ............................................................... 1

1.2 Overview.............................................................................. 2

1.3 Features............................................................................... 2

1.4 Specifications....................................................................... 3

1.5 Power Consumption ............................ ... ... ... ... .... ... ... ... .... ... 5

1.6 Block Diagram ..................................................................... 6

1.7 Functional Description ......................................................... 7

1.8 Board Layout ....................................................................... 9

1.9 Mechanical Drawings......................................................... 11

2 Connectors & Jumpers.................................................... 13

2.1 Rear I/O Connectors.......................................................... 13

2.2 Onboard Connectors ......................................................... 17

2.3 Jumpers............................................................................. 24

3 Getting Started ................................................................. 27

3.1 Installing the CPU.............................................................. 27

3.2 Installing the CPU Fan and Heatsink................................. 31

3.3 System Memory................................................................. 32

3.4 Driver Installation................................................. ... ... ... .... . 34

Table of Contents vii

4 BIOS Setup........................................................................ 37

4.1 Starting the BIOS............................................................... 37

4.2 Main Setup......................................................................... 41

4.3 Advanced Setings.............................................................. 45

4.3.1 USB Configuration.........................................................46

4.3.2 Trusted Computing ........................................................48

4.3.3 Intel TXT (LT) Configuration ..........................................49

4.3.4 Intel VT-d Configuration.................................................49

4.3.5 CPU Configuration.........................................................50

4.3.6 Chipset Settings.............................................................52

4.3.7 Onboard Device Configuration ......................................54

4.3.8 PCI/PnP Settings............................................. .... ... ... ... .55

4.4 Power Settings...................................... .... ... ... ... ... .... ... ... ... 56

4.4.1 APM Configuration.................. ... ... ... ..............................58

4.4.2 Hardware Health Configuration .....................................59

4.5 Boot Settings ..................................................................... 60

4.5.1 Boot Device Priority .......................................................60

4.5.2 Boot Device Groups.......................................................60

4.5.3 Boot Settings Configuration...........................................61

4.5.4 Security..........................................................................62

4.6 Exit Menu........................................................................... 63

A Appendix: Watchdog Timer..............................................65

A.1 Sample Code..................................................................... 65

B Appendix: System Resources..........................................67

B.1 System Memory Map......................................................... 67

B.2 Direct Memory Access Channels....................................... 68

B.3 Fixed I/O Map .................................................................... 69

B.4 Variable I/O Map................................................................ 71

B.5 Interrupt Request (IRQ) Lines............................................ 72

B.6 PCI Configuration Space Map ........................................... 75

B.7 PCI Interrupt Routing Map................................................. 76

viii Table of Contents

M-322

Important Safety Instructions.............................................. 77

Getting Service...................................................................... 79

Table of Contents ix

This page intentionally left blank.

xTable of Contents

M-322

List of Figures

Figure 1-1: M-322 Block Diagram ...................................................... 6

Figure 1-2: M-322 Board Layout........................................................ 9

Figure 1-3: M-322 Rear I/O Layout.................................................. 10

Figure 1-4: M-322 Board Dimensions.............................................. 11

Figure 1-5: M-322 I/O Shield Dimensions........................................ 12

List of Figures xi

This page intentionally left blank.

xii List of Figures

M-322

List of Tables

Table 1-1: M-322 General Specifications..........................................4

Table 1-2: M-322 Board Layout Legend.........................................10

Table 2-1: COM Serial Port Connector Pin Definition..................... 14

Table B-1: System Memory Map..................................................... 67

Table B-2: Direct Memory Access Channels................................... 68

Table B-3: Fixed I/O Map................................................................ 70

Table B-4: Variable I/O Map............................................................71

Table B-5: IRQ Lines PIC Mode....................... ... ... ... ... .... ... ... ... .... .. 72

Table B-6: IRQ Lines APIC Mode....................... ... ... ... .... ... ...... .... .. 74

Table B-7: PCI Configuration Space Map.... .... ... ... ... ... .... ... ... ... .... .. 75

Table B-8: PCI Interrupt Routing Map.............................. ... ... ... .... .. 76

List of Tables xiii

This page intentionally left blank.

xiv List of Tables

1 Introduction

This chapter will introduce the M-322, its features, specifications,
functional description, and mechanical layout.

1.1 Package Contents

Please check that your package contains the items below. If
you discover damaged or missing items, please contact your
vendor.

X M-322 Industrial ATX Motherboard
X I/O shield
X 2x SATA data cables
X 2x SATA power cables
X 1x single COM port cable with bracket
X 1x dual COM port cable with bracket
X Driver DVD
X User’s Manual

M-322

DO NOT install or apply power to equipment that is damaged
or if there is missing/incomplete equipment. Retain the ship-

WARNING:

Introduction 1

ping carton and packing materials for inspection. Please con­tact your ADLINK dealer/vendor immediately for assistance.
Obtain authorization from your dealer before returning any
product to ADLINK.

1.2 Overview

The ADLINK M-322 is an ATX industrial motherboard supporting
the next-generation Intel® Core™2 Quad/Duo, Pentium® Dual
Core and Celeron® processors in the LGA775 package to deliver
a high performance platform for a wide array of industrial applica­tions. The M-322 supports processing speeds up to 3.00GHz and
1333 MHz Front Side Bus (FSB). Dual channel DDR2
667/800 MHz memory is supported up to a maximum of 8GB in
four DIMM slots. The M-322 supports a broad range of processor
frequencies, high-speed data transfer rates, diverse I/O functions,
and high-bandwidth network connectivity.

These advanced features, coupled with integrated graphics, one
PCI Express® x16 slot, one PCI Express® x1 slot, five PCI slots,
and audio interfaces make the M-322 suitable for automation con­trol, medical, test & measurement, and telecom applications
requiring an easy-to-deploy and reliable mainboard.

1.3 Features

X ATX form factor (305 mm x 244 mm)
X Supports Intel® Core™2 Quad/Duo, Pentium® Dual Core

and Celeron® processors in LGA775 package

X Dual 10/100/1000Mbps Ethernet
X 12x USB 2.0 ports (4x faceplate, 8x onboard pin header)
X 6x SATA 3 Gbps ports support RAID 0/1/5/10
X Integrated graphic supports VGA up to 2048 x 1536 @ 75Hz
X One PCIe x16 slot, one PCIe x1 slot, five PCI slots
X Watchdog Timer, Hardware Moni tor
X Realtek ALC888 HD audio codec
X TPM hardware security chip
X RoHS compliant

2Introduction

M-322

1.4 Specifications

System

CPU/Cache • IIntel® Core™2 Quad Q9400, 2.66GHz, 1333MHz FSB,

6MB L2 Cache, 45nm, 95W TDP

• Intel® Core™2 Duo E8400, 3.0GHz, 1333MHz FSB,
6MB L2 Cache, 45nm, 65W TDP

• Intel® Core™2 Duo E7400, 2.8GHz, 1066MHz FSB,
3MB L2 Cache, 45nm, 65W TDP

• Intel® Core™2 Duo E6400, 2.13GHz, 1066MHz FSB,
2MB L2 Cache, 65nm, 65W TDP

• Intel® Core™2 Duo E4300, 1.8GHz, 800MHz FSB,
2MB L2 Cache, 65nm, 65W TDP

• Intel® Pentium® Dual Core E5300, 2.6GHz, 800MHz FSB,
2MB L2 Cache, 45nm, 65W TDP

• Intel® Pentium® Dual Core E2160, 1.8GHz, 800MHz FSB,
1MB L2 Cache, 65nm, 65W TDP

• Intel® Celeron® 440, 2.0GHz, 800MHz FSB,
512KB L2 Cache, 65nm, 35W TDP

FSB • 800/1066/1333 MHz
Chipset • Intel® Q35 + ICH9DO
Memory • Four 240-pin DIMM sockets

• Dual-Channel DDR2 667/800MHz, up to 8GB

BIOS • AMI BIOS with 32 Mb Flash ROM
TPM • Infineon SLB 9635 TT 1.2
Audio • Realtek ALC888 HD codec

• Supports line-in, line-out and mic-in

Watchdog Timer • 1-255 second/minute programmable
Hardware Monitor • CPU/System temperature, fan speed and onboard DC

voltages

Operating System • Windows XP 32/64-bit edition

• Windows Vista 32-bit edition

• Win dows Server 2008 32-bit edition

• Windows 7 32/64-bit edition

• Fedora 12

Introduction 3

I/O Interfaces

Serial ATA • 6x Serial ATA ports with 300 MB/s data transfer

• Supports RAID 0/1/5/10

Onboard I/O • 4x USB 2.0 pin headers (8 ports)

• 2x RS-232 serial port pin headers (COM2-3)

• 1x RS-232/422/485 serial port (COM4)

• 1x printer port

• 1x floppy port

• 1x front panel pin header

Rear I/O • 2x RJ-45 LAN port

• 4x USB 2.0 ports

• 1x D-Sub VGA connector

• 1x DB-9 RS-232 (C OM1)

• 2x PS2 keyboard/mouse ports

• 3x audio jacks (line-in, line-out and mic-in)

Expansion Slots • 1x PCIe x16 slot

• 1x PCIe x1 slot

• 5x PCI slots

Display

Graphics • GMA 3100 integrated in Q35 GMCH
VRAM • Shared system memory up to 256 MB
VGA • Dsub-15 connector, up to 2048x1536 @ 75 Hz

Ethernet

Controller • Dual Realtek® RTL8111C PCIe network controllers

• 10/100/1000Base-T dual-Gigabit Ethernet

• Wake on LAN, PXE supported

Ports • 2x RJ-45 Ethernet port

Mechanical and Environment

Form Factor • ATX Industrial Motherboard
Dimensions • 305 mm x 244 mm (L x W)
Operating Temp. • 0°C to 60°C
Storage Temp. • -20ºC to 80ºC
Rel. Humidity • 1 0 - 90% non-condensing
Safety • CE, FCC Class A

T able 1-1: M-322 General Specifications

4Introduction

1.5 Power Consumption

Intel® Core™2 Duo Processor E6400

T est Configuration

CPU Intel® Core™2 Duo Processor E6400 2.13 GHz
Memory ADATA DDR2 667 1G (AD2667001GOU) x1
Graphics Intel ® Q35 Graphics Memory Controller Hub
Hard Drive Seagate Barracuda 7200.10 160GB ST3160815AS
Power Supply Delta 400W, GPS-400AB C Rev. 00F

Power On Boot Sequence

Power Req. +5V +3.3V +12V 5VSB T o tal

Current 2.12 A 2.14 A 2.84 A 0.62 A —

Power — — — — 54.84 W

Windows XP, Idle

Power Req. +5V +3.3V +12V 5VSB T o tal

Current 1.64 A 2.08 A 1.16 A 0.59 A —

Power — — — — 31.93 W

Windows XP, Maxpower 100% + 3DMark 2006

Power Req. +5V +3.3V +12V 5VSB T o tal

Current 2.04 A 2.10 A 2.88 A 0.59 A —

Power — — — — 54.64 W

M-322

Introduction 5

1.6 Block Diagram

CPU

Core™2 Quad/Duo

®

Pentium

Dual Core

®

Celeron

LGA775 package

800/1066/1333 MHz
FSB

CRT

DB-15

PCIe x16 slot

JMicron JMB368

PCIe to PATA controller

6x SATA ports

12x USB 2.0

(4x Bracket, 8x Internal)

KB/Mouse

LPT/FDD

1x RS-232/422/485

3x RS-232

TPM

Northbridge

Intel®Q35 GMCH

Southbridge

Intel® ICH9DO

SATA

USB 2.0

LPC

SPI

Winbond

83627 DHG-A

Super I/O

HD

Codec

DMI
Interface
2 GB/s

PCIe

Controller

PCI

Controller

DDR2 667/800 MHz

Realtek
ALC888

SPI BIOS

Channel A

Channel B

1

x

e

I

C

P

x

1

e

I

P

C

PCI Bus

4x DIMM

2x RTL8111C

PCIe GbE

PCI Express x1

PCI

32-bit/33MHz bus

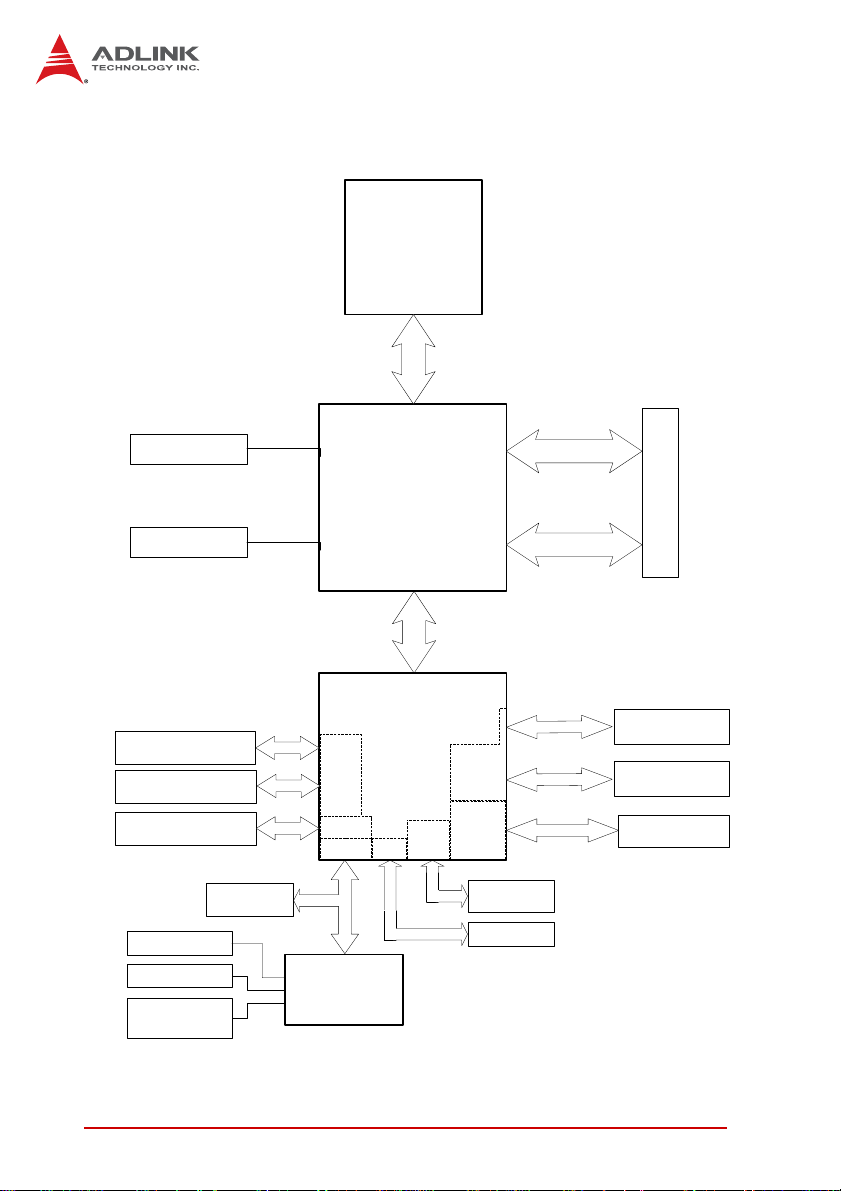

Figure 1-1: M-322 Block Diagram

6Introduction

M-322

1.7 Functional Description

Processor Support

The M-322 is designed for Intel Yorkfield/Wolfdale/Conroe quad,
dual and single core processors in LGA775 socket with core fre­quencies from 1.8 GHz up to 3.0 GHz. The CPU connects with the
Intel® Q35 GMCH through a 2 GB/s DMI interface.

Intel® Q35 Express Chipset

The Intel® Q35 Express chipset (Q35 GMHC + ICH9DO) provides
the vital interfaces for the SHB. The Intel® Q35 comes with pur­pose-built capabilities designed specifically to address the key
needs of the industrial computing environment, delivers improved
system performance and comes with the integrated Intel® Graph­ics Media Accelerator 3100 engine for cost-effective system build­ing. The chipset also supports high-bandwidth interfaces including
PCI Express, Serial ATA, and USB 2.0, as well as dual-channel
DDR2 system memory.

Intel® Graphics Media Accelerator 3100

The Intel® Graphics Media Accelerator (GMA) 3100 revolutionizes
integrated graphics with new capabilities that provide significant
increase in graphics performance. With support for DirectX 9 hard­ware acceleration, core frequency of 400 MHz, and up to 256 MB
of video memory, the Intel GMA 3100 provides a cost-effective
and high-performance graphics solution.

Dual-Channel DDR2 Memory

To meet the requirements of memory-intensive applications, the
M-322 has a dual-channel memory architecture supporting DDR2
667/800 MHz DIMMs. The high-bandwidth memory specification,
meets the requirements of the latest 3D graphics, multimedia, and
network application, and boosts system performance by
eliminating bottlenecks.

Introduction 7

Gigabit Ethernet

The M-322 uses two Realtek RTL8111C Gigabit Ethernet control­lers connected to the PCI-E x1 bus of the ICH9DO. Operation at
data rates of 10/100/1000 Mbps, Wake on LAN are supported.

Serial ATA

Storage is efficient and secure with the Serial ATA interface. Utiliz­ing the Intel® ICH9DO, the M-322 supports up to six Serial ATA
devices capable of reading/writing data at up to 3 Gbps. Intel®
Matrix Storage Technology provides support for RAID 0/1/5/10.

Hardware Monitoring

A built-in, proactive hardware monitoring system monitors the
CPU temperature, system fan rotations, and voltage levels to pre­vent overheating and/or component damage, effect timely failure
detection, and ensure stable su pply of current for critical compo­nents.

Watchdog Timer

The watchdog timer (WDT) monitors system operations based on
user-defined configurations. The WDT can be programmed for dif­ferent time-out periods, such as from 1 to 255 seconds or from 1 to
255 minutes. The WDT generates a reset signal, then a reset
request, after failure to strobe it within the programmed time
period. A register bit may be enabled to indicate if the watchdog
timer caused the reset event. The WDT register is cleared during
the power-on sequence to enable the operating system to take
appropriate action when the watchdog genera tes a reboot.

Trusted Platform Module

The M-322 supports TPM ver. 1.2 (Trusted Platform Module) for
secure storage of keys, passwords and digital certificates. Sys­tems supporting TPM offer improved hardware-based security in
numerous applications, such as file and folder encryption, local
password management, S-MIME e-mail, VPN and PKI authentica­tion and wireless authentication for 802.1x and LEAP.

8Introduction

1.8 Board Layout

ATX12V CPU_FAN

M-322

JCOMPWR1

PWR_FAN

PCIEX16

PCIEX1_1

PCI1-5

CD-IN

AAFP

JAMP1

DIMM_A1
DIMM_A2

DIMM_B1
DIMM_B2

FLOPPY

EATXPWR

CLRTC

CHASSIS

SATA1-6

SPI

CHA_FAN1
F_PANEL

PRI_EIDE

SPDIF_OUT JDIO COM3 USB56/78/910/1112

COM2

COM4

JCOMPWR2-7

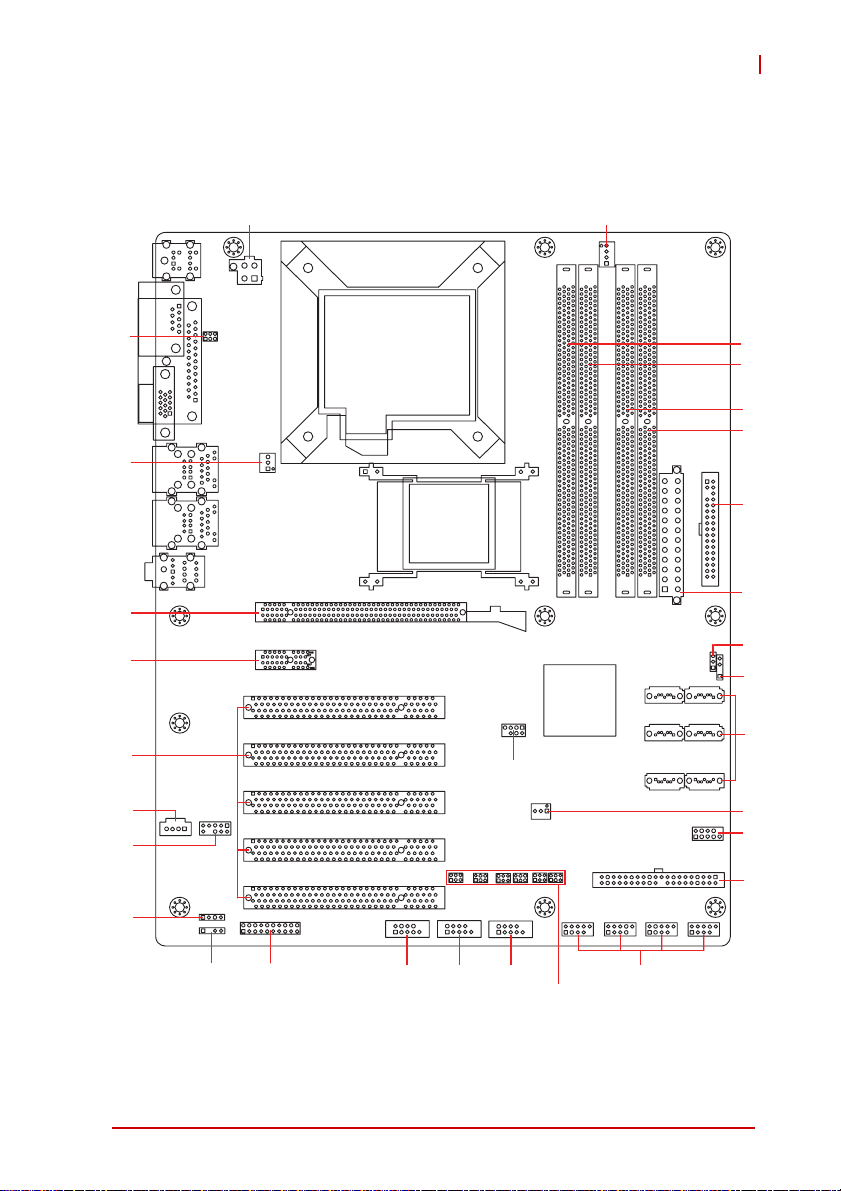

Figure 1-2: M-322 Board Layout

Introduction 9

AAFP Front Panel Audio Connector
ATX12V ATX Power Connector
CD-IN Optical Drive Audio Connector
CHA_FAN1 Chassis Fan Connector
CHASSIS Chassis Intrusion Connector
CLRTC Clear CMOS Jumper
COM2-4 Serial Port Connector 2-4
CPU_FAN CPU Fan Connector
EATXPWR ATX Power Connector
FLOPPY Floppy Disk Drive Connector
F_PANEL System Panel Pin Header
JAMP1 Amplified Audio Pin Header
JCOMPWR1-4 COM1-4 RI, +12V and +5V Select Jumpers
JCOMPWR5-7 COM4 RS-232/422/485 Select Jumpers
JDIO Digital IO Pin Header
PRI_EIDE IDE Connector
PWR_FAN Power Fan Connector
SATA1-6 Serial ATA Connectors 1-6
SPDIF_OUT S/PDIF Pin Header
SPI SPI Pin Header
USB56/78/910/1112 USB 2.0 Pin Headers
DIMM_A1/A2 240-pin DIMM slots (Channel A)
DIMM_B1/B2 240-pin DIMM slots (Channel B)
PCIEX1_1 PCI express x1 slot
PCIEX16 PCI express x16 slot
PCI1-5 PCI slots

Table 1-2: M-322 Board Layout Legend

Parallel

PS/2

KB/MS

VGACOM1 Audio

LAN + USB

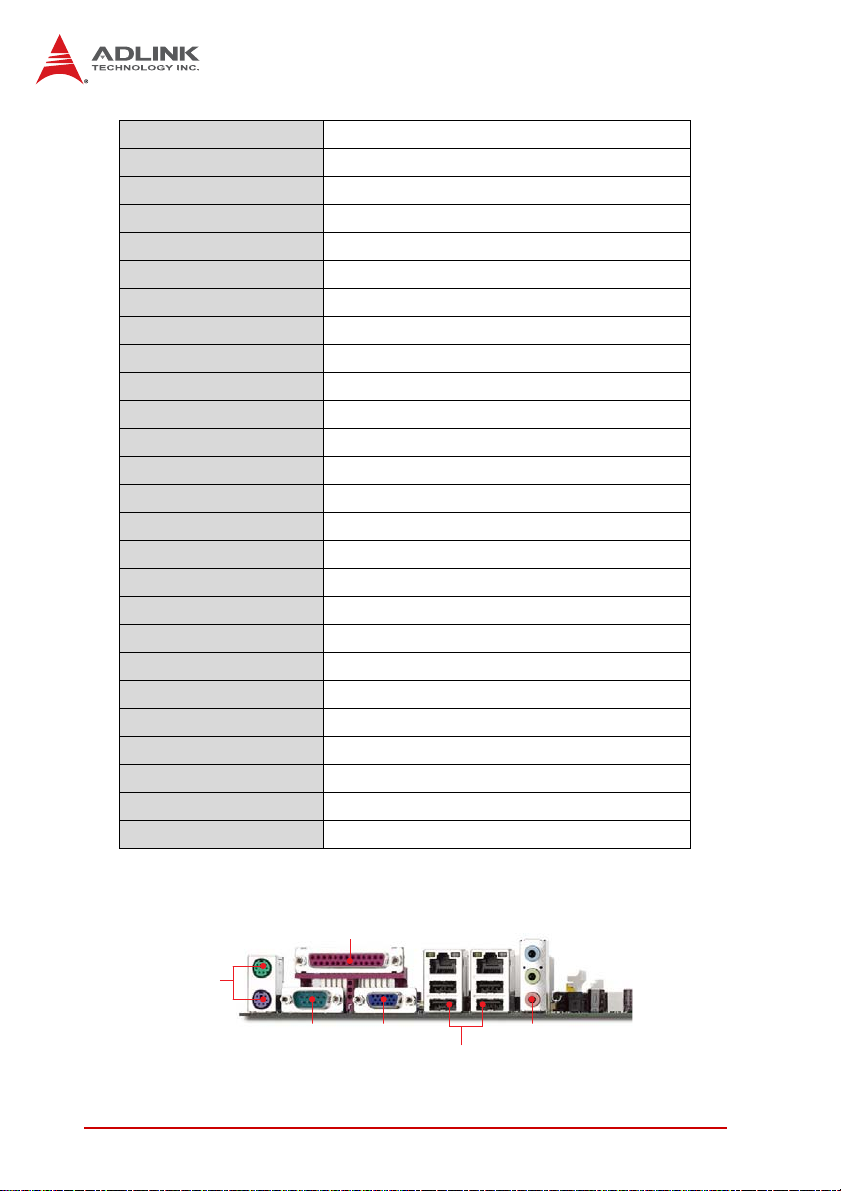

Figure 1-3: M-322 Rear I/O Layout

10 Introduction

1.9 Mechanical Drawings

M-322

Dimensions in mm

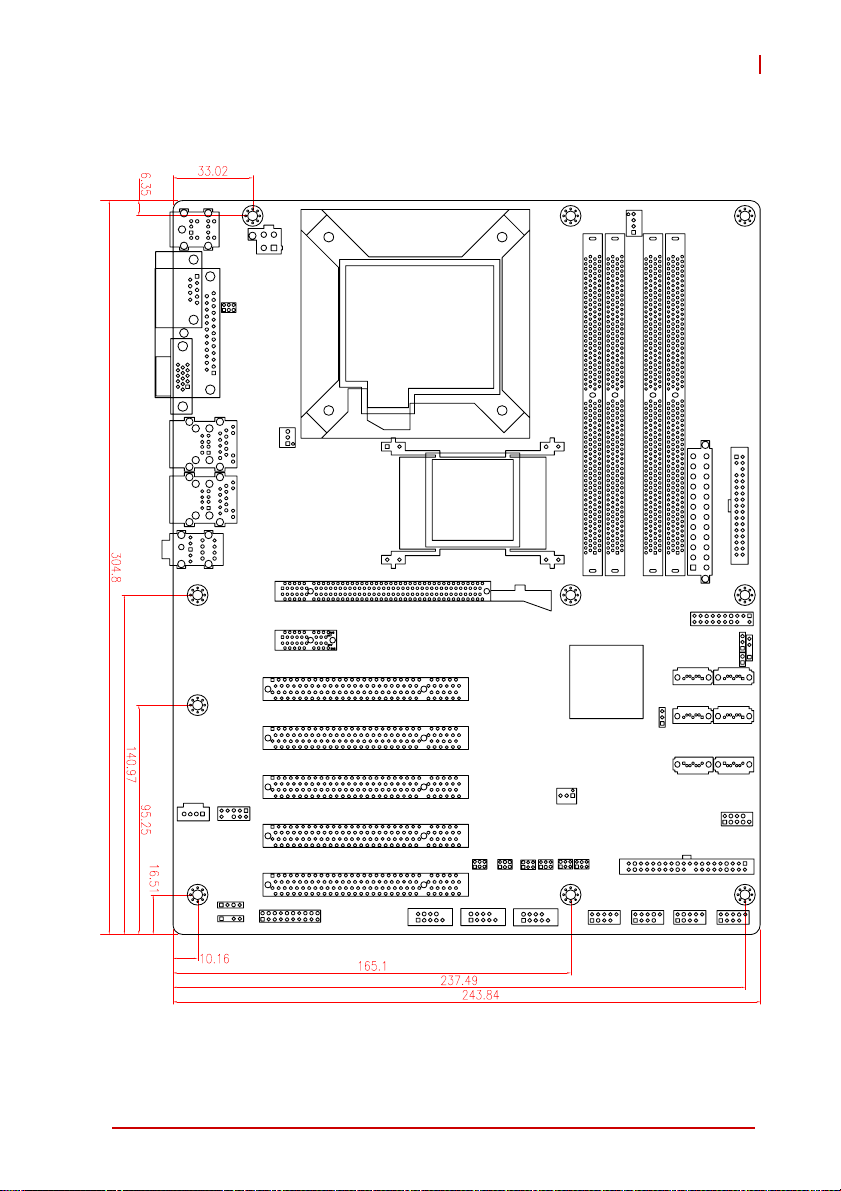

Figure 1-4: M-322 Board Dimensions

Introduction 11

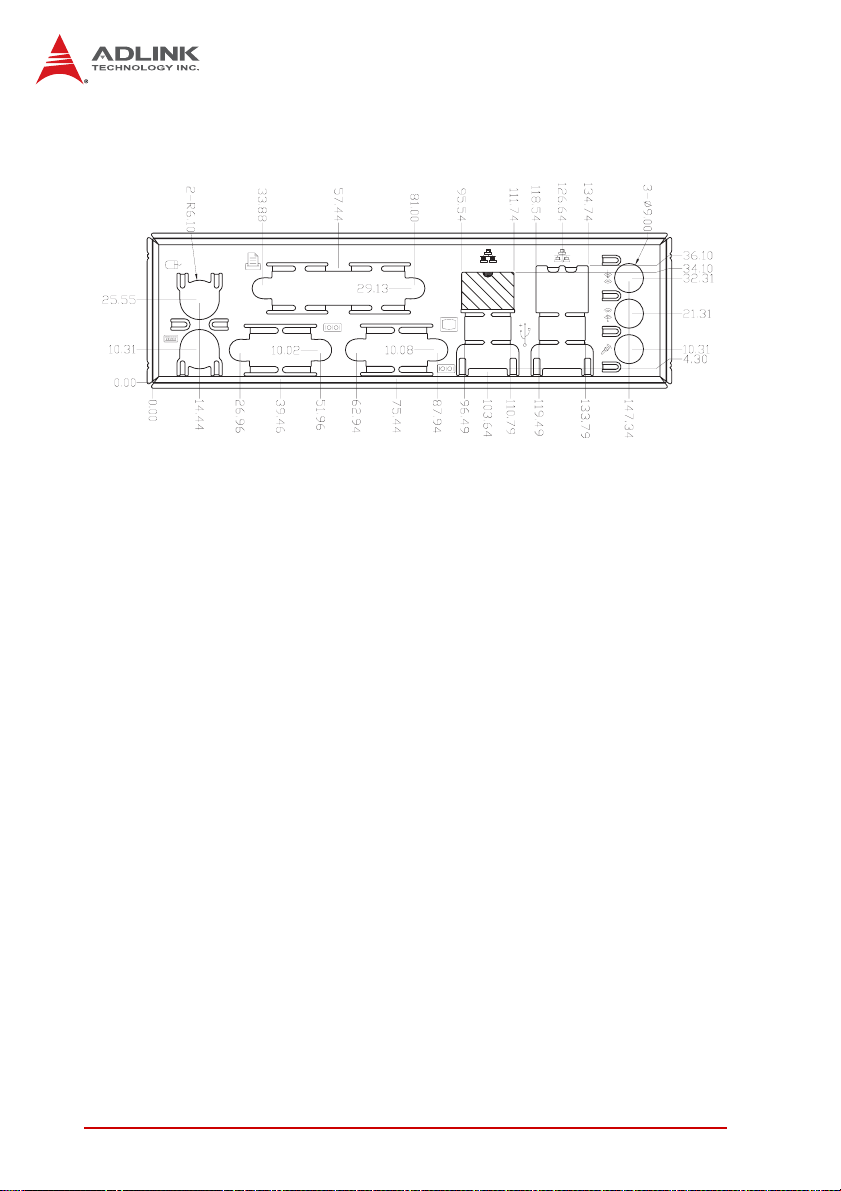

Dimensions in mm

Figure 1-5: M-322 I/O Shield Dimensions

12 Introduction

2 Connectors & Jumpers

The connectors and jumpers on the M-322 allow you to connect
and configure external devices. The following specify the pin
assignments for connectors and jumper on the M-322. Refer to

Figure 1-2: M-322 Board Layout and Figure 1-3: M-322 Rear
I/O Layout for connector and jumper locations.

2.1 Rear I/O Connectors

PS/2 Mouse Port (green)

Pin # Signal Function

1MSDATAMouse Data
2 NC not connected
3 GND Ground
4+5V Power
5 CLK Clock
6 NC not connected

M-322

PS/2 Keyboard Port (purple)

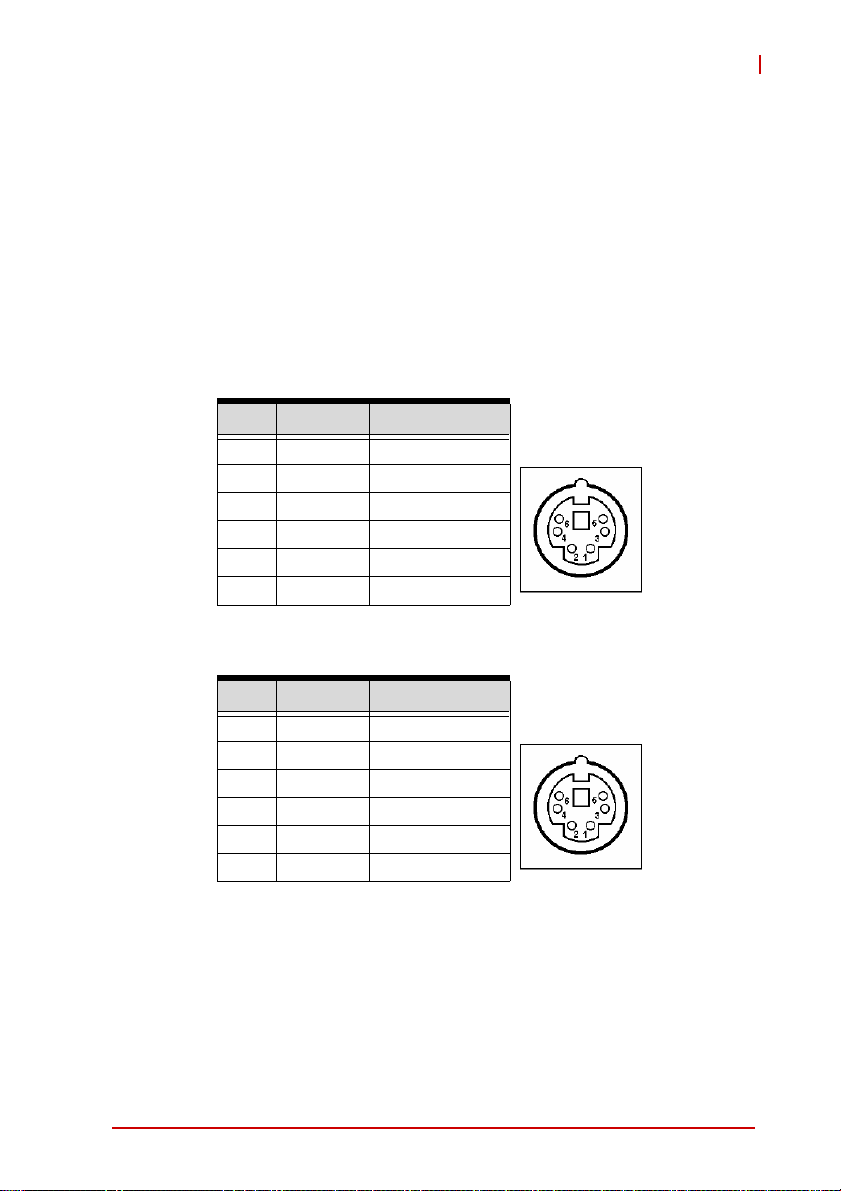

Pin # Signal Function

1 KBDATA Keyboard Data
2 NC not connected
3 GND Ground
4+5V Power
5 CLK Clock
6 NC not connected

Connectors & Jumpers 13

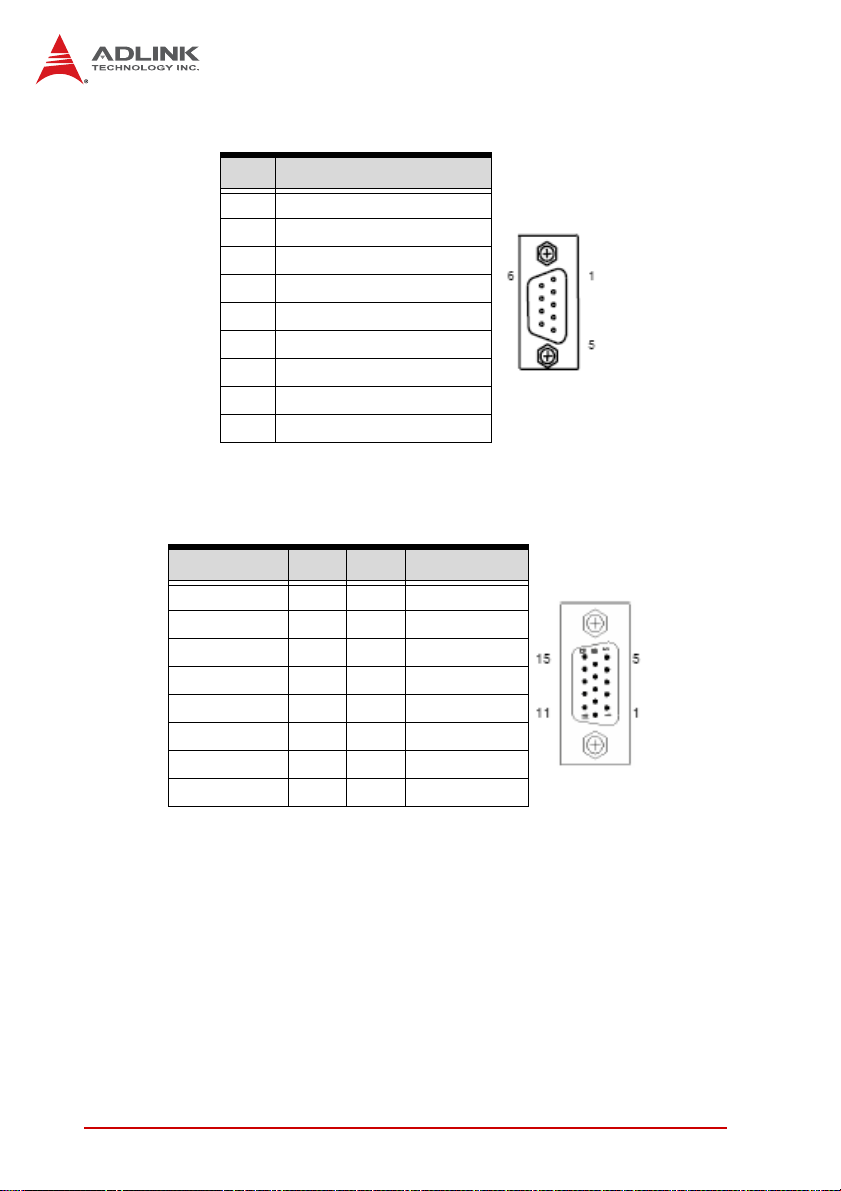

COM DB-9 Serial Port Connector

Pin # RS-232

1 DCD, Data carrier detect
2 RXD, Receive data
3 TXD, Transmit data
4 DTR, Data terminal ready
5 GND, ground
6 DSR, Data set ready
7 RTS, Request to send
8 CTS, Clear to send
9 RI, Ring indicator

Table 2-1: COM Serial Port Connector Pin Definition

VGA Connector.

Signal Name Pin # Pin # Signal Name

Red 1 2 Green

Blue 3 4 VCC pull-up
GND 5 6 GND
GND 7 8 GND
VCC 9 10 GND

VCC pull-up 11 12 DDC2B DATA

HSYNC 13 14 VSYNC

DDC2B CLK 15

14 Connectors & Jumpers

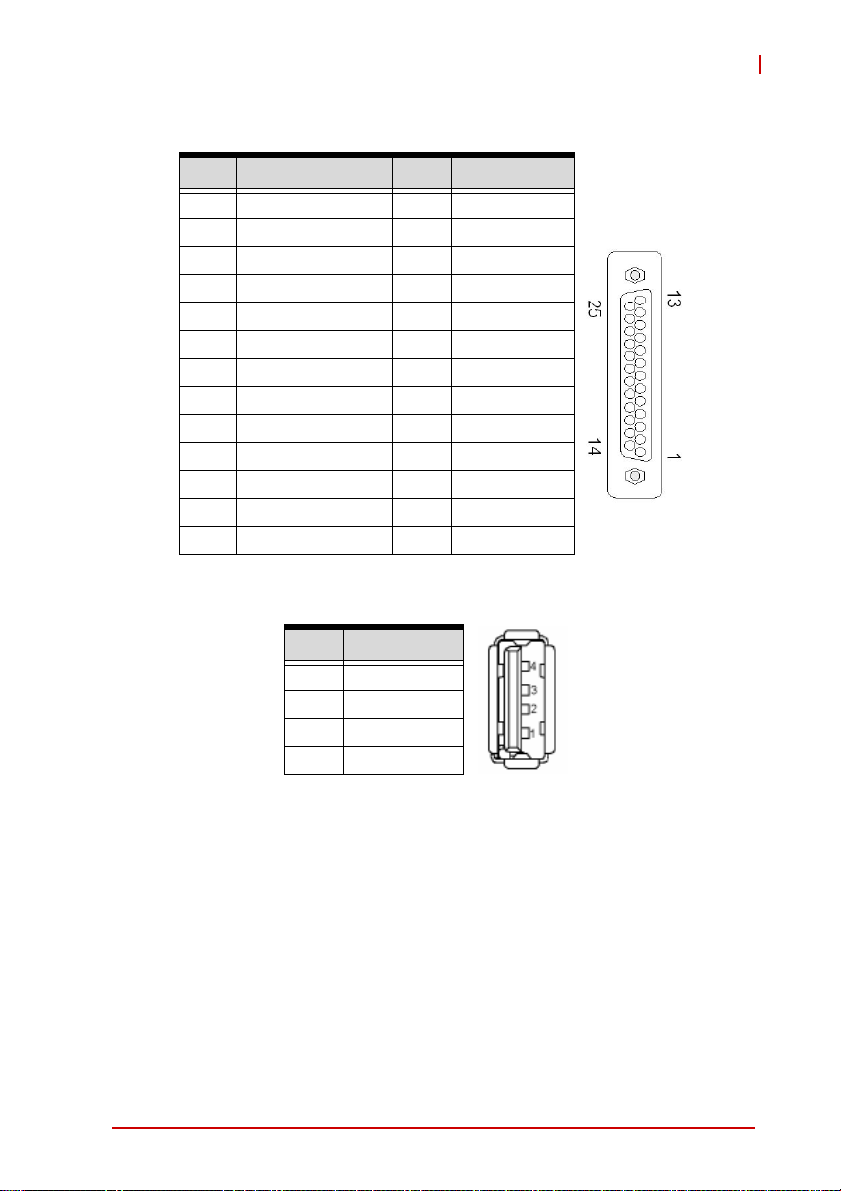

Parallel Port.

Pin # Signal Name Pin # Signal Name

1 STROBE 14 AUTO FEED
2 DATA0 15 ERROR
3DATA116INIT
4 DATA2 17 SELECT IN
5DATA318GND
6DATA419GND
7DATA520GND
8DATA621GND
9DATA722GND

10 ACKNOWLEDGE 2 3 GND

1 1 BUSY 24 GND
12 PAPER EMPTY 25 GND
13 SELECT

USB Connectors

M-322

Pin # Signal Name

1Vcc
2 USB­3 USB+
4GND

Connectors & Jumpers 15

LAN (RJ-45) Ports

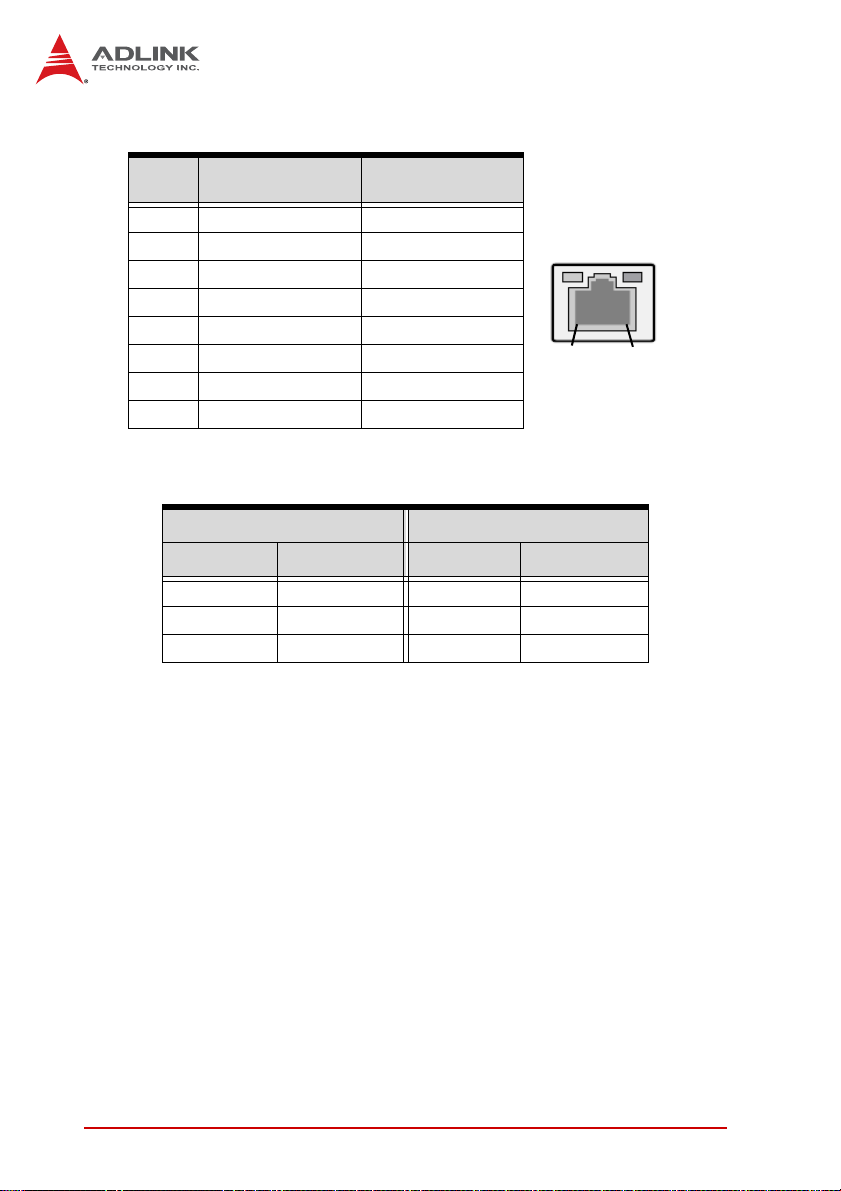

Pin #

1 TX+ BI_DA+
2 TX- BI_DA­3 RX+ BI_DB+
4 -- BI_DC+
5-- BI_DC­6 RX- BI_DB­7 -- BI_DD+
8-- BI_DD-

10BASE-T/

100BASE-TX

1000BASE-T

LED1

LED2

18

Refer to the table below for the LAN port LED definitions.

LED1 (ACT/Link) LED2 (Speed)

Status Description Status Description

Off No Link Off 10 Mb/s

Orange Linked Orange 100 Mb/s

Blinking Data Activity Green 1 Gb/s

Audio Jacks

The three-jack audio I/O supports Line-In, Line-Out, and Mic-In
functions. The blue Line-In jack connects to an audio source such
as a CD player. The green Line-Out port connects to a speaker or
headphone, while the pink Mic-In jack connects to a microphone.

16 Connectors & Jumpers

2.2 Onboard Connectors

1

12

13

24

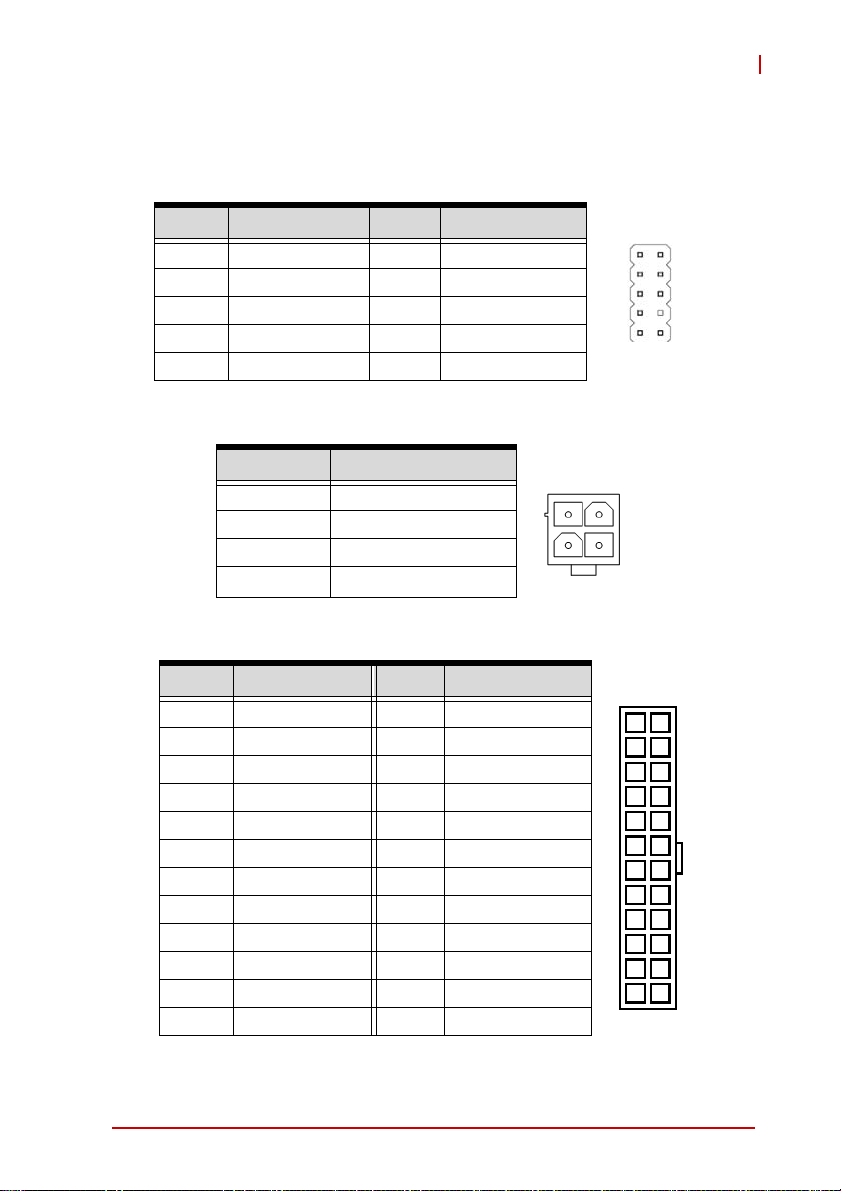

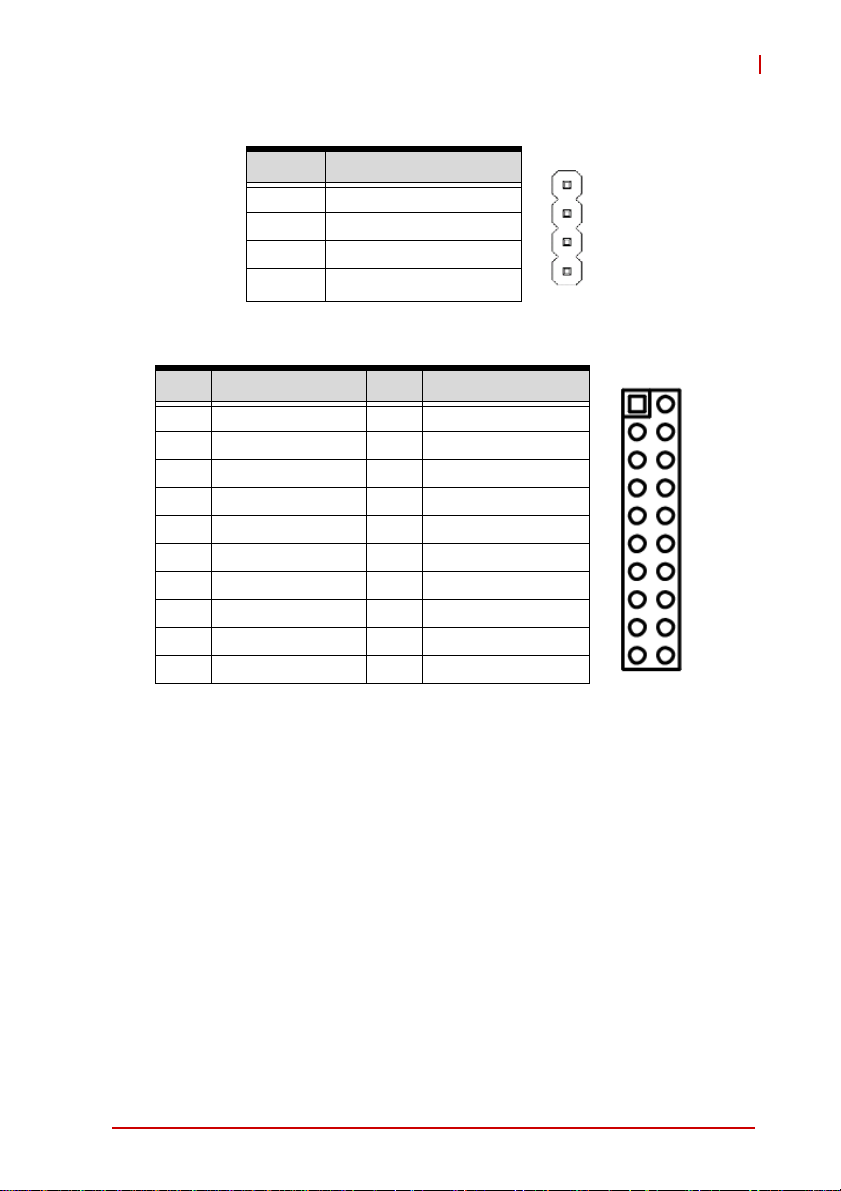

Front Panel Audio Pin Header (AAFP)

Pin # Signal Pin # Signal

1 MIC2_L 6 AGND
2 MIC2_R 7 FP_PRES#
3 MIC2_R 8 SRTN1
4 SENSE A 9 Key
5 LIN2_L 10 SRTN2

ATX 12V Power Connector (ATX12V)

Pin # Signal

1 GND
2 GND
3 +12V DC
4 +12V DC

ATX Power Connector (EATXPWR)

M-322

1

2

4

6

1

3

Pin # Signal Pin # Signal

1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS-ON#
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 PWRGD 20 NC

9 +5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND

Connectors & Jumpers 17

CD-in Connector (CD)

Pin # Signal

1 Left Audio Channel
2 CD_GND
3 CD_GND
4 Right Audio Channel

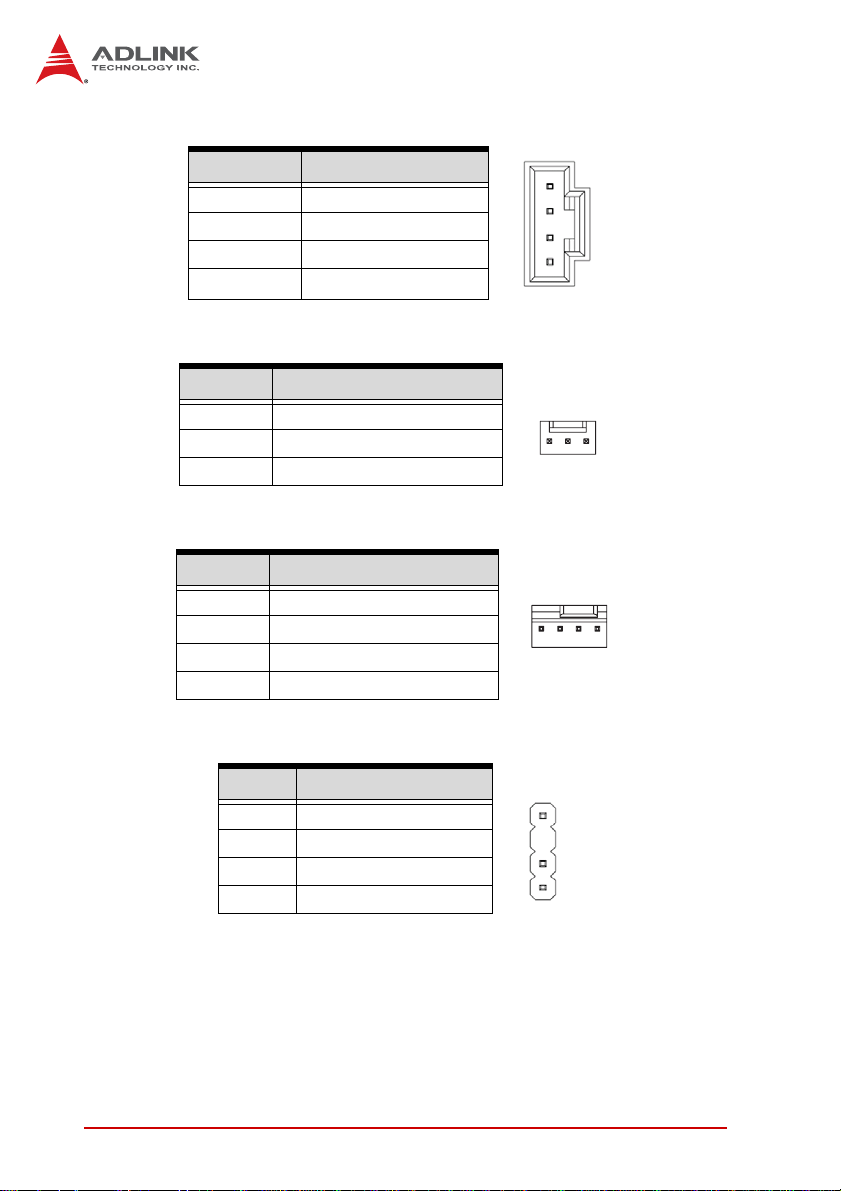

System Fan Connector (CHA_FAN1)

Pin # Signal

1 Fan Sense
2 Fan Power (+12V)
3 GND

CPU Fan Connector (CPU_FAN)

Pin # Signal

1 GND
2 Fan Power (+12V)
3 Fan Sense
4 Fan Speed Control

Chassis Intrusion Connector (CHASSIS)

1

31

14

Pin # Signal

1 +5Vsb
2 –
3 Chassis Signal
4 GND

1

Note: Short pins 3 and 4 if not connected to chassis.

18 Connectors & Jumpers

Serial Port Connectors RS-232 (COM2-4)

Pin # RS-232

1 DCD, Data carrier detect
2 RXD, Receive data
3 TXD, Transmit data
4 DTR, Data terminal ready
5 GND, ground
6 DSR, Data set ready
7 RTS, Request to send
8 CTS, Clear to send
9 RI, Ring indicator

1

9

Serial Port Connectors RS-422/485 (COM4)

Pin # RS-422 RS-485

1 TXD- TXD­2 TXD+ TXD+
3RXD- NC
4RXD+ NC
5NC NC
6NC NC
7NC NC
8NC NC
9NC NC

M-322

2

See

“COM4 RS-232/422/485 Select (JCOMPWR5, 6, 7)” on page 25

for RS-232/422/485 mode jumper settings.

Connectors & Jumpers 19

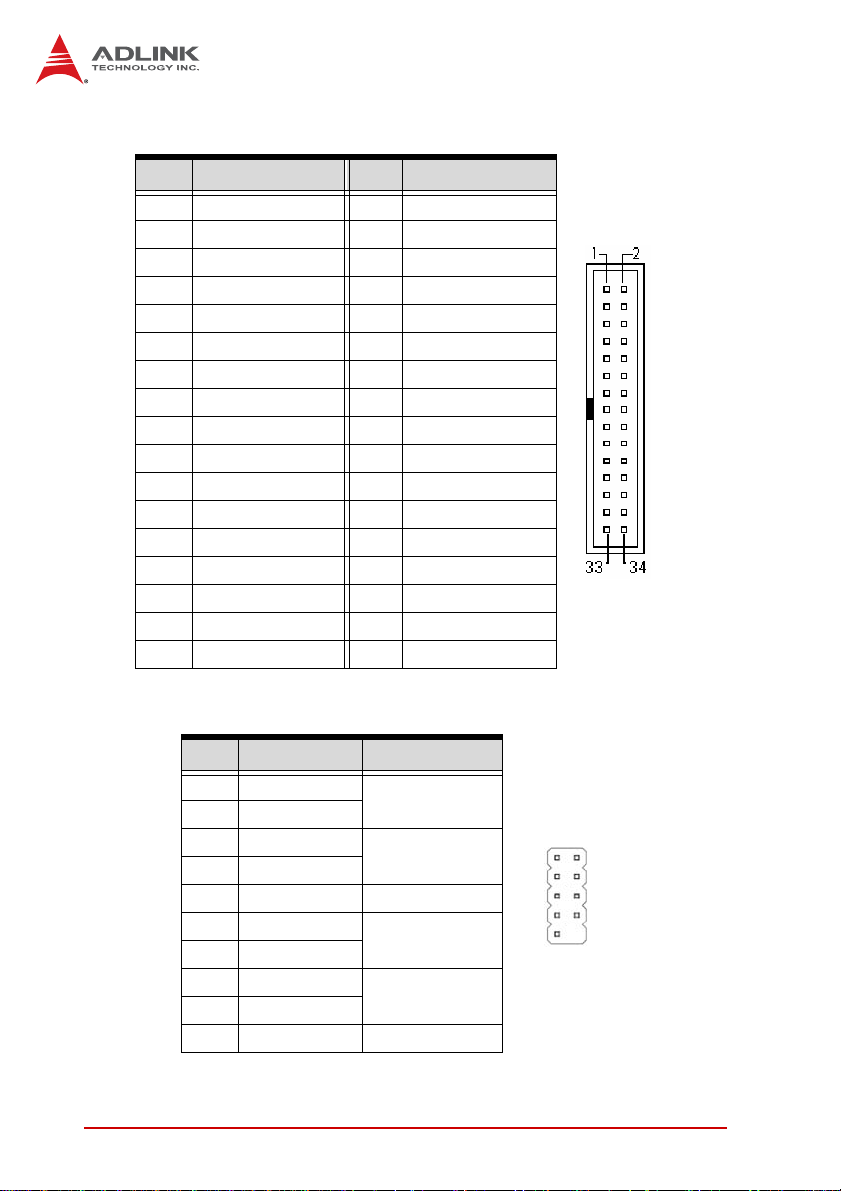

Floppy Disk Drive Connector (FLOPPY)

Pin # Signal Pin # Signal

1 GND 2 Extended Density
3 GND 4 NC
5 NC 6 NC
7 GND 8 Index

9 GND 10 Motor A Select
11 GND 12 NC
13 GND 14 Drive A Select
15 GND 16 NC
17 GND 18 Step Direction
19 GND 20 Step Pulse
21 GND 22 Write Data
23 GND 24 Write Gate
25 GND 26 Track 0
27 GND 28 Write Protect
29 GND 30 Read Data
31 GND 32 Head Select
33 GND 34 Disk Change

System Panel Pin Header (F_PANEL)

Pin # Signal Pin Group

1 HD_LED+
2 HD_LED­3 GND
4 RESET
5 NC
6 PWR_LED+
7 PWR_LED­8 PWR
9 GND

10 NC

20 Connectors & Jumpers

Hard Disk LED

Reset Button

Power LED

Power Switch

1

5

6

Amplifier Audio Pin Header (JAMP1)

M-322

Pin # Signal

1 AMP_L­2 AMP_L+
3 AMP_R-

4 AMP_R+

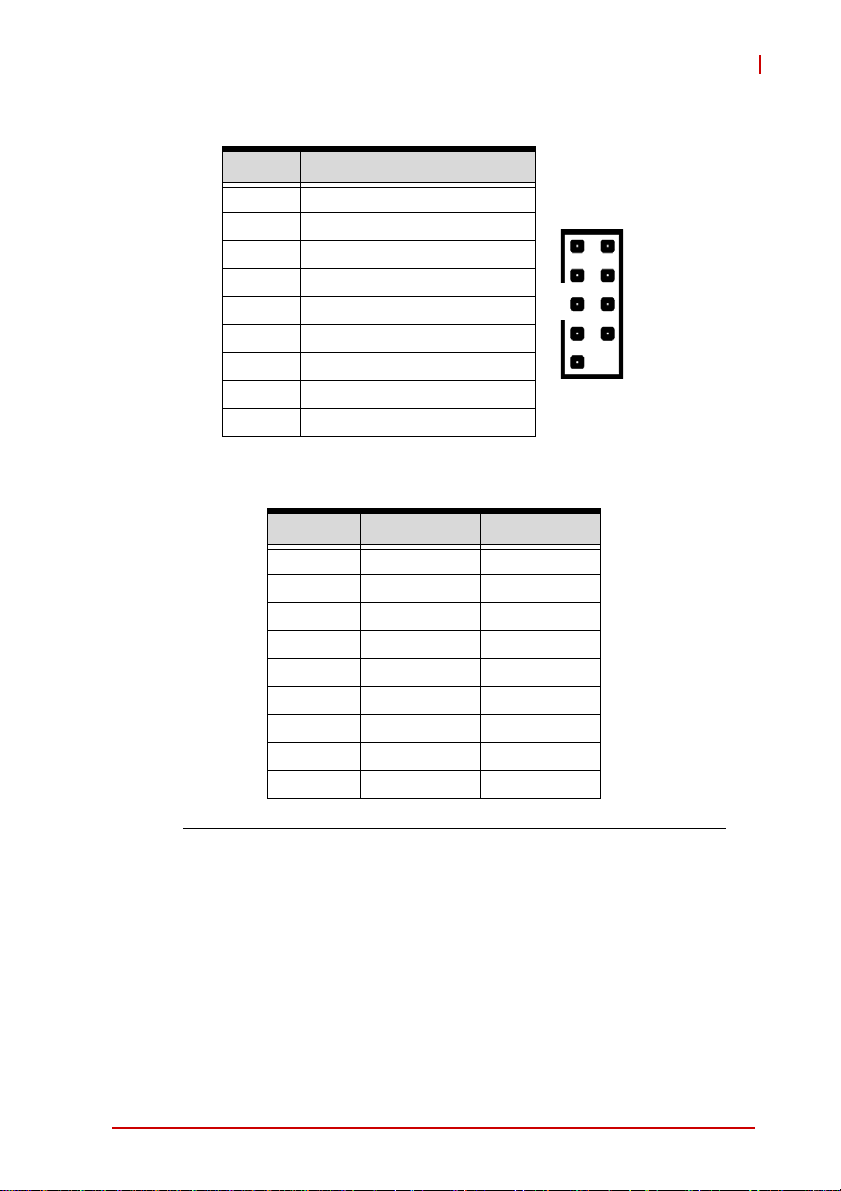

Digital IO Pin Header (JDIO)

Pin # Signal Pin # Signal

1 DIO GP20 2 DIO GP10
3 DIO GP21 4 DIO GP11
5 DIO GP22 6 DIO GP12
7 DIO GP23 8 DIO GP13
9 DIO GP24 10 DIO GP14

11 DIO GP25 12 DIO GP15
13 DIO GP26 14 DIO GP16
15 DIO GP27 16 DIO GP17
17 SMLINK0 18 SMLINK1
19 Ground 20 +5V

1

12

Connectors & Jumpers 21

IDE Connector (PRI_EIDE)

Pin # Signal Pin # Signal

1 Reset 2 Ground
3 Data 7 4 Data 8
5 Data 6 6 Data 9
7 Data 5 8 Data 10

9 Data 4 10 Data 11
11 Data 3 12 Data 12
13 Data 2 14 Data 13
15 Data 1 16 Data 14
17 Data 0 18 Data 15
19 Ground 20 ­21 Request 22 Ground
23 I/O Write 24 Ground
25 I/O Read 26 Ground
27 I/O Ready 28 Cable Select
29 DMA Ack 30 Ground
31 Interrupt Request 32 No Connect
33 Device Address 1 34 ATA 66/100 Detect
35 Device Address 0 36 Device Address 2
37 Chip Select 1 38 Chip Select 3
39 Device Active 40 Ground

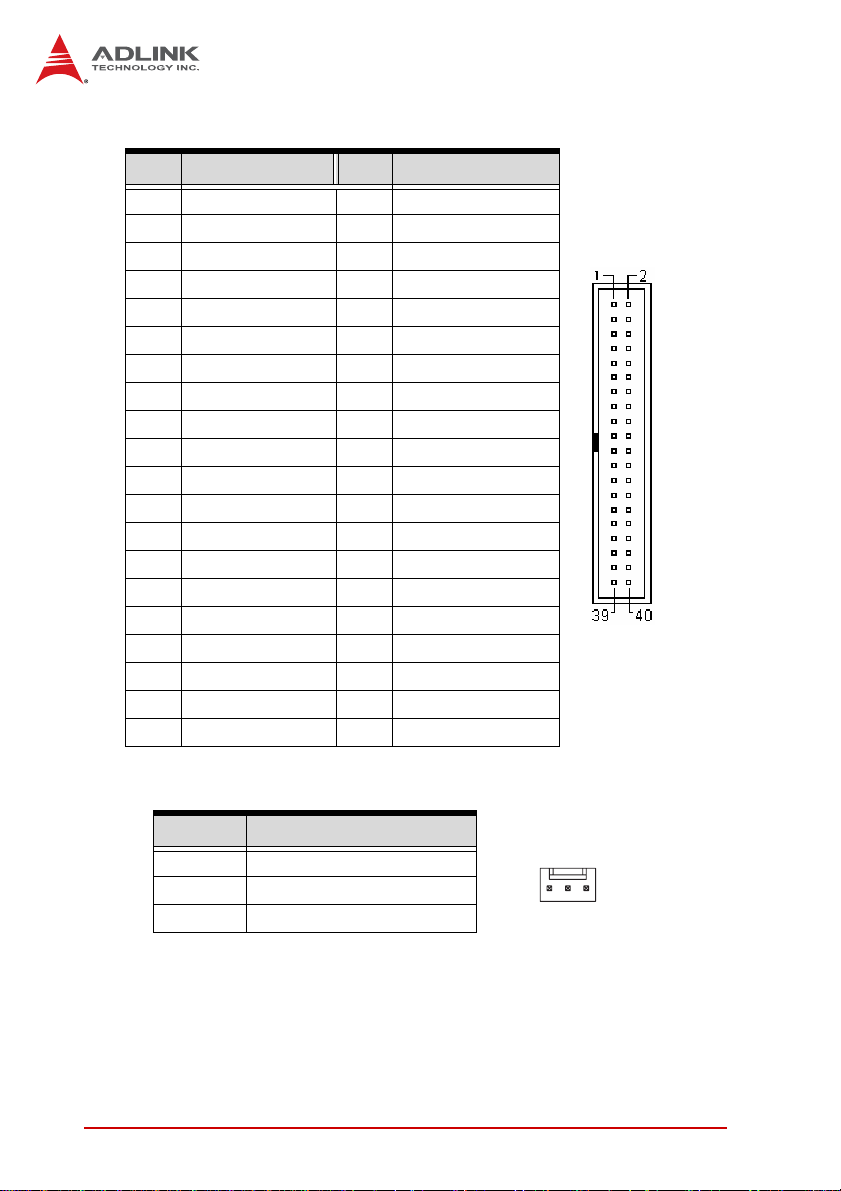

Power Fan Connector (PWR_FAN)

Pin # Signal

1 Fan Sense
2 Fan Power (+12V)
3 GND

22 Connectors & Jumpers

31

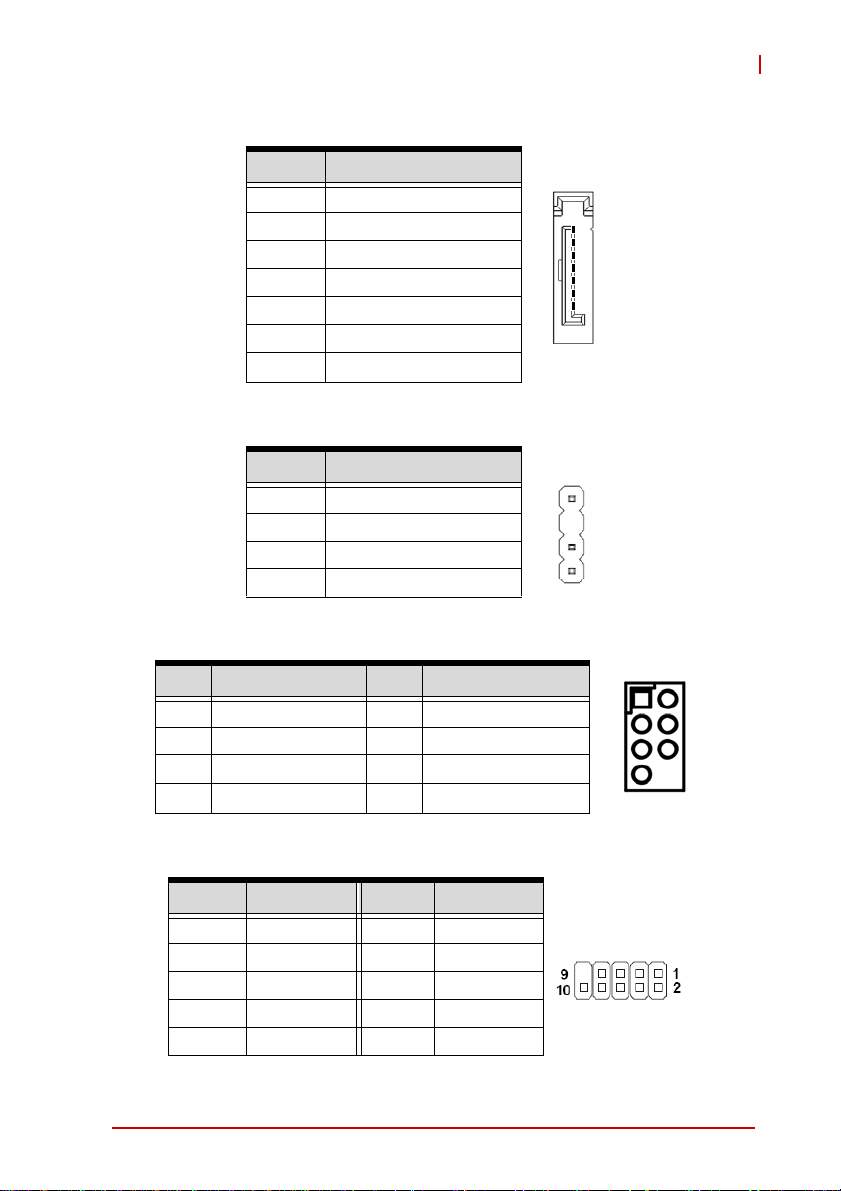

SATA Connectors (SATA1-6)

Pin # Signal

1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND

S/PDIF Pin Header (SPDIF_OUT)

Pin # Signal

1 +5V
2 –
3 SPDIF0
4 GND

SPI Pin Header (SPI)

M-322

1

7

1

Pin # Signal Pin # Signal

1

1 +3V ROM 2 GND
3 F_SPI_CS# 4 F_SPI_CLK
5 F_SPI_MISO 6 F_SPI_MOSI
7 NC 8 –

USB Pin Headers (USB56/78/910/1112)

Pin # Signal Pin # Signal

1+5V2+5V
3 USB0- 4 USB1­5 USB0+ 6 USB1+
7 GND 8 GND
9 Key 10 –

Connectors & Jumpers 23

2.3 Jumpers

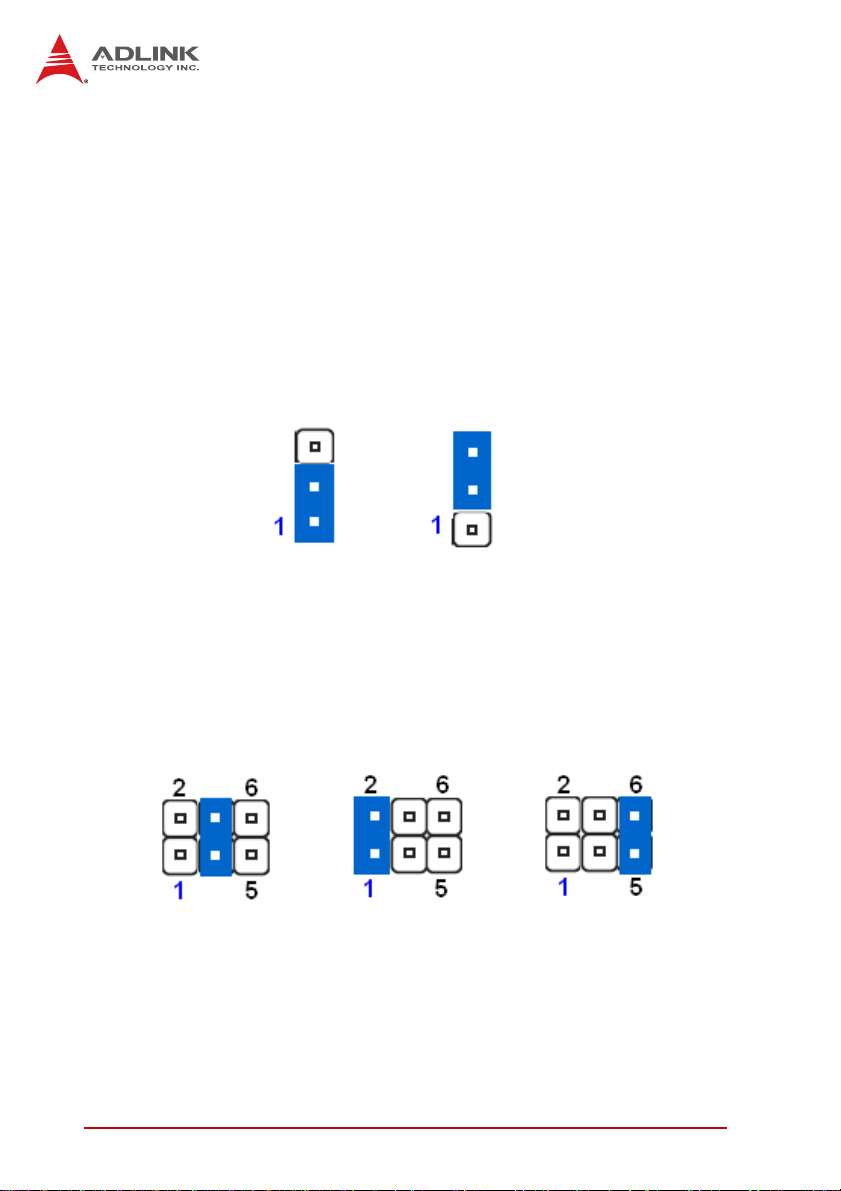

Clear CMOS Jumper (CLRTC)

The CMOS RAM data contains the date/time and BIOS setting
information. CMOS is powered by the onboard button cell battery.
To erase the CMOS RAM data:

1. Disconnect power from the M-322

2. Short the CLRTC pins 2-3

3. Turn the power on. After power on, remove the jumper
cap from pins 2-3 and reinstall it to pins 1-2.

Normal

(default)

Clear CMOS

COM1-4 RI, +12V and +5V Select (JCOMPWR1-4)

These jumpers allows you to select RI, +5V and +12V power set­tings for COM1-4. Jumper JCOMPWR1 corresponds to COM1,
JCOMPWR2 corresponds to COM2, and so on, respectively.

RI

(default)

24 Connectors & Jumpers

+12V

+5V

M-322

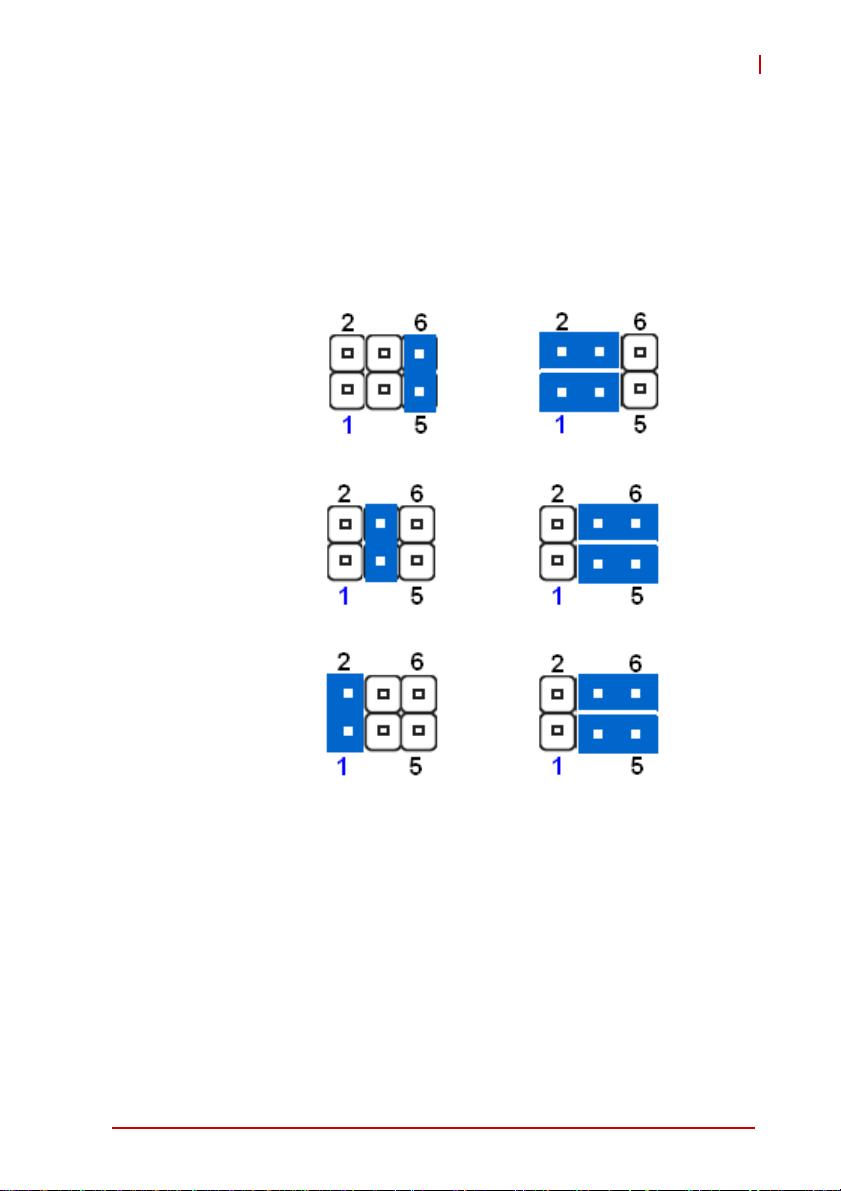

COM4 RS-232/422/485 Select (JCOMPWR5, 6, 7)

Short the jumper pins according to the following settings to set
COM4 to RS-232/422/485 mode.

JCOMPWR5 JCOMPWR6/7

RS-232

RS-422

RS-485

Connectors & Jumpers 25

This page intentionally left blank.

26 Connectors & Jumpers

3 Getting Started

This chapter provides information on how to install components to
the M-322 motherboard.

3.1 Installing the CPU

The M-322 Supports the Intel® Core™2 Duo/Quad, Intel® Pen­tium® Dual-Core, and Intel® Celeron® processors via the surface
mount LGA775 socket (Socket T).

Disconnect all power supply to the board
before installing a CPU to prevent damaging

WARNING:

To install the CPU:

the board and CPU.
Do not touch socket contacts. Damaging the

contacts voids the product warranty. Follow
the installation instructions carefully to avoid
damaging motherboard components.

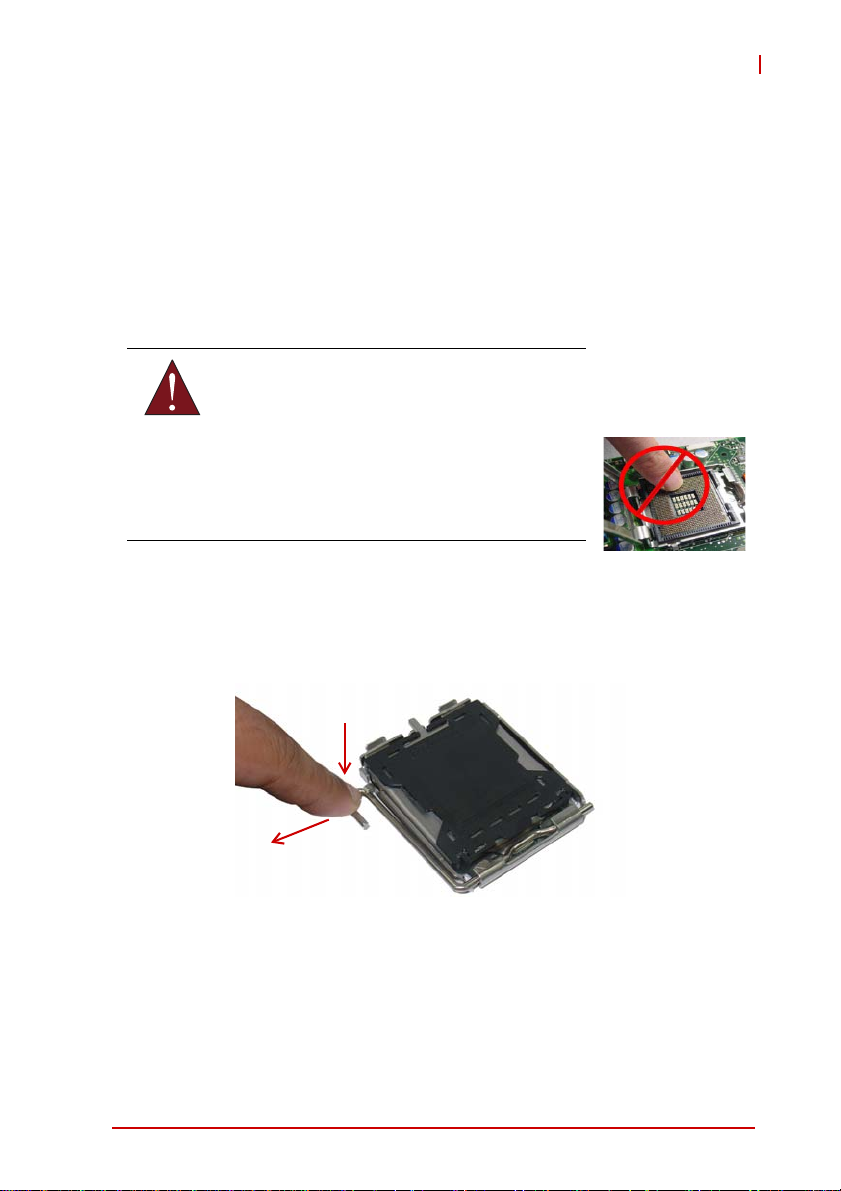

1. Press the load lever (A), then disengage it from the

retention tab (B).

M-322

A

B

Getting Started 27

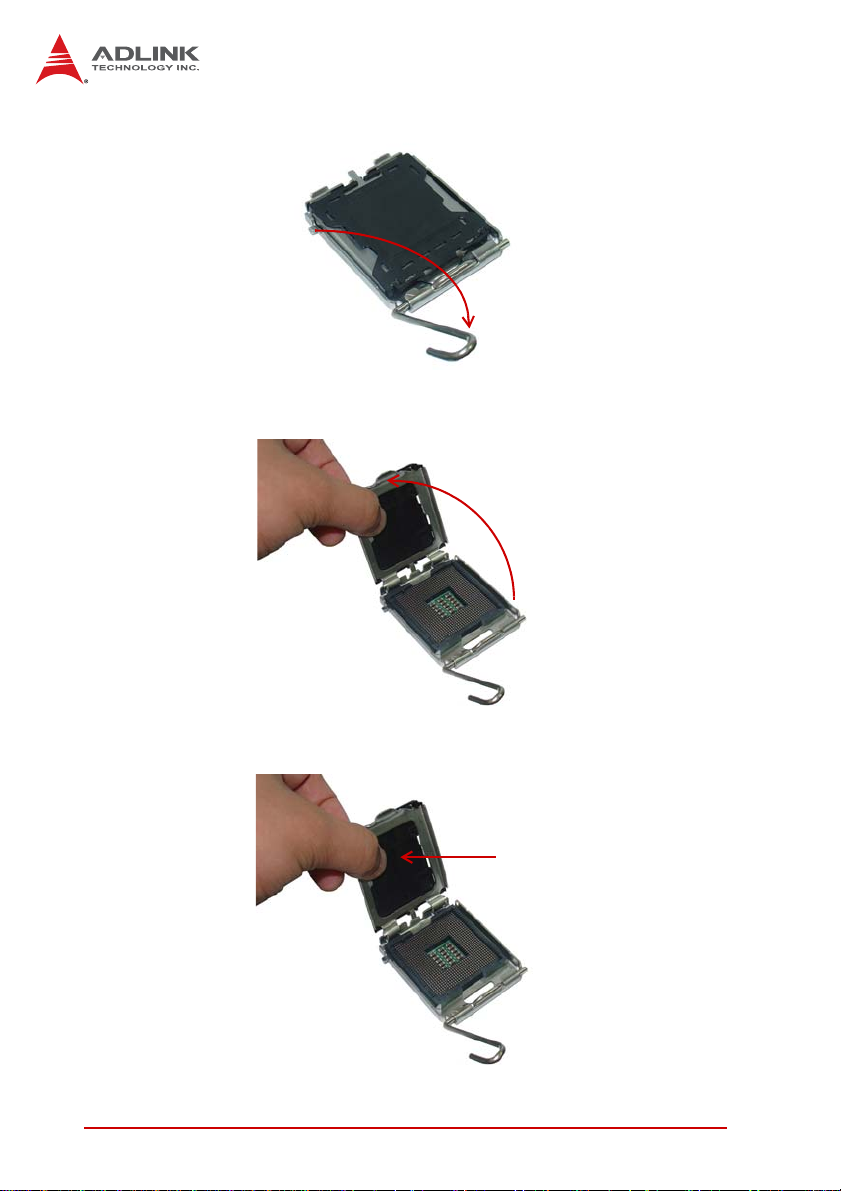

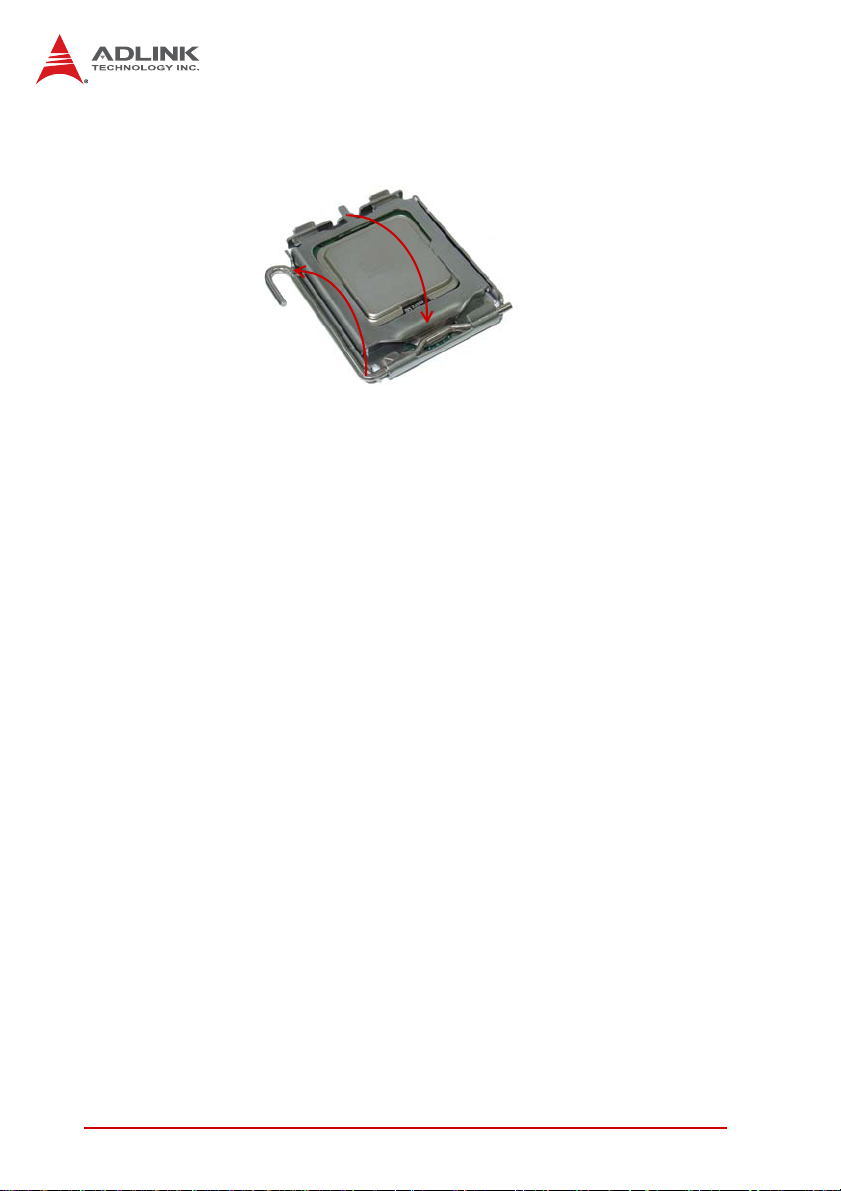

2. Lift and rotate the load lever to a 135° angle

3. Lift the load plate to a 100° angle using your thumb and
forefinger

4. Use your thumb to push and remove the protective
socket cover (plastic) from the load plate

28 Getting Started

5. Position the CPU over the socket, then match the

notches on the CPU side with the alignment keys on the
socket. The golden triangle on the CPU must be posi­tioned on the bottom-left corner of the socket .

Notch

M-322

Golden Triangle

The CPU fits the socket in only one orientation. DO NOT force it
into the socket to avoid damaging it.

WARNING:

Alignment

Key

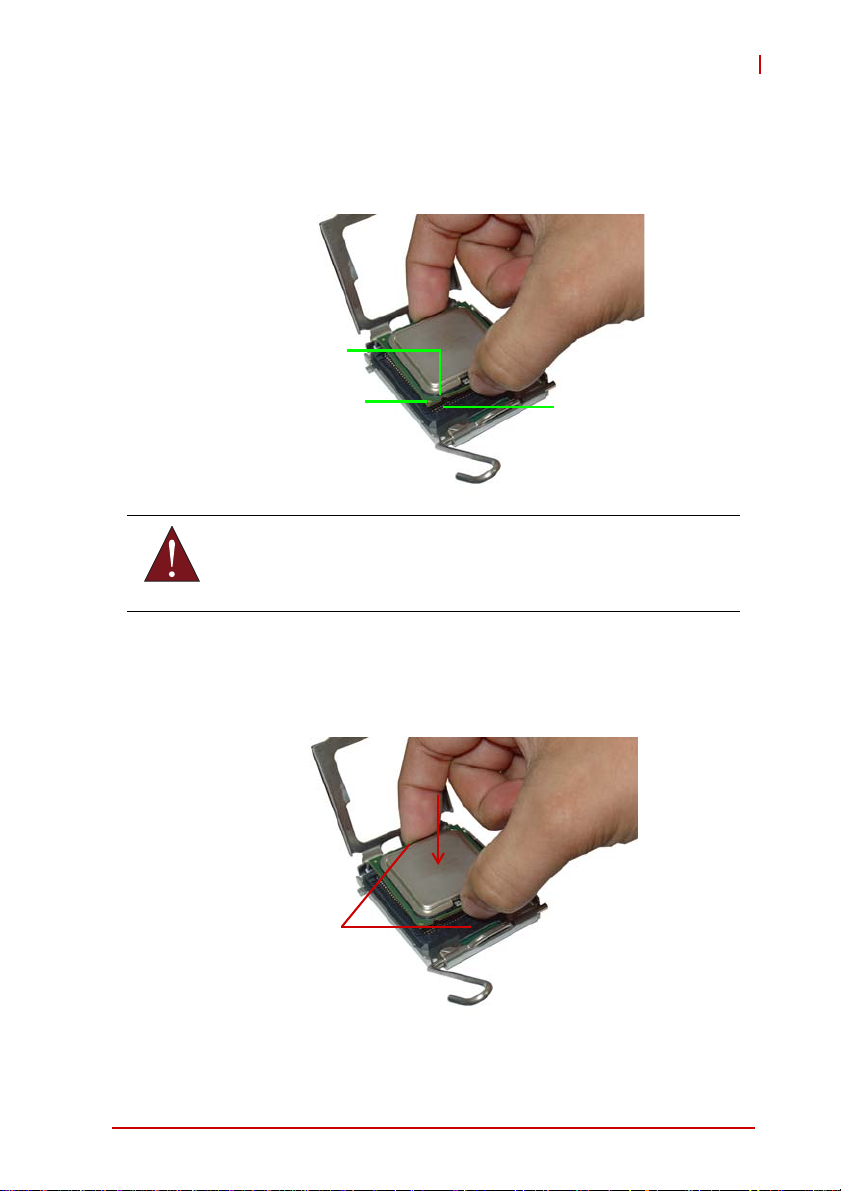

6. Carefully place the CPU on the socket in a vertical

motion. The socket has tabs that accommodate your fin­gers during installation .

Socket Tabs

Getting Started 29

7. Close the load plate (A), then fasten the load lever on
the retention tab (B) .

A

B

30 Getting Started

M-322

3.2 Installing the CPU Fan and Heatsink

The CPU requires a chassis with an airflow inlet and maximum
internal ambient temperature of 60° C. A specially-designed

CAUTION:

The following CPU fan and heatsink assembly is recommended
for use with the M-322:

When the CPU fan installation procedures presented here are
inconsistent with the installation procedures you obtained from the
CPU fan and heatsink package, follow the latter.

CPU fan and heatsink must be installed before using the moth­erboard. Failure to install a CPU fan and heatsink may damage
the motherboard and/or the CPU.

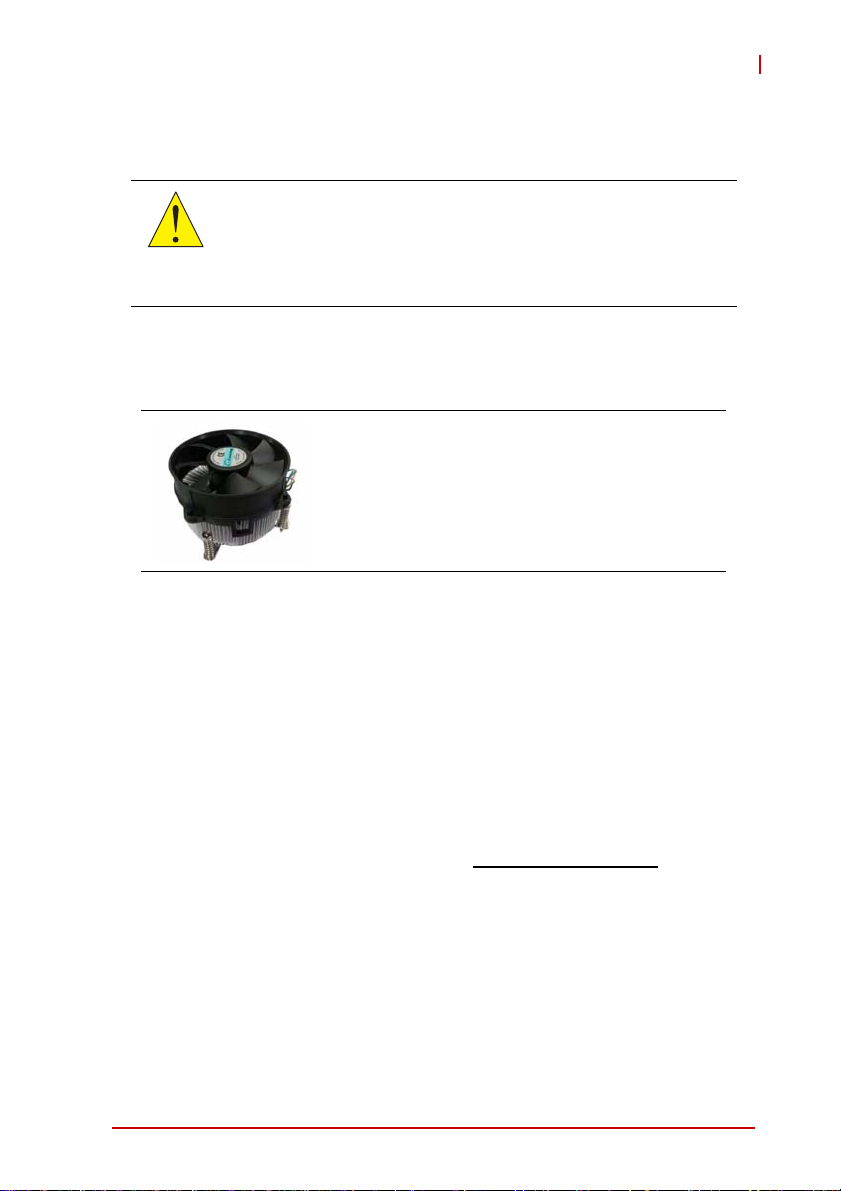

Copper-Core Cooler

Dimensions: 115 x 115 x 61.4 mm
Heatsink: Aluminum extrusion+copper core
Fan speed: 4500 RPM
Fan airflow: 76.9 CFM
Noise level: 49 dBA
Part number: 32-20086-0000

To install the CPU fan:

1. Apply thermal grease evenly on top of the installed CPU.

2. Lower the CPU fan to the CPU, then secure it using the

provided attachments or screws.

Connect the CPU fan cable to the CPU fan connector on the
motherboard labeled CPU_FAN (see Figure 1-2 on page 9

Getting Started 31

).

3.3 System Memory

The M-322 supports up to 8 GB of DDR2 667/800 MHz memory
modules in four DIMM sockets. DDR2 modules are notched to
facilitate correct installation in the DIMM sockets. See Figure 1-2
on page 9 for DIMM socket locations.

Memory Configurations

Dual channel configuration is supported by the M-322 as follows:

Channel A: DIMM_A1 and DIMM_A2
Channel B: DIMM_B1 and DIMM_B2

Unbuffered non-ECC DDR2 DIMMs with capacities of 256 MB,
512 MB, 1 GB and 2GB can be installed into the DIMM sockets as
follows:

X Memory modules of varying sizes may be installed in Channel

A and Channel B. The system maps the total size of the chan­nel with the lowest capacity for dual-channel configuration. Any
excess memory from the channel with higher capacity is then
mapped for single-channel operation.

X Always install DIMMs with the same CAS latency . For optim um

compatibility, it is recommended that you obtain memory mod­ules from the same vendor.

X Due to chipset resource allocation, the system may detect less

than 4 GB system memory when four 1 GB DDR2 memory
modules are installed. This limitation occurs in Windows® XP
32-bit operation system, which does not support Physical
Address Extension (PAE).

X The M-302 does not support memory modules with 128 Mb

chips or double-sided x16 memory modules.

Memory Module Installation

The DDR2 memory modules are notched to facilitate correct
installation in the DIMM sockets.

Disconnect all power supply to the board before installing a
memory module to prevent damaging the board and mem-

WARNING:

32 Getting Started

ory module .

To install a memory module:

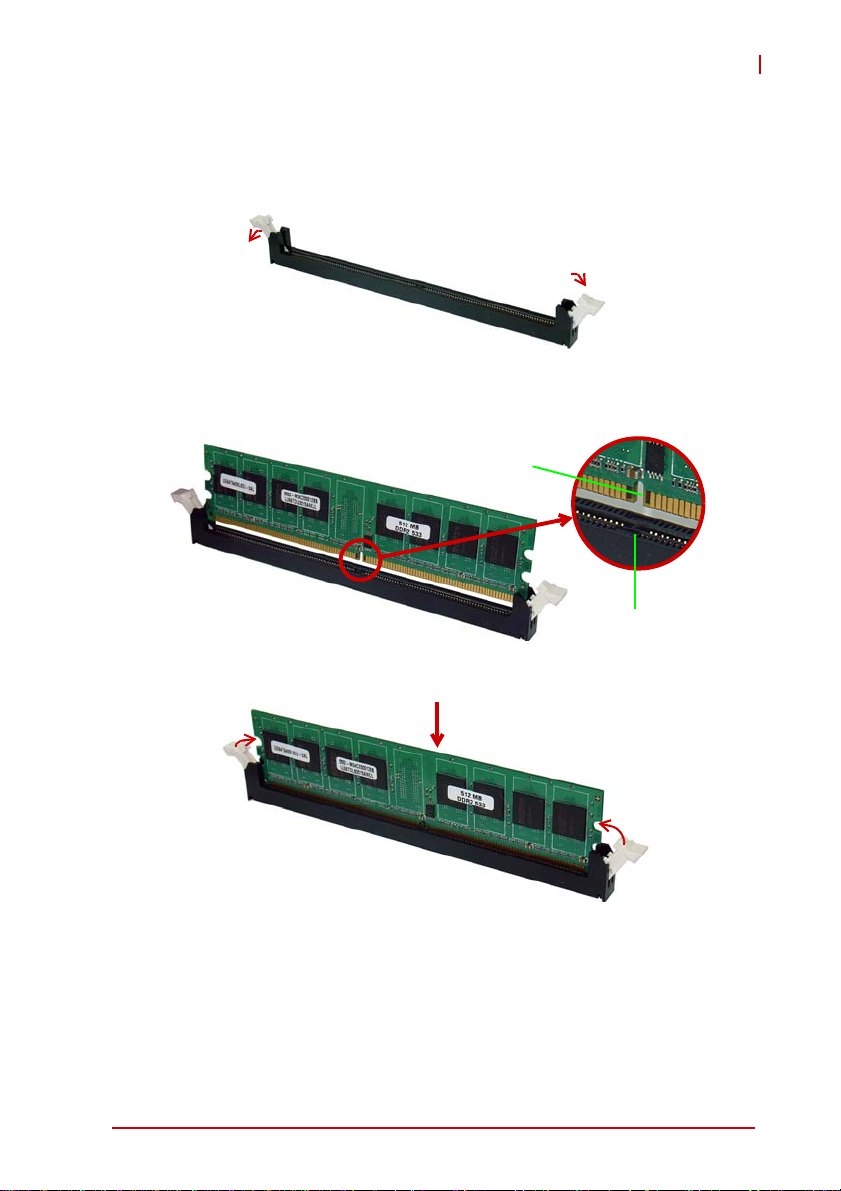

1. Locate the DIMM slots on the motherboard.

2. Press the socket’ s retaining clips outward to unlock.

3. Align the memory module on the socket making sure

that the notch matches the break on the socket.

Notch

Break

M-322

4. Insert the module firmly into the slot until the retaining clips

snap back inwards and the module is securely seated.

Getting Started 33

3.4 Driver Installation

This section provides information on how to install the M-322
device drivers under Windows XP. The device drivers are located
in the following directories on the driver CD, or can be downloaded
from the ADLINK website (http://www.adlinktech.com):

Chipset \Drv_Chipset_Q35\
Display \Drv_VGA_GMA3100\
Ethernet \Drv_Lan_RTL8111C\
Audio \Drv_Audio_ALC888\
TPM \TPM\
Matrix Technology \Intel Matrix Storage Manager\

Install the Windows operating system before installing any driver.
Most standard I/O device drivers are installed during Windows
installation.

In order to enable RAID or AHCI mode, you must pre-install the
Intel® Matrix Storage Technology driver during the Windows*

NOTE:

NOTE:

Intel® Matrix Storage Technology Driver

installation process. using the F6 installation method.
*Not required for Windows Vista and Windows 7.

1. Create a floppy image as described in the F6Readme.txt file
contained in X:\Intel Matrix Storage Manager\Floppy_32.

2. During Windows installation, press F6 when you se e the
message “Press F6 if you need to install a third party

SCSI or RAID driver.” Then press S to Specify Additional
Device.

3. Insert the floppy disk and follow the remaining instruc­tions. Leave the disk in until the system has rebooted
and copied the necessary files, then remove the disk.

34 Getting Started

M-322

Intel® Q35 Express Chipset Driver

This section describes the installation of the Intel® Q35 Express
chipset driver.

1. Locate the directory X:\Drv_Chipset_Q35\.

2. Run the program setup.exe and follow the onscreen

instructions. Restart the system if prompted.

Display Driver

Follow these instructions to install the display driver:

1. Locate the directory X:\Drv_VGA_GMA3100\ on the

driver CD and select the correct operating system.

2. Run the program setup.exe and follow the onscreen

instructions. Restart the system if prompted.

Ethernet Driver

Follow these instructions to install the Ethernet driver.

1. Locate the directory

X:\Drv_Lan_RTL8111C\Windows\ on the driver CD and
select the correct operating system.

2. Run the program setup.exe and follow the onscreen

instructions. Restart the system if prompted.

Audio Driver

Follow these instructions to install the audio driver.

1. Locate the audio driver from the directory

X:\Drv_Audio_ALC888\Windows\ on the driver CD and
select the correct operating system.

2. Run the program setup.exe and follow the onscreen

instructions. Restart the system if prompted.

Getting Started 35

Intel® Matrix Storage Manager

Follow these instructions to install the Intel® Matrix Storage
Manager utility.

1. Locate the directory
X:\Intel Matrix Storage Manager\ on the driver CD.

2. Run the program iata78_enu.exe and follow the
onscreen instructions. Restart the system if prompted.

TPM Driver

Follow these instructions to install the TPM driver.

1. Locate the directory X:\TPM\ on the driver CD.

2. Run the program setup.exe and follow the onscreen
instructions. Restart the system if prompted.

36 Getting Started

4 BIOS Setup

The following chapter describes basic navigation for the
AMIBIOS®8 BIOS setup utility.

4.1 Starting the BIOS

To enter the setup screen, follow these steps:

1. Power on the motherboard

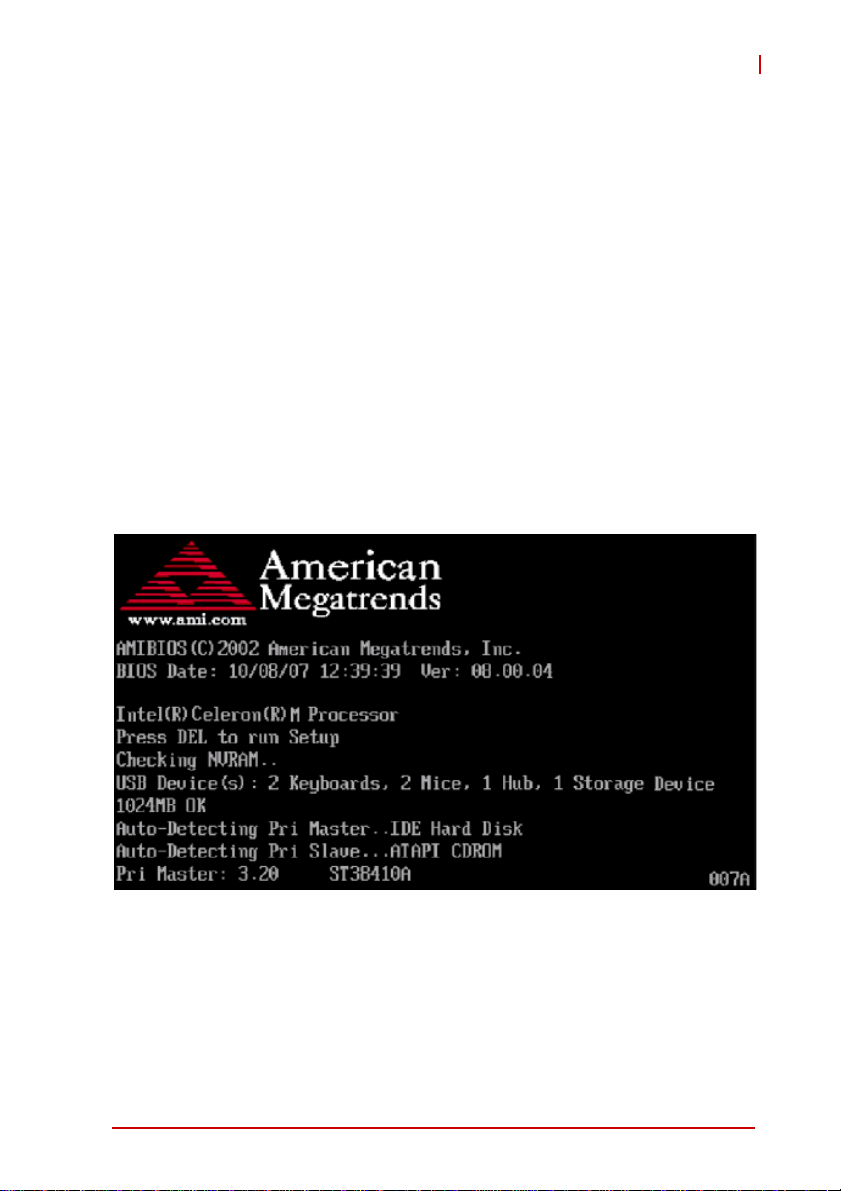

2. Press the < Delete > key on your keyboard when you

see the following text prompt:
< Press DEL to run Setup >

3. After you press the < Delete > key, the main BIOS setup

menu displays. You can access the other setup screens
from the main BIOS setup menu , such as Chipset and
Power menus.

M-322

Note: In most cases, the < Delete > key is used to invoke the setup

screen. There are several cases that use other keys, such as
< F1 >, < F2 >, and so on.

BIOS Setup 37

Setup Menu

The main BIOS setup menu is the first screen that you can navi­gate. Each main BIOS setup menu option is described in this
user’s guide.

The Main BIOS setup menu screen has two main frames. The left
frame displays all the options that can be configured. “Grayed”
options cannot be configured, “Blue” options can be.

The right frame displays the key legend. Above the key legend is
an area reserved for a text message. When an option is selected
in the left frame, it is highlighted in white. Often a text message will
accompany it.

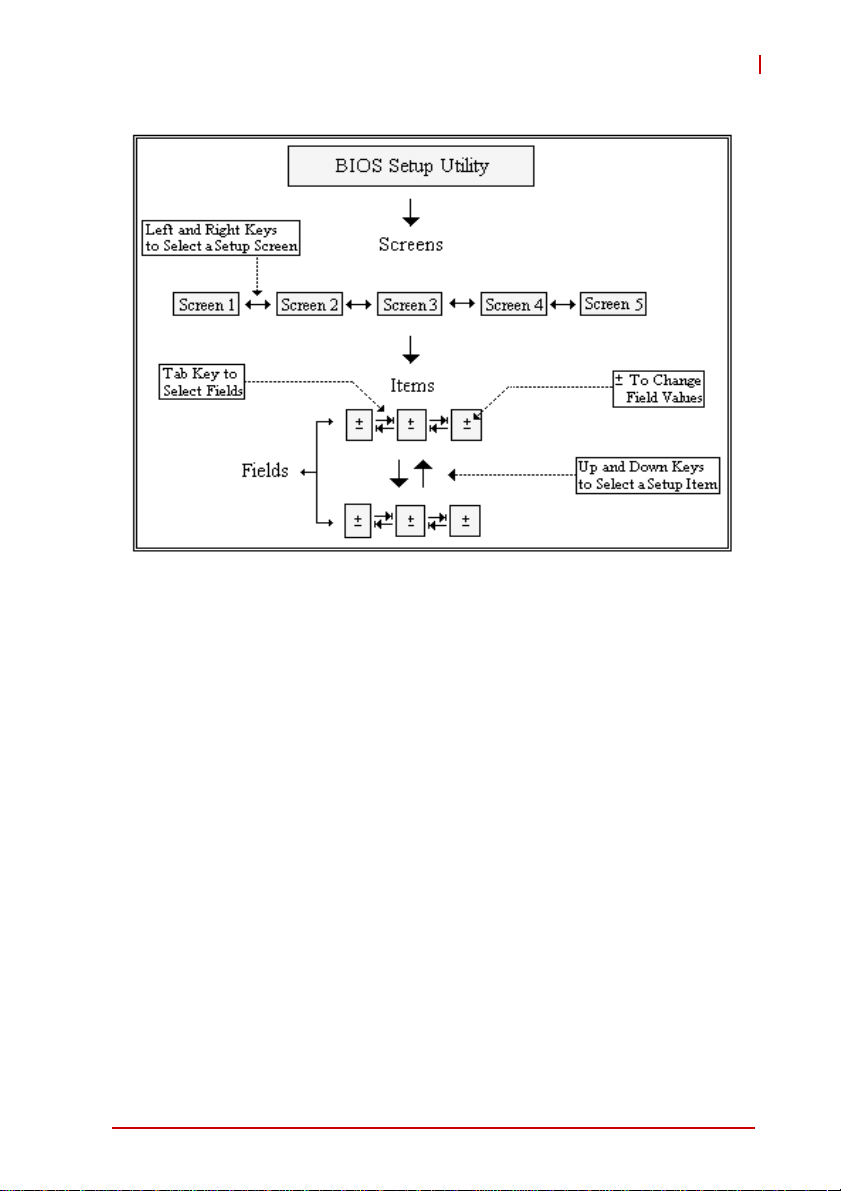

Navigation

The BIOS setup/utility uses a key-based navigation system called
hot keys. Most of the BIOS setup utility hot keys can be used at
any time during the setup navigation process.

These keys include < F1 >, < F10 >, < Enter >, < ESC >, < Arrow >
keys, and so on. .

38 BIOS Setup

M-322

Note: There is a hot key legend located in the r ight frame on most

setup screens.

The < F8 > key on your keyboard is the Fail-Safe key. It is not dis­played on the key legend by default. To set the Fail-Safe settings
of the BIOS, press the < F8 > key on your keyboard. It is located
on the upper row of a standard 101 keyboard. The Fail-Safe set­tings allow the motherboard to boot up with the least amount of
options set. This can lessen the probability of conflicting settings.

Hotkey Descriptions

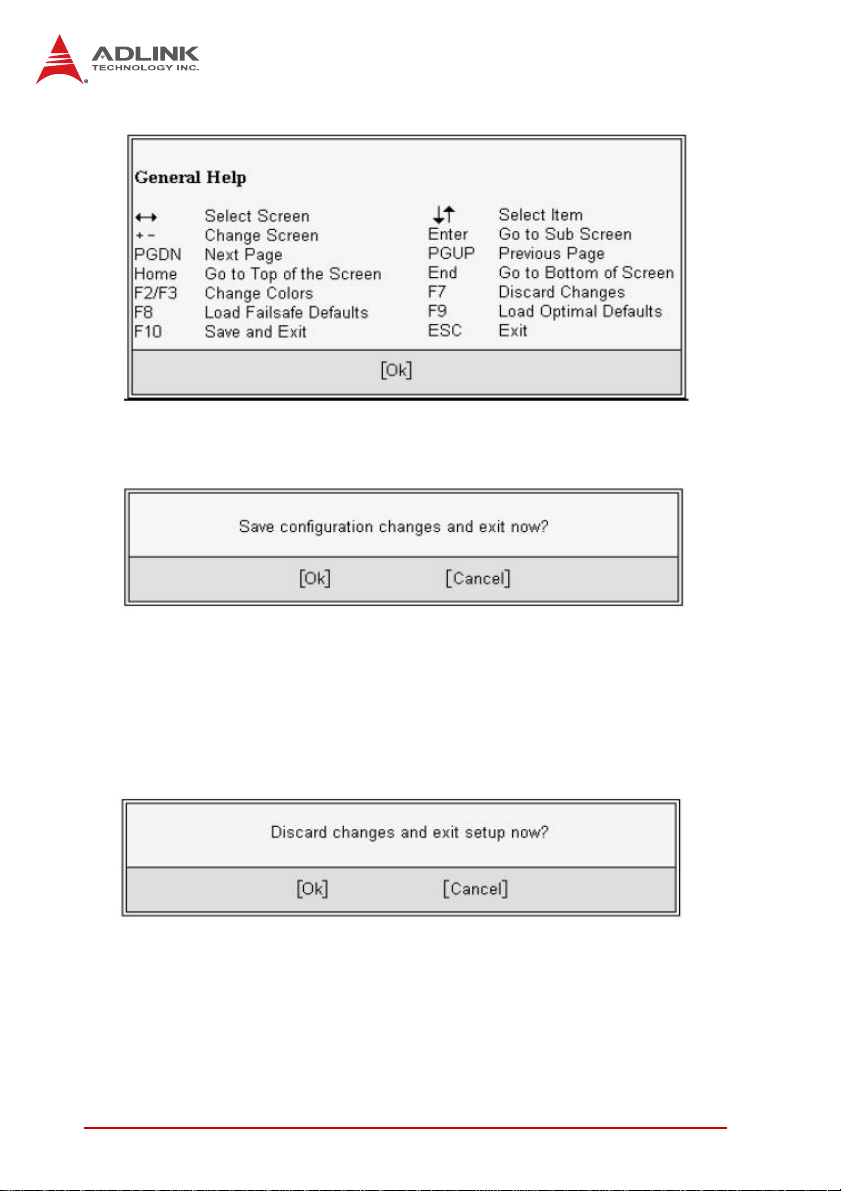

F1 The < F1 > key allows you to display the General Help

screen.
Press the < F1 > key to open the General Help screen.

BIOS Setup 39

F10 Th e < F10 > key allo ws yo u to save any changes you have

made and exit Setup. Press the < F10 > key to save your
changes. The following screen will appear:

Press the < Enter > key to save the configuration and exit.
You can also use the < Arrow > key to select Cancel and
then press the < Enter > key to abort this functio n and return
to the previous screen.

ESC The < Esc > key allows you to discard any changes you have

made and exit the Setup. Press the < Esc > key to exit the
setup without saving your changes. The following screen will
appear:

Press the < Enter > key to discard changes and exit. You can
also use the < Arrow > key to select Cancel and then press
the < Enter > key to abort this function and return to the pre­vious screen.

Enter The < Enter > key allows you to display or change the setup

option listed for a particular setup item. The < Enter > key
can also allow you to display the setup sub-screens.

40 BIOS Setup

M-322

4.2 Main Setup

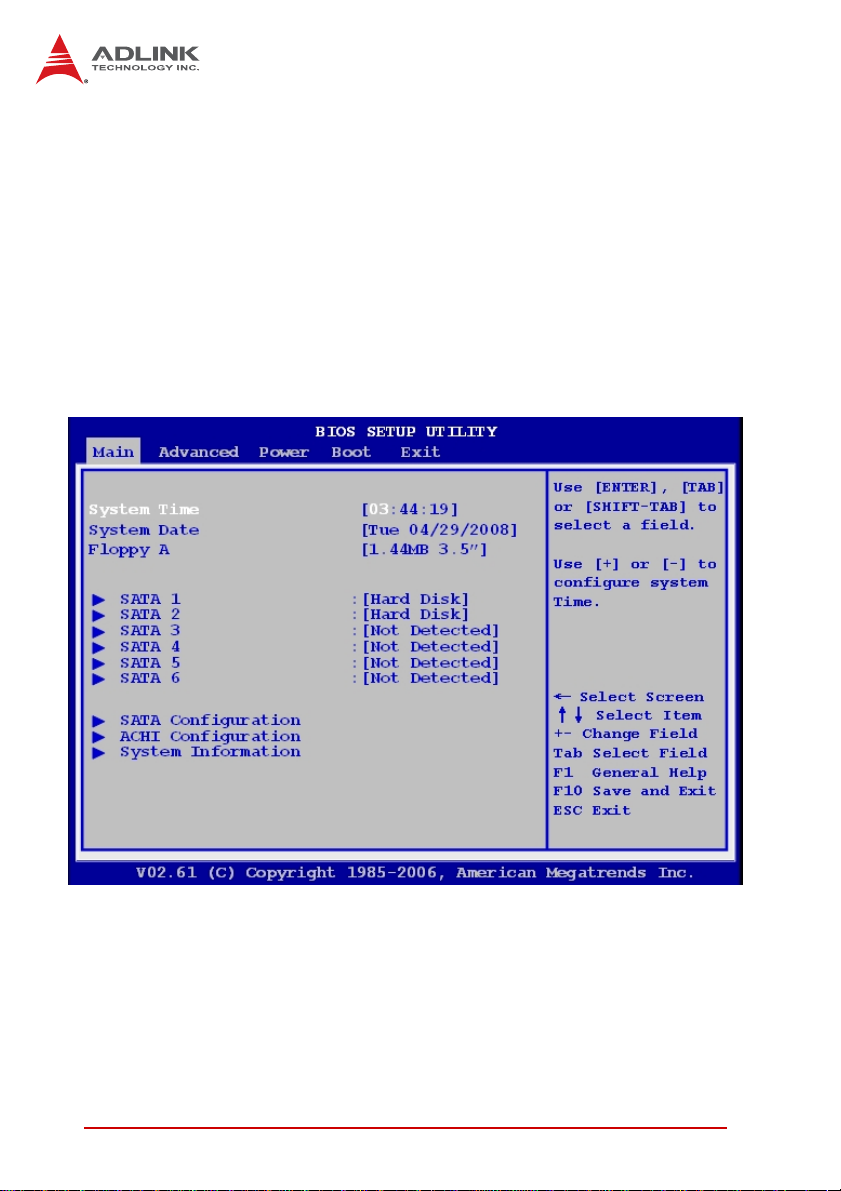

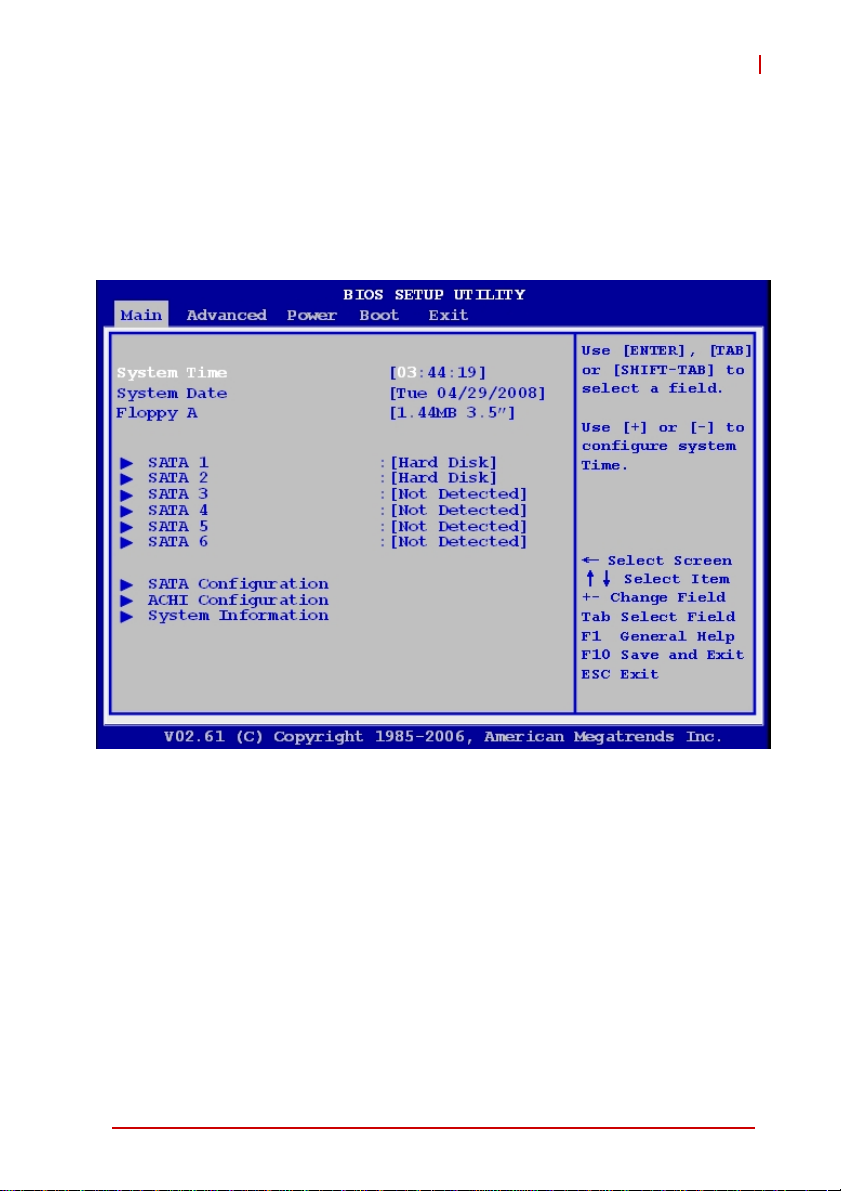

When you first enter the Setup Utility , you will enter the Main setup
screen. You can always return to the Main setup screen by select­ing the Main tab. There are two Main Setup options. They are
described in this section. The Main BIOS Setup screen is shown
below.

System Time/System Date

Use this option to change the system time and date. Highlight Sys­tem Time or System Date using the < Arrow > keys. Enter new val­ues using the keyboard. Press the < Tab > key or the < Arrow >
keys to move between fields. The date must be entered in MM/
DD/YY format. The time is entered in HH:MM:SS format.

Note: The time is in 24-hour format. For example, 5:30 A.M. ap-

pears as 05:30:00, and 5:30 P.M. as 17:30:00.

BIOS Setup 41

Floppy A

Sets the type of floppy drive installed.
Options: [Disabled], [360KB, 5 1/4], [1.2MB, 5 1/4], [720KB, 5 1/
4], [1.44MB, 5 1/4], [2.88MB, 3 1/2]

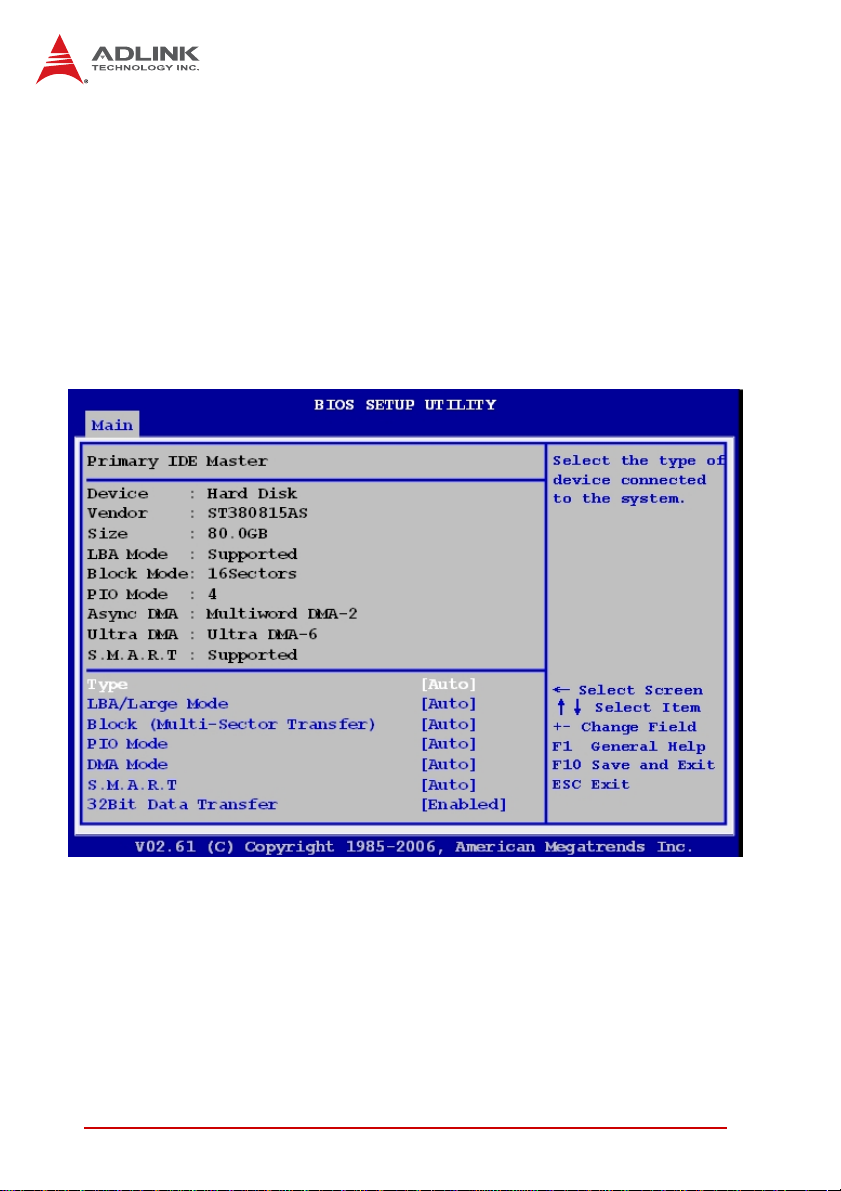

SATA 1~6

The BIOS automatically detects the presence of SATA devices.
There is a separate sub-menu for each IDE device. Select a
device item then press <Enter> to display the SATA device infor­mation and adjust user configurable parameters.

42 BIOS Setup

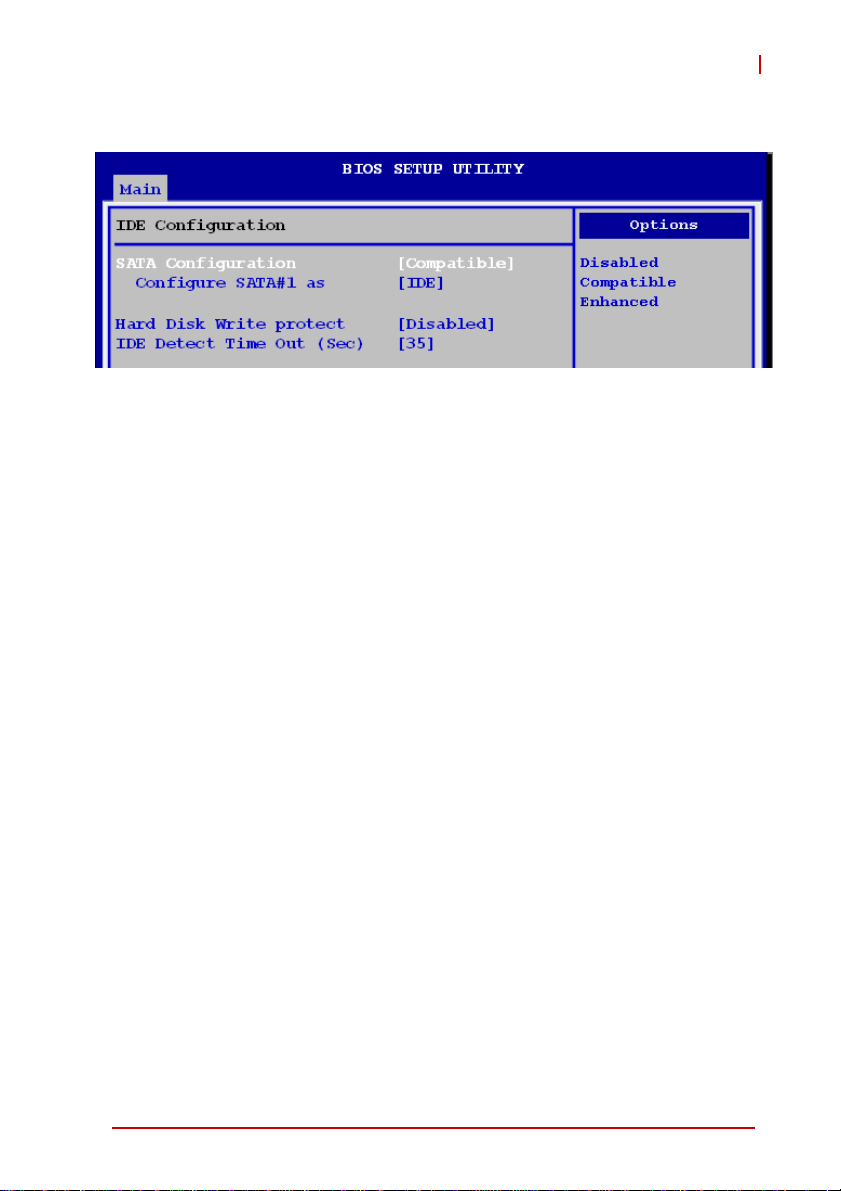

SATA Configuration

SATA Configuration

Allows you to disable or enable SATA Configuration function.

Options: [Disabled], [Compatible], [Enhanced] Configure SAT A as

Configures the Serial ATA connectors supported by the South­bridge chip. The AHCI allows the onboard storage drive to
enable advanced Serial ATA features that increases storage
performance on random workloads by allowing the drive to
internally optimize the order of command s. If you want to cre­ate a RAID 0, RAID 1, RAID 5, RAID 10, or the Intel® Matrix
Storage Technology configuration from the Serial AT A hard disk
drives, set this item to [RAID].

M-322

Hard Disk Write Protect

Allows you to enable or disable the hard disk write protect .

Options: [Disabled], [Enabled] IDE Detect Time Out

Sets SATA detect time out.
Options: [0], [5], [10], [15], [20], [25], [30], [35]

BIOS Setup 43

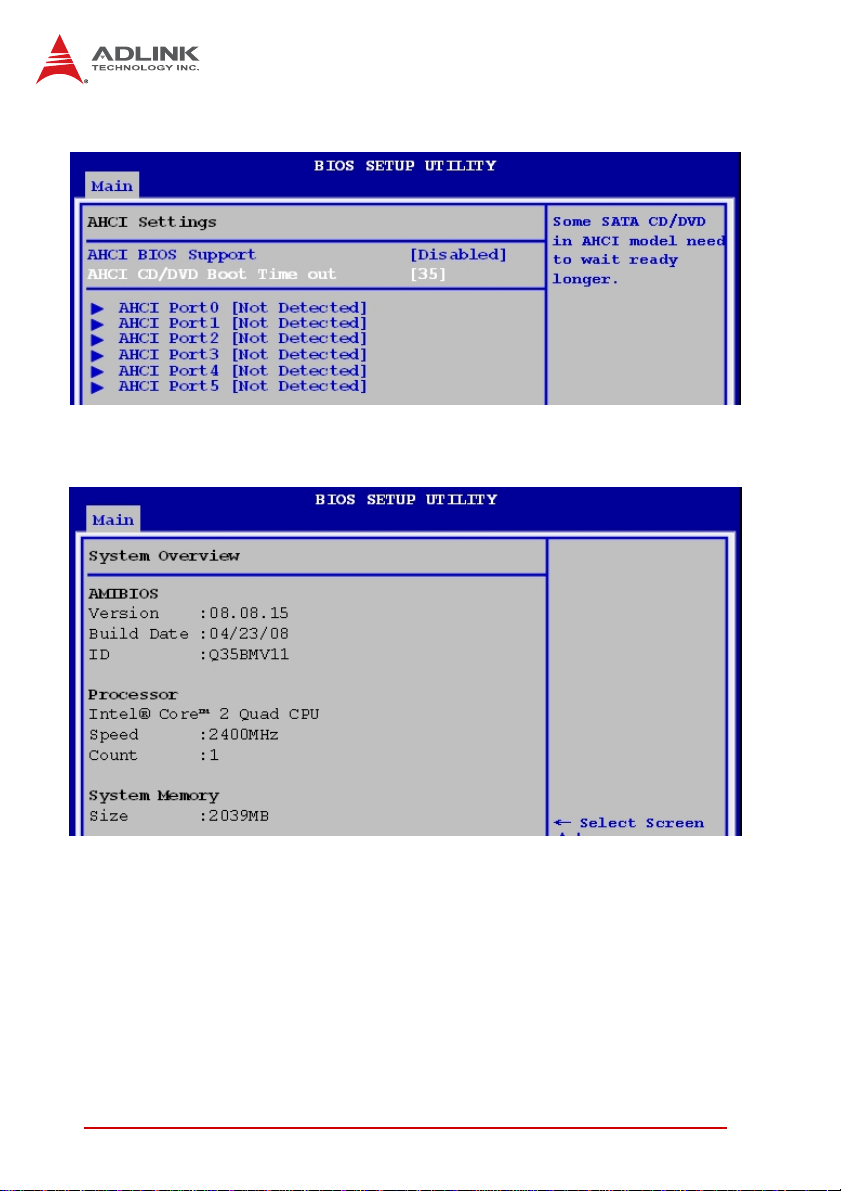

AHCI Settings

System Information

44 BIOS Setup

M-322

4.3 Advanced Setings

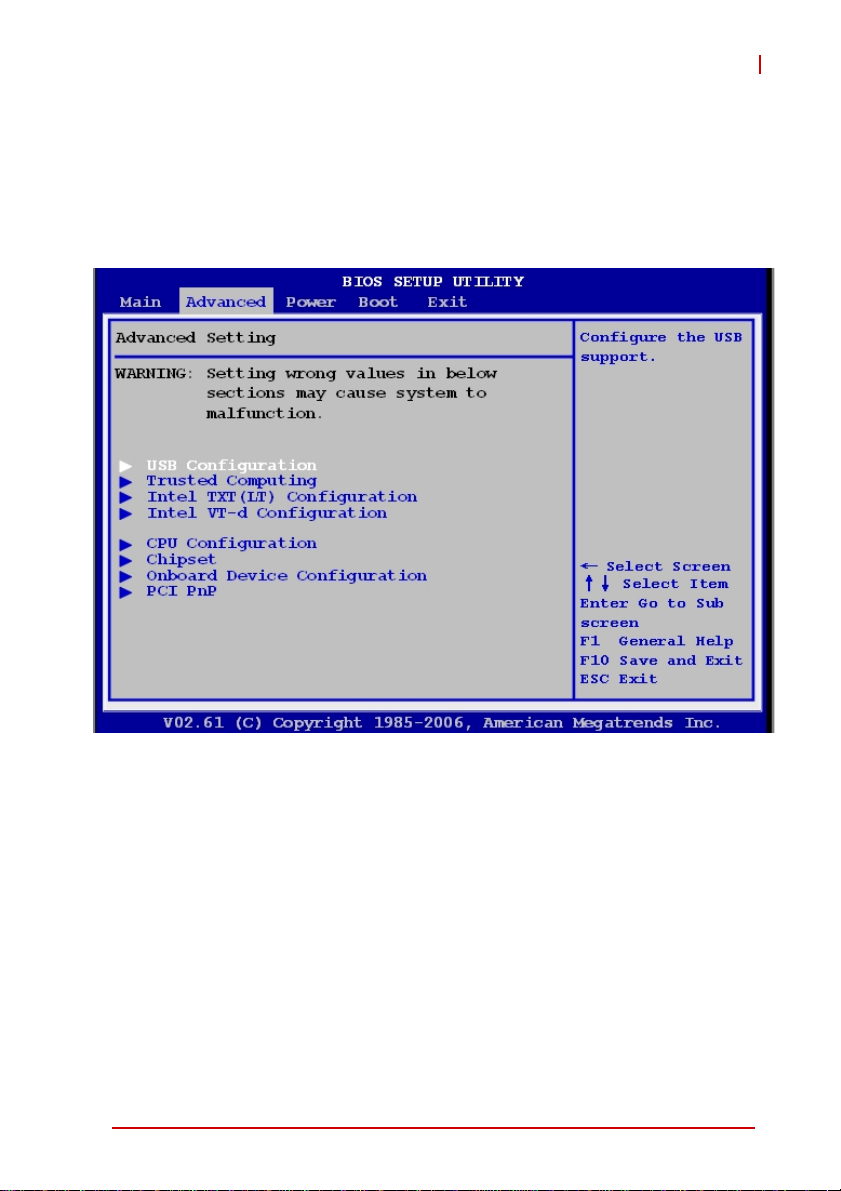

Select the Advanced tab from the setup screen to enter the
Advanced BIOS Setup screen. You can select any of the items in
the left frame of the screen to go to the sub menu for that item.
The sub menus are described on the following pages.

BIOS Setup 45

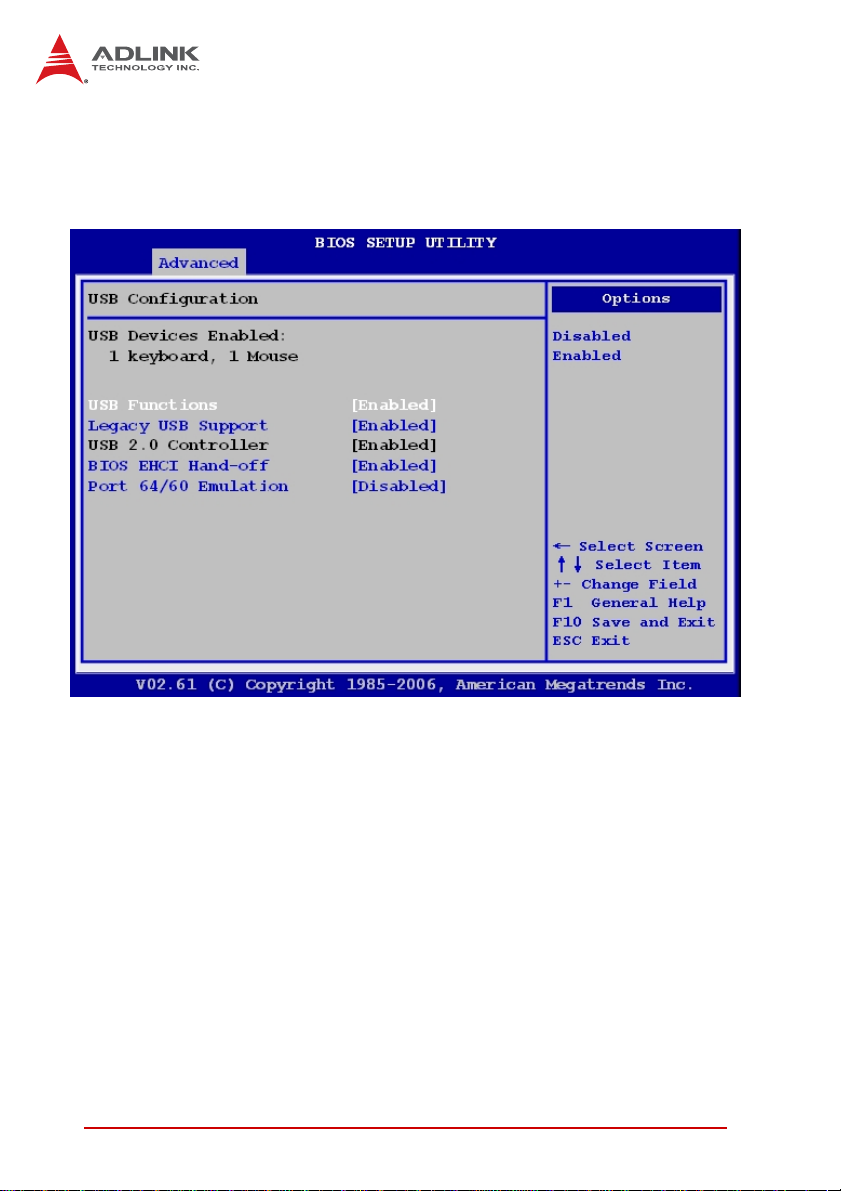

4.3.1 USB Configuration

You can use this screen to select options for the USB Configura­tion. Select an item then press <Enter> to display the configuration
options.

USB Functions

Allows you to enable or disable USB functions.

Options: [Disabled], [Enabled] Legacy USB Support [Enabled]

Allows you to enable or disable support for USB devices on
legacy operating systems (OS). Setting to Auto allows the sys­tem to detect the presence of USB devices at startup. If
detected, the USB controller legacy mode is enabled. If no
USB device is detected, the legacy USB support is disabled.
Options: [Disabled], [Enabled], [Auto]

46 BIOS Setup

M-322

USB 2.0 Controller

Allows you to enable or disable the USB 2.0 controller.

Options: [Enabled], [Disabled]. BIOS EHCI Hand-Off

Allow you to enable support for operating systems without an
EHCI hand-off feature.

Options: [Disabled], [Enabled]. Port 64/60 Emulation

Allows you to disable or enable the I/O port 60h/64h emulation
support. This should be enabled for the complete USB key­board legacy support for non-USB aware OS.
Options: [Disabled], [Enabled]

BIOS Setup 47

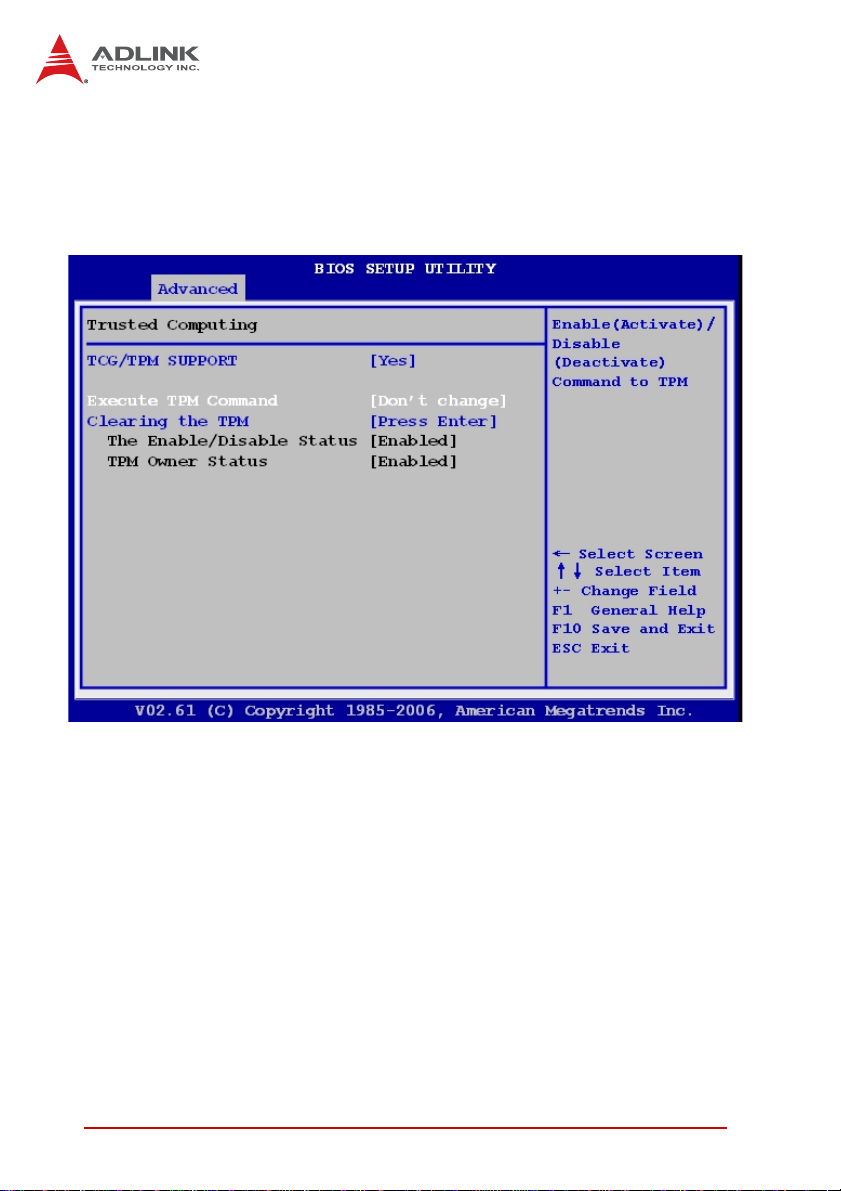

4.3.2 Trusted Computing

Trusted computing is an industry standard to make personal com­puters more secure through a dedicated hardware chip, called a
Trusted Platform Module (TPM). This option enables or disables
the TPM support.

48 BIOS Setup

M-322

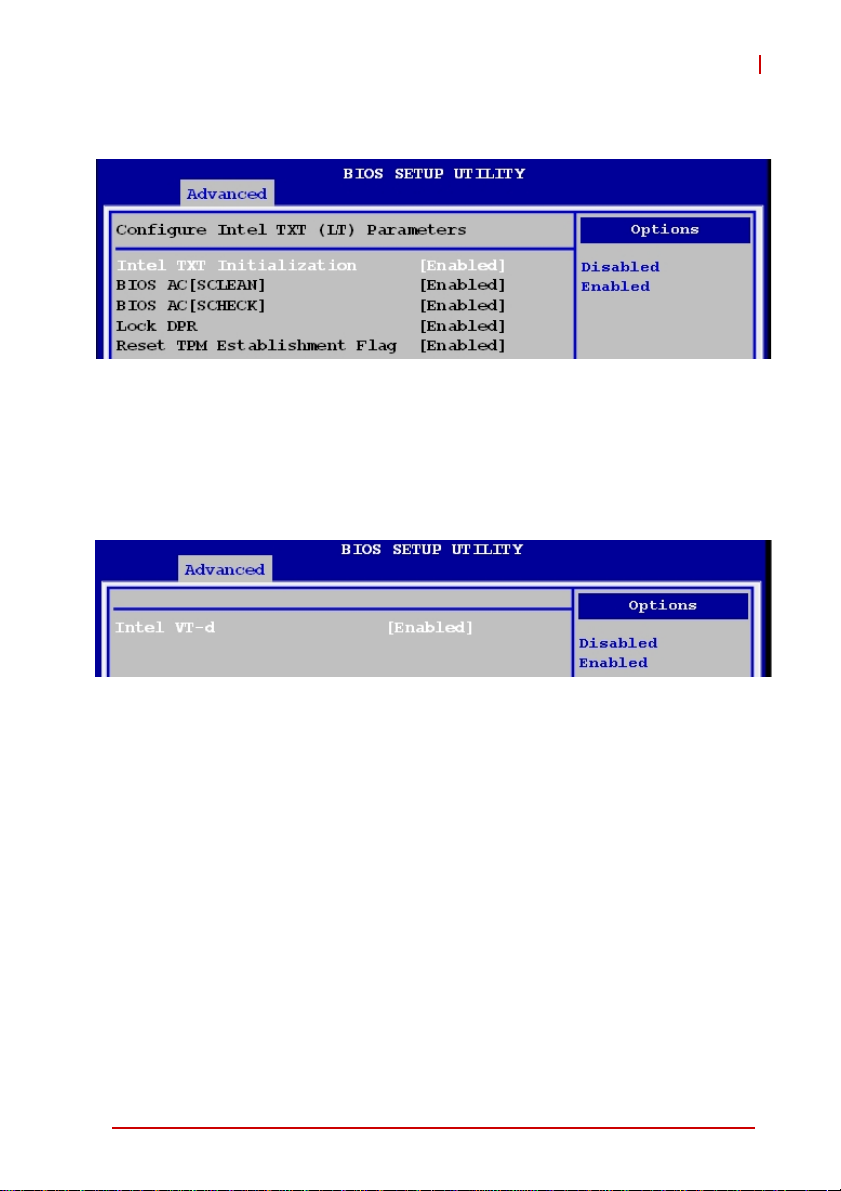

4.3.3 Intel TXT Configuration

Allows you to enable or disable Intel® Trusted Execution Technology
initialization.

Options: [Disabled], [Enabled]

4.3.4 Intel VT-d Configuration

Allows you to enable or disable Intel® Virtualization Technology.
Options: [Disabled], [Enabled]

BIOS Setup 49

4.3.5 CPU Configuration

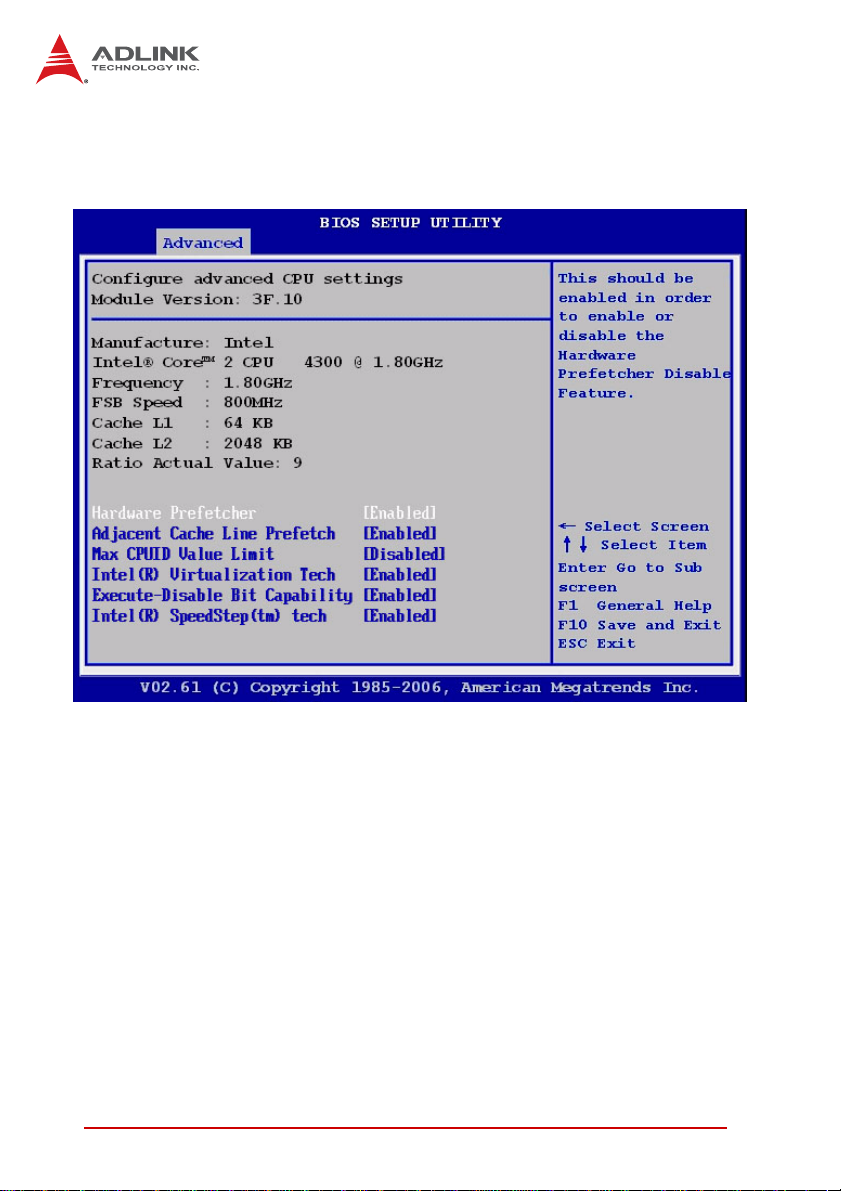

You can use this screen to select options for the CPU Configura­tion Settings.

Hardware Prefetcher
Options: [Enabled], [Disabled].

Adjacent Cache Line Prefetch
Options: [Enabled], [Disabled].

Max CPUID Value Limit

Setting this item to [Enabled] allows legacy operating systems
without support for CPUs with extended CPUID functions to
boot.

Options: [Disabled], [Enabled]. Intel Virtualization Tech

Options: [Enabled], [Disabled].

50 BIOS Setup

M-322

Execute Disable Bit

Allows you to enable or disable the No-Execution Page Protec­tion Technology. Setting this item to [Disabled] forces the XD
feature flag to always return a zero (0).

Options: [Enabled], [Disabled]. Intel SpeedStep Tech

Options: [Enabled], [Disabled].

BIOS Setup 51

4.3.6 Chipset Settings

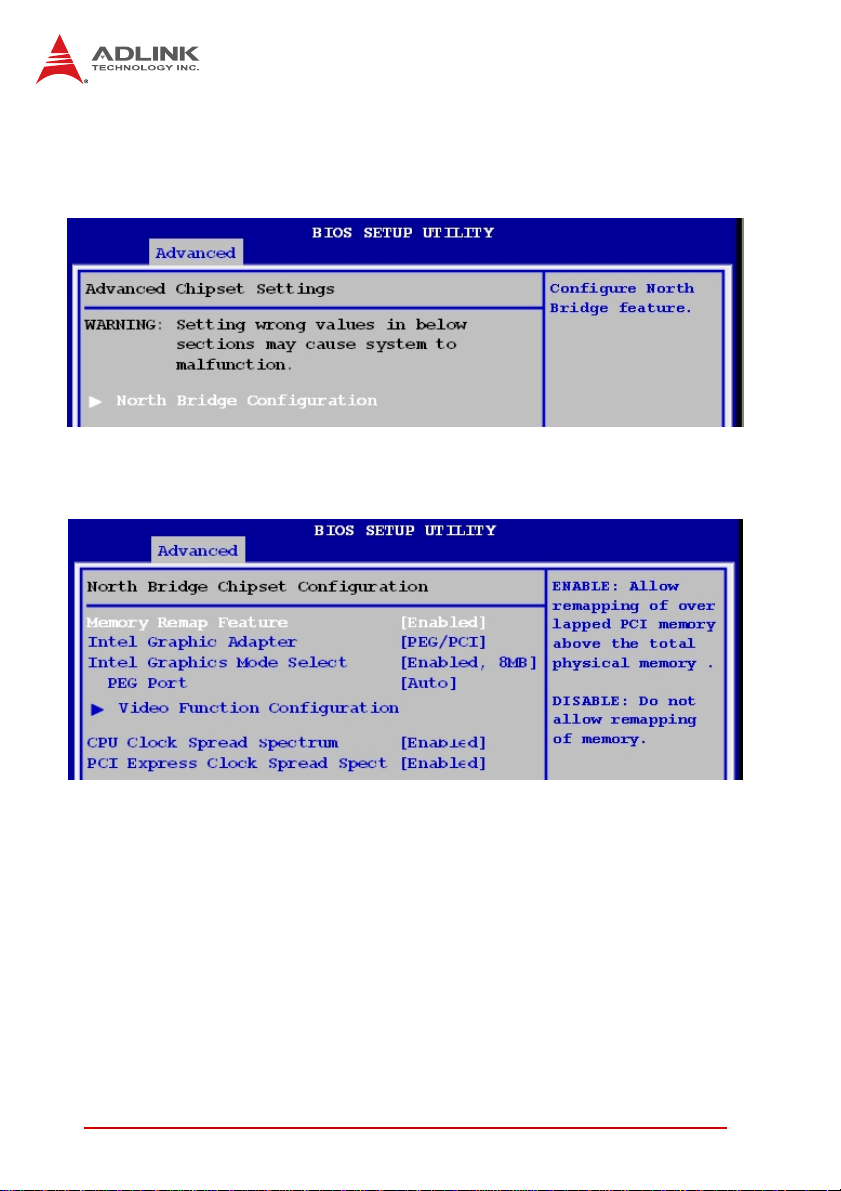

The Chipset menu allows you to change the advanced chipset set­tings. Select an item then press <Enter> to display the sub-menu.

North Bridge Configuration

Memory Remap Feature

Allows you to enable or disable the remapping of the over­lapped PCI memory above the total physical memory. Enable
this option only when you install a 64-bit operating system.

Options: [Disabled], [Enabled]. Initial Graphic Adapter

Allows you to select which graphics controller to use as the pri­mary boot device.
Options: [IGD], [PCI/IGD], [PCI/PEG], [PEG/IGD], [PEG/PCI]

52 BIOS Setup

M-322

Internal Graphic Mode Select

Allows you to select the amount of system memory used by the
Internal Graphics Device.

Options: [Disabled], [Enabled,1MB], [Enabled, 8MB] PEG Port Control

Allows you to disable or enable PEG port control.

Options: [Auto], [Disabled] Video Function Configuration

DVMT Mode Select, Options: [Fixed Mode], [DVMT Mode]
DVMT/FIXED Memory, Options: [128MB], [258MB],

[Maximum DTMT]

Spread Spectrum Clock, Options: [Disabled], [Enabled] CPU Clock Spread Spectrum

Options: [Disabled], [Enabled]. PCI Express Clock Spread Spectrum

Options: [Disabled], [Enabled].

BIOS Setup 53

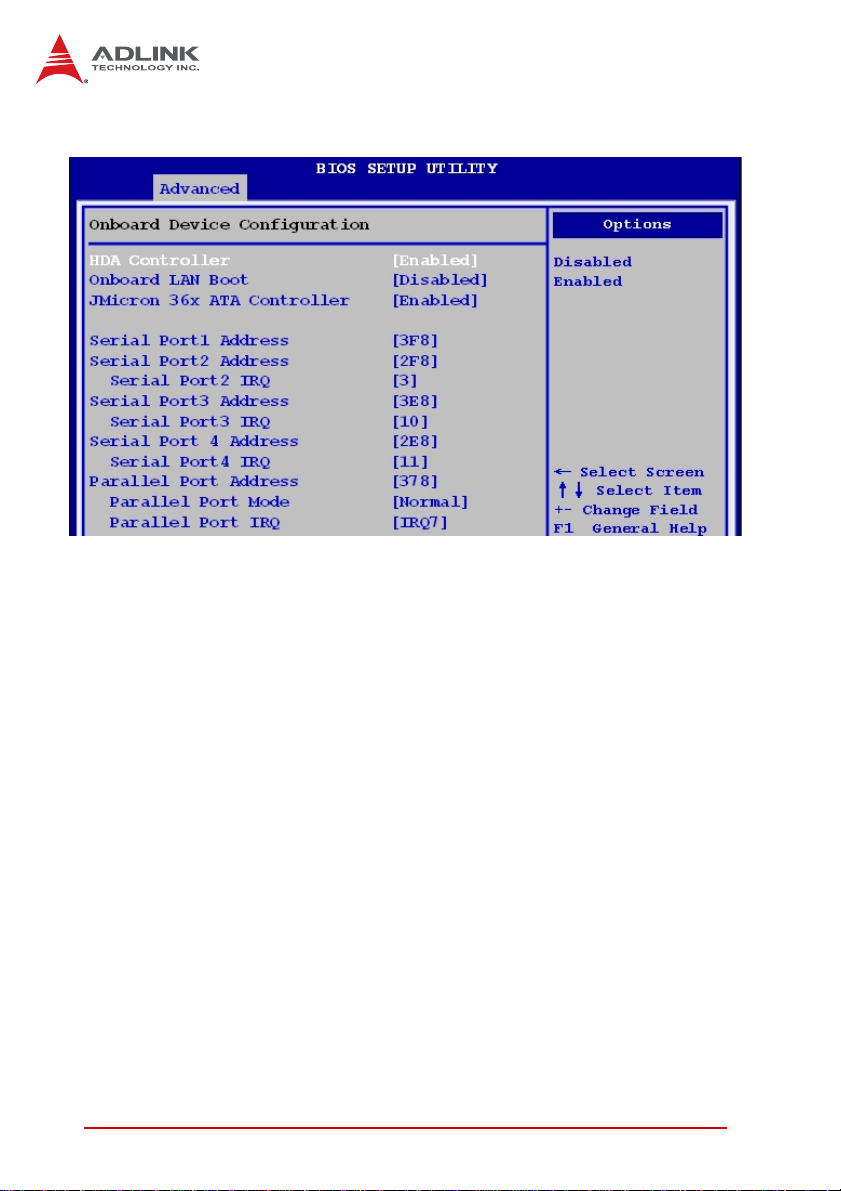

4.3.7 Onboard Device Configuration

Onboard LAN Boot
Options: [Enabled], [Disabled]

JMicron 36X ATA Controller

Allows you to enable or disable the JMicron 36X ATA controller
(PATA function).

Options: [Enabled], [Disabled]. Serial Port Address

Allow you to select the Serial Port base address.

Options: [Disabled], [3F8], [2F8], [3E8], [2E8] Serial Port IRQ

Options: [3], [4], [10], [11] Parallel Port Address

Allow you to select the Parallel Port base address.
Options: [Disabled], [378], [278], [3BC]

54 BIOS Setup

M-322

Parallel Port Mode

Allow you to select the Parallel Port mode.

Options: [Normal], [Bi-Directional], [ECP], [EPP], [ECP&EPP] Parallel Port IRQ

Options: [IRQ5], [IRQ7]

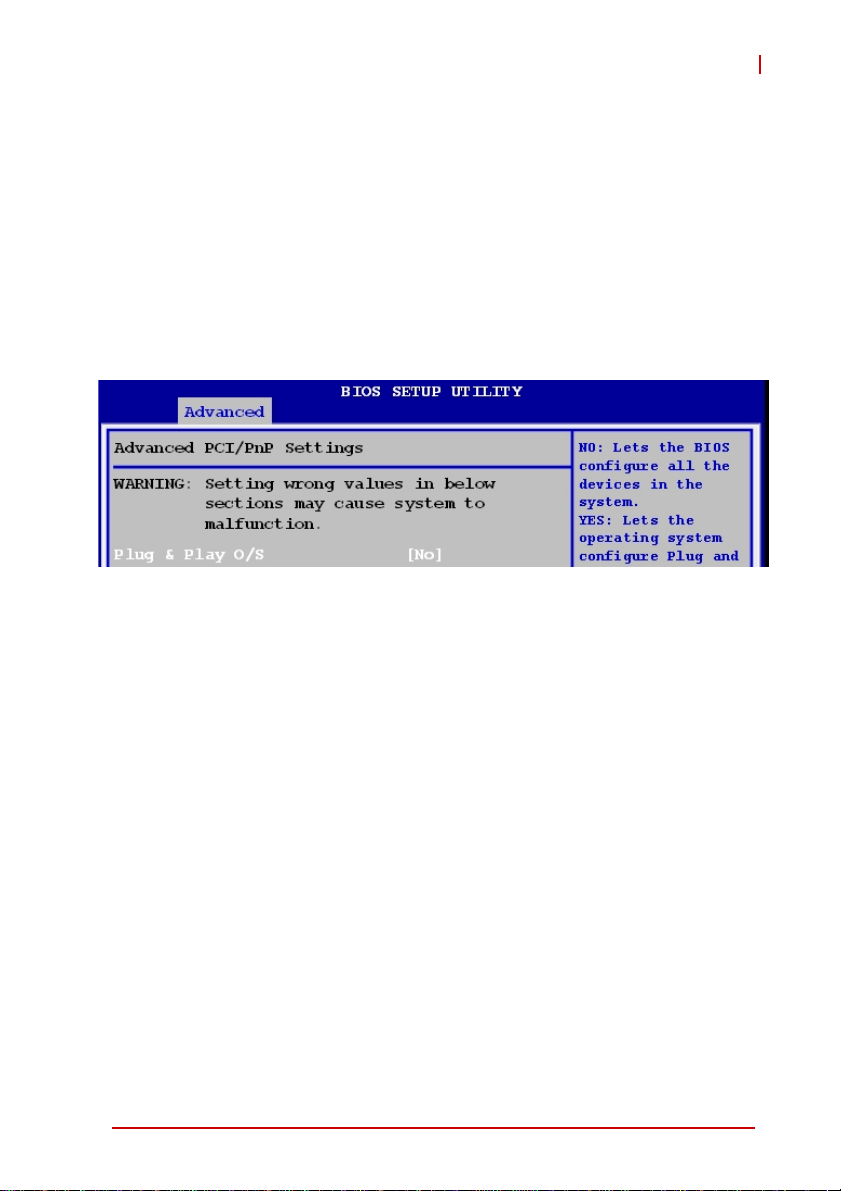

4.3.8 PCI/PnP Settings

When set to [No], BIOS configures all the devices in the system.
When set to [Yes] and if you install a Plug and Play operating sys­tem, the operating system configures the Plug and Play devices
not required for boot.

BIOS Setup 55

4.4 Power Settings

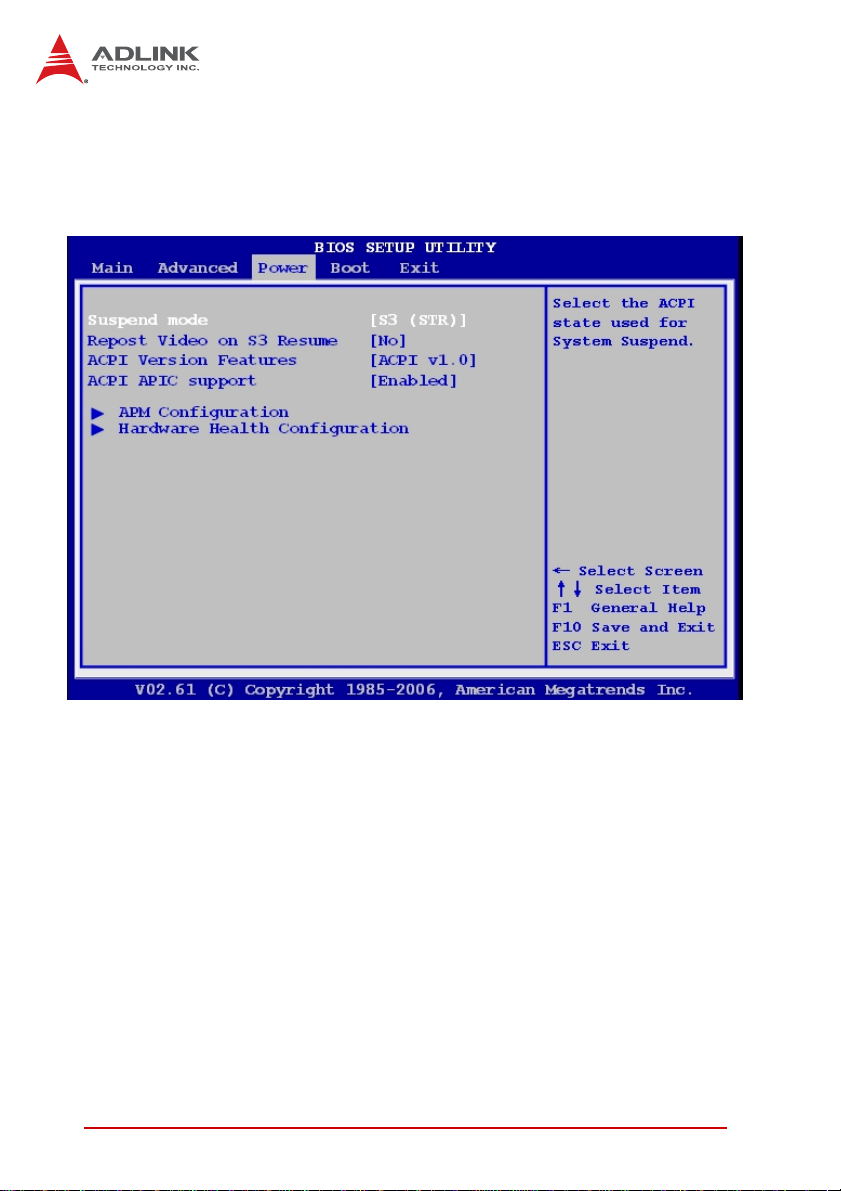

The Power menu items allow you to change the settings for the
Power Management. Select an item then press <Enter> to display
the configuration options.

Suspend Mode

Allows you to select the Advanced Configuration and Power Inter­face (ACPI) state to be used for system suspend.

Options: [S1 (POS)], [S3 (STR)], [Auto]

Repost Video on S3 Resume

Determine whether to invoke VGA BIOS post on S3/STR Resume.
Options: [Yes], [No]

56 BIOS Setup

M-322

ACPI Version Features

Allows you to add more tables for Advanced Configuration and
Power Interface (ACPI) 2.0 specifications.

Options: [ACPI V1.0], [ACPI V2.0], [ACPI V3.0]

ACPI APIC Support [Enabled]

Allows you to enable or disable the Advanced Configuration and
Power Interface (ACPI) support in the Application-Specific Inte­grated Circuit (ASIC). When set to Enabled, the ACPI APIC table
pointer is included in the RSDT pointer list.
Options: [Disabled], [Enabled]

BIOS Setup 57

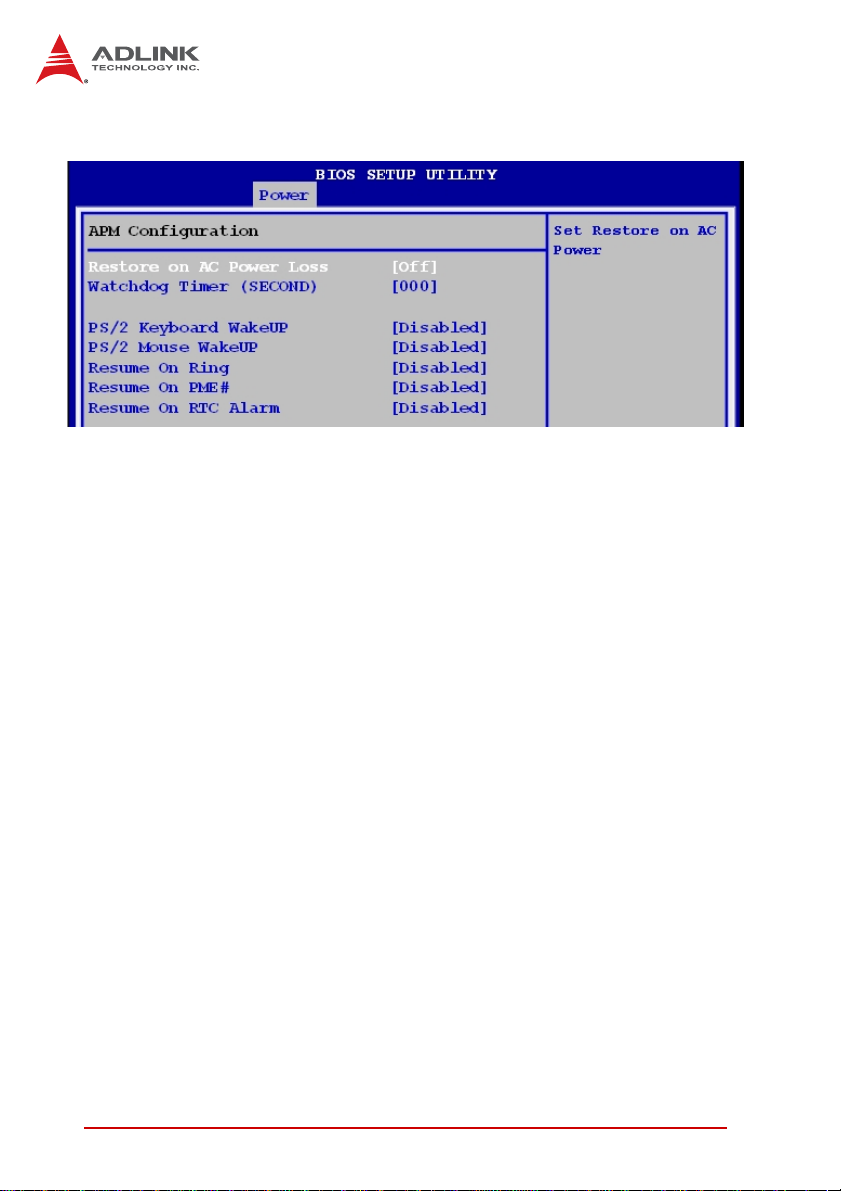

4.4.1 APM Configuration

Restore on AC Power Loss

Determines which state the computer enters when AC power is
restored after a power loss. The options for this value are Last
State, Power On and Power Off.

X Power Off: Set this value to always power off the system

while AC power is restored.

X Power On: Set this value to always power on the system

while AC power is restored.

X Last State: Set this value to power off/on the system

depending on the last system power state while AC power
is restored.

Watchdog Timer (seconds)

Allow you to set time-out of the Watchdog Timer.

Resume On RTC Alarm

When [Enabled], your can set the date and time at which the
RTC (real-time clock) alarm awakens the system from suspend
mode.

58 BIOS Setup

M-322

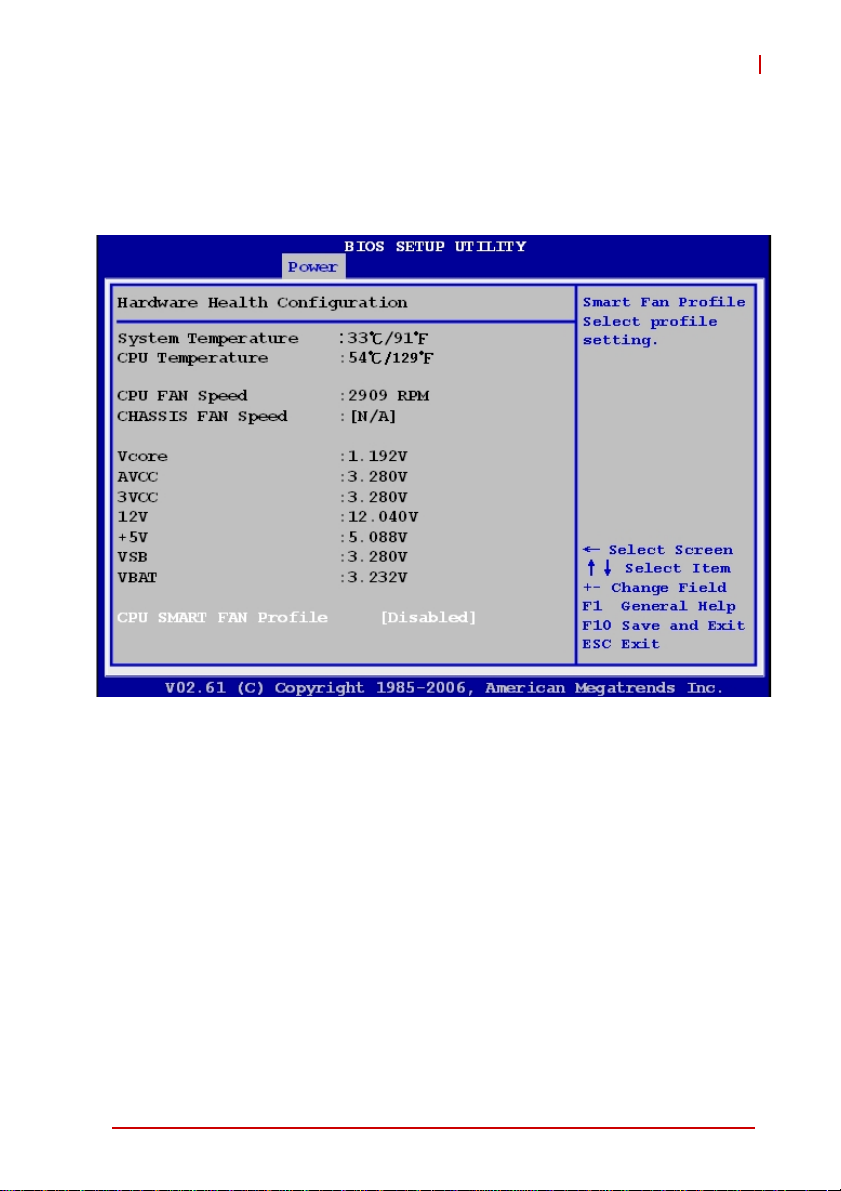

4.4.2 Hardware Health Configuration

This submenu displays system health information (temperatures,
voltages, fan speeds) and allows CPU Smart Fan Profile configu ­ration.

CPU Smart Fan Profile

Allows you to select the CPU FAN profile mode.

X Silent Mode: Keeps system at quieter than Optimized

Mode with lower fan speed.

X Optimized Mode: Keeps a balance between CPU tempera-

ture and fan speed.

X Performance Mode: Keeps CPU at a lower temperature

than Optimized Mode with faster fan speed

X Disabled

BIOS Setup 59

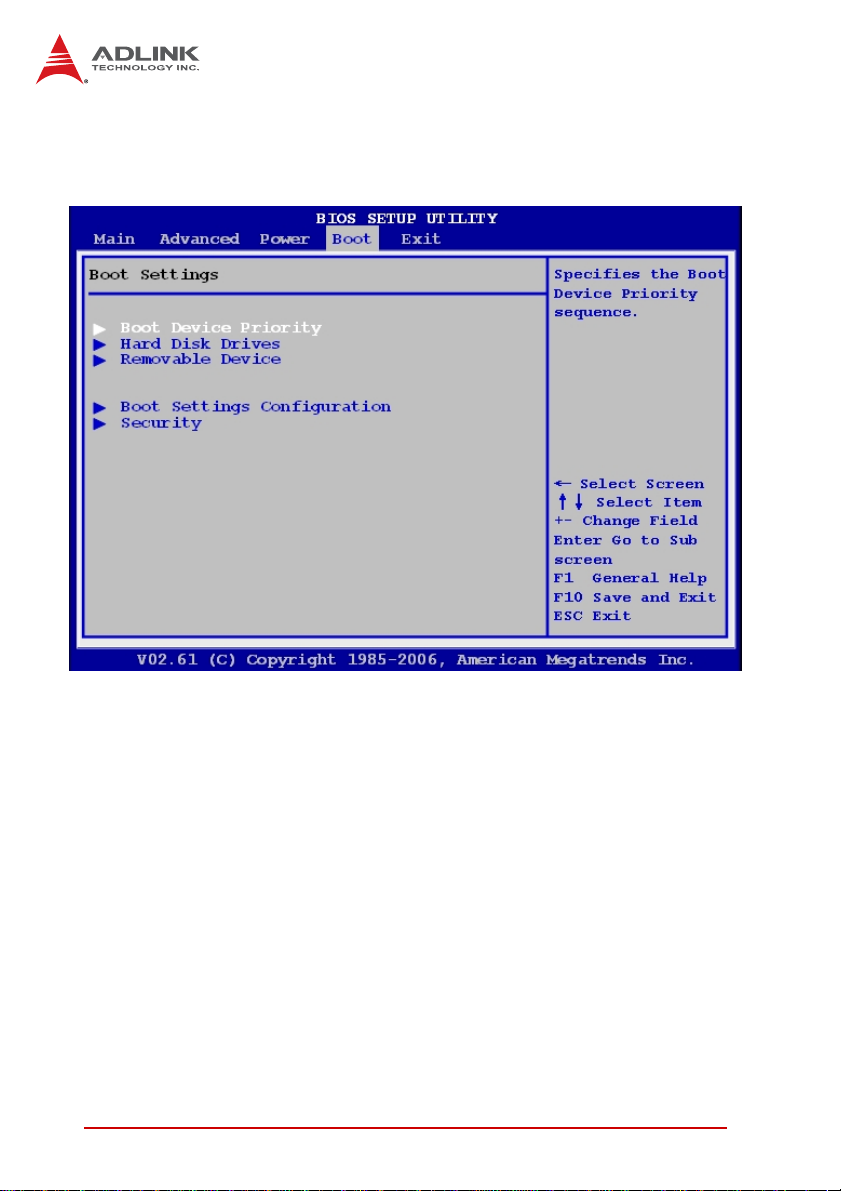

4.5 Boot Settings

The Boot Settings menu allows you to change the system boot
options. Select an item and press <Enter> to display the submenu.

4.5.1 Boot Device Priority

The items allow you to set the sequence of boot devices where
BIOS attempts to load the disk operating system. Use the
arrow keys to select the desired device, then press <+>, <-> or
<PageUp>, <PageDown> key to move it up/down in the priority
list.

4.5.2 Boot Device Groups

The Boot devices are listed in groups by device type. Use the
arrow keys to select the desired device, then press <+>, <-> or
<PageUp>, <PageDown> key to move it up/down in the priority
list. Only the first device in each device group will be available
for selection in the Boot Device Priority option.

60 BIOS Setup

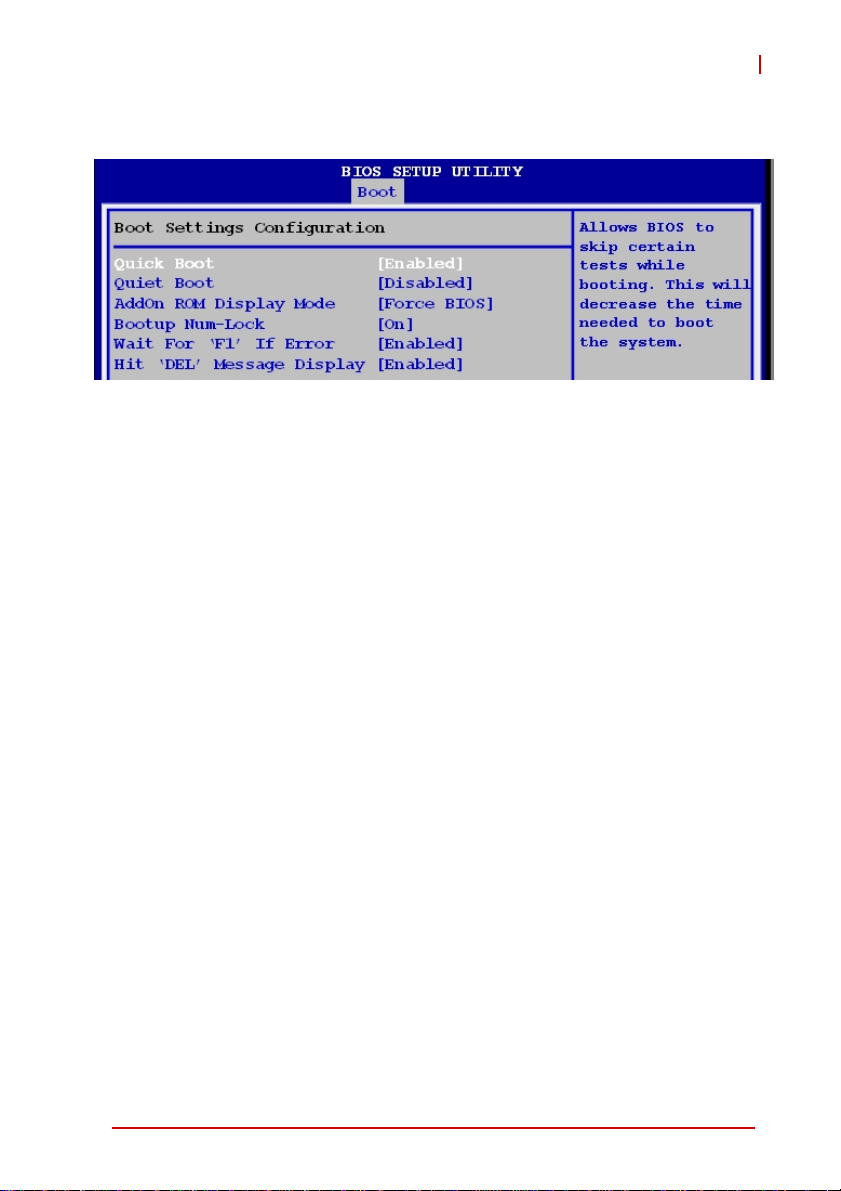

4.5.3 Boot Settings Configuration

Quick Boot

Enabling this setting will cause the BIOS power-on self test
routine to skip some of its tests during bootup for faster system
boot.

Options: [Disabled], [Enabled] Quiet Boot

When this feature is enabled, the BIOS will display the full­screen logo during the boot-up sequence, hiding normal POST
messages.When it is disabled, the BIOS will display the normal
POST messages, instead of the full-screen logo.
Options: [Disabled], [Enabled]

M-322

Add On ROM Display Mode

Set the display mode for option ROM.

Options: [Force BIOS], [Keep Current]. Bootup Num-Lock

This setting is to set the Num Lock status when the system is
powered on. Setting to [On] will turn on the Num Lock key
when the system is powered on. Setting to [Off] will allow users
to use the arrow keys on the numeric keypad.
Options: [Off], [On]

BIOS Setup 61

Wait for ‘F1’ If Error

When set to Enabled, the system waits for the F1 key to be
pressed when an error occurs.

Options: [Disabled], [Enabled]. Hit ‘DEL’ Message Display

The system displays the message “Press DEL to run Setup”
during POST when set to Enabled.

Options: [Disabled], [Enabled].

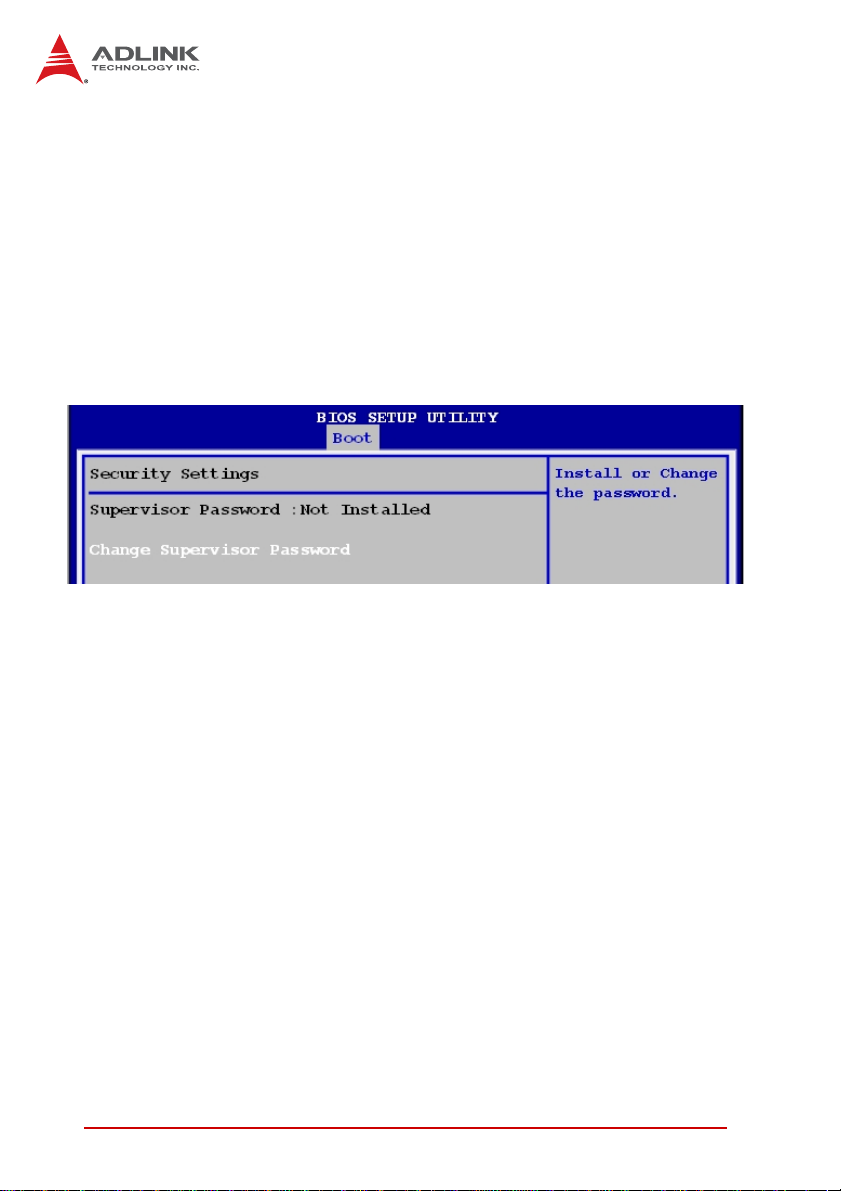

4.5.4 Security

Use this submenu to set the Supervisor and User passwords.

62 BIOS Setup

M-322

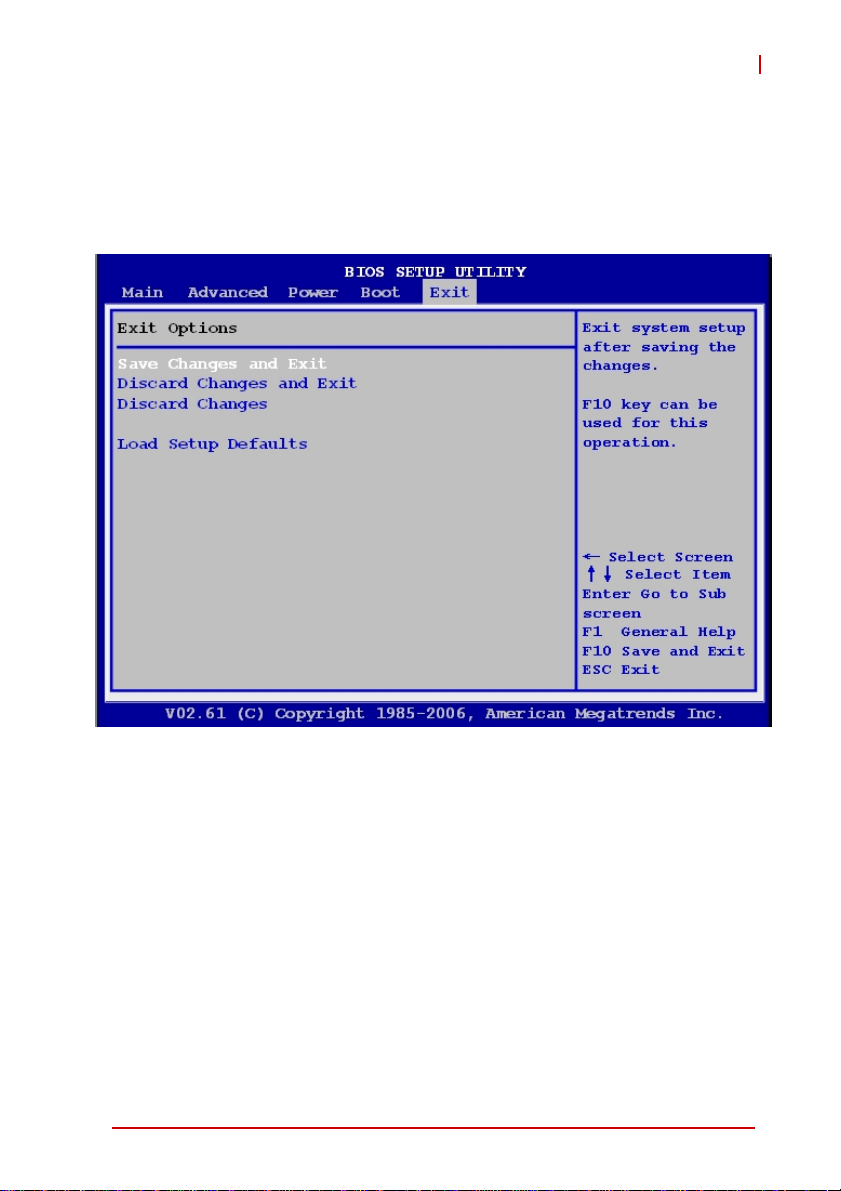

4.6 Exit Menu

Select the Exit tab from the setup screen to enter the Exit BIOS
Setup screen. You can display an Exit BIOS Setup option by high­lighting it using the < Arrow > keys. The Exit BIOS Setup screen is
shown below.

Save Changes and Exit

When you have completed the system configuration changes,
select this option to leave Setup and reboot the computer so the
new system configuration parameters can take effect.

Save Configuration Changes and Exit Now?

[Ok] [Cancel]

appears in the window. Select Ok to save changes and exit.

BIOS Setup 63

Discard Changes and Exit

Select this option to quit Setup without making any permanent
changes to the system configuration.

Discard Changes and Exit Setup Now?

[Ok] [Cancel]

appears in the window. Select Ok to discard changes and exit.

Discard Changes

Select Discard Changes from the Exit menu and press < Enter >.
Select Ok to discard changes.

Load Setup Defaults

Automatically sets all Setup options to a complete set of default
settings when you select this option. Select Load Optimal Defaults
from the Exit menu and press < Enter >.

Select Ok to load optimal defaults.

64 BIOS Setup

Appendix A - Watchdog Timer

The following is a sample program for configuring the M-322’s
watchdog timer.

A.1 Sample Code

Unlock W83627DHG-A:

outportb(0x2E, 0x87) ;Unlock Super I/O

Select Logical Device:

outportb(0x2E, 0x07) ;Select device number register
outportb(0x2F, 0x08) ;Set to Logical Device 8

Activate WDT:

outportb(0x2E, 0x30) ;Select WDTO# activate register
outportb(0x2F, 0x01) ;Enable watchdog

Set Seconds or Minutes:

outportb(0x2E, 0xF5) ;Select WDTO# control register
outportb(0x2F, mode)

;where mode=0x00(Sec) or 0x08(Min)

M-322

Set base timer:

outportb(0x2E, 0xF6) ;Select WDTO# counter register
outportb(0x2F, timeout) ;where timeout=0x00~0xFF

Reset timeout counter:

outportb(0x2E, 0xF6) ;Select WDTO# counter register
outportb(0x2F, timeout) ;where timeout=0x00~0xFF}

Watchdog Timer 65

This page intentionally left blank.

66 Watchdog Timer

Appendix B - System Resources

B.1 System Memory Map

M-322

Address Range

(decimal)

(4GB-2MB)

(4GB-18MB) –
(4GB-17MB-1)

(4GB-20MB) –
(4GB-19MB-1)

15MB – 16MB

960 K – 1024 K F0000 – FFFFF 64 KB System BIOS Area

896 K – 960 K E0000 – EFFFF 64 KB Extended System BIOS Area

768 K – 896 K C0000 – DFF FF 128 KB

640 K – 768 K A0000 – BFFFF 128 KB Video Buffer & SMM space

0 K – 640 K 00000 – 9FFFF 640 KB DOS Area

Address Range

(hex)

FFE00000 –

FFFFFFFF

FEE00000 –

FEEFFFFF

FEC00000 –

FECFFFFF

F00000 –

FFFFFF

Size Description

2 MB High BIOS Area

1 MB FSB Interrupt Memory Space

1 MB APIC Configuration Space

1 MB ISA Hole

PCI expansion ROM area
C0000 – CB7FF: Onboard VGA BIOS
CB800 – CC7FF: Realtek RTL8111C
PXE option ROM when onboard LAN
boot ROM is enabled.
CC800 – CD7FF: Realtek RTL8111C
PXE option ROM when onboard LAN
boot ROM is enabled.
CD800 – CE7FF: JMicron 368 option
ROM when enabled

Table B-1: System Memory Map

System Resources 67

B.2 Direct Memory Access Channels

Channel Number Data Width System Resource

08-bits
1 8-bits Parallel port

2 8-bits Diskette drive
3 8-bits Parallel port
4 Reserved - cascade channel
5 16-bits Open
6 16-bits Open
7 16-bits Open

Table B-2: Direct Memory Access Channels

Parallel port

68 System Resources

B.3 Fixed I/O Map

Hex Range Device

00h-08h DMA Controller
09h-0Eh RESERVED

0Fh DMA Controller
10h-18h DMA Controller
19h-1Eh RESERVED

1Fh DMA Controller
20h-21h Interrupt Controller
24h-25h Interrupt Controller
28h-29h Interrupt Controller

2Ch-2Dh Interrupt Controller

2E-2F LPC SIO
30h-31h Interrupt Controller
34h-35h Interrupt Controller
38h-39h Interrupt Controller

3Ch-3Dh Interrupt Controller

40h-42h Timer/Counter

43h RESERVED

4E-4F LPC SIO
50h-52h Timer/Counter

53h RESERVED
60h Microcontroller
61h NMI Controller
62h Microcontroller
64h Microcontroller
66h Microcontroller
70h RESERVED
71h RTC Controller
72h RTC Controller
73h RTC Controller
74h RTC Controller
75h RTC Controller

M-322

System Resources 69

Hex Range Device

76h RTC Controller
77h RTC Controller

80h DMA Controller and LPC or PCI
81h-83h DMA Controller
84h-86h DMA Controller

87h DMA Controller

88h DMA Controller
89h-8Bh DMA Controller

8Ch-8Eh DMA Controller

08Fh DMA Controller

90h-91h DMA Controller

92h Reset Generator (Processor I/F)
93h-9Fh DMA Controller
A0h-A1h Interrupt Controller
A4h-A5h Interrupt Controller
A8h-A9h Interrupt Controller

ACh-ADh Interrupt Controller

B0h-B1h Interrupt Controller
B2h-B3h Power Management
B4h-B5h Interrupt Controller
B8h-B9h Interrupt Controller

BCh-BDh Interrupt Controller

C0h-D1h DMA Controller
D2h-DDh RESERVED
DEh-DFh DMA Controller

F0h PCI and Master Abort (Processor I/F)
170h-177h SATA Controller or PCI
1F0h-1F7h SATA Controller or PCI

376h SATA Controller or PCI
3F6h SATA Controller or PCI

4D0h-4D1h Interrupt Controller

CF9h Reset Generator (Processor I/F)

Table B-3: Fixed I/O Map

70 System Resources

B.4 Variable I/O Map

Hex Range Device

Anywhere in 64 KB I/O Space ACPI
Anywhere in 64 KB I/O Space IDE Bus Master
Anywhere in 64 KB I/O Space Native IDE Command

Anywhere in 64KB I/O Space Native IDE Control
Anywhere in 64KB I/O Space USB UHCI Controller #1
Anywhere in 64KB I/O Space USB UHCI Controller #2
Anywhere in 64KB I/O Space USB UHCI Controller #3
Anywhere in 64KB I/O Space USB UHCI Controller #4

Anywhere in 64KB I/O Space USB UHCI Controller #5
Anywhere in 64 KB I/O Space USB UHCI Controller #6
Anywhere in 64 KB I/O Space SMBus

96 Bytes above ACPI Base TCO

Anywhere in 64 KB I/O Space GPIO

3 Ranges in 64 KB I/O Space Parallel Port

3F8/2F8/3E8/2E8 Serial Port 1 Serial Port 2

3E8/2E8 Serial Port 3, Serial Port 4

2 Ranges in 64 KB I/O Space Floppy Controller

290 Hardware Monitor

M-322

Table B-4: Variable I/O Map

System Resources 71

B.5 Interrupt Request (IRQ) Lines

IRQ Lines PIC Mode

IRQ#

0 System timer

3

4
6 Floppy Disk IRQ6 via SERIRQ, PIRQ#
8

9

10

11

13 Numeric data processor

14 Primary IDE Channel

15 Secondary IDE Channel

Typical Interrupt

Resource

Communications Port
(COM2)

Communications Port
(COM1)

System CMOS/real time
clock

Microsoft ACPI-Compliant
System

Communications Port
(COM3)

Communications Port
(COM4)

Connected to Pin

Internal Timer / Counter 0 output /
HPET #0

IRQ3 via SERIRQ, PIRQ#

IRQ4 via SERIRQ, PIRQ#

Internal RTC / HPET #1
IRQ9 via SERIRQ, SCI, TCO, or

PIRQ#
IRQ10 via SERIRQ, SCI, TCO, or

PIRQ#
IRQ11 via SERIRQ, SCI, TCO, or

PIRQ#, or HPET#2
State Machine output based on

processor FERR#assertion. May
optionally be used for SCI or TCO
interrupt if FERR# not needed.

SA TA Primary (legacy mode), or via
SERIRQ or PIRQ#

SATA Secondary (legacy mode) or via
SERIRQ or PIRQ#

T able B-5: IRQ Lines PIC Mode

72 System Resources

IRQ Lines APIC Mode

IRQ# Typical Interrupt Resource Connected to Pin

0 System timer
3 Communications Port (COM2) IRQ3 via SERIRQ, PIRQ#

4 Communications Port (COM1) IRQ4 via SERIRQ, PIRQ#
6 Floppy Disk IRQ6 via SERIRQ, PIRQ#
8 System CMOS/real time clock Internal RTC / HPET #1

9 Microsoft ACPI-Compliant System

10 Communications Port (COM3)

11 Communications Port (COM4)

11

13 Numeric data processor

14 Primary IDE Channel

15 Secondary IDE Channel

16

16
16 Intel Q35 Express Chipset Family
16

17

17

17

Intel ICH9 Family SMBus Controller

- 2930

Intel ICH9 Family PCI Express Root
Port 2 – 2942

Intel ICH9 Family USB Universal
Host Controller – 2937

Standard Dual Channel PCI IDE
Controller

Intel ICH9 Family PCI Express Root
Port 1 – 2940

Intel ICH9 Family PCI Express Root
Port 5 – 2948

Realtek RTL8168C(P)/8111C(P)
PCI-E Gigabit Ethernet NIC #2

Internal Timer / Counter 0 output /
HPET #0

IRQ9 via SERIRQ, SCI, TCO, or
PIRQ#

IRQ10 via SERIRQ, SCI, TCO, or
PIRQ#

IRQ11 via SERIRQ, SCI, TCO, or
PIRQ#, or HPET#2

State Machine output based on
processor FERR#assertion. May
optionally be used for SCI or TCO
interrupt if FERR# not needed.

SATA Primary (legacy mode), or via
SERIRQ or PIRQ#

SATA Secondary (legacy mode) or
via SERIRQ or PIRQ#

M-322

System Resources 73

IRQ# Typical Interrupt Resource Connected to Pin

18

18

18

18

19

19

19

21

22

23

23

Intel ICH9 Family PCI Express Root
Port 3 – 2944

Intel ICH9 Family USB Universal
Host Controller – 2936

Intel ICH9 Family USB2 Enhanced
Host Controller – 293C

Realtek RTL8168C(P)/8111C(P)
PCI-E Gigabit Ethernet NIC

Intel ICH9 2 port Serial ATA Storage
Controller 2 - 2926

Intel ICH9 Family USB Universal
Host Controller - 2939

Intel ICH9 Family USB Universal
Host Controller - 2935

Intel ICH9 Family USB Universal
Host Controller - 2938

Microsoft UAA Bus Driver for High
Definition Audio

Intel ICH9 Family USB Universal
Host Controller - 2934

Intel ICH9 Family USB Universal
Host Controller – 293A

T ab le B-6: IRQ Lines APIC Mode

74 System Resources

B.6 PCI Configuration Space Map

Bus # Device # Function # Routing Description

00 00 00 X Intel host bridge
00 02 00 Internal Intel VGA controller
00 1A 00 Internal Intel USB UHCI
00 1A 01 Internal Intel USB UHCI
00 1A 02 Internal Intel USB UHCI
00 1A 07 Internal Intel USB UHCI
00 1B 00 Internal Intel
00 1C 00 Internal Intel PCI/PCI bridge
00 1C 01 Internal Intel PCI/PCI bridge
00 1C 02 Internal Intel PCI/PCI bridge
00 1C 04 Internal Intel PCI/PCI bridge
00 1D 00 Internal Intel USB UHCI
00 1D 01 Internal Intel USB UHCI
00 1D 02 Internal Intel USB UHCI
00 1D 07 Internal Intel USB EHCI
00 1E 00 X Intel decode PCI/PCI bridge
00 1F 00 X Intel bridge
00 1F 02 Internal Intel IDE
00 1F 03 Internal Intel SMBus controller
00 1F 05 Internal Intel IDE controller
02 00 00 Internal Ethernet controller
03 00 00 Internal Ethernet controller
04 00 00 Internal IDE controller

M-322

Table B-7: PCI Configuration Space Map

System Resources 75

B.7 PCI Interrupt Routing Map

INT Line INT0 INT1 INT2 INT3

Intel VGA controller X

Intel USB UHCI X
Intel USB UHCI X
Intel USB UHCI X

Intel USB UHCI X
Intel unknow device X
Intel PCI/PCI bridge X
Intel PCI/PCI bridge X

Intel PCI/PCI bridge X
Intel PCI/PCI bridge X

Intel USB UHCI X

Intel USB UHCI X

Intel USB UHCI X

Intel USB EHCI X

Intel IDE X

Intel SMBus controller X

Intel IDE controller X
Ethernet controller X
Ethernet controller X

IDE controller X

Table B-8: PCI Interrupt Routing Map

76 System Resources

M-321

Important Safety Instructions

For user safety, please read and follow all instructions,
WARNINGS, CAUTIONS, and NOTES marked in this manual

and on the associated equipment before handling/operating the
equipment.

X Read these safety instructions carefully.
X Keep this user’s manual for future reference.
X Read the specifications section of this manual for detailed

information on the operating environment of this equipment.

X When installing/mounting or uninstalling/removing

equipment:

Z Turn off power and u nplug any power cords/cables.

X To avoid electrical shock and/or damage to equipment:

Z Keep equipment away from water or liquid sources;
Z Keep equipment away from high heat or high humidity;
Z Keep equipment properly ventilated (do not block or

cover ventilation openings);

Z Make sure to use recommended voltage and powe r

source settings;

Z Always install and operate equipment near an easily

accessible electrical socket-outlet;

Z Secure the power cord (do not place any obje ct on /ove r

the power cord);

Z Only install/attach and operate equipment on stable

surfaces and/or recommended mountings; and,

Z If the equipment will not be used for long periods of time,

turn off and unplug the equipment from its power source.

Important Safety Instructions 77

X Never attempt to fix the equipment. Equipmen t sho u ld on ly

be serviced by qualified personnel.

A Lithium-type battery may be provided for uninterrupted, backup
or emergency power.

Risk of explosion if battery is replaced with one of an incorrect

WARNING:

type. Dispose of used batteries appropriately.

X Equipment must be serviced by authorized technicians

when:

Z The power cord or plug is damaged;
Z Liquid has penetrated the equipment;
Z It has been exposed to high humidity/moisture;
Z It is not functioning or does not function according to the

user’s manual;

Z It has been dropped and/or damaged; and/or,
Z It has an obvious sign of breakage.

78 Important Safety Instructions

Getting Service

Contact us should you require any service or assistance.

ADLINK Technology, Inc.

Address: 9F, No.166 Jian Yi Road, Zhonghe District
New Taipei City 235, Taiwan

ᄅקؑխࡉ೴৬ԫሁ 166 ᇆ 9 ᑔ
Tel: [phone]
Fax: [phone]
Email: [e-mail]

Ampro ADLINK Technology, Inc.

Address: 5215 Hellyer Avenue, #110, San Jose, CA 95138, USA
Tel: [phone]
Toll Free: [phone] (USA only)
Fax: [phone]
Email: [e-mail]

ADLINK Technology (China) Co., Ltd.

Address: Ϟ⍋Ꮦ⌺ϰᮄᓴ∳催⾥ᡔು㢇᯹䏃 300 ো(201203)
300 Fang Chun Rd., Zhangjiang Hi-Tech Park,

Pudong New Area, Shanghai, 201203 China
Tel: [phone]
Fax: [phone]
Email: [e-mail]

M-321

ADLINK Technology Beijing

Address: ࣫ҀᏖ⍋⎔Ϟഄϰ䏃 1 োⲜ߯ࡼ࡯໻ E ᑻ 801 ᅸ(100085)

Tel: [phone]
Fax: [phone]
Email: [e-mail]

ADLINK Technology Shenzhen

Address: ⏅ഇᏖቅ⾥ᡔು催ᮄϗ䘧᭄ᄫᡔᴃು

Tel: [phone]
Fax: [phone]
Email: [e-mail]

Getting Service 79

Rm. 801, Power Creative E, No. 1, B/D

Shang Di East Rd., Beijing, 100085 China

A1 󰶀 2 ὐ C  (518057)

2F, C Block, Bldg. A1, Cyber-Tech Zone, Gao Xin Ave. Sec. 7,

High-Tech Industrial Park S., Shenzhen, 518054 China

ADLINK Technology (Europe) GmbH

Address: Nord Carree 3, 40477 Duesseldorf, Germany
Tel: [phone]
Fax: [phone]
Email: [e-mail]

ADLINK Technology, Inc. (French Liaison Office)

Address: 15 rue Emile Baudot, 91300 Massy CEDEX, France
Tel: [phone]
Fax: [phone]
Email: [e-mail]

ADLINK Technology Japan Corporation

Address: ͱ101-0045 ᵅҀ䛑ҷ⬄⼲⬄䤯ފ⬎ 3-7-4

⼲⬄ 374 ɛɳ 4F

KANDA374 Bldg. 4F, 3-7-4 Kanda Kajicho,

Chiyoda-ku, Tokyo 101-0045, Japan
Tel: [phone]
Fax: [phone]
Email: [e-mail]

ADLINK Technology, Inc. (Korean Liaison Office)

Address: 昢殾柢 昢爎割 昢爎壟 1506-25 穢壊 B/D 2 猻

2F, Hando B/D, 1506-25, Seocho-Dong, Seocho-Gu,

Seoul 137-070, Korea
Tel: [phone]
Fax: [phone]
Email: [e-mail]

ADLINK Technology Singapore Pte. Ltd.

Address: 84 Genting Lane #07-02A, Cityneon Design Centre,

Singapore 349584
Tel: [phone]
Fax: [phone]
Email: [e-mail]

ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office)

Address: No. 1357, "Anupama", Sri Aurobindo Marg, 9th Cross,
JP Nagar Phase I, Bangalore - 560078, India
Tel: [phone]
Fax: [phone]
Email: [e-mail]

80 Getting Service
