ADLink HPCI-6S4 Backplane, HPCI-8S4 Backplane, HPCI-9S7U Backplane Backplane Selection Guide
Backplane Selection Guide
Rackmount Chassis
PICMG 1.0
PICMG PCI ISA RK-110S RK210S RK-260
HPCI-D3S2 1 2 - -
HPCI-D6S4 1 4 1 -
HPCI-13S4LU 3 4 7 -
HPCI-14S12U 2 12 1 -
HPCI-14S/ATX 2 4 8 -
PICMG 1.3 PICMG PCI
EBP-10E5 1 4 4 1 -
EBP-13E2 1 10 - 1 1 -
EBP-13E4 1 7 - 3 1 -
EBP-D5E2 1 2 - 1 1 -
EBP-D3E1 1
WBP-13E4 1 8 3 1*
WBP-13E8 1 4 5 2 1*
* PCIe x8 signal
** 1x PCI slot not accessible when installed in chassis
Slots per Segment
x1 x4 x16
-
- 1 - -
PCI-X
PCI-E
PCI-X RK-110SE RK-210E RK-260E RK-410FS RK-610
Compatible Chassis
RK-410FS
✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓
✓
✓
RK-610
**
✓
**
✓
Wallmount Chassis
PICMG 1.0
PICMG PCI ISA RK-607B RK-608B-E
HPCI-6S4 1 4 1 -
HPCI-8S4 2 4 3 -
HPCI-9S7U 2 7 1 -
PICMG 1.3 PICMG PCI
EBP-5E1 1 2 - - 1 1
EBP-7E2 1 4 - 1 1 -
EBP-9E2 1 6 - 1 1 -
EBP-6E2 1 3 - 1 1 -
EBP-9E5 1 3 4 - 1 -
Slots per Segment
PCI-X
PCI-E
PCI-X RK-607B RK-608B-E
x1 x4 x16
Compatible Chassis
✓
✓
✓
✓
✓
✓
✓
✓
Industrial Single Computers Selection Guide
Single Board Computers
PICMG 1.0
Slots per Segment
ISA
Compatible SBCs
Segment PCI NuPRO-A331 NuPRO-A40H
HPCI-D3S2 1 2 -
HPCI-D6S4 1 4 1
HPCI-6S4 1 4 1
HPCI-8S4 2 4 3
HPCI-9S7U 2 7 1
HPCI-13S4LU 3 4 7
HPCI-14S12U 2 12 1
HPCI-14S/ATX 2 4 8
HPCI-19S18A 2 18 0
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
Single Board Computers
Slots per Segment PCI-E Compatible SBCs
PICMG 1.3
Segment PCI PCI-X x1 x4 x16 NuPRO-E42 NuPRO-E340 NuPRO-E72 NuPRO-E43
EBP-5E1 1 2 1 - - 1
EBP-6E2 1 3 - - 1 1
EBP-7E2 1 4 - - 1 1
EBP-9E2 1 6 - - 1 1
EBP-9E5 1 3 - 4 - 1
EBP-10E5 1 4 - 4 - 1
EBP-13E2 1 10 - - 1 1
EBP-13E4 1 7 - - 3 1
EBP-D5E2 1 2 - - 1 1
EBP-D3E1 1 - - - 1 0
WBP-13E4 1 8 - - 3 1* - -
WBP-13E8 1 4 - 5 2 1* - -
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓**
✓**
✓**
✓**
✓**
✓**
✓**
✓**
✓**
✓**
✓ ✓
✓ ✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
* PCIe x8 signal
** Needs special part number

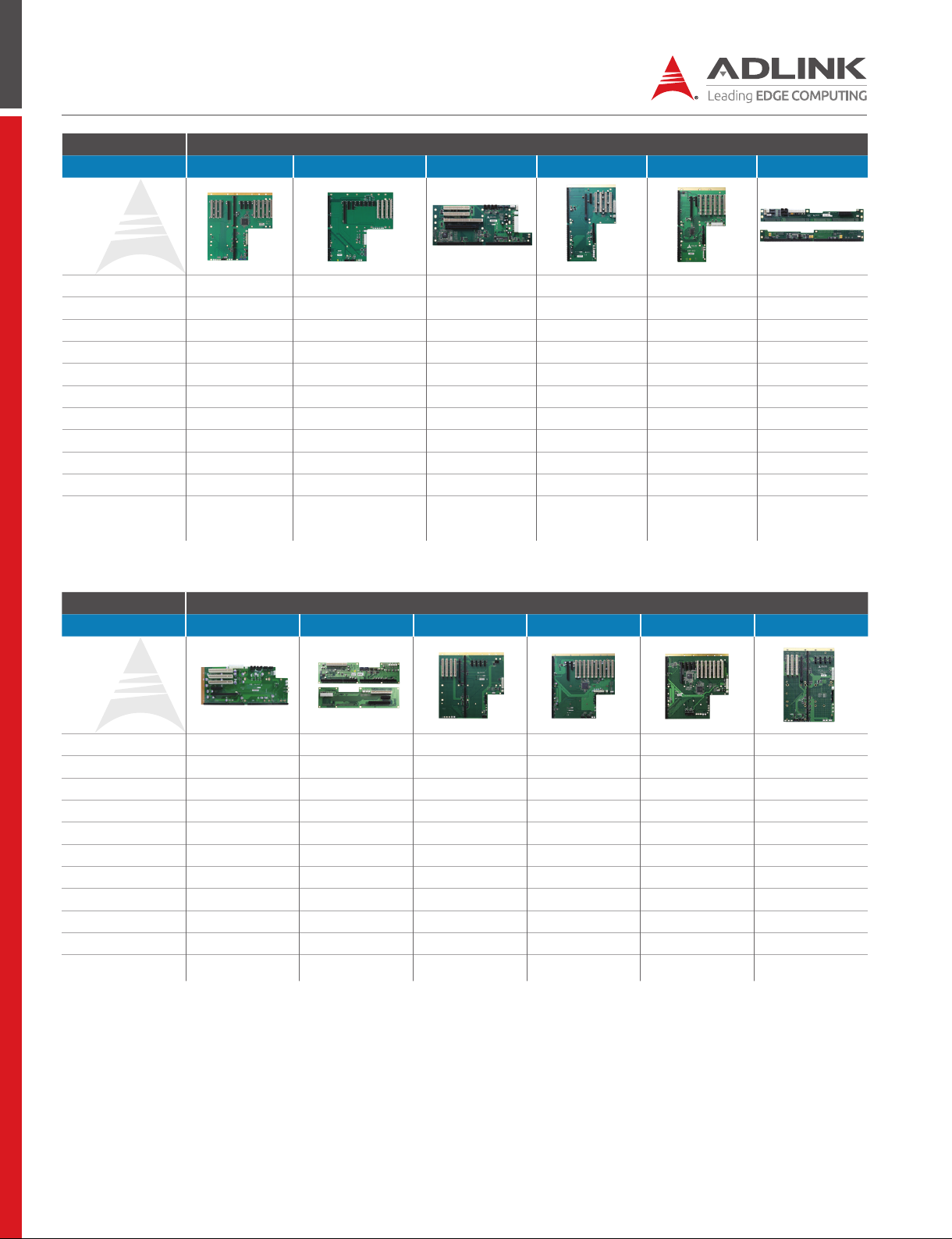

PICMG® 1.3 Backplanes
Model Name WBP-13E4 WBP-13E8 EBP-5E1 EBP-7E2 EBP-9E2 EBP-D3E1
Passive
Backplanes
PCI-E® x16 1* 1* 1 1 1 -
®
PCI-E
x4 3 2 - 1 1 1
PCIe x1 - 5 - - - -
PCI-X™ - - 1 - - -
PCI™ 8 4 2 4 6 -
AT - - - - - -
ATX
Segments 1 1 1 1 1 1
Dimensions 328 mm x 312 mm 327.6 mm x 317.5 mm 153 mm x 330 mm 328 mm x 206 mm 328 mm x 206 mm 331 mm x 39 mm
SATA 2 2 2 2 2 2
USB 2.0
* PCIe x8 signal
✓ ✓ ✓ ✓ ✓ ✓
4 (2x vertical,
2x pin header)
4 (pin header) 4 (pin header) 4 (pin header) 4 (pin header) 4 (pin header)
PICMG® 1.3 Backplanes
Model Name EBP-6E2 EBP-D5E2 EBP-10E5 EBP-13E2 EBP-13E4 EBP-9E5
Passive
Backplanes
PCI-E® x16 1 1 1 1 1 1
®
PCI-E
x4 1 1 - 1 3 -
PCIe x1 - - 4 - - 4
PCI-X™ - - - - - -
PCI™ 3 2 4 10 7 3
AT - - - - - -
ATX
Segments 1 1 1 1 1 1
Dimensions 328 mm x 140 mm 331 mm x 84 mm 330 mm x 318 mm 330 mm x 318 mm 330 mm x 318 mm 244 mm x 348 mm
SATA 2 2 2 2 2 2
USB 2.0 4 (pin header) 4 (pin header) 4 (pin header) 4 (pin header) 4 (pin header) 4 (pin header)
✓ ✓ ✓ ✓ ✓ ✓
Industrial Single Computers Selection Guide
PICMG® 1.0 Backplanes
Model Name HPCI-D3S2 HPCI-D6S4 HPCI-6S4 HPCI-8S4 HPCI-9S7U
Passive
Backplanes
TM
PCI
ISA - 1 1 3 1
AT -
ATX
Segments 1 1 1 2 2
Dimensions 261 mm x 39 mm 261 mm x 79.6 mm 264.2 mm x 132.7 mm 264.2 mm x 218 mm 213.4 mm x 259.1mm
Model Name HPCI-13S4LU HPCI-14S12U HPCI-14S/ATX HPCI-19S18A
2 4 4 4 7
✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
PICMG® 1.0 Backplanes
Passive
Backplanes
TM
PCI
ISA 7 1 8 0
AT
ATX
Segments 3 2 2 2
Dimensions 314.7 mm x 259 mm 314.7 mm x 259 mm 312 mm x 265 mm 415.3 mm x 264.2 mm
4 12 4 18
✓ ✓ ✓ ✓
✓ ✓ ✓ ✓
www.adlinktech.com
All products and company names listed are trademarks or trade names of their respective companies.
Updated Jun. 22, 2020. ©2020 ADLINK Technology, Inc. All Rights Reserved.
All specifications are subject to change without further notice.
