ADJ Ultra LB18 User guide

ULTRA LB18

User Manual

©2022 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be trade­marks or registered trademarks of their respective companies and are hereby acknowledged. All
non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their
respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera­tion of this product.

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.

Date

04/26/2022 1.0 1.0

Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!

Document

Version

Software

Version

DMX Channels Notes

5 / 8 / 10 / 13 / 16 / 30

/ 33 / 38 / 41 / 60 / 71

Ch.

2

Initial Release.

TABLE OF CONTENTS

Introduction 4

Limited Warranty (USA Only) 5

Warranty Registration | Features 6

Safety Guidelines 7

Overview 8

Installation 9

Remote Device Management (RDM) 12

Remote Control Guidelines 13

Control Panel 15

System Menu 16

DMX Setup 20

DMX Traits 22

Pixel Zones 26

Color Macros Chart 27

Color Temperature Table 29

Dim Speed 30

Dim Modes 31

Daisy Chain Power Linking | Cleaning and Maintenance 32

Dimensional Drawings 33

Specifications 34

3

INTRODUCTION

Unpacking: Thank you for purchasing the Ultra LB18 by ADJ Products, LLC. Every device has been
thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the carton appears to have been dam-

aged, carefully inspect your xture for any damage and be sure all accessories necessary to operate

the unit have arrived intact. In the event that damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Do not return this unit to your

dealer without rst contacting customer support.

Introduction: The ADJ Ultra LB18 is a DMX intelligent, indoor-rated RGBAL LED linear bar. To opti­mize the performance of this product, please read these operating instructions carefully to familiarize
yourself with the basic operation of this unit. These instructions contain important safety information
regarding the use and maintenance of this unit. Please keep this manual with the unit for future refer­ence.

Customer Support: Contact ADJ Service for any product related service and support needs. Also visit

forums.adj.com with questions, comments or suggestions.

Parts: To purchase parts online visit:

http://parts.adj.com (US)
http://www.adjparts.eu (EU)

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: [phone] | [e-mail]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] | Fax: [phone] | [e-mail]

ADJ PRODUCTS LLC USA

6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax [phone] | www.adj.com | [e-mail]

ADJ SUPPLY Europe B.V

Junostraat 2 6468 EW Kerkrade, The Netherlands
[phone] | Fax [phone]

www.americandj.eu | [e-mail]

ADJ PRODUCTS GROUP Mexico

AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
[phone]

WARNING! This unit is intended for indoor use only! Do not expose to rain or moisture!

CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

as doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,
please contact ADJ Products, LLC.

Do not discard the shipping cartoon in the trash. Please recycle when ever possible.

4

LIMITED WARRANTY (USA ONLY)

A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of

manufacturing defects in material and workmanship for a prescribed period from the date of purchase

(see specic warranty period on reverse). This warranty shall be valid only if the product is purchased

within the United States of America, including possessions and territories. It is the owner’s responsibility
to establish the date and place of purchase by acceptable evidence, at the time service is sought.

B. For warranty service, you must obtain a Return Authorization number (RA#) before sending the product

back—please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to
the ADJ Products, LLC factory. All shipping charges must be prepaid. If the requested repairs or service
(including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return ship­ping charges only to a designated point within the United States. If the entire instrument is sent, it must be
shipped in its original package and packaging material. No accessories should be shipped with the prod­uct. If any accessories are shipped with the product, ADJ Products, LLC shall incur no liability whatsoever
for loss of or damage to any such accessories, nor for the safe return thereof.

C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is

modied in any manner which ADJ Products, LLC concludes, after inspection, aects the reliability of the

product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory
unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is dam­aged because it was not properly maintained as set forth in the product instructions, guidelines and/or
user manual.

D. This is not a service contract, and this warranty does not include maintenance, cleaning, or periodic

checkup. During the period specied above, ADJ Products, LLC will replace defective parts at its expense

with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason
of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty
shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion
of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012,

and bear identifying marks to that eect.

E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products

without any obligation to include these changes in any products theretofore manufactured.

F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with

products described above. Except to the extent prohibited by applicable law, all implied warranties made

by ADJ Products, LLC in connection with this product, including warranties of merchantability or tness,

are limited in duration to the warranty period set forth above. And all warranties, whether expressed or

implied, including warranties of merchantability or tness, are limited in duration to the warranty period set

forth above. The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is ex­pressly provided above; and under no circumstances shall ADJ Product, LLC be liable for any loss and/or
damage, direct and/or consequential arising out of the use of, and/or inability to use this product.

G. This warranty is the only written warranty applicable to ADJ Products, LLC products, and supersedes all

prior warranties and written descriptions of warranty terms and conditions heretofore published.

MANUFACTURER’S LIMITED WARRANTY PERIODS:

• Non-LED Lighting Products = 1-Year (365 Days) (Including Special Eect Lighting, Intelligent Lighting,

UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands,
Power/Data Distribution, etc. excluding LED and lamps)

• Laser Products = 1-Year (365 Days) (excluding laser diodes which have a 6-Month Limited Warranty)

• LED Products = 2-Year (730 Days) (excluding batteries which have a 180 Day Limited Warranty)

• NOTE: 2-Year (730 Days) Limited Warranty ONLY applies to product purchased within the United States.

StarTec Series = 1-Year (365 Days) (excluding batteries which have a 180 Day Limited Warranty)

• ADJ DMX Controllers = 2 Year (730 Days)

• American Audio Products = 1 Year (365 Days)

5

WARRANTY REGISTRATION

The Ultra LB18 carries a 2 year limited warranty. Please ll out the enclosed warranty card to validate

your purchase. All returned service items, whether under warranty or not, must be freight pre-paid
and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on
the outside of the return package. A brief description of the problem as well as the R.A. number must
also be written down on a piece of paper included in the shipping carton. If the unit is under warranty,
you must provide a copy of your proof of purchase invoice. You may obtain an R.A. number by con­tacting our customer support team on our customer support number. All packages returned to the
service department not displaying an R.A. number on the outside of the package will be returned to
the shipper.

FEATURES

The ADJ Ultra LB18 is a versatile LED bar with fifteen (18) ultra-bright 10W 5-in-1 LEDs (Red, Green,
Blue, Amber & Lime) with pixel-grouping control capability, and a 17x40-degree beam angle. It is
rated for indoor usage only. It offers smooth RGBAL color mixing, 11 DMX channel modes, and linear
color temperature control from 2300K - 9900K.

INCLUDED ITEMS

• Glare Shield (x1)

• UC IR Controller (x1)

• Power Cable (x1)

6

SAFETY GUIDELINES

THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE
SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN
THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/OR DAMAGES
RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION
PRINTED IN THIS MANUAL. ONLY QUALIFIED AND/OR CERTIFIED PERSONNEL SHOULD PERFORM
INSTALLATION OF THIS FIXTURE AND ONLY THE ORIGINAL RIGGING PARTS INCLUDED WITH THIS
FIXTURE SHOULD BE USED FOR INSTALLATION. ANY MODIFICATIONS TO THE FIXTURE AND/OR
THE INCLUDED MOUNTING HARDWARE WILL VOID THE ORIGINAL MANUFACTURER’S WARRANTY
AND INCREASE THE RISK OF DAMAGE AND/OR PERSONAL INJURY. ONLY CERTIFIED PERSONNEL
SHOULD PERFORM INSTALLATION OF THIS FIXTURE.

• PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.

• THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.

• DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURER’S

WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE
DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE
MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR
REPAIRS.

• DO NOT PLUG FIXTURE INTO A DIMMER PACK!

• NEVER OPEN THIS FIXTURE WHILE IN USE!

• UNPLUG POWER BEFORE SERVICING FIXTURE!

• NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!

• KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!

• NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!

• RETINA INJURY RISK - MAY INDUCE BLINDNESS!

• SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

• MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS)

• AMBIENT OPERATING TEMPERATURE RANGE IS -4°F TO 113° F (-20°C TO 45°C). DO NOT
OPERATE THE DEVICE WHEN AMBIENT TEMPERATURE FALLS OUTSIDE OF THIS RANGE.

• MINIMUM DISTANCE TO FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6 FEET (0.5 METER).

• DO NOT TOUCH the xture housing during operation. Turn OFF the power and allow approximately 60
minutes for the xture to cool down before servicing.

• DO NOT shake xture, and avoid brute force when installing and/or operating xture.

• DO NOT operate xture if the power cord is frayed, crimped, damaged and/or if any of the power cord
connectors are damaged and do not insert into the xture securely with ease. NEVER force a power cord
connector into the xture. If the power cord or any of its connectors are damaged, replace it immediately

with a new one of the same power rating.

• DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked. Allow
approx. 6” (15cm) between xture and other devices or a wall for proper cooling.

• When installing xture in a suspended environment, always use mounting hardware that is no less than
M10 x 25 mm, and always install xture with an appropriately rated safety cable.

• Always disconnect xture from main power source before performing any type of service and/or cleaning

procedure.

• Only handle the power cord by the plug end. Never pull out the plug by tugging the wire portion of the
cord.

• Consistent operational breaks will ensure xture will function properly for many years.

• ONLY use original packaging and materials to transport the xture for service.

7

Mounting

Clamp

Attachment

Point

OVERVIEW

Bracket

Adjustment

Knob

Power

In

DMX

In

Safety

Cable

Loop

Service

Port

Mode

Button

Setup

Button

Display

Screen

Down

Button

Glare

Shield

DMX

Out

Power

Out

Mounting

Clamp

Attachment

Point

Up

Button

Safety

Cable

Loop

Bracket

Adjustment

Knob

8

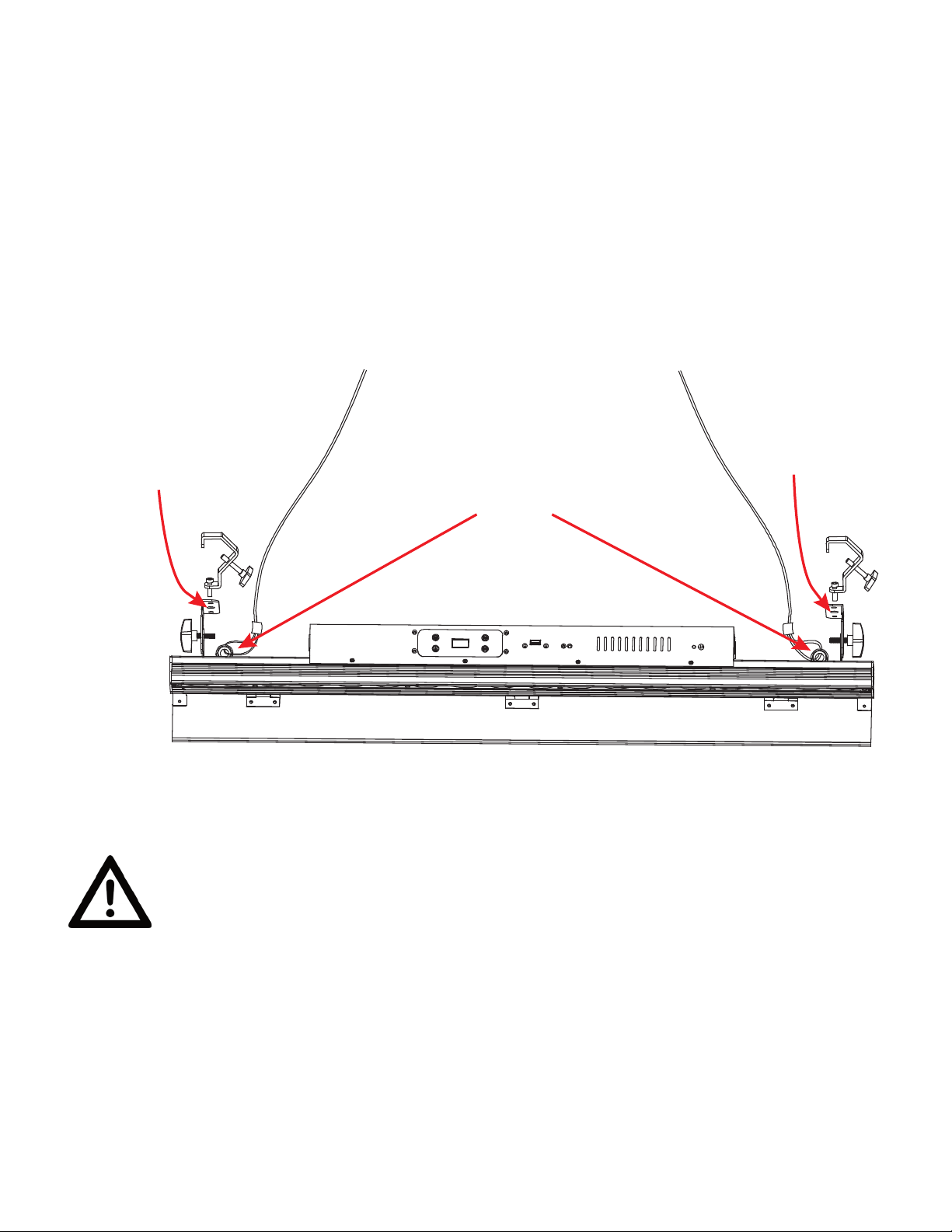

INSTALLATION

FLAMMABLE MATERIAL WARNING

Keep xture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotech­nics.

ELECTRICAL CONNECTIONS

A qualied electrician should be used for all electrical connections and/or installations.

MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS).
MINIMUM DISTANCE OF FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6
FEET (0.5 METER)

THIS DEVICE IS DESIGNED FOR INDOOR USE ONLY! DO NOT USE OUTDOORS OR
EXPOSE TO RAIN OR MOISTURE! FAILURE TO FOLLOW THIS GUIDELINE WILL
DAMAGE THE FIXTURE AND VOID YOUR MANUFACTURER’S WARRANTY!

DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!

• Fixture MUST be installed following all local, national, and country commercial electrical and con­struction codes and regulations.

• Before rigging/mounting a single xture or multiple xtures to any metal truss/structure or placing
the xture(s) on any surface, a professional equipment installer MUST be consulted to determine
if the metal truss/structure or surface is properly certied to safely hold the combined weight of
the xture(s), clamps, cables, and accessories.

• Ambient operating temperature range is -4°F to 113°F (-20°C to 45°C). Do not use or operate the

fixture when ambient temperature falls outside of this range!

• Fixture(s) should be installed outside walking paths, seating areas, or areas were unauthorized
personnel might reach the xture by hand.

• NEVER stand directly below the xture(s) when rigging, removing, or servicing.

• Overhead xture installation must always be secured with a secondary safety attachment, such

as an appropriately rated safety cable.

• Allow approximately 60 minutes for the xture to cool down before servicing.

RIGGING
Overhead rigging requires extensive experience, including calculating working load limits,
knowledge about installation materials being used, and periodic safety inspection of all instal-

lationmaterialandthefixture,amongotherskills.Ifyoulackthesequalifications,donot

attempt the installation yourself. Improper installation can result in bodily injury.

9

INSTALLATION

CLAMP INSTALLATION

This fixture features a mounting point on the foot of each bracket for the attachment of a mount­ing clamp. There is also a loop for the attachment of a safety cable located near the base of each
bracket (see the illustration below). When mounting the fixture to a truss or any other suspended or
overhead installation, be sure to secure an appropriately rated clamp (not included) to each bracket,
and attach a separate SAFETY CABLE of the appropriate weight rating to each safety cable loop.

Please note that this fixture requires the use of TWO mounting clamps and TWO safety cables
that are secured to independent attachment points at all times.

MOUNTING

CLAMP

ATTACHMENT

POINT

MOUNTING

CLAMP

ATTACHMENT

POINT

SAFETY

CABLE
LOOPS

SAFETY CABLE:

ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE

IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT

FALL IF THE CLAMP FAILS.

10

INSTALLATION

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS

External sources of light beams from direct sunlight, lighting moving head fixtures, and lasers which
are focused directly towards the exterior housing and/or penetrate the front lens opening of ADJ
lighting fixtures can cause severe internal damage, including burning of optics, dichroic color filters,
glass and metal gobos, prisms, animation wheels, frost filters, irises, shutters, motors, belts, wiring,
discharge lamps, and LEDs.

This issue is not unique to ADJ lighting fixtures, but rather it is a common issue with lighting fixtures
from all manufacturers. Although there is no true way to completely prevent this issue from hap­pening, the guidelines below can reduce the risk of any potential damage if followed. Contact ADJ
Service for more details.

DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM
DIRECT SUNLIGHT, OTHER LIGHTING OR MOVING HEAD FIXTURES, AND LASERS DURING
UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS
A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.

11

REMOTE DEVICE MANAGEMENT (RDM)

NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout
the entire system, including DMX data splitters and wireless systems.

Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for
lighting, allowing the DMX systems of the fixtures to be modified and monitored remotely. This proto­col is ideal for instances in which a unit is installed in a location that is not easily accessible.

With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled con­troller to send out a signal to devices on the wire, as well as allowing the fixture to respond (known
as a GET command). The controller can then use its SET command to modify settings that would
typically have to be changed or viewed directly via the unit’s display screen, such as the DMX
Address, DMX Channel Mode, and Temperature Sensors.

Please be aware that not all RDM devices support all RDM features, and therefore it is important
to check beforehand to ensure that the equipment that you are considering includes all of the fea­tures that you require.

The following parameters are accessible in RDM on this device:

Device Info

Manufacturer Label

Device Label

Software Version Label

DMX Personality

DMX Personality Description

DMX Start Address

Sensor Denition

Sensor Value

Curve (Dim Curve)

Curve Description

Modulation Frequency (Led Refresh Rate)

Modulation Frequency Description

Output Response Time (Dim Mode)

Output Response Time Description

12

REMOTE CONTROL GUIDELINES

REMOTE USAGE

This device can be operated wirelessly using the ADJ UC IR remote unit. In order to control the
device, the IR Remote setting in the system menu’s Personality sub-menu must be set to the “On”
configuration, and the handheld remote must be aimed at the front of the fixture. Maximum effective
range is 30 feet (9 meters).

NOTE: The unit can only be controlled remotely when it has been set to Primary mode. The
unit will NOT respond to commands when it has been set to Secondary mode.

NOTE: In order to control multiple units with the remote, the user should set one unit as the
primary unit, with all other units set as secondary units. The DMX and channel modes must
also match for all units. Refer to Personality section of System Menu.

13

REMOTE CONTROL GUIDELINES

REMOTE FUNCTIONS

The functions available on the ADJ UC IR remote unit are detailed below:

• Standby - Press once to black out the fixture, and press again to return the fixture to the original
state.

• Full On - Press to fully illuminate the device.

• Fade/Gobo - Press to cycle between Color Fade, Color Change, and Auto Run Mode.

• “Dimmer+” and “Dimmer-” - Use to adjust color output intensity when running in Color Mode.

• Strobe - Press to activate the strobing function, then use the number keys 1-4 to select strobe

speed. 1 is the slowest speed, and 4 is the fastest.

• Color - Press to activate Color Mode, then use numbered buttons to enter to number of the color
macro you wish to use. Press the “Show 0” button for 0.

• Number Keys (1-9)

• In Strobe Mode, buttons 1-4 are used to select strobe speed.

• In Color Mode, buttons 1-9 are used to select the desired color.

• In Show Mode, buttons 1-9 are used to select the desired show.

• Sound On and Sound Off - Activate or deactivate sound active mode.

• Show 0 - Press to activate Show Mode, then use the number keys to select the desired show.

Shows 1-9 are selected by pressing buttons 1-9, Show 10 by pressing button 1 followed by the
Show 0 button, and Show 11 by pressing button 1 twice.

14

CONTROL PANEL

The xture includes an easy to navigate system menu control panel display where all necessary set­tings and adjustments are made. (See image below)

• MODE: Cycles through the main menu options and/or return to previous menu without making
changes.

• DOWN/UP: Scroll through options in the selected menu.

• SETUP: Select highlighted option and/or confirm selection.

DISPLAY SCREEN LOCK

When the Display Lock setting is set to 30s~10min, the display screen will automatically lock if there
is no activity for the specified length of time. To unlock the display screen, simply press and hold the
MODE button for 3 seconds.

15

SYSTEM MENU

DMX SET

Address

Ch. Mode

No DMX

001 - 512

5ch

8ch

10ch

13ch

16ch

30ch

33ch

38ch

41ch

60ch

71ch

Hold

Blackout

Manual

Set DMX address

Select DMX channel
mode

Unit holds last values
received if DMX signal
is lost

All channels go to zero
(0) if DMX signal is lost

Unit reverts to Manual
settings if DMX signal
is lost

PERSONALITY

Primary/ Sec­ondary Mode

IR Remote

RDM

Pixel Flip

Dim Mode

Dim Curve

Int. Prog

Primary /

Secondary

On / O

On / O

O = 1-6

On = 6-1

Standard

Stage

TV

Archi.

Theatre

Stage 2

Dim Speed 0.1s - 10.0s

Linear

Square

Inv. Squa.

Unit reverts to last inter­nal program selected if
DMX signal is lost

S. Curve

CONTINUED ON NEXT PAGE

16

LED Rfrsh

SYSTEM MENU

900 Hz, 1000 Hz, 1100 Hz, 1200 Hz, 1300 Hz, 1400
Hz, 1500 Hz, 2500 Hz, 4000 Hz, 5000 Hz, 10 KHz, 15
KHz, 20 KHz, 25 KHz

SaveDlay

1 - 10

Set inactive time before
unit reverts to home
screen

PERSONALITY
(continued)

Display

Lock

Rotate Display
180

O, 30s - 10min

Yes

No

Auto

Calibrat

Set inactive time before
screen locks

Screen automatically

flips to keep display in

upright orientation

All Red
000 - 255

All Green
000 - 255

All Blue
000 - 255

All Lime
000 - 255

Red1
000 - 255

Green1
000 - 255

Blue1
000 - 255

Service Passcode = 050

CONTINUED ON NEXT PAGE

Lime1
000 - 255

...

Red18
000 - 255

Green18
000 - 255

Blue18
000 - 255

Lime18
000 - 255

USB Powr

S. Update

Restore

Edit RDM UID xxxxxx

On / O

Yes / No

Yes / No

Restore unit to factory
settings, passcode =
011

17

SYSTEM MENU

Red 000 - 255 Manually adjust red

Green 000 - 255 Manually adjust green

Blue 000 - 255 Manually adjust blue

Amber 000 - 255 Manually adjust amber

Lime 000 - 255 Manually adjust lime

ClrMacro 000 - 255 Select color macro

ClrTemp 000 - 255 Set color temperature

MANUAL

INT PROGS

ClrTempPr 000 - 255

Strobe 000 - 255 Manually adjust strobe

MastrDim 000 - 255

AutoProg 000 - 255 Select auto program

ProgSpd 000 - 255

ProgFade 000 - 255

Speed 000 - 255

Prog 0

Prog 1

... ... ... ...

Fade 000 - 255

Sound

Speed 000 - 255

Fade 000 - 255

Sound

Speed 000 - 255

On / O

On / O

000 - 255

000 - 255

Select color tempera­ture program

Manually adjust dim­ming

Manually adjust pro­gram speed

Manually adjust pro­gram fade

INFO

Prog 13

Hours

Temp

Fade 000 - 255

Sound

PwrOnHr1 xxxxxx Hrs

PwrOnHr2 xxxxxx Hrs

PowerOnRst Passcode = 050 Reset run hours

xxx F / xxx C Current temp

MaxTemp1 xxx F / xxx C

MaxTemp2 xxx F / xxx C

TempRst

CONTINUED ON NEXT PAGE

On / O

Yes / No

000 - 255

Total run hours, non­resettable

Run hours since last
reset

Max temp since last
reset

All time max temp, non­resettable

Passcode = 050 Reset temp

18

DMX Value

Red

Green

....

Auto Prog

SYSTEM MENU

Displays current DMX
value for each param­eter

INFO
(continued)

RDM UID xxxxxx

Error Logs

Soft Vers x.xx

Fixture Errors

Reset Error Log

Yes / No

Displays default RDM
UID

Displays errors since
last error reset one by
one

Passcode = 050

19

DMX SETUP

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu­nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only
have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be

linked together and operate from a single controller, as long as all xtures and the controller are DMX

compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible
when using several DMX fixtures. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation):The Ultra LB18 can be controlled
via DMX-512 protocol, and features multiple DMX channel modes. Your unit and your DMX controller
require a 5-pin XLR connector for data input and data output. If you are making your own cables, be
sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro­fessional lighting stores). Your cables should be made with a male XLR connector at one end and a
female XLR connector at the other. Also remember that DMX cable must be daisy chained and can­not be split.

Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter­minator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor
which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is
inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a
cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior.

20

DMX SETUP

DMX ADDRESSING

All fixtures should be given a DMX starting address when operating with a DMX controller, in order to
ensure that the correct fixture responds to the correct control signal. This digital starting address is
the channel number from which the fixture starts to “listen” to the digital control signal sent out from
the DMX controller. The starting DMX address is configured by setting the correct DMX address on
the control panel display on the fixture.

You can set the same starting address for multiple fixtures, or set different addresses for each indi­vidual fixture. Setting multiple fixtures to the same DMX address will cause all those fixtures to react
in the same way. In this case, please note that changing the settings of one channel will affect all the
fixtures simultaneously.

If you set each fixture to a different DMX address, each unit will start to “listen” to the channel num­ber you have set, based on the quantity of DMX channels of each fixture. That means changing the
settings of one channel will only affect the selected fixture.

As an example, when operating this device in 5 channel mode, you should set the starting DMX
address of the first unit to 1, the second unit to 6 (1 + 5), the third unit to 1 (1 + 5 + 5), and so on.
(See the chart below for more details.)

Channel Mode Unit 1 Address Unit 2 Address Unit 3 Address Unit 4 Address

5Ch

8Ch

10Ch

13Ch

16Ch

30Ch

33Ch

38Ch

41Ch

60Ch

71Ch

1 6 11 16

1 9 17 25

1 11 21 31

1 14 27 40

1 17 33 49

1 31 61 91

1 34 67 100

1 39 77 115

1 42 83 124

1 61 121 181

1 72 143 214

21

DMX TRAITS

CHANNEL

5 CH8 CH10 CH13 CH16 CH30 CH33 CH38 CH41 CH60 CH71

CH

1 1 1 1 1 000 - 255

2 000 - 255

2 2 3 2 2 000 - 255

4 000 - 255

3 3 5 3 3 000 - 255

6 000 - 255

4 4 7 4 4 000 - 255

8 000 - 255

5 5 9 5 5 000 - 255

10 000 - 255

1 1 1 1 1 1 000 - 255

2 2 000 - 255

2 2 2 2 3 3 000 - 255

4 4 000 - 255

DMX

VALUE

FUNCTION

All Red, 0% to 100%

All Red Fine

All Green, 0% to 100%

All Green Fine

All Blue, 0% to 100%

All Blue Fine

All Amber, 0% to 100%

All Amber Fine

All Lime, 0% to 100%

All Lime Fine

Red 1, 0% to 100%

Red 1 Fine

Green 1, 0% to 100%

Green 1 Fine

3 3 3 3 5 5 000 - 255

6 6 000 - 255

4 4 4 4 7 7 000 - 255

8 8 000 - 255

5 5 5 5 9 9 000 - 255

10 10 000 - 255

6 6 6 6 11 11 000 - 255

12 12 000 - 255

7 7 7 7 13 13 000 - 255

14 14 000 - 255

8 8 8 8 15 15 000 - 255

16 16 000 - 255

9 9 9 9 17 17 000 - 255

18 18 000 - 255

10 10 10 10 19 19 000 - 255

20 20 000 - 255

11 11 11 11 21 21 000 - 255

Blue 1, 0% to 100%

Blue 1 Fine

Amber 1, 0% to 100%

Amber 1 Fine

Lime 1, 0% to 100%

Lime 1 Fine

Red 2, 0% to 100%

Red 2 Fine

Green 2, 0% to 100%

Green 2 Fine

Blue 2, 0% to 100%

Blue 2 Fine

Amber 2, 0% to 100%

Amber 2 Fine

Lime 2, 0% to 100%

Lime 2 Fine

Red 3, 0% to 100%

22 22 000 - 255

12 12 12 12 23 23 000 - 255

24 24 000 - 255

13 13 13 13 25 25 000 - 255

CONTINUED ON NEXT PAGE

22

Red 3 Fine

Green 3, 0% to 100%

Green 3 Fine

Blue 3, 0% to 100%

DMX TRAITS

CHANNEL

5 CH8 CH10 CH13 CH16 CH30 CH33 CH38 CH41 CH60

CH

26 26 000 - 255

14 14 14 14 27 27 000 - 255

28 28 000 - 255

15 15 15 15 29 29 000 - 255

30 30 000 - 255

16 16 16 16 31 31 000 - 255

32 32 000 - 255

17 17 17 17 33 33 000 - 255

34 34 000 - 255

18 18 18 18 35 35 000 - 255

36 36 000 - 255

19 19 19 19 37 37 000 - 255

38 38 000 - 255

20 20 20 20 39 39 000 - 255

71

CH

DMX

VALUES

FUNCTION

Blue 3 Fine

Amber 3, 0% to 100%

Amber 3 Fine

Lime 3, 0% to 100%

Lime 3 Fine

Red 4, 0% to 100%

Red 4 Fine

Green 4, 0% to 100%

Green 4 Fine

Blue 4, 0% to 100%

Blue 4 Fine

Amber 4, 0% to 100%

Amber 4 Fine

Lime 4, 0% to 100%

40 40 000 - 255

21 21 21 21 41 41 000 - 255

42 42 000 - 255

22 22 22 22 43 43 000 - 255

44 44 000 - 255

23 23 23 23 45 45 000 - 255

46 46 000 - 255

24 24 24 24 47 47 000 - 255

48 48 000 - 255

25 25 25 25 49 49 000 - 255

50 50 000 - 255

26 26 26 26 51 51 000 - 255

52 52 000 - 255

27 27 27 27 53 53 000 - 255

54 54 000 - 255

28 28 28 28 55 55 000 - 255

56 56 000 - 255

Lime 4 Fine

Red 5, 0% to 100%

Red 5 Fine

Green 5, 0% to 100%

Green 5 Fine

Blue 5, 0% to 100%

Blue 5 Fine

Amber 5, 0% to 100%

Amber 5 Fine

Lime 5, 0% to 100%

Lime 5 Fine

Red 6, 0% to 100%

Red 6 Fine

Green 6, 0% to 100%

Green 6 Fine

Blue 6, 0% to 100%

Blue 6 Fine

29 29 29 29 57 57 000 - 255

58 58 000 - 255

30 30 30 30 59 59 000 - 255

60 60 000 - 255

CONTINUED ON NEXT PAGE

23

Amber 6, 0% to 100%

Amber 6 Fine

Lime 6, 0% to 100%

Lime 6 Fine

DMX TRAITS

CHANNEL

5 CH8 CH10 CH13 CH16 CH30 CH33 CH38 CH41 CH60 CH71

CH

6 6 31 31 61 000 - 255

7 7 32 32 62 000 - 255

6 8 8 31 33 33 63

7 9 9 32 34 34 64 000 - 255

8 10 10 33 35 35 65 000 - 255

DMX

VALUES

000 - 031 LEDs O

032 - 063 LEDs On

064 - 095 Strobe Eect, slow to fast

096 - 127 LEDs On

128 - 159 Pulse Eect in Sequences

160 - 191 LEDs On

192 - 223 Random Strobe Eect, slow to fast

224 - 255 LEDs On

FUNCTION

Color Macros, see Color Macros
Chart section of this manual

Color Temperature, 2300K - 9900K

Linear

Shutter, Strobe

Dimmer Intensity, 0% to 100%

Dimmer Fine

000 - 010 O

011 - 026 Auto Program 1

027 - 043 Auto Program 2

044 - 060 Auto Program 3

061 - 076 Auto Program 4

077 - 093 Auto Program 5

094 - 110 Auto Program 6

11 36 66

111 - 126 Auto Program 7

127 - 143 Auto Program 8

144 - 160 Auto Program 9

161 - 176 Auto Program 10

177 - 193 Auto Program 11

194 - 210 Auto Program 12

211 - 226 Auto Program 13

227 - 255 No Function

12 37 67 000 - 255

Auto Programs

Auto Programs Speed, slow to fast

13 38 68 000 - 255

CONTINUED ON NEXT PAGE

24

Auto Programs Fade, 0% to 100%

DMX TRAITS

CHANNEL

5 CH8 CH10 CH13 CH16 CH30 CH33 CH38 CH41 CH60 CH71

CH

11 14 36 39 69

12 15 37 40 70

DMX

VALUES

000 - 020 Default to unit setting

021 - 040 Standard

041 - 060 Stage

061 - 080 TV

081 - 100 Architectural

101 - 120 Theatre

121 - 140 Stage 2

141 - 160 Dim Speed, 0.1s to 10.0s

161 - 255 Default to unit setting

000 - 020 Square

021 - 040 Linear

041 - 060 Inv. Squa

FUNCTION

Dim Mode

Dim Curves

13 16 38 41 71

061 - 080 S. Curve

081 - 255 No Function

Refresh Rates

000 - 015 Default to unit setting

016 - 030 900 Hz

031 - 045 1000 Hz

046 - 060 1100 Hz

061 - 075 1200 Hz

076 - 090 1300 Hz

091 - 105 1400 Hz

106 - 120 1500 Hz

121 - 135 2500 Hz

136 - 150 4000 Hz

151 - 165 5000 Hz

166 - 180 10,000 Hz

181 - 195 15,000 Hz

196 - 210 20,000 Hz

25

211 - 225 25,000 Hz

226 - 255 No Function

PIXEL ZONES

In 30-, 33-, 38-, 41-, 60-, and 71-channel mode, the LED strip is divided into 6 separately controlled
pixel zones, with each pixel zone consisting of 3 pixels as shown in the illustration below. Activating
Pixel Flip in the system menu reverses the order of the arrangement of the pixel zones.

Please note that these pixel zones do not apply 5-, 8-, 10-, 13-, and 16-channel mode, as these
modes effectively control all 18 pixels as a single group.

PIXEL FLIP OFF

1

6 5 4

PIXEL FLIP ON

2 3

4 5

3 2

6

1

26

COLOR MACROS CHART

COLOR

MACRO NO.

O 000 N/A 0 0 0 0 0

1 001 - 004 N/A 0 255 255 1 116

2 005 - 008 N/A 127 255 212 1 124

3 009 - 012 N/A 151 125 3 255 43

4 013 - 016 N/A 0 0 255 1 0

5 017 - 020 N/A 138 43 226 1 177

6 021 - 024 N/A 223 108 7 255 77

7 025 - 028 N/A 165 42 42 1 200

8 029 - 032 N/A 95 158 160 44 71

9 033 - 036 N/A 171 36 0 120 255

10 037 - 040 N/A 127 255 0 1 255

11 041 - 044 N/A 210 105 30 1 22

12 045 - 048 N/A 255 15 18 255 174

13 049 - 052 N/A 100 149 237 3 0

14 053 - 056 N/A 255 0 10 255 144

DMX VALUE COLOR TEMP RED GREEN BLUE LIME AMBER

15 057 - 060 N/A 220 20 60 1 0

16 061 - 064 N/A 0 255 255 0 12

17 065 - 068 N/A 6 0 139 1 3

18 069 - 072 N/A 0 39 139 2 5

19 073 - 076 N/A 0 111 0 1 24

20 077 - 080 N/A 255 0 2 21 3

21 081 - 084 N/A 188 0 3 255 44

22 085 - 088 N/A 255 12 0 77 62

23 089 - 092 N/A 255 130 25 229 30

24 093 - 096 N/A 140 0 139 2 135

25 097 - 100 N/A 255 140 0 1 0

26 101 - 104 N/A 153 50 204 1 5

27 105 - 108 N/A 143 188 143 1 35

28 109 - 112 N/A 72 61 139 4 2

29 113 - 116 N/A 0 206 209 2 2

30 117 - 120 N/A 255 0 4 11 8

31 121 - 124 N/A 148 0 211 5 2

32 125 - 128 N/A 255 20 147 1 0

33 129 - 132 N/A 0 191 255 2 3

34 133 - 136 N/A 160 0 26 0 4

35 137 - 140 N/A 34 139 34 1 1

36 141 - 144 N/A 255 0 255 2 0

27

COLOR MACROS CHART

COLOR

MACRO NO.

37 145 - 148 N/A 255 215 0 1 1

38 149 - 152 N/A 5 255 190 3 11

39 153 - 156 N/A 12 255 62 95 49

40 157 - 160 N/A 5 209 255 15 170

41 161 - 164 N/A 0 5 128 5 5

42 165 - 168 N/A 255 105 180 2 1

43 169 - 172 N/A 7 255 25 70 77

44 173 - 176 N/A 147 164 212 0 2

45 177 - 180 N/A 2 255 15 3 19

46 181 - 184 N/A 0 38 86 0 0

47 185 - 188 N/A 255 0 5 121 10

48 189 - 192 N/A 5 18 209 5 19

49 193 - 196 N/A 1 255 62 93 44

50 197 - 200 2300K > 90 CRI 190 10 10 255 190

51 201 - 204 2600K > 90 CRI 180 25 25 255 180

DMX VALUE COLOR TEMP RED GREEN BLUE LIME AMBER

52 205 - 208 2800K > 90 CRI 165 50 28 255 165

53 209 - 212 3100K > 90 CRI 150 35 35 255 255

54 213 - 216 3400K > 90 CRI 135 45 45 255 135

55 217 - 220 7000K > 90 CRI 80 125 125 255 80

56 221 - 224 8000K > 90 CRI 75 145 145 255 75

57 225 - 228 3800K > 90 CRI 120 55 55 255 120

58 229 - 232 4100K > 90 CRI 120 65 65 255 120

59 233 - 236 4500K > 90 CRI 110 75 75 255 110

60 237 - 240 4900K > 90 CRI 105 85 85 255 105

61 241 - 244 5500K > 90 CRI 95 95 95 255 95

62 245 - 248 6000K > 90 CRI 90 105 105 255 90

63 249 - 252 9000K > 90 CRI 75 165 165 255 75

64 253 - 255 9900K > 90 CRI 75 185 185 255 75

28

COLOR TEMPERATURE TABLE

COLOR

TEMPERATURE

N/A 000 - 015

2300K 016 - 031 160 10 10 160 255

2600K 032 - 047 130 15 15 130 255

2800K 048 - 063 120 20 20 120 255

3100K 064 - 079 110 25 25 110 255

3400K 080 - 095 100 30 30 100 255

3800K 096 - 111 90 40 40 90 255

4100K 112 - 127 80 40 40 80 255

4500K 128 - 143 75 50 50 75 255

4900K 144 - 159 65 55 55 65 255

5500K 160 - 175 60 65 65 60 255

6000K 176 - 191 60 75 75 60 255

7000K 192 - 207 55 90 90 55 255

8000K 208 - 223 55 108 108 55 255

DMX

VALUES

RED GREEN BLUE AMBER LIME

NO FUNCTION

9000K 224 - 239 55 120 120 55 255

9900K 240 - 255 55 132 132 55 255

29

DIM SPEEDS

DMX

VALUE

141 0.1s

142 0.2s

143 0.3s

144 0.4s

145 0.5s

146 0.6s

147 0.7s

148 0.8s

149 0.9s

150 1.0s

151 1.5s

152 2.0s

153 3.0s

154 4.0s

DELAY

TIME

155 5.0s

156 6.0s

157 7.0s

158 8.0s

159 9.0s

160 10.0s

30

DIMMER

Rise Time

Down Time

0 sec Fade Time

1 sec Fade Time

100%

DIM MODES

50%

10%

0%

Time (ms)

0 Sec

255 255

Dimming Curve

Ramp Effect

0 0

Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)

Standard (default) 0 0 0 0

Stage 780 1100 1540 1660

TV 1180 1520 1860 1940

Architectural 1380 1730 2040 2120

Theatre 1580 1940 2230 2280

Stage 2

0 1100 0 1660

31

DAISY CHAIN POWER LINKING

These units have the capability to be daisy chained together via the power in/out ports. The maxi­mum number of units that can be linked together in this manner is as follows:

• 12 units maximum when running on 120V power.

• 25 units maximum when running on 240V power.

DO NOT EXCEED THE NUMBER OF UNITS LISTED ABOVE.

DO NOT MIX MAKE AND MODEL TYPES WHEN DAISY CHAINING! All units that are connected in

this manner must be of the same make and model type.

CLEANING AND MAINTENANCE

DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!

CLEANING

Frequent cleaning is recommended to ensure proper function, optimized light output, and an
extended life. The frequency of cleaning depends on the environment in which the xture oper­ates: damp, smoky, or particularly dirty environments can cause greater accumulation of dirt on

the xture’s optics. Clean the external lens surface periodically with a soft cloth to avoid dirt/debris

accumulation.

NEVER use alcohol, solvents, or ammonia-based cleaners.

MAINTENANCE

Regular inspections are recommended to ensure proper function and extended life. There are no

user serviceable parts inside this xture. Please refer all other service issues to an authorized ADJ

service technician. Should you need any spare parts, please order genuine parts from your local ADJ
dealer.

Please refer to the following points during routine inspections:

• A detailed electrical check by an approved electrical engineer every three months, to make sure
the circuit contacts are in good condition and prevent overheating.

• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out
during normal operation, resulting in damage or injury as larger parts could fall.

• Check for any deformations on the housing, color lenses, rigging hardware, and rigging points
(ceiling, suspension, trussing). Deformations in the housing could allow for dust or liquids to enter
into the xture. Damaged rigging points or unsecured rigging could cause xture to fall and seri­ously injure a person(s).

• Electric power supply cables must not show any damage, material fatigue, or sediments.

NEVER remove the ground prong from the power cable.

32

DIMENSIONAL DRAWINGS

34.8in (883.0mm)

39.2in (996.0mm)

(86.0mm)

3.4in

1.6in

(40.4mm)

4.7in (119.4mm)

7.4in (188.4mm)

(72.2mm)

2.8in

33

SPECIFICATIONS

• Ultra bright, 39.3-inch, indoor Linear Bar with 18 x 10W Ultra bright (Red, Green, Blue, Amber &
Lime) LEDs

• 17x40 degree beam angle

• Smooth RGBAL color mixing

• 11 DMX Channel Modes: 5, 8, 10, 13, 16, 30, 33, 38, 41, 60 & 71 Channels

• 6 Groups x3 RGBAL LED pixels controllable via DMX in 30, 33, 38, 41, 60 & 71 channel modes

• 6 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL Manual, Static Color and

DMX-512 Mode

• Horizontal Magnetic Alignment feature (Built-In)

• Flicker Free operation (No flickering on camera)

• Refresh Rate: Selectable - 900 Hz, 1000 Hz, 1100 Hz, 1200 Hz, 1300 Hz, 1400 Hz, 1500 Hz, 2500

Hz, 4000 Hz, 5000 Hz, 10 KHz, 15 KHz, 20 KHz, 25 KHz

• 64 built-in Color Macros, including 15 white color temperature presets

• 5 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)

• Linear Color Temperature Control (2,300K to 9,900K)

• >90 CRI

• LED pulse and strobe effect

• OLED Display

• Built-In Microphone for sound trigger mode

• Linkable: DMX via 5-pin XLR cable

• Electronic Dimming: 0-100%

• Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting

• Long Life LEDs (Rated at approximately 50,000 hrs.)

• Multi-voltage operation: AC 100V-240V 50/60Hz

• Power Draw: 130W

• Power link via power locking connectors. Daisy-chain power link (Up to 12 Ultra LB18s can be

linked @120V and up to 25 Ultra LB18s can be linked @240V

• Locking Power Cord (Included)

• Compatible with the ADJ UC IR remote. Operates at a distance of up to 32.8 feet (10 meters)

(Included)

• Glare shield that blocks the LEDs from glare/view and protects LEDs during transport (Included)

• Dimensions (LxWxH): 3.39” x 39.3” x 7.42” (86x996x188.4mm)

• Weight: 12.13 lbs./ 5.5kg.

Specifications and manual are subject to improvement without prior written notice.

34

35
