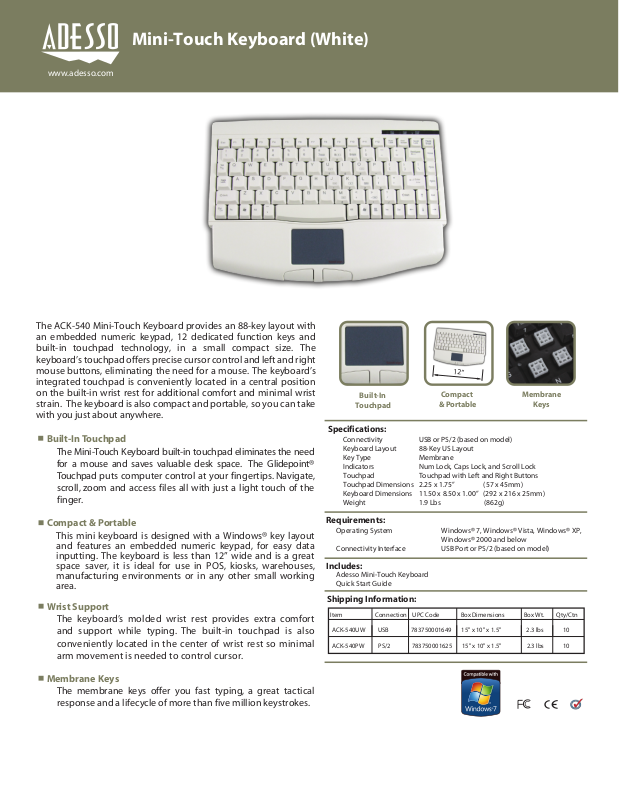

Adesso ACK-540W User Manual

Mini-Touch Keyboard (White)

www.adesso.com

The ACK-540 Mini-Touch Keyboard provides an 88-key layout with
an embedded numeric keypad, 12 dedicated function keys and
built-in touchpad technology, in a small compact size. The
keyboard’s touchpad offers precise cursor control and left and right
mouse buttons, eliminating the need for a mouse. The keyboard’s
integrated touchpad is conveniently located in a central position
on the built-in wrist rest for additional comfort and minimal wrist
strain. The keyboard is also compact and portable, so you can take
with you just about anywhere.

Built-In Touchpad

The Mini-Touch Keyboard built-in touchpad eliminates the need
for a mouse and saves valuable desk space. The Glidepoint®
Touchpad puts computer control at your fingertips. Navigate,
scroll, zoom and access files all with just a light touch of the
finger.

12”

Built-In

Touchpad

Specifications:

Connectivity USB or PS/2 (based on model)
Keyboard Layout 88-Key US Layout
Key Type Membrane
Indicators Num Lock, Caps Lock, and Scroll Lock
Touchpad Touchpad with Left and Right Buttons
Touchpad Dimensions 2.25 x 1.75” (57 x 45mm)
Keyboard Dimensions 11.50 x 8.50 x 1.00” (292 x 216 x 25mm)
Weight 1.9 Lbs (862g)

Compact

& Portable

Membrane

Keys

Compact & Portable

This mini keyboard is designed with a Windows® key layout
and features an embedded numeric keypad, for easy data
inputting. The keyboard is less than 12” wide and is a great
space saver, it is ideal for use in POS, kiosks, warehouses,
manufacturing environments or in any other small working
area.

Wrist Support

The keyboard’s molded wrist rest provides extra comfort
and support while typing. The built-in touchpad is also
conveniently located in the center of wrist rest so minimal
arm movement is needed to control cursor.

Membrane Keys

The membrane keys offer you fast typing, a great tactical
response and a lifecycle of more than five million keystrokes.

Requirements:

Operating System Windows® 7, Windows® Vista, Windows® XP,
Windows® 2000 and below
Connectivity Interface USB Port or PS/2 (based on model)

Includes:

Adesso Mini-Touch Keyboard
Quick Start Guide

Shipping Information:

Item Connection UPC Code Box Dimensions Box Wt. Qty/Ctn

ACK-540UW USB 783750001649 15" x 10" x 1.5" 2.3 lbs 10

ACK-540PW PS/2 783750001625 15" x 10" x 1.5" 2.3 lbs 10
