Adec and Partner CMBT211 Users Manual

CM-BT2
Stereo Amplified
Neckloop
USER'S MANUAL
Content
1. Introduction
Bluetooth Wireless Technology Inside the Sales Kit
2. Getting Started
The Bluetooth Amplified Neckloop overview Wearing the Neckloop Charging the Neckloop Turning on and of f the Neckloop Set up with the phone for the f irst time Connecting the Neckloop and phone Disconnecting the Neckloop and phone
3. Using the Neckloop
Making Call Answering Call Rejecting Call Ending Call Adjusting Neckloop Volume Playing Music Low Battery Indication
5. Care and Maintenance
6. Troubleshooting
7. Product Specifications
8. Quick Reference Guide
FCC Warning:
2
Any Changes or modifications not expressly approved
2
by the party responsible for compliance could void the
2
user's authority to operate the equipment.
3
3
This device complies with part 15 of the FCC Rules.
4 4
Operation is subject to the following two conditions:
6
(1) This device may not cause harmful interference,
6
(2) this device must accept any interference received,
8
including interference that may cause undesired operation.
8
9
9
9 9 9
9 10 10
11 11 12 14 15
1
1. Introduction
The Stereo Amplified Neckloop offers users a unique, wireless experience using Bluetooth wireless technology. It is a model of efficiency, offering hands-free, wireless connections between most Bluetooth phones. Smart outline design and comfortable for wearing.The Neckloop is Bluetooth V2.0 compliance. It is backward compatible with audio devices with V1.2 or earlier. Its operation range is up to 10 meters (indoor); operating power mode is Class 2 (-6­6dBm). It is capable of operating up to 3-hour talk-time using with neckloop and 13-hour talk-time using with earhook or earphone. This user s guide provides more details.
u
Bluetooth Wireless Technology
Bluetooth is a specification for short-range radio links between mobile computers, mobile phones,digital cameras and other portable devices. The radio operates on the globally available 2.45 Ghz ISM free band , allowing users
“”
to use Bluetooth equipment worldwide. The Bluetooth devices communicate within a certain distance and do not need to bein line of sight.
Inside the SalesKit
u
BluetoothAmplified Neckloop Stereo earphone Stereo earhook USB charging cable Base charger Car charger User manual
‘’
2
2. Getting Started

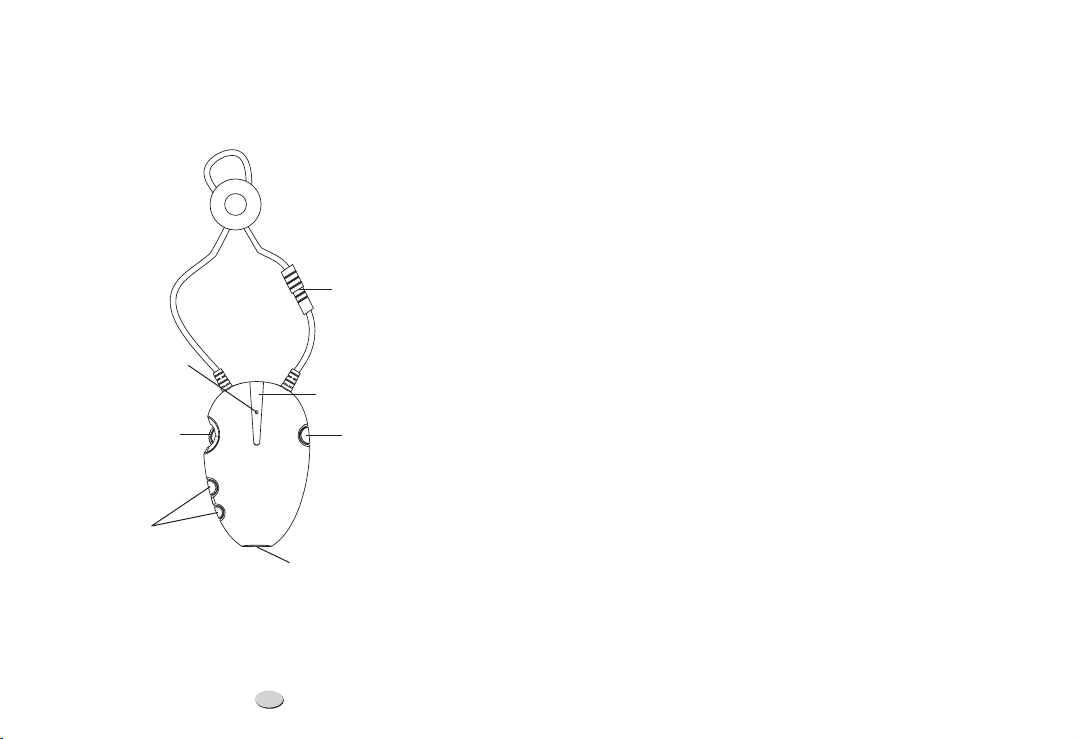

u The Stereo Amplified Neckloop Overview
Quick Disconnect
Microphone
Indicator LED
Volume Control
Up/Down
Multi-function button (MFB)
Notes for connection:
1. After the connection, if you want to connect it automatically the next time you power on the neckloop, set this unit as your authorized device or auto­connected device on your mobile phone menu.
2. After the connection with other devices (B, C, D and so on), if you want to re-connect it with A, you need to disconnect it with other bluetooth units first, then use the menu on A device to connect it again.
3. Some brands could not support all the functions.
VOL+/VOL- button
Headset jack & Charging port
3
8. Quick Reference Guide
u Wearing the Neckloop
User State
Current
OFF
ON/Standby
OFF
Pairing
Standby
Standby
Standby
Call
Incoming
Call
Incoming
Talk
Standby
Playing
Standby/
Talk
Next
Power On
Power Off
Pairing
Pairing Passed
Connected to
the Phone
Last Number
Redial
Voice Dial
Answer
Reject
End Call
Playing
Pause
Low Battery
MFB Press
Hold 3s
Hold 3s
Hold 6s
Hold 1.5s
Twice
Once upon
ring tone
Hold 1.5s
Once
Connecting
to phone
Once
LED Indicator
Blue
Flash 4x
Blue Flash 4x, Red/Blue Alternating for 2 mins
Flash 4x
Flash 2x
After Beep Tone, say voice tag
Flash 3x/2s
Flash 3x/2s
Flash 2x
Red
Flash 4x
Flash 1x/30s
Place the wire around your neck and insert the round connector plug into the Neckloop Quick Disconnect plug, forming a loop.
IMPORTANT:
To have the Neckloop operate properly, you will need to be sure the Quick Disconnect connection jack has been securelyclicked in place.
u Charging the Neckloop
The Neckloop has a built-in rechargeable Li-Polymer battery.It is recommended to fully charge the battery prior to the first timeuse of the device.

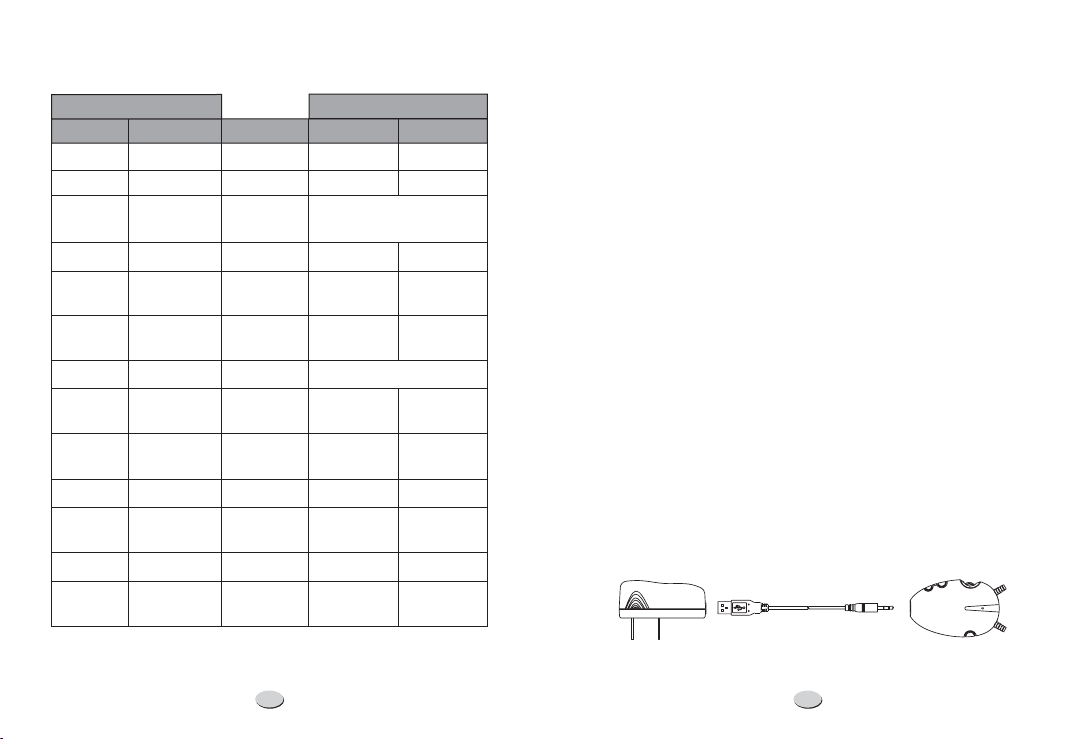

Way 1: Using AC Power Supply
1.
Connect one end of the USB cable into the charging port of the unit, then connect the other end into the USB jack of base charger. Plug the base charger into a
standard AC wall outlet .
2.
The unit is fully charged when the light goes out. After a
(See Diagram 1)
full charge, remove the charger from the wall outlet and detach the USB cable from the unit.
Diagram 1
15
4

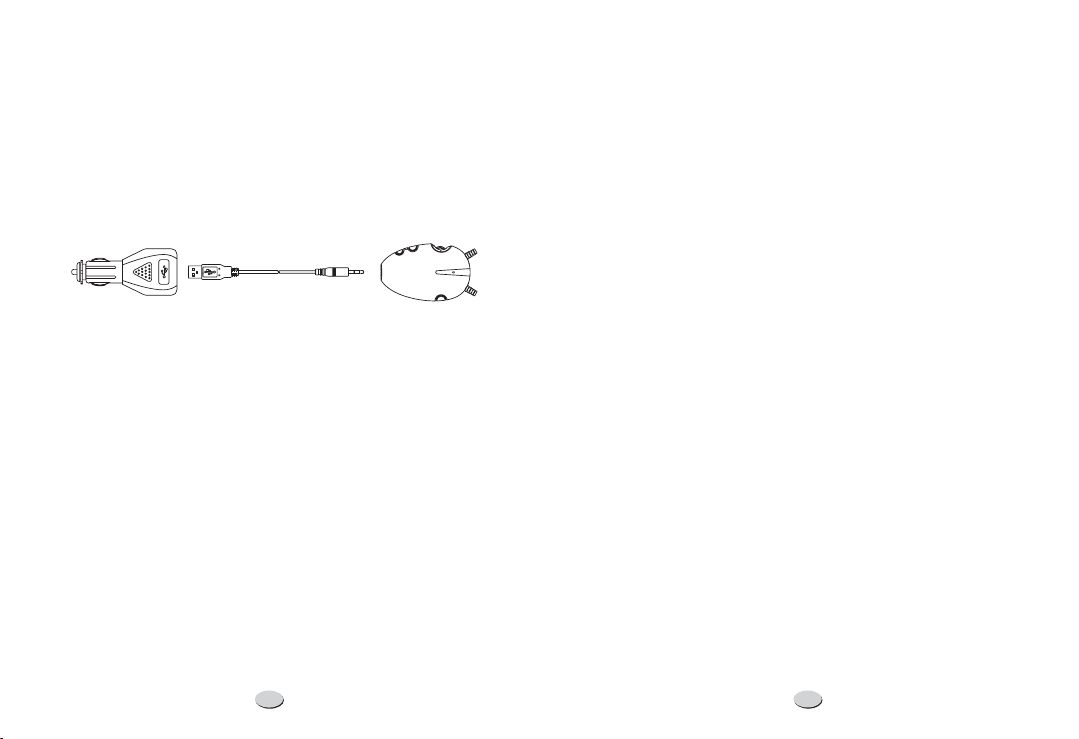

Way 2: Using Car Charger
1.
Connect one end of the USB cable into the charging port of the unit, then connect the other end into the USB jack of the car charger. Plug the car charger into the
cigarette lighter of your vehicle .
2.
The unit is fully charged when the light goes out. After a
(See Diagram 2)
full charge, remove the charger from the cigarette lighter and detach the USB cable from the unit.
Diagram 2
Way 3: Using a Laptop
1.
Connect one end of the USB cable into the charging port of the unit, then connect the other end into a USB jack of your PC.
2.
The unit is fully charged when the light goes out. After a full charge, remove the cable from the PC detach the USB cable from the unit.
NOTE: During the charging, you cannot use the Stereo Amplified Neckloop. Battery life will depend onactual usage and amplification levels.
Important! Charging indication will be delayed if the Neckloop has not been used for a long duration or the battery is fullydrained.
7. Product Specifications
Model Name: Bluetooth Compliance: Supported Profiles: Frequency Band:
Modulation: RF Power: Operating Range: Talk Time*:
Standby Time*: Connection: Security:
Power Source: Charging: Charging Time: Compatibility:
Dimension:
* may vary based on users operating environment, makes
and models of phones and other Bluetooth devices.
Bluetooth Stereo Amplified Neckloop Bluetooth Specifications version 2.1+EDR Headset, A2DP, AVRCP and Handsfree
2.4GHz ISM Spectrum; frequency hopping 79 channels GFSK (Gaussian Frequency Shift Keying) Class 2, -6-6dBm Up to 10m (indoor) Up to 3hrs with neckloop Up to 13hrs with earhook or earphone Up to 120hrs Point-to-Point Security mode 3 (pairing, encryption, authentication) Rechargeable Li-Polymer 450mAh Universal Adaptor 5V/500mA 3hrs Mobile phones supporting Bluetooth
1.1 (and above), Headset and/or Handsfree profiles 76mm X 49mm X 19mm
5
14
Ensure both the Neckloop and phone is within 10 meters operating range. There are no obstructions or inter­ference in between.
Ensure the phone has the latest and working firmware. Send phone forfirmware update.
Power off and on the devices if the above steps do not solve the problem.
If problem persists after taken all above steps, send the Neckloop to authorized service center. Check with the local dealer.
Low Battery
Under normal usage condition, the fully chargedbattery can operate up to 3-hour of talk time and up to 120-hour of standby time. During on state, when the battery power is running low, the Neckloop beeps once every 30 seconds and the red indicator flashes every 30 seconds. Charge the Neckloop as described above; else the Neckloop will shut down when voltagefall below operating voltage.
u Turning On and Off the Neckloop
To turn on:
press and hold the MFB for 3 seconds; the Neckloop beeps once and Blue indicator flashes 4 times. The flashing continues once every 3 seconds after the Neckloop goes tostandby mode.
To turn off:
press and hold the MFB for 3 seconds; the Neckloop beeps once and the Red indicator flashes 4 times, and power off.
u Set up wih the Phone for the first time
Before using your Neckloop forthe first time, you mustpair it with your Bluetooth phone. The following information describes a typical pairing procedure between a Neckloop and a Bluetooth phone. However, the pairing procedure may subject todifferent makes andmodels of thephones.
13
6
Pairing the Neckloop and Bluetooth Phone
1.
Place the Neckloop and phone close to each other, within 1-meter.
2.
Make sure thatthe phone is on, and the Neckloop is off.
3.
Prepare the Neckloop in pairing mode: press and hold MFB (6 seconds) until the Red and Blue indicators flash alternately.
Important!
Neckloop stays in pairing mode for about 2
minutes.
4.
Prepare the phone in pairing mode: refer to phone s user
guide for detail. Pairing procedure may subject to different makes and models. Enter the Bluetooth menu on the phone and enables the Bluetooth function. Enter the submenu to set the phone in search for Bluetooth devices; activates the search. The phone searches for Bluetooth devices within 10 meters range and list all devices on its display. should
“CM-BT2”
appear; else repeatpairing procedure.
5.
Select
“CM-BT2” from the list.
Enter the passcode 0000 and enter OK to paired the
6.
“” “”
Neckloop and phone. When pairing completes, the Neckloop Blue indicator flashes (4 times)rapidly; then connects with the phone. If both devices fail to pair or are not paired within the time limit (2 minutes), after a long lowbeep, the Neckloop goes to standby state.Return to pairing procedure if necessary.
Do not expose the Neckloop to fire; may result in explosion.
Do not expose or store the Neckloop in high heat. High temperature may shorten the life of electronic components, damage battery, deformplastic parts.
Do not use harsh cleaning solvents or strong detergents to clean the Neckloop. Only use a soft damp cloth to clean the Neckloop.
Do not throw, drop or knock the Neckloop. Rough handling can damagethe Neckloop.
Do keep the Neckloop in proper storage, dry place, free from dust andextreme temperatures when not in use.
6. Troubleshooting
If the Neckloop is unable to operate properly; for example unable to power on, unable to pair/connect to the phone andetc, please try the following:
Ensure the battery is properly charged, fully drained battery may takea while to charge up.
Ensure the Neckloopand the phone is turned on.
Ensure the Neckloop is paired to the phone; refer to pairing procedure.
Ensure the Bluetooth feature on the phone is activated, and the phoneis connected to the Neckloop.
7
12
4. Safety Information
Please make sure that your attention is focused, when using Neckloop whiledriving.
Use only adaptor approved for use with this particular device. The useof any othertypes may bedangerous.
Keep the Neckloop and accessories out of reach from children.
Turn off theNeckloop prior to boarding an aircraft. Do not use the Neckloopin an aircraft.
There may be restrictions on using Bluetooth technology in some locations. These could include hospitals, patrol stations, laboratories, potentially explosive surroundings and etc.
5. Care and Maintenance
Do not attempt to open the Neckloop, only the authorized maintenance staff should perform the service. Please check with yourlocal dealer.
Do not expose the Neckloop to extreme high or low temperatures.
Do not expose the Neckloop to liquid, moisture or humidity; it isnot waterproof.
Do not expose the Neckloop to dusty and dirty environment; moving parts may be clogged and prevent proper usage.
7.
The Blue indicator flashes once every 3 seconds on a paired Neckloop. The Neckloop is on standby mode, awaiting to makeor receive calls.
u Connecting the Neckloop and the Phone
Once paired, both the Neckloop and phone will connect to each other automatically when switched ON and are within (10 meters) range. Ensure Bluetooth feature is enabled on the phone.
u Disconnecting the Neckloop and the Phone
When not using the Neckloop and the phone, they can be disconnected as follows:
1.
Power off theNeckloop.
2.
Disconnect the Neckloop or switch off the Bluetooth function on thephone.
3.
Keep the Neckloop and the phone for more than 20 meters apart.
11
8
3. Using the Neckloop
The Neckloop willsupport the following features listed.
Making Calls
Dialing from the Phone: Make calls on the phone in normal ways. Voice Dialing from the Neckloop: If the phone supports voice dialing, push the MFB on the Neckloop twice quickly. When the beep tone is heard, say the desired name (voice tag). Redialing the Last Dialed Number: When no call is in progress, press theMFB twice.
Answering Calls
To answer a call, wait for the Neckloop ring tone, then press the MFB to accept call; or answer call via phone in the normal way.
Rejecting Calls
To reject an incoming call, wait for the Neckloop ring tone, then press andhold the MFB for about 1.5s.
Ending Calls
To end an active call, press the MFB to drop the call; or end call via phonein the normal way.
Adjusting Neckloop Volume
Adjust the Volume control up/down to desired level.
You can also press button once during a conversation to increase the volume or press button once to decrease it.
VOL+
VOL-
9
Muting the microphone
Press and hold and buttons during a
VOL+ VOL-
conversation to mute the microphone. Press and hold the two buttons againto cancel the muting.
Playing music
Find the desired music on your mobile phone or other Bluetooth device, thenpress the MFB once to play it.
Press button once during music playing to increase
VOL+
the volume orpress button once todecrease it. Press and hold button during music playing to skip to the next song or press and hold button to
VOL-
VOL+
VOL-
return to the previous one.
NOTE:
If there is an incoming call when you are listening to the music, on hearing the ring, press the MFB to answer the call. And when you end the call, the Neckloop continue playing music.
Low Battery Indication
When low battery level occurs, the Neckloop beeps once every 30 seconds and Red indicator flashes every 30 seconds.
10
