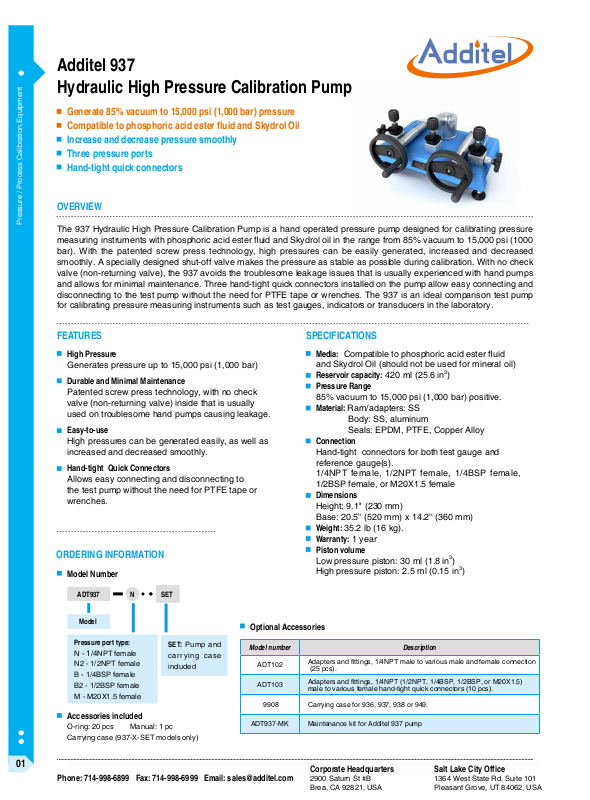

Additel ADT 937 Specifications

Additel 937
Hydraulic High Pressure Calibration Pump

Generate 85% vacuum to 15,000 psi (1,000 bar) pressure
Compatible to phosphoric acid ester fluid and Skydrol Oil

Increase and decrease pressure smoothly
Three pressure ports
Hand-tight quick connectors

OVERVIEW

Pressure / Process Calibration Equipment

The 937 Hydraulic High Pressure Calibration Pump is a hand operated pressure pump designed for calibrating pressure

measuring instruments with phosphoric acid ester uid and Skydrol oil in the range from 85% vacuum to 15,000 psi (1000
bar). With the patented screw press technology, high pressures can be easily generated, increased and decreased
smoothly. A specially designed shut-off valve makes the pressure as stable as possible during calibration. With no check
valve (non-returning valve), the 937 avoids the troublesome leakage issues that is usually experienced with hand pumps
and allows for minimal maintenance. Three hand-tight quick connectors installed on the pump allow easy connecting and

disconnecting to the test pump without the need for PTFE tape or wrenches. The 937 is an ideal comparison test pump

for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the laboratory.

FEATURES SPECIFICATIONS

High Pressure

Generates pressure up to 15,000 psi (1,000 bar)

Durable and Minimal Maintenance

Patented screw press technology, with no check
valve (non-returning valve) inside that is usually
used on troublesome hand pumps causing leakage.

Easy-to-use

High pressures can be generated easily, as well as

increased and decreased smoothly.

Hand-tight Quick Connectors

Allows easy connecting and disconnecting to
the test pump without the need for PTFE tape or
wrenches.

ORDERING INFORMATION

Model Number

ADT937 N

Model

Pressure port type:

N -

NPT female

1/4

N2 - 1/2NPT female
B - 1/4BSP female
B2 - 1/2BSP female
M - M20X1.5 female

Accessories included

O-ring: 20 pcs Manual: 1 pc
Carrying case (937-X-SET models only)

SET

SET: Pump and

carrying case
included

Media: Compatible to phosphoric acid ester uid
and Skydrol Oil (should not be used for mineral oil)

Reservoir capacity: 420 ml (25.6 in
Pressure Range

85% vacuum to 15,000 psi (1,000 bar) positive.
Material: Ram/adapters: SS
Body: SS, aluminum
Seals: EPDM, PTFE, Copper Alloy

Connection

Hand-tight connectors for both test gauge and

reference gauge(s).
1/4NPT female, 1/2NPT female, 1/4BSP female,
1/2BSP female, or M20X1.5 female

Dimensions

Height: 9.1'' (230 mm)
Base: 20.5'' (520 mm) x 14.2'' (360 mm)

Weight: 35.2 lb (16 kg).
Warranty: 1 year
Piston volume

Low pressure piston: 30 ml (1.8 in
High pressure piston: 2.5 ml (0.15 in

Optional Accessories

Model number Description

ADT102

ADT103

9908 Carrying case for 936, 937, 938 or 949.

ADT937-MK Maintenance kit for Additel 937 pump

Adapters and ttings, 1/4NPT male to various male and female connection
(25 pcs).

Adapters and ttings, 1/4NPT (1/2NPT, 1/4BSP, 1/2BSP, or M20X1.5)
male to various female hand-tight quick connectors (10 pcs).

3

)

3

)

3

)

01
