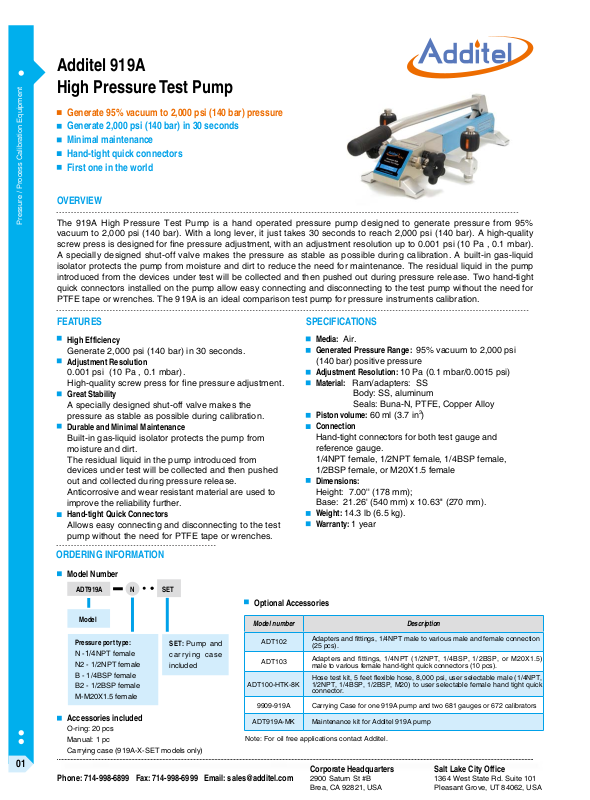

Additel ADT 919A Specifications

Additel 919A
High Pressure Test Pump

Generate 95% vacuum to 2,000 psi (140 bar) pressure

Generate 2,000 psi (140 bar) in 30 seconds
Minimal maintenance
Hand-tight quick connectors
First one in the world

OVERVIEW

Pressure / Process Calibration Equipment

The 919A High Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95%
vacuum to 2,000 psi (140 bar). With a long lever, it just takes 30 seconds to reach 2,000 psi (140 bar). A high-quality

screw press is designed for ne pressure adjustment, with an adjustment resolution up to 0.001 psi (10 Pa , 0.1 mbar).

A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid
isolator protects the pump from moisture and dirt to reduce the need for maintenance. The residual liquid in the pump
introduced from the devices under test will be collected and then pushed out during pressure release. Two hand-tight
quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for
PTFE tape or wrenches. The 919A is an ideal comparison test pump for pressure instruments calibration.

FEATURES SPECIFICATIONS

High Efficiency

Generate 2,000 psi (140 bar) in 30 seconds.

Adjustment Resolution

0.001 psi (10 Pa , 0.1 mbar).

High-quality screw press for ne pressure adjustment.

Great Stability

A specially designed shut-off valve makes the
pressure as stable as possible during calibration.

Durable and Minimal Maintenance

Built-in gas-liquid isolator protects the pump from
moisture and dirt.
The residual liquid in the pump introduced from
devices under test will be collected and then pushed
out and collected during pressure release.
Anticorrosive and wear resistant material are used to
improve the reliability further.

Hand-tight Quick Connectors

Allows easy connecting and disconnecting to the test
pump without the need for PTFE tape or wrenches.

Media: Air.
Generated Pressure Range: 95% vacuum to 2,000 psi

(140 bar) positive pressure

Adjustment Resolution: 10 Pa (0.1 mbar/0.0015 psi)
Material: Ram/adapters: SS

Body: SS, aluminum
Seals: Buna-N, PTFE, Copper Alloy
Piston volume: 60 ml (3.7 in

3

)

Connection

Hand-tight connectors for both test gauge and
reference gauge.
1/4NPT female, 1/2NPT female, 1/4BSP female,
1/2BSP female, or M20X1.5 female

Dimensions:

Height: 7.00'' (178 mm);
Base: 21.26' (540 mm) x 10.63'' (270 mm).

Weight: 14.3 lb (6.5 kg).
Warranty: 1 year

01

ORDERING INFORMATION

Model Number

ADT919A N

Model

Pressure port type:

N -

NPT female

1/4

N2 - 1/2NPT female
B - 1/4BSP female
B2 - 1/2BSP female
M-M20X1.5 female

Accessories included

O-ring: 20 pcs
Manual: 1 pc
Carrying case (919A-X-SET models only)

Phone: [phone] Fax: [phone] Email: [e-mail]

SET

SET: Pump and

carrying case
included

Optional Accessories

Model number Description

ADT102

ADT103

ADT100-HTK-8K

9909-919A Carrying Case for one 919A pump and two 681 gauges or 672 calibrators

ADT919A-MK Maintenance kit for Additel 919A pump

Note: For oil free applications contact Additel.

Adapters and ttings, 1/4NPT male to various male and female connection

(25 pcs).

Adapters and fittings, 1/4NPT (1/2NPT, 1/4BSP, 1/2BSP, or M20X1.5)
male to various female hand-tight quick connectors (10 pcs).

Hose test kit, 5 feet exible hose, 8,000 psi, user selectable male (1/4NPT,

1/2NPT, 1/4BSP, 1/2BSP, M20) to user selectable female hand tight quick
connector.
