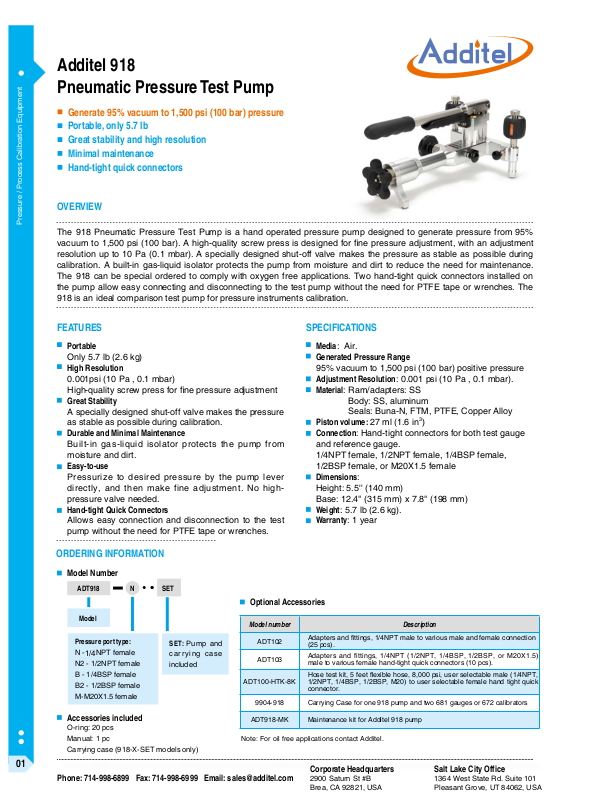

Additel ADT 918 Specifications

Additel 918
Pneumatic Pressure Test Pump

Generate 95% vacuum to 1,500 psi (100 bar) pressure

Portable, only 5.7 lb
Great stability and high resolution
Minimal maintenance
Hand-tight quick connectors

OVERVIEW

Pressure / Process Calibration Equipment

The 918 Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95%

vacuum to 1,500 psi (100 bar). A high-quality screw press is designed for ne pressure adjustment, with an adjustment

resolution up to 10 Pa (0.1 mbar). A specially designed shut-off valve makes the pressure as stable as possible during
calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance.
The 918 can be special ordered to comply with oxygen free applications. Two hand-tight quick connectors installed on
the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The
918 is an ideal comparison test pump for pressure instruments calibration.

FEATURES SPECIFICATIONS

01

Portable

Only 5.7 lb (2.6 kg)

High Resolution

0.001psi (10 Pa , 0.1 mbar)

High-quality screw press for ne pressure adjustment

Great Stability

A specially designed shut-off valve makes the pressure
as stable as possible during calibration.

Durable and Minimal Maintenance

Built-in gas-liquid isolator protects the pump from
moisture and dirt.

Easy-to-use

Pressurize to desired pressure by the pump lever

directly, and then make fine adjustment. No high-

pressure valve needed.

Hand-tight Quick Connectors

Allows easy connection and disconnection to the test
pump without the need for PTFE tape or wrenches.

ORDERING INFORMATION

Model Number

ADT918 N

Model

Pressure port type:

N -

NPT female

1/4

N2 - 1/2NPT female

B - 1/4BSP female
B2 - 1/2BSP female

M-M20X1.5 female

Accessories included

O-ring: 20 pcs

Manual: 1 pc
Carrying case (918-X-SET models only)

Phone: [phone] Fax: [phone] Email: [e-mail]

SET

SET: Pump and

carrying case
included

Optional Accessories

Model number Description

ADT102

ADT103

ADT100-HTK-8K

9904-918 Carrying Case for one 918 pump and two 681 gauges or 672 calibrators

ADT918-MK Maintenance kit for Additel 918 pump

Note: For oil free applications contact Additel.

Media: Air.
Generated Pressure Range

95% vacuum to 1,500 psi (100 bar) positive pressure

Adjustment Resolution: 0.001 psi (10 Pa , 0.1 mbar).
Material: Ram/adapters: SS

Body: SS, aluminum

Seals: Buna-N, FTM, PTFE, Copper Alloy

Piston volume: 27 ml (1.6 in

3

)
Connection: Hand-tight connectors for both test gauge
and reference gauge.

1/4NPT female, 1/2NPT female, 1/4BSP female,
1/2BSP female, or M20X1.5 female

Dimensions:
Height: 5.5'' (140 mm)
Base: 12.4" (315 mm) x 7.8" (198 mm)

Weight: 5.7 lb (2.6 kg).
Warranty: 1 year

Adapters and ttings, 1/4NPT male to various male and female connection

(25 pcs).

Adapters and fittings, 1/4NPT (1/2NPT, 1/4BSP, 1/2BSP, or M20X1.5)

male to various female hand-tight quick connectors (10 pcs).

Hose test kit, 5 feet exible hose, 8,000 psi, user selectable male (1/4NPT,
1/2NPT, 1/4BSP, 1/2BSP, M20) to user selectable female hand tight quick

connector.
