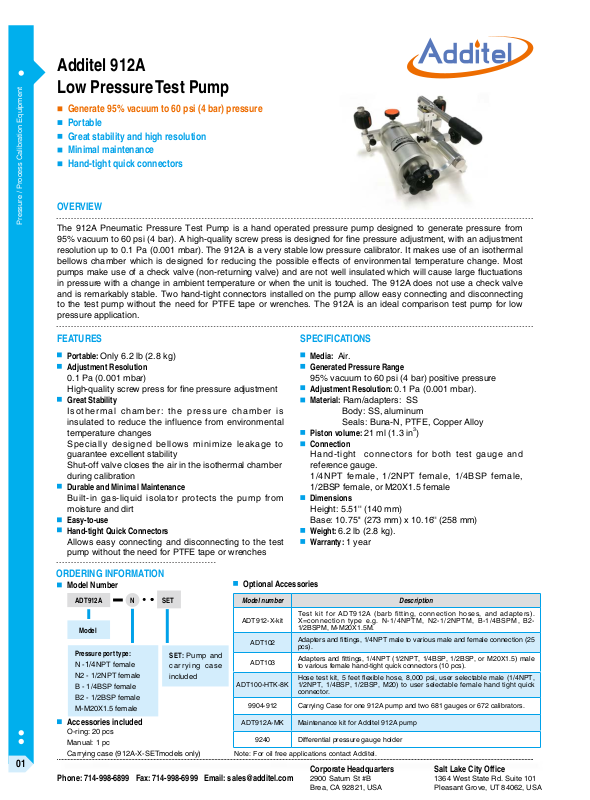

Additel ADT 912A Specifications

Additel 912A
Low Pressure Test Pump

Generate 95% vacuum to 60 psi (4 bar) pressure

Portable
Great stability and high resolution
Minimal maintenance
Hand-tight quick connectors

OVERVIEW

Pressure / Process Calibration Equipment

The 912A Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from

95% vacuum to 60 psi (4 bar). A high-quality screw press is designed for ne pressure adjustment, with an adjustment

resolution up to 0.1 Pa (0.001 mbar). The 912A is a very stable low pressure calibrator. It makes use of an isothermal
bellows chamber which is designed for reducing the possible effects of environmental temperature change. Most

pumps make use of a check valve (non-returning valve) and are not well insulated which will cause large uctuations

in pressure with a change in ambient temperature or when the unit is touched. The 912A does not use a check valve
and is remarkably stable. Two hand-tight connectors installed on the pump allow easy connecting and disconnecting
to the test pump without the need for PTFE tape or wrenches. The 912A is an ideal comparison test pump for low
pressure application.

FEATURES SPECIFICATIONS

01

Portable: Only 6.2 lb (2.8 kg)
Adjustment Resolution

0.1 Pa (0.001 mbar)

High-quality screw press for ne pressure adjustment

Great Stability

Isothermal chamber: the pressure chamber is
insulated to reduce the influence from environmental
temperature changes
Specially designed bellows minimize leakage to
guarantee excellent stability
Shut-off valve closes the air in the isothermal chamber
during calibration

Durable and Minimal Maintenance

Built-in gas-liquid isolator protects the pump from
moisture and dirt

Easy-to-use
Hand-tight Quick Connectors

Allows easy connecting and disconnecting to the test
pump without the need for PTFE tape or wrenches

ORDERING INFORMATION

Model Number

ADT912A N

Model

Pressure port type:

N -

NPT female

1/4

N2 - 1/2NPT female
B - 1/4BSP female
B2 - 1/2BSP female

M-M20X1.5 female

SET

SET: Pump and

carrying case
included

Accessories included

O-ring: 20 pcs
Manual: 1 pc
Carrying case (912A-X-SETmodels only)

Phone: [phone] Fax: [phone] Email: [e-mail]

Optional Accessories

Model number Description

ADT912-X-kit

ADT102

ADT103

ADT100-HTK-8K

9904-912 Carrying Case for one 912A pump and two 681 gauges or 672 calibrators.

ADT912A-MK Maintenance kit for Additel 912A pump

9240 Differential pressure gauge holder

Note: For oil free applications contact Additel.

Media: Air.
Generated Pressure Range

95% vacuum to 60 psi (4 bar) positive pressure

Adjustment Resolution: 0.1 Pa (0.001 mbar).
Material: Ram/adapters: SS

Body: SS, aluminum
Seals: Buna-N, PTFE, Copper Alloy

Piston volume: 21 ml (1.3 in

3

)

Connection

Hand-tight connectors for both test gauge and
reference gauge.

1/4NPT female, 1/2NPT female, 1/4BSP female,
1/2BSP female, or M20X1.5 female

Dimensions

Height: 5.51'' (140 mm)
Base: 10.75'' (273 mm) x 10.16'' (258 mm)

Weight: 6.2 lb (2.8 kg).
Warranty: 1 year

Test kit for ADT912A (barb fitting, connection hoses, and adapters).
X=connection type e.g. N-1/4NPTM, N2-1/2NPTM, B-1/4BSPM, B2­1/2BSPM, M-M20X1.5M.

Adapters and ttings, 1/4NPT male to various male and female connection (25

pcs).

Adapters and ttings, 1/4NPT (1/2NPT, 1/4BSP, 1/2BSP, or M20X1.5) male

to various female hand-tight quick connectors (10 pcs).

Hose test kit, 5 feet exible hose, 8,000 psi, user selectable male (1/4NPT,
1/2NPT, 1/4BSP, 1/2BSP, M20) to user selectable female hand tight quick

connector.
