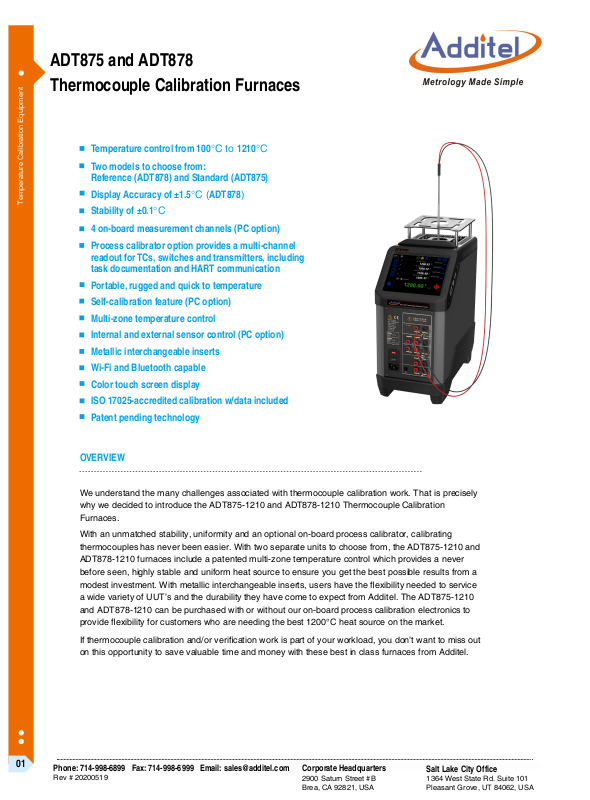

Additel ADT875, ADT878 Specifications

ADT875 and ADT878
Thermocouple Calibration Furnaces

Temperature control from 100°C to 1210°C

Two models to choose from:
Reference (ADT878) and Standard (ADT875)

Temperature Calibration Equipment

Display Accuracy of ±1.5°C (ADT878)

Stability of ±0.1°C

4 on-board measurement channels (PC option)

Process calibrator option provides a multi-channel
readout for TCs, switches and transmitters, including
task documentation and HART communication

Portable, rugged and quick to temperature

Self-calibration feature (PC option)

Multi-zone temperature control

Internal and external sensor control (PC option)

Metallic interchangeable inserts

Wi-Fi and Bluetooth capable

Color touch screen display

ISO 17025-accredited calibration w/data included

Patent pending technology

OVERVIEW

We understand the many challenges associated with thermocouple calibration work. That is precisely
why we decided to introduce the ADT875-1210 and ADT878-1210 Thermocouple Calibration
Furnaces.

With an unmatched stability, uniformity and an optional on-board process calibrator, calibrating
thermocouples has never been easier. With two separate units to choose from, the ADT875-1210 and
ADT878-1210 furnaces include a patented multi-zone temperature control which provides a never
before seen, highly stable and uniform heat source to ensure you get the best possible results from a

modest investment. With metallic interchangeable inserts, users have the exibility needed to service
a wide variety of UUT’s and the durability they have come to expect from Additel. The ADT875-1210

and ADT878-1210 can be purchased with or without our on-board process calibration electronics to

provide exibility for customers who are needing the best 1200°C heat source on the market.

If thermocouple calibration and/or verication work is part of your workload, you don’t want to miss out

on this opportunity to save valuable time and money with these best in class furnaces from Additel.

01

Phone: [phone] Fax: [phone] Email: [e-mail]

Rev # 20200519

Corporate Headquarters

2900 Saturn Street #B
Brea, CA 92821, USA

Salt Lake City Office

1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA

Temperature Control

The Additel ADT875 & ADT878 Thermocouple Calibration
Furnaces have been designed with a unique and innovative
way of controlling temperature and temperature gradients.

We like to call it “Advanced Adaptive Control”. This exciting

new design feature incorporates our patent pending wind
tunnel control technology with Additel’s impressive 3-zone
temperature control to provide the very best uniformity and
stability possible.

Each ADT875 & ADT878 is tested and calibrated in Additel’s

Temperature Calibration Equipment

accredited laboratory (Brea, CA) to ensure that each unit
is ready to go when the customer opens the package. The
included accredited calibration certificate provides data
relating to accuracy, stability and uniformity to help provide
even more confidence in the testing and calibration of each
and every ADT875 & ADT878 Thermocouple Calibration
Furnace.

General Specifications

Specification 875-1210 878-1210

Temperature

Range

Display

Accuracy

Stability ±0.1°C

Axial Uniformity

(20mm zone)

Radial

Uniformity

Loading Effect ±0.5°C

Environmental

Conditions

Storage

Conditions

Immersion Depth

Insert Size - OD 24.8 mm (0.98 inches)

Heating Time 50 min: 23°C to 1210°C

Cooling Time

Typical Time to

Stability

Resolution 0.01°C

Units °C, °F, and K

Display 6.5 in (165 mm) color touch screen

Size (H x W x D) 345 x 170 x 330 mm (13.6 x 6.7 x 13.0 in)

Weight 10.6 kg (23.4 lbs)

±1.2°C @ 100°C
±1.2°C @ 300°C
±1.2°C @ 600°C
±1.6°C @ 900°C

±2.0°C @ 1210°C

±0.6°C @ 100°C
±0.9°C @ 300°C
±1.2°C @ 600°C
±1.5°C @ 900°C

±1.5°C @ 1210°C

±0.2°C @ 100°C
±0.3°C @ 300°C
±0.4°C @ 600°C
±0.8°C @ 900°C

±1°C @ 1210°C

0°C to 50°C, 0% to 90% RH non-condensing,

(see insert ordering info for more details)

50 mins:1210°C to 300°C

50 mins: 300°C to 50°C

100°C to 1210°C

±1.0°C @ 100°C
±1.0°C @ 300°C
±1.0°C @ 600°C
±1.2°C @ 900°C

±1.5°C @ 1210°C

±0.4°C @ 100°C
±0.6°C @ 300°C
±0.8°C @ 600°C

±1°C @ 900°C

±1°C @ 1210°C

±0.2°C @ 100°C
±0.3°C @ 300°C
±0.4°C @ 600°C

±0.6C @ 900°C

±0.8°C @ 1210°C

8°C to 38°C guaranteed accuracy

3000 M altitude for normal operation

-20°C to 60°C

XR style inserts = 138 mm (5.43")
XS style inserts = 116 mm (4.57")

55 mins:1210°C to 300°C
55 mins: 300°C to 50°C

15 min

Specification 875-1210

Power Requirements

Mechanical Testing

Communication USB A, USB B, RJ45, WiFi, Bluetooth

Localization English, Chinese, Japanese, Russian, German

Warranty 1 year

115 V AC (±10%) or 230 V AC (±10%),

switchable, 45-65 Hz, 580 W

Vibration: 2 g (10-500 Hz), 30 min for 2 sides

Impact: 4 g three times

Drop test: 500 mm (19.6 in)

878-1210

02

Phone: [phone] Fax: [phone] Email: [e-mail]

Rev # 20200519

Corporate Headquarters

2900 Saturn Street #B
Brea, CA 92821, USA

Salt Lake City Office

1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA

Process Electronics

Both the ADT875 & ADT878 can be ordered with Additel's Process Calibrator
(PC) option. The Process Calibrator Option combines the many features found
in a thermocouple readout device and process calibrator with the ADT875 &
ADT878 Calibration Furnaces.
This unique option includes Additel’s patented Quick-Push connectors which
accommodate virtually all TC connection types. The process option also
includes the ability to measure a reference grade thermocouple and up to
(4) under test channels. Channels 1 and 2 can measure mA, voltage, perform

Temperature Calibration Equipment

switch testing and source 24V DC. In addition to these measurement functions,
the process option provides full documenting capability of creating tasks, saving

"as found" and "as left" results and HART communications for simplied

transmitter work. The snapshot feature allows users to capture all information
displayed on the screen with a touch of the screen. This optional add-on allows
for data logging of all channels using our auto step and a ramp functions.

By utilizing the external reference option users can select to control to the
furnace set point using an external control probe, which helps to reduce
uncertainties. The external control probe feature also facilitates the

handy self-calibration feature!

ADT875 & ADT878 Process Calibrator [PC] option electronics

Input Specifications (Process Calibrator [PC] Option)

Specification 875-1210 878-1210

TC Measurement Channels

±0.182°C @ 100°C

TC Measurement Accuracy

Type K

Ch. 1-4 (excluding sensor)

±0.266°C @ 300°C
±0.310°C @ 600°C
±0.397°C @ 900°C

±0.517°C @1210°C

TC Range

TC Resolution 0.0001 mV, Input Impedance < 10Ω

TC Voltage Accuracy

Internal CJC Accuracy

0.02% RD + 8μV (ch. 1-4)

0.01% RD + 2μV (ref ch.)
±0.35°C (ch. 1-4)

±0.25°C (ref ch.)

Current Range –30 mA to 30 mA

Current Accuracy ±(0.02% of rdg+ 2μA) ±(0.01% of rdg + 0.6mV)

0.001 V; Input impedance:>

1MΩ

DC 24V Output 24 V ± 10%, MAX 60 mA

Hart Communication Optional (ADT875PC and ADT878PC Models)

"Temperature Coefficient

0°C to 8°C and 38°C to

50°C

Switch Test Mechanical or Electrical - Channels 1 & 2 only

Up to 1,000 tasks which store up to 10 results each

Documentation

containing as found and as left data. Snap shot feature
allows for screen captures. Records auto step and ramp

Patented TC terminals:

Accepting S, R, K, B, N, E, J, T, L, and U

±0.172°C @ 100°C
±0.236°C @ 300°C
±0.251°C @ 600°C
±0.304°C @ 900°C

±0.382°C @ 1210°C

–75 mV to 75 mV (UUT Channels 1-4)

–18 mV to 18 mV (Reference Channel)

0.01% RD + 8μV (ch. 1-4)

0.005% RD + 2μV (Ref ch.)
±0.30°C (ch. 1-4)

±0.20°C (ref ch.)

0.0001V 0.0001V

TC Readouts: ±5 ppm FS/°C

Current: ±5 ppm FS/°C
Voltage: ±5 ppm FS/°C

functions

TC Measurement Specifications and Calculations
(Process Calibrator [PC] Option)

[1]

°

Error (

TC Type

TEMP

(°C)

100 ±0.182 ±0.172

300 ±0.266 ±0.236 300 ±0.924 ±0.899

K

(CH1-

(CH1-

(CH1-

(CH1-

(CH1-

(CH1-

600 ±0.310 ±0.251 600 ±0.888 ±0.837

CH4)

900 ±0.397 ±0.304 900 ±0.868 ±0.793

1210 ±0.517 ±0.382 1210 ±0.865 ±0.765

100 ±0.273 ±0.264

300 ±0.270 ±0.243 300 ±0.869 ±0.844

N

600 ±0.309 ±0.256 600 ±0.804 ±0.755

CH4)

900 ±0.368 ±0.285 900 ±0.771 ±0.699

1210 ±0.455 ±0.335 1210 ±0.766 ±0.670

100 ±0.136 ±0.126

300 ±0.153 ±0.130 300 ±2.645 ±2.631

E

600 ±0.210 ±0.154 600 ±1.409 ±1.379

CH4)

900 ±0.291 ±0.202 900 ±1.049 ±1.003

1000 ±0.297 ±0.196 1210 ±0.905 ±0.839

100 ±0.223 ±0.214

L

300 ±0.271 ±0.241 300 ±0.191 ±0.166

600 ±0.308 ±0.251 400 ±0.217 ±0.183

CH4)

900 ±0.522 ±0.448

100 ±0.270 ±0.261 300 ±0.242 ±0.229

U

300 ±0.189 ±0.164 600 ±0.249 ±0.224

CH4)

600 ±0.227 ±0.176 900 ±0.258 ±0.220

100 ±0.186 ±0.177 1210 ±0.266 ±0.216

300 ±0.197 ±0.168

J

600 ±0.256 ±0.200 300 ±0.228 ±0.216

CH4)

900 ±0.281 ±0.197 600 ±0.227 ±0.202

1200 ±0.414 ±0.294 900 ±0.230 ±0.194

[1] Excluding cold junction compensation errors.

C)

875 878 875 878

TC Type

TEMP

°

(

C)

100 ±1.102 ±1.094

S

(CH1-

CH4)

100 ±1.080 ±1.072

R

(CH1-

CH4)

250 ±3.182 ±3.170

B

(CH1-

CH4)

100 ±0.194 ±0.185

T

(CH1-

CH4)

100 ±0.277 ±0.273

S

(EXT.

REF)

100 ±0.271 ±0.266

R

(EXT.

REF)

1210 ±0.240 ±0.192

Error (

[1]

°

C)

03

Phone: [phone] Fax: [phone] Email: [e-mail]

Rev # 20200519

Corporate Headquarters

2900 Saturn Street #B
Brea, CA 92821, USA

Salt Lake City Office

1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA

Ordering Information

Model Number

ADT875

Model:

ADT875, ADT875PC
ADT878, ADT878PC

Temperature Range (at 23℃):

Temperature Calibration Equipment

1210: 100

°C to 1210°C

Accessories

Standard Accessories

Model Quantity Picture

Calibration Furnace

and selected Insert &

insulator

Power adapter 1 pc.

USB Cable 1 pc.

Insert removal tool 1 pc.

1210

Insert Model:

AR, BS, CS, DR,
ES, FS, GS, HR

1 pc.

AR

110 V

Power Option:

110 V
220 V

Optional Accessories

Model Description Picture

9915-875

ADT110-87X-TC-

INSERT-XX

AM1210-12

9080

Carry case for ADT875-1210

or ADT878-1210

with wheels

Insert for ADT875-1210 or

ADT878-1210

(see insert ordering

information below)

Reference TC - Type S:

Platinum/10% Rhodium vs.

platinum - 12" length

(see AM1210 specs below)

CJC Cable Kit (includes

TC to Plug, TC to TC,

TC to Banana, and

B,E,J,K,N,R,S,T,U cables)

Test leads

(PC option only)

Accredited Calibration

Certication

Manual 1 pc.

Insert Ordering Information

ADT110

875 TC

Insert Type:

ADT875
ADT878

2 sets (6 pcs.)

1 pc.

INSERT

AR

Insert Model:

AR, BS, CS, DR,
ES, FS, GS, HR

Note: ISO 17025 accredited probe calibration available, contact Additel for
more information"

AM1210-12 Type S Reference Standard Thermocouple

Temperature Range 0°C to 1300°C

Type

Long Term Drift

Short Term stability ±0.2°C at 1084.62°C

Diameter of thermocouple wire 0.5 mm

Sheath Material Alumina

Sheath Dimensions

Protective Carrying Case Included

Documentation Report of test with data

Type S: Platinum/10% Rhodium vs.
platinum

±0.6°C at 1084.62°C after 1 year
typical usage

OD: 6 mm (0.236");
Length: 305 mm (12.0")

Insert Information

Reference Style inserts-138 mm(5.43'') hole depth Short Style Insert - 116 mm (4.57'') hole depth

Model Specification Model Specification Model Specification Model Specification Model Specification

[1]

AR HR CS GS BS

[1]

[1]

[1]

[1]

04

DR FS ES

[1] Insert models ending in the letter S have probe holes of shallower depths. Please call with questions.

Phone: [phone] Fax: [phone] Email: [e-mail]

Rev # 20200519

Corporate Headquarters

2900 Saturn Street #B
Brea, CA 92821, USA

Salt Lake City Office

1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA
