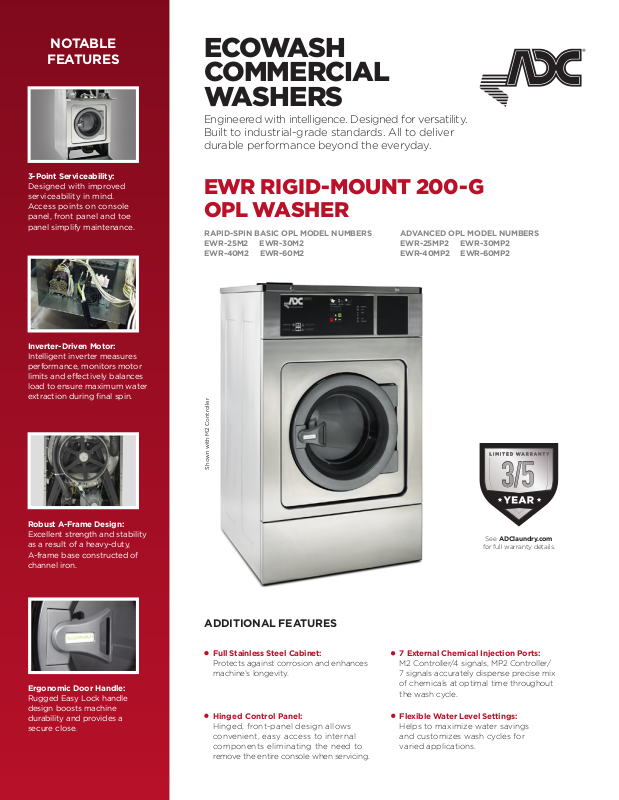

ADC EWR-25M2, EWR-25MP2, EWR-30M2, EWR-30MP2, EWR-40M2 Spec Sheet

NOTABLE

FEATURES

3-Point Serviceability:

Designed with improved
serviceability in mind.
Access points on console
panel, front panel and toe
panel simplify maintenance.

ECOWASH
COMMERCIAL
WASHERS

Engineered with intelligence. Designed for versatility.
Built to industrial-grade standards. All to deliver
durable performance beyond the everyday.

EWR RIGID-MOUNT 200-G
OPL WASHER

RAPID-SPIN BASIC OPL MODEL NUMBERS
EWR-25M2 EWR-30M2
EWR-40M2 EWR-60M2

ADVANCED OPL MODEL NUMBERS
EWR-25MP2 EWR-30MP2
EWR-40MP2 EWR-60MP2

Inverter-Driven Motor:

Intelligent inverter measures
performance, monitors motor
limits and eectively balances
load to ensure maximum water
extraction during final spin.

Robust A-Frame Design:

Excellent strength and stability
as a result of a heavy-duty,
A-frame base constructed of
channel iron.

Shown wit h M2 Contr oller

ADDITIONAL FEATURES

See ADClaundry.com

for full warranty details.

Ergonomic Door Handle:

Rugged Easy Lock handle
design boosts machine
durability and provides a
secure close.

Full Stainless Steel Cabinet:

Protects against corrosion and enhances
machine’s longevity.

Hinged Control Panel:

Hinged, front-panel design allows
convenient, easy access to internal
components eliminating the need to
remove the entire console when servicing.

7 External Chemical Injection Ports:

M2 Controller/4 signals, MP2 Controller/
7 signals accurately dispense precise mix
of chemicals at optimal time throughout
the wash cycle.

Flexible Water Level Settings:

Helps to maximize water savings
and customizes wash cycles for
varied applications.

A pioneering history and a prolific future. ADC, a Whirlpool Corporation brand,
creates innovative, performance-built equipment to handle the trials of daily
commercial laundry use. Our reliable machines continue to prove why our name has
a reputation for steadfast, innovative and versatile solutions the industry counts on.

EWR-25M2

EWR-25MP2

DRUM

Load Capacity (lb/kg) 25 / 10 30 / 13 40 / 18 60 / 25
Drum Volume (cu. ft./liter) 3.5 / 1 00 4.6 / 130 6.4 / 181 8.7 / 247
Drum Diameter (in/mm) 24 ⅜ / 620 24 ⅜ / 620 27 ½ / 700 30 ⅜ / 7 70
Drum Depth (in/mm) 13 / 330 16 ⅞ / 430 18 ½ / 470 20 ⅞ / 530

DIMENSIONS

Widt h (in /mm) 28 ¼ / 719 28 ¼ / 719
Depth (cabinet) (in/mm) 25 ⅜ / 645 31 ⅛ / 791
Depth (overall) (in/mm) 28 ⅝ / 727 34 ½ / 876
Height (in/mm)
Weight (lb/kg)

DIMENSIONS WITH PACK AGING

Crated Width (in/mm) 31 ½ / 800 31 ½ / 800 34 ¾ / 883 37 ¾ / 959
Crated Depth (in/mm) 33 ½ / 851 40 ½ / 1029 40 ½ / 1029 45 ¾ / 1162
Crated Height (in/mm) 54 ¾ / 1391 54 ¾ / 1391 60 ¾ / 1543 61 ½ / 1562
Crated Weight (lb/kg) 517 / 235 581 / 264 678 / 308 964 / 438

DOOR

Height to Bottom of Door 12 ¼ / 310 12 ¼ / 310
Door Opening Diameter (in/mm)

POWER

Voltage / Phase (50hz or 60hz) 208–240 / 1, 3PH
Full Load Current / Breaker (amps)—1PH
Full Load Current / Breaker (amps)—3PH

CONNECTIONS

Water Inlet (GHT/BSP) ¾" / ¾" ¾" / ¾" ¾" / ¾" ¾" / ¾"
Steam Inlet (BSP)
Drain (in/mm)

CYLINDER SPEED

Washing Speed (rpm) 50 50 47 45
Spinning Speed (rpm) 760 760 760 714
G-Force 200 200 200 200

WATE R

Average Usage (gallons)* 18.3 29 36.8 42.6

*One wash, two rinse cycles. No wash load.

3.4 / 15 5.0 / 15 6.8 / 15 10.0 / 15

3.4 / 15 5 .0 / 15 6.8 / 15 10.0 / 15

45 ⅝ / 1157 45 ⅝ / 1157 51 ½ / 1307 51 ⅞ / 1319

467 / 212 531 / 241 622 / 282 891 / 404

14 ⅝ / 373 14 ⅝ / 373 14 ⅝ / 373 14 ⅝ / 373

½" ½" ½" ¾"

3 / 76 3 / 76 3 / 76 3 / 76

EWR-30M2

EWR-30MP2

208–240 / 1, 3PH 208–240 / 1, 3PH 208–240 / 1, 3PH

EWR-40M2

EWR-40MP2

31 / 788 34 ¾ / 88 4
31 ½ / 800 38 / 965
35 ⅛ / 892 40 ½ / 1029

15 ⅝ / 395 17 / 433

EWR-60M2

EWR-60MP2

Intuitive Micro Controls (IMC)

The M2 Controller comes standard on ADC machines and provides a wide variety of programmable controls and cycle options.
The optional MP2 Controller upgrade oers even greater customizability and control over your machine’s cycles and capabilities.

M2 Controller (Standard)

• 10 cycle options

• Selectable water levels

• Selectable wash
temperatures

• Modify cycle tim es
in wash, rinse an d
spin phase

• Rapid cycle adva nce

• Simple diagnostic
control

88 Currant Road, Fall River, MA 02720-4781 | www.adclaundry.com QY160003 8/16

MP2 Controller (Optional Upgrade)

• 99 cycle options

• 16 standard cycles

• 83 programmable
cycles

• Fully programmable
cycles with compu ter
software-enabled
setup capabilities

• Rapid cycle adva nce

• Simple diagnostic

control
