XPG Core Reactor 850

Report: 20PS815A

Test Date: Sep 16, 2019 Report Date: Sep 19, 2019

DUT INFORMATION

Brand XPG
Manufacturer (OEM) Channel Well Technology
Series Core Reactor Gold
Model Number Core Reactor 850
Serial Number
DUT Notes

DUT SPECIFICATIONS

Rated Voltage (Vrms) 100-240
Rated Current (Arms) 12-6
Rated Frequency (Hz) 47-63
Rated Power (W) 850
Type ATX12V

Cooling

Semi-Passive Operation ✗
Cable Design Fully Modular

120mm Fluid Dynamic Bearing Fan
(HA1225H12F-Z)

POWER SPECIFICATIONS

Rail 3.3V 5V 12V 5VSB -12V

Max. Power

Total Max. Power (W) 850

Amps 22 22 70.8 3 0.3
Watts 120 850 15 3.6

CABLES AND CONNECTORS

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (650mm) 1 1 16-20AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (650mm+150mm) 2 4 16-18AWG No
6+2 pin PCIe (650mm) 2 2 16AWG No
SATA (500mm+145mm+145mm+145mm) 3 12 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 1/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

XPG Core Reactor 850

General Data

Manufacturer (OEM) CWT
PCB Type Double Sided

Primary Side

Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x GBU15L06 (600V, 15A @ 115°C)
APFC MOSFETS 2x Infineon IPA60R125P6 (600V, 19A @ 100°C, 0.125Ohm) & 1xSPN5003FET (for reduced no-load consumption)
APFC Boost Diode 1x CREE C3D10060A (600V, 10A @ 150°C)
Hold-up Cap(s) 1x Nippon Chemi-Con (420V, 680uF, 2,000h @ 105°C,KMZ)
Main Switchers 2x Infineon IPA60R125P6 (600V, 19A @ 100°C, 0.125Ohm)
APFC Controller Champion CM6500UNX
Resonant Controllers Champion CU6901V

Topology

Primary side: Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters

Secondary Side

+12V MOSFETS 8x Inte ational Rectifier IRFH7004PBF (40V, 164A @ 100°C, 1.4mOhm)

5V & 3.3V

Filtering Capacitors

Supervisor IC Weltrend WT7502 (OVP, UVP, PG, SCP)
Fan Model Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, Fluid Dynamic Bearing Fan)

DC-DC Converters:2x UBIQQM3054M6(30V, 61A @ 100°C, 4.8mOhm) & 2x UBIQ QN3107M6N (30V, 70A @ 100°C, 2.6mOhm)
PWM Controllers: ANPECAPW7159C

Electrolytics: 8x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 2x Nippon Chemi-Con (105°C, W), 1x Nippon Chemi-Con (1-5,000h
@ 105°C, KZE), 1x Rubycon (4-10,000h @ 105°C, YXJ)
Polymers: 25x FPCAP

5VSB Circuit

Rectifier 1x Galaxy Microelectronics D10PS45L SBR (45V, 10A) & InPower Semiconductor ISD04N65A (650V, 4A, 2.5Ohm)
Standby PWM Controller On-Bright OB5282CP

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

PAGE 2/15

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

RESULTS

Temperature Range (°C /°F) 30-32 / 86-89.6
ErP Lot 3/6 Ready ✓
(EU) No 617/2013 Compliance ✓

115V

Average Efficiency 89.299%
Efficiency With 10W (≤500W) or 2% (>500W) 74.172
Average Efficiency 5VSB 79.524%
Standby Power Consumption (W) 0.0362833
Average PF 0.988
Avg Noise Output 26.79 dB(A)
Efficiency Rating (ETA) ETA-A
Noise Rating (LAMBDA) LAMBDA-A-

230V

Average Efficiency 91.268%
Average Efficiency 5VSB 78.881%
Standby Power Consumption (W) 0.0574353
Average PF 0.961
Avg Noise Output 25.79 dB(A)
Efficiency Rating (ETA) ETA-A
Noise Rating (LAMBDA) LAMBDA-A-

XPG Core Reactor 850

TEST EQUIPMENT

Chroma 63601-5 x4

Electronic Loads

AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2

Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2

HOLD-UP TIME & POWER OK SIGNAL (230V)

Hold-Up Time (ms) 20.6
AC Loss to PWR_OK Hold Up Time (ms) 19.0
PWR_OK Inactive to DC Loss Delay (ms) 1.6

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 3/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

EFFICIENCY UNDER HIGH AMBIENT TEMPERATURE

XPG Core Reactor 850

INFO

The PSU`s efficiency under high ambient
temperatures with 115V and 230V input. For this
graph the results of the 10-110% load regulation
table are used

5VSB EFFICIENCY

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

INFO

This graph depicts the efficiency levels of the 5VSB
rail with 115V and 230V input

PAGE 4/15

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

XPG Core Reactor 850

115V

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 5/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

EFFICIENCY GRAPH 115V

XPG Core Reactor 850

INFO

This graph depicts the PSU’s efficiency throughout
its entire operational range. For the generation of
the efficiency and noise graphs we set our loaders
to auto mode through our custom-made software
before trying thousands of possible load
combinations

NOISE GRAPH 115V

INFO

The PSU’s noise in its entire operational range and
under 30-32 °C ambient is depicted in this graph.
The X axis represents the load on the +12V rail(s)
while the Y axis is the load on the minor rails

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 6/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

XPG Core Reactor 850

5VSB EFFICIENCY -115V (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts

1

2

3

4

5

6

0.045A 0.228

72.152%

5.062V 0.316 115.15V

0.090A 0.456

76.510%

5.061V 0.596 115.15V

0.550A 2.778

80.035%

5.050V 3.471 115.14V

1.000A 5.039

79.782%

5.038V 6.316 115.14V

1.500A 7.537

79.833%

5.024V 9.441 115.14V

3.000A 14.951

78.615%

4.984V 19.018 115.15V

0.032

0.059

0.258

0.346

0.395

0.457

VAMPIRE POWER -115V

INFO

This graph is generated by the PPA Standby Power
Analysis software which takes full control of the
power analyzer during the whole procedure. This
application features all of the EN50564 &
IEC62301 test limits for standby power software
testing

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 7/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

10-110% LOAD TESTS 115V

Test # 12V 5V 3.3V 5VSB

5.252A 1.979A 1.992A 0.993A 84.996

1

12.068V 5.058V 3.314V 5.040V 98.562 44.27°C 115.17V

11.527A 2.969A 2.987A 1.192A 169.483

2

12.022V 5.056V 3.312V 5.035V 187.019 45.75°C 115.17V

18.201A 3.465A 3.473A 1.393A 254.605

3

12.010V 5.054V 3.310V 5.028V 277.551 47.35°C 115.17V

24.880A 3.961A 3.991A 1.593A 339.794

4

12.001V 5.051V 3.308V 5.022V 370.741 48.37°C 115.16V

31.233A 4.954A 4.993A 1.795A 425.122

5

11.994V 5.048V 3.305V 5.016V 466.835 49.85°C 115.16V

37.510A 5.951A 5.996A 1.997A 509.669

6

11.993V 5.043V 3.302V 5.009V 564.902 50.91°C 115.15V

DC/AC
(Watts)

Efficiency

86.236% 659 10.1

90.623% 663 10.2

91.733% 666 10.3

91.653% 669 10.4

91.065% 1010 21.5

90.223% 1260 28.2

Fan Speed
(RPM)

PSU Noise
(dB[A])

XPG Core Reactor 850

Temps
(In/Out)

40.02°C 0.980

40.74°C 0.986

41.33°C 0.991

41.81°C 0.988

42.58°C 0.989

42.70°C 0.991

PF/AC
Volts

7

8

9

10

11

CL1

CL2

43.615A 6.950A 7.002A 2.200A 594.989

89.618% 1512 32.2

12.057V 5.039V 3.299V 5.001V 663.916 52.53°C 115.15V

49.955A 7.948A 8.011A 2.404A 680.336

88.870% 1817 38.8

12.049V 5.035V 3.296V 4.994V 765.540 53.29°C 115.15V

56.708A 8.449A 8.500A 2.405A 765.284

88.183% 2000 42.0

12.040V 5.032V 3.294V 4.992V 867.841 54.75°C 115.15V

63.210A 8.952A 9.024A 3.016A 850.126

87.297% 2171 43.5

12.030V 5.028V 3.291V 4.974V 973.833 56.22°C 115.16V

70.285A 8.955A 9.029A 3.017A 934.894

86.403% 2293 45.9

12.025V 5.026V 3.290V 4.973V 1082.019 58.30°C 115.16V

0.158A 14.005A 14.001A 0.000A 118.805

83.801% 1041 22.3

12.053V 5.049V 3.299V 5.073V 141.770 50.31°C 115.18V

70.872A 1.003A 0.999A 1.000A 866.104

87.629% 2245 44.5

12.032V 5.038V 3.301V 5.021V 988.377 56.96°C 115.16V

43.40°C 0.992

43.81°C 0.993

44.60°C 0.994

45.52°C 0.994

46.64°C 0.995

42.48°C 0.985

45.91°C 0.994

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 8/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

20-80W LOAD TESTS 115V

Test # 12V 5V 3.3V 5VSB

1.216A 0.496A 0.482A 0.198A 19.663

1

11.969V 5.060V 3.317V 5.057V 26.121 115.18V

2.486A 0.991A 0.996A 0.396A 40.094

2

11.979V 5.057V 3.315V 5.051V 49.474 115.17V

3.639A 1.482A 1.478A 0.595A 59.542

3

12.131V 5.058V 3.314V 5.048V 71.765 115.17V

4.897A 1.979A 1.991A 0.793A 79.950

4

12.118V 5.058V 3.314V 5.044V 92.860 115.17V

RIPPLE MEASUREMENTS 115V

DC/AC
(Watts)

XPG Core Reactor 850

Efficiency

75.277% 641 9.4

81.041% 646 9.5

82.968% 651 9.8

86.097% 656 9.9

Fan Speed
(RPM)

PSU Noise
(dB[A])

PF/AC Volts

0.866

0.945

0.962

0.977

Test 12V 5V 3.3V 5VSB Pass/Fail

10% Load 5.5 mV 5.2 mV 11.1 mV 6.9 mV Pass
20% Load 10.1 mV 5.3 mV 11.7 mV 7.0 mV Pass
30% Load 8.5 mV 5.6 mV 12.4 mV 6.8 mV Pass
40% Load 9.3 mV 6.7 mV 14.1 mV 7.5 mV Pass
50% Load 9.3 mV 8.1 mV 18.2 mV 8.2 mV Pass
60% Load 14.3 mV 14.7 mV 34.2 mV 38.2 mV Pass
70% Load 16.2 mV 14.9 mV 36.7 mV 39.2 mV Pass
80% Load 16.2 mV 15.4 mV 35.7 mV 39.0 mV Pass
90% Load 17.2 mV 15.4 mV 36.3 mV 41.1 mV Pass
100% Load 18.9 mV 11.4 mV 25.2 mV 17.5 mV Pass
110% Load 19.7 mV 12.5 mV 26.7 mV 19.4 mV Pass
Crossload 1 13.5 mV 6.1 mV 21.1 mV 11.9 mV Pass
Crossload 2 17.8 mV 13.9 mV 28.6 mV 36.6 mV Pass

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 9/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

XPG Core Reactor 850

230V

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 10/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

EFFICIENCY GRAPH 230V

XPG Core Reactor 850

INFO

This graph depicts the PSU’s efficiency throughout
its entire operational range. For the generation of
the efficiency and noise graphs we set our loaders
to auto mode through our custom-made software
before trying thousands of possible load
combinations

NOISE GRAPH 230V

INFO

The PSU’s noise in its entire operational range and
under 30-32 °C ambient is depicted in this graph.
The X axis represents the load on the +12V rail(s)
while the Y axis is the load on the minor rails

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 11/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

XPG Core Reactor 850

5VSB EFFICIENCY -230V (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts

1

2

3

4

5

6

0.045A 0.228

66.087%

5.062V 0.345 230.33V

0.090A 0.456

72.266%

5.061V 0.631 230.33V

0.550A 2.777

78.093%

5.048V 3.556 230.34V

1.000A 5.037

79.323%

5.037V 6.350 230.33V

1.500A 7.535

79.710%

5.023V 9.453 230.33V

3.000A 14.948

79.761%

4.983V 18.741 230.33V

0.011

0.019

0.102

0.167

0.222

0.319

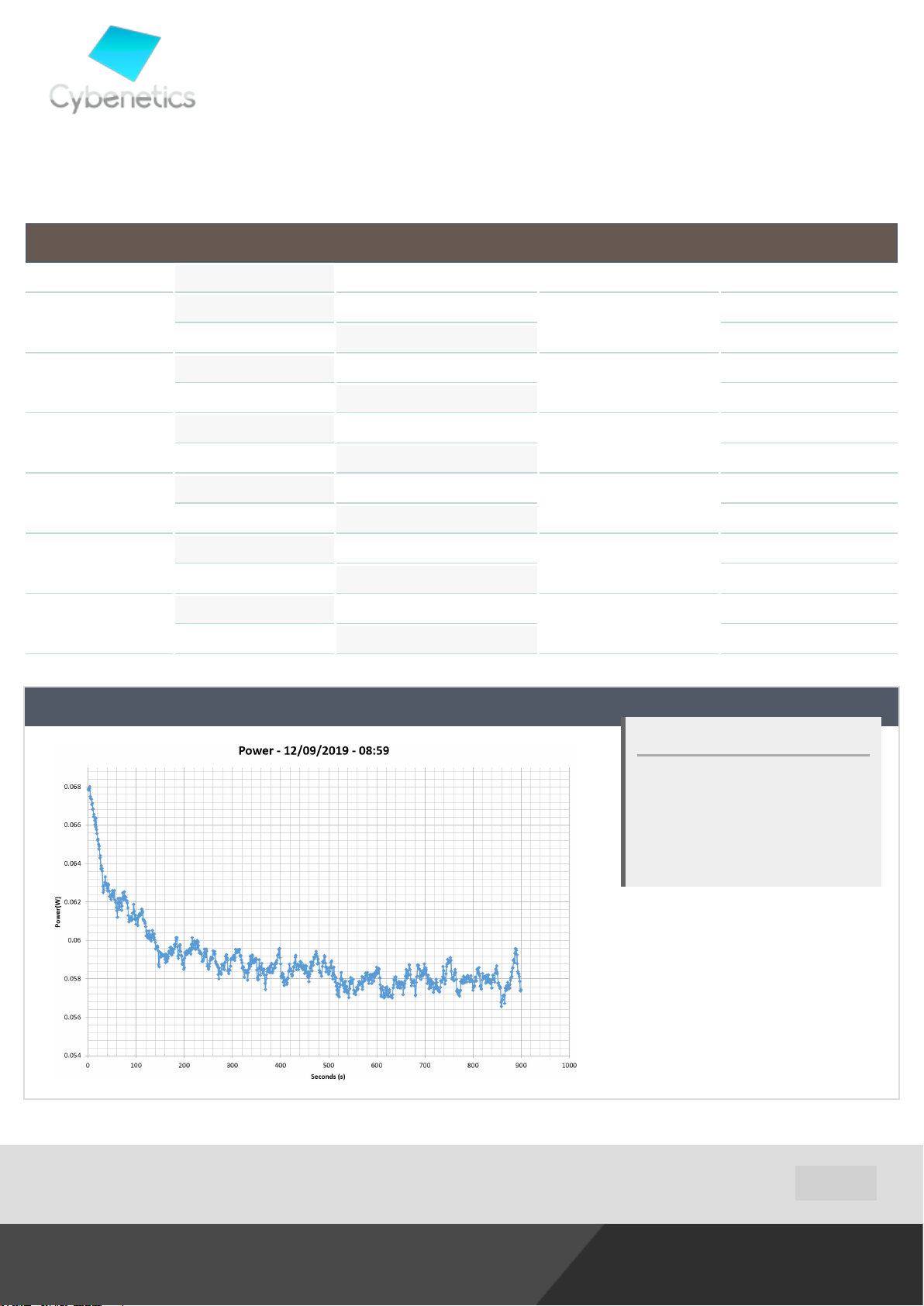

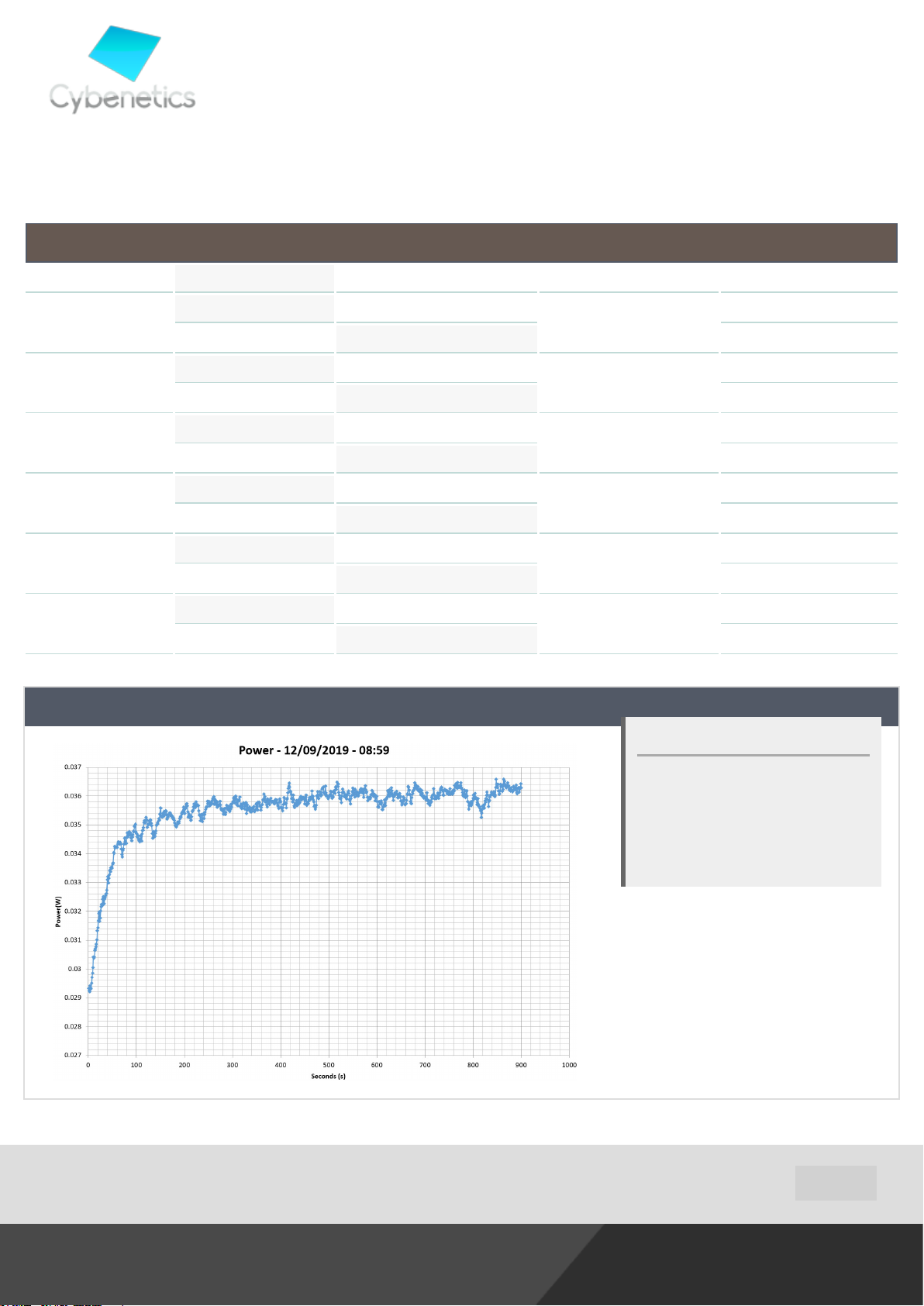

VAMPIRE POWER -230V

INFO

This graph is generated by the PPA Standby Power
Analysis software which takes full control of the
power analyzer during the whole procedure. This
application features all of the EN50564 &
IEC62301 test limits for standby power software
testing

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 12/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

10-110% LOAD TESTS 230V

Test # 12V 5V 3.3V 5VSB

5.253A 1.978A 1.991A 0.992A 85.002

1

12.069V 5.059V 3.314V 5.040V 97.530 44.94°C 230.37V

11.528A 2.969A 2.990A 1.192A 169.495

2

12.021V 5.056V 3.312V 5.035V 184.631 45.69°C 230.37V

18.202A 3.465A 3.473A 1.392A 254.615

3

12.010V 5.054V 3.310V 5.029V 273.460 46.96°C 230.37V

24.889A 3.962A 3.990A 1.593A 339.805

4

11.997V 5.051V 3.308V 5.022V 363.848 48.08°C 230.37V

31.241A 4.955A 4.993A 1.795A 425.130

5

11.991V 5.048V 3.305V 5.016V 456.902 49.46°C 230.37V

37.515A 5.950A 5.998A 1.997A 509.663

6

11.991V 5.044V 3.302V 5.009V 550.844 50.56°C 230.38V

DC/AC
(Watts)

Efficiency

87.155% 662 10.2

91.802% 663 10.2

93.109% 666 10.3

93.392% 667 10.3

93.046% 948 19.3

92.524% 1248 31.2

Fan Speed
(RPM)

PSU Noise
(dB[A])

XPG Core Reactor 850

Temps
(In/Out)

40.25°C 0.858

40.62°C 0.937

41.41°C 0.962

41.60°C 0.970

42.19°C 0.977

42.70°C 0.980

PF/AC
Volts

7

8

9

10

11

CL1

CL2

43.623A 6.948A 7.002A 2.200A 594.991

92.170% 1490 32.2

12.055V 5.039V 3.299V 5.002V 645.540 51.76°C 230.37V

49.960A 7.946A 8.012A 2.403A 680.337

91.617% 1814 38.8

12.048V 5.035V 3.296V 4.995V 742.589 52.53°C 230.37V

56.723A 8.450A 8.500A 2.404A 765.295

91.123% 2001 42.0

12.037V 5.032V 3.294V 4.992V 839.845 54.15°C 230.37V

63.220A 8.952A 9.025A 3.016A 850.070

90.569% 2237 44.4

12.027V 5.028V 3.292V 4.974V 938.586 56.24°C 230.38V

70.301A 8.955A 9.029A 3.017A 934.884

90.033% 2294 45.9

12.022V 5.027V 3.290V 4.973V 1038.380 58.07°C 230.37V

0.159A 14.003A 14.000A 0.000A 118.818

84.321% 1122 24.4

12.055V 5.049V 3.300V 5.074V 140.912 49.55°C 230.38V

70.869A 1.004A 1.001A 1.000A 865.867

90.974% 2252 44.7

12.029V 5.038V 3.301V 5.021V 951.779 56.45°C 230.38V

43.27°C 0.982

43.64°C 0.984

44.57°C 0.985

45.97°C 0.986

47.03°C 0.987

42.00°C 0.917

45.55°C 0.986

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 13/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

20-80W LOAD TESTS 230V

Test # 12V 5V 3.3V 5VSB

1.216A 0.497A 0.482A 0.198A 19.678

1

11.975V 5.062V 3.317V 5.060V 26.512 230.36V

2.487A 0.989A 0.995A 0.396A 40.102

2

11.982V 5.059V 3.315V 5.053V 49.558 230.36V

3.639A 1.484A 1.476A 0.595A 59.548

3

12.131V 5.059V 3.314V 5.049V 71.067 230.36V

4.898A 1.979A 1.990A 0.793A 79.952

4

12.116V 5.059V 3.314V 5.045V 92.293 230.37V

RIPPLE MEASUREMENTS 230V

DC/AC
(Watts)

XPG Core Reactor 850

Efficiency

74.223% 653 9.8

80.919% 652 9.8

83.791% 654 9.9

86.628% 657 9.9

Fan Speed
(RPM)

PSU Noise
(dB[A])

PF/AC Volts

0.500

0.697

0.797

0.849

Test 12V 5V 3.3V 5VSB Pass/Fail

10% Load 5.4 mV 4.9 mV 10.5 mV 6.8 mV Pass
20% Load 10.7 mV 5.5 mV 12.5 mV 6.6 mV Pass
30% Load 8.6 mV 6.1 mV 12.7 mV 6.9 mV Pass
40% Load 8.4 mV 8.3 mV 31.2 mV 24.3 mV Pass
50% Load 9.5 mV 8.1 mV 16.3 mV 8.5 mV Pass
60% Load 9.4 mV 9.2 mV 18.7 mV 9.2 mV Pass
70% Load 10.5 mV 8.5 mV 16.0 mV 8.7 mV Pass
80% Load 10.9 mV 8.7 mV 20.3 mV 8.7 mV Pass
90% Load 11.9 mV 9.6 mV 18.8 mV 9.1 mV Pass
100% Load 19.6 mV 11.1 mV 24.3 mV 17.5 mV Pass
110% Load 19.9 mV 12.3 mV 24.8 mV 18.2 mV Pass
Crossload 1 15.7 mV 6.3 mV 19.9 mV 12.9 mV Pass
Crossload 2 19.1 mV 10.6 mV 20.7 mV 18.2 mV Pass

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 14/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE

Top side

Power specifications label

LEVEL CERTIFICATIONS

Anex

CERTIFICATIONS 115V

XPG Core Reactor 850

CERTIFICATIONS 230V

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 15/15

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS
