Adamatic SD-180 Specifications

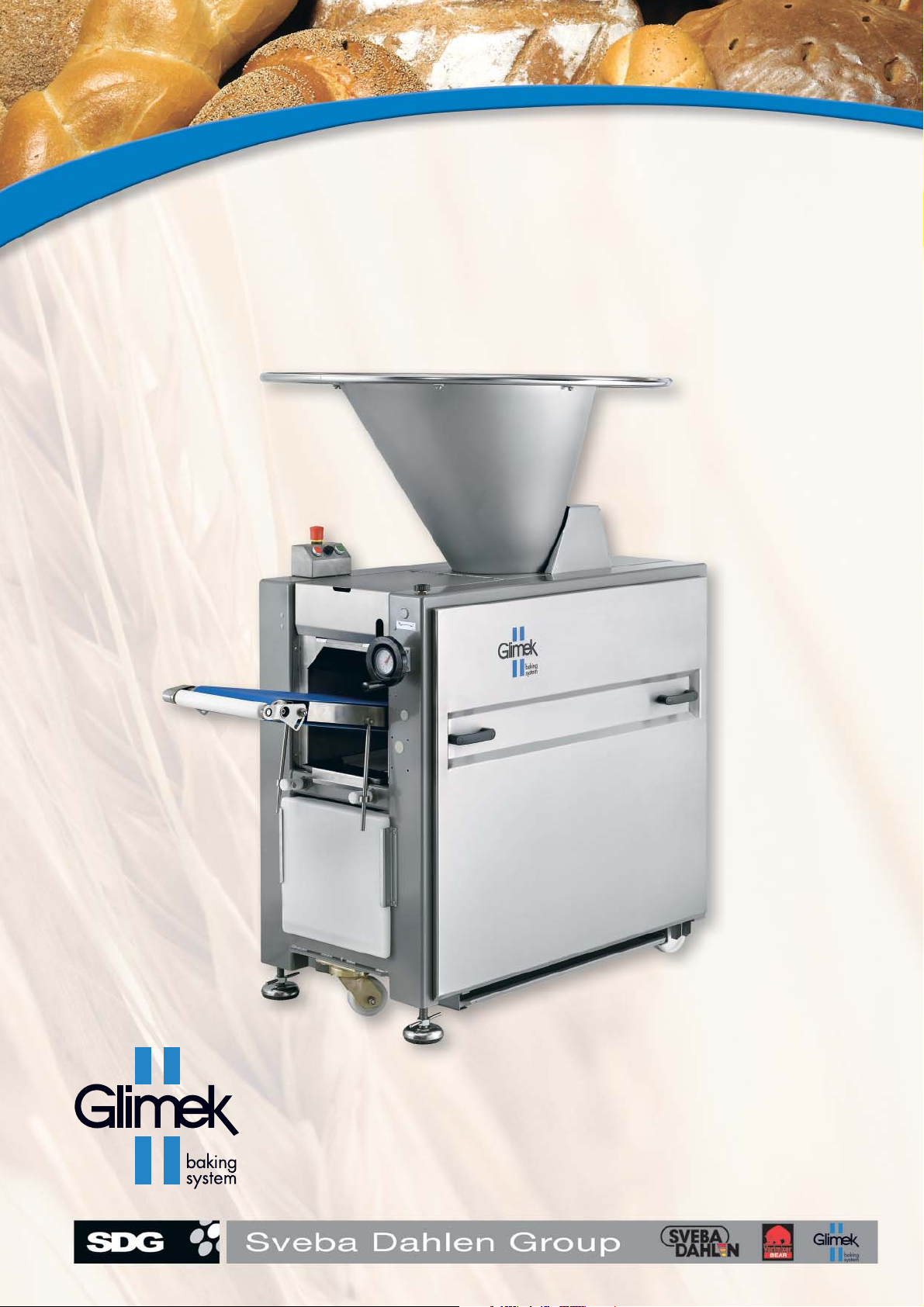

SD-180 Dough Divider

SD-180 is a noiseless automatic suction-feed dough divider for all types
of dough. Robust construction and high weight accuracy, combined
with a high degree of fl exibility regarding weight range and types of
dough makes the SD-180 well adapted to all types of bakeries.

Scandinavian know-how – worldwide

SD-180 Dough Divider

Variable speed with frequency
converter as standard

Easy-to-remove covers
facilitate the daily
cleaning

Transfer roller (option) for
sticky dough

Accessories

Elevating conveyor with
two parallel conveyor belts Conveyor for feeding directly into moulder unit

Flour duster, electrical Flour duster on the outfeed conveyor, electrical

Flour duster, mechanical Flour duster on the outfeed conveyor, mechanical

Frequency converter with display Display with speed in pcs/h, piece counting and
pre-set counting

Hander-up Small rounding unit for lines without conical rounder

Hopper 59.5 US gal Dough Hopper 59.5 US gal = approximately 330 lb
dough, delivered on new SD from factory

Hopper lubrication for Automatic lubrifi cation inside the dough hopper,
59,5 US gal hopper by means of a spread tube system

Mini Piston Adapter for dough weight 1.2 oz - 9 oz, available
for SD180 and SD180XL

Non-stick coating of hopper Interior of the dough hopper 26.4 US gal non-stick to

26.4 US gal assure a smooth infeed of the dough

Non-stick coating of hopper Interior of the dough hopper 59.5 US gal non-stick to

59.5 US gal assure a smooth infeed of the dough

Oiling of belt Oiling device for oiling on the outfeed conveyor

Piece counter Mechanical piece counter

Speed reduction kit Low-speed kit for reduction of speed to
520-1200 pcs/h instead of 750-1800 pcs/h

Special length on outfeed Outfeed length from divider frame, 3 3/32” interval
conveyor 7 7/8”- 31 1/2” (Standard is 14 1/64”)

31 1/2” - maximum 59” Outfeed length from divider frame, with adjustable
support, 3 3/32” interval

Special belt Special customized belt

Transfer roller Support driven roller at the end of the outfeed
conveyor, for sticky dough

26.4 US gal, 154 lb dough
hopper

Dough knife in stainless steel
direct connected to the
hopper provides an optimal
emptying of the hopper

Oilreservoir 4.5 US gal, easy
to fi ll

Technical data

Capacity range 750-1800 dough pieces/hour

Weight range
SD-180

Weight range
SD-180XS

Weight range
SD-180XL

Power Supply 1.1 kW

Weight, net

Weight, gross
(carton+pallet)

Volume, gross

dB(A) 72

670

26 3/8”

4.3 oz-3.5 lbs

2.5 oz-2.2 lbs

6.3 oz-5.0 lbs

1190 lbs

1466 lbs

5.6 x 2.9 x 6.7 = 109 ft

1646

64 13/16”

750-900

29 9/16” - 35 7/16”

14 3/16” 45 5/16”

3

42 15/16” 5 3/16”

1090 132

1150360

1130

44 1/2”
