Operating manual
Moisture Meter
Model: ZHT 125 Electronic
Manufacturer
Address: WWW. ADAINSTRUMENTS.COM
2
Table of contents
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4. Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. Warranty/Exceptions from responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Appendix 1. Warranty card
Appendix 2. Certificate of acceptance and sale
ZHT 125 Electronic
ZHT 125 Electronic
3
INTRODUCTION
ADA ZHT 125 Electronic moisture meter measures the moisture
content by detecting the electrical resistivity of the target material using two pins. The unit has adopt low consumption single
chip smart design, the moisture content is displayed by LCD.
ZHT 125 Electronic has advantages of portable size, easy to operate and rapidly measuring, a suitable tool to carry at working field.

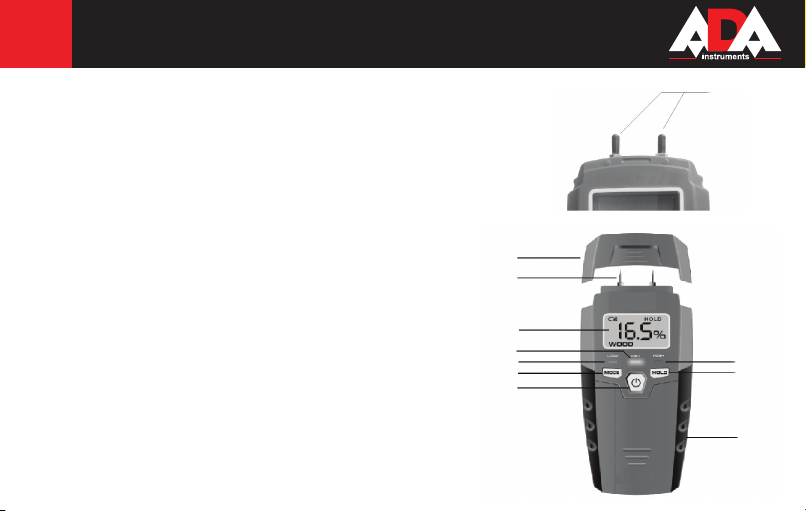

APPEARANCE
1) Protection cover
2) Pins
3) LCD screen
4) Mild moist indication LED
5) Dry indication LED
6) Measuring mode button
7) Power button
8) Excessive moist indication LED
9) Data hold button, keep pressing this button to close the
buzzer sound
10) At the back, it is battery compartment
11) Protection cap for pins
11
1
2
3
4
5
6
7
8
9
10
4
LCD Screen Illustration
A) Low battery indication
B) Measuring result
C) Wood mode indication
D) Data hold indication
E) Building material mode indication
OPERATION
Install battery
Remove the battery lid on the back of the unit, place one 9V block battery (6F22 or 6LR61) according to the correct sign marked in
the compartment, then put back the lid.
Measure moisture
1) Pull out the protection cover A, remove the protection K from the pins;
2) Press the power button G to power on the unit, LOW LED turns on, LCD display ”__ __ __”; The default measuring mode is for
wood, use the button F to select the measuring mode.
3) Insert the two detection pins into target material;
4) Under wood mode, reading of the target wood is displayed on LCD screen, available range is 5%~50%. When it is lower than 5%,
ZHT 125 Electronic
ZHT 125 Electronic
5
the screen shows” __ __ __”, when it is higher than 50%, the screen shows “
5) Under building material mode, reading of the target material is displayed on LCD screen, available range is 1.5%~33%. When it
is lower than 1.5%, the screen shows” __ __ __”, when it is higher than 33%, the screen shows “
6) Press the Hold button I during measuring, the symbol “HOLD” will display and hold the data, press again to make “HOLD”
disappear and exit data hold.
7) Keeping pressing the Hold button to turn off the buzzer sound during measuring.
8) Keeping pressing the power button for 2s to turn off the product.
LED indicators
In wood measurement mode: ●Blue LED——>5%-11.9%, Dry;
●Green LED——>12%-15.9%, mild moist;
●Red LED——>16%-50%, excessive moist.
In building materials measurement mode
●Blue LED——>5%-16.9%, Dry;
●Green LED——>17%-19.9%, mild moist;
●Red LED——>20%-33%, excessive moist
Calibration instructions
The product has external calibration function; Remove the protection cap, power on the unit, place the 2 pins into the 2 holes at the
back of the cover, just now the LCD shows a value between 18.2%±0.3%; If beyond this range, the accuracy has problem, advise
to be repaired.
● Operation notes
●Please replace the battery when the unit cannot be powered on or low battery indicator is on.
__ __ __
”.
__ __ __
”.
6
●Wood moisture values are related to ambient temperature humidity and wood material density. The best way to recognize the right
wood moisture content is to measure continuously day after day to obtain the corresponding values and compare to judge.
Cautions
● Don’t drop the product or use by force.
● Don’t disassemble the product to avoid failure.
● Keep the tool dry and clean,
● Don’t place the product with corrosive any gas or objects.
● Do not operate the tool in the water and dust, avoid to damage the tool.
● Check the battery regularity, avoid deterioration
● Remove the battery when not in use for an extended period of time.
SAFETY INSTRUCTIONS
Failure to follow the instructions listed below may cause personal injury.
● Please read this manual thoroughly before operation.
● Please do not remove any labels from the unit.
● Do not operate the tool with in the presence of flammable/explosive gases.
● Be careful about the pins.
● Don’t allow children to operate the unit.
● Put on the cover while not in use to avoid pins damage.
● The pins are very sharp, be sure to put on the protector after use, otherwise will hurt your body.
ZHT 125 Electronic
ZHT 125 Electronic
Battery Safety Instructions
●Please remove the battery when clean the product.
● Remove the battery when not in use for an extended period of time.
● Please install the batteries properly as the instructions of the positive and negative charges
● Please dispose the batteries properly. High temperature will cause explosions and do not burn the batteries. Strap insulated tape
around the battery charges to avoid unsafe contacts with other objects. Please follow the local regulations of battery disposing.
TECHNICAL DATA
7
Measuring range
Measuring accuracy ±2%
Backlight shut off About 15 seconds
Auto power off 3 minutes inactive
Low battery indicator <7V
Power supply 1x9V block battery
Working consumption <25mA
Working temperature 0°C~50°C
Wood: 5%~50%
Building materials: 1.5~33%
(6F22 or 6LR6) not included
Working humidity <90%RH non-condensing
Storage -20°C~60°C, ≤85% (w/o battery)
Dimension 145mm×62mm×27 mm
Weight About 86g (w/o battery)
8
Warranty
This product is warranted by the manufacturer to the original purchaser to be free from defects in material and workmanship under
normal use for a period of two (2) years from the date of purchase.
During the warranty period, and upon proof of purchase, the product will be repaired or replaced (with the same or similar model at
manufactures option), without charge for either parts of labour.
In case of a defect please contact the dealer where you originally purchased this product. The warranty will not apply to this product
if it has been misused, abused or altered. Withiut limiting the foregoing, leakage of the battery, bending or dropping the unit are
presumed to be defects resulting from misuse or abuse.
Exceptions from responsibility
The user of this product is expected to follow the instructions given in operators’ manual.
Although all instruments left our warehouse in perfect condition and adjustment the user is expected to carry out periodic checks of
the product’s accuracy and general performance.
The manufacturer, or its representatives, assumes no responsibility of results of a faulty or intentional usage or misuse including any
direct, indirect, consequential damage, and loss of profits.
The manufacturer, or its representatives, assumes no responsibility for consequential damage, and loss of profits by any disaster
(earthquake, storm, flood ...), fire, accident, or an act of a third party and/or a usage in other than usual conditions.
The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of profits due to a change of data, loss
of data and interruption of business etc., caused by using the product or an unusable product.
The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of profits caused by usage other thsn
explained in the users’ manual.
The manufacturer, or its representatives, assumes no responsibility for damage caused by wrong movement or action due to connecting with other products.
