Operating manual
Measuring wheel
Model: WHEEL 100 DIGITAL
Manufacturer: ADAINSTRUMENTS Address: WWW.ADAINSTRUMENTS.COM
WHEEL
ENG
Table of contents
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Key Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4. Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5. Power On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
6. Unit Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
7. Set To Zero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
8. Hold Current Read Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
9. Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
10. Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
11. Power Saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
12. Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
13. Changing Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
14. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
15. Exceptions From Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
100 DIGITAL
MEASUREMENT FOUNDATION
2
2
WHEEL
100 DIGITAL
Introduction
ADA Wheel 100 Digital is a new revolution
digital measuring wheel. It is designed base
on Robust, Easy Use, Reliable and Ergonomics consideration. ADA Wheel 100 Digital will let you feel easy and comfortable to
measure the distance than ever before.
● Large LCD with backlight display on
handle bar for easy reading
● Pistol like handle bar for comfortable
handling
● 6 key to control all functions
● 5 memories to keep data
● Patented folded design for easy use and
storage
● Power saving for long life time usage
Description
Aluminum Bar
Patented Folded
Wrist
Wheel
Kickstand
3
3
MEASUREMENT FOUNDATION
WHEEL
100 DIGITAL
Control Key
LCD Display
Handle Bar
MEASUREMENT FOUNDATION
Key Layout
6
4
5

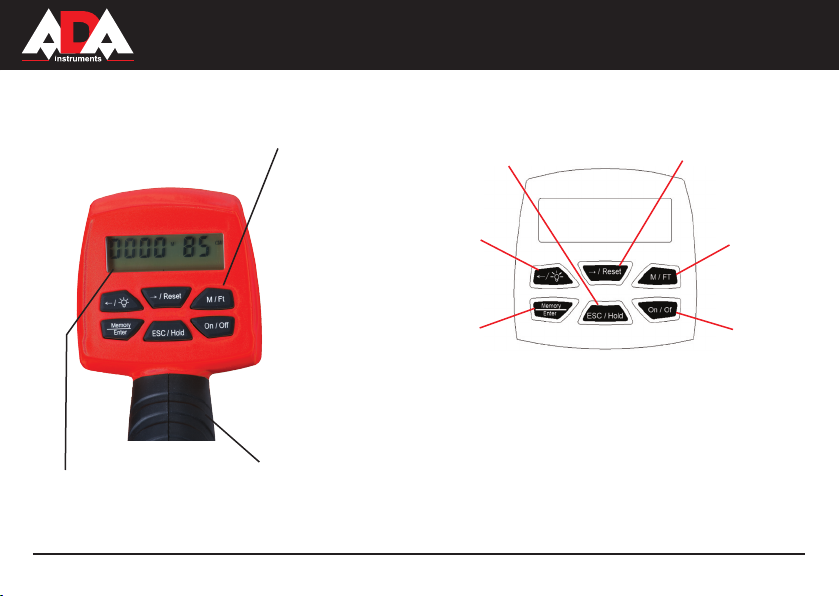

1 — Power on and off key
2 — Unit Change Key
3 — Reset and Memory select
4 — Backlight and Memory select
5 — Memory mode and write read out into memory
6 — Hold and release read out
4
4
3
2
1
WHEEL
100 DIGITAL
Display
1
43

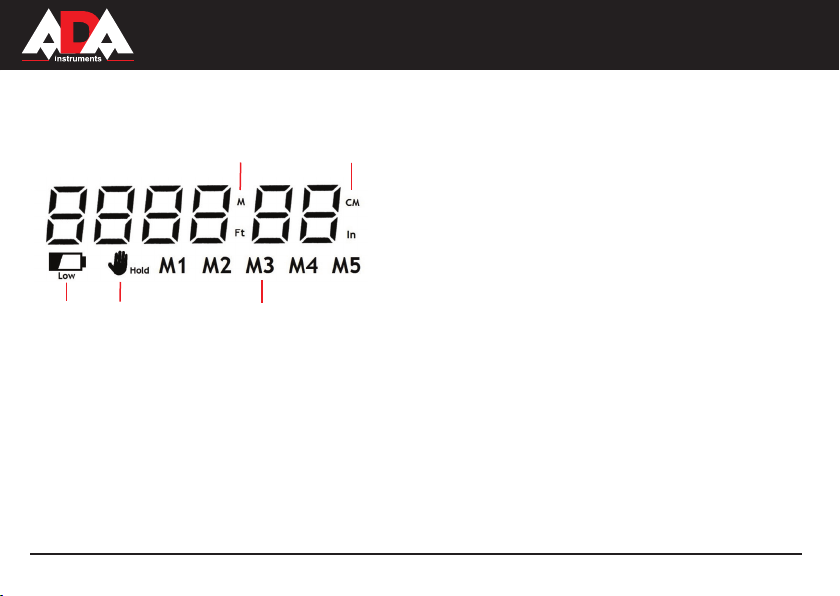

1) Metric / Imperial unit Symbol (Meter/ Feet)
2) Metric / Imperial unit Symbol ( Centimeter /
Inches)
3) Low power symbol
4) Hold symbol
5) Memory symbol
5
2
Power On/Off
Turn the ADA Wheel 100 Digital on by
pres-sing (1) key on 2 seconds. Press
Key again to turn off.
Unit Change
Press (2) Key to switch unit on Metric or
Imperial.
Set To Zero
Press (3) Key for 2 seconds to set number to zero.
Hold Current Read Out
Press (6) Key to hold current read out
or release.
Backlight
Press (4) to turn on the backlight by 2 seconds. The light will turn on 15 seconds
then turn off automatically.
5
5
MEASUREMENT FOUNDATION
WHEEL
100 DIGITAL
Memory
There are ve memory space (M1~M5) to
storage measurement number.
These memories will always keep even
remove the battery.

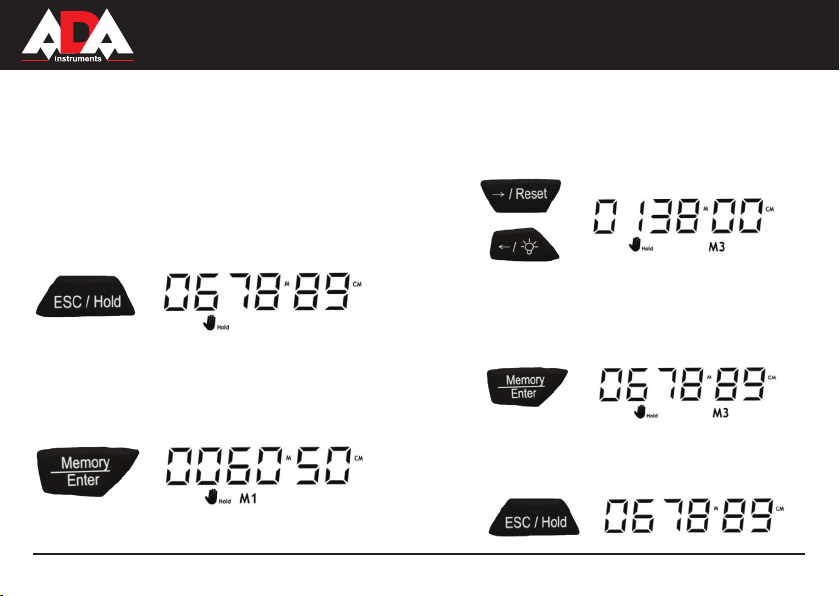

Hold the number
Into Memory mode
(M1 is twinkling)
MEASUREMENT FOUNDATION
Select Memory space
(Memory space will twinkling when selected)
(left and right select)
Press Enter to memorize
Press ESC to leave memory mode
6
6
WHEEL
100 DIGITAL
Power Saving Mode
ADA Wheel 100 Digital will be turned
off automatically if there is No ANY ACTIONS in 5 minutes.
Low Power
ADA Wheel 100 Digital will light up low
power sign when it almost runs out of
battery.

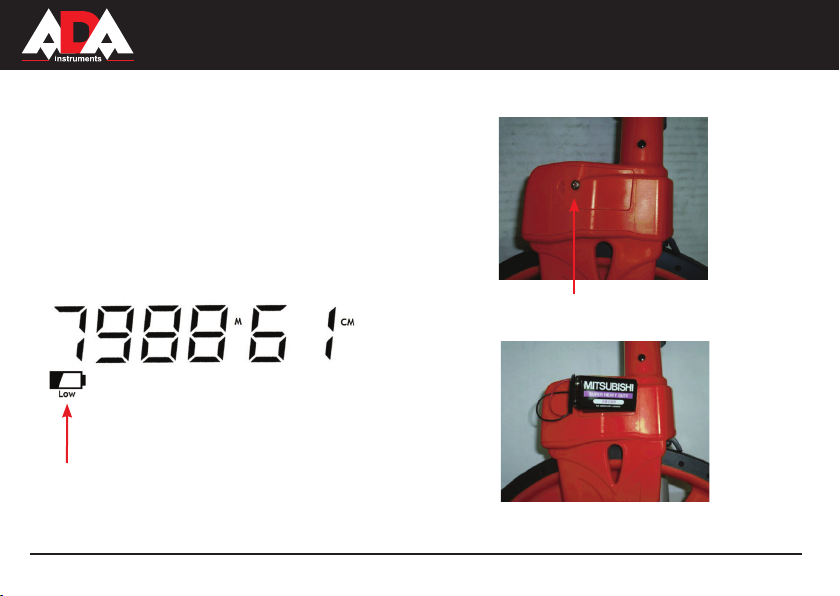

Changing Battery
Open battery case by a screw driver.
Replace 9 volt battery. Model name is “6F22”
7
7
MEASUREMENT FOUNDATION
WHEEL
WARRANTY
This product is warranted by the manufacturer to the original purchaser to be free from defects in material and workmanship
under normal use for a period of two (2) years from the date of purchase.
During the warranty period, and upon proof of purchase, the product will be repaired or replaced (with the same or similar
model at manufactures option), without charge for either parts of labour.
In case of a defect please contact the dealer where you originally purchased this product. The warranty will not apply to this
product if it has been misused, abused or altered. Withiut limiting the foregoing, leakage of the battery, bending or dropping
the unit are presumed to be defects resulting from misuse or abuse.
EXCEPTIONS FROM RESPONSIBILITY
The user of this product is expected to follow the instructions given in operators’ manual.
Although all instruments left our warehouse in perfect condition and adjustment the user is expected to carry out periodic
checks of the product’s accuracy and general performance.
The manufacturer, or its representatives, assumes no responsibility of results of a faulty or intentional usage or misuse
including any direct, indirect, consequential damage, and loss of prots.
The manufacturer, or its representatives, assumes no responsibility for consequential damage, and loss of prots by any
disaster (earthquake, storm, ood ...), re, accident, or an act of a third party and/or a usage in other than usual conditions.
The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of prots due to a change of
data, loss of data and interruption of business etc., caused by using the product or an unusable product.
The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of prots caused by usage
other thsn explained in the users’ manual.
The manufacturer, or its representatives, assumes no responsibility for damage caused by wrong movement or action due
to connecting with other products.
