ADA INSTRUMENTS ProLevel 40 User Manual [ru]

Operating manual

Digital Level

Model: ProLevel 40

Manufacturer

Address: WWW. ADAINSTRUMENTS.COM

ProLevel 40

2

Table of contents

1. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4. Cleaning and storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

5. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

6. Exceptions from responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Appendix 1. Certificate of acceptance and sale
Appendix 2. Warranty card

ProLevel 40

3

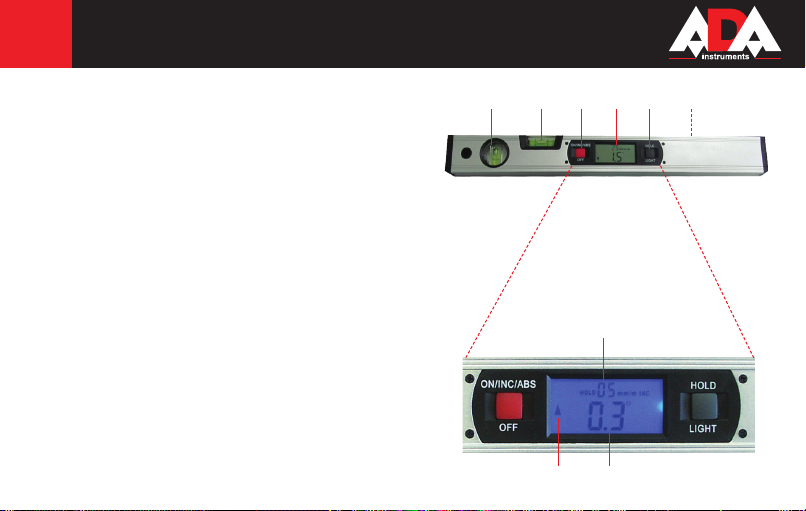

APPEARANCE

1) Vertical spirit bubble

2) Horizontal spirit bubble

3) ON/INC/ABS/OFF - On/Off key; absolute/relative angle

4) Display

5) HOLD/LIGHT - Hold function/display backlight

6) Battery compartment

7) Deviation (mm/m)

8) Ascend/descend

9) Angle (°)

Important note:

1. The digital level has been pre-calibrated at the factory.

2. The product should only be recalibrated if it has been
dropped (see Calibration).

1 2 3 4 5 6

7

8 9

ProLevel 40

4

OPERATION

Inserting/replacing the battery

The battery compartment (6) is located at the rear side of the
digital level.

1. Depress the latch of the battery compartment lid and open
the battery compartment.

2. Insert 2 new batteries (not included) of the type LR03 (AAA)
into the battery compartment. Pay attention to the proper polar­ity of the batteries. The polarity is printed inside the battery
compartment.

3. Close the battery compartment with the lid.
Note: replace the batteries if the display gets weaker or if it
shows incomprehensible results.

Using

Use the digital level as a regular spirit level using the vertical
spirit bubble (1) or the horizontal spirit bubble (2). Or use the
device as precise digital spirit level as follows:

1. Shortly press the ON/OFF key (3) to switch on the digital
spirit level.

2. The blue display background light shines for a few seconds.
Hold the digital level to the object to be measured and read the
currently measured angle on the display (4).

3. If you tilt the digital level in an angle >90° the display automati­cally flips over by 180° for better readability.

4. Press the HOLD/LIGHT key (5) to freeze the currently mea­sured value on the display. The background light shines. Press the
HOLD/LIGHT key one more time to return and show the currently
measured values.

5. Press and hold the HOLD/LIGHT key (5) for 3 seconds to switch
on or off the display background light.

6. Shortly press the ON/OFF key (3) toggle between displaying the
absolute angle (display shows ABS) and displaying the relative an­gle/the deviation of the angle (display shows INC). When switching
to the INC mode, the device resets the display to zero degrees. The
following measurement readings refer to this zero point.

7. Press and hold the ON/OFF key for 3 seconds to switch off the
digital level. If you do not operate the device for approx. 5 minutes,
the device switches off automatically.

Notes:

1) The deviation (7) in mm/m of the currently measured angle is
displayed when an angle <5.7° (max. 100 mm/m) is measured.

2) A small arrow icon (8) additionally appears indicating if the de­vice is measuring ascends (arrow up) or descends (arrow down).

ProLevel 40

5

Calibration

The digital level has been calibrated in the factory for maximum
accuracy. If necessary, the digital level can be re-calibrated.

1. Switch off the digital level. Place it on a flat and level surface.

2. Press and hold the HOLD/LIGHT key (5). Then additionally press
the ON/OFF key (3). The number “-1-” is flashing on the display.

3. Press the ON/OFF key (3) once more. The number “-2-” is
flashing on the display.

4. Horizontally flip over the digital level by 180°. Then press the
ON/OFF key (3) one more time to finish the calibration process.
Note: Ensure the digital level is kept absolutely steady during
calibration.

TECHNICAL DATA

Resolution: 0.1°
Accuracy: 0.2°
Measuring range: 0-90°
Power supply: 2xLR03 (AAA)
Dimension: 416x50x21 mm
Battery life: approx. 100 hrs
Weight (incl. battery): approx. 330 g.

CLEANING AND STORING

Clean the digital level with a smooth and dry linen cloth. If neces­sary moisten it slightly.
Do not use any solvents, detergents, sharp edged objects and the
like for cleaning.
Store the unit on a dry place that is protected from dust and dirt.
Store it out of reach of children.

WARRANTY

This product is warranted by the manufacturer to the original pur­chaser to be free from defects in material and workmanship under
normal use for a period of two (2) years from the date of purchase.
During the warranty period, and upon proof of purchase, the prod­uct will be repaired or replaced (with the same or similar model at
manufactures option), without charge for either parts of labour.
In case of a defect please contact the dealer where you originally
purchased this product. The warranty will not apply to this prod­uct if it has been misused, abused or altered. Withiut limiting the
foregoing, leakage of the battery, bending or dropping the unit are
presumed to be defects resulting from misuse or abuse.

6

ProLevel 40

EXCEPTIONS FROM RESPONSIBILITY

The user of this product is expected to follow the instruc­tions given in operators’ manual.
Although all instruments left our warehouse in perfect
condition and adjustment the user is expected to carry out
periodic checks of the product’s accuracy and general per­formance.
The manufacturer, or its representatives, assumes no re­sponsibility of results of a faulty or intentional usage or
misuse including any direct, indirect, consequential dam­age, and loss of profits.
The manufacturer, or its representatives, assumes no re­sponsibility for consequential damage, and loss of profits
by any disaster (earthquake, storm, flood ...), fire, accident,
or an act of a third party and/or a usage in other than usual
conditions.
The manufacturer, or its representatives, assumes no re­sponsibility for any damage, and loss of profits due to a
change of data, loss of data and interruption of business
etc., caused by using the product or an unusable product.
The manufacturer, or its representatives, assumes no re­sponsibility for any damage, and loss of profits caused by

usage other thsn explained in the users’ manual.
The manufacturer, or its representatives, assumes no responsibility
for damage caused by wrong movement or action due to connecting
with other products.
