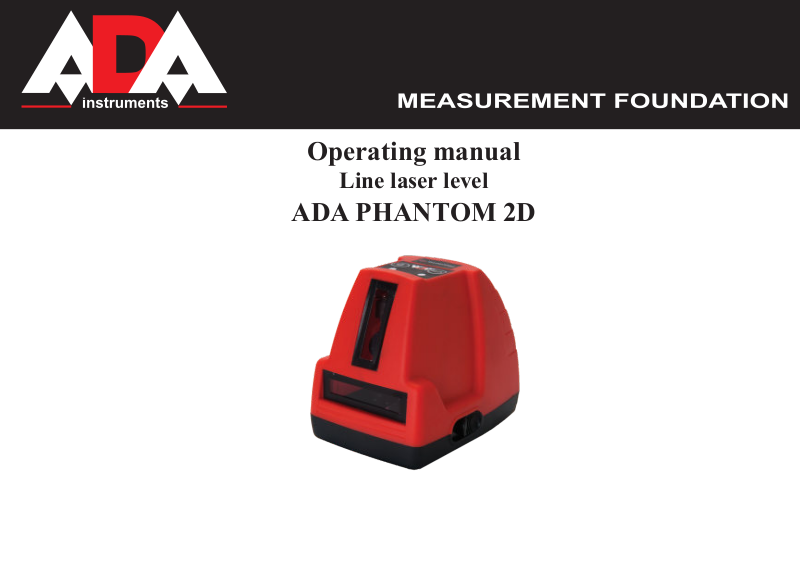

ADA instruments PHANTOM 2D User Manual

Operating manual

Line laser level

ADA PHANTOM 2D

PHANTOM 2D

Table of contents

1. Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3. Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

4. Change of batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

5. Laser lines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

6. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

7. Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

8. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

8.1. Application demonstration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

9. To check the accuracy of line laser level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

9.1. To check the accuracy of line laser level (slope of plane) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

9.2. To check level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

9.3.To check plumb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

10. Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

11. Specic reasons for erroneous measuring results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

12. Electromagnetic acceptability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

13. Laser classication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

14. Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

15. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 3

16. Exceptions from responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

17. Appendix 1- “Certicate of acceptance and sale”

18. Appendix 2- “Warranty card”

PHANTOM 2D

Kit

ADA PHANTOM 2D: cross line laser, batteries, wall/oor mount, target, bag for transportation, operating manual.

ADA PHANTOM 2D Set: cross line laser, batteries, wall/oor mount, tripod, operating manual.

Application

Cross Line Laser projects visible laser planes. It is used for determination height, making horizontal and vertical planes.

Specications

Leveling Range: self-leveling, ±3°
Accuracy: ±2mm/10m
Working Range: up to 40 m without receiver
70m with receiver
Power Supply: 3AA Batteries Alkaline
Laser Source: 2 x 635nm
Operating temperature: -10°C to 45°C
Laser class: 2
Dimensions: 10x12x8 cm
Weight: 370 g

* depends on illumination of work area

3

MEASUREMENT FOUNDATION

PHANTOM 2D

Change of batteries

Open battery compartment. Put in 3 x AA Alkaline batteries. Take care to correct polarity. Close battery compartment.
ATTENTION: If you are not going to use instrument for a long time, take out batteries.

Laser lines

4

MEASUREMENT FOUNDATION

PHANTOM 2D

Features

laser emitting window

1.
keypad

2.
battery cover

3.
compensator switch

4.
tripod mount 1/4"

5.

2

1

3

4

5

5

MEASUREMENT FOUNDATION

Keypad

PHANTOM 2D

key to switch lasers

1.
receiver switch

2.
TILT LED

3.
receiver LED

4.

3

1

6

4

2

MEASUREMENT FOUNDATION

PHANTOM 2D

Operation

Place the instrument on the working surface or mount it on the tripod/pillar or wall mount (comes with the instrument).
Switch on the instrument: turn the compensator switch (4) to the position “ON”.

Press on the power key (1) as following:

1. One pressure - vertical beam

2. Two pressures - horizontal plane

3. Three pressures - both horizontal and vertical planes.

To work with detector, press button (2). This mode allows you to work in bright illumination and at long distance.

7

MEASUREMENT FOUNDATION

8

MEASUREMENT FOUNDATION

PHANTOM 2D

APPLICATION DEMONSTRATION

PHANTOM 2D

To check the accuracy of line laser level

To check the accuracy of line laser level (slope of plane)

Set up the instrument between two walls, the distance is 5 m.Turn on the Cross Line Laser and mark the point of cross laser line on
the wall.

Set up the instrument 0,5-0,7m away from the wall and make, as described above, the same masrks. If the difference {a1-b2} and

{b1-b2} is less then the value of “accuracy” (see spesications), there is no need in calibration.

Example: when you check the accuracy of Cross Line Laser the difference is {a1-a2}=5 mm and {b1-b2}=7 mm. The
instrument’s error: {b1-b2}-{a1-a2}=7-5=2 mm. Now you can compare this error with standard error.

If the accuracy of Cross Line Laser isn’t corresponding with claimed accuracy, contact the authorized service center.

9

MEASUREMENT FOUNDATION

PHANTOM 2D

m

m

To check level

Choose a wall and set laser 5M away from the wall. Turn on the laser and cross laser line is marked A on the wall.Find another point
M on the horizontal line, the distance is around 2.5m. Swivel the laser, and another cross point of cross laser line is marked B. Please
note the distance of B to A should be 5m.
Measure the distance between M to cross laser lune, if the difference is over 3mm, the laser is out of calibration, please contact with
seller to calibrate the laser.

10

MEASUREMENT FOUNDATION

PHANTOM 2D

To check plumb

Choose a wall and set laser 5m away from the wall. Mark point A on the wall, please note the distance from point A to ground
should be 3m. Hang a plumb line from A point to ground and nd a plumb point B on ground. turn on the laser and make the verti­cal laser line meet the point B, along the vertical laser line on the wall and measure the distance 3m from point B to another point
C. Point C must be on the vertical laser line, it means the height of C point is 3m.
Measure the distance from point A to point C, if the distance is over 2 mm, please, contact with seller to calibrate the laser.

Care and cleaning

Please handle measuring instrument with care. Clean with soft cloth only after any use. If necessary damp cloth with some water.
If instrument is wet clean and dry it carefully. Pack it up only if it is perfectly dry. Transport in original container/case only.

Note: During transport On/Off compensator lock (3) must be set to position “OFF”. Disregard may lead to damage of compensa­tor.

Specic reasons for erroneous measuring results

Measurements through glass or plastic windows;

•
Dirty laser emitting window;

•
After instrument has been dropped or hit. Please check the accuracy.

•

Large uctuation of temperature: if instrument will be used in cold areas after it has been stored in warm areas (or the other

•
way round) please wait some minutes before carrying out measurements.
