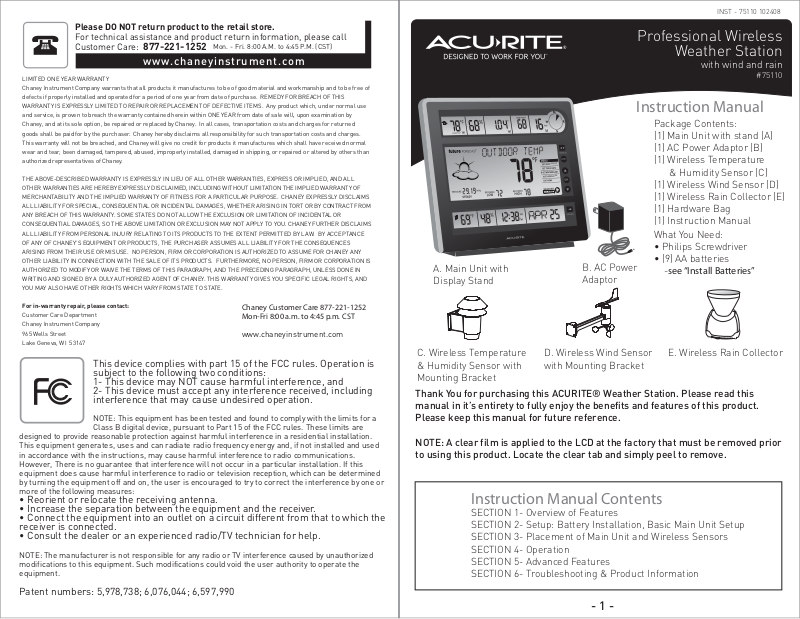

A. Main Unit with
Display Stand
INST - 75110 102408
Professional Wireless
Weather Station
with wind and rain
#75110
Instruction Manual
Package Contents:
(1) Main Unit with stand (A)
(1) AC Power Adaptor (B)
(1) Wireless Temperature
& Humidity Sensor (C)
(1) Wireless Wind Sensor (D)
(1) Wireless Rain Collector (E)
(1) Hardware Bag
(1) Instruction Manual
What You Need:
• Philips Screwdriver
• (9) AA batteries
-see “Install Batteries”
For in-warranty repair, please contact:
Customer Care Department
Chaney Instrument Company
965 Wells Street
Lake Geneva, WI 53147
Chaney Customer Care 877-221-1252
Mon-Fri 8:00 a.m. to 4:45 p.m. CST
www.chaneyinstrument.com
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
1- This device may NOT cause harmful interference, and
2- This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a
designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, There is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user authority to operate the
equipment.
Patent numbers: 5,978,738; 6,076,044; 6,597,990
C. Wireless Temperature
& Humidity Sensor with
D. Wireless Wind Sensor
with Mounting Bracket
E. Wireless Rain Collector
Mounting Bracket
Thank You for purchasing this ACURITE® Weather Station. Please read this
manual in it’s entirety to fully enjoy the benefits and features of this product.
Please keep this manual for future reference.
NOTE: A clear film is applied to the LCD at the factory that must be removed prior
to using this product. Locate the clear tab and simply peel to remove.
Instruction Manual Contents
SECTION 1- Overview of Features
SECTION 2- Setup: Battery Installation, Basic Main Unit Setup
SECTION 3- Placement of Main Unit and Wireless Sensors
SECTION 4- Operation
SECTION 5- Advanced Features
SECTION 6- Troubleshooting & Product Information
- 1 -
SECTION 1 • OVERVIEW OF FEATURES
Outdoor
Humidity
Outdoor
Backlight
Button
Rainfall
24 hour
Temperature
Seasonal
heat index,
wind chill,
dew point
Wind Speed
& Direction
Weather
Category
Display
About The Menu
This weather station features a menu that allows you to access basic and
advanced features. Press the “MENU” button to enter into MENU. Use
the UP and DOWN arrow buttons to scroll through the options. Press the
“OK” button to enter into a selected option in the menu. The display will
prompt you for further action. It is recommended that you explore
sections 4 and 5 to learn more about the menu options.
Future
Weather
Forecast
Currently
Selected
Display
LOW & HIGH
Barometric
Pressure
Indoor
Temperature
Wireless Temperature
& Humidity Sensor
Sends temperature,
humidity and atomic
clock signal to main unit
via a 433 mhz wireless
signal. This sensor
should be mounted
out of direct sunlight to
ensure accurate readings.
Powered by 2 “AA”
batteries.
Indoor
Humidity
Atomic
Clock
Wireless
Wind Sensor
Sends wind speed and
direction to main unit
via a 433 mhz wireless
signal. This sensor
should be mounted
high enough to accurately
record and transmit wind
information. Powered by 2
“AA” batteries.
Display
Button
Menu Button
Operation
Buttons
History
Button
Month & Date
Wireless
Self-Emptying
Rain Collector
Sends rain totals to main
unit via a 433 mhz
wireless signal.
Collection funnel is extra
wide for more accurate
rainfall totals. Foreign
debris should be cleaned
out of the collector funnel
regularly. Powered by 2
“AA” batteries.
SECTION 2 • SETUP
A/B/C Wireless Selection
To allow for more than one weather station and wireless sensor
network to be used in close proximity, the main unit and all 3 wireless
sensors have a small switch labeled “A B C” near or in the battery
compartments. These switches are all factory preset into the same
position (either A, B, or C). This switch selects one of 3 wireless modes
to use, and all 4 switches in all 4 components MUST be set in matching
positions (either A, B, or C) for wireless communication to take place
successfully.
Install Batteries
Batteries must be installed into all three of the wireless sensors BEFORE
installing batteries into the main display unit. Use only fresh or new
batteries in all cases, and install correctly according to the polarity
( - & + ) symbols marked on the batteries and in the battery
compartments. We suggest using lithium batteries for better cold
weather performance. Do not mix old and new batteries.
Wireless Temperature & Humidity Sensor
INSTALL BATTERIES:
1. Twist and remove
larger bottom cone
section.
2. Remove the battery
door and set aside.
3. Install 2 “AA”
batteries into the
battery compartment.
4. Replace the battery
door and replace and
twist the bottom cone
section.
INSTALL
BATTERIES
TWIST AND
REMOVE
BOTTOM CONE
REMOVE
BATTERY
DOOR
- 3 -- 2 -
Wireless Wind Sensor
INSTALL BATTERIES:
1. Unscrew and
remove bottom case
section.
2. Remove the battery
door and set aside.
3. Install 2 “AA”
batteries into the
battery compartment.
4. Replace the battery
door and replace and
UNSCREW BOTTOM CASING
rotate the bottom
cone section until it is
securely tightened.
Wireless Rain
Collector
INSTALL BATTERIES:
INSTALL
BATTERY
INSTALL
BATTERY
REMOVE
SLIDING BATTERY
DOOR
REMOVE FOAM PACKING
MATERIAL AND DISCARD
BEFORE INSERTING
COLLECTOR FUNNEL
Main Unit
INSTALL BATTERIES:
1. Remove the bottom
display stand by
pulling firmly.
2. Remove the battery
door and set aside.
3. Install 3 “AA”
batteries into the
battery compartment.
4. Replace the battery
door and replace and
rotate the bottom
cone section until it is
securely tightened.
AND/OR
INSTALL
3 ” AA”
BATTERIES
REMOVE
BATTERY
COMPARTMENT
COVER
REMOVE DISPLAY STAND
1. Squeeze side tabs and
separate upper and
lower cases.
2. Squeeze battery box
side tabs and slide out
the battery box.
3. Install 2 “AA” batteries
into the battery
compartment
by removing 4 screws.
4. Slide the battery box
back into the case,
aligning the slide rails
and tabs correctly. The
battery compartment
cover should be facing
outwards.
A B C
INSTALL
BATTERIES
SEPARATE UPPER &
LOWER CASES
SQUEEZE SIDE TABS
SQUEEZE BATTERY
BOX SIDE TABS
SLIDE OUT
BATTERY CASE
BATTERY
COVER
COMPARTMENT
Battery
Compartment
Cover
REMOVE
BATTERY
COMPARTMENT
COVER SCREWS
4
PLUG IN AC POWER
ADAPTOR
1. Plug AC adaptor
into the bottom of the
main unit.
2. Plug AC adaptor into
a 110v AC wall outlet.
NOTE: Main unit will
run on AC power
adaptor until
unplugged or a power
outage occurs. If you
also have “AA”
batteries installed, the
unit will continue to
operate when
unplugged or during a
power outage.
PLUG AC ADAPTOR
INTO BOTTOM OF
MAIN UNIT
- 5 -- 4 -
