Acu-Rite 2048 User Manual

Instruction Manual

Weather Station

model 02048

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features & Benets: Sensor ..... 2

Features & Benets: Display .... 3

Setup .................................... 6

Sensor Setup ......................... 6

Display Setup ........................ 7

Intelli-Time Clock .................... 8

Set the Time, Date & Units ...... 8

Backlight Settings ................... 8

Placement Guidelines ............. 9

Using the Weather Station .....10

Troubleshooting ....................11

Care & Maintenance .............13

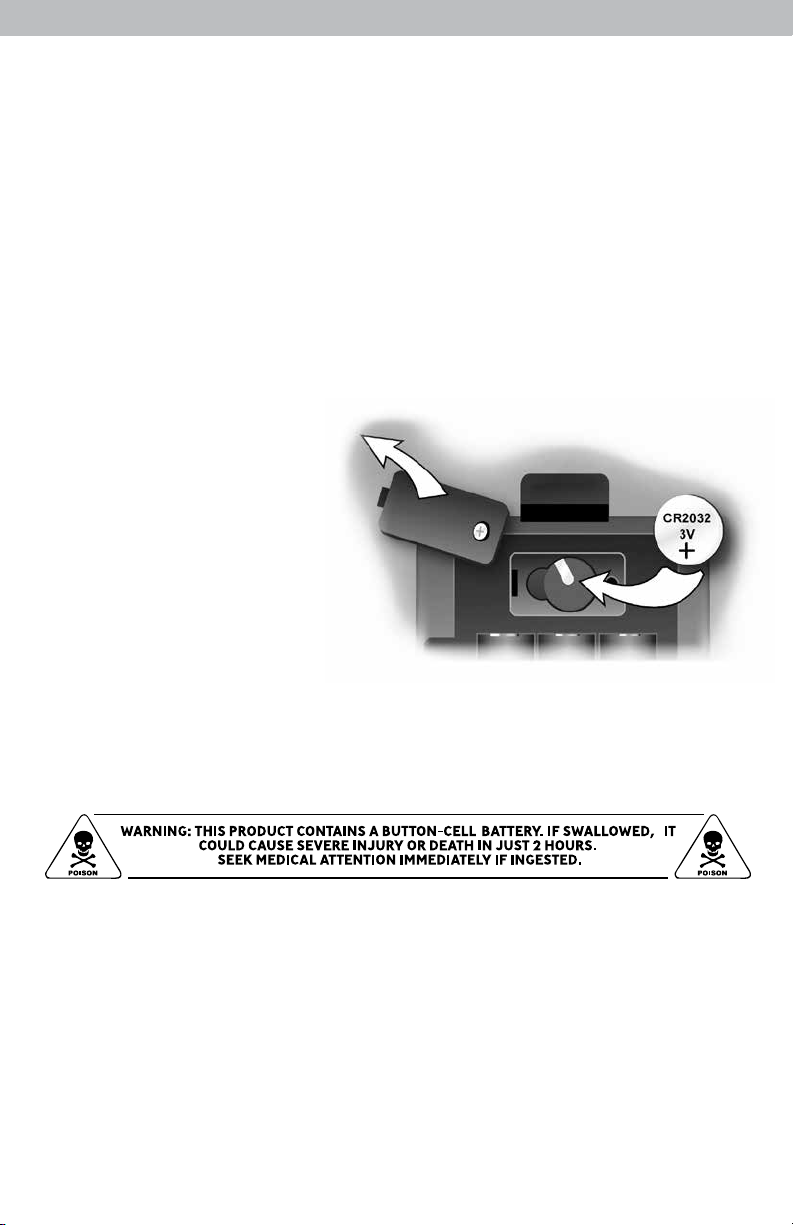

Replace Intelli-Time Battery ....13

Specications ........................14

FCC Information ...................14

Customer Support ................. 15

Warranty..............................15

Questions? Contact Customer Support at

[phone] or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Congratulations on your new AcuRite product. To ensure the best
possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this
product. Locate the tab and peel off to remove.

Package Contents

1. Display unit with tabletop stand

2. Power adapter

3. Outdoor sensor

4. Instruction Manual

PRODUCT MUST BE REGISTERED

IMPORTANT

PRODUCT REGISTRATION

Register online

to receive 1 year

warranty protection

www.AcuRite.com

TO RECEIVE WARRANTY SERVICE

Register a Product

►

Features & Benets

1

2

3

4

OUTDOOR SENSOR

1. Integrated Hanger
For easy placement.

5

2. Wireless Signal Indicator
Flashes when data is being sent

to the display unit.

3. Battery Compartment

4. A-B-C Switch

ID code that must match display’s
A-B-C switch to ensure units synchronize.

5. Battery Compartment Cover

2

Features & Benets

6

7

8
9

10

BACK OF DISPLAY UNIT

6. Integrated Hang Hole

for easy wall mounting.

7. Reset

Full reset to factory defaults.

8. A-B-C Switch

ID code that must match tower
sensor’s A-B-C switch to ensure units
synchronize.

9. Battery Compartment

10. Plug-in for Power Adapter

11. Battery Compartment Cover

11

121513 14

FRONT OF DISPLAY UNIT

12. “ “ Button

for setup preferences.

13. “ “ Button

for setup preferences.

14. “ “ Button

for setup preferences.

15. Momentary Backlight Button
Lights display for 7 seconds (only

applicable while on battery power).

3

Features & Benets

14151617

1

2

3

4

13

12

11

10

9

5 76 8

4

DISPLAY UNIT FRONT

1. Current Outdoor Temperature
Arrow icon indicates direction

temperature is trending.

2. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls data

from the outdoor sensor to generate

your personal forecast.

3. Current Indoor Temperature
Arrow icon indicates direction

temperature is trending.

4. Moon Phase

5. Display Low Battery Indicator

6. AUTO DIM Indicator
(see page 8)

7. Intelli-Time® Clock
Automatically updates for

Daylight Saving Time.

8. Date

9. Current Indoor Humidity
Arrow icon indicates direction

humidity is trending.

10. Humidity Level Indicator

Indicates a high or low indoor

humidity level.

11. Learning Mode Icon

Disappears after weather forecast

self-calibration is complete.

12. Barometric Pressure
Arrow icon indicates direction

pressure is trending.

13. Current Outdoor Humidity
Arrow icon indicates direction

humidity is trending.

14. Heat Index

Displays Heat Index calculation when

temperature is 80°F (27°C) or

above.

15. Sensor Low Battery Indicator

16. Outdoor Sensor Signal Strength

17. Dew Point

Displays Dew Point calculation when

temperature is 79°F (26°C) or

below.

5

SETUP

Sensor Setup

Set the A-B-C Switch

1

The A-B-C switch is located inside
the battery compartment. It can
be set to A, B or C. However,
you must select the same letter
choices for both the sensor and
the display unit in order for the
units to synchronize.

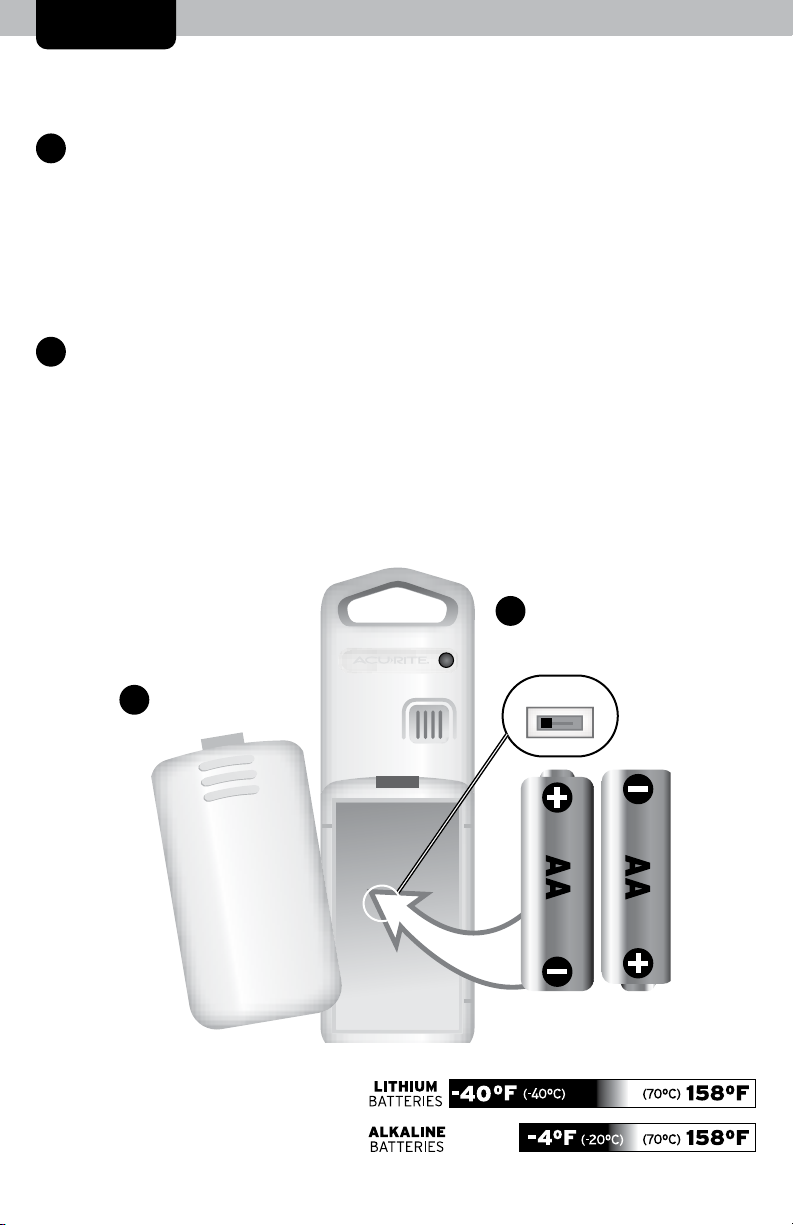

Install or Replace Batteries

2

AcuRite recommends high quality
alkaline or lithium batteries for
the best product performance.
Heavy duty or rechargeable
batteries are not recommended.

The sensor requires lithium
batteries in low temperature

Install Batteries

2

2 AA batteries

conditions. Cold temperatures
can cause alkaline batteries
to function improperly. Use
lithium batteries in the sensor for
temperatures below -4ºF / -20ºC.

1. Slide off the battery
compartment cover. Take
note of the A-B-C switch
setting inside the battery

compartment.

2. Insert 2 x AA batteries into
the battery compartment, as
shown. Follow the polarity
(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

A-B-C Switch

1

set to match

display unit

A B C

6

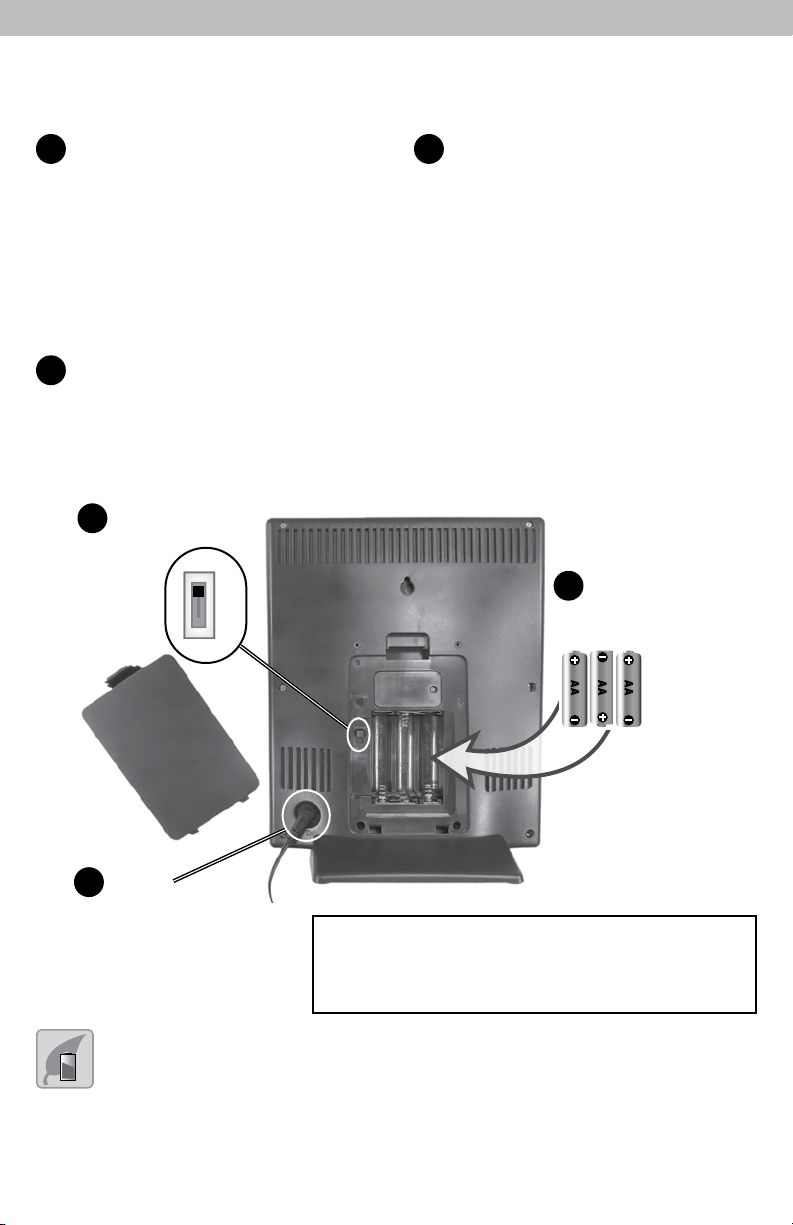

Display Unit Setup

Set the A-B-C Switch

1

Locate the A-B-C switch inside
the battery compartment. Set
the A-B-C switch to A, B or C.
You must select the same letter
choices for both the display unit

and the sensor in order for the

units to synchronize.

Plug in Power Adapter

2

For the best performance, plug

in the power adapter as the main
power source for this product.

A-B-C Switch

1

set to match
sensor

A B C

Install or Replace Backup

3

Batteries (optional)

1. Remove the battery
compartment cover.

2. Insert 3 x AA alkaline
batteries into the battery
compartment, as shown.
Follow the polarity
(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Install Backup

3

Batteries

3 AA batteries
(optional)

Plug in

2

Power Adapter

IMPORTANT: Batteries are a backup power source to

preserve records in the event of a power outage.

Power adapter is recommended as the primary power
source to enjoy the full functionality of this product.

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used
batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire,
as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge
non-rechargeable batteries. DO NOT short-circuit the supply terminals.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

7

Intelli-Time® Clock

Intelli-Time products are pre-programmed with the correct time and date. All
you need to do is select your Time Zone and Daylight Saving Time preferences.
The clock will then automatically update for Daylight Saving Time.

Set the Time, Date & Units

Press and HOLD the “ ” button to enter SETUP MODE. Once in setup mode,
the preference you are currently setting will blink on the display.

To adjust the currently selected (ashing) item, press and release the “T” or
“V“ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “ ” button again to adjust
the next preference. The preference set order is as follows:

TIME ZONE ( PST MST CST EST AST HAST AKST)
DST* (Daylight Saving Time ON or OFF)
CLOCK HOUR
CLOCK MINUTE
CALENDAR DATE
CALENDAR MONTH
CALENDAR YEAR
TEMPERATURE SCALE (ºF or ºC)
BAROMETRIC PRESSURE SCALE (inHg or hPa)

*If you live in an area that observes daylight saving time, DST should be set to

ON, even if it is not currently Daylight Savings Time.

You will automatically exit SETUP MODE if no buttons are pressed for 20
seconds. Enter setup mode at any time by pressing the “ ” button.

Backlight Settings

This weather station’s color display features three different lighting settings:
High (100%) brightness, Medium (60%) brightness and Low (30%) brightness.

Using battery power alone, the backlight is available momentarily for 7
seconds by pressing the Momentary Backlight button.

When display is powered with the power adapter, backlight remains on at
100% brightness. Press the Momentary Backlight button once to dim to 60%
brightness; press again to dim to 30%, press a 3rd time to enter “AUTO DIM”
mode. AUTO DIM appears below time.

AUTO DIM MODE: Automatically adjusts display brightness based on time of day & year.

MARCH 11- NOVEMBER 4 6:00 a.m. - 9:00 p.m. = 100% brightness

9:01 p.m. - 5:59 a.m.= 30% brightness

NOVEMBER 5 - MARCH 10 7:30 a.m. - 7:00 p.m.= 100% brightness

7:01 p.m. - 7:29 a.m. = 30% brightness

8

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper
placement of both the display unit and outdoor sensor are critical to the
accuracy and performance of this product.

Display Unit Placement

Place the display unit in a dry area free of dirt and dust.
Display unit stands upright for tabletop use or is wall-mountable.

Outdoor Sensor Placement

Sensor must be placed outside to observe outdoor conditions.
Sensor is water resistant and is designed for general outdoor
use, however, to extend its life place the sensor in an area
protected from direct weather elements.

Hang the sensor using the integrated hang holes or hanger, or
by using string (not included) to hang it from a suitable location,
like a well covered tree branch. The best location is 4 to 8 feet
above the ground with permanent shade and plenty of fresh air
to circulate around the sensor.

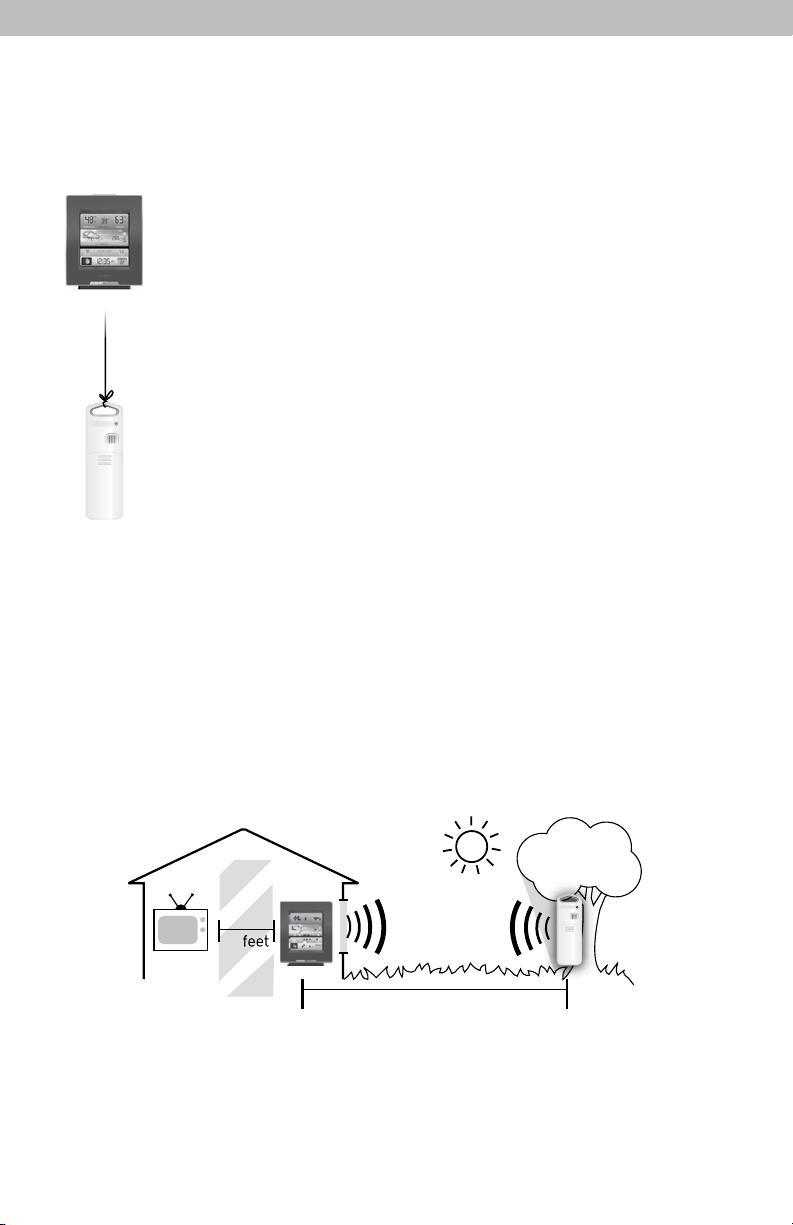

Important Placement Guidelines

• To ensure accurate temperature measurement, place units out of direct
sunlight and away from any heat sources or vents.

• Display unit and outdoor sensor must be within 330 ft (100 m) of each other.

• To maximize wireless range, place units away from large metallic items, thick
walls, metal surfaces, or other objects that may limit wireless communication.

• To prevent wireless interference, place both units at least 3 ft (.9 m) away
from electronic devices (TV, computer, microwave, radio, etc.).

AT

LEAST

TV

3

(.9 m)

APART

(330 feet maximum)

(100 meters)

Setup is Complete

The sensor will now synchronize with the display unit. It may take a few
minutes for synchronization to complete. Please refer to the troubleshooting
section of this manual if anything appears to be functioning improperly.

9

OPERATION

Using the Weather Station

Learning Mode

Self-Calibrating Forecasting uses a unique algorithm to analyze changes in
pressure over a time period (called Learning Mode) to determine your altitude.
After 14 days, the Learning Mode icon disappears from the display screen. At
this point, the self-calibrated pressure is tuned in to your location and the unit is
ready for superior weather prediction.

Weather Forecast

AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast
of weather conditions for the next 12 to 24 hours by collecting data from
the sensor in your backyard. It generates a forecast with pinpoint accuracy ­personalized for your exact location.

RAIN/SNOW

MIX LIKELY

(windy)

(Lightning=Stormy)

View the complete list of icons at www.AcuRite.com/acurite-icons

SNOW

LIKELY

LIGHT RAIN

LIKELY

CLOUDY

PARTLY
CLOUDY

SUNNY

Barometric Pressure

Subtle variations in barometric pressure greatly impact the weather. This
weather center displays the current pressure and indicates the direction the

pressure is trending (FALLING, STEADY, or RISING).

Humidity Level Indicator

The Humidity Level Indicator easily conveys a low or high indoor humidity level
for your home and health:

Learn more at http://www.acurite.com/humidity-health

10

Troubleshooting

Problem Possible Solution

No outdoor sensor

reception

no bars

Outdoor

temperature

is ashing or

showing dashes

If the wireless signal indicator shows no bars:

• Relocate the display unit and/or the outdoor sensor. The
units must be within 330 ft (100 m) of each other.

• Make sure both units are placed at least 3 feet
(.9 m) away from electronics that may interfere with
the wireless communication (such as TVs, microwaves,
computers, etc).

• Use standard alkaline batteries (or lithium batteries in
sensor when temperature is below -4ºF/-20ºC). Do not
use heavy duty or rechargeable batteries. NOTE: It
may take up to 20 minutes for display unit and sensor to
synchronize after batteries are replaced.

Flashing of the outdoor temperature is generally an
indication of wireless interference.

1. Bring both the sensor and display unit indoors and
remove batteries from each.

2. Make sure the A-B-C switch on both units match.

3. Reinstall batteries in the outdoor sensor.

4. Reinstall batteries in the display unit.

5. Let the units sit within a couple feet of each other
for about 20 minutes to gain a strong connection.
Sometimes changing to a different channel can help.

Inaccurate forecast

Inaccurate

temperature

or humidity

• Weather Forecast icon predicts conditions for the next 12
to 24 hours, not current conditions.

• Has Learning Mode icon disappeared from the display
unit? Learning Mode must complete before forecast and
pressure will be accurate.

• Allow unit to run continuously for 33 days. Battery
removal or resetting the display unit will restart Learning
Mode. After 14 days, forecast should be fairly accurate,
however Learning Mode calibrates for a total of 33
days.

• Make sure both the display unit and sensor are placed
out of direct sunlight and away from any heat sources or

vents (see page 9).

• Make sure both units are positioned away from moisture

sources (see page 9).

11

Troubleshooting - Continued

Problem Possible Solution

• Check that the batteries are installed correctly. Batteries

Display screen

not working

may need to be replaced.

• Reset the display by pressing the reset button, located on
the back of the display unit. Date and time will need to
be entered after a reset.

The unit lost power

or batteries were

changed and the

time is not correct

• The Intelli-Time battery needs to be replaced (see page

13). Once the new battery is installed, time and date
will need to be set manually.

If your AcuRite product does not operate properly after trying
the troubleshooting steps, visit www.AcuRite.com or call
[phone] for assistance.

12

Care & Maintenance

Display Unit Care

Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep
away from dust, dirt and moisture. Clean ventilation ports regularly with a
gentle puff of air.

Outdoor Sensor Care

Clean with a soft damp cloth. Do not use caustic cleaners or abrasives.

Replace Intelli-Time Clock Battery

Intelli-Time technology is
powered by a pre-installed
coin-cell battery that stores

the time and date settings.

The battery has a shelf life of
several years. To replace the
Intelli-Time battery:

1. Locate the coin cell battery

compartment door on the

back of the display unit.

Unscrew and remove the
compartment cover.

2. Insert 1 x CR2032 coin cell battery into the battery compartment, as shown.
Install battery with “+” positive terminal facing OUT.

3. Screw in the battery cover.

13

Specications

TEMPERATURE RANGE

Outdoor: -40ºF to 158ºF; -40ºC to 70ºC
Indoor: 32ºF to 122ºF; 0ºC to 50ºC

HUMIDITY RANGE

Outdoor: 1% to 99% RH
Indoor: 1% to 99% RH

WIRELESS RANGE
OPERATING FREQUENCY
POWER

330 ft / 100 m depending on home construction materials
433 MHz
Display: 5vdc power adapter

3 x AA alkaline batteries (optional)

Sensor: 2 AA alkaline or lithium batteries

DATA REPORTING

Outdoor: 16 second updates
Indoor: 60 second updates

FCC Information

TThis device complies with part 15 of FCC rules. Operation is subject to the following two conditions:
1- This device may NOT cause harmful interference, and
2- This device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip
ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment.
Such modications could void the user authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two contions:
(1) This device may not cause interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation of the device.

-

14

Customer Support

AcuRite customer support is committed to providing you with best-in­class service. For assistance, please have the model number of this
product available and contact us in any of the following ways:

[phone] [e-mail]

24/7 support at www.AcuRite.com

► Installation Videos ► Register your Product

► Instruction Manuals ► Support User Forum

► Replacement Parts ► Submit Feedback & Ideas

PRODUCT MUST BE REGISTERED

IMPORTANT

PRODUCT REGISTRATION

Register online

to receive 1 year

warranty protection

www.AcuRite.com

TO RECEIVE WARRANTY SERVICE

Register a Product

►

Limited One Year Warranty

At AcuRite, we proudly uphold our commitment
to quality technology. Chaney Instrument Co.
warrants that all products it manufactures to
be of good material and workmanship, and to
be free of defects when properly installed and
operated for a period of one year from the date

of purchase.

We recommend that you visit us at
www.AcuRite.com for the fastest way to register
your product. However, product registration
does not eliminate the need to retain your
original proof of purchase in order to obtain
warranty benets.

Chaney Instrument Co. warrants that all products it manufactures
to be of good material and workmanship, and to be free of
defects when properly installed and operated for a period of
one year from the date of purchase. Remedy for breach of this
warranty is limited to repair or replacement of the defective
item(s). Any product which, under normal use and service, is
proven to breach the warranty contained herein within ONE
YEAR from date of sale will, upon examination by Chaney,
and at its sole option, be repaired or replaced by Chaney.
Transportation costs and charges for returned goods shall
be paid for by the purchaser. Chaney hereby disclaims all
responsibility for such transportation costs and charges. This

warranty will not be breached, and Chaney will give no credit
for products it manufactures which have received normal wear
and tear, been damaged (including by acts of nature), tampered,
abused, improperly installed, damaged in shipping, or repaired
or altered by others than authorized representatives of Chaney.

The above-described warranty is expressly in lieu of all other
warranties, express or implied, and all other warranties are
hereby expressly disclaimed, including without limitation the
implied warranty of merchantability and the implied warranty
of tness for a particular purpose. Chaney expressly disclaims
all liability for special, consequential or incidental damages,
whether arising in tort or by contract from any breach of this
warranty. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation
or exclusion may not apply to you. Chaney further disclaims all
liability from personal injury relating to its products to the extent
permitted by law. By acceptance of any of Chaney’s products,
the purchaser assumes all liability for the consequences arising
from their use or misuse. No person, rm or corporation is
authorized to assume for Chaney any other liability in connection
with the sale of its products. Furthermore, no person, rm or
corporation is authorized to modify or waive the terms of this
paragraph, and the preceding paragraph, unless done in writing
and signed by a duly authorized agent of Chaney. This warranty
gives you specic legal rights, and you may also have other
rights which vary from state to state.

For in-warranty claims: Chaney Instrument Co.

965 Wells St., Lake Geneva, WI 53147

15

Weather

Stations

Temperature

& Humidity

Weather

Alert Radio

Kitchen

Thermometers

& Timers

Clocks

It’s more than accurate, it’s

AcuRite offers an extensive assortment of precision instruments,

designed to provide you with information you can depend on to

Plan your day with condence

.

™

www.AcuRite.com

Printed in China

02048 INST 111914

©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of

the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy-

rights are the property of their respective owners. AcuRite uses patented technology.

Visit www.AcuRite.com/patents for details.
