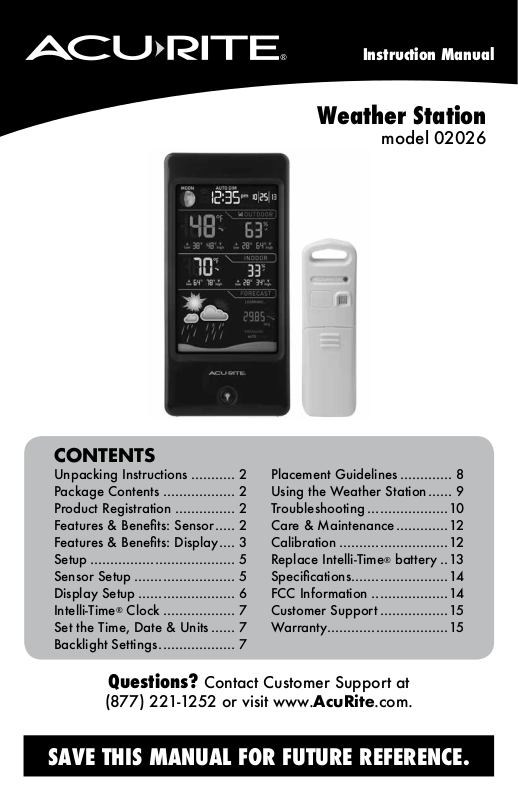

Acu-Rite 2026 User Manual
Instruction Manual
Weather Station
model 02026
CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Features & Benets: Sensor ..... 2
Features & Benets: Display .... 3
Setup .................................... 5
Sensor Setup ......................... 5
Display Setup ........................ 6
Intelli-Time® Clock .................. 7
Set the Time, Date & Units ...... 7
Backlight Settings ................... 7
Placement Guidelines ............. 8
Using the Weather Station ...... 9
Troubleshooting ....................10
Care & Maintenance .............12
Calibration ...........................12
Replace Intelli-Time® battery ..13
Specications ........................14
FCC Information ...................14
Customer Support ................. 15
Warranty..............................15
Questions? Contact Customer Support at
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Congratulations on your new AcuRite product. To ensure the best
possible product performance, please read this manual in its entirety
and retain it for future reference.
Unpacking Instructions
Remove the protective lm that is applied to the LCD screen prior to using this
product. Locate the tab and peel off to remove.
Package Contents
1. Display unit
2. Outdoor sensor
3. Power adapter
4. Instruction Manual
PRODUCT MUST BE REGISTERED
IMPORTANT
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
TO RECEIVE WARRANTY SERVICE
Register a Product
►
Features & Benets
1
2
3
4
OUTDOOR SENSOR
1. Integrated Hanger
For easy placement.
5
2. Wireless Signal Indicator
Flashes when data is being sent to the
display unit.
3. Battery Compartment
4. A-B-C Switch
ID code that must match display’s A-B-C
switch to ensure units synchronize.
5. Battery Compartment Cover
2
Features & Benets
19 1820
1
2
3
4
5
6
DISPLAY UNIT
1. Moon Phase
2. Current Outdoor Temperature
Arrow icon indicates the direction the
temperature is trending.
3. Outdoor Temperature Low/High
Records
Lowest and highest outdoor
temperature recorded since midnight.
4. Current Indoor Temperature
Arrow icon indicates the direction the
temperature is trending.
5. Indoor Temperature Low/High
Records
Lowest and highest indoor temperature
recorded since midnight.
6. 12 to 24 Hour Weather Forecast
Self-Calibrating Forecasting pulls data
from your sensor to generate your
personal forecast.
7. Momentary Backlight Button
8. Auto or Manual Pressure Mode
Indicates pressure mode preference.
Auto Pressure Mode
Pressure will self-calibrate over a 14
day Learning Mode.
Manual Pressure Mode
Indicates raw pressure value, no
adjustment for sea level (can be
calibrated).
17
16
15
14
13
12
11
10
9
8
7
9. Barometric Pressure
Arrow icon indicates the direction the
pressure is trending.
10. Learning Mode Icon
Disappears after weather forecast selfcalibration is complete.
11. Indoor Humidity Low/High Records
Lowest and highest indoor humidity
recorded since midnight.
12. Current Indoor Humidity
Arrow icon indicates the direction
the humidity is trending.
13. Display Low Battery Indicator
14. Outdoor Humidity Low/High
Records
Lowest and highest outdoor humidity
recorded since midnight.
15. Current Outdoor Humidity
Arrow icon indicates the direction
the humidity is trending.
16. Sensor Low Battery Indicator
17. Outdoor Sensor Signal Strength
18. Date
19. AUTO DIM Mode Indicator (page 7)
20. Intelli-Time® Clock
Automatically updates itself for Daylight Saving Time.
3
Features & Benets
1
2
3
4
5
7
8
6
BACK OF DISPLAY UNIT
1. Adjust Up Button
for setup preferences.
2. Setup Mode Button
for setup preferences.
3. Adjust Down Button
for setup preferences.
4. All-Time Records Button
Press to access all-time high and low
records.
9
5. Battery Compartment
6. Plug-in for Power Adapter
7. A-B-C Switch
ID code that must match sensor’s A-B-C
switch to ensure units synchronize.
8. Reset Button
Full reset to factory defaults.
9. Power Adapter
10. Battery Compartment Cover
(not shown)
4
SETUP
Sensor Setup
1
Set the A-B-C Switch
The A-B-C switch is located inside
the battery compartment. It can
be set to A, B or C. However,
you must select the same letter
choices for both the sensor and
the display unit in order for the
units to synchronize.
Install or Replace Batteries
2
AcuRite recommends high quality
alkaline or lithium batteries in
the outdoor sensor for the best
product performance. Heavy
duty or rechargeable batteries
are not recommended.
The sensor requires lithium
batteries in low temperature
conditions. Cold temperatures
can cause alkaline batteries
to function improperly. Use
lithium batteries in the sensor for
temperatures below -4ºF / -20ºC.
1. Slide off the battery
compartment cover. Take
note of the A-B-C switch
setting inside the battery
compartment for display unit
setup.
2. Insert 2 x AA batteries into
the battery compartment, as
shown. Follow the polarity
(+/-) diagram in the battery
compartment.
3. Replace the battery cover.
A-B-C Switch
1
set to match
display unit
A B C
Install Batteries
2
2 AA batteries
5
