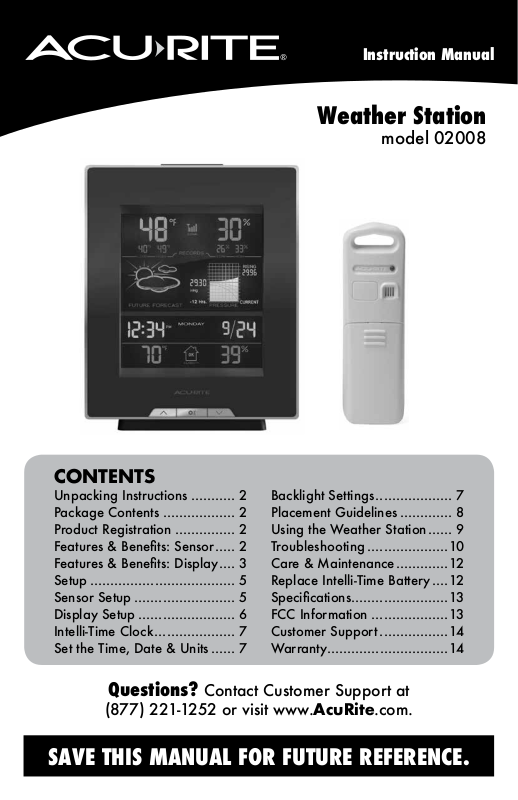

Acu-Rite 2008 User Manual
Instruction Manual
Weather Station
model 02008
CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Features & Benets: Sensor ..... 2
Features & Benets: Display .... 3
Setup .................................... 5
Sensor Setup ......................... 5
Display Setup ........................ 6
Intelli-Time Clock .................... 7
Set the Time, Date & Units ...... 7
Backlight Settings ................... 7
Placement Guidelines ............. 8
Using the Weather Station ...... 9
Troubleshooting ....................10
Care & Maintenance .............12
Replace Intelli-Time Battery .... 12
Specications ........................13
FCC Information ...................13
Customer Support ................. 14
Warranty..............................14
Questions? Contact Customer Support at
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Congratulations on your new AcuRite product. To ensure the best
possible product performance, please read this manual in its entirety
and retain it for future reference.
Unpacking Instructions
Remove the protective lm that is applied to the LCD screen prior to using this
product. Locate the tab and peel off to remove.
Package Contents
1. Display unit with tabletop stand
2. Power adapter
3. Outdoor sensor
4. Instruction Manual
PRODUCT MUST BE REGISTERED
IMPORTANT
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
TO RECEIVE WARRANTY SERVICE
Register a Product
►
Features & Benets
1
2
3
4
OUTDOOR SENSOR
1. Integrated Hanger
For easy placement.
5
2. Wireless Signal Indicator
Flashes when data is being sent
to the display unit.
3. Battery Compartment
4. A-B-C Switch
ID code that must match display’s
A-B-C switch to ensure units synchronize.
5. Battery Compartment Cover
2
Features & Benets
DISPLAY UNIT FRONT
1
2
3
4
5
6
7
8
25 2324 22
21
20
19
18
17
16
15
26
27
28
29
30
31
9 1110 12 13 14
BACK OF DISPLAY UNIT
32
3
DISPLAY UNIT FRONT
1. Current Outdoor Temperature
2. Outdoor Low Temperature Record
Lowest temperature recorded since
midnight.
3. Outdoor High Temperature Record
Highest temperature recorded since
midnight.
4. 12 to 24 Hour Weather Forecast
Self-Calibrating Forecasting pulls data
from the outdoor sensor to generate
your personal forecast.
5. Learning Mode Icon
Disappears after weather forecast
self-calibration is complete.
6. Intelli-Time® Clock
Automatically updates for
Daylight Saving Time.
7. Time Zone
8. Current Indoor Temperature
9. “ “ Arrow
for setup preferences.
10. Humidity Level Icon
Indicates a high, low or ideal
indoor humidity level.
11. “ “ Button
for setup preferences.
12. Display Unit Low Battery Indicator
13. “ “ Arrow
for setup preferences.
14. Current Indoor Humidity
15. Date
16. Day of the Week
17. Pressure History Chart
Displays the past 12 hours of data for
barometric pressure.
18. Current Baromteric Pressure
FALLING, STEADY or RISING
indicates the direction pressure is
trending.
19. Outdoor Low Humidity Record
Lowest humidity recorded since
midnight.
20. Outdoor High Humidity Record
Highest humidity recorded since
midnight.
21. Current Outdoor Humidity
22. Historical Barometric Pressure
Pressure reading 12 hours ago.
23. Outdoor Sensor Signal Strength
24. Sensor Low Battery Indicator
25. Momentary Backlight Button
Lights display for 7 seconds (only
applicable while on battery power).
DISPLAY UNIT BACK
26. Integrated Hang Hole
for easy wall mounting.
27. Reset
Full reset to factory defaults.
28. A-B-C Switch
ID code that must match 5-in-1sensor’s
A-B-C switch to ensure units
synchronize.
29. Battery Compartment
30. “LIGHT” Switch
Controls the display’s backlight and
brightness: Off, Low, Medium, High
31. Plugin for Power Adapter
32. Battery Compartment Cover
4
SETUP
Sensor Setup
Set the A-B-C Switch
1
The A-B-C switch is located inside
the battery compartment. It can
be set to A, B or C. However,
you must select the same letter
choices for both the sensor and
the display unit in order for the
units to synchronize.
Install or Replace Batteries
2
AcuRite recommends high quality
alkaline or lithium batteries for
the best product performance.
Heavy duty or rechargeable
batteries are not recommended.
The sensor requires lithium
batteries in low temperature
Install Batteries
2
2 AA batteries
conditions. Cold temperatures
can cause alkaline batteries
to function improperly. Use
lithium batteries in the sensor for
temperatures below -4ºF / -20ºC.
1. Slide off the battery
compartment cover. Take
note of the A-B-C switch
setting inside the battery
compartment.
2. Insert 2 x AA batteries into
the battery compartment, as
shown. Follow the polarity
(+/-) diagram in the battery
compartment.
3. Replace the battery cover.
A-B-C Switch
1
set to match
display unit
A B C
5
