Instruction Manual
Weather Center
model 01605
eak
OCT
SAVE THIS MANUAL FOR FUTURE REFERENCE.
CONTENTS
Unpacking Instructions ................2
Package Contents .......................2
Product Registration ....................2
Features & Benefits: 3-in-1 ..........3
Features: Display Unit .................4
Setup ........................................6
3-in-1 Sensor Setup ....................6
Display Unit Setup ......................7
Set Time, Date & Units ................8
Placement Guidelines .................9
Questions? Contact Customer Support at
(877) 221-1252 or visit www.AcuRite.com.
3-in-1 Sensor Installation ..........10
Using the Weather Center .........11
Troubleshooting ........................ 13
Care & Maintenance ................15
Calibration ..............................15
Replace Intelli-Time® Battery ...... 16
Specifications ...........................17
FCC Information ....................... 17
Customer Support ....................18
Warranty .................................18
Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference.
Unpacking Instructions
Remove the protective film that is applied to the LCD screen prior to using this product. Locate the tab and peel off to remove.
Package Contents
1. Display unit
2. 3-in-1 sensor
3. Sensor mounting bracket
4. Mounting hardware
5. Power adapter
6. Instruction Manual
IMPORTANT
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE
Register a Product
2
Features & Benets
1
4
2
5
3-in-1 SENSOR
1. Temperature & Humidity Sensors
(internal)
2. Release Lever for Battery Access
3. Mounting Point
4. Wind Speed Anemometer
6
3
5. Mounting Hardware
Includes anchors and screws.
Qty Diameter Length
4 #4 1” 1 #6 or #8 1/4” or 3/8”
6. Mounting Bracket
7. A-B-C Switch (not shown)
ID code that must match display’s A-B-C switch to ensure units synchronize.
3
AUTO DIM
T
Z
ON
AU DST
wind chill
eat indx
w point
auto
MPH
man
ual
Learning...
high indoor humidity!
w
oo hm
dit
y
g
l
g
OCT
12-24 hour forecast
barometer
current
WIND
average peak
Features & Benets
1 2 3 4
23 22
21
24
5
6 7
8
9 10 11
12
DISPLAY UNIT
1. Current Outdoor Temperature
Arrow icon indicates the direction the temperature is trending.
2. Seasonal Information Wind chill will show when
temperatures are below 40 Dew Point when temperature is 41-
o
79
F (5-26oC), and Heat Index when
temperature is over 80
3. Current Wind Speed
4. Average Wind Speed
Based on all wind speed readings from
the past 2 minutes.
5. 12 to 24 Hour Weather Forecast
Self-Calibrating Forecasting pulls data from your sensor to generate your personal forecast.
6. Storm Indicator Indicates a rapid drop in pressure and
probable storms.
7. Humidity Level Indicator
Indicates a high or low indoor humidity level.
8. Current Indoor Temperature
9. Today Icon
Arrow icon indicates the direction the temperature is trending.
Indicates viewing high/low records since midnight.
o
F (4oC),
o
F (27oC).
20
19 18 17
16 15 14
13
10. Moon Phase
11. Icon Indicates SET mode.
12. All-Time Icon Indicates viewing All-Time records.
13. Backlight Button
14. Intelli-Time® Clock
Automatically updates itself for Daylight Saving Time.
15. AUTO DIM Mode Indicator (page 8)
16. Date
17. Display Low Battery Indicator
18. Current Indoor Humidity
Arrow icon indicates the direction the humidity is trending.
19. Learning Mode Icon
Disappears after weather forecast self­calibration is complete.
20. Barometric Pressure
Arrow icon indicates the direction the pressure is trending.
21. Peak Wind Speed Highest speed from past 60 minutes.
22. Sensor Low Battery Indicator
23. Current Outdoor Humidity
Arrow icon indicates the direction the humidity is trending.
24. Outdoor Sensor Signal Strength
4
Features & Benets
1
2
3
4
5
7 8
6
BACK OF DISPLAY UNIT
1. Button
for setup preferences.
2. Button
for setup preferences.
3. Button
for setup preferences.
4. Button
Press to access all-time high and low records.
9
5. Battery Compartment
6. Plug-in for Power Adapter
7. A-B-C Switch
ID code that must match sensor’s A-B-C switch to ensure units synchronize.
8. Reset Button
Full reset to factory defaults.
9. Power Adapter
10. Battery Compartment Cover
(not shown)
5
SETUP
3-IN-1 Sensor Setup
Set the A-B-C Switch
1
The A-B-C switch is located inside the battery compartment. It can be set to A, B or C. However, you must select the same letter choices for both the sensor and the display unit in order for the units to synchronize.
2
Install or Replace Batteries
AcuRite recommends high quality alkaline or lithium batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended.
The 3-in-1 sensor requires lithium batteries in low temperature conditions. Cold temperatures can cause alkaline batteries to function improperly. Use lithium batteries in the 3-in-1 sensor for temperatures below -4ºF / -20ºC.
1. Press the release lever and pull off the lower housing of the sensor.
2. Remove the battery compartment cover. Take note of the A-B-C switch setting inside the battery compartment.

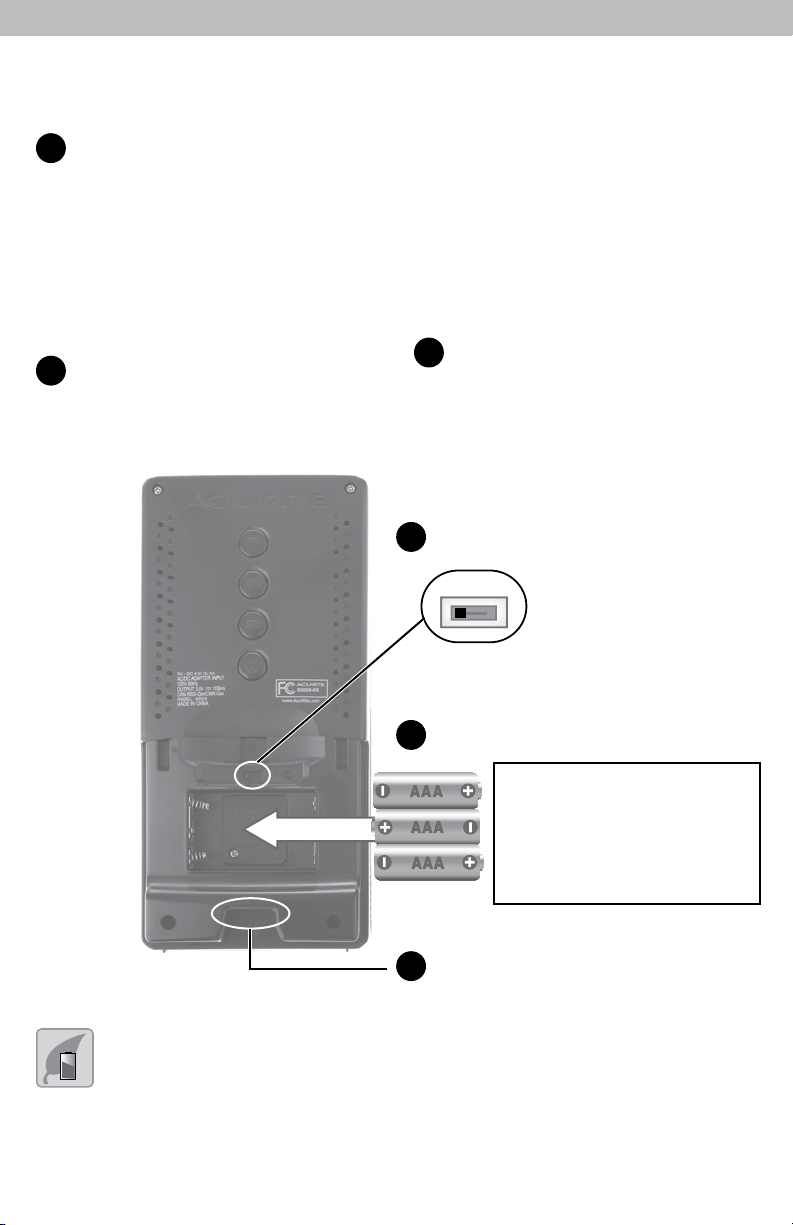

3. Insert 4 x AA batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
4. Replace the battery cover and lower housing of the sensor.
A B C
A-B-C Switch
1
set to match display unit
2
6
