ACTiSYS ACT-BT5510CL User Manual
Bluetooth LCD Hands-free Car Kit

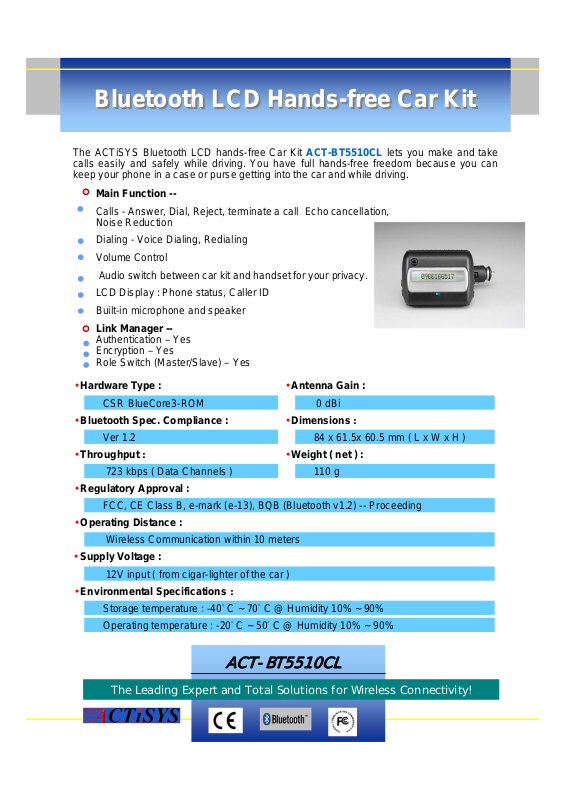

Bluetooth LCD Hands-free Car Kit
The ACTiSYS Bluetooth LCD hands-free Car Kit ACT-BT5510CL lets you make and take
calls easily and safely while driving. You have full hands-free freedom because you can
keep your phone in a case or purse getting into the car and while driving.
Main Function --
Calls - Answer, Dial, Reject, terminate a call Echo cancellation,
Noise Reduction
Dialing - Voice Dialing, Redialing
Volume Control
Audio switch between car kit and handset for your privacy.
LCD Display : Phone status, Caller ID
Built-in microphone and speaker
Link Manager --
Authentication – Yes
Encryption – Yes
Role Switch (Master/Slave) – Yes
• Hardware Type :
CSR BlueCore3-ROM
• Bluetooth Spec. Compliance :
Ver 1.2
• Throughput :
723 kbps ( Data Channels )
• Regulatory Approval :
FCC, CE Class B, e-mark (e-13), BQB (Bluetooth v1.2) -- Proceeding
• Operating Distance :
Wireless Communication within 10 meters
• Supply Voltage :
12V input ( from cigar-lighter of the car )
• Environmental Specifications :
Storage temperature : -40° C ~ 70° C @ Humidity 10% ~ 90%
Operating temperature : -20° C ~ 50° C @ Humidity 10% ~ 90%
• Antenna Gain :
0 dBi
• Dimensions :
84 x 61.5x 60.5 mm ( L x W x H )
• Weight ( net ) :
110 g
ACT-BT5510CL
The Leading Expert and Total Solutions for Wireless Connectivity!
SPECIFICATIONS
SPECIFICATIONS
ACT-BT5510CL Bluetooth LCD Hands-free Car Kit
• Power Consumption :
Standby Mode : 50mA
Active Mode : 300mA
• Spread Spectrum :
Frequency Hopping Spread Spectrum ( FHSS ) , Compliant with FCC part 15
• Frequency Range :
2.402 ~ 2.4835 GHz ( 2.4GHz ISM Band )
• RF Channels :
79 – channel system for USA, Japan, and Europe
• Polarization :
Linear
• Output Power :
GFSK, BT=0.5
• Modulation :
1 ~ -2dBm
• Receiver Sensitivity :
-77 dBm with BER < 0.1%
• Max Input Level :
-20 dBm
• Physical Links :
Support of ACL and SCO link
• System Support :
Embedded System
• Profile Support :
Headset Profile & Hands-free Profile
• Compatible Phones :
Sony Ericsson: T610,T630, P800,P900,
T68i, T39 ,Z600
Nokia Series: 3650,8910,8910i,6310,6600
Panasonic X70; Motorola A760
ACT-BT5510CL
• Accessories :
User Manual
Vehicle Power Adaptor
The Leading Expert and Total Solutions for Wireless Connectivity!
