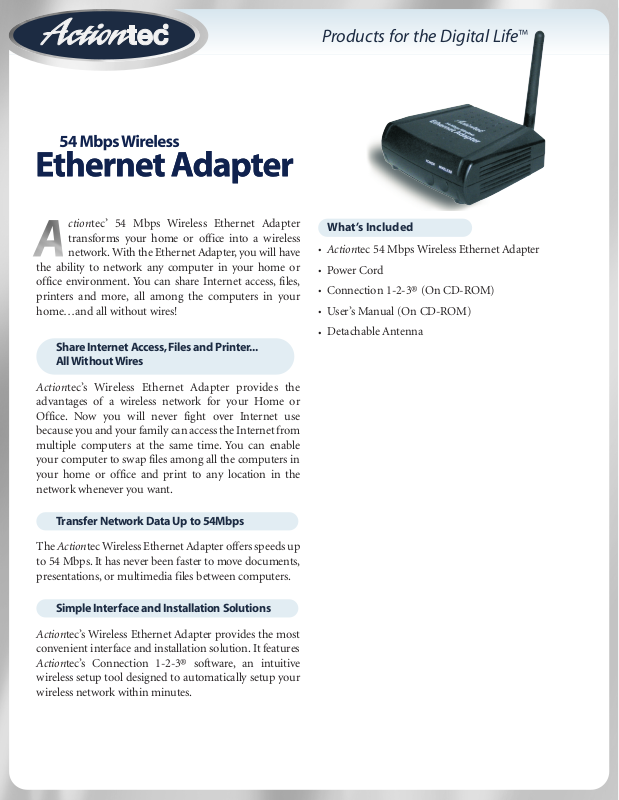

ctiontec’54 Mbps Wireless Ethernet Adapter
transforms your home or office into a wireless

A

the ability to network any computer in your home or
office environment. You can share Internet access, files,
printers and more, all among the computers in your
home…and all without wires!

Actiontec’s Wireless Ethernet Adapter provides the
advantages of a wireless network for your Home or
Office. Now you will never fight over Internet use
because you and your family can access the Internet from
multiple computers at the same time. You can enable
your computer to swap files among all the computers in
your home or office and print to any location in the
network whenever you want.

network.With the EthernetAdapter,you will have

Share Internet Access, Files and Printer...
All Without Wires

What’s Included

Actiontec 54 Mbps Wireless Ethernet Adapter

•

Power Cord

•

Connection 1-2-3® (On CD-ROM)

•

User’s Manual (On CD-ROM)

•

Detachable Antenna

•

Transfer Network Data Up to 54Mbps

The Actiontec Wireless EthernetAdapter offers speeds up
to 54 Mbps. It has never been faster to move documents,
presentations, or multimedia files between computers.

Simple Interface and Installation Solutions

Actiontec’s Wireless Ethernet Adapter provides the most
convenient interface and installation solution. It features
Actiontec’s Connection 1-2-3® software, an intuitive
wireless setup tool designed to automatically setup your
wireless network within minutes.

Specifications

Solutions for the Digital Life

™

Features

Ethernet

Wireless

Wireless Security

Bridge

DHCP Client

FTP Server/Client

Web server and Web

Based

Configuration

Descriptions

• ISO/IEC 8802-3; ANSI/IEEE standard 802.3 part 3

- IEEE 802.3x – Full Duplex capable

- IEEE 802.3u – Auto negotiation

• RFC 1213 S K. McCloghrie,M. Rose, "Management
Information Base for Network management of
TCP/IP-based internet: MIB-II", 03/26/1991

• D-I-X, "The Ethernet - A Local Area Network:
Data Link Layer and Physical Layer Specifications",
Digital, Intel, and Xerox, November 1982.

• IEEE 802.11B

• IEEE 802.11G

• WEP 64 and 128 bit encryption

• 802.1x

• Transparent MAC level bridge for Ethernet-like
devices in conformance with the IEEE802.1d
specification.

• ISO/IEC 10038:1993 (E), Std 802.1D.

• RFC1213 S K. McCloghrie,M. Rose, "Management
Information Base for Network Management of
TCP/IP-based internet: MIB-II", 03/26/1991.

• RFC1493 Definitions of Managed Objects for
Bridges. E. Decker,P. Langille, A. Rijsinghani, & K.
McCloghrie. July 1993.

• RFC 2131: Dynamic Host Configuration Protocol:

R. Droms, March 1997.

• RFC 2132: DHCP Options and BOOTP Vendor
Extensions: S. Alexander, March 1997.

• The DHCP client supports the following minimal
subset of options described in RFC2132:

- Requested IP Address (requested by default; is

mandatory)

- Parameter Request list (subnet-mask only)

- IP Address Lease time (dhcp-lease-time)

- Client-identifier (dhcp-client-identifier)

- Default route (routers)

- DNS servers

• RFC 1350, The TFTP Protocol (Revision 2).

K. Sollins. July 1992.

• FTP server is in boot loader only.

• RFC 1945, Hypertext Transfer Protocol -­HTTP/1.0. T. Berners-Lee, R. Fielding, H. Frystyk.
May 1996.

Web server and Web

Based

Configuration

(continued)

Enclosure

Visual indicators

Connectors:

Environmental

Operating Range

Power Requirements

Power Dissipation

• RFC 2068, Hypertext Transfer Protocol --HTTP/1.1. R.
Fielding, J. Gettys, J. Mogul, H. Frystyk, T.Berners-Lee.
January 1997. (Not full support).

• RFC 2617, HTTP Authentication: Basic and Digest Access

Authentication. J. Franks, P. Hallam-Baker, J. Hostetler, S.

Lawrence, P. Leach,A. Luotonen, L. Stewart. June 1999.

The enclosure has the following physical dimensions:

Length: 3 3/4 inch
Width: 3 1/4 inch
Height: 1 1/4 inch

Power: ON/OFF Ready indicator;

Solid Green = Power on
Off = Power off

WLAN: WLAN indicator light that indicates

whether or not it has at least one session up.
Solid Light Green = LAN Cable

connection or WLAN
association to an
Access Point

Off = Modem power off or

WAN connection
not present.

Flickering Green = Wireless or LAN

port activity
(either direction)

RJ-45: One for Ethernet LAN connection
Power: One power connector for wall mount

12V DC power adapter

ResetButton: Reset the unit and Reset to manufacturing

default

Antenna: One detachable using an RP-SMA

connector

Operating temperature: 0-55 degrees Celsius
Humidity: 5-98%, non-condensing

Operating voltage: +5V DC +- 5% @ 2A max

Power Dissipation for GT701-EA
Active (typical) 5V DC @ 1.2A
