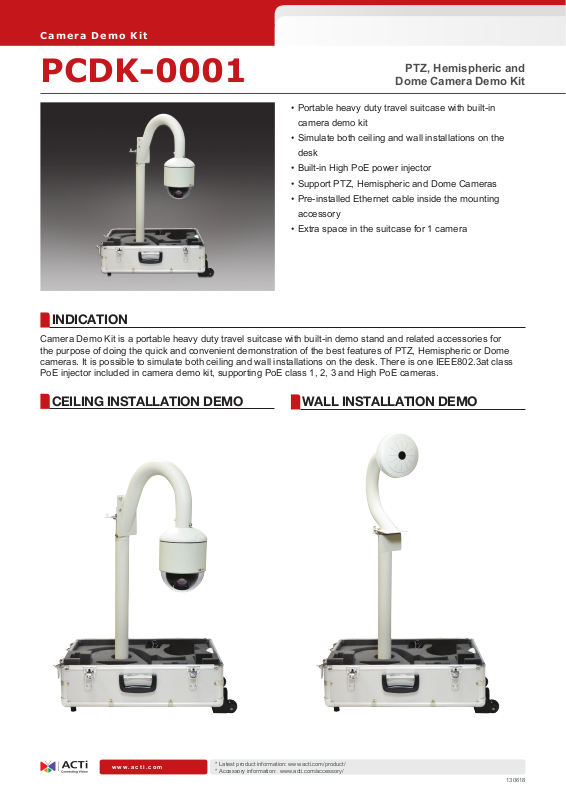

ACTi PCDK-0001 Specsheet

Camera Demo Kit

PCDK-0001

PTZ, Hemispheric and

Dome Camera Demo Kit

•Portable heavy duty travel suitcase with built-in

camera demo kit

•Simulate both ceiling and wall installations on the

desk

•Built-in High PoE power injector

•Support PTZ, Hemispheric and Dome Cameras

•Pre-installed Ethernet cable inside the mounting

accessory

•Extra space in the suitcase for 1 camera

INDICATION

Camera Demo Kit is a portable heavy duty travel suitcase with built-in demo stand and related accessories for
the purpose of doing the quick and convenient demonstration of the best features of PTZ, Hemispheric or Dome
cameras. It is possible to simulate both ceiling and wall installations on the desk. There is one IEEE802.3at class
PoE injector included in camera demo kit, supporting PoE class 1, 2, 3 and High PoE cameras.

CEILING INSTALLATION DEMO

WALL INSTALLATION DEMO

www.acti.com

* Latest product information: www.acti.com/product/
* Accessory information: www.acti.com/accessory/

130618

Camera Demo Kit

PCDK-0001

PRODUCT SPECIFICATION

PCDK-0001

• General

Device Type Camera Demo Kit
Device Design Heavy duty travel suitcase with 1 pair of wheels
Maximum Number of

Cameras
Camera Orientation Face forward, face down
Supported Camera Types PTZ Camera, Hemispheric Camera, Dome Camera

• Mounting

Mounting Accessory Built-in heavy duty mounting accessory set

• Cabling

Camera Side Ethernet Port 1, pre-installed cable, Ethernet (10/100 Base-T), RJ-45 connector
PC Side Ethernet Port 1, pre-installed cable, Ethernet (10/100 Base-T), RJ-45 connector

• Power

Power Source Built-in IEEE802.3at standard PoE injector, supporting PoE Class 1, 2, 3 and High PoE cameras
Input for Power Source AC 100-240V, 0.8A
Power Consumption According to camera's power consumption
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Operating Humidity 10% ~ 85% RH

• Hardware

Weight 7.9g (17.4 lb)
Dimensions (W x H x D) 560 mm x 360 mm x 230 mm (22" x 14.2" x 9.1")

Bundled Accessories

Reserved Space Reserved space in the suitcase for 1 camera (camera not included in demo kit)

Universal connector kit for PoE injector (UK, Europe, USA); RJ-45 male type to female type converter;

Scews for mounting equipment, Key to lock the suitcase

• Required Additional Items

Demo PC One PC with pre-installed Internet Explorer browser (not included in demo kit)

Demo Display

Installation Tools Phillips screwdriver (not included in demo kit)

To demonstrate the video quality of 2-Megapixel or higher resolution cameras,

it is recommended to use 1080p resolution display (not included in demo kit)

• Supported Camera Models

PTZ Camera KCM-8111
Hemispheric Camera KCM-3911, KCM-7911
Dome Camera D5x, E5x, D6x, E6x, D7x, E7x, D8x, E8x, KCM-7111, KCM-7311

1
