Page 1
E54
5MP Indoor Dome with D/N, IR, Basic WDR,
Fixed lens
Hardware User’s Manual
(PoE)
Ver. 2012/12/12
Page 2
www.acti.com
E54 Hardware User’s Manual
Table of Contents
0. Precautions 3
1. Introduction 4
Package Contents ........................................................................... 4
Features and Benefits ..................................................................... 5
Safety Instructions .......................................................................... 6
Physical description ........................................................................ 8
Installation Procedure .................................................................... 9
Ceiling Mount ................................................................................. 9
Wall Mount ................................................................................... 12
Adjust Viewing Angle and Focus .................................................. 15
Basic Connections ......................................................................... 17
Product Specification .................................................................... 18
2. Accessing Camera 19
If you have DHCP server / router in your network: ...................... 19
If you do
NOT
have DHCP server / router in your network: ......... 19
2
Page 3
www.acti.com
E54 Hardware User’s Manual
0. Precautions
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to
follow the safety instruction given may directly endanger people, cause damage to the system
or to other equipment.
Servicing
Do not attempt to service this video device yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your
local office if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.
FCC/CE Regulation
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the users will be required to correct the
interference at their own expense.
3
Page 4
www.acti.com
E54 Hardware User’s Manual
1. Introduction
Package Contents
E54 Accessories
Lens Focus Tuner Warranty Card
QIG Drill Template
4
Page 5
www.acti.com
E54 Hardware User’s Manual
Features and Benefits
This is a cutting-edge digital video surveillance camera. It can compress and transmit real time
images with outstanding image quality through a standard TCP/IP network. This camera is
your best choice to build an intelligent IP surveillance system.
H.264 High Profile/MJPEG Multi-Codec Dual Streaming
This device supports 2 compression formats, H.264 High Profile and MJPEG. It brings superior
image quality at 15 frames per second up to resolution of 2592 x 1944 pixels and 2048 x 1536
pixels. In Full HD 1080p (1920 x 1080), 720p (1280 x 720) and VGA resolution (640 x 480) the
device reaches 30 frames per second.
Built-in Hardware Motion Detection
No more external motion sensors are required. You may assign up to 3 video motion detection
areas. By tuning the object size and sensitivity, it will reliably detect objects passing though is
view. Hardware motion detection also offers better sensitivity and faster response time than
software motion detection.
Powerful Bundled Surveillance Software
To extend the capabilities of the IP Camera series, a powerful surveillance program is included
in the package for free. Users can easily use an existing PC as a digital video recorder.
Scheduled recording and manual recording keep every important video recorded in the local
hard disk. Reliable and accurate motion detection with instant warning enables immediate
response in every condition. Quick and simple search and playback function lets you easily find
the images and video you want.
Software Development Kit Support
This IP Camera can be integrated or controlled by applications from third party software
developers. Software developers can save considerable efforts by using our Streaming Library
or ActiveX control. Please contact us for details on integration support.
5
Page 6
www.acti.com
E54 Hardware User’s Manual
Safety Instructions
Don’t open the housing of the product
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may
cause hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to
qualified service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the video product has been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in
this manual. Adjust only those controls that are covered by the instruction manual, as an
improper adjustment of other controls may result in damage, and will often require
extensive work by a qualified technician to restore the video product to its normal
operation.
6
Page 7
www.acti.com
E54 Hardware User’s Manual
Safety Check
Upon completion of any service or repairs to this video product, ask the service technician to
perform safety checks to determine if the video product is in proper operating condition.
7
Page 8
www.acti.com
E54 Hardware User’s Manual
Physical description
1) Power LED
LED light will light up while the power is on. LED light will light off after the unit has successfully
completed the boot process.
2) Ethernet Port
The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this
IP device can auto detect the speed of local network segment (10Base-T/100Base-TX
Ethernet).
3) Reset Button
Step 1: Press and continue to hold the Reset Button for 15 seconds (with a sharp tipped object,
like a pen.) while the power of the unit is on.
Step 2: The Ethernet LED light will turn off for about 1~2 seconds and flash on for another
second. By this time the reset to default operation is already completed. You may then release
the reset button. This length of time fluctuates slightly with the environment. The unit will come
back on and stay on after a few more seconds. The unit will start up with factory default
settings automatically.
8
Page 9
www.acti.com
E54 Hardware User’s Manual
Installation Procedure
Ceiling Mount
Use the drill template, and drill a hole with φ35 on the ceiling
Use the mounting plate and choose the correct three screw holes.
Tighten the plate to ceiling with T4*20 screws (not to use screws other than flat heads)
9
Page 10
www.acti.com
E54 Hardware User’s Manual
Please make sure the screw is flat on the plate, protruding is incorrect.
Connect cables through the hole on the ceiling and plate, or on the side of casing
Fasten the camera to ceiling by turning clockwise direction
10
Page 11
www.acti.com
E54 Hardware User’s Manual
Insert the cables (Network) through the mounting plate and connect to the camera. Then use
the little strap in bundled accessory to fasten the network cable.
Done
11
Page 12
www.acti.com
E54 Hardware User’s Manual
Wall Mount
Tighten wall mount bracket to the wall by 3 PAN Head Tapping screws
Use the mounting plate and choose the correct three screw holes.
Tighten the plate to wall mount bracket with M4*6 screws (not to use screws other than flat
heads), and connect all necessary cables through the hole on the plate and wall mount kit
12
Page 13
www.acti.com
E54 Hardware User’s Manual
Please make sure the screw is flat on the plate, protruding is incorrect.
Insert the cables (power/Network/audio) through the mounting plate and connect to the
camera. Then use the little strap in bundled accessory to fasten the network cable.
13
Page 14
www.acti.com
E54 Hardware User’s Manual
Fasten the camera to wall mount kit by turning clockwise direction and done
14
Page 15
www.acti.com
E54 Hardware User’s Manual
Adjust Viewing Angle and Focus
Remove the front cover with counterclockwise direction.

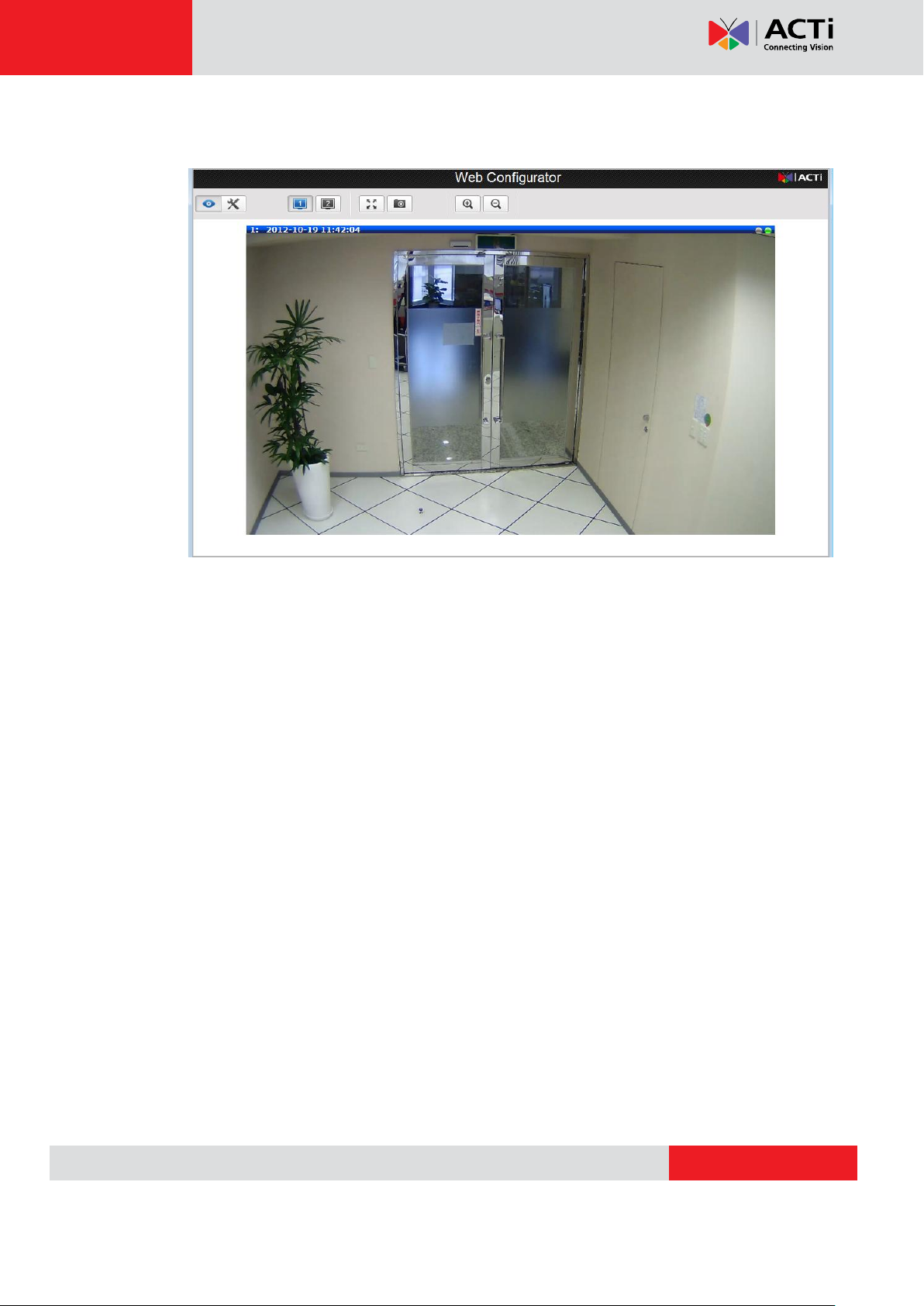

Based on the live view from the camera, adjust the viewing angle with pan and tilt direction.
15
Page 16
www.acti.com
E54 Hardware User’s Manual
Attach the focus tuner on lens to adjust the focus of lens.
Remove the lens focus tuner.
Attach the dome cover to the camera and push it into the groove until it clicks.
16
Page 17
www.acti.com
E54 Hardware User’s Manual
Basic Connections
Follow the procedures below to connect the IP device to the respective apparatuses.
Please use a PoE (Power over Ethernet) supported switch or injector:
1) Connect your IP Camera to the PoE Switch / Injector by CAT5 or CAT6 cables with RJ45
connector.
2) Connect your PoE Switch / Injector to PC with another CAT5 / CAT6 network cable.
17
Page 18
www.acti.com
E54 Hardware User’s Manual
E54
• Device
Device Type Fixed Indoor Dome Camera
Image Sensor Progressive Scan CMOS
Day / Night Yes
Minimum Illumination Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
Color to B/W switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700~1100nm
IR LED IR LED x 16 (850nm)
IR Working Distance 15 m (0 lux, 30 IRE, Max exposure gain)
Electronic Shutter 1/5 - 1/2,000 sec (Manual / Auto mode)
• Lens
Focal Length / Aperture Fixed focal, f3.6 mm / F1.8
Iris Fixed iris
Focus Fixed focus
Mount Type Board Mount
Horizontal Viewing Angle 72°
Viewing Angle Adjustment Pan: 0° - 330°; Tilt: 20° - 90°
• Video
Compression H.264 HP, MJPEG
Maximum Frame Rate
vs. Resolution
15fps at 2592x1944; 15 fps at 2048x1536;
30 fps at 1920 x 1080 (Full HD 1080p); 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA)
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28 Kbps - 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Image Enhancement
Basic WDR; White balance: automatic, hold, and manual;
Brightness; Contrast;Auto gain control; Digital noise reduction; Flickerless
Privacy Mask 4 configurable regions
Text Overlay User defined text on video
Image Orientation Image flip and mirror
• Network
Protocol & Service
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP,
UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
• Alarm
Alarm Trigger Video motion detection (3 regions)
Alarm Response
Notify control center; Change camera settings; Command other devices;
E-mail notification with snapshots; Upload video, snapshot to FTP server
• General
Power Source / Consumption PoE Class 2 (IEEE802.3af) / 6.49 W (IR on)
Weight 292 g (0.64 lb)
Dimensions (Φ x H) 128 mm x 99 mm (5.12" x 3.90")
Mount Type Surface, Pendant, Wall, Corner, Pole, Flush
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Operating Humidity 10% ~ 85% RH
Approvals CE, FCC
• Integration
Unified Solution Fully compatible with ACTi software
ISV Integration Software Development Kit (SDK) available; ONVIF compliant
Firmware Access Browser Microsoft Internet Explorer 6.0 or newer
Product Specification
18
Page 19
www.acti.com
E54 Hardware User’s Manual
2. Accessing Camera
If you have DHCP server / router in your network:
Many network server / routers are able to automatically provide IP addresses through DHCP. If
you are using such a network, just plug in your computer and IP Camera into the network and
your IP device will acquire network address by itself. Find and access the device with our IP
Utility program. You may download it at:
http://www.acti.com/product/detail/Software/ACTi_Utility_Suite
If you do
NOT
have DHCP server / router in your
network:
1. Configure your PC to use the same subnet by changing your PC’s IP address to the
subnet with prefix 192.168.0.XXX. The last number should be anything from 1 to 254
except 100 and other occupied IP addresses. Subnet mask should be 255.555.255.0.
2. The default IP used by this device is 192.168.0.100. Please make sure your PC is
NOT using this address and that no two equipments use the same IP address in
the network.
3. Change your IP address by going to Control Panel ->Manage Network Connections ->
Right click on the connection to change -> Option -> TCP/IP IPv4 Properties.
19
Page 20
www.acti.com
Please set the settings as below.
IP address: 192.168. 0.xxx
Subnet mask: 255.255.255.
0
(NOTE: xxx should be a number
from 1 to 254 except 100, which is
used by the IP device. Please also
make sure that no two equipments
use the same IP address in the
E54 Hardware User’s Manual
4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP:
192.168.0.100
5. When you see the login window, please input default user and password:
Default User: Admin Password: 123456
20
Page 21
www.acti.com
E54 Hardware User’s Manual
6. After logging in, you will see the video from camera. To go to the main menu, click the
“Setup” button on the top left.
If you are using a single camera, this is enough to access the device.
If you are using multiple devices, you need to change the current device to another
unused IP address, so that when the next device is connected to the network, no two
devices use the same IP. Please perform the following steps.
7. Go to IP Settings -> Connection Type
8. Change the IP mode to Static.
9. Change the IP to 192.168.0.101 or any other unused IPs. Do NOT use the PC’s IP
address or 192.168.0.100.). If this is not the first device you add to the network, please
also avoid other devices’ IPs.
21
Page 22
www.acti.com
E54 Hardware User’s Manual
10. Click “Apply”
11. Please go to System -> Save & Reboot, and click “Apply”. Internet Explorer will close
after a few seconds. This is normal.
12. Wait for 30 seconds, and open IE again to connect to the new IP. (In this example,
192.168.0.101). For the second device or more you add into the network, please type
the correct IP.
13. Adjust the default Video setting by going to Video -> Video
Please refer the firmware manual for the detail information.
22
Loading...
