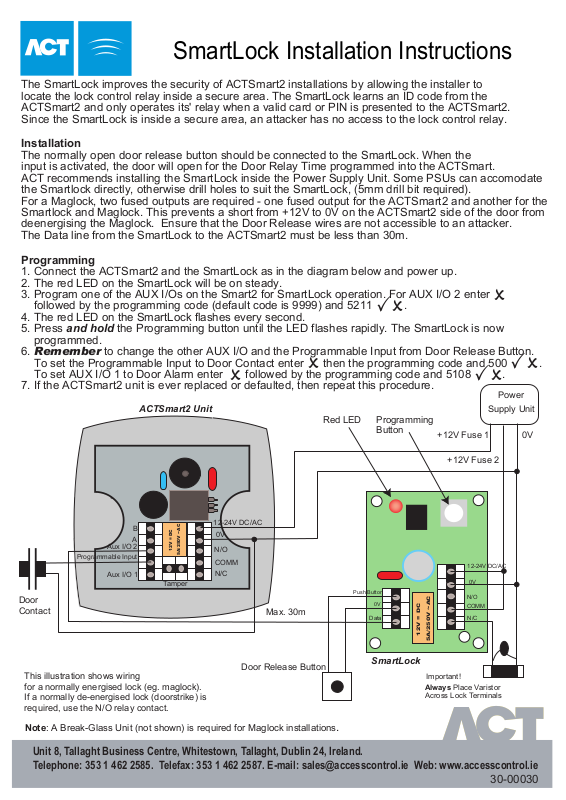

SmartLock Installation Instructions

The SmartLock improves the security of ACTSmart2 installations by allowing the installer to
locate the lock control relay inside a secure area. The SmartLock learns an ID code from the
ACTSmart2 and only operates its' relay when a valid card or PIN is presented to the ACTSmart2.
Since the SmartLock is inside a secure area, an attacker has no access to the lock control relay.

Installation

The normally open door release button should be connected to the SmartLock. When the
input is activated, the door will open for the Door Relay Time programmed into the ACTSmart.
ACT recommends installing the SmartLock inside the Power Supply Unit. Some PSUs can accomodate
the Smartlock directly, otherwise drill holes to suit the SmartLock, (5mm drill bit required).
For a Maglock, two fused outputs are required - one fused output for the ACTSmart2 and another for the
Smartlock and Maglock. This prevents a short from +12V to 0V on the ACTSmart2 side of the door from
deenergising the Maglock. Ensure that the Door Release wires are not accessible to an attacker.
The Data line from the SmartLock to the ACTSmart2 must be less than 30m.

Programming

1. Connect the ACTSmart2 and the SmartLock as in the diagram below and power up.

2. The red LED on the SmartLock will be on steady.

3. Program one of the AUX I/Os on the Smart2 for SmartLock operation. For AUX I/O 2 enter
followed by the programming code (default code is 9999) and 5211

4. The red LED on the SmartLock flashes every second.

PO

.

5. Press and hold the Programming button until the LED flashes rapidly. The SmartLock is now
programmed.

6. Remember to change the other AUX I/O and the Programmable Input from Door Release Button.
To set the Programmable Input to Door Contact enter O then the programming code and 500
To set AUX I/O 1 to Door Alarm enter O followed by the programming code and 5108

7. If the ACTSmart2 unit is ever replaced or defaulted, then repeat this procedure.

ACTSmart2 Unit

Red LED

Programming
Button

+12V Fuse 1

O

PO

Power

Supply Unit

PO

.

.

0V

+

1A 125V

RON

5A
5A

OMRON

B
A

Aux I/O 2

Programmable Input

Aux I/O 1

Door
Contact

This illustration shows wiring
for a normally energised lock (eg. maglock).
If a normally de-energised lock (doorstrike) is
required, use the N/O relay contact.

Tamper

V = DC
12

5A/250V ~AC

12-24V DC/AC

0V

N/O
COMM

N/C

Door Release Button

Max. 30m

Note: A Break-Glass Unit (not shown) is required for Maglock installations.

Push Button

0V

Data

SmartLock

+12V Fuse 2

C

= D

12V

5A/250V ~AC

Important!

Always Place Varistor
Across Lock Terminals

12-24V

0V

N/O
COMM

N/C

DC/AC
