ACT ACTSMART 2 PRODUCT RANGE User Manual

Download
access control TECHNOLOGY
Operating & Installation Instructions
for ACTSmart
22
Product Range
ACTSmart2 Operating and Installation Manual Rev. 1.1
3
Contents
ACTSmart Operation ..............................................................................................................................8
ACTSmart Programming...................................... ..................................................................................8
Adding a Card Batch........................... ... ...........................................................................9
Deleting a Card Batch................................................ ..........................................................9
Adding a Pin.........................................................................................................................9
Deleting a Pin................................................... ....................................................................9
Adding a Card and Pin ........................................ ................................................................9
Deleting a Card and Pin. ......................................................................................................9
Adding a Card Batch using the keypad..............................................................................10
Deleting a Card and Pin using the keypad.........................................................................10
Adding a Random Card............................... ......................................................................10
Set Door RelayTime...........................................................................................................10
Set Door Ajar Time...................................... ......................................................................10
Set Guest Buzzer Time ......................................................................................................10
Change Programming Code........................... ....................................................................11
Change Number of PIN Digits...........................................................................................11
Limit Number of Users.................... ..................................................................................11
User Toggle ........................................................................................................................11
User Arm.................................................. ..........................................................................12
Programming ACTSmart Options.................. ....................................................................13
Setting Programmable Input Function ..............................................................................14
Setting AUX I/O 1 Function ........... ..................................................................................14
Setting AUX I/O 2 Function ..............................................................................................14
Quick I/O Setup ................................................................................................................15
Adding a Card Batch for second door................... ..........................................................15
Adding a PIN for second door ..........................................................................................16
Adding a Card and PIN for second door ..........................................................................16
Adding random Card for second door...............................................................................16
Assign Door Numbers ......................................................................................................17
Find Door Number ............................................................................................................18
Find All Door Numbers......................................................................................................18

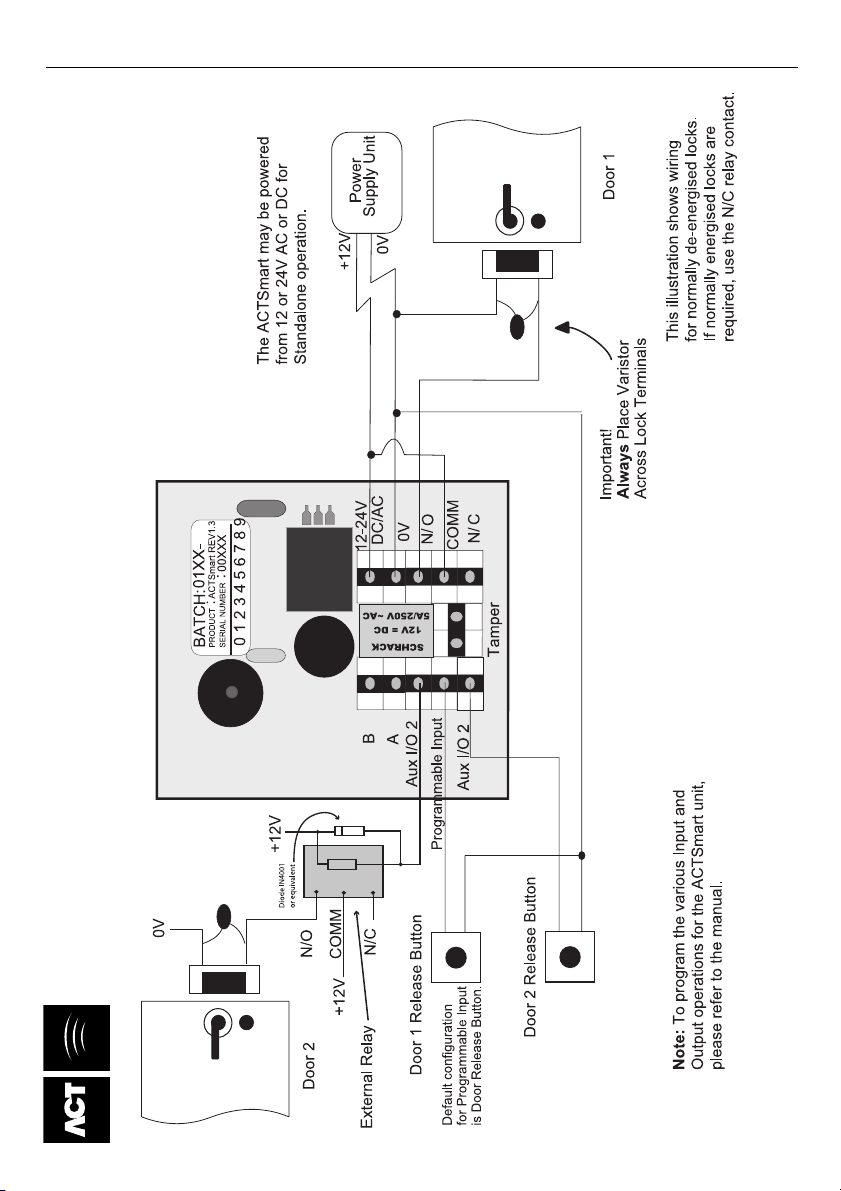

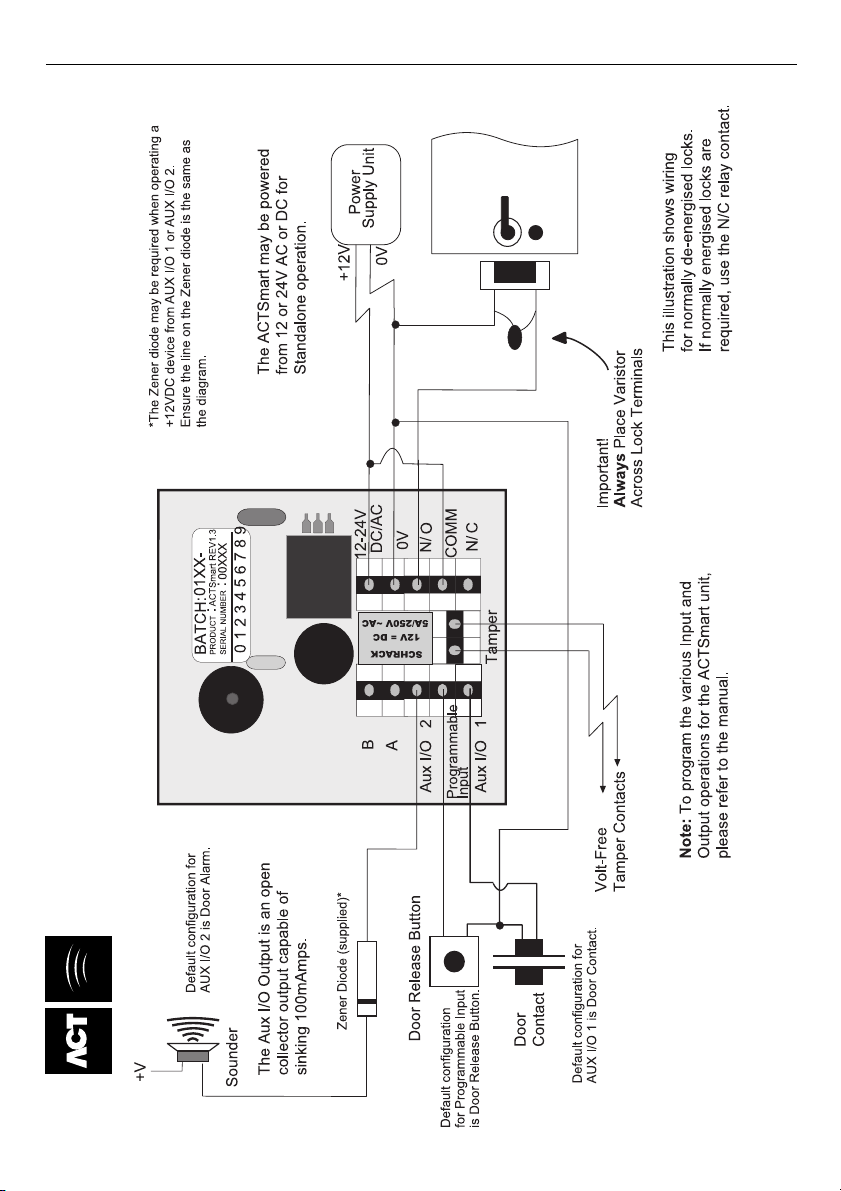

ACTSmart Standalone wiring diagram ................................................................................................21

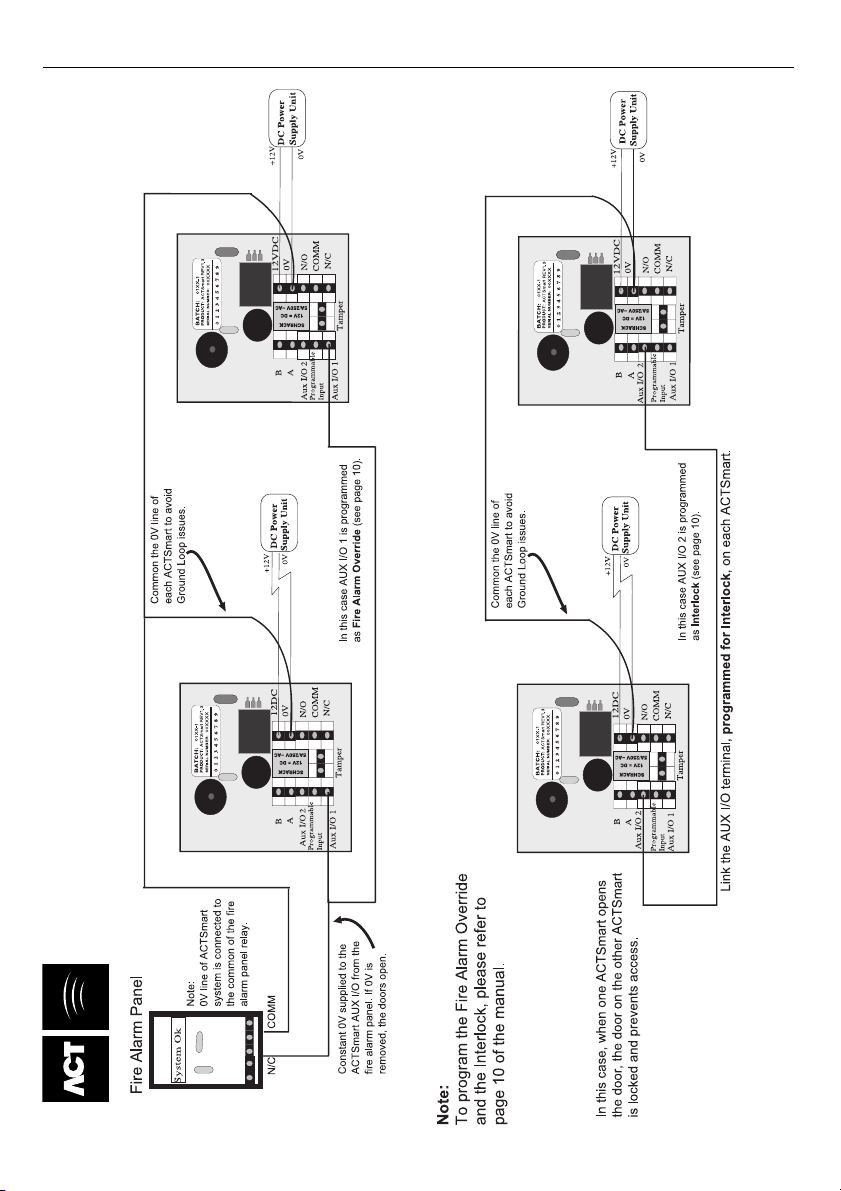

ACTSmart Interlock and Fire Override wiring diagram ......................................................................22

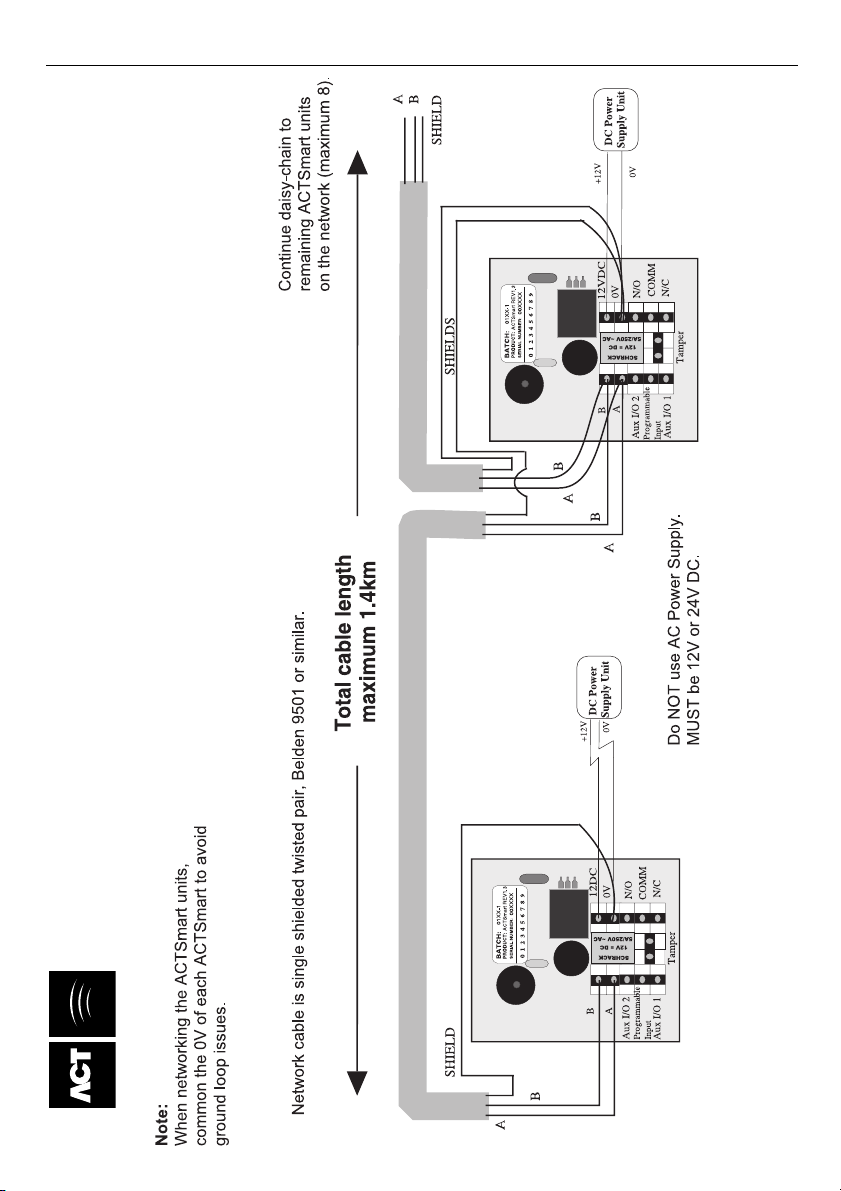

ACTSmart Network wiring diagram ....................................................................................................23

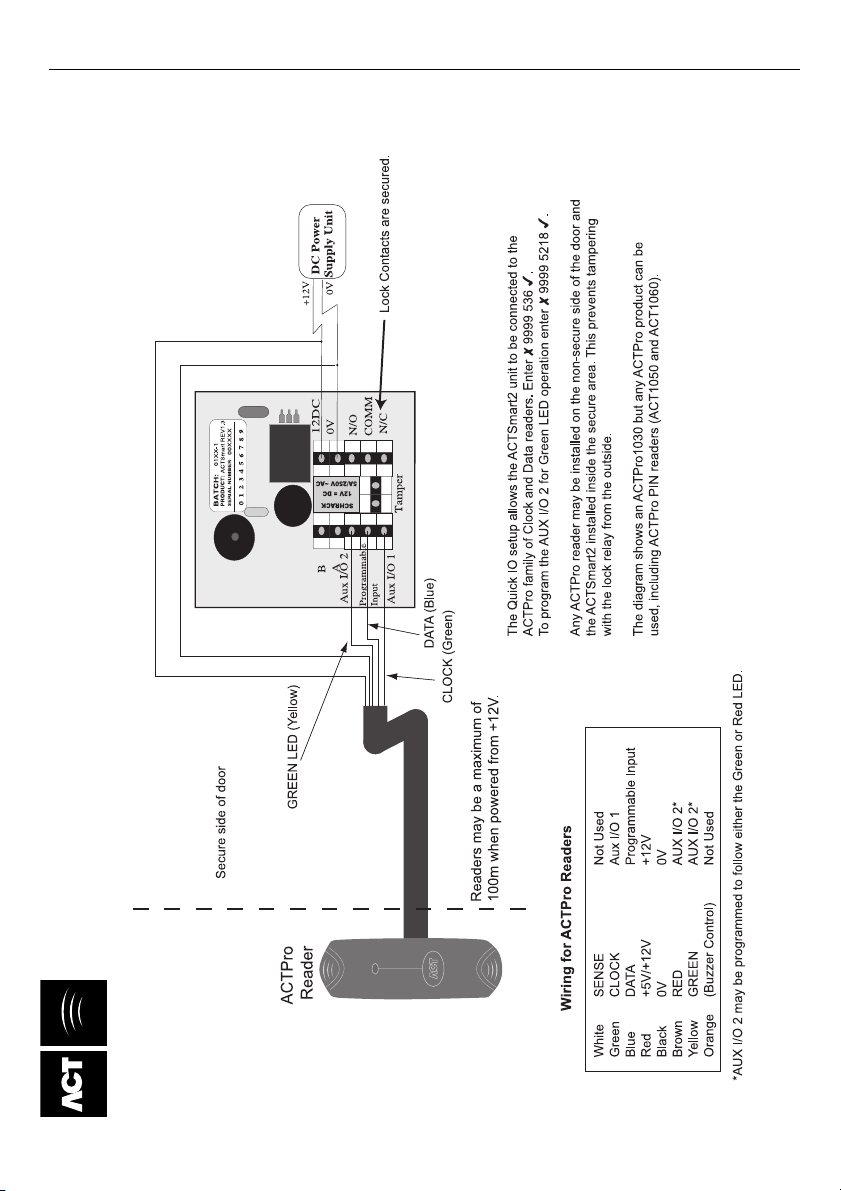

ACTPro Reader Wiring Diagram..........................................................................................................26

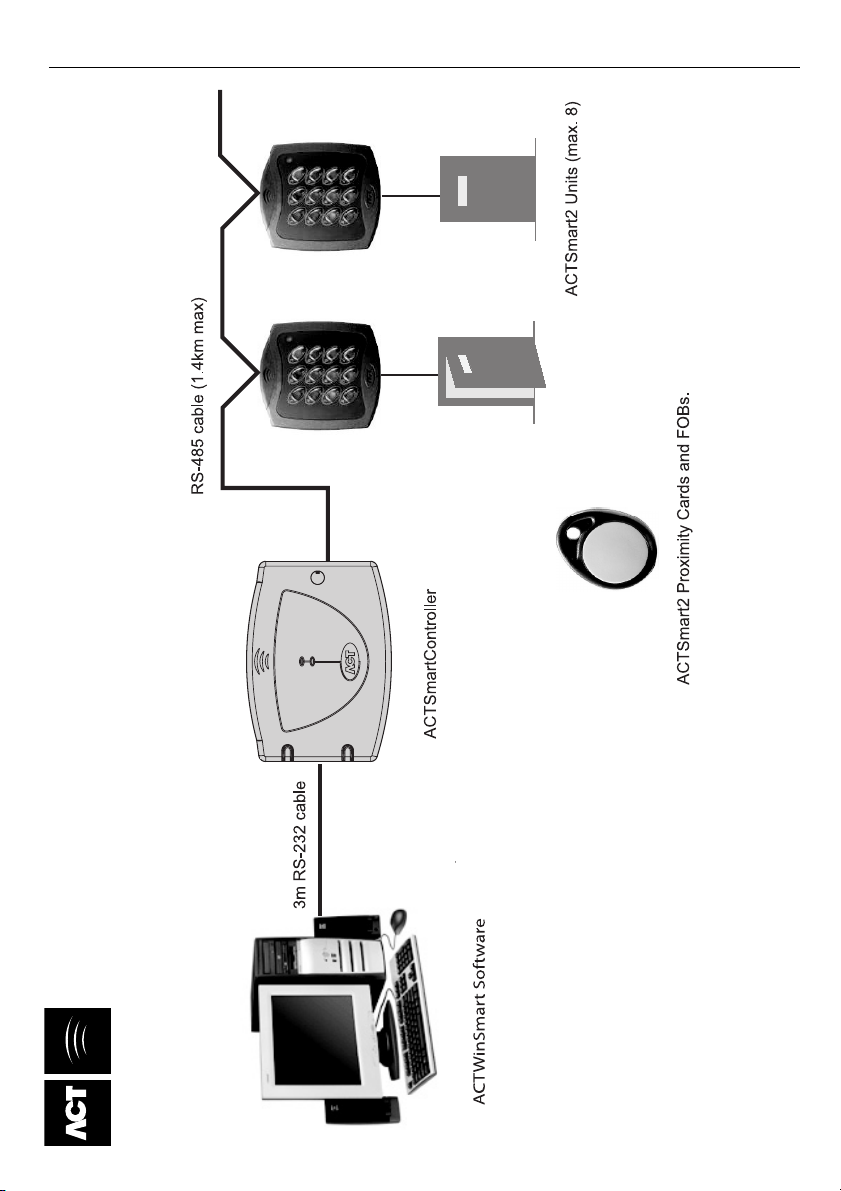

ACTSmart System Diagram ................................................................................................................28

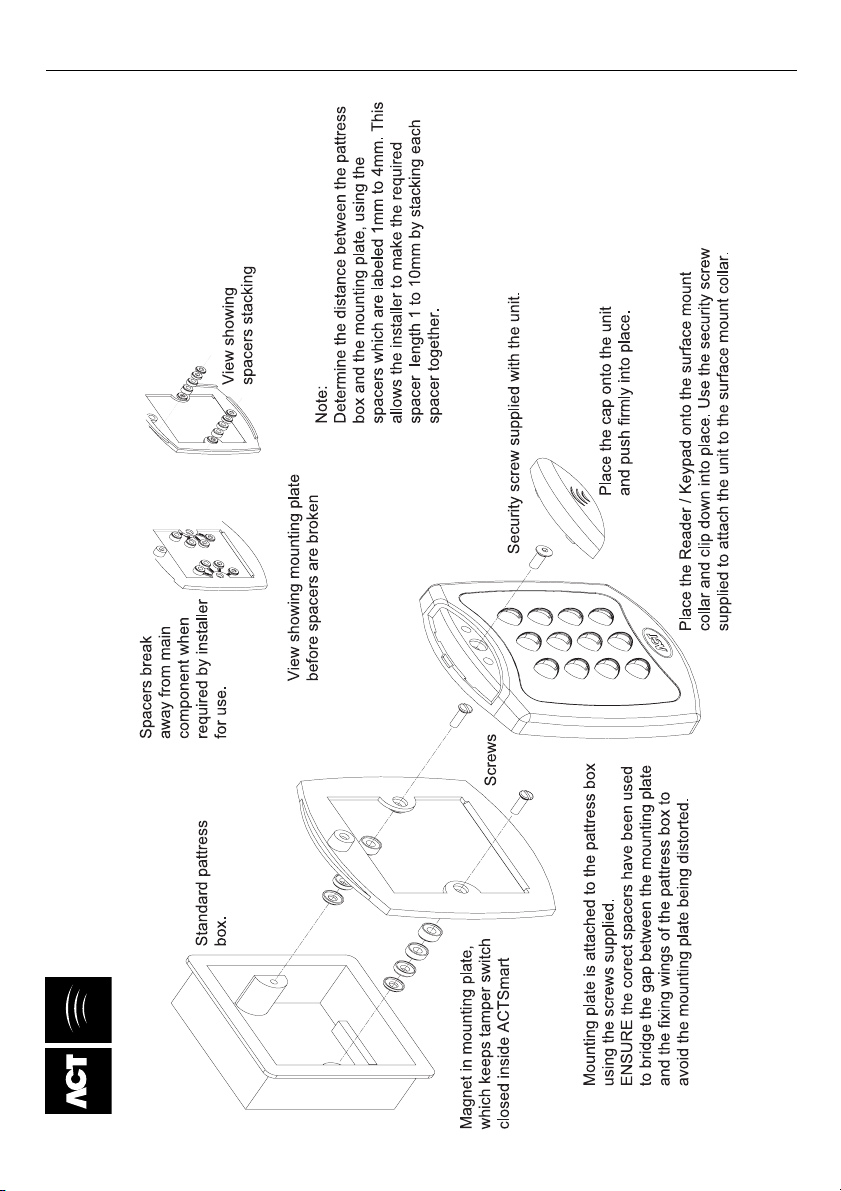

ACTSmart Flush mounting diagram ....................................................................................................29

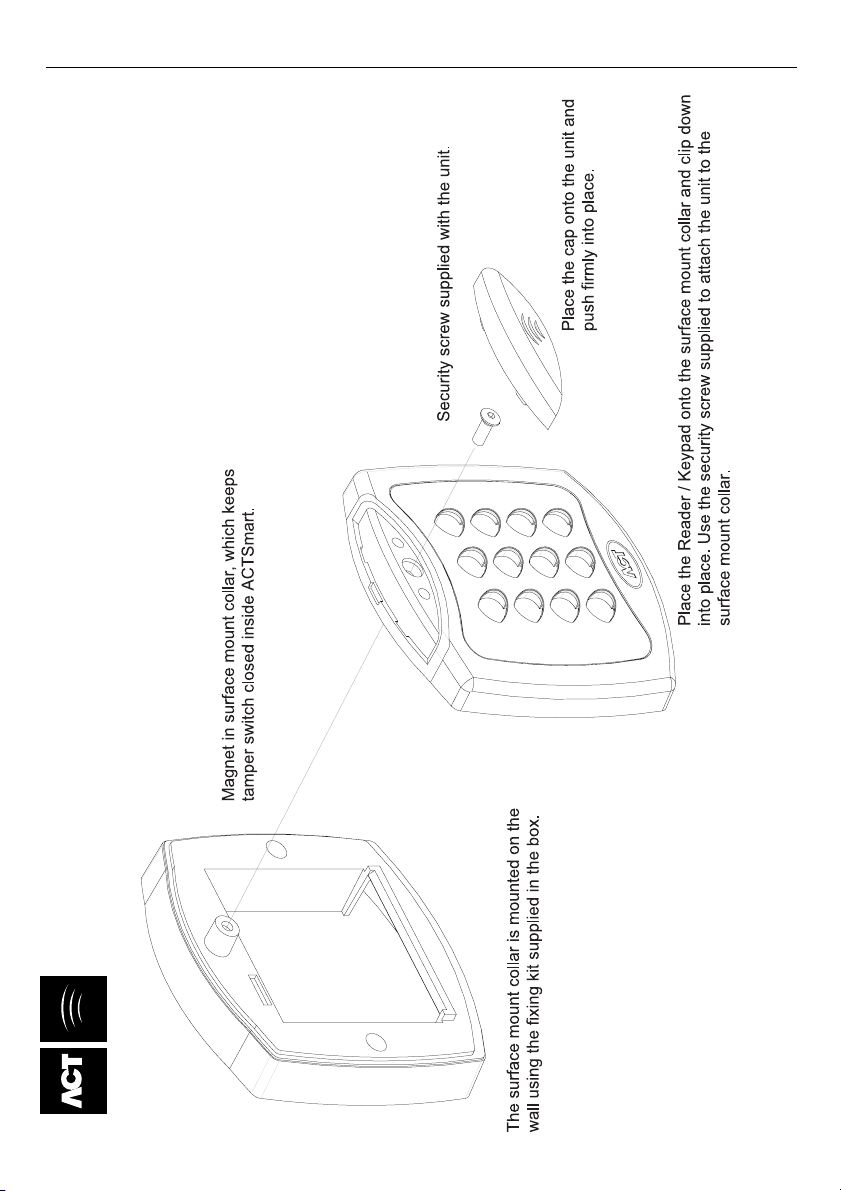

ACTSmart Surface mount diagram ......................................................................................................30
User List 31
ACTSmart2 Operating and Installation Manual Rev. 1.1
4
Installation Notes
• Remember to Factory Default the ACTSmart before programming
• Remember to place the supplied varistor across the terminals of the door strike coil to protect the relay contacts
• Don’t mount the ACTSmart Prox units near RF sources (Eg mobile phones, radio transmitters, computer monitors) or metal surfaces.
• Remember that the ACTSmart PIN and Prox units default to Card operation. Card and PIN operation must be programmed in. (See Programming ACTSmart Options section, Options 39, 40 and
41).
• Don’t power the unit from a switch-mode power supply. Use a linear regulated power supply.
•Never use the on-board relay to switch AC mains voltage. An external relay, electrically isolated from the ACTSmart should be used for this purpose
• Remember to change the programming code.
• Don’t power the ACTSmart from an AC power supply on a networked system. An AC power supply may only be used on a standalone ACTSmart.
• The ACTSmart2 version is not compatible with the earlier version of ACTSmart. Cards and fobs for one version will not work on the other. The devices may NOT be networked together.
• When ordering new cards or fobs specify ACTSmart2.
Important
As with any Access Control system, always ensure there is an alternate means of escape in the event of the unit failing to operate due to power loss or in the event of fire.
Product Specification
Number of Users 1000 Supply Voltage 12 - 24 V DC (linear PSU) or AC (standalone only) Current Consumption 50mA (nominal), 80mA (maximum) Output Current Sink 100mA Operating Temperature -25 to +60 degrees C Door Open Time 0 - 255 seconds Max. ACTSmarts per network 8 Length of network 1.4km maximum Relay Contact Rating 5A / 250Vac Programmable Inputs 1 Programmable Input/Outputs 2 Controller Size Flush Mount: 100 x 110 x 20 mm
Surface Mount: 100 x 110 x 35 mm
Controller Weight 200 grams Water Resistance High IP67 Construction Rugged Polycarbonate housing with stainless steel keys and
potted electronics.
Ordering Information
Model Part Number
ACTSmart Proximity Only ACT 1070
ACTSmart PIN and Proximity ACT 1080
ACTSmart PIN Only ACT 1090
ACTSmart2 Operating and Installation Manual Rev. 1.1
5
Unit 8, Tallaght Business Centre,
Whitestown, Dublin 24, Ireland
Tel: 353-1-4622585 Fax: 353-1-4622587
Web: http://www.accesscontrol.ie E-mail: sales@accesscontrol.ie
Copyright © 2005 Access Control Technology Ltd.
access control TECHNOLOGY
30 Second Programming Guide
ACTSmart2 Pin & Prox (1080)
(For typical Standalone System)
1. Enter Programming Mode.
Press
✘
button followed by the programming code (default is 9999)
The LED will flash amber.
2. Add a Batch of Cards
Press 10, then present the first card in the batch followed by the last card in the batch. Press
✔ button to complete.
3. Add a PIN Code
Press 12, and then enter a 4-digit PIN code. Press ✔ button to complete. (Option 40 - Card or PIN.)
4. Set Desired Door Relay Active Time
Press 20, and then enter the desired number of seconds from 000-255 (three digits with leading zeros). Press
✔ button to complete.
5. Change Programming code
Press 23, then enter new 4-digit programming code.
6. Exit Programming Mode
Press the ✘ button. The LED turns red.
The ACTSmart is now ready for normal use.
Note: The ACTSmart may be returned to its factory default condition at any time by entering the programming mode and pressing 80 followed by the
✔ button.
For information on programming the advanced features and networking the ACTSmart range, please refer to the complete programming guide.
ACTSmart2 Operating and Installation Manual Rev. 1.1
6
30 Second Programming Guide
ACTSmart2 PIN Only (1090)
1. Enter Programming Mode.
Press ✘button followed by the programming code (default is 9999) The LED will flash amber.
2. Add a PIN Code
Press 12, and then enter a 4-digit PIN code. Press
✔ button to complete.
3. Set Desired Door Relay Active Time
Press 20, and then enter the desired number of seconds from 000-255 (three digits with
leading zeros). Press ✔ button to complete.
4. Change Programming code
Press 23, then enter new 4-digit programming code.
5. Exit Programming Mode
Press the
✘
button. The LED turns red.
Note: The ACTSmart may be returned to its factory default condition at any time by entering the programming mode and pressing 80 followed by the ✔ button.
For information on programming the advanced features and networking the ACTSmart range, please refer to the complete programming guide.
10 Add Card Batch 11 Delete Card Batch 12 Add PIN Code 13 Delete PIN 14 Add Card and PIN 15 Delete Card and PIN 16 Add Card Batch using keypad 17 Delete Card Batch using keypad 18 Add Random Card
20 Set Door Relay Time 5 seconds 21 Set Door Ajar Time 30 seconds 22 Set Guest Buzzer Time 2 seconds 23 Change Programming Code 9999 24 Change Number of PIN Digits 4 26 Limit Number of Users 1000
30 Door Chime Off 31 Silent Operation Off 32 Lock-saver (Anti Tailgating) Off 33 Toggle Off 34 Door Forced Alarm On 35 Door Ajar Alarm On 36 Guest Button On 37 Duress Codes Off 38 Network Master Off 39 Card and PIN Off 40 Card or PIN Off 41 Card and any PIN Off 43 Pulse Door Armed Off
50 Set Programmable Input Door Release Button 51 Set AUX I/O 1 Door Contact 52 Set AUX I/O 2 Door Alarm 53 Quick I/O Setup
60 Assign Door Numbers 61 Find Door Number 62 Find Door Numbers
70 Add Card Batch for Second Door 71 Add PIN code for Second Door 72 Add Card and PIN for Second Door 73 Add Random card for Second Door
80 Default Unit
ACTSmart2 Operating and Installation Manual Rev. 1.1
7
Programming Summary
Code Function Default
ACTSmart2 Operating and Installation Manual Rev. 1.1
8
ACTSmart Operation
The ACTSmart family consists of Proximity only, Pin and Proximity and PIN only units. Each ACTSmart can operate in standalone mode. Up to 8 ACTSmart devices can be connected on a RS485 network. The ACTSmart will support a maximum of 1000 tokens. A token may be a card, keyfob or a PIN code. Each unit is contained in a rugged polycarbonate housing, with stainless steel keys and potted electronics, allowing for indoor and outdoor installation.
Programming the unit is achieved via the keys and LED. For quick and easy installation, the ACTSmart has a default configuration, which is suitable for most installations. Cards and PIN codes can be programmed into the ACTSmart very quickly. ACT recommends that the user keep track of the Cardholders and PIN users on the system by using the User List at the end of the manual. Make copies of this sheet and enter each Users details on it. This will allow users to be deleted later on, even if a card is lost or a user forgets their PIN code.
To improve security, PIN codes may be up to 6 digits in length. Normally only card users are allowed access through the ACTSmart PIN and Prox unit. For maximum security, the unit may be programmed to require all users to enter a PIN code after presenting a card. For lower security applications, another programming option allows access to PIN only users. A duress code feature is also available
The built-in inputs and outputs are programmable, allowing the ACTSmart to be used in a wide variety of applications from simple door access, to cash offices and fire exits. Each unit also has built-in tamper monitoring for improved security.
ACT also provide an easy-to-use PC application (ACTWinSmart), which allows the installer to configure systems quickly. Up to 8 ACTSmart units may be connected to the PC. The end-user may also use ACTWinSmart to monitor day-to-day activity, add new users etc.
ACTSmart Programming
Press the ✘button followed by the programming code (initially 9999). The LED will flash amber while in programming mode. If
✘
is pressed at any time or no key is pressed within 30 seconds, programming mode is exited. If the LED flashes green during programming, then a card presentation is expected. If the LED flashes red, then a keypress is expected. While the ACTSmart is busy performing a task, (Eg. Defaulting memory, adding cards), the green led will turn on and the buzzer will sound an elongated tone.
Note: In most Programming Menus there is a step that is marked (optional)*. This setting only applies to a Networked System (see Programming a Network System).
Adding a Card Batch:
Step Keypad Entry Operation
111 Delete Card Batch 2 Present Card First card in Batch (lowest number card) 3 Present Card Last Card in Batch (highest number card) 4 Enter 1-8, (optional)* Select each door this batch deleted from 5 Press
✔
End delete card batch ­Note: the buzzer will sound while cards are deleted from memory.
Step Keypad Entry Operation
114 Add Card and PIN (Make sure Option 39 is set on PIN and Prox units.) 2 Present Card 3 0001-9999 4 - 6 digit PIN code 4 1-8 (optional)* Select each door this Card & PIN is valid for 5 Press
✔
End programming Card and PINs
ACTSmart2 Operating and Installation Manual Rev. 1.1
9
Step Keypad Entry Operation
112 Add PINs (Make sure Option 40 is set on PIN and Prox units.) 2 0001-9999 4 - 6 digit PIN code 3 1-8, (optional)* Select each door this PIN is valid for 4 Press
✔
End programming PINs
Step Keypad Entry Operation
113 Delete PINs 2 0001-9999 4 - 6 digit PIN code 3 1-8, (optional)* Select each door this PIN is deleted from 4 Press
✔
End deleting PINs
Step Keypad Entry Operation
115 Delete Card and PIN 2 Present Card 3 1-8, (optional)* Select each door this Card & PIN is deleted from 4 Press
✔
End deleting Card and PINs
Deleting a Card Batch:
Adding a PIN:
Deleting a PIN:
Adding a Card and PIN:
Deleting a Card and PIN:
Step Keypad Entry Operation
110 Add Card Batch 2 Present Card First card in Batch (lowest number card) 3 Present Card Last Card in Batch (highest number card) 4 Enter 1-8, (optional)* Select each door this batch enabled for 5 Press
✔
End programming card batch ­Note: the buzzer will sound while cards are loaded into memory.
Step Keypad Entry Operation
116 Add Card Batch 2 Enter 10-digit card number 10-digit First Card number with leading zeros.
Eg. Card 54321 enter 0000054321. 3 Enter 10-digit card number Second Card number 4 1-8, (optional)* Select each door to which these cards are enabled 5 Press
✔
End Adding Card Batch — Note: the buzzer will sound while cards are
loaded into memory.
ACTSmart2 Operating and Installation Manual Rev. 1.1
10
Adding a Card Batch using the keypad:
Deleting a Card or Card and PIN using the keypad:
Step Keypad Entry Operation
117 Delete Card or Card and PIN 2 Enter 10-digit card number 10-digit Card number with leading zeros.
Eg. Card 54321 enter 0000054321. 3 1-8, (optional)* Select each door this Card is deleted from 4 Press
✔
End deleting Card (Card and PIN)
Step Keypad Entry Operation
120 Set Door Relay Time - (default 5 seconds) 2 Enter 3 digit time 000-255 seconds - (leading zeros required). 3 1-8 (optional)* Select each door this timer is set for 4 Press
✔
End setting Door Relay Timer
Set Door Relay Time:
Step Keypad Entry Operation
121 Set Door Ajar Time - (default 30 seconds) 2 Enter 3 digit time 000-255 seconds - (leading zeros required). 3 1-8 (optional)* Select each door this timer is set for 4 Press
✔
End setting Door Ajar Time
Set Door Ajar Time:
Set Guest Buzzer Time:
Step Keypad Entry Operation
122 Set Guest Buzzer Time - (default 2 seconds) 2 Enter 3 digit time 000-255 seconds - (leading zeros required). 3 1-8 (optional)* Select each door this timer is set for 4 Press
✔
End setting Guest Buzzer Time
Step Keypad Entry Operation
118 Add random card 2 Enter 1-8, (optional)* Select each door these cards enabled for 3 Press
✔
4 Present Card Add card 5 Present Card (optional)* Repeat for all other cards to be added 6 Press
✔
End adding cards
Add Random Card:
ACTSmart2 Operating and Installation Manual Rev. 1.1
11
Change Programming Code:
Step Keypad Entry Operation
123 Change Programming code 2 0001-9999 New 4 - 6 digit programming code
Change Number of PIN Digits:
Step Keypad Entry Operation
124 Change Number of PIN digits 2 4-6 Select number of PIN digits in range 4 to 6. When set, the codes require
leading zeros Eg. Code 9999 becomes 009999 for 6 digits.
Limit Number of Users:
This function is useful if the end-user wants to limit the number of user codes and cards permitted to use the ACTSmart2. This can only be performed when the tamper is open (by removing the main unit from the mounting plate or the surface mount collar).
Step Keypad Entry Operation
110 Add Card Batch 2 Present Card First Card in Batch (lowest number card) 3 Present Card Last Card in Batch (highest number card) 40 Enable toggle mode (make sure Option 33 is set) 5 1-8, (optional)* Select each door this batch is valid for 6 Press
✔
End
Adding a Card Batch with Toggle mode:
Step Keypad Entry Operation
112 Add PINs (Make sure Option 40 is set on PIN and Prox Units) 2 0001-9999 4-6 digit PIN code 30 Enable toggle mode (make sure Option 33 is set) 4 1-8, (optional)* Select each door this PIN is valid for 5 Press
✔
End
Adding a PIN Code with Toggle mode:
Step Keypad Entry Operation
126 Limit the number of users allowed to use Smart2 2 0001-1000 Maximum number allowed (leading zeroes required) 3 Press
✔
End Setting User Limit
User Toggle:
This function will toggle the door open or closed when a vaild card or PIN is presented. Remember the Toggle option must be set on the Smart2 (Option 33). To program a card or PIN with the toggle option, program as normal, but press 0 before the
✔
key. See the two examples below:
ACTSmart2 Operating and Installation Manual Rev. 1.1
12

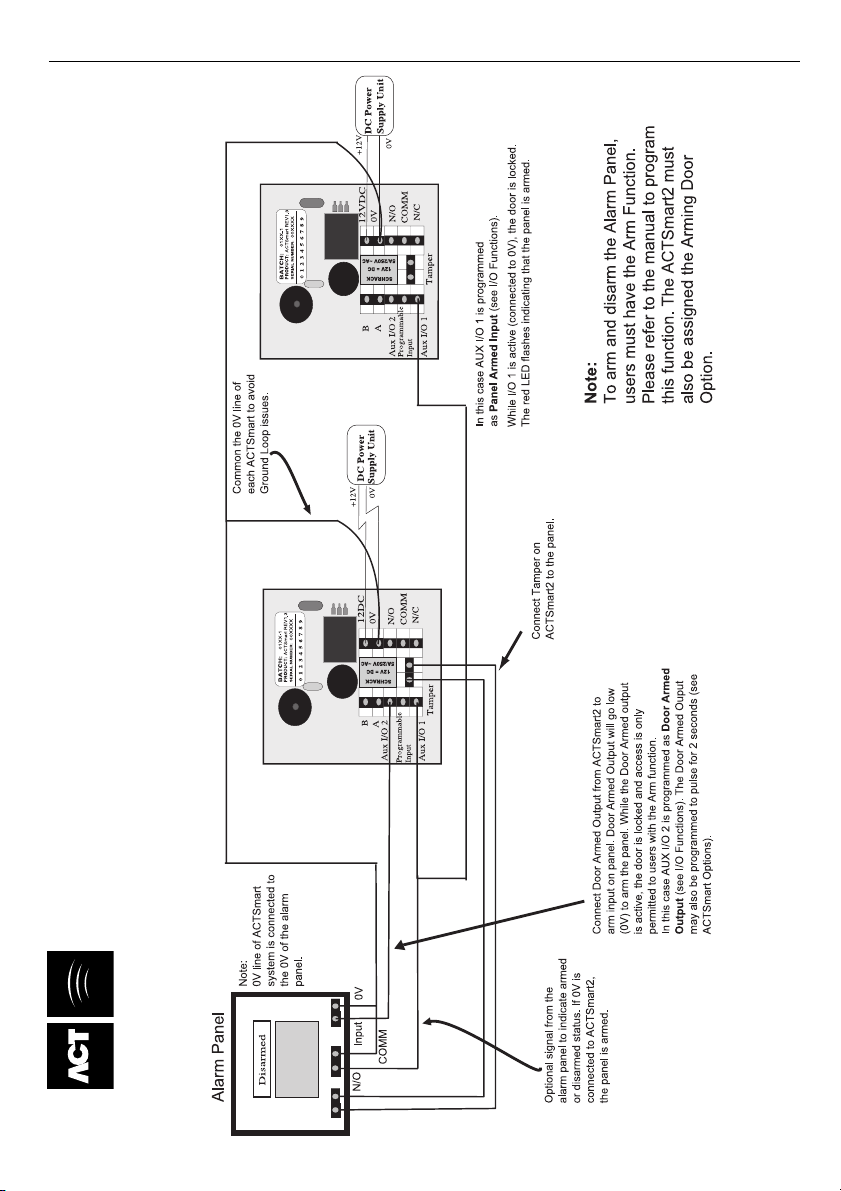

User Arm Function:
Users with this function may arm or disarm the door after a vaild card or PIN is presented. Remember the Arming Door option must be set on the Smart2 (Option 42). While the door is armed, the door is locked and access is denied to other users until the door is disarmed. The red LED flashes to indicate the door is armed. An auxilliary output may be switched to signal the state of the door. This output may be used to arm/disarm an alarm panel. The output may be programmed to pulse instead of toggle (Option
43). To arm or disarm the door, press the
✔
key followed by the PIN code or valid card. An output from the panel may be connected to the ACTSmart2 to indicate that the panel is armed. Check the Alarm Panel Wiring diagram at the end of the manual.
To program a card or PIN with the arm function, program as normal, but press 9 before the
✔
key. See
the two examples below:
Step Keypad Entry Operation
110 Add Card Batch 2 Present Card First Card in Batch (lowest number card) 3 Present Card Last Card in Batch (highest number card) 49 Enable Arming mode (make sure Option 42 is set) 5 1-8, (optional)* Select each door this batch is valid for 6 Press
✔
End
Adding a Card Batch with Arming Function:
Step Keypad Entry Operation
112 Add PINs (Make sure Option 40 is set on PIN and Prox Units) 2 0001-9999 4-6 digit PIN code 39 Enable Arming mode (make sure Option 42 is set) 4 1-8, (optional)* Select each door this PIN is valid for 5 Press
✔
End
Adding a PIN Code with Toggle mode:
To summarise, the following steps are required for setting up tokens to arm and disarm alarm panels:
1. Program the ACTSmart2 to be an Arming Door - Option 42 On
2. Assign a card or PIN with the Arming function - see above.
3. Assign an Aux I/O as the Door Armed output - I/O Function Code 14
4. If required, turn the Pulse Door Armed Option on - Option 43 On
5. If required, assign an input as the Panel Armed input. This input verifies when the alarm panel is
actually armed. - I/O Function Code 15
6. Connect up according to the Alarm Panel wiring diagram.
Programming ACTSmart Options:
Option Function Default Operation
30 Door Chime Off When set, whenever the door contact is opened, the built-in buzzer
makes a chime sound and the buzzer output activates for 2 seconds
31 Silent Operation Off When set, the keypad operates silently. No audible tones
(key-presses or confirm tones) are produced from the built-in buzzer
32 Lock-saver Off When set, and when the door relay is active (following a valid code
(Anti Tailgating) or button release), the door relay timer is truncated to 2 seconds
when the door contact opens. This ensures that the door will be locked as soon as it closes, and any person following will have to enter a PIN or present a card.
33 Toggle Off When set, the door relay toggles for each valid entry. The green
LED flashes when the door is toggled open.
34 Door Forced Alarm On When set, the buzzer output / door alarm output is activated if the
door contact opens when the door is locked. The output is deactivated when a valid card or PIN is next entered. This is useful for monitoring fire doors etc.
35 Door Ajar Alarm On When set, and the door contact has been open for longer than the
time programmed into the door ajar timer, the buzzer output / door alarm output is activated. Closing the door and presenting a valid card or entering a valid PIN deactivates the output.
36 Guest Button On When set, (default) and when the ✔ key on the keypad is pressed,
the buzzer output is activated for the duration programmed in the guest buzzer timer.
37 Duress Codes Off When set, and when a duress PIN is entered, the door is opened
normally and the Door Alarm output activated. A duress PIN is any valid PIN with one added to the last digit. The output will be reset when a valid user enters. When the duress option is set, avoid using PINs that are different by 1.
38 Network Master Off Set one device on the network to be the Master.
39 Card and PIN Off When set, only Card and PIN users are admitted. This is only valid
for ACTSmart PIN and Prox units.
40 Card or PIN Off When set, either a valid Card or valid PIN will open the door. This
is only valid for ACTSmart PIN and Prox units.
41 Card and any PIN Off In this mode, a valid card and any valid PIN code will open the
door. This is only valid for ACTSmart PIN and Prox units. This mode allows all users to have a common PIN code to use with their cards.
42 Arming Door Off In this mode, users with the Arm option can switch an output to
signal to an Alarm panel to arm/disarm (See I/O function code 14).
43 Pulse Door Armed Off When set, the Door Armed output will pulse for 2 seconds to signal
arm and disarm. (See I/O function 14).
Step Keypad Entry Operation
1 30-43 Select Option Number 20 or 1 0 = Off, 1 = On 3 1-8, (optional)* Select each door this option is set for 4 Press
✔
End setting options
ACTSmart2 Operating and Installation Manual Rev. 1.1
13
ACTSmart2 Operating and Installation Manual Rev. 1.1
14
Setting Programmable Input Function:
Step Keypad Entry Operation
150 Set Input Function (Door Release button is default) 2 0-6 Select I/O Function Code (see below for explanation of codes) 3 1-8 (optional)* Select each door this function is valid for 4 Press
✔
End programming Input Function
Setting AUX I/O 1 Function:
Step Keypad Entry Operation
151 Set AUX I/O 1 Function (Door Contact is default) 2 00-19 Select 2-digit I/O Function Code (see below) 3 1-8 (optional)* Select each door this function is valid for 4 Press
✔
End programming AUX I/O 1
Setting AUX I/O 2 Function:
Step Keypad Entry Operation
152 Set AUX I/O 2 Function (Door Alarm is default) 2 00-19 Select 2-digit I/O Function Code (see below) 3 1-8 (optional)* Select each door this function is valid for 4 Press
✔
End programming AUX I/O 2
I/O Function Codes:
Code Function Operation
0 Door Contact Input required if you wish to monitor Door Forced or Door Ajar
1 Fire Alarm Override When this input is high, the door is opened and the green LED flashes (See
Fire Alarm Override Connections diagram). If this is wired into the Master Smart, then all doors on the network will open.
2 Lock Door When this input is low, the door locks and the red LED flashes.
3 Card and PIN When this input is low, then only users who enter both Card and PIN will be
admitted. This option is only valid on an ACTSmart PIN and Prox.
4 Card or PIN When this input is low, a valid Card or a valid PIN will open the door. This
option is only valid on an ACTSmart PIN and Prox.
5 Door Release Button When this input is low, the door opens.
6 Second Door Release When this input is low, any I/Os configured as Second Door Lock will open
Button for the Door Lock Time.
7 Interlock This normally behaves as an input and locks the door while the input is low.
While the door relay is active or the Door Contact is open, it becomes an active output. (See Interlock Connections diagram).
8 Door Alarm This output activates while an alarm is present - A door alarm may be a door
forced, door ajar, tamper or duress.
9 Follow This output follows the state of the door relay.
10 Buzzer This output activates for Door Chime or Door Alarms.
11 SmartLock This output controls a SmartLock device for Secure doors.
12 Second Door Lock This output will activate for the Door Lock Time when a valid card or PIN is
presented. See commands 70-73.
continued
ACTSmart2 Operating and Installation Manual Rev. 1.1
15
Quick IO Setup:
Step Keypad Entry Operation
153 Set Input Output Functions (0 - is default)
2 0-9 Select a code
Prog Input AUX IO 1 AUX IO 2
0 Door Release Button Door Contact Door Alarm
1 Door Release Button Door Contact Buzzer
2 Door Release Button Door Contact Interlock
3 Door Release Button Door Contact SmartLock
4 Door Release Button Fire Override Interlock
5 Door Contact Follow Door Alarm
6
1
Data Clock Door Armed
7 Door Contact Door Alarm Buzzer
8 Fire Override Interlock Buzzer
9 Card And PIN Interlock Follow
3 1-8 (optional)* Select each door this function is valid for
4 Press
✔
End Quick IO setup
I/O Function Codes (continued)
Code Function Operation
14 Door Armed This output toggles when a user with the armed function presents a valid card
or PIN. This can be used to arm or disarm an alarm panel. The output may be set to pulse for 2 seconds instead of toggle. See Option 43.
15 Panel Armed Input When this input is low, the door is locked and the red LED flashes. This input
informs the ACTSmart2 that the panel is armed. (See the Alarm Panel Wiring diagram).
18 Green LED This output follows the state of the green LED.
19 Red LED This ouput follows the state of the red LED.
1
The Quick IO setup allows the ACTSmart2 unit to be connected to the ACTPro family of Clock and Data readers (code number 6). This feature allows an ACTPro reader to be installed on the non-secure side of the door and the ACTSmart2 to be inside the secure area. This prevents tampering with the lock relay from the outside. See the ACTPro Connections diagram.
Step Keypad Entry Operation
170 Add Card Batch for Second Door
(I/O function code 12 must be set for the Aux O/P)
2 Present Card First card in Batch (lowest number card) 3 Present Card Last Card in Batch (highest number card) 4 Enter 1-8, (optional)* Select each door this batch enabled for 5 Press
✔
End programming card batch. Note: the buzzer will sound while cards are loaded into memory.
Adding a Card Batch for Second Door:
ACTSmart2 Operating and Installation Manual Rev. 1.1
16
Add Random Card for Second Door:
Step Keypad Entry Operation
173 Add random card for Second Door
(I/O function code 12 must be set for the Aux O/P)
2 Enter 1-8, (optional)* Select each door these cards enabled for 3 Press
✔
4 Present Card Add card 5 Present Card (optional)* Repeat for all other cards to be added 6 Press
✔
End adding cards
Adding a PIN for Second Door:
Step Keypad Entry Operation
171 Add PINs (Make sure Option 40 is set on PIN and Prox units.)
(I/O function code 12 must be set for the Aux O/P)
2 0001-9999 4 - 6 digit PIN code 3 1-8, (optional)* Select each door this PIN is valid for 4 Press
✔
End programming PINs
Adding a Card and PIN for Second Door:
Step Keypad Entry Operation
172 Add Card and PIN (Make sure Option 39 is set on PIN and Prox units.)
(I/O function code 12 must be set for the Aux O/P)
2 Present Card 3 0001-9999 4 - 6 digit PIN code 4 1-8, (optional)* Select each door this Card & PIN is valid for 5 Press
✔
End programming Card and PINs
ACTSmart2 Operating and Installation Manual Rev. 1.1
Programming a Network System
Up to 8 ACTSmart devices can be connected on the network. See the ACTSmart Network Installation diagram to complete the necessary connections.
Programming Door Numbers
To allow some users through a door and prevent access to other users, each ACTSmart on the network must be given a door number (1-8). An ACTSmart Proximity Only Unit requires a door number if it is to be programmed with advanced options.
Set a Master
Set one device on the network to be the Master. This device will be used for programming the entire network and should be a PIN and Prox unit. The Master is automatically assigned door number 1. The other ACTSmarts on the network (door numbers 2-8) are referred to as Slave Units. No programming is allowed on a Slave (except to default it - see Restoring Factory Defaults).
Enter programming mode. Press buttons 3,8 followed by 1 to set the device to be the Master. The rest of the units on the network are assigned door numbers by following the procedure below:
Assign Door Numbers:
Assigning Users to Doors
When each ACTSmart has been given a unique door number, then users may be given access through specific doors. In most programming menus, there is an optional step to program specific doors. For example, when programming a Card Batch, the user may select which doors the Card Batch applies to (Step 4 in Adding Card Batch, see above). Skip this optional step if programming is to apply to all doors on the network.
Checking Network Programming
The door number of any ACTSmart on the network can be found using the menus below. This is a useful check to perform to verify communications from the Master to the Slave units and to check that the Door Numbers have been assigned correctly.
Step Keypad Entry Operation
160 Assign Door Numbers
2Any ACTSmart units without a door number start to beep. The
number of beeps is determined by the door number to be programmed. Eg. If door 5 is to be programmed, all unassigned ACTSmarts will beep 5 times.
3 Present card or press This operation should take place on the desired door number. The
key on Slave ACTSmart stops beeping.
4 Repeat step 2 until all ACTSmarts have been assigned a door number.
5 Press ✔ on Master End programming door numbers
17
Step Keypad Entry Operation
162 Find Door Numbers
2 Press
✔
Each ACTSmart beeps their door number
3 Press key or present card To stop the ACTSmart Beeping
at each ACTSmart
ACTSmart2 Operating and Installation Manual Rev. 1.1
18
Find Door Number:
Step Keypad Entry Operation
161 Find Door Numbers 2 1-8 Enter the door number to be found. The ACTSmart assigned the door
number starts to beep.
3 Press a key or present To stop the ACTSmart beeping.
a card
Find All Door Numbers:
Adding a Slave to the Network
Another Slave can be added to the network by defaulting it first (see below) and then assigning it a door number from the Master.
Removing a Slave from the Network
To remove a Slave unit from the network, simply disconnect it from the network.
Replacing a Slave Unit
To replace a Slave Unit, remove the old Slave from the network. Default the new Slave and add it to the network. Assign a door number to it from the Master.
Replacing the Master Unit
If the Master Unit needs to be replaced, then replace it with a Slave unit already on the system, (as it will have all the card/PIN information), and make it the Master. Add a new, defaulted Slave to the network in place of the swapped-out Slave. Then assign a Door numbers to the new Slave - make sure it is the Door number of the old Slave.
Restoring Factory Defaults
Enter Programming code followed by 80 followed by ✔. If this is done on the Master ACTSmart then all ACTSmarts on the network are defaulted (including the Master). If it is done on a Slave then only the Slave is defaulted.
If the programming code has been forgotten, power up with the tamper open (by removing the main unit from the mounting plate or the surface mount collar), while holding down the ✘ key. Release the
✘
key and then enter the default Programming Code (9999).
Defaulting memory takes 3-4 seconds. During this time, the buzzer will sound an elongated tone.
ACTSmart2 Operating and Installation Manual Rev. 1.1
19
Programming ACTSmart Prox Only (1070)
To program an ACTSmart Prox Only device, a Programming Card must be assigned to the ACTSmart. The Programming Card may be any proximity card. If you have received a batch of cards, use the first (lowest numbered) card in the batch as the Programming Card. To set the Programming Card into the ACTSmart Prox do the following:
1. Power up the device with the tamper open (by removing the main unit from the mounting plate or the surface mount collar),
2. Present the card to the reader. The reader will beep.
3. Take the card away from the reader for 1 second (more than 20 cm)
4. Present the card to the reader again. The reader will beep.
5. The card is now set as the Programming card.
(Note: ACT recommends using an ACTSmart PIN and Prox device if a network is required).
In the steps below, after a card is presented to the reader it must be taken away from the reader (more than 20cm) for 1 second before presenting the card again.
Step Present Operation
1 Programming Card Add Card Batch 2 Present Card First card in Batch 3 Present Card First card in Batch
Adding a Card Batch to the Network:
Step Present Operation
1 Programming Card 2 Programming Card Delete Card Batch 3 Present Card First card in Batch to delete 4 Present Card First card in Batch to delete
Deleting Batch Cards to the Network
Step Present Operation
1 Programming Card
2 Programming Card 3 Programming Card Delete Individual Card
4 Present Card Card above the card that needs to be deleted e.g. if card number
99 needs to be deleted, present card number 100
Deleting Individual Card (Require Card Above):
Step Present Operation
1 Programming Card 2 Programming Card 3 Programming Card 4 Programming Card Wait for 4 seconds, Buzzer sounds indicating timing... wait
required period.
5 Programming Card Buzzer stops - timer set.
Programming the Door Relay Time:
ACTSmart2 Operating and Installation Manual Rev. 1.1
20
Step Present Operation
1 Programming Card 2 Programming Card 3 Programming Card 4 Programming Card 5 Programming Card Buzzer sounds intermittently and the LED flashes 6 Programming Card Input 1 = Door Contact, AUX I/O 1 = Door Alarm,

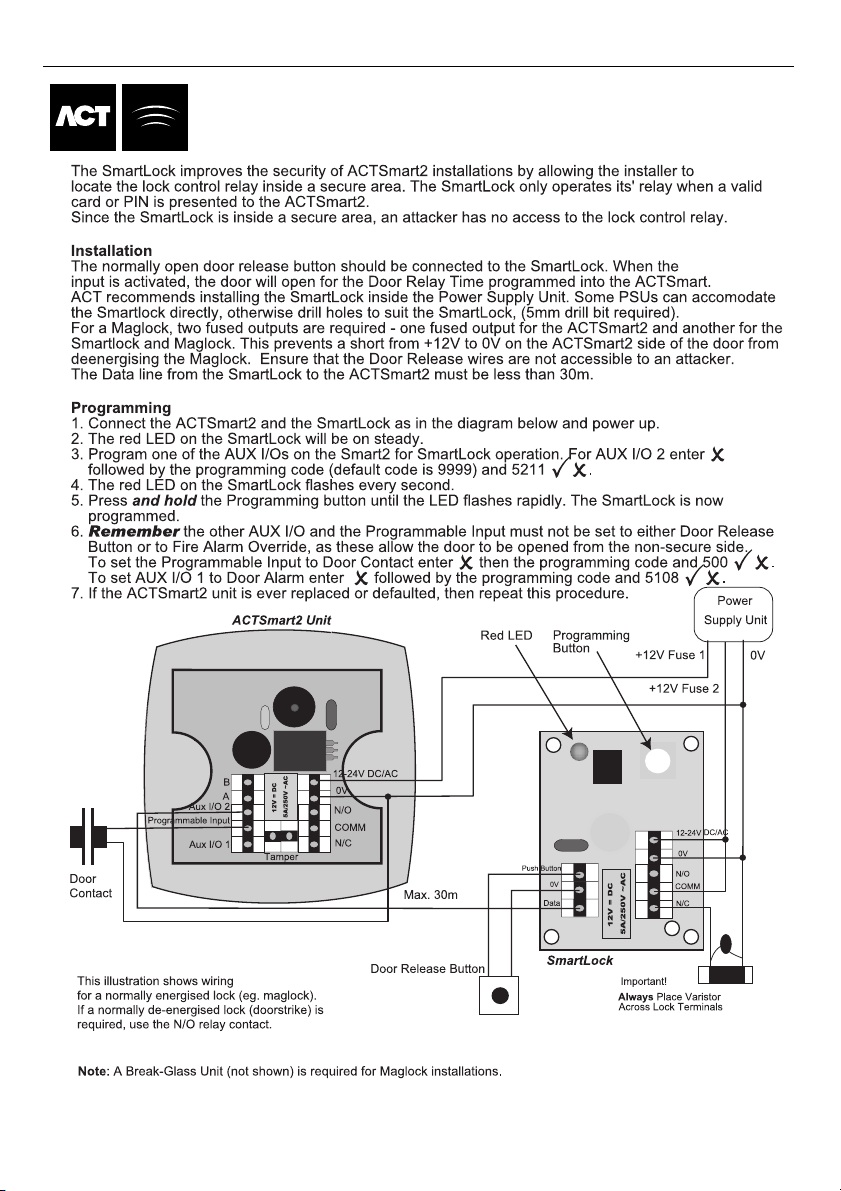

AUX I/O 2 = SmartLock. See the SmartLock Connections diagram.
Programming for SmartLock:
Step Present Operation
1 Programming Card 2 Programming Card 3 Programming Card 4 Programming Card 5 Programming Card Buzzer sounds intermittently and the LED flashes RED to warn
you are about to default the system
Present Card Default ACTSmarts. Note: This deletes the Programming Card. (Not Programming Card)
Default ACTSmart:
21
ACTSmart Standalone Installation Diagram
Access Control Technology, Unit 8, Tallaght Business Park, Whitestown, Dublin 24, Ireland.
Tel: 353-1-4622585 Fax: 353-1-4622587 Web: http://www.accesscontrol.ie E-mail: sales@accesscontrol.ie
ACTSmart2 Operating and Installation Manual Rev. 1.1
ACTSmart Fire Alarm Override Connections
Access Control Technology, Unit 8, Tallaght Business Park, Whitestown, Dublin 24, Ireland.
Tel: 353-1-4622585 Fax: 353-1-4622587 Web: http://www.accesscontrol.ie E-mail: sales@accesscontrol.ie
ACTSmart Interlock Connections
22
ACTSmart2 Operating and Installation Manual Rev. 1.1
ACTSmart Network Installation Diagram
Access Control Technology, Unit 8, Tallaght Business Park, Whitestown, Dublin 24, Ireland.
Tel: 353-1-4622585 Fax: 353-1-4622587 Web: http://www.accesscontrol.ie E-mail: sales@accesscontrol.ie
23
ACTSmart2 Operating and Installation Manual Rev. 1.1
24
SmartLock Connection Diagram
Access Control Technology, Unit 8, Tallaght Business Park, Whitestown, Dublin 24, Ireland.
Tel: 353-1-4622585 Fax: 353-1-4622587 Web: http://www.accesscontrol.ie E-mail: sales@accesscontrol.ie
ACTSmart2 Operating and Installation Manual Rev. 1.1
25
ACTSmart Alarm Panel Wiring Diagram
Access Control Technology, Unit 8, Tallaght Business Park, Whitestown, Dublin 24, Ireland.
Tel: 353-1-4622585 Fax: 353-1-4622587 Web: http://www.accesscontrol.ie E-mail: sales@accesscontrol.ie
ACTSmart2 Operating and Installation Manual Rev. 1.1
26
Access Control Technology, Unit 8, Tallaght Business Park, Whitestown, Dublin 24, Ireland.
Tel: 353-1-4622585 Fax: 353-1-4622587 Web: http://www.accesscontrol.ie E-mail: sales@accesscontrol.ie
ACTPro Connections Diagram
ACTSmart2 Operating and Installation Manual Rev. 1.1
Access Control Technology, Unit 8, Tallaght Business Park, Whitestown, Dublin 24, Ireland.
Tel: 353-1-4622585 Fax: 353-1-4622587 Web: http://www.accesscontrol.ie E-mail: sales@accesscontrol.ie
2 Door Wiring Diagram
27
ACTSmart2 Operating and Installation Manual Rev. 1.1
28
ACTSmart2 Operating and Installation Manual Rev. 1.1
ACTSmart System Diagram
Access Control Technology, Unit 8, Tallaght Business Park, Whitestown, Dublin 24, Ireland.
Tel: 353-1-4622585 Fax: 353-1-4622587 Web: http://www.accesscontrol.ie E-mail: sales@accesscontrol.ie
Access Control Technology, Unit 8, Tallaght Business Park, Whitestown, Dublin 24, Ireland.
Tel: 353-1-4622585 Fax: 353-1-4622587 Web: http://www.accesscontrol.ie E-mail: sales@accesscontrol.ie
ACTSmart Mounting Instructions for Flush-Mount Unit
29
ACTSmart2 Operating and Installation Manual Rev. 1.1
Access Control Technology, Unit 8, Tallaght Business Park, Whitestown, Dublin 24, Ireland.
Tel: 353-1-4622585 Fax: 353-1-4622587 Web: http://www.accesscontrol.ie E-mail: sales@accesscontrol.ie
ACTSmart Mounting Instructions for Surface Mount Unit
30
ACTSmart2 Operating and Installation Manual Rev. 1.1
Doors
access control TECHNOLOGY
User List
1 2 3 4 5 6 7 8
User Name Card Number PIN
Access Control Technology, Unit 8, IDA Business Park, Whitestown, Dublin 24, Ireland.
TEL:353-1-4622585 FAX: 353-1-4622587 WEB: http://www.accesscontrol.ie E-MAIL: sales@ accesscontrol.ie
Smart
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
