ACTsmar t2
Product Overview
Powerful, flexible and cost effective solution
for low to medium access control scenarios.
Simple to add and delete users and the readers
may be totally standalone or connected together
in a master slave mode to enable changes for all
doors (max 8) to be made at one door. Extremely
attractive design built in rugged polycarbonate
with stainless steel keys.
Main Features
●
Choice of proximity only, pin and
proximity or pin only
●
Digital keypad backlighting (ACTsmart2 1080/1090)
Access control, interlock, door
●
monitoring and fire alarm interface
Surface or flush mount (mounting directly
●
on to standard electrical back box)
Indoor or outdoor installation (IP67)
●
Standalone or Master Slave operation
●
Single card or batch card addition or deletion
●
Smart Lock option for high security doors. The
●
Smart Lock is installed internally in the building
thus preventing an intruder from having access
to the lock relay.
●
Tamper device
●
Works with ACTProx cards and fobs
Installation / Specification Guidelines
●
May be installed in exposed outdoor
conditions (IP67)
●
If the electronic outputs and inputs are to be
used, or the master slave feature is required,
ensure a dc supply to the unit
●
As there are up to 1000 users available on the
ACTsmart products the system administrator
should keep good records to enable efficient
addition and deletion
●
In the event of master slave operation ensure
there is at least one ACTsmart2 1080 when
proximity is being used
ACTsmart2 Accessories
Proximity & Keypad Range
ACTsmart2
1080/1090
220/240 Volts AC
PSU
12/24 Volts AC/DC
Tamper
220/240 Volts AC
PSU
12/24 Volts AC/DC
ACTsmart2
1070
2 Inputs / Outputs
(100mA)
ACTsmart2
1080
EXIT
ACTsmart2 1080 Pin and Proximity
For full functionality use 12 volts DC only
8 Units Max
Flush
mount plate
Surface
mount collar
ACTsmart2
Lock module
ACTsmart2 1080
Pin & Proximity
ACTsmart2 1090
Pin Only
ACTsmart2 1070
Proximity Only
ACTsmart2 Master Slave operation
For full functionality use 12 volts DC only

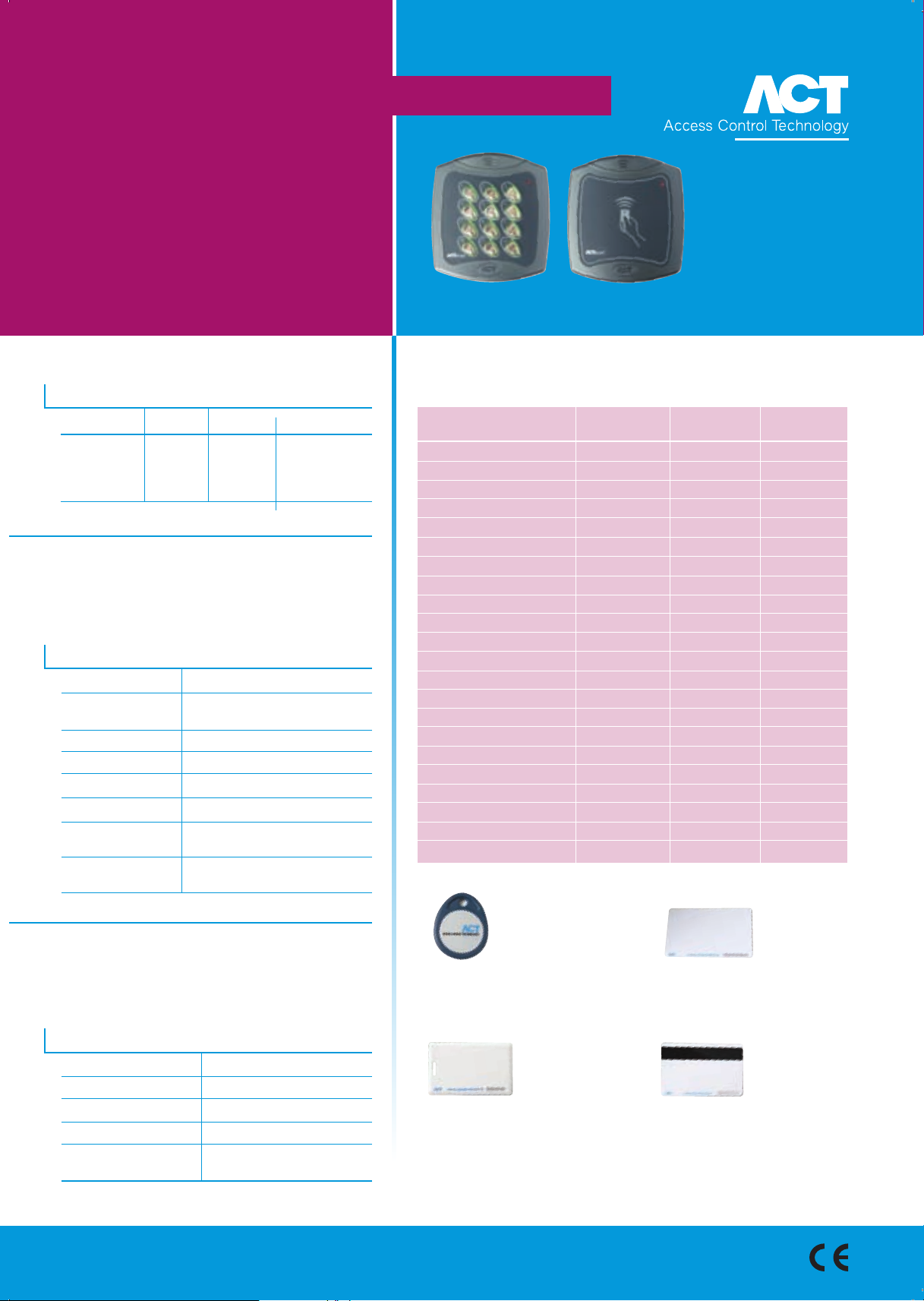

ACTsmar t2
ACTsmart2 1070/80/90
Product Specification
Operating Voltage: 12 to 24 Volts AC/DC
Current Consumption: 80 mA max
Weight: 200 grams
Operating Temperature: -10 to +50 C
Dimensions (HxWxD): 110 x 100 x 35 mm
Mounting: Surface or Flush
Installation: Indoor or Outdoor
Cabling: Connector blocks
Proximity & Keypad Range
ACTsmart2
1080/1090
ACTsmart2
1070
Cabling Chart
From To Cable Restriction
PSU, lock
release and
release
button
When using the master slave feature a twisted screened pair is required
between each reader. This must be daisy chained not star wired.
Reader Standard
alarm
cable
200m
Ordering Information
Proximity reader
Pin and
proximity reader
Pin only reader
Smart Lock
Proximity key fob
Proximity ISO card
Proximity Half
Shell Card
Proximity & Mag
Stripe Card
* These cards and fobs are compatible with the ACTpro-x and ACTsmart2
proximity reader range
ACTsmart2 1070
ACTsmart2 1080
ACTsmart2 1090
ACTsmart2 Lock
ACTProx FOB-B*
ACTProx ISO-B*
ACTProx HS-B*
ACTProx DUO-B*
ACTsmart2 feature chart
Feature
Doors
Users
Master slave operation
Proximity
Pin only
Pin and card
Card only
Digital keypad backlighting
Interlock
Door monitoring
Fire alarm override
Toggle mode
Door relay output
Programmable inputs
Programmable outputs
Programmable inputs/outputs
Push to release input
Front and back tamper device
12 to 24 volt DC/AC input *
IP rating
Potted electronics
Smart lock capability
* When selecting master/slave operation or using the electronic inputs and outputs please use a dc supply
ACTsmart2
1070
1
1000
Yes
Yes
Yes
Yes
Yes
Yes
Yes
5 amp
Yes
Yes
Yes
Yes
Yes
Yes
IP67
Yes
Yes
ACTsmart2
1080
1
1000
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
5 amp
Yes
Yes
Yes
Yes
Yes
Yes
IP67
Yes
Yes
ACTsmart2
1090
1
2000
Yes
Yes
Yes
Yes
Yes
Yes
Yes
5 amp
Yes
Yes
Yes
Yes
Yes
Yes
IP67
Yes
Yes
ACTProx Fob
Extremely robust with a max
read range of 8 centimetres
ACTsmart2 Lock - Specification
Operating Voltage: 12 or 24 Volts AC/DC
Current Consumption: 50 mA
Operating Temperature: -10 to +50 C
Dimensions (HxWxD): 45 x 60 x 30 mm
Installation: Inside PSU on
secure side of door
Access Control Technology Unit C1, South City Business Park, Tallaght, Dublin 24, Ireland.
t: 353 (0) 1 466 2570. f: 353 (0) 1 452 0427. e: sales@accesscontrol.ie. w: www.accesscontrol.ie
ACTProx HS Card
Half shell card with a max
read range of 10 centimetres
ACTProx ISO Card
Suitable for ID printing with max
read range of 10 centimetres
ACTProx DUO Card
Prox & mag stripe with max
read range of 10 centimetres.
Suitable for ID printing.
