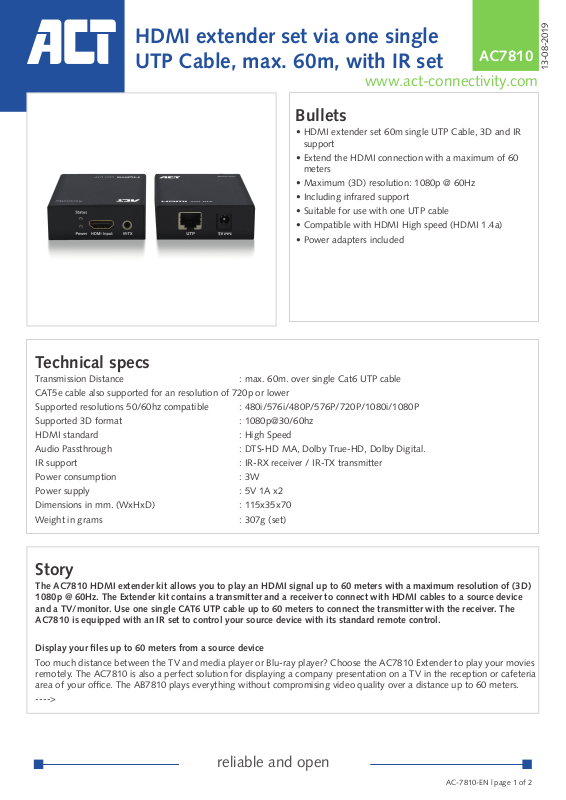

ACT AC7810 User manual
HDMI extender set via one single
UTP Cable, max. 60m, with IR set
www.act-connectivity.com
Bullets
• HDMI extender set 60m single UTP Cable, 3D and IR
support
• Extend the HDMI connection with a maximum of 60
meters
• Maximum (3D) resolution: 1080p @ 60Hz
• Including infrared support
• Suitable for use with one UTP cable
• Compatible with HDMI High speed (HDMI 1.4a)
• Power adapters included
AC7810
13-08-2019
Technical specs
Transmission Distance : max. 60m. over single Cat6 UTP cable
CAT5e cable also supported for an resolution of 720p or lower
Supported resolutions 50/60hz compatible : 480i/576i/480P/576P/720P/1080i/1080P
Supported 3D format : 1080p@30/60hz
HDMI standard : High Speed
Audio Passthrough : DTS-HD MA, Dolby True-HD, Dolby Digital.
IR support : IR-RX receiver / IR-TX transmitter
Power consumption : 3W
Power supply : 5V 1A x2
Dimensions in mm. (WxHxD) : 115x35x70
Weight in grams : 307g (set)
Story
The AC7810 HDMI extender kit allows you to play an HDMI signal up to 60 meters with a maximum resolution of (3D)
1080p @ 60Hz. The Extender kit contains a transmitter and a receiver to connect with HDMI cables to a source device
and a TV/monitor. Use one single CAT6 UTP cable up to 60 meters to connect the transmitter with the receiver. The
AC7810 is equipped with an IR set to control your source device with its standard remote control.
Display your les up to 60 meters from a source device
Too much distance between the TV and media player or Blu-ray player? Choose the AC7810 Extender to play your movies
remotely. The AC7810 is also a perfect solution for displaying a company presentation on a TV in the reception or cafeteria
area of your ofce. The AB7810 plays everything without compromising video quality over a distance up to 60 meters.
---->
reliable and open
AC-7810-EN | page 1 of 2
HDMI extender set via UTP Cables,
max. 60m, with IR set
AC7810
www.act-connectivity.com
<----
Connecting your devices
The AB7810 comes with an IR set to control the HDMI source. With this IR set you can continue using the standard remote
control of your source device. Connect the transmitter with an HDMI High Speed cable to your HDMI source and connect
the receiver to the TV with an HDMI High Speed cable. The transmitter and receiver are connected with one single UTP
cable up to 60 meters. Both the transmitter and the receiver come with an additional AC Adapter.
:
13-08-2019
SKU EAN SHORT PRINT DESCRIPTION
AC7810 8716065403503 HDMI extender set UTP 60 meters, incl. IR support
reliable and open
AC-7810-EN | page 2 of 2
