Table of Contents
T able of Contents .......................................................................................1
Usage Notice.............................................................................................. 2
Precautions......................................................................................................... 2
Introduction................................................................................................ 4
Product Features ................................................................................................ 4
Package Overview ............................................................................................. 5
Product Overview................................................................................................ 6
Main Unit........................................................................................................................ 6
Control Panel ................................................................................................................ 7
Connection Ports .......................................................................................................... 8
Remote Control with Laser Pointer .............................................................................. 9
Installation ............................................................................................... 10
Connecting the Projector.................................................................................. 10
Powering On/Off the Projector .......................................................................... 11
Powering On the Projector ......................................................................................... 11
Powering Off the projector.......................................................................................... 12
Warning Indicator ....................................................................................................... 12
Adjusting the Projected Image......................................................................... 13
Adjusting the Projector Image Height ........................................................................ 13
Adjusting the Projector Zoom / Focus....................................................................... 14
Adjusting Projected Image Size................................................................................. 14
User Controls............................................................................................ 15

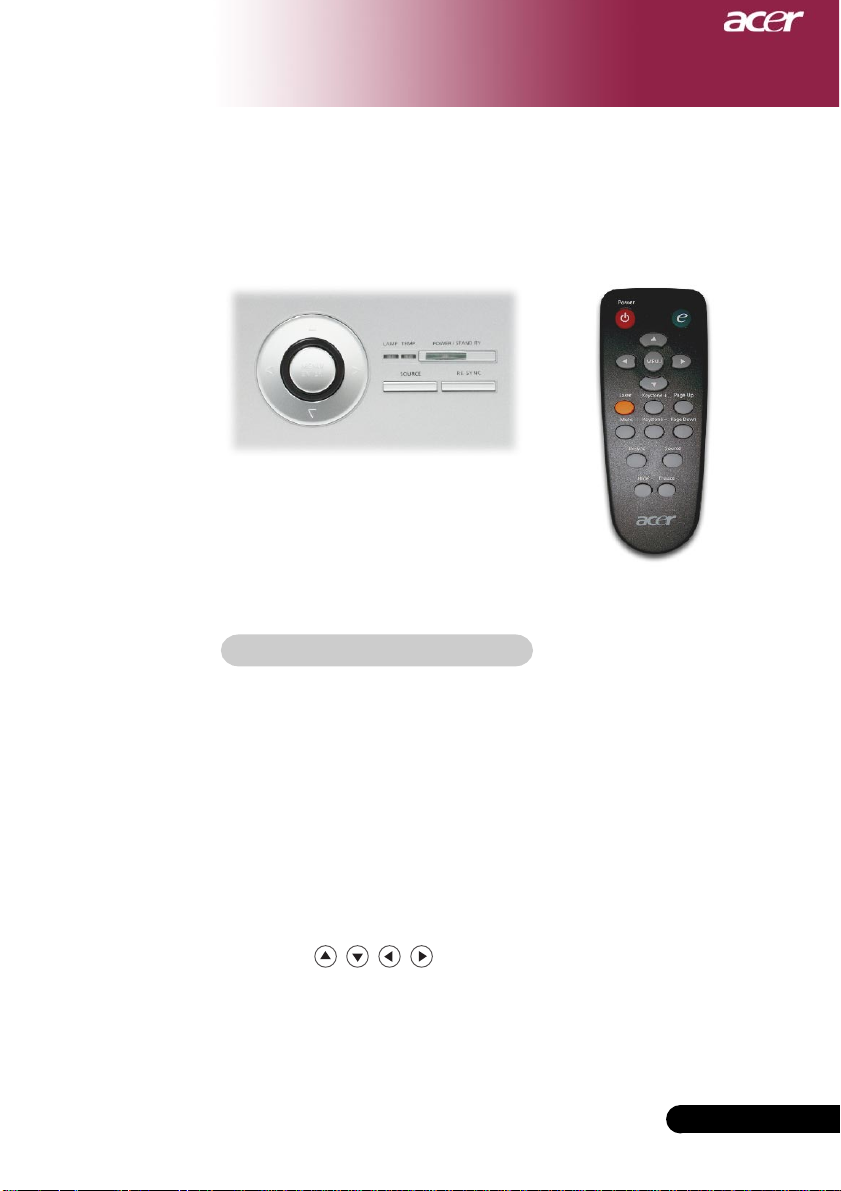

Control Panel & Remote Control ..................................................................... 15
On-Screen Display Menus ............................................................................... 17
How to operate ............................................................................................................ 17

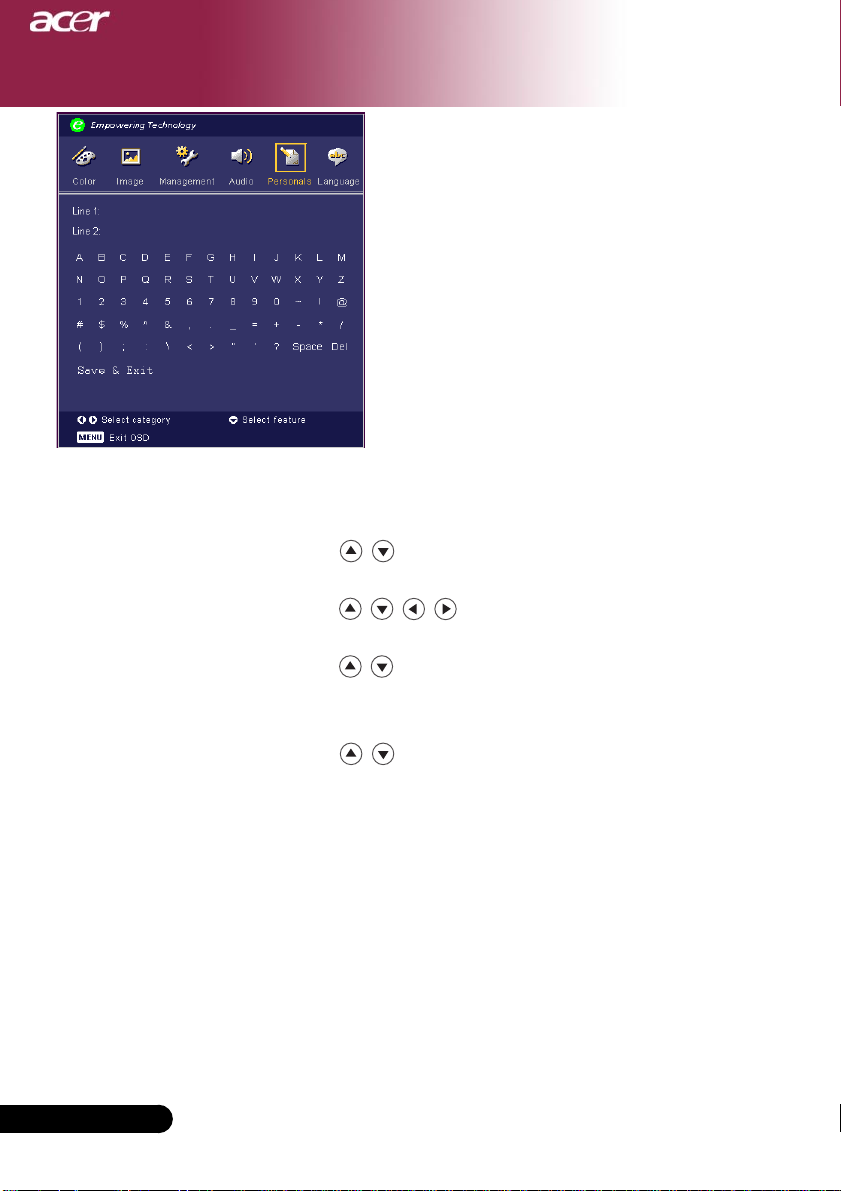

Personals (Computer/Video Mode) ........................................................................... 18
Language ..................................................................................................................... 19
Color (Computer/Video Mode) ................................................................................... 20
Image (Computer Mode)............................................................................................. 22
Image (Video Mode) .................................................................................................... 23
Audio (Computer/Video Mode)................................................................................... 24

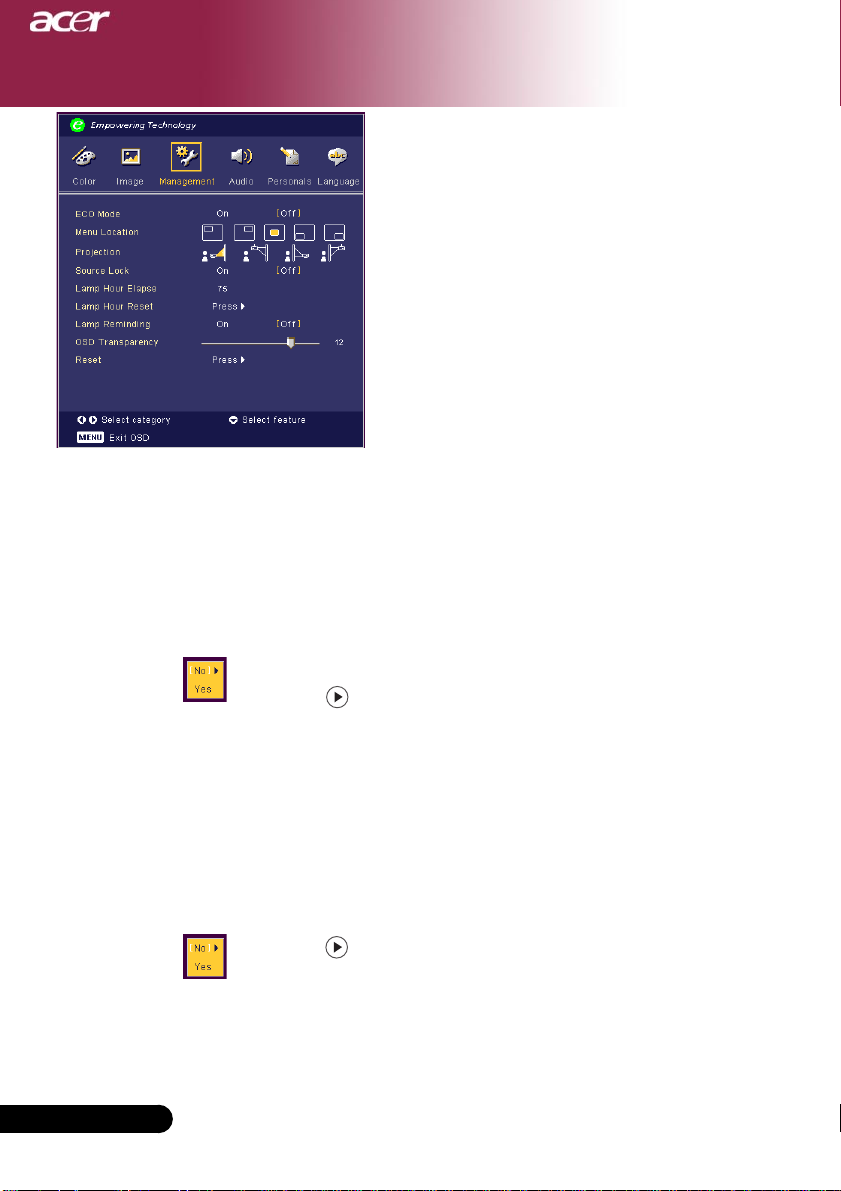

Management (Computer/Video Mode) ....................................................................... 25
Appendices .............................................................................................. 27
Troubleshooting ............................................................................................... 27

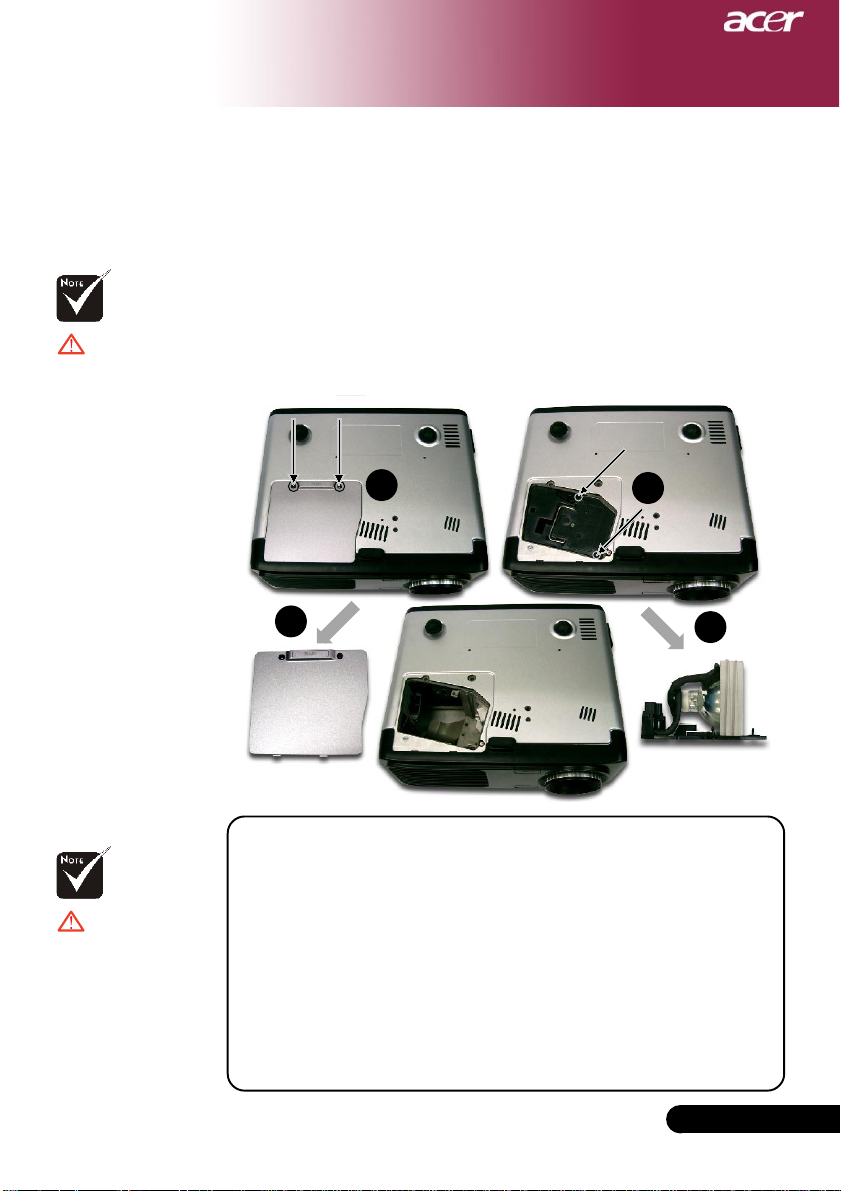

Replacing the lamp .......................................................................................... 31
Specifications ................................................................................................... 32
Compatibility Modes ........................................................................................ 33
Ceiling Mount Installation................................................................................. 34
... English
1
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s guide to maximize the life of your
unit.
Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt your eyes.
Warning- To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture.
Warning- Please do not open or disassemble the product as this
may cause electric shock.
Warning- When changing the lamp, please allow unit to cool
down, and follow all changing instructions.
Warning- This product will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
English ...
Warning- Reset the “Lamp Hour Reset” function from the On
Screen Display “Management” menu after replacing the
lamp module (refer to page 26).
Warning- When switching the projector off, please ensure the
projector completes its cooling cycle before
disconnecting power.
Warning- Turn on the projector first and then the signal sources.
Warning- Do not use lens cap when projector is in operation.
Warning- When the lamp reaches the end of its life, it will burn
out and may make a loud popping sound. If this
happens, the projector will not turn back on until the
lamp module has been replaced. To replace the lamp,
follow the procedures listed under “Replacing the
2
Lamp”.
Usage Notice
Do:
Turn off the product before cleaning.
Use a soft cloth moistened with mild detergent to clean the
display housing.
Disconnect the power plug from AC outlet if the product is not
being used for a long period of time.
Don’t:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic field.
- Place in direct sunlight.
... English
3
Introduction
Product Features
This product is an XGA single chip 0.7” DLPTM projector.
Outstanding features include:
True XGA, 1024 x 768 addressable pixels
Single chip DLPTM technology
NTSC/NTSC4.43/PAL/SECAM and HDTV compatible
(480i/p, 576i/p, 720p, 1080i)
Full function remote control with laser pointer
User friendly multilingual on screen display menu
Advanced digital keystone correction and high
quality full screen image re-scaling
User friendly control panel
SXGA+, SXGA compression and VGA, SVGA re-sizing
English ...
Mac compatible
4
Introduction
Package Overview
This projector comes with all the items shown below. Check
to make sure your unit is complete. Contact your dealer
immediately if anything is missing.
Projector with lens cap
Composite Video Cable
2.0m
S-Video Cable 1.8m
Carrying Case
Power Cord 1.8m VGA Cable 1.8m
USB Cable 1.8m
Remote Control with
Laser Pointer
User’s Guide Quick Start Card
VGA to Component/
HDTV Adapter
2 x Battery
... English
5
Introduction
Product Overview
Main Unit
6
English ...
7
1
9
1. Focus Ring
2. Zoom Ring
3. Zoom Lens
4. Elevator Button
5. Elevator Foot
6. Remote Control Receiver
7. Connection Ports
8. Power Socket
9. Control Panel
3
6
4
5
2
7
6
Control Panel
Introduction
1 2 3
6
1. Lamp Indicator LED
2. Temp Indicator LED
3. Power/Standby and Indicator LED (Power LED)
4. Source
5. Re-Sync
6. Four Directional Select Keys
7. Menu /Enter
7 4 5
... English
7
Introduction
Connection Ports
1 2 3 4
8 7
9
1. PC Analog Signal/HDTV/Component Video Input Connector
2. Monitor Loop-through Output Connector
3. USB Connector
4. RS232 Connector
5. S-Video Input Connector
6. Composite Video Input Connector
7. Audio Input Connector
8. Remote Control Receiver
9. Kensington
10. DVI-D Input Connector (for Digital singal with HDCP function)
(Optional)
TM
Lock Port
5
6
10
English ...
8
Introduction
Remote Control with Laser Pointer
2
5
8
6
7
12
13
16
1
3
4
10
11
9
14
15
1. Transmit Indicator Light
2. Power
3. Empowering Key
4. Menu
5. Four Directional Select Keys
6. Laser Button
7. Mute
8. Keystone +
9. Keystone -
10. Page Up
11. Page Down
12. Re-Sync
13. Hide
14. Source
15. Freeze
16. Laser Pointer
... English
9
Installation
Connecting the Projector
1
USB
DVIRGB
English ...
10
RS232
4 2
9
7
Video Output
1....................................................................................................................Power Cord
2.....................................................................................................................VGA Cable
3..............................................................................................Composite Video Cable
4......................................................................................................................USB Cable
5.....................................................................VGA to Component/HDTV Adapter
6............................................................................................................... S-Video Cable
7....................................................Audio Cable Jack/RCA (Optional Accessory)
8................................................................DVI to DVI Cable (Optional Accessory)
9..........................................................................RS232 Cable (Optional Accessory)
3
8
6
DVD Player,
Settop Box,
HDTV receiver
5
S-Video Output
To ensure the projector works well with your computer, please
set the display mode of your graphic card less than or equal to
1024 X 768 resolution. Make sure the timing of the display mode is
compatible with the projector. Refer to the “Compatibility Modes”
section on page 33.
Installation
Powering On/Off the Projector
Powering On the Projector
1. Remove the lens cap.
2. Ensure that the power cord and signal cable are securely
connected. The Power LED will flash green.
3. Turn on the lamp by pressing “Power/Standby” button on
the control panel.n And the Power LED will turn green.
4. Turn on your source (computer, notebook, video player ,etc.).
The projector will detect your source automatically.
If the screen displays “Searching”, please make sure the signal
cables are securely connected.
If you connect multiple sources at the same time, using the “Source”
button on the remote control or control panel to switch.
Turn on the
projector first and then
the signal sources.
1
Power/Standby
... English
11
Installation
Powering Off the Projector
1. Press the “Power/Standby” button to turn off the projector
lamp, you will see a message “Please press power button
again to complete the shutdown process. Warning: DO
NOT unplug while the projector fan is still running.”
displayed on the projector’s screen. Press the “Power/
Standby” button again to confirm, otherwise the message
will disappear after 5 seconds.
2. The cooling fans continue to operate for about 60 seconds
for cooling cycle and the Power LED will keep green.
When the Power LED begins flashing, the projector has
entered standby mode.
If you wish to turn the projector back on, you must wait
until the projector has completed the cooling cycle and has
entered standby mode. Once in standby mode, simply
press “Power/Standby” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and the
projector.
4. Do not turn on the projector immediately following a power
off procedure.
English ...

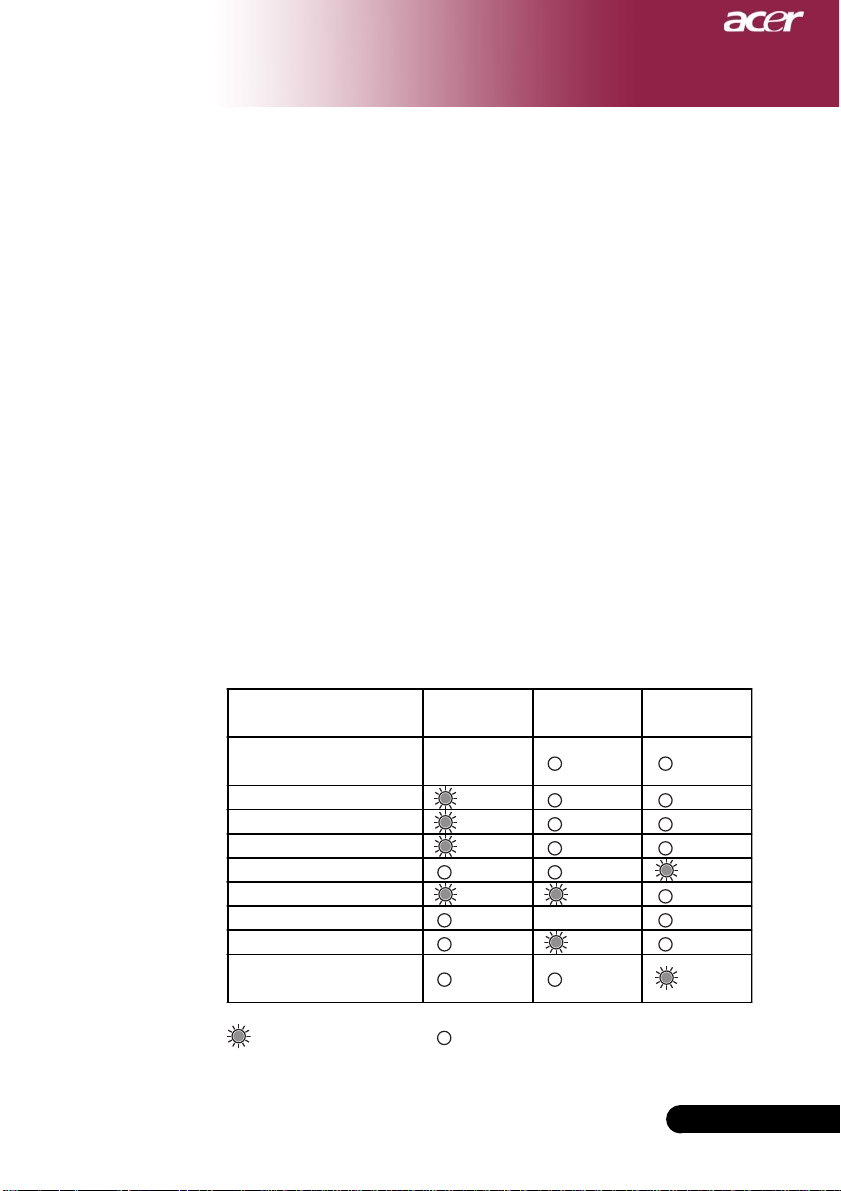

Warning Indicator
When the “LAMP” indicator lights solid red, the projector will
automatically shut itself down. Please contact your local reseller or
service center.
When the “TEMP” indicator lights solid red for about 20 seconds,
it indicates the projector has been overheated. You will see a
message “Projector Overheated. Lamp will automatically turn off
soon.” on the on-screen display. The projector will automatically
shut itself down.
Under normal conditions, the projector can be switched on again
after it has cooled down. If the problem persists, you should contact
your local dealer or our service center.
When the “TEMP” indicator flashs red for about 10 seconds, you
will see a message “Fan fail. Lamp will automatically turn off soon.
” on the on-screen display. Please contact your local dealer or our
service center.
12
Installation
Adjusting the Projected Image

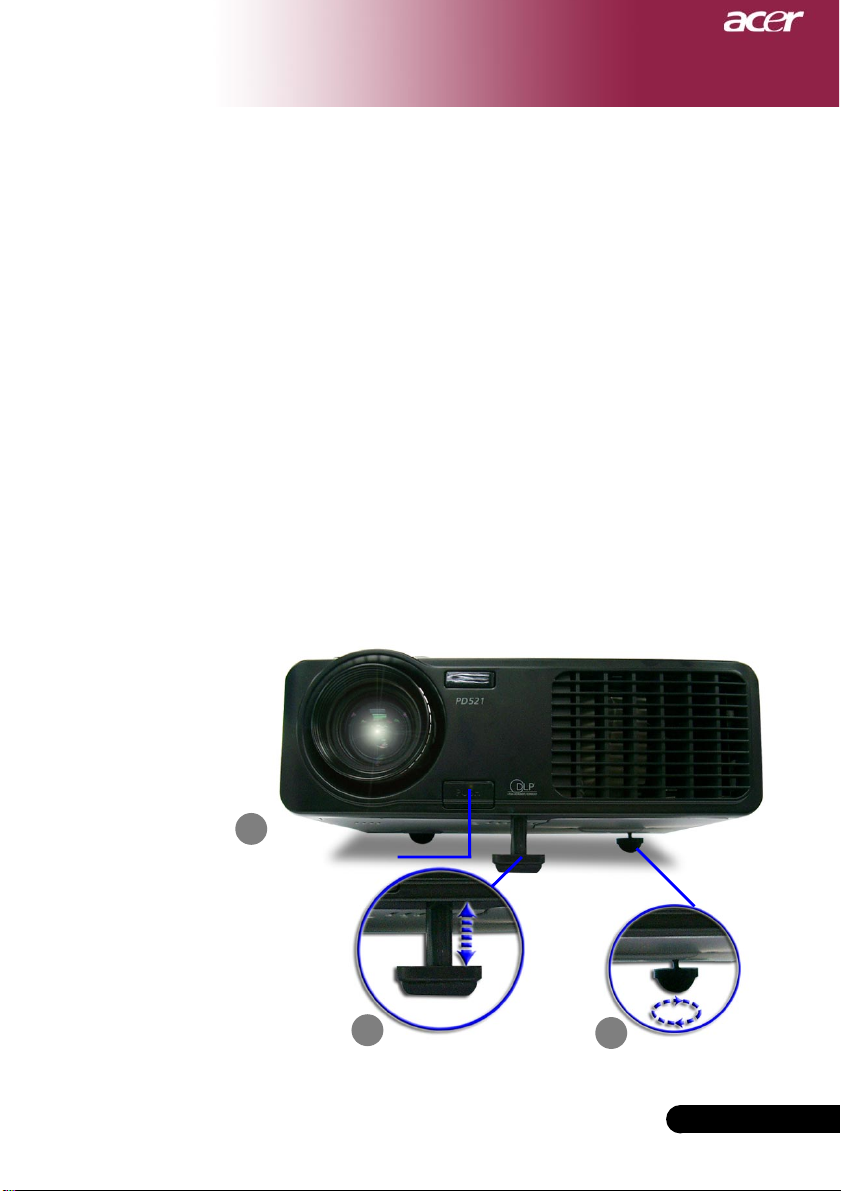

Adjusting the Projector Image Height
The projector is equipped with an elevator foot for adjusting
the image height.
To raise the image:
1. Press the elevator button n.
2. Raise the image to the desired height angle o, then release
the button to lock the elevator foot into position.
3. Use p to fine-tune the display angle.
To lower the image:
1. Press the elevator button.
2. Lower the image, then release the button to lock the elevator
foot into position.
3. Use p to fine-tune the display angle.
1
Elevator Button
2
3
Tilt Adjusting WheelElevator Foot
... English
13
Installation
Adjusting the Projector Zoom / Focus
You may turn the zoom ring to zoom in or out. To focus the image,
rotate the focus ring until the image is clear. The projector will
focus at distances from 3.9 to 32.8 feet (1.2 to 10.0 meters).
Adjusting Projection Image Size
246.1"(625.0cm)
196.9"(500.0cm)
205.1"
(520.8cm)
164.0"
(416.7cm)
172.2"(437.5cm)
123.0"(312.5cm)
143.5"
(364.6cm)
102.5"
(260.4cm)
73.8"(187.5cm)
61.5"
(156.3cm)
29.5" (75.0cm)
24.6"
(62.5cm)
Zoom Ring
Focus Ring
English ...
14
Screen
(Diagonal)
Screen
Size
Max. 29.5"(75.0cm) 73.8"(187.5cm) 123.0"(312.5cm) 172.2"(437.5cm) 196.9"(500.0cm) 246.1"(625.0cm)
Min. 24.6"(62.5cm) 61.5"(156.3cm) 102.5"(260.4cm) 143.5"(364.6cm) 164.0"(416.7cm) 205.1"(520.8cm)
Distance
Max.(WxH)
Min.(WxH)
23.60" x 17.70"
(60.0 x 45.0cm)
19.68" x 14.76"
(50.0 x 37.5cm)
3.94'(1.2m) 9.84'(3.0m) 16.40'(5.0m) 22.97'(7.0m) 26.25'(8.0m) 32.81'(10.0m)
59.04" x 44.28"
(150.0 x 112.5cm)
49.20" x 36.90"
(125.0 x 93.8cm)
98.40" x 73.80"
(250.0 x 187.5cm)
82.00" x 61.50"
(208.3 x 156.2cm)
This graph is for user’s reference only.
137.76" x 103.32"
(350.0 x 262.5cm)
114.80" x 86.10"
(291.7 x 218.8cm)
3.94'
(1.2m)
9.84'
(3.0m)
16.40'
(5.0m)
22.97'
(7.0m)
26.25'
(8.0m)
32.81'
(10.0m)
157.52" x 118.14"
(400.0 x 300.0cm)
131.20" x 98.40"
(333.4 x 250.0cm)
196.88" x 147.66"
(500.0 x 375.0cm)
164.08" x 123.06"
(416.6 x 312.5cm)
User Controls
Control Panel & Remote Control
There are two ways for you to control the functions: Remote
Control and Control Panel.
Remote ControlControl Panel
Using the Control Panel
Power/Standby
Refer to the “Power On/Off the Projector” section on pages
4
11-12.
Source
Press “Source” to choose RGB, Component-p, Component-i,
4
S-Video, Composite Video and HDTV sources.
Menu / Enter
Press “Menu/Enter” to launch the on screen display (OSD)
4
menu. To exit OSD, press “Menu” again.
Confirm your selection of items.
4
Four Directional Select Keys
Use to select items or make adjustments to
4
your selection.
... English
15
User Controls
Using the Remote Control
Power
Refer to the “Power On/Off the Projector” section on pages
4
11-12.
Empowering Key
Display the “Display Mode” submenu of the onscreen display
4
menu to select display mode from PC, Movie, sRGB and User
directly.
Menu
Press “Menu” to launch the on screen display menu. To exit
4
OSD, press “Menu” again.
Four Directional Selec t Keys
Use to select items or make adjustments to
4
your selection.
Laser Button
Aim the remote at the viewing screen, press and hold this
4
button to activate the laser pointer.
Mute
Momentarily turns off the audio.
4
Keystone + / -
Adjusts image distortion caused by tilting the projector (±16
4
degrees).
Page Up (Computer mode only)
Use this button to page up. This function is only available
4
when the projector is connected to a computer via an USB cable.
Page Down (Computer mode only)
Use this button to page down. This function is only available
4
when the projector is connected to a computer via an USB cable.
Re-Sync
Automatically synchronizes the projector to the input source.
4
Hide
Momentarily turns off the video. Press “Hide” to hide image,
4
press again to restore display of the image.
Source
Press “Source” to choose RGB, Component-p, Component-i,
4
S-Video, Composite Video and HDTV sources.
Freeze
Press “Freeze” to pause the screen image.
4
English ...
16
User Controls
On Screen Display Menus
The Projector has multilingual On Screen Display menus
that allow you to make image adjustments and change a
variety of settings. The projector will automatically detect
the source.
How to operate
1. To open the OSD menu, press “Menu” on the Remote
Control or press “Menu/Enter”on the Control Panel.
2. When OSD is displayed, use keys to select any item in the
main menu. After selecting the desired main menu item, press
to enter sub menu for feature setting.
3. Use keys to select the desired item and adjust the
settings by key.
4. Select the next item to be adjusted in the sub menu and adjust as
described above.
5. Press “Menu” on the Remote Control or press “Menu/Enter”on
the Control Panel, the screen will return to the main menu.
6. To exit OSD, press “Menu” on the Remote Control or press
“Menu/Enter”on the Control Panel again. The OSD menu will
close and the projector will automatically save the new settings.
Main Menu
Sub Menu Settings
... English
17
User Controls
Edits user preferences by OSD interface. Edited user Info will
display on lower left corner of the screen when projector is
powered ON.
Personals
(Computer / Video
Mode)
English ...
18
1.> Use the
“Enter” button. You can input the character to line one.
2.> Use the to select character, and then press
“Enter” to confirm your selection.
3.> Use the to select “Line2” function, and then press the
“Enter” button. You can input the character to line two.
4.> Procedure as Step. 3.>
5.> Use the
the “Enter” button.
6.> The startup screen will display the new wording after restart the
projector.
to select “Line1” function, and then press the
to select “Save & Exit” function and then press
Note:
Each line can input 35 characters only.
4
Use “Del” to delete the previous character.
4
Use “Space” to add a space.
4
User Controls
Language
(Computer / Video
Mode)
Language
Choose the multilingual OSD menu . Use the or key to select
your prefered language.
Press “Menu” on the Remote Control or press “Menu/Enter”on
the Control Panel to finalize the selection.
... English
19
User Controls
Display Mode
There are many factory presets optimized for various types of
images.
PC : For computer or notebook.
4
Movie : For home theater.
4
sRGB : For PC standard color.
4
User : Memorize user’s settings.
4
Brightness
Adjust the brightness of the image.
Press the to darken image.
4
Press the to lighten the image.
4
Contrast
The contrast controls the degree of difference between the lightest
and darkest parts of the picture. Adjusting the contrast changes
the amount of black and white in the image.
Press the to decrease the contrast.
4
Press the to increase the contrast.
4
Color Temp.
Adjust the color temperature. At higher temperature, the screen
looks colder; at lower temperature, the screen looks warmer.
Color R
Adjusts the red color.
Color
(Computer / Video
Mode)
English ...
20
“Saturation” and
“Tint” functions are
not supported under
computer mode or
DVI mode.
User Controls
Color
(Computer / Video
Mode)
Color G
Adjusts the green color.
Color B
Adjusts the blue color.
White Segment
Use the white Segment control to set the white peaking level of
DMD chip. 0 stands for minimal segment, and 10 stands for
maximum segment. If you prefer a stronger image, adjust towards
the maximum setting. For a smooth and more natural image,
adjust towards the minimum setting.
Degamma
Effects the represent of dark scenery. With greater gamma value,
dark scenery will look brighter.
Saturation
Adjusts a video image from black and white to fully saturated
color.
Press the to decrease the amount of color in the image.
4
Press the to increase the amount of color in the image.
4
Tint
Adjusts the color balance of red and green.
Press the to increase the amount of green in the image.
4
Press the to increase the amount of red in the image.
4
... English
21
User Controls
Keystone
Adjust image distortion caused by tilting projection. (±16 degrees)
Aspect Ratio
Use this function to choose your desired aspect ratio.
4:3 : The input source will be scaled to fit the projection screen.
4
16:9 : The input source will be scaled to fit the width of the
4
screen.
Auto : Keep the image with original width-higth ratio and
4
maximize the image to fit native horizontal or vertical pixels.
H.Position (Horizontal Position)
Press the to move the image left.
4
Press the to move the image right.
4
V. Position (Vertical Position)
Press the to move the image down.
4
Press the to move the image up.
4
Frequency
“Frequency”changes the display data frequency to match the
frequency of your computer’s graphic card. If you experience a
vertical flickering bar, use this function to make an adjustment.
Tracking
“Tracking” synchronizes the signal timing of the display with the
graphic card. If you experience an unstable or flickering image, use
this function to correct it.
(Computer Mode)
English ...
22
“Sharpness”
functions is not
supported under DVI
mode.
User Controls
(Video Mode)
Keystone
Adjust image distortion caused by tilting projection. (±16 degrees)
Aspect Ratio
Use this function to choose your desired aspect ratio.
4:3 : The input source will be scaled to fit the projection screen.
4
16:9 : The input source will be scaled to fit the width of the
4
screen.
Auto : Keep the image with original width-higth ratio and
4
maximize the image to fit nativer horizontal or vertical pixels.
Sharpness
Adjusts the sharpness of the image.
Press the to decrease the sharpness.
4
Press the to increase the sharpness.
4
... English
23
User Controls
Volume
Press the to decrease the volume.
4
Press the to increase the volume.
4
Mute
Choose the “On” to turn mute on.
4
Choose the “Off” to turn mute off.
4
Audio
(Computer / Video
Mode)
English ...
24
User Controls
Management
(Computer / Video
Mode)
ECO Mode
Choose “On” to dim the projector lamp which will lower power
consumption, extend the lamp life and reduce noise. Choose ”Off”
to return normal mode.
Menu Location
Choose the Menu location on the display screen.
Projection
4
The factory default setting.
4
When you select this function, the projector reverses the image
so you can project behind a translucent screen.
4
When you select this function, the projector turns the image
upside down for ceiling-mounted projection.
4
When you select this function, the projector reverses and turns
the image upside down at same time. You can project from
behind a translucent screen with ceiling mounted projection.
Front-Desktop
Rear-Desktop
Front-Ceiling
Rear-Ceiling
25
... English
User Controls
Source Lock
When source lock is turned off, the projector will search for other
signals if the current input signal is lost. When source lock is turned
on, it will “Lock” the current source channel before you press
“Source” button on remote control for next channel.
Lamp Hour Elapse
Displays the lamp’s elapsed operating time (in hours).
Lamp Hour Reset
Press the button after choosing “Yes ”to turn the lamp hour
counter to 0 hours.
Lamp Reminding
Choose this function to show or to hide warning message when the
changing lamp message is displayed. The message will show up 30
hours before end of life.
OSD Transparency
Adjusts the OSD’s transparency.
Reset
Press the button after choosing “Yes” to return the display
parameters on all menus to the factory default settings.
Management
(Computer / Video
Mode)
English ...
26
Appendices
Troubleshooting
If you experience trouble with the projector, refer to
the following information. If the problem persists, please
contact your local reseller or service center.
Problem: No image appears on screen.
Ensure all the cables and power connections are correctly and
4
securely connected as described in the “Installation” section.
Ensure the pins of connectors are not crooked or broken.
4
Check if the projection lamp has been securely installed. Please
4
refer to the “Replacing the lamp” section.
Make sure you have removed the lens cap and the projector is
4
switched on.
Ensure that the “Hide” feature is not enabled.
4
Problem: Partial, scrolling or incorrectly displayed image.
Press the “Re-Sync” button on the Remote Control.
4
If you use a PC:
4
If the resolution of your computer is higher than 1024 x 768.
Follow the steps outlined below to reset the resolution.
For Windows 3.x:
1. In the Windows Program Manager, click the “Windows Setup”
icon in the Main group.
2. Verify that your display resolution setting is less than or equal
to 1024 x 768.
For Windows 95,98,2000,XP:
1. Open “My Computer” icon, the “Control Panel” folder, and
then double click on the “Display” icon.
2. Select the “Setting” tab.
3. In the “Desktop Area” you will find the resolution setting.
Verify that the resolution setting is less than or equal to 1024 x
768 resolution.
If the projector is still not projecting the whole image, you will
also need to change the monitor display you are using. Refer to
the following steps.
4. Follow the above steps 1-2. Click on the “Advanced Properties”
button.
5. Select the “Change” button under the “Monitor” tab .
... English
27
Appendices
6. Click on “Show all devices”. Then select “Standard monitor
types” under the “Manufacturers” box ; choose the resolution
mode you need under the “Models” box.
7. Verify that the resolution setting of the monitor display is less
than or equal to 1024 x 768.
If you are using a Notebook PC:
4
1. You are required to implement the above steps of resolution
setting of the computer first.
2. Switch the Notebook PC display to the “external display only”
or “CRT only” mode.
If you experience difficulty in changing resolutions or your
4
monitor freezes, restart all the equipment and the projector.
Problem: The screen of the Notebook or PowerBook computer
is not displaying your presentation.
If you are using a Notebook PC:
4
Some Notebook PCs may deactivate their screens when a second
display device is in use. Refer to your computer’s documentation
for information on how to reactivate the monitor display.
If you are using an Apple PowerBook:
4
In Control Panels, open the PowerBook Display to select Video
Mirroring “On”.
English ...
28
Problem: Image is unstable or flickering
Use “Tracking” to correct it. Refer to page 22.
4
Change the monitor color setting from your computer.
4
Problem: Image has vertical flickering bar
Use “Frequency” to make an adjustment. Refer to page 22.
4
Check and reconfigure the display mode of your graphic card to
4
make it compatible with the product. Refer to page 27.
Problem: Image is out of focus
Adjusts the Focus Ring on the projector lens. Refer to page 14.
4
Make sure the projection screen is between the required distance
4
3.9 to 32.8 feet (1.2 to 10.0 meters) from the projector.
Appendices
Problem: The image is outstretched when displaying 16:9
DVD.
The projector automatically detects 16:9 DVD and adjusts the aspect
ratio by digitizing to full screen with 4:3 default setting.
If the image is still outstretched, you will also need to adjust the aspect
ratio by referring to the following:
Please select 4:3 aspect ratio type on your DVD player if you are
4
playing a 16:9 DVD.
If you can’t select 4:3 aspect ratio type on your DVD player, please
4
select 4:3 aspect ratio in the on screen menu.
Problem: Image is reversed.
Select “Management” from the OSD and adjust the projection
4
direction. See page 25.
Problem: Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
4
make a loud popping sound. If this happens, the projector will not
turn on until the lamp module has been replaced. To replacethe
lamp, follow the procedures in the “Replacing the Lamp”. See
page 31.
Problem: LED lighting message
Message
Standby State
(Input power cord)
Lamp lighting
Power on
Power off (Cooling)
Error (Lamp fail)
Error (Thermal fail)
Error (Fan lock fail) Flashing
Error (Over Temp.)
Error
(Lamp Breakdown)
=>Light On =>Light Off
Power LED
Green
Flashing
Temp LED Lamp LED
... English
29
Appendices
Problem: Message Reminders
“Lamp is approaching the end of its useful life in full power
4
operation. Replacement Suggested!” will be shown about 10
seconds when lamp life is going to deplete.
“Projector Overheated. Lamp will automatically turn off soon.” will
4
be shown when the system temperature is over heat.
“Fan fail. Lamp will automatically turn off soon.” will be shown
4
when the fan is out of order.
English ...
30
Warning: Lamp
compartment is hot!
Allow it to cool down
before changing lamp!
Appendices
Replacing the lamp
The projector will detect the lamp life itself. It will show you a
warning message “Lamp is approaching the end of its useful life
in full power operation. Replacement Suggested!” When you see
this message, changing the lamp as soon as possible.
Make sure the projector has been cooled down for at least 30
minutes before changing the lamp.
Warning: To
reduce the risk of
personal injury, do not
drop the lamp module
or touch the lamp
bulb. The bulb may
shatter and cause
injury if it is dropped.
1
2
3
4
Lamp Changing Procedure:
1. Turn the power off the projector by pressing the Power
button.
2. Allow the projector to cool down at least 30 minutes.
3. Disconnect the power cord.
4. Use a screwdriver to remove the screw from the cover.n
5. Push up and remove the cover.o
6. Remove the 2 screws from the lamp module.p
7. Pull out the lamp module. q
To replace the lamp module, reverse the previous steps.
... English
31
Appendices
Specifications
The specs specified below are subject to change without notice. Regarding the final
specs, please refer to Acer accounced marketing specs.
Light Valve - Single Chip DLP
Lamp - 200W User Replaceable Lamp
Number of Pixels - 1024 pixels(H) X 768 lines(V)
Displayable Color - 16.7M colors
Brightness - 2000 ANSI Lumens
Contrast Ratio - 2000:1 (Full On/Full Off)
Uniformity - 85%
Noise Level - 31 dB(A) (standard mode)/27 dB(A) (ECO mode)
Projection Lens - F/2.4~2.7 f=28.0~35.6mm with 1.2x Manual zoomn
lens
Projection Screen Size (Diag.) - 24.6 to 246.1 inches (0.63 to 6.25 meters) Diagonal
Projection Distance - 3.9 to 32.8 feet (1.2 to10.0 meters)
Video Compatibility - NTSC/NTSC 4.43/PAL/SECAM and HDTV
compatible
- Composite video & S-Video capability
H. Frequency - 31.5kHz~100kHz horizontal scan
V. Frequency - 56Hz~85Hz vertical refresh
Power Supply - Universal AC input 100-240V ;
Input Frequency 50/60Hz
I/O Connectors - Power: AC power input socket
- VGA Input:
One DVI-D connector for Digital signal with HDCP
(Optional)
One 15-pin D-sub for VGA, component and HDTV
signal
- VGA Output: One 15-pin D-sub for VGA output
- Video Input:
One Composite video RCA input
One S-Video input
- USB:One USB connector for remote computer control
- RS232: One RS232 connector for remote computer control
- Audio Input: One phone jack for audio input
Weight - 5.3 lbs (2.41 kgs)
Dimensions (W x H x D) - 10.9x 4.2 x 9.3 inches (277 x 107 x 237 mm)
Environmental - Operating Temperature: 41~95
Humidity: 80% maximum (Non-condensing)
- Storage Temperature: -4~140
Humidity: 80% maximum (Non-condensing)
Safety Regulation - FCC Class B, CE Class B, VCCI-II, UL, cUL,
English ...
32
TÜV-GS, C-tick, PSB, PSE, CB Report, CCC
TM
Technology by Texas Instruments
o
F (5~ 35oC)
o
F (-20~60oC)
Appendices
Compatibility Modes
Remark : “*”
compressed computer
image.
Mode Resolution
VESA V GA 640 x 350 70 31.5 70 31.5
VESA V GA 640 x 350 85 37.9 85 37.9
VESA V GA 640 x 400 85 37.9 -- --
VESA V GA 640 x 480 60 31.5 60 31.5
VESA V GA 640 x 480 72 37.9 72 37.9
VESA V GA 640 x 480 75 37.5 75 37.5
VESA V GA 640 x 480 85 43.3 85 43.3
VESA V GA 720 x 400 70 31.5 70 31.5
VESA V GA 720 x 400 85 37.9 85 37.9
SVGA 800 x 600 56 35.2 56 35.2
SVGA 800 x 600 60 37.9 60 37.9
SVGA 800 x 600 72 48.1 72 48.1
SVGA 800 x 600 75 46.9 75 46.9
SVGA 800 x 600 85 53.7 85 53.7
VESA X GA 1024 x 768 60 48.4 60 48.4
VESA X GA 1024 x 768 70 56.5 70 56.5
VESA X GA 1024 x 768 75 60.0 75 60.0
VESA X GA 1024 x 768 85 68.7 85 68.7
* VESA SXGA 1152 x 864 70 63.8
* VESA SXGA 1152 x 864 75 67.5
* VESA SXGA 1152 x 864 85 77.1
* VESA SXGA 1280 x 1024 60 63.98 60 63.98
* VESA SXGA 1280 x 1024 75 79.98
* VESA SXGA+ 1400 x 1050 60 63.98
MAC LC 13" 640 x 480 66.66 34.98
MAC II 13" 640 x 480 66.68 35
MAC 16" 832 x 624 74.55 49.725
MAC 19" 1024 x 768 75 60.24
* MAC 1152 x 870 75.06 68.68
MAC G4 64 0 x 480 60 31.35
i Mac DV 1024 x 768 75 60
* i Mac DV 1152 x 870 75 68.49
* i Mac DV 1280 x 960 75 75
V.Frequency
(Hz)
H.Frequency
(kHz)
(ANALOG)
(DIGITAL)
V.Frequency
(Hz)
- -
- -
- -
- -
- -
- -
- -
- -
- -
- -
- -
- -
- -
- -
H.Frequency
(kHz)
... English
33
Appendices
Please note that
damage resulting from
incorrect installation
will invalidate the
warranty.
Ceiling Mount Installation
1. To prevent damaging your projector, please use the ceiling
mount package for installation.
2. If you wish to use a third party ceiling mount kit, please
ensure the screws used to attached a mount to the projector
met the following specifications:
Screw type: M2.6
4
Maximum screw length: 10mm
4
Minimum screw length: 8mm
4
110.00
55.00
English ...
34
82.15
50.15
60.00
123.00
50.15
236.81
104.31
72.31
Max./Min.
602.5/402.5
49.83
Loading...
