Acer PD322 User Manual

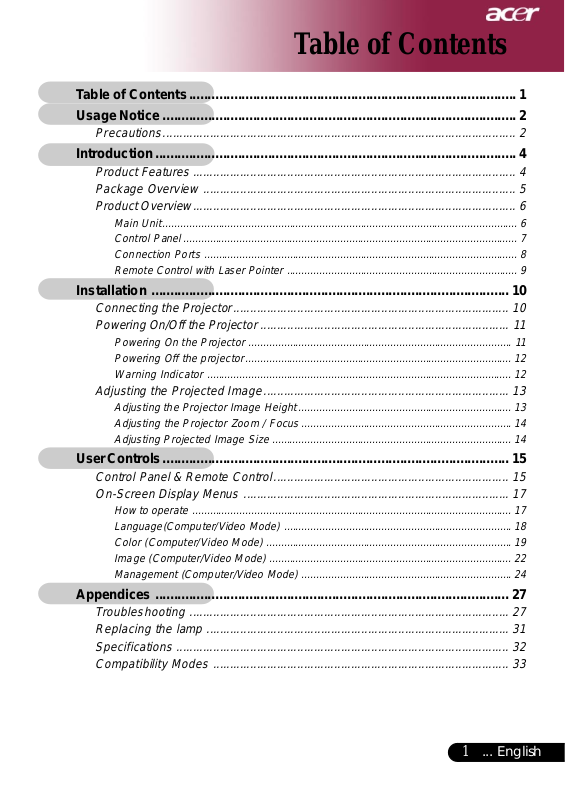

Table of Contents
T a ble of Contents....................................................................................... 1
Usage Notice..............................................................................................2
Precautions......................................................................................................... 2
Introduction................................................................................................ 4
Product Features ................................................................................................ 4
Package Overview ............................................................................................. 5
Product Overview................................................................................................ 6
Control Panel.................................................................................................................7
Connection Ports .......................................................................................................... 8
Installation ............................................................................................... 10
Connecting the Projector.................................................................................. 10
Powering On/Off the Projector .......................................................................... 11
Powering On the Projector ......................................................................................... 11
Powering Off the projector.......................................................................................... 12
Warning Indicator ....................................................................................................... 12
Adjusting the Projected Image......................................................................... 13
Adjusting the Projector Image Height ........................................................................ 13
Adjusting the Projector Zoom / Focus ....................................................................... 14
Adjusting Projected Image Size................................................................................. 14
User Controls............................................................................................ 15
Control Panel & Remote Control ...................................................................... 15
On-Screen Display Menus ............................................................................... 17
How to operate ............................................................................................................ 17
Language(Computer/Video Mode) ............................................................................. 18
Color (Computer/Video Mode) ................................................................................... 19
Image (Computer/Video Mode) .................................................................................. 22
Management (Computer/Video Mode) ....................................................................... 24
Appendices .............................................................................................. 27
Troubleshooting ............................................................................................... 27
Replacing the lamp .......................................................................................... 31
Specifications ................................................................................................... 32
Compatibility Modes ........................................................................................ 33
... English
1
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s guide to maximize the life of your unit.
Warning- Do not look into the projector’s lens when the lamp is
Warning- To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture.
Warning- Please do not open or disassemble the product as this
may cause electric shock.
Warning- When changing the lamp, please allow unit to cool
down, and follow all changing instructions.
Warning- This product will detect the life of the lamp itself.
Please be sure to change the lamp when it shows warning messages.
on. The bright light may hurt your eyes.
English ...
Warning- Reset the “Lamp Hour Reset” function from the On
Screen Display “Management” menu after replacing the lamp module (refer to page 25).
Warning- When switching the projector off, please ensure the
projector completes its cooling cycle before disconnecting power.
Warning- Turn on the projector first and then the signal sources.
Warning- Do not use lens cap when projector is in operation.
Warning- When the lamp reaches the end of its life, it will burn
out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp”.
2
Usage Notice
Do:
Turn off the product before cleaning.Use a soft cloth moistened with mild detergent to clean the
display housing.
Disconnect the power plug from AC outlet if the product is not
being used for a long period of time.
Don’t:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.Use under the following conditions:
- In extremely hot, cold or humid environments.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic field.
- Place in direct sunlight.
... English
3
Introduction
Product Features
This product is an XGA single chip 0.7” DLPTM projector. Outstanding features include:
T rue XGA, 1024 x 768 a ddressa ble pixelsSingle chi p DLPTM technology  NTSC3.58/NTSC4.43/P AL/SECAM a nd HDTV
compatible (480i/p, 576i/p, 720p, 1080i)
Full function remote control with laser pointerUser friendly multilingual on screen display menuAdvanced digital keystone correction and high
quality full screen image re-scaling
User friendly control panelSXGA+, SXGA compression and VGA, SVGA re-sizing
English ...
Mac compatible
4
Introduction
Package Overview
This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.
Projector with lens cap
Composite Video Cable
2.0m
2 x Battery
Quick Start Card
Power Cord 1.8m VGA Cable 1.8m
USB Cable 1.8m
VGA to Component/HDTV
Adapter
Carrying Case
S-Video Cable 1.8m
Remote Control with
Laser Pointer
User’s Guide
... English
5
Introduction
Product Overview
Main Unit
6
4
English ...
1
9
1. Focus Ring
2. Zoom Ring
3. Zoom Lens
4. Elevator Button
5. Elevator Foot
6. Remote Control Receiver
7. Connection Ports
8. Power Socket
9. Control Panel
3
5
2
6
8
7
6
Introduction
Control Panel
2
1
6
1. Temp Indicator LED
2. Lamp Indicator LED
3. Power/Standby and Indicator LED (Power LED)
4. Source
5. Re-Sync
6. Four Directional Select Keys
7. Menu /Enter
3
7
4
5
... English
7
Introduction
Connection Ports
1
2
3
4
6
1. PC Analog Signal/HDTV/Component Video Input Connector
2. Composite Video Input Connector
3. S-Video Input Connector
4. USB Connector
5. Remote Control Receiver
6. Kensington
TM
Lock Port
5
English ...
8
Introduction
Remote Control with Laser Pointer
2
5 8
6
7
12
13
16
1
3
4
10 11
9
14 15
1. Transmit Indicator Light
2. Power
3. Empowering Key
4. Menu
5. Four Directional Select Keys
6. Laser Button
7. Zoom
8. Keystone +
9. Keystone -
10. Page Up
11. Page Down
12. Re-Sync
13. Hide
14. Source
15. Freeze
16. Laser Pointer
... English
9
Installation
Connecting the Projector
USB
4
6
S-Video Output
1..................................................................................................................... Power Cord
2....................................................................................................................... VGA Cable
3.................................................................................................. Composite Video Cable
4........................................................................................................................ USB Cable
5........................................................................... VGA to Component/HDTV Adapter
6.................................................................................................................. S-Video Cable
3
RGB
2 1
DVD Player,
Settop Box,
HDTV receiver
5
Video Output
English ...
To ensure the projector works well with your computer, please set the
display mode of your graphic card less than or equal to 1024 X 768 resolution. Make sure the timing of the display mode is compatible with the
projector. Refer to the “Compatibility Modes” section on page 33.
10
